B&B Electronics EKI-6311GN-EU User Manual
EKI-6311GN
IEEE 802.11 b/g/n Wireless
Access Point/Client Bridge
User Manual
Copyright
The documentation and the software included with this product are copyrighted 2010 by
Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make
improvements in the products described in this manual at any time without notice. No part of
this manual may be reproduced, copied, translated or transmitted in any form or by any
means without the prior written permission of Advantech Co., Ltd. Information provided in this
manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no
responsibility for its use, nor for any infringements of the rights of third parties, which may
result from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
EKI-6311GN-User_Manual V1.0. d oc ii
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its products will be free from
defects in materials and workmanship for two years from the date of purchase.
This warranty does not apply to any products which have been repaired or altered by persons
other than repair personnel authorized by Advantech, or which have been subject to misuse,
abuse, accident or improper installation. Advantech assumes no liability under the terms of
this warranty as a consequence of such events.
Because of Advantech′s high quality-control standards and rigorous testing, most of our
customers never need to use our repair service. If an Advantech product is defective, it will be
repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you
will be billed according to the cost of replacement materials, service time and freight. Please
consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For example, CPU speed,
Advantech products used other hardware and software used, etc.) Note anything
abnormal and list any onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any
helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandize
authorization) number from your dealer. This allows us to process your return more
quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order
Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable
container. A product returned without proof of the purchase date is not eligible for
warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your
dealer.
iii
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. To avoid the possibility of exceeding radio frequency exposure limits, you shall
beep a distance of at least 100cm between you and the antenna of the installed equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
EKI-6311GN-User_Manual V1.0. d oc iv
Technical Support and Assistance
Step 1. Visit the Advantech web site at www.advantech.com/support where you can find
the latest information about the product.
Step 2. Contact your distributor, sales representative, or Advantech’s customer service
center for technical support if you need additional assistance. Please have the
following information ready before you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software,
etc.)
- A complete description of the problem
- The exact wording of any error messages
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User's Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not
use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to
the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient over voltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by
qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the user's
manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE
TEMPERATURE MAY GO BELOW -40℃ (-40℉) OR ABOVE 85℃ (185 ℉). THIS
COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A
CONTROLLED ENVIRONMENT.
v
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from damage.
1. To avoid electrical shock, always disconnect the power from your PC chassis before you
work on it. Don't touch any components on the CPU card or other cards while the PC is
on.
2. Disconnect power before making any configuration changes. The sudden rush of power
as you connect a jumper or install a card may damage sensitive electronic components.
EKI-6311GN-User_Manual V1.0. d oc vi
Contents
CHAPTER1 OVERVIEW................................................................................................................3
1.1 INTRODUCTION.............................................................................................................................3
1.2 FEATURES....................................................................................................................................3
1.3 SPECIFICATION..............................................................................................................................4
1.4 PACKINGLIST................................................................................................................................5
1.5 SAFETYPRECAUTION...................................................................................................................... 6
CHAPTER2 INSTALLATION...........................................................................................................8
2.1 PREPARATIONBEFOREINSTALLATION.................................................................................................8
2.2 INSTALLATIONPRECAUTIONS...........................................................................................................9
2.3 HARDWAREINSTALLATION..............................................................................................................9
2.4 POLEMOUNTING........................................................................................................................12
CHAPTER3 BASICSETTINGS......................................................................................................16
3.1 FACTORYDEFAULTSETTINGS.........................................................................................................16
3.2 SYSTEMREQUIREMENTS...............................................................................................................16
3.3 HOWTOLOGINTHEWEB‐BASEDINTERFACE.....................................................................................17
3.4 BASICSYSTEMSETTINGS...............................................................................................................18
3.5 RADIUSSETTINGS......................................................................................................................20
3.6 TIMESETTINGS...........................................................................................................................21
3.7 FIREWALLSETTINGS.....................................................................................................................22
3.8 BASICWIRELESSSETTINGS............................................................................................................25

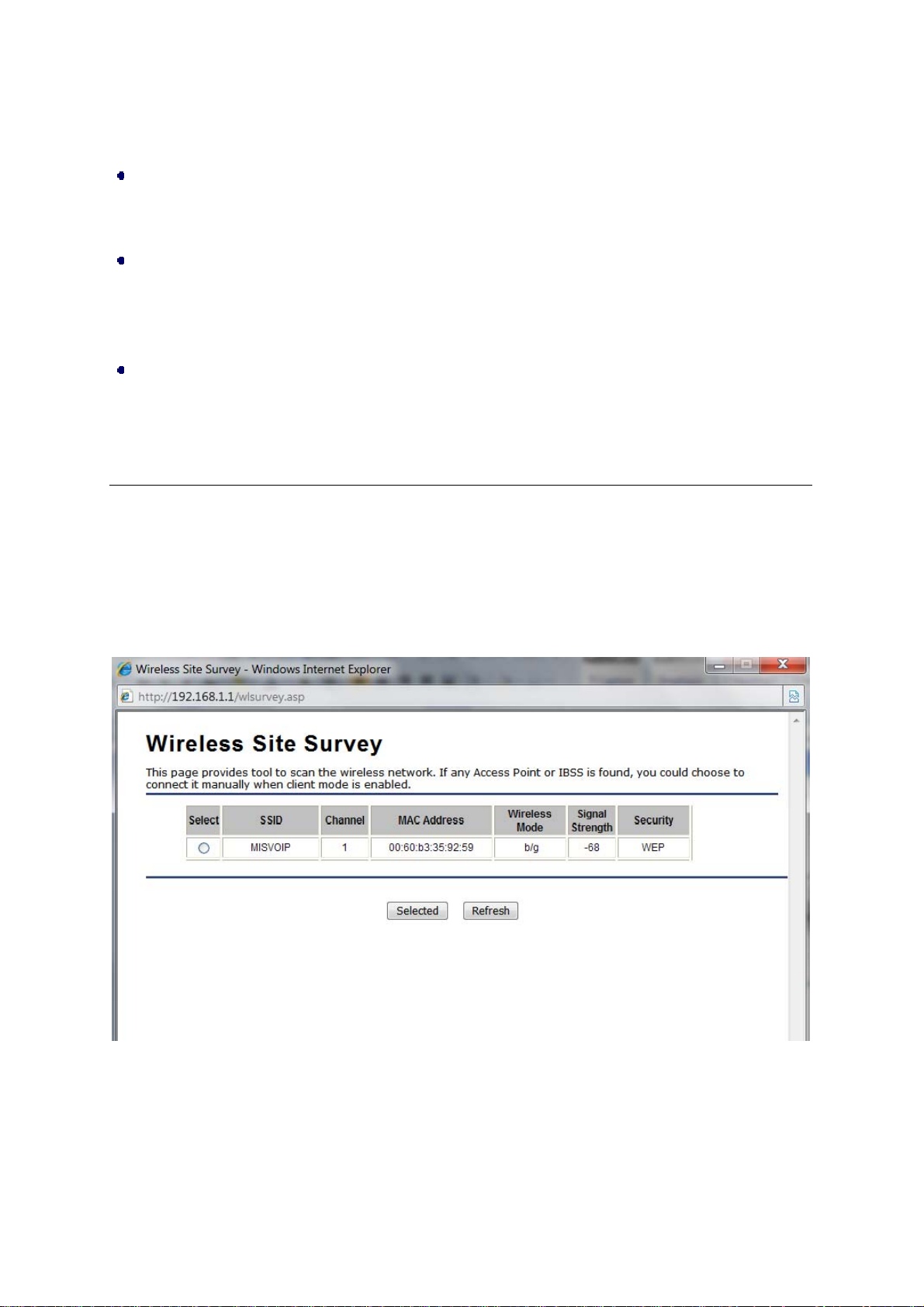

3.9 SITESURVEY...............................................................................................................................27
CHAPTER4 ADVANCEDSETTINGS..............................................................................................29
4.1 ADVANCEDWIRELESSSETTINGS.....................................................................................................29
4.2 WIRELESSSECURITYSETTINGS........................................................................................................31
4.3 ACCESSCONTROL........................................................................................................................32
4.4 WDSSETTINGS...........................................................................................................................33
CHAPTER5 MANAGEMENT.......................................................................................................35
5.1 SNMPMANAGEMENT.................................................................................................................35
5.2 PASSWORD.................................................................................................................................37
5.3 BACKUP/RETRIEVESETTINGS........................................................................................................39
5.4 RESTOREFACTORYDEFAULTSETTINGS............................................................................................40
5.5 REBOOT............................................................................................................................... ......40
5.6 SYSTEMLOG...............................................................................................................................41
5.7 SITESURVEY...............................................................................................................................41
5.8 PINGWATCHDOG......................................................................................................................42
CHAPTER6 STATUS...................................................................................................................44
6.1 VIEWEKI‐6311GNBASICINFORMATION........................................................................................44
6.2 VIEWASSOCIATIONLIST...............................................................................................................44
6.3 VIEWNETWORKFLOWSTATISTICS..................................................................................................46
6.4 VIEWBRIDGETABLE....................................................................................................................46
6.5 VIEWARPTABLE........................................................................................................................47
6.6 VIEWACTIVEDHCPCLIENTTABLE.................................................................................................47
CHAPTER7 TROUBLESHOOTING...............................................................................................49
1
Overview
CHAPTER
2
Chapter 1 Overview
1.1 Introduction
EKI-6311GN is a feature rich wireless AP/ CPE which provides a reliable wireless
connectivity for industrial environments. The PoE injector enhances flexibility in
deployment of this AP/ CPE even where the DC power supply is hard to fulfill. As an
802.11n compliant device, EKI-6311GN provides 3 times higher data rates than legacy
802.11g devices. With the support of STP, WMM and IGMP snooping protocols, EKI6311GN effectively improves the reliability of wireless connectivity, especially in
applications that need high reliability and high throughput data transmission. To secure
wireless connections, EKI-6311GN encrypts data through 64/128/152-bit WEP data
encryption and also supports WPA2/WPA/802.1x for powerful security authentication.
1.2 Features
z Compliant with IEEE 802.11b/g and IEEE 802.11n draft 2.0
z Support Power-through-Ethernet which is supplied with 12V.
z High reliable water-tight housing endures almost any harsh environments
z Four operating modes including AP, Wireless Client, WDS and AP Repeater
z Support 64/128/152-bit WEP and 802.1X, WPA, WPA2, WPA&WPA2,WPA-PSK, WPA2-
PSK, and WPA-PSK&WPA2-PSK etc
z User-friendly Web and SNMP-based management interface
z Embedded 8dBi directional antenna with external N-type connector for optional antenna
z High output power 600mW
z Support distances up to 5Km
z Spanning Tree and IGMP snooping protocol support
Figure 1 EKI-6311GN
3
1.3 Specification
Standard Support
z Wireless IEEE802.11b/g/n (IEEE802.11n draft v 2,0)
z Ethernet IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
z LAN IEEE802.11b/g wireless LAN interface
IEEE 802.11n draft wireless LAN standard
Passive 12V PoE, max. distance: 50 meters
z Certifications
US FCC Part 15 Class B & C & E
Europe ETSI 300 328, ETSI 301 489-1&17
EN 60950 compliant and CE Mark
z Data Rates
802.11b 11, 5.5, 2, 1 Mbps, auto-fallback `
802.11a/g 54, 48, 36, 24, 18, 12, 9, 6 Mbps, auto-fallback
802.11n:
6M, 6.5M, 13M, 13.5M, 19.5M, 26M, 27M, 39M,40.5M, 53M, 54M, 58.5M, 65M, 78M,
81M, 104M,108M, 117M, 121.5M, 130M, 135Mbps
Physical Specifications
z Power DC 12Volt / 1.0A; AC Adapter 100V~240V
z Dimensions (L x W x H) 228 x 64 x 61 mm
z Weight 500g
Interface Operation Modes
z Access Point (AP)
z Customer Premise Equipment (CPE)
Antenna
z Antenna Configuration 1x1 ( 1 Tx, 1 Rx)
z Default embedded 8dBi directional antenna (Vertical-Polarity)
z Reserve N-type Connector (Plug) *Switchable by software
z Equipped N-to-RSMA adaptor and 5dBi dipole antenna for indoor AP application.
Other Features
z Telnet, FTP, SNMP, Password Changes, Firmware updates, Configuration Files
z Radio on/off, WMM/Regatta Mode, Output Power Control, Fragmentation Length, Beacon
Interval
z RTS/CTS threshold, DTIM Interval
Modulation Techniques
z 802.11b DSSS (DBPSK, DQPSK, CCK)
z 802.11g OFDM, DSSS (BPSK, QPSK, 16-QAM, 64-QAM)
z 802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Channel Support
z 802.11b/g/ gn HT20
o FCC: CH1 ~ CH11; ETSI: CH1 ~ CH13
z 802.11gn HT40
o FCC: CH3 ~ CH9; ETSI: CH3 ~ CH11
4
Wireless Transmission Rates
z Transmitted Power
o 802.11b: 26dBm802.
o 11g: 26dBm @ 6Mbps, 24dBm @ 54Mbps802.
o 11gn HT20: 26dBm @ MCS0, 22dBm@ MCS7802.
o 11gn HT40: 26dBm @ MCS0, 21dBm@ MCS7
Receiver Sensitivity
z 802.11b Sensitivity -93dBm @ 1Mbps; -88dBm @ 11Mbps
z 802.11g Sensitivity -89dBm @ 6Mbps; -73dBm @ 54Mbps
z 802.11n HT20 -88dBm @ MCS0; -70dBm @ MCS7
z 802.11n HT40 -84dBm @ MCS0; -67dBm @ MCS7
1.4 Packing List
The product package you have received should contain the following items. If any of them are
not included or damaged, please contact your local vendor for support.
EKI-6311GN ×1
Pole Mounting Ring ×1
Power Cord & PoE Injector ×1
Start up manual ×1
User’s manual CD ×1
N-to-RSMA adaptor ×1
RSMA Omni antenna ×1
Pole Mounting Ring
Power Cord & PoE Injector
5
Start up manual & User’s manual
CD
Figure 2 Accessories
Warning:
Users MUST use the “Power cord & PoE Injector” shipped in the box with the
EKI-6311GN. Use of other options will cause damage to the EKI-6311GN.
N-to-RSMA adaptor
RSMA Omni Antenna
1.5 Safety Precaution
Attention IF DC voltage is supplied by other power injector, please check the voltage
and use a protection device on the power supply input.
6
Installation
CHAPTER
7
Chapter 2 Installation
This chapter describes safety precautions and product information you have to know and check
before installing EKI-6311GN.
2.1 Preparation before Installation
Professional Installation Required
Please seek assistance from a professional installer who is well trained in the RF installation and
knowledgeable in the local regulations.
Safety Precautions
1. To keep you safe and install the hardware properly, please read and follow these safety
precautions.
2. If you are installing EKI-6311GN for the first time, for your safety as well as others’, please seek
assistance from a professional installer who has received safety training on the hazards
involved.
3. Keep safety as well as performance in mind when selecting your installation site, especially
where there are electric power and phone lines.
4. When installing EKI-6311GN, please note the following things:
♦ Do not use a metal ladder;
♦ Do not work on a wet or windy day;
♦ Wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
5. When the system is operational, avoid standing directly in front of it. Strong RF fields are
present when the transmitter is on.
8
2.2 Installation Precautions
To keep the EKI-6311GN well while you are installing it, please read and follow these installation
precautions.
1. Users MUST use a proper and well-installed surge arrestor with the EKI-6311GN; otherwise, a
random lightening could easily cause fatal damage to EKI-6311GN.
EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRNTY.
2. Users MUST use the “Power cord & PoE Injector” shipped in the box with the EKI-6311GN.
Use of other options will cause damage to the EKI-6311GN.
3. Users MUST power off the EKI-6311GN first before connecting the external antenna to it. Do
not switch from built-in antenna to the external antenna from WEB management without
physically attaching the external antenna onto the EKI-6311GN; otherwise, damage might be
caused to the EKI-6311GN itself.
2.3 Hardware Installation
Connect up
1. The bottom of the EKI-6311GN is a movable cover. Grab the cover and pull it back harder to
take it out as the figure shown below.
Figure 2 Move the Cover
2. Plug a standard Ethernet cable into the RJ45 port.
9
Figure 3 Cable Connection
3. Slide the cover back to seal the bottom of the EKI-6311GN.
Figure 4 Seal the Bottom
4. Plug the power cord into the DC port of the PoE injector as the following right picture shows.
Figure 5 Connect to PoE Injector
5. Plug the other side of the Ethernet cable as shown in Step 3 into the PoE port of the PoE
injector and get the complete set ready.
10
Figure 6 Complete Set
11
