B&B Electronics EIR-EXTEND User Manual

User Manual

EIR-EXTEND Series

EIRP-EXTEND PoE Series

Hardened Ethernet Extender

EIR-EXTEND and EIRP-EXTEND Series

Documentation Number: EIR-EIRP-EXTENDseries-4612m

International Headquarters:

707 Dayton Road

Ottawa, IL 61350 USA

Phone [phone]

Website: www.bb-elec.com

Sales e-mail: [e-mail]

Technical Support: [e-mail]

European Headquarters

B&B Electronics

Westlink Commercial Park

Oranmore, Co. Galway, Ireland

Phone [phone]

Website: www.bb-europe.com

Sales e-mail: [e-mail]

Technical Support: [e-mail]

Original – March 2011

©2011 No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any
information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on
the part.
B&B Electronics Manufacturing shall not be liable for incidental or consequential damages resulting from the furnishing, performance, or use of this manual. All brand
names used in this manual are the registered trademarks of their respective owners. The use of trademarks or other designations in this publication is for reference
purposes only and does not constitute an endorsement by the trademark holder.

Table of Contents

PREFACE ............................................................................................................................... 1

INTRODUCTION ..................................................................................................................... 1

Product Overview ................................................................................................................................................................... 1

Product Features .................................................................................................................................................................... 1

Packing List ............................................................................................................................................................................ 2

ONE-CHANNEL HARDENED ETHERNET EXTENDER ........................................................ 2

Ports ......................................................................................................................................................................................... 2

Ethernet Extender Mode Settings ......................................................................................................................................... 2

DIP switch ............................................................................................................................................................................... 2

Front Panel & LEDs............................................................................................................................................................... 2

LED Indicators ..................................................................................................................................................................... 2

10/100Base-TX and Ethernet Extender Connectors ............................................................................................................. 3

INSTALLATION ................................................................................................ ...................... 3

Selecting a Site for the Equipment ........................................................................................................................................ 3

Wiring Diagram ...................................................................................................................................................................... 4

DIN Rail Mounting ................................................................................................................................................................. 4

Connecting to Power .............................................................................................................................................................. 5

Redundant DC Terminal Block Power Inputs ...................................................................................................................... 5

48VDC DC Jack ................................................................................................................................................................... 5

SPECIFICATIONS .................................................................................................................. 6

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m i

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Preface

This manual describes how to install and use the Hardened Ethernet Extender. The Hardened Ethernet Extender introduced here provides
one channel for Ethernet over existing voice grade copper wire.

The Hardened Ethernet Extender fully complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX/FX standards.
In this manual, you will find:

 Product overview
 Features on the Hardened Ethernet Extender
 Illustrative LED functions
 Installation instructions
 Specifications

Introduction

The Hardened Ethernet Extender provides one channel for Ethernet over existing voice grade copper wire. This Hardened Ethernet
Extender solution is perfectly fitted in the industrial applications or rugged environment.

Product Overview

Product Features

 Meets NEMA TS1/TS2 Environmental requirements: temperature, shock, and vibration for traffic control equipment.
 Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.
 Operates transparent to higher layer protocols such as TCP/IP.
 Ethernet port: Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex; Auto MDI/MDIX.
 Complies with IEEE802.3at standard for high power input required device and also compatible with IEEE802.3af powered devices

(Only available for Hardened IEEE802.3at PoE PSE Ethernet Extender version).

 Ethernet Extender port (RJ-11 & Terminal Block): Symmetrical on the VDSL, full-duplex 50Mbps communications link over existing

copper telephone line.

 One DIP switch for configuring Local (Loc) and Remote (Rmt).
 Ten speeds with speed indicator LEDs on front panel of unit, up to 50Mbps @ about 300 meters (984 ft.), down to 1Mbps @ about

1,900 meters (6,232 ft.).

 4-port 10/100Base-TX (2-port IEEE802.3at PoE PSE) Ethernet Extender: 2.88A @ 24VDC, 1.44A @ 48VDC. Power consumption:

69.12W Max.

 2-port IEEE802.3at PoE PSE Ethernet Extender: 2.88A @ 24VDC, 1.44A @ 48VDC. Power consumption: 69.12W Max.
 1-port IEEE802.3at PoE PSE Ethernet Extender: 1.6A @ 24VDC, 0.8A @ 48VDC. Power consumption: 38.4W Max.
 4-port 10/100Base-TX Ethernet Extender: 0.36A @ 24VDC, 0.18A @ 48VDC. Power consumption: 8.64W Max.
 Power Supply: Redundant 24-48VDC Terminal Block power inputs and 48VDC DC JACK with 100-240VAC external power supply.
 Field Wiring Terminal Markings: Use Copper Conductors Only, 60/75℃, wire range 12-24 AWG, torque value 7 lb-in.
 Operating temperature range @ -40℃ to 75℃ (-40℉ to 167℉). Tested for functional operation @ -40℃ to 85℃ (-40℉ to 185℉).

UL508 Industrial Control Equipment certified Maximum Surrounding Air Temperature @ 75℃ (167℉).

 For use in Pollution Degree 2 Environment.
 Supports Din-Rail, Panel, and Rack Mounting installation.

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 1

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Packing List

Loc

Rmt

The device operates in local mode

The device operates in remote mode

LEDs

State

Indication

Power1
Power2
Power3

Steady

Power on

Off

Power off

Ethernet

PoE
Steady

Powered Device (PD) is connected

Off

Powered Device (PD) is disconnected

Link/ACT

(Green)

Steady

Valid network connection established

Flashing

Transmitting or receiving data
ACT stands for ACTIVITY

Off

Neither valid network connection established
nor transmitting/receiving data

Speed

(Yellow)

Steady

Valid port connection at 100Mbps

Off

Valid port connection at 10Mbps

Ethernet Extender

Remote

Steady

The device operates in remote mode

Local

Steady

The device operates in local mode

Error

Steady

Error occurred

Link

Steady

A valid connection established

Ethernet Extender

Speed

Distance

1Mbps

1,900 M (6,232 ft.)

3Mbps

1,800 M (5,904 ft.)

5Mbps

1,600 M (5,249 ft.)

10Mbps

1,400 M (4,593 ft.)

15Mbps

1,200 M (3,936 ft.)

20Mbps

1,000 M (3,280 ft.)

25Mbps

800 M (2,624 ft.)

30Mbps

700 M (2,296 ft.)

40Mbps

600 M (1,968 ft.)

50Mbps

300 M (984 ft.)

When you unpack this product package, you will find the items listed below. Please inspect the contents, and report any apparent damage
or missing items immediately to our authorized reseller.

 The Hardened Ethernet Extender
 CD with user’s Manual
 Quick Start Guide
 AC to DC Power Adaptor and Power Cable (optional)

One-Channel Hardened Ethernet Extender

Ports

The Hardened Ethernet Extender provides TX ports and one Ethernet Extender port. For the TX ports, it uses RJ-45 connector and auto
senses the speed of 10/100Mbps.For the Ethernet Extender port, it uses RJ-11 and Terminal Block connectors and auto senses the speed
of 1/3/5/10/15/20/25/30/40/50Mbps.

Ethernet Extender Mode Settings

Ethernet Extender mode settings are made very simple by means of a DIP (Dual Inline Package) switch on the top panel of the Hardened
Ethernet Extender.

DIP switch

There is one pin on the DIP switch for Ethernet Extender mode settings. Refer to the table below for more details.

Front Panel & LEDs

LED Indicators

The LED indicators give you instant feedback on status of the Hardened Ethernet Extender:

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 2

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

10/100Base-TX Connection

The following lists the pinouts of
10/100Base-TX RJ-45 port.

Pin

Regular Ports

Uplink ports

1

Output Transmit Data +

Input Receive Data +

2

Output Transmit Data -

Input Receive Data -

3

Input Receive Data +

Output Transmit Data +

4

Positive (VCC+)

Positive (VCC+)

5

Positive (VCC+)

Positive (VCC+)

6

Input Receive Data -

Output Transmit Data -

7

Negative (VCC-)

Negative (VCC)

8

Negative (VCC-)

Negative (VCC)

Ethernet Extender Connection

The RJ-11 and Terminal Block port
pinouts
Pin 3: Tip, Pin 4: Ring.

Use a telephone line to connect two RJ-11
or Terminal Block ports between two
Hardened Ethernet Extenders.

Tip Ring

Note: CROSSOVER CONNECTION REQUIRED.
When wiring 2 Extender ports together connect Tip
to Ring and Ring to Tip.

10/100Base-TX and Ethernet Extender Connectors

 Pin 4, 5 Positive (VCC+) and Pin 7, 8 Negative (VCC-) are only available for Hardened IEEE802.3at PoE PSE Ethernet Extender

version.

Warning: Impropriate operation might cause the damage of Terminal Block.

Installation

This chapter gives step-by-step installation instructions for the Hardened Ethernet Extender.

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the site you select should meet the following requirements:

 The Surrounding Air temperature should be between -40 to 75 degrees Celsius.
 The relative humidity should be less than 95 percent, non-condensing.
 Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards.
 Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes of the equipment.
 The power outlet should be within 1.8 meters of the product.

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 3

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Wiring Diagram

Field Wiring Terminal Markings: Use Copper Conductors Only, 60/75℃, wire range 12-24 AWG, torque value 7 lb-in.

DIN Rail Mounting

 Fix the DIN rail attachment plate to the back panel of the Hardened Ethernet Extender.
 Installation: Place the Hardened Ethernet Extender on the DIN rail from above using the slot. Push the front of the Hardened Ethernet

Extender toward the mounting surface until it audibly snaps into place.

 Removal: Pull out the lower edge and then remove the Hardened Ethernet Extender from the DIN rail.

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 4

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

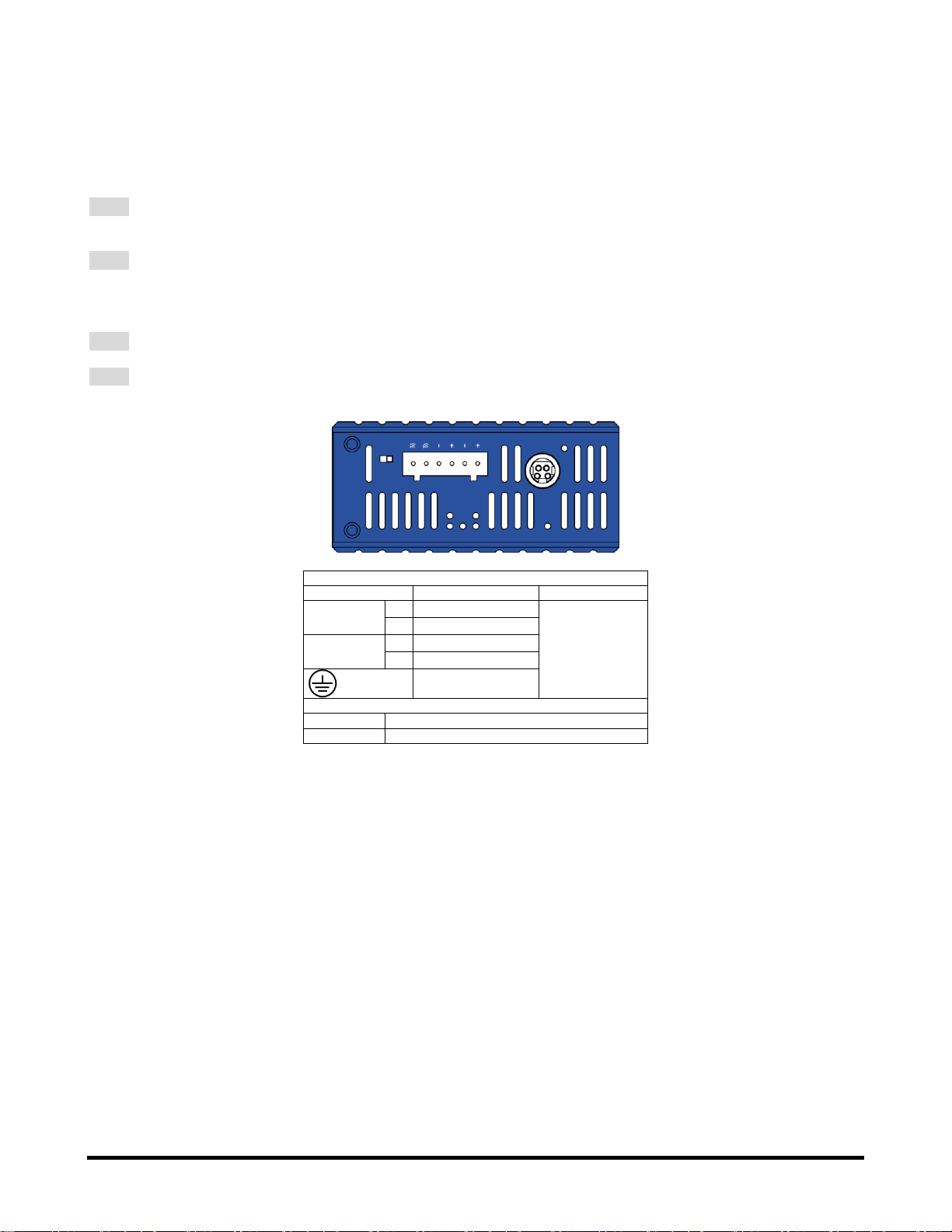

Connecting to Power

Power Input Assignment

Power1

48VDC

DC Jack

Power2
＋

24-48VDC

Terminal Block

－

Power Ground

Power3
＋

24-48VDC

－

Power Ground

Earth Ground
DIP Switch Assignment

Loc

The device operates in local mode

Rmt

The device operates in remote mode

Redundant DC Terminal Block Power Inputs or 48VDC DC Jack:

Redundant DC Terminal Block Power Inputs

There are two pairs of power inputs can be used to power up this device. You only need to have one power input connected to run the
Hardened Ethernet Extender.

Step 1: Connect the DC power cord to the plug-able terminal block on the Hardened Ethernet Extender, and then plug it
into a standard DC outlet.

Step 2: Disconnect the power cord if you want to shut down the Hardened Ethernet Extender.

48VDC DC Jack

Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the Hardened Ethernet Extender.

Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a standard AC outlet with the
appropriate AC voltage.

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Specifications

Applicable Standards

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX,
Ethernet over VDSL, IEEE802.3at

Fixed Ports

10/100Mbps Ethernet ports with RJ-45 connectors
1 x Ethernet Extender port with RJ-11 and Terminal Block connectors

Speed
10Base-T
100Base-TX
Ethernet Extender

10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex

1, 3, 5, 10, 15, 20, 25, 30, 40, 50Mbps

Switching Method

Store-and-Forward

Forwarding rate

14,880/148,810pps for 10/100Mbps

Cable

10Base-T
100Base-TX
Ethernet Extender

4-pair UTP/STP Cat. 3, 4, 5 up to 100m
4-pair UTP/STP Cat. 5 up to 100m
Telephone wires

LED Indicators

Per Unit (3 LEDs)- Power1, Power2, Power3

Per Port-

RJ-45 (2 or 3 LEDs): Link/ACT (Green), Speed (Yellow), PoE (Only available for Hardened IEEE802.3at
PoE PSE Ethernet Extender version)
RJ-11, Terminal Block (14 LEDs): Remote, Local, Error, Link, 1Mbps, 3Mbps, 5Mbps, 10Mbps, 15Mbps,
20Mbps, 25Mbps, 30Mbps, 40Mbps, 50Mbps

Dimensions

50mm (W) × 110mm (D) x 135mm (H)

(1.97” (W) x 4.33” (D) x 5.31” (H))

Weight

0.8Kg (1.76lbs.)

Power

Terminal Block: 24-48VDC
DC Jack: 48VDC, External AC/DC required

Operating Voltage
Max. Current Consumption

Power Consumption

4 x 10/100Base-TX (2 x IEEE802.3at PoE PSE)

2.88A @ 24VDC, 1.44A @ 48VDC, 69.12W Max.

2 x IEEE802.3at PoE PSE

2.88A @ 24VDC, 1.44A @ 48VDC, 69.12W Max.

1 x IEEE802.3at PoE PSE

1.6A @ 24VDC, 0.8A @ 48VDC, 38.4W Max.

4 x 10/100Base-TX

0.36A @ 24VDC, 0.18A @ 48VDC, 8.64W Max.

Operating Temperature

-40°C ~ 75°C (-40℉ ~ 167℉)
Tested for functional operation @

-40°C ~ 85°C (-40℉ ~ 185℉)

UL508 Industrial Control Equipment certified Maximum Surrounding Air Temperature @ 75℃ (167℉)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Humidity

5 ~ 95%, non-condensing

Safety

UL508

EMI

FCC Part 15, Class A

EN61000-6-4: EN55022, EN61000-3-2, EN61000-3-3

EMS

EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)

Environmental Test
Compliance

IEC60068-2-6 Fc (Vibration Resistance)
IEC60068-2-27 Ea (Shock)

IEC60068-2-32 Ed (Free Fall)

NEMA TS1/2 Environmental requirements for traffic control equipment

Manual Documentation Number: EIR/EIRP-EXTENDseries-4612m 6

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com
