B&B Electronics EIR608-xSFP User Manual

Product Description
Model EIR608-xSFP
707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA
Phone (815) 433-5100 -- General Fax (815) 433-5105
Phone (815) 433-5100 -- General Fax (815) 433-5105
Website: www.bb-elec.com
Sales e-mail: orders@bb-elec.com -- Fax (815) 433-5109
Technical Support e-mail: support@bb.elec.com -- Fax (815) 433-5104
European Headquart ers
B&B Electronics
Westlink Commercial Park -- Oranmore, Co. Galway, Ireland
Phone +353 91-792444 -- Fax +353 91-792445
Website: www.bb-europe.com
Sales e-mail: sales@bb-europe.com
Technical Support e-mail: support@bb-europe.com
© 2008 B&B Electronics Mfg. Co. Inc. - Revised February 2008
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Eight Port Managed Industrial
Ethernet Switches
User Manual
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
FCC
This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does ca use har mful inte rference to rad io or tele vision recep tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Manual Documentation Number: EIR608-xSFP_0708M Table of Contents vii
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Content
Overview ..................................................................... 1
Introduction ............................................................... 1
Features ................................................................... 2
Packing List .............................................................. 4
Hardware Description ................................................ 5
Dimensions (W x D x H) ........................................... 5
Front Panel ............................................................... 5
Top View .................................................................. 6
Wiring the Power Inputs ........................................... 6
LED Indicators .......................................................... 7
Ports ......................................................................... 8
Cabling ..................................................................... 9
Mounting Installation ............................................... 13
DIN-Rail Mounting .................................................. 13
Panel Mounting ...................................................... 14
Hardware Installation ............................................... 15
Installation Steps .................................................... 15
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
X-Ring Application .................................................. 16
Coupling Ring Application ...................................... 17
Dual Homing Application ........................................ 17
Console Management .............................................. 18
Connecting to the Console Port ............................. 18
Pin Assignment ...................................................... 18
Login in the Console Interface ............................... 19
CLI Management .................................................... 20
Commands Level ............................................................. 21
Commands Set List .......................................................... 22
System Commands Set .................................................... 22
Port Commands Set ......................................................... 24
Trunk Commands Set ...................................................... 27
VLAN Commands Set ...................................................... 28
Spanning Tree Commands Set ........................................ 30
QOS Commands Set ........................................................ 33
IGMP Commands Set....................................................... 33
Mac / Filter Table Commands Set .................................... 34
SNMP Commands Set ..................................................... 35
Port Mirroring Commands Set .......................................... 37
Manual Documentation Number: EIR608-xSFP_0708M Table of Contents ix
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1x Commands Set ..................................................... 38
TFTP Commands Set ....................................................... 40
SystemLog, SMTP and Event Commands Set ................. 40
SNTP Commands Set ...................................................... 42
X-ring Commands Set ...................................................... 43
Web-Based Management ........................................ 45
About Web-based Management ............................ 45
Preparing for Web Management ............................ 45

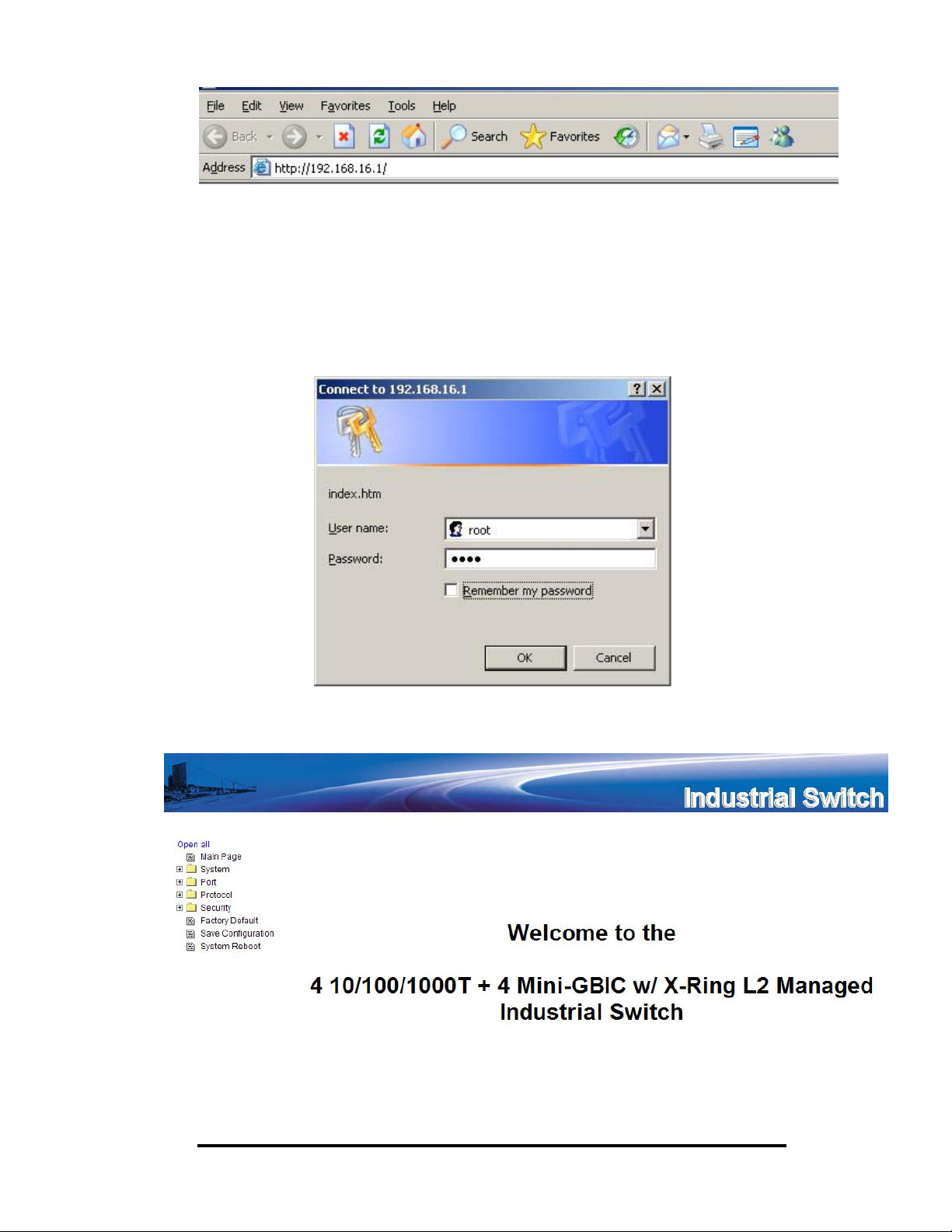

System Login .......................................................... 45
Main interface ......................................................... 46
System Information ................................................ 47
IP Configuration...................................................... 47
DHCP Server – System configuration .................... 48
DHCP Client Entries ............................................... 48

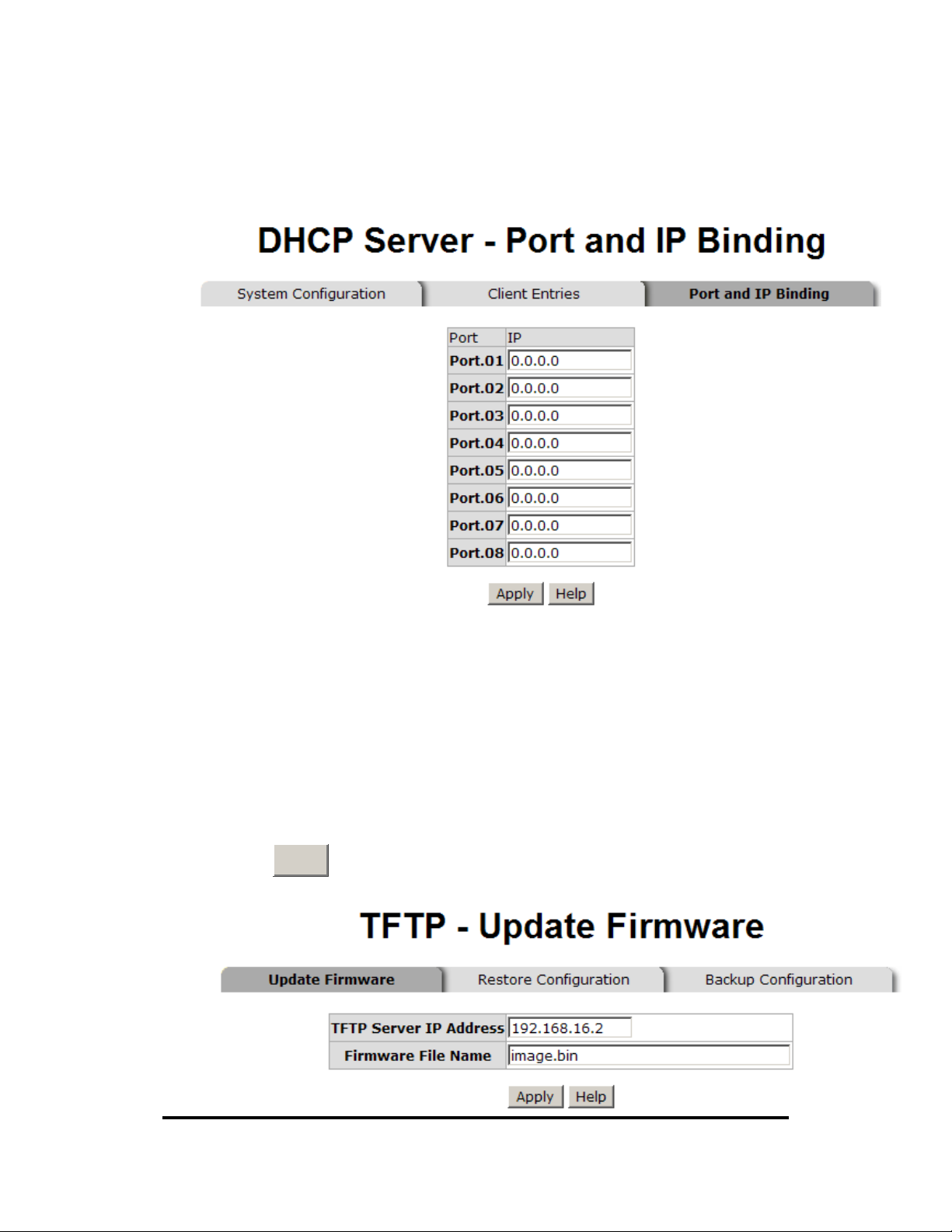

DHCP Server - Port and IP Bindings ..................... 49
TFTP - Update Firmware ........................................ 49
TFTP – Restore Configuration ............................... 50
TFTP - Backup Configuration ................................. 50
System Event Log – Syslog Configuration ............. 51
System Event Log - SMTP Configuration .............. 52
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
System Event Log - Event Configuration ............... 53
Fault Relay Alarm ................................................... 54

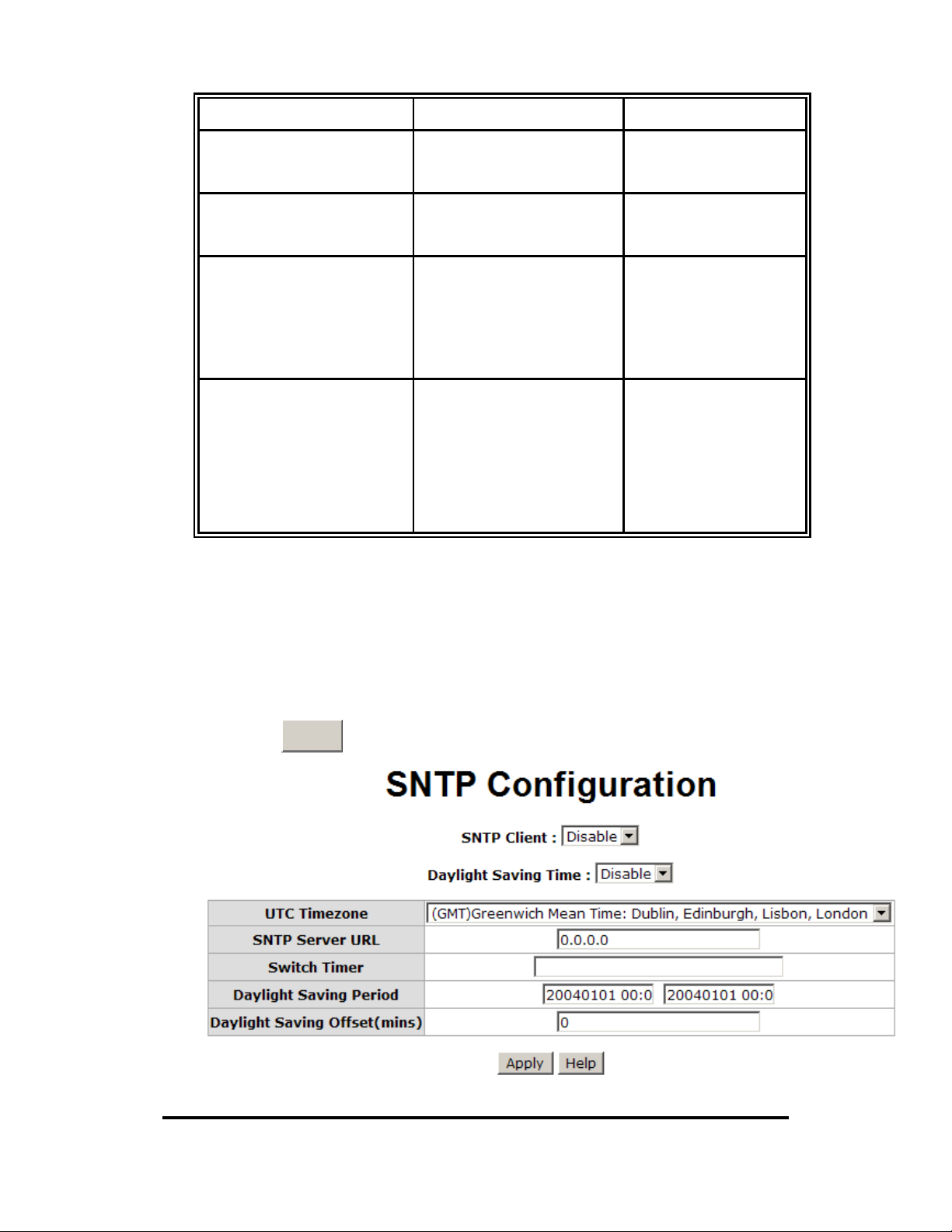

SNTP Configuration ............................................... 55
IP Security .............................................................. 58
User Authentication ................................................ 59
Port Statistics ......................................................... 59
Port Control ............................................................ 60
Port Trunk ............................................................... 61
Aggregator setting ............................................................ 61
Aggregator Information ..................................................... 63
State Activity ..................................................................... 64
Port Mirroring .......................................................... 65
Rate Limiting .......................................................... 66
VLAN configuration ................................................ 67
VLAN configuration - Port-based VLAN ........................... 67
802.1Q VLAN ................................................................... 70
Rapid Spanning Tree ............................................. 73
RSTP - System Configuration .......................................... 73

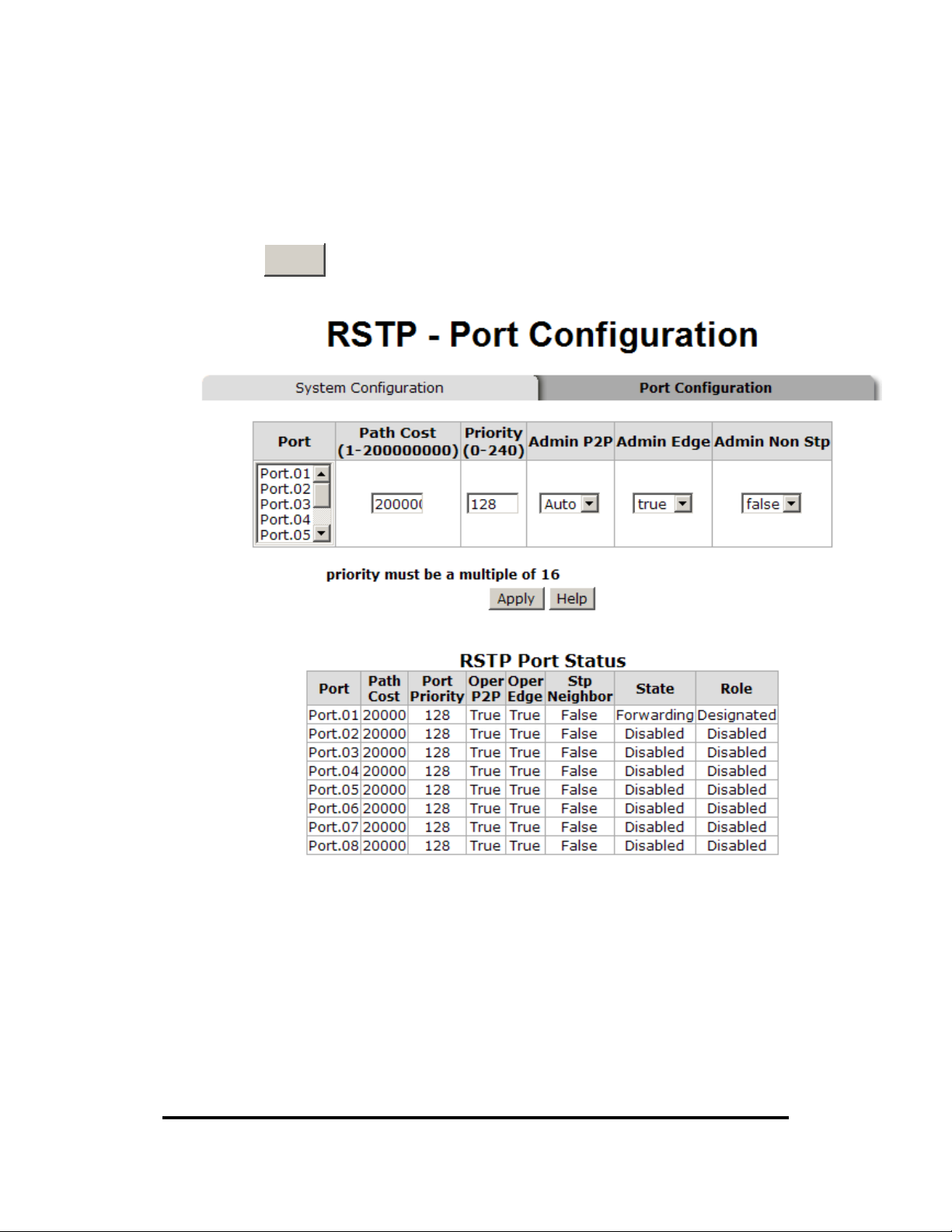

RSTP - Port Configuration ................................................ 74
Manual Documentation Number: EIR608-xSFP_0708M Table of Contents xi
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
SNMP Configuration ............................................... 75
System Configuration ....................................................... 76
Trap Configuration ............................................................ 77
SNMPV3 Configuration .................................................... 77
QoS Configuration .................................................. 81
QoS Policy and Priority Type ............................................ 81
Port Base Priority ............................................................. 82
COS Configuration ........................................................... 82
TOS Configuration .... ........................................................ 83

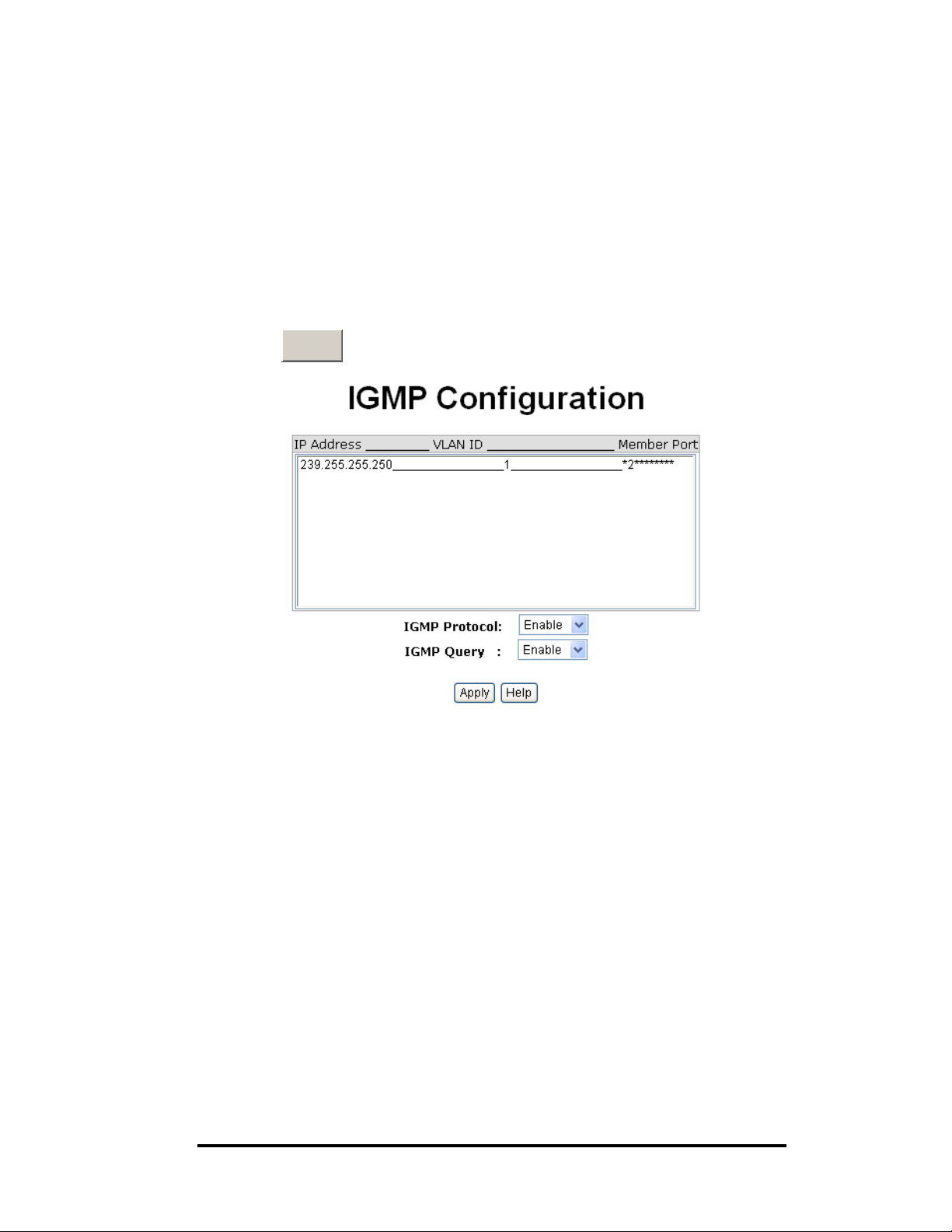

IGMP Configuration ................................................ 83
X-Ring .................................................................... 84
Security .................................................................. 87
802.1X/Radius Configuration............................................ 87
MAC Address Table ......................................................... 90
Factory Default ....................................................... 92
Save Configuration ................................................. 93
System Reboot ....................................................... 93
Trouble shooting ...................................................... 94
Technical Specification ........................................... 95
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Overview
Introduction
This managed industrial switch comes equipped with a proprietary redundant network protocol—X-Ring which provides an easy way to establish a redundant Ethernet network. With ultra high-speed recovery time (less than 300 ms) and a long MTBF (Mean Time Between Failures) the industrial switch will continue to operate until a Gigabit network infrastructure has been established, without requiring extra upgrade costs.
In addition to10/100/1000Base-TX fast Ethernet ports, the switch has SFP (mini-GBIC) ports. Traditiona l RJ-4 5 por ts can be us ed fo r up l inking short distance (less than 100 m) wide-band paths, while the SFP slots can be used for the application of wideband uploading and long distance transmissions adding flexibility.
Manual Documentation Number: EIR608-xSFP_0708m 1
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Features
4 x 10/100/1000Base-T Mbps Ethernet ports 4 x SFP (mini-GBIC) port (support 100/1000 Dual Mode) Full/half duplex flow control Auto-negotiation MDI/MDI-X auto-crossover Packet Buffer up to 1Mbits MAC Address up to 8Kbytes Surge (EFT) protection (3,000 VDC for power line) Ethernet EDS protection (4,000 VDC) Power Supply
¾ Wide-range Redundant Power Design ¾ Reverse Polarity Protection ¾ Overload Current Protection
Case/Installation
¾ IP-30 Protection ¾ DIN Rail and Panel Mount Design
Spanning Tree
¾ IEEE802.1d Spanning Tree ¾ IEEE802.1w Rapid Spanning Tree
VLAN
¾ Port Based VLAN ¾ 802.1 Q Tag VLAN ¾ GVRP ¾ Double Tag VLAN (Q in Q)* ¾ Private VLAN**
X-Ring
¾ X-Ring, Dual Homing, Couple Ring and Dual Ring Topology ¾ Provide redundant backup feature and the recovery time below
300ms
Port Trunk with LACP 802.1ab LLDP** QoS (Quality of Service)
¾ IEEE 802.1p Class of Service ¾ 4 Priority queues pe r p or t ¾ Port Base, Tag Base and Type of Service Priority
Bandwidth Control
¾ Ingress Packet Filter and Egress Rate Limit ¾ Broadcast/Multicast Packet Filter Control
2
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
Port Mirror: Monitor traffic in switched networks.
¾ TX Packet only ¾ RX Packet only ¾ Both of TX and RX Packet
System Event Log
¾ System Log Server/Client ¾ SMTP e-mail Alert ¾ Relay Alarm Output System Events
Security
¾ Port Security: MAC address entries/filter ¾ IP Security: IP address security management to prevent intrusion. ¾ Login Security: IEEE802.1X/RADIUS
SNMP Trap
¾ Cold Start ¾ Power Status ¾ Authentication Failure ¾ X-Ring topology Change
¾ Link up / Link down  IGMP with Query mode for Multi Media Application TFTP Firmware Update and System Configure Restore and Backup
Operating Temperatures: 14 to 140 F (-10 to 60 C)
Manual Documentation Number: EIR608-xSFP_0708m 3
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Packing List
One EIR608-xSFP Managed Industrial Switch One Quick Start Guide One RS-232 DB9 to RJ-45 adapter One CD Rom with this user manual Two Wall Mounting Bracket and Screws
4
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
Hardware Description
Dimensions (W x D x H)
2.9 x 4.2 x 6.4 in (7.4 x 10.7 x 16.3 cm)
Front Panel
Manual Documentation Number: EIR608-xSFP_0708m 5
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Top View
Wiring the Power Inputs
Insert the positive and negative leads into the V+ and V- contacts on the terminal block connector.
Tighten the wire-clamp screws
Note
6
Use 12 to 14 AWG wire
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
)
Wiring the Fault Alarm Contact
Insert the wires into the fault alarm contact (No. 3 & 4
[NOTE] Use 12 to 24 AWG wire. [NOTE] Relay contacts are normally closed. [NOTE] The Relay Alarm also requires software configuration. Refer to the
Web Based Management Fault Relay Alarm Section.
LED Indicators
LED Color Description
PWR Green
R.M. Green
PWR1 Green
PWR2 Green
Fault Red
Link/Active (P5 ~ P8)
Green
On System power on Off No power inputs On The switch is the master of the X-ring group Off The switch is not the master of the X-ring group On Power input 1 is available Off Power input 1 is not available On Power input 2 is available Off Power input 2 is not available
On
Off Normal Operation On SFP port linked Flashing Data is transmitting or received Off Not connected to network
Power input 1 or 2 is off line or port link is down See alarm setting for operational details (depends on Fault Relay Alarm configuration)
P1 ~ P4
(Upper LED)
P1 ~ P4 (Lower LED)
On Connected to network
Green
Green
Manual Documentation Number: EIR608-xSFP_0708m 7
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Flashing Networking is active at 100Mbps Off Not connected to network On Connected to network at 1000Mbps Off Not connected to network
Ports
RJ-45 ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for
10Base-T, 100Base-TX or 1000Base-T devices connections and Auto MDI/MDIX.
RJ-45 Pin Assignments
Pin Number Assignment
All ports on this industrial switch support automatic MDI/MDI-X operation. You can use straight-through cables (See Figure below) for all network connections to PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs are as tabled below.
1 Tx+ 2 Tx­3 Rx+ 6 Rx-
Pin MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+) 2 Receive Data minus (RD-) Transmit Data minus (TD-) 3 Transmit Data plus (TD+) Receive Data plus (RD+) 6 Transmit Data minus (TD-) Receive Data minus (RD-)
Straight Through Cable Schematic
8
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
Cabling
Use the four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications.
Follow these steps to connect the transceiver and LC Cable:
First, insert the transceiver into the SFP module. A triangle is marked on the bottom of the module.
Cross Over Cable Schematic
Transceiver to the SFP module
Manual Documentation Number: EIR608-xSFP_0708m 9
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Transceiver Inserted
10
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Second, insert the fiber cable of LC connector into the transceiver.
LC connector to the transceiver
To remove the LC connector from the transceiver, follow the steps shown below:
First, press the upper side of the LC connector from the transceiver and pull it out to release.
Remove LC connector
Manual Documentation Number: EIR608-xSFP_0708m 11
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Second, push down the metal loop and pull the transceiver out by the plastic part.
Pull out from the SFP module
12
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Mounting Installation
DIN-Rail Mounting
1. First, insert the top of DIN-Rail into the track.
Manual Documentation Number: EIR608-xSFP_0708m 13
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
2. Then, lightly push the button of DIN-Rail into the track.
3. Ensure the DIN-Rail is tightly on the track.
4. To remove the industrial switch from the track, reverse the steps above.
Panel Mounting
Follow the st e ps as b el ow to mount the industri al s w itch with wall mount plat e.
1. Remove the DIN-Rail from the industrial switch.
2. Place the panel mount plate on the rear panel.
3. Use the screws to attach the panel mount.
4. Use the hook holes at the corners of the plate to mount the switch to the.
5. To remove the wall mount plate, reverse steps above.
14
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Hardware Installation
Installation Steps
1. Unpack the Industrial switch.
2. Ensure the DIN-Rail is tightly screwed to the Industrial switch. If not, refer to DIN-Rail Mounting section for DIN-Rail installation. To panel mount the Industrial switch, refer to Panel Mounting section.
3. Apply power to the switch (refer to the Wiring the Power Inputs section). The power LED will light.
4. Connect CAT 5 cables to the Industrial switch’s RJ-45 ports and to the network devices.
[NOTE] If the network devices do not support MID/MDIX, a crossover cable may be required.
Manual Documentation Number: EIR608-xSFP_0708m 15
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
5. Connect the fiber optic cables to the industrial switch and network device. Ensure that the switch’s fiber optic transmitter is connected to the network devices receiver and vice versa.
6. Connect the fiber optic cables.
7. When all the connections are made and the LEDs show normal indications, the installation is complete.
X-Ring Application
This switch incorporates the X-Ring Protocol to ensure network reliability and system restoration within 300 ms in the event of a connection failure. The X-Ring algorithm is similar to the spanning tree protocol (STP) algorithm but it has faster recovery time. The following figure below is an example of an X-Ring application.
16
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Coupling Ring Application
If the network has more than one X-Ring group, the coupling ring function is used to connect them and add redundancy. This ensur es that transmiss ions between the two ring groups will not fail. The figure below is an example of the coupling ring application.
Dual Homing Application
The Dual Homing function is used to prevent a connection loss between the X-Ring group and the upper level/core switch. Assign a port in each X-ring group to be the Dual Homing ports The Dual Homing function can only be used when the X-Ring function is active. Each X-Ring group can have one Dual Homing port. Note: The upper level switches must have RSTP enabled.
Manual Documentation Number: EIR608-xSFP_0708m 17
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Console Management
Connecting to the Console Port
Attach the DB9 end to a PC or terminal and the RJ-45 end to the console port on the switch. The PC must have support a terminal emulation program.
Pin Assignment
DB9 Connector RJ-45 Connector
NC 1 Orange/White
2 2 Orange 3 3 Green/White
NC 4 Blue
18
5 5 Blue/White
NC 6 Green NC 7 Brown/White NC 8 Brown
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Login in the Console Interface
When the connection between Switch and PC is ready, turn on the PC, run a terminal emulation program or Hyper Terminal, and configure the following communication parameters:
Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Flow control: None
The settings of commu nication parameters
After entering the parameter, click ‘OK’. When the blank screen shows up, press Enter on the PC keyboard. A login screen will be displayed. Enter ‘root’ for the User name and Password.
Manual Documentation Number: EIR608-xSFP_0708m 19
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Console login interface
CLI Management
After you login to the system, you will see a command prompt. To enter CLI management interface, type ‘enable’ and press enter.
20
CLI command interface
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Commands Level
Modes
User EXEC
Privileged EXEC
Access Method
Begin a session with your switch.
Enter the enable command while in user
Prompt
switch>
switch#
Exit Method
Enter logout or quit.
Enter disable to exit.
About This Mode1
The user comma nds available at the user level are a subset of those available at the privileged level. Use this mode to
• Perform basic tests.
•Displays system information. The privileg ed command is advance mode Privileged this mode to
•Displays advance
Global Configuration
VLAN database
Interface
EXEC mode.
Enter the configure command while in privileged EXEC mode. Enter the vlan database command while in privileged EXEC mode.
Enter the
switch (config)#
switch (vlan)#
switch
To exit to privileged EXEC mode, enter exit or end
To exit to user EXEC mode, enter exit.
To exit to
function st atus
• Save configures
Use this mode to configure parameters that apply to your switch as a whole.
Use this mode to configure VLAN-specific parameters.
Use this mode to
configuration
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
interface of
Manual Documentation Number: EIR608-xSFP_0708m 21
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
(config-if)#
global
configure parameters
fast Ethernet command (with a specific interface) while in global configuration mode
configuratio n mode, enter exit. To exist to privileged EXEC mode, or end.
for the switch and Ethernet ports.
Commands Set List
System Commands Set
Commands Level Description Example
show config E
show terminal P
Show switch configuration Show console
switch>show config
switch#show terminal
write memory P
system name
G
[System Name]
system location
G
[System Location]
system description
G
[System Description]
system contact
G
[System Contact]
show system-info E
information Save user configuration into permanent memory (flash ROM) Configure system name Set switch system location string Set switch system description string Set switch system contact window string Show system information
switch#write memory
switch(config)#system name xxx
switch(config)#system location
xxx switch(config)#system description xxx switch(config)#system contact xxx switch>show system-info
ip address
[Ip-address] [Subnet-mask] [Gateway]
22
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Configure the IP
G
address of switch
switch(config)#ip address
192.168.16.1 255.255.255.0
192.168.16.254
Manual Documentation Number: EIR608-xSFP_0708m
ip dhcp
G
show ip P
no ip dhcp
G
reload
G
default G admin username
G
[Username]
admin password
G
[Password]
show admin P
Enable DHCP client function of switch Show IP information of
switch(config)#ip dhcp
switch#show ip switch Disable DHCP client function of switch
Halt and perform a cold restart
switch(config)#no ip dhcp
switch(config)#reload Restore to default switch(config)#default
Changes a login username.
switch(config)#admin username
xxxxxx (maximum 10 words) Specifies a password (maximum 10 words) Show administrator
switch(config)#admin password
xxxxxx
switch#show admin information
dhcpserver enable G Dhcpserver disable G dhcpserver lowip
G
[Low IP]
dhcpserver highip
G
[High IP]
dhcpserver subnetmask
G
[Subnet mask]
dhcpserver gateway
G
[Gateway] dhcpserver dnsip
G
[DNS IP]
dhcpserver leasetime
G
[Hours]
dhcpserver ipbinding
I
Enable DHCP Server switch(config)#dhcpser ver enabl e Disable DHCP Server switch(config)#no dhcpserver Configure low IP address for IP pool Configure h igh IP address for IP pool Configure subnet mask for DHCP clients Configure gateway for DHCP clients Configure DNS IP for DHCP clients Configure lease time (in hour) Set static IP for DHCP
switch(config)#dhcpserver lowip
192.168.1.100 switch(config)#dhcpserver highip
192.168.1.200 switch(config)#dhcpserver subnetmask 255.255.255.0 switch(config)#dhcpserver gateway 192.168.1.254 switch(config)#dhcpserver dnsip
192.168.1.1 switch(config)#dhcpserver leasetime 1 switch(config)#interface
[IP address]
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
clients by port
fastEthernet 2 switch(config)#dhcpserver ipbinding 192.168.1.1
Manual Documentation Number: EIR608-xSFP_0708m 23
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
show dhcpserver
P
configuration show dhcpserver clients P
show dhcpserver
P
ip-binding
no dhcpserver G
security enable G
security http G
security telnet G
Show configu ration of DHCP server Show client entries of DHCP server Show IP-Binding information of DHCP server Disable DHCP server function Enable IP security function Enable IP security of HTTP server Enable IP security of telnet server
switch#show dhcpserver configuration switch#show dhcpserver clients
switch#show dhcpserver ip-binding
switch(config)#no dhcpserver
switch(config)#security enable
switch(config)#security http
switch(config)#security telnet
security ip
G
[Index(1..10)] [IP Address] show security P
no security G
no security http G
no security telnet G
Set the IP security list switch(config)#security ip 1
192.168.1.55
Show the information
switch#show security of IP security Disable IP security
switch(config)#no security function Disable IP security of
switch(config)#no security http HTTP server Disable IP security of
switch(config)#no security telnet telnet server
Port Commands Set
Commands Level Description Example
24
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
interface fastEthernet
[Portid]
duplex
[full | half]
speed
[10|100|1000|auto]
Choose the port for
G
modification. Use the duplex
I
configuration command to specify the duplex mode of operation for Fast Ethernet. Use the speed
I
configuration command to specify the speed mode of operation for Fast Ethernet., the speed can’t be set to 1000 if
switch(config)#interface
fastEthernet 2
switch(config)#interface
fastEthernet 2
switch(config-if)#duplex full
switch(config)#interface
fastEthernet 2
switch(config-if)#speed 100
the port isn’t a giga port.
no flowcontrol I
Disable flow control of interface
security enable I
Enable security of interface
no security I
Disable security of interface
bandwidth type all I
Set interface ingress limit frame type to ‘accept all frame’
bandwidth type
Set interface ingress
I
switch(config-if)#no flowcontrol
switch(config)#interface
fastEthernet 2
switch(config-if)#security enable
switch(config)#interface
fastEthernet 2
switch(config-if)#no security
switch(config)#interface
fastEthernet 2
switch(config-if)#bandwidth type
all
switch(config)#interface
broadcast-multicast-floo ded-unicast
Manual Documentation Number: EIR608-xSFP_0708m 25
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
limit frame type to ‘accept broadcast, multicast, and flooded
fastEthernet 2
switch(config-if)#bandwidth type
broadcast-multicast-flooded-uni
bandwidth type broadcast-multicast
bandwidth type broadcast-only
bandwidth in
[Value]
unicast frame’
Set interface ingress
I
limit frame type to ‘accept broadcast and multicast frame’ Set interface ingress
I
limit frame type to ‘only accept broadcast frame’
I Set interface input
bandwidth. Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports,
cast
switch(config)#interface
fastEthernet 2
switch(config-if)#bandwidth type
broadcast-multicast
switch(config)#interface
fastEthernet 2
switch(config-if)#bandwidth type
broadcast-only
switch(config)#interface
fastEthernet 2
switch(config-if)#bandwidth in 100
bandwidth out
[Value]
show bandwidth I
state
[Enable | Disable]
and zero means no limit. Set interface output bandwidth. Rate Range is from 100 kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. Show interfaces bandwidth control
Use the state interface
I
configuration
switch(config)#interface
fastEthernet 2
switch(config-if)#bandwidth out
100
switch(config)#interface
fastEthernet 2
switch(config-if)#show bandwidth
switch(config)#interface
fastEthernet 2
26
command to specify
config-if)#state Disable the state mode of operation for Ethernet ports. Use the disable
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
form of this command to disable the port.
show interface configuration
show interface status I
show interface accounting
no accounting I
show interface
I
configuration status
show interface actual status
show interface statistic
I
counter
Clear interface accounting information
switch(config)#interface
fastEthernet 2 switch(config-if)#show interface configuration switch(config)#interface fastEthernet 2
config-if)#show interface status
switch(config)#interface
fastEthernet 2
config-if)#show interface
accounting switch(config)#interface fastEthernet 2 switch(config-if)#no accounting
Trunk Commands Set
Commands Level Description Example
aggregator priority
[1~65535]
aggregator activityport
[Group ID] [Port Numbers]
aggregator group
[GroupID] [Port-list]
lacp workp
[Workport]
Set port group system
G
priority Set activity port switch(config)#aggregator
G
Assign a trunk group
G
with LACP active. [GroupID] :1~4 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a
switch(config)#aggregator priority
22
activityport 2
switch(config)#aggregator group 1 1-4 lacp workp 2
or switch(config)#aggregator group
2 1,4,3 lacp workp 3
comma(ex.2, 3, 6)
Manual Documentation Number: EIR608-xSFP_0708m 27
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
[Workport]: The amount of work ports, this value could not be less than zero or be large than the amount of member por t s .
aggregator group
G
[GroupID] [Port-list]
nolacp
show aggregator P
no aggregator lacp
G
Assign a static trunk group. [GroupID] :1~4 [Port-list]:Member port list, This parameter could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) Show the information of trunk group
Disable the LACP
switch(config)#aggregator group
1 2-4 nolacp
or switch(config)#aggregator group
1 3,1,2 nolacp
switch#show aggregator 1 or switch#show aggregator 2 or switch#show aggregator 3 switch(config)#no aggreator lacp
[GroupID]
no aggregator group
[GroupID]
function of trunk group Remove a trunk group switch(config)#no aggreator
G
1
group 2
VLAN Commands Set
Commands Level Description Example
vlan database P
Vlanmode
V
[portbase| 802.1q | gvrp]
28
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
Enter VLAN configure mode To set switch VLAN mode.
switch#vlan database
switch(vlan)#vlanmode portbase or switch(vlan)#vlanmode 802.1q or switch(vlan)#vlanmode gvrp
A
no vlan V
No VLAN Switch(vlan)#no vlan
Ported based VLAN configuration
Add new port based
vlan port-based grpname
V
VALN
[Group Name]
grpid
[GroupID]
port
[PortNumbers]
show vlan [GroupID]
or
show vlan no vlan group
[GroupID]
vlan 8021q name
[GroupName]
vid
[VID]
Show VLAN
V
information Delete port base group
V
ID
V Change the name of
VLAN group, if the group didn’t exist, this
switch(vlan)#vlan port-based
grpname test grpid 2 port 2-4
or
switch(vlan)#vlan port-based
grpname test grpid 2 port 2,3,4
switch(vlan)#show vlan 23
switch(vlan)#no vlan group 2
IEEE 802.1Q VLAN
switch(vlan)#vlan 8021q name test vid 22
vlan 8021q port
[PortNumber]
access-link untag
[UntaggedVID]
vlan 8021q port
[PortNumber]
trunk-link tag
[TaggedVID List]
vlan 8021q port
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
command can’t be applied. Assign a access link
V
for VLAN by port, if the port belong to a trunk group, this command can’t be applied. Assign a trunk link for
V
VLAN by port, if the port belong to a trunk group, this command can’t be applied.
ssign a hybrid link for
V
VLAN by port, if the port belong to a trunk group, this command
switch(vlan)#vlan 8021q po r t 3 access-link untag 33
switch(vlan)#vlan 8021q po r t 3 trunk-link tag 2,3,6,99 or switch(vlan)#vlan 8021q po r t 3
trunk-link tag 3-20 switch(vlan)#vlan 8021q po r t 3 hybrid-link untag 4 tag 3,6,8
or switch(vlan)#vlan 8021q po r t 3
Manual Documentation Number: EIR608-xSFP_0708m 29
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
V
vlan 8021q trunk
[PortNumber]
access-link untag
[UntaggedVID]
vlan 8021q trunk
[PortNumber]
trunk-link tag
[TaggedVID List]
vlan 8021q trunk
[PortNumber]
hybrid-link untag
[UntaggedVID]
tag
[TaggedVID List]
show vlan [GroupID]
or
show vlan no vlan group
[GroupID]
can’t be applied. Assign a access link
V
for VLAN by trunk group Assign a trunk link for
V
VLAN by trunk group
Assign a hybrid link for
V
VLAN by trunk group
Show VLAN
V
information Delete port base group ID
hybrid-link untag 5 tag 6-8 switch(vlan)#vlan 8021q trunk 3 access-link untag 33
switch(vlan)#vlan 8021q tru nk 3
trunk-link tag 2,3,6,99
or switch(vlan)#vlan 8021q trunk 3
trunk-link tag 3-20 switch(vlan)#vlan 8021q trunk 3 hybrid-link untag 4 tag 3,6,8
or switch(vlan)#vlan 8021q trunk 3 hybrid-link untag 5 tag 6-8 switch(vlan)#show vlan 23
switch(vlan)#no vlan group 2
Spanning Tree Commands Set
Commands Level Description Example
spanning-tree enable G
spanning-tree priority
[0~61440]
spanning-tree max-age
[seconds]
Enable spanning tree switch(config)#spanning-tree
Configure spanning
G
tree priority parameter Use the spanning-tree
G
max-age global configuration
enable switch(config)#spanning-tree
priority 32767 switch(config)#spanning-tree max-age 15
command to change the interval between messages the spanning tree receives from the root switch. If a switch does not
30
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
receive a bridge protocol data unit (BPDU) message from the root switch within this interval, it recomputed the Spanning Tree Protocol (STP) topology.
spanning-tree hello-time [seconds]
spanning-tree forward-time [seconds]
Use the spanning-tree
G
hello-time global configuration command to specify the interval between hello bridge protocol data units (BPDUs). Use the spanning-tree
G
forward-time global configuration command to set the forwarding-time for the specified spanning-tree instances. The
switch(config)#spanning-tree
hello-time 3
switch(config)#spanning-tree forward-time 20
stp-path-cost
[1~200000000]
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
forwarding time determines how long each of the listening and learning states last
before the port begins forwarding. Use the spanning-tree
I
cost interface configuration
Manual Documentation Number: EIR608-xSFP_0708m 31
switch(config)#interface
fastEthernet 2
switch(config-if)#stp-path-cost 20
command to set the path cost for Spanning Tree Protocol (STP) calculations. In the event of a loop, spanning tree considers the path cost when selecting an interface to place into the forwarding state.
stp-path-priority [Port Priority]
stp-admin-p2p
[Auto|True|False]
stp-admin-edge
[True|False]
Use the spanning-tree
I
port-priority interface configuration command to configure a port priority that is used when two switches tie for position as the root switch. Admin P2P of STP
I
priority on this interface.
Admin Edge of STP
I
priority on this
switch(config)#interface
fastEthernet 2 switch(config-if)#stp-path-priority 128
switch(config)#interface fastEthernet 2 switch(config-if)#stp-admin-p2p Auto switch(config)#interface fastEthernet 2
stp-admin-non-stp
I
[True|False]
show spanning-tree E
32
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
interface.
switch(config-if)#stp-admin-edge
True Admin NonSTP of STP priority on this interface.
switch(config)#interface
fastEthernet 2
switch(config-if)#stp-admin-non-s
tp False
Displays a summary of switch>show spanning-tree
the spanning-tree
states.
no spanni ng-tree G
Disable spanning-tree. switch(config)#no spanning-tree
QOS Commands Set
Commands Level Description Example
qos policy
[weighted-fair|strict]
qos prioritytype
[port-based|cos-only|tos
-only|cos-first|tos-first]
qos priority portbased
[Port] [lowest|low|middle|high]
qos priority cos
[Priority][lowest|low|mid dle|high]
qos priority tos [Priority][lowest|low|mid
Select QOS policy
G
scheduling Setting of QOS priority
G
type
Configure Port-based
G
Priority Configure COS Priority switch(config)#qos priority cos 0
G
Configure TOS Priority
G
switch(config)#qos policy
weighted-fair
switch(config)#qos prioritytype
switch(config)#qos priority
portbased 1 low
middle
switch(config)#
high
qos priority tos 3
dle|high] show qos P
Displays the
Switch# information of QoS configuration
no qos G
Disable QoS function
switch(config)#
IGMP Commands Set
Commands Level Description Example
igmp enable G
Igmp-query auto G
Igmp-query force G
show igmp P
Enable IGMP snooping function Set IGMP query to auto mode Set IGMP query to force mode Displays the details of switch#show igmp configuration
switch(config)#igmp enable
switch(config)#Igmp-query auto
switch(config)#Igmp-query force
show qos
no qos
Manual Documentation Number: EIR608-xSFP_0708m 33
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
configuration
an IGMP configuration.
show igmp multi P
Displays the details of
switch#show igmp multi an IGMP snooping entries.
no igmp G Disable IGMP
switch(config)#no igmp snooping function
no igmp-query G
Disable IGMP query switch#no igmp-query
Mac / Filter Table Commands Set
Commands Level Description Example
mac-address-table static hwaddr
[MAC]
Configure M AC
I
address table of interface (static).
switch(config)#interface
fastEthernet 2
switch(config-if)#mac-address-tab
le static hwaddr 000012345678
mac-address-table filter
G
hwaddr
[MAC]
show mac-address-table P
show mac-address-table
P
static show mac-address-table
P
filter no mac-address-table
I
static hwaddr
[MAC]
no mac-address-table
G
Configure M AC address table(filter)
Show all MAC address table Show static MAC address table Show filter MAC address table. Remove an entry of MAC address table of interface (static)
Remove an entry of
switch(config)#mac-address-table filter hwaddr 000012348678
switch#show mac-address-table
switch#show mac-address-table static switch#show mac-address-table filter switch(config)#interface
fastEthernet 2 switch(config-if)#no mac-address-table static hwaddr 000012345678 switch(config)#no
filter hwaddr
[MAC]
no mac-address-table G
34
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
MAC address table (filter) Remove dynamic entry of MAC address table
mac-address-table filter hwaddr 000012348678 switch(config)#no mac-address-table
A
SNMP Commands Set
Commands Level Description Example
snmp system-name
[System Name]
snmp system-location
[System Location]
snmp system-contact
[System Contact]
snmp agent-mode
[v1v2c|v3|v1v2cv3]
snmp community-strings
[Community]
right
[RO/RW]
snmp-server host
[IP address]
Set SNMP agent
G
system name Set SNMP agent
G
system location Set SNMP agent
G
system contact Select the agent mode
G
of SNMP
G
dd SNMP community
string.
Configure SNMP
G
server host information
switch(config)#snmp system-name l2switch switch(config)#snmp system-location lab switch(config)#snmp system-contact where switch(config)#snmp agent-mode v1v2cv3 switch(config)#snmp
community-strings public right rw
switch(config)#snmp-serv er host
192.168.1.50 community public
community
[Community-string]
trap-version
[v1|v2c]
snmpv3 context-name
[Context Name ]
snmpv3 user
[User Name]
group
[Group Name]
password
[Authentication Password] [Privacy Password]
and community string
G Configure the context
name Configure the
G
userprofi l e for SNMPV3 agent. Privacy password could be empty.
trap-version v1 (remove)
Switch(config)#
no snmp-server host
192.168.1.50
switch(config)#snmpv3 context-name Test switch(config)#snmpv3 user test01 group G1 password AuthPW PrivPW
Manual Documentation Number: EIR608-xSFP_0708m 35
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
V
snmpv3 access context-name [Context
Name ]
group
[Group Name ]
security-level
[NoAuthNoPriv|AuthNoP riv|AuthPriv]
match-rule
[Exact|Prifix]
views
[Read View Name] [Write
iew Name] [Notify View Name]
snmpv3 mibview view
Configure the access
G
table of SNMPV3 agent
Configure the mibview
G
switch(config)#snmpv3 access context-name Test group G1 security-level AuthPriv match-rule Exact views V1 V1 V1
switch(config)#snmpv3 mibvie w
[View Name]
type
[Excluded|Included]
sub-oid
[OID]
show snmp P
no snmp
G
community-strings
[Community]
no snmp-server host
G
[Host-address]
no snmpv3 user
G
[User Name]
no snmpv3 access
G
table of SNMPV3 agent
Show SNMP configuration Remove the specified community.
Remove the SNMP server host. Remove specified user of SNMPv3 ag en t . Remove specified
view V1 type Excluded sub-oid
1.3.6.1
switch#show snmp
switch(config)#no snmp community-strings public
switch(config)#no snmp-server
192.168.1.50 switch(config)#no snmpv3 user Test switch(config)#no snmpv3 access
context-name [Context
Name ]
group
[Group Name ]
36
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
access table of SNMPv3 agent.
context-name Test group G1 security-level AuthPr iv match-rule Exact views V1 V1 V1
V
security-level
[NoAuthNoPriv|AuthNoP riv|AuthPriv]
match-rule
[Exact|Prifix]
views
[Read View Name] [Write
iew Name] [Notify View Name]
no snmpv3 mibview view
[View Name]
Remove specified
G
mibview tabl e of SNMPV3 agent.
switch(config)#no snmpv3
mibview view V1 type Excluded sub-oid 1.3.6.1
type
[Excluded|Included]
sub-oid
[OID]
Port Mirroring Commands Set
Commands Level Description Example
monitor rx G
monitor tx G
show monitor P
Set RX destination port of monitor function Set TX destinat ion port of monitor function Show port monitor information
switch(config)#monitor rx
switch(config)#monitor tx
switch#show monitor
monitor
[RX|TX|Both]
Configure source port
I
of monitor function
switch(config)#interface
fastEthernet 2 switch(config-if)#monitor RX
show monitor I
Show port monitor information
switch(config)#interface
fastEthernet 2 switch(config-if)#show monitor
no monitor I
Disable source port of monitor function
switch(config)#interface
fastEthernet 2
switch(config-if)#no monitor
Manual Documentation Number: EIR608-xSFP_0708m 37
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1x Commands Set
Commands Level Description Example
8021x enable G
8021x system radiusip
G
[IP address]
8021x system serverport
G
[port ID]
8021x system
G
Use the 802.1x global configuration command to enable
802.1x protocols. Use the 802.1x system radius IP global configuration command to change the radius server IP. Use the 802.1x system server port global configuration command to change the radius server port Use the 802.1x system
switch(config)# 8021x enable
switch(config)# 8021x system
radiusip 192.168.1.1
switch(config)# 8021x system serverport 1815
switch(config)# 8021x system
accountport
[port ID]
8021x system sharekey
[ID]
8021x system nasid
[words]
account port global configuration command to change the accounting port Use the 802.1x system
G
share key global configuration command to change the shared key value. Use the 802.1x system
G
nasid global configuration command to change the NAS ID
accountport 1816
switch(config)# 8021x system
sharekey 123456
switch(config)# 8021x system nasid test1
38
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
8021x misc quietperiod
[sec.]
8021x misc txperiod
[sec.]
8021x misc supportimeout [sec.]
Use the 802.1x misc
G
quiet period global configuration command to specify the quiet period value of the switc h. Use the 802.1x misc
G
TX period global configuration command to set the TX period. Use the 802.1x misc
G
supp timeout global configuration command to set the
switch(config)# 8021x misc quietperiod 10
switch(config)# 8021x misc
txperiod 5
switch(config)# 8021x misc supportimeout 20
8021x misc servertimeout [sec.]
8021x misc maxrequest
[number]
8021x misc reauthperiod [sec.]
supplicant timeout. Use the 802.1x misc
G
server timeout global configuration command to set the server timeout. Use the 802.1x misc
G
max request global configuration command to set the MAX requests. Use the 802.1x misc
G
reauth period global configuration command to set the
switch(config)#8021x misc servertimeout 20
switch(config)# 8021x misc maxrequest 3
switch(config)# 8021x misc
reauthperiod 3000
8021x portstate
[disable | reject | accept |
Manual Documentation Number: EIR608-xSFP_0708m 39
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
reauth period.
I Use the 802.1x port
state interface
switch(config)#interface
fastethernet 3
authorize]
configuration command to set the
switch(config-if)#8021x portstate
accept state of the se l ected port.
show 8021x E
Displays a summary of
switch>show 8021x the 802.1x properties and also the port sates.
no 8021x G
Disable 802.1x
switch(config)#no 8021x function
TFTP Commands Set
Commands Level Description Defaults Example
backup flash:backup_cfg
Save configuration to
G
TFTP and need to
switch(config)#backup
flash:backup_cfg specify the IP of TFTP server and the file name of image.
restore flash:restore_cfg G
Get configuration from TFTP server and need to specify the IP of TFTP server and the file name of image.
upgrade flash:upgrade_fw
Upgrade firmware by
G
TFTP and need to specify the IP of TFTP server and the file name of image.
SystemLog, SMTP and Event Commands Set
switch(config)#restore
flash:restore_cfg
switch(config)#upgrade
lash:upgrade_fw
Commands Level Description Example
systemlog ip
[IP address]
40
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
Set System log se rver
G
IP address.
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
switch(config)# systemlo g ip
192.168.1.100
systemlog mode
G
[client|server|both]
show systemlog E show systemlog P
no systemlog G
smtp enable G smtp serverip
G
[IP address]
smtp authentication G
smtp account
G
[account]
smtp password
G Configure
Specified the log modeswitch(config)# systemlog mode
both
Displays system log. Switch>show systemlog Show system log client & server information Disable systemlog
switch#show systemlog
switch(config)#no systemlog functon Enable SMTP function switch(config)#smtp enable Configure SMTP server IP Enable SMTP authentication Configure
switch(config)#smtp serverip
192.168.1.5
switch(config)#smtp
authentication
switch(config)#smtp account User authentication account
switch(config)#smtp password
[password]
authentication password
smtp rcptemail
[Index] [Email address]
Configure Rcpt e-mail
G
Address
show smtp P Show the information
of SMTP
no smtp G event device-cold-start
[Systemlog|SMTP|Both]
event authentication-failure
Disable SMTP function switch(config)#no smtp Set cold start event
G
type Set Authentication
G
failure event type
[Systemlog|SMTP|Both]
event X-ring-topology-change
Set X-ring topology
G
changed event type
[Systemlog|SMTP|Both]
switch(config)#smtp rcptemail 1
Alert@test.com
switch#show smtp
switch(config)#event
device-cold-start both
switch(config)#event
authentication-failure both
switch(config)#event
X-ring-topology-change both
event systemlog
[Link-UP|Link-Down|Bot h]
Manual Documentation Number: EIR608-xSFP_0708m 41
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Set port event for
I
system log
switch(config)#interface
fastethernet 3
switch(config-if)#event syste m log
both
event smtp
I
[Link-UP|Link-Down|Bot h]
show event P no event
G
device-cold-start no event
G
authentication-failure no event
G
X-ring-topology-change
no event systemlog I
Set port event for SMTP
switch(config)#interface
fastethernet 3
switch(config-if)#event smtp bo t h Show event selection switch#show event Disable cold start event type Disable Authentication failure event typ Disable X-ring topology changed
switch(config)#no event
device-cold-start
switch(config)#no event
authentication-failure
switch(config)#no event
X-ring-topology-change event type Disable port event for system log
switch(config)#interface
fastethernet 3
switch(config-if)#no event
systemlog
no event smpt I
Disable port event for SMTP
switch(config)#interface
fastethernet 3
switch(config-if)#no event smtp
show systemlog P
Show system log client & server information
switch#show systemlog
SNTP Commands Set
Commands Level Description Example
sntp enable G sntp daylight G
sntp daylight-period
Enable SNTP function switch(config)#sntp enable Enable daylight saving
switch(config)#sntp daylight time, if SNTP function is inactive, this command can’t be applied. Set period of daylight
G
switch(config)# sntp
[Start time] [End time]
42
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
saving time, if SNTP function is inactive,
daylight-period 20060101-01:01
20060202-01-01
this command can’t be
Manual Documentation Number: EIR608-xSFP_0708m
applied. Parameter format: [yyyymmdd-hh:mm]
sntp daylight-offset
[Minute]
sntp ip
[IP]
sntp timezone
[Timezone]
Set offset of daylight
G
saving time, if SNTP function is inactive, this command can’t be applied. Set SNTP server IP, if
G
SNTP function is inactive, this command can’t be applied. Set timezone index,
G
use ‘show sntp timzezone’ command to get more information of index number
switch(config)#sntp
daylight-offset 3
switch(config)#sntp ip 192.169.1.1
switch(config)#sntp timezone 22
show sntp P
Show SNTP
switch#show sntp information
show sntp timezone P Show index number of
switch#show sntp timezone time zone list
no sntp G no sntp daylight G
Disable SNTP function switch(config)#no sntp Disable daylight saving
switch(config)#no sntp daylight time
X-ring Commands Set
Commands Level Description Example
Xring enable G Xring master G Xring couplering G Xring dualhoming G Xring ringport G
Enable X-ring switch(config)#Xring enable Enable ring master switch(config)#Xring master Enable couple ring switch(config)#Xring couplering Enable dual homing switch(config)#Xring dualhoming Configure 1st/2nd switch(config)#Xring ringport 7 8
Manual Documentation Number: EIR608-xSFP_0708m 43
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
[1st Ring Port] [2nd Ring Port]
Xring couplingport
G
[Coupling Port]
Xring controlport
G
[Control Port]
Xring homingport
G
[Dual Homing Port]
show Xring P
no Xring G no Xring master G no Xring couplering G
no Xring dualhoming G
Ring Port
Configure Coupling Port
switch(config)#Xring couplingport 1
Configure Control Port switch(config)#Xring controlport 2
Configure Dual Homing Port Show the information
switch(config)#Xring homingport 3
switch#show Xring of X - Ring Disable X-ring switch(config)#no X ring Disable ring master switch(config)# no Xring master Disable couple ring switch(config)# no Xring
couplering Disable dual homing switch(config)# no Xring
dualhoming
44
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Web-Based Management
About Web-based Management
The switch has an embedded HTML web site residing in flash memory. This site offers advanced management features and allows the switch to be configured from anywhere on the network.
The web site is designed for Internet Explorer 6.0 and uses Java Applets to reduce bandwidth consumption, enhance access speed, and present an intuitive user interface.
Preparing for Web Management
Before using web management, install the industrial switch on the network and verify that a PC on the local network can connect with the switch through the web browser. The default IP Address, Subnet Mask, Username and Password is listed below:
 IP Address: 192.168.16.1  Subnet Mask: 255.255.255.0  Default Gateway: 192.168.16.254  User Name: root  Password: root
System Login
1. Launch the Internet Explorer on the PC
2. Key in ‘http:// ‘+’ the IP address of the switch’, and then Press ‘Enter’.
Manual Documentation Number: EIR608-xSFP_0708m 45
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
3. The login screen will appear
4. Enter the user name and password. The default user name and password are ‘root’.
5. Press Enter’ or ‘OK’, and then the home screen will appear.
Main interface
Login scree n
Main interface
46
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
System Information
System Name: A name (64 bytes max) can be assigned to the switch.  System Description: Displays the description of switch. Read only
cannot be modified
System Location: A physical location (64 bytes max) can be assigned
to the switch.
System Contact: Enter the name of contact person or organization  Firmware Version: Displays the switch’s firmware version  Kernel Version: Displays the kernel software version  MAC Address: Displays the unique hardware address assigned by
manufacturer (default)
IP Configuration
Configure the IP Settings and DHCP client function DHCP Client: Used to enable or disable the DHCP client function.
When enabled, the switch’s IP address is assigned by the network DHCP server. The default IP address will be replace by the DHCP server assigned IP address. After clicking the ‘Apply’ button, a popup dialog will indicate that the current IP will be lost and the new IP address must be retrieved from the DHCP server.
IP Address: A static IP Address may be assigned. The default IP is
192.168.16.1.
Subnet Mask: Assign the subnet mask of the IP address. This does
not have to be done if the DHCP client function is enabled.
Gateway: Assign the network gateway. The default gateway is
192.168.16.254.
DNS1: Assign the primary DNS IP address.  DNS2: Assign the secondary DNS IP address.
Click
Apply
Manual Documentation Number: EIR608-xSFP_0708m 47
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
DHCP Server – System configuration
The switch can function as a DHCP server.
DHCP Server: Enable or Disable the DHCP Server function.  Low IP Address: the dynamic IP assign range. Low IP address is the
beginning of the dynamic IP assignment range.
High IP Address: the dynamic IP assign range. High IP address is the
end of the dynamic IP assignment range.
Subnet Mask: The subnet mask. Gateway: The network gateway.  DNS: Network Domain Name Server IP Address.  Lease Time (sec): The time interval at which that system will reset the
dynamic IP assignment.
Click
Apply
DHCP Server Configuration interface
DHCP Client Entries
DHCP client information is displayed.
DHCP Client Entries interface
48
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
DHCP Server - Port and IP Bindings
You can assign a specific IP address that is in the dynamic IP assignment range to the specific port. When the device is connected to the port and asks for an assignment, the system will assign this IP address.
Port and IP Bindings interface
TFTP - Update Firmware
Provides the ability to update the switch’s firmware. Before updating, ensure you the TFTP server is ready and the firmware image is on the TFTP server.
1. TFTP Server IP Address: Enter the TFTP server IP.
2. Firmware File Name: Enter the name of firmware image.
3. Click
Apply
.
Manual Documentation Number: EIR608-xSFP_0708m 49
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Update Firmware interface
TFTP – Restore Configuration
If the EEPROM image is stored on the TFTP server, you can restore it to flash memory.
1. TFTP Server IP Address: Enter the TFTP server IP.
2. Restore File Name: Enter the restore file name.
3. Click
Apply
.
Restore Configuration interface
TFTP - Backup Configuration
You can save current EEPROM image to the TFTP server.
1. TFTP Server IP Address: Enter the TFTP server IP
2. Backup File Name: Enter the file name
3. Click
Apply
.
50
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
Backup Configuration interface
System Event Log – Syslog Configuration
1. Syslog Client Mode: Se lect the system log mode – client only, server only, or both.
2. System Log Server IP Address: Assigned the system log server IP.
3. Click
4. Click
Reload
Clear
to refresh the events log.
to clear all current events log.
5. After configuring, Click
Apply
.
Manual Documentation Number: EIR608-xSFP_0708m 51
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Syslog Configuration interface
System Event Log - SMTP Configuration
Set up the mail server IP, mail account, account password, and email account for receiving event alerts.
1. Email Alert: enable or disable the email alert function.
2. SMTP Server IP: set up the mail server IP address.
3. Sender: Enter the email address, e.g. switch102@123.com where the event log came from.
4. Authentication: Mark the check box to enable and configure the email
, to identify
52
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
account and password for authentication.
5. Mail Account: set up the email account, e.g. johnadmin
for the switch.
It must be an existing email account on the mail server.
6. Password: The email account password.
7. Confirm Password: reconfirm the password.
8. Rcpt e-mail Address 1 through 6: Enter up to six email addresses to receive the event log.
9. Click
Apply
.
SMTP Configuration interface
System Event Log - Event Configuration
When the selected events occur, the system will generate a log entry and email notification message. .
Manual Documentation Number: EIR608-xSFP_0708m 53
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
System event selection: Four selections available – Cold Start, Warm
Start, SNMP Authentication Failure, and X-ring topology change. Mark the checkbox to select the event. When the selected events occur, the system will send the logs.
Event Confi guration interface
Port event selection: When a port specific event occurs, the system
will generate a log entry and email notification. Three selections are available – Link UP, Link Down, and Link UP & Link Down.
Fault Relay Alarm
Power Failure: When the check box is marked, the Fault LED will light
54
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
if the power source fails.
Port Link Down/Broken: When the check box is marked, the Fault
LED will light if a port link goes down.
Fault Relay Alarm interface
SNTP Configuration
The SNTP allows you to synchronize switch clocks.
1. SNTP Client: Enables or disables the SNTP function.
2. Daylight Saving Time: Enables or disables daylight saving time. When this function is enabled, the time period must be entered.
3. UTC Time zone: Sets the local time zone.
Local Time Zone Conversion from UTC Time at 12:00 UTC
November Time Zone - 1 hour 11am
Oscar Time Zone -2 hours 10 am
ADT - Atlantic Da ylight -3 hours 9 am
Manual Documentation Number: EIR608-xSFP_0708m 55
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
AST - Atlantic Standard
-4 hours 8 am
EDT - Eastern Daylight EST - Eastern Standard
-5 hours 7 am
CDT - Central Daylight CST - Central Standard
-6 hours 6 am
MDT - Mountain Daylight MST - Mountain
Standard
-7 hours 5 am
PDT - Pacific Daylight PST - Pacific Standard
-8 hours 4 am
ADT - Alaskan Daylight
ALA - Alaskan Standard -9 hours 3 am
HAW - Hawaiian
-10 hours 2 am
Standard
Nome, Alaska -11 hours 1 am
CET - Central European FWT - French Winter MET - Middle European
+1 hour 1 pm
MEWT - Middle European Winter SWT - Swedish Winter
EET - Eastern European,
+2 hours 2 pm
Russia Zone 1 BT - Baghdad, Russia
+3 hours 3 pm
Zone 2 ZP4 – Russia Zone 3 +4 hours 4 pm
ZP5 – Russia Zone 4 +5 hours 5 pm
56
ZP6 - Russia Zone 5 +6 hours 6 pm WAST - West Australian +7 hours 7 pm
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Standard CCT - China Coast,
+8 hours 8 pm
Russia Zone 7 JST - Japan Standard,
+9 hours 9 pm
Russia Zone 8 EAST - East Australian
Standard GST
+10 hours 10 pm
Guam Standard, Russia Zone 9
IDLE - International Date Line NZST - New Zealand
+12 hours Midnight Standard NZT - New Zealand
4. SNTP Sever URL: Enter the SNTP server IP address.
5. Daylight Saving Period: Enter the Daylight Saving beginning time and Daylight Saving end time.
6. Daylight Saving Offset (mins): Enter the offset in minutes.
7. Switch Timer: Displays the current time.
8. Click
Apply
.
SNTP Configuration interface
Manual Documentation Number: EIR608-xSFP_0708m 57
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
IP Security
IP security function grants 10 specific IP addresses permission to access the switch through a web browser or TELN ET for management. IP Security Mode: When enabled, allows management via TELNET
and HTTP.
Enable HTTP Server: Mark the box to grant the specified IP addresses
web based management permission.
Enable Telnet Server: Mark the box to grant the specified IP
addresses TELNET management permission.
Security IP 1 ~ 10: Enter up to 10 IP addresses. Click
Apply
Note If the configuration is not saved, it will be lost when the switch is
powered off.
58
IP Security interface
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
User Authentication
Use this function to change the login name and password.
1. User name: Enter the new user name (T he default is ‘root’).
2. Password: Enter the new password (The default is ‘root’).
3. Confirm password: Confirm the new password.
4. Click
Apply
User Authentication interface
Port Statistics
Provides port status.
Port: The port number.  Type: Displays the connection speed.  Link: Displays link status —‘Up’ or ‘Down’.  State: Enabled or Disabled.  Tx Good Packet: Displays the number of good packets transmitted.  Tx Bad Packet: Displays the num b er o f ba d p ac kets transmitted.  Rx Good Packet: Displays the number of good packets received.  Rx Bad Packet: Displays the number of bad packets received.  Tx Abort Packet: Displays the number of aborted transmit packets.  Packet Collision: Displays the number of packet collisions.  Packet Dropped: Displays the number of dropped packets.  Rx Bcast Packet: Displays the number of broadcast packets.  Rx Mcast Packet: Displays the number of multicast packets.
Click
Clear
to reset the numbers.
Manual Documentation Number: EIR608-xSFP_0708m 59
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Port Control
Port Statistics interface
Used to configure and view port settings.
1. Port: Select the port to configure.
2. State: Enable or disable the port.
3. Negotiation: Set the negotiation status of the port.
4. Speed: Set the port link speed.
5. Duplex: Set the port to full or half-duplex.
6. Flow Control: Set flow control to Symmetric or Asymmetric in Full Duplex mode. The default value is Symmetric.
7. Security: Set the port security. When ‘On’ is selected, the port will only accept a connection from one MAC address.
8. Click
Apply
.
60
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Port Control interface
Port Trunk
The Link Aggregation Control Protocol (LACP) provides a standardized method for exchanging information between Partner Systems on a link. This allows their Link Aggregation Control instances to reach an agreement on the identity of the Link Aggregation Group, move the link to that Link Aggregation Group, and enable its transmission and reception functions in an orderly manner. Link aggregation lets you group up to four consecutive ports into two dedicated connections. This feature expands bandwidth to a device on the network. LACP operation requires full-duplex mode.
Aggregator setting
1. System Priority: a value used to identify the active LACP. The switch with the lowest value has the highest priority. It is selected as the active LACP.
Manual Documentation Number: EIR608-xSFP_0708m 61
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
2.
Group ID:
the ‘
Group ID
There are three trunk groups available to configure. Choose
’ and click
Select
.
3. LACP: If enabled, the group is an LACP static trunk group. If disabled, the group is local static trunk group. All ports support LACP dynamic trunk. If connected to a device that also supports LACP, the LACP dynamic trunk group is automatically created.
4. Work ports: A maximum of four ports can be aggregated at the same time. With LACP static trunk group, any excess ports are considered standby and can be aggregated if a work port fails. If it is local static trunk group, the number of ports must be the same as the group member ports.
5. Sel ec t the ports add to the t run k group. Click port. To remove unwanted ports, select the port and click
Add
button to add the
Remove
button.
6. When LACP is enabled, you can configure LACP Active/Passive status for each port on the State Activity page.
7. Click
8. Use
Apply
Delete
.
button to delete Trunk Group.
62
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Port Trunk—Aggregator Setting interface
Aggregator Information
Displays static trunk group information.
Port Trunk – Aggregator Information interface
Manual Documentation Number: EIR608-xSFP_0708m 63
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
State Activity
After setting up the LACP aggregator, port state activity can be configured. Mark the port and click or
Passive
depending on its previous state.
Apply
. The port state activity will change to
Active
Active: The port automatically sends LACP protocol packets.  Passive: The port responds only if it receives LACP protocol packets
from the opposite device.
Note 1. A link having either two active LACP ports or one active port can
perform dynamic LACP trunk.
2. A link, which has two passive LACP ports, will not perform dynamic LACP trunk because both ports are waiting for an LACP protocol packet from the opposite device.
64
Port Trunk – State Activity interface
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Port Mirroring
Port mirroring is a method to monitor traffic in switched networks. Traffic flowing through the indicated ports can be monitored by a specified port. Destination Port: Only one port can be selected as the destination
(mirror) port for monitoring both RX and TX traffic from the source port. Two ports may be configured to monitor RX and TX traffic separately. A LAN analyzer can be connected to the mirror port.
Source Port: Select the ports to monitor. All monitored port traffic will
be sent to the mirror (destination) port. Multiple source ports by can be selected by checking the RX or TX check boxes.
Click
Apply
Port Trunk – Port Mirroring interface
Manual Documentation Number: EIR608-xSFP_0708m 65
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Rate Limiting
Set up each port’s bandwidth rate and frame limitation type. Ingress Limit Frame type: Select the frame type to filter. There are
four options: All, Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast and Broadcast only.
Egress Limit: The egress rate limit is ALL.
Rate Limiting interface
All the ports support port ingress and egress rate control. For example,
assume port 1 is 10Mbps, users can set its effective egress rate to 1Mbps, and ingress rate is 500Kbps. The switch performs the ingress rate limiting using a packet counter to meet the specified rate ¾ Ingress: Enter the port effective ingress rate(The default value is
‘0’)
¾ Egress: Enter the port effective egress rate(The default value is
‘0’)
Click
66
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
Apply
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
VLAN configuration
A Virtual LAN (VLAN) can be thought of as a broadcast domain that exists within a switch or a defined set of switches. By grouping switch ports into VLANs, traffic flooding is limited since devices can only communicate directly with devices belonging to the VLAN. Creating a VLAN from a switch is the logical equivalent of reconnecting a group of devices to another Layer 2 switch. However, the network devices retain their same physical connection. The switch supports port-based and 802.1Q (tagged-based) VLAN. In the default configuration, the VLAN option is disabled.
VLAN Configuration interface
VLAN configuration - Port-based VLAN
With port-based VLAN, the port is assigned to a VLAN. Therefore, all devices attached to a given port should be members of the same VLAN. As with other VLAN configurations, the packets forwarded using this method do not leak into other VLAN domains on the network. After the port has been assigned to a VLAN, devices on the port cannot send to or receive from
Manual Documentation Number: EIR608-xSFP_0708m 67
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
A
devices in other VLANs without the intervention of another layer 3 device or the ability to tag the data packet with a specific PVID.
VLAN – Port Based interface
dd
Click
to add a new VLAN group (The maximum n umber of VLAN
Groups is 64)
Entering the VLAN name, group ID and the members of VLAN group  Click
Apply
68
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
VLAN—Port Based Add interface
The VLAN is displayed.  Use
Use
Delete
Edit
button to delete an unwanted VLAN.
button to modify an existing VLAN group.
Note If the configuration is not saved, it will be lost when the switch is
powered off.
Manual Documentation Number: EIR608-xSFP_0708m 69
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1Q VLAN
Tagged-based VLAN is an IEEE 802.1Q specification, which allows VLANs to be created across devices from different venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frame. The tag contains a VLAN Identifier (VID).
When the 802.1Q VLAN is enabled, all ports on the switch belong to a default VLAN (VID 1). The default VLAN cannot be deleted. Up to 64 VLAN groups are supported.
70
802.1q VLAN interface
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1Q Configuration
1. Enable GVRP Protocol: check the check box to enable GVRP protocol.
2. Select the port to configure.
3. Link Type: there are three link types. Access Link: Single switch only. Allows ports to be grouped by
setting the same VID.
Trunk Link: Extended application of Access Link. Allows ports to
be grouped by setting the same VID on two or more switches.
Hybrid Link: Both Access Link and Trunk Link.
4. Untagged VID: assign the untagged frame VID.
5.
Tagged VID:
6. Click
Apply
assign the tagged frame VID.
Group Configuration
Edit the existing VLAN Group.
1. Select the VLAN group in the table list.
2. Click
Apply
Manual Documentation Number: EIR608-xSFP_0708m 71
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Group Configuration inter face
3. The VLAN group name and VLAN ID can be changed.
4. Click
Apply
.
72
Group Configuration inter face
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Rapid Spanning Tree
The Rapid Spanning Tree Protocol (RSTP) is an ev olution of Spanning Tr ee Protocol (STP). It provides a faster spanning tree convergence after a topology change. The switch wi ll a uto detect a device tha t i s r u nning STP or RSTP protocol.
RSTP - System Configuration
RSTP state can be modified. After modification, click
Apply
.
¾ RSTP mode: Enable or disable the RSTP. ¾ Priority (0-61440): a value used to identify the root bridge. The
bridge with the lowest value has the highest priority an d is selected as the root. If the value changes, the switch must be rebooted. The value must be multiple of 4096.
¾ Max Age (6-40): The number of seconds a bridge waits without
receiving Spanning-tree Protocol configuration messages before attempting a reconfiguration. Enter a value between 6 through 40
¾ Hello Time (1-10): The time that controls when, the switch sends
out the BPDU packet to check RSTP status. Enter a value between 1 and 10.
¾ Forward Delay Time (4-30): the number of seconds a port waits
before changing from its Rapid Spanning Tree Protocol learning and listening state to the forwarding state. Enter a value between 4 and 30.
Note Follow this rule to configure the MAX Age, Hello Time, and Forward
Delay Time.
2 x (Forward Delay Time value -1) >= Max Age value >= 2 x (Hello Time value +1)
Manual Documentation Number: EIR608-xSFP_0708m 73
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
RSTP System Configuration interface
RSTP - Port Configuration
Configure path cost and priority of each port.
1. Select the port in Port column.
1. Path Cost: The cost of the path to the other bridge from this transmitting
bridge at the specified port. Enter a number 1 through 200000000.
2. Priority: Network priority. Enter a number between 0 and 240. The value
must be a multiple of 16.
3. P2P: Some of the rapid state transactions that are possible within RSTP
are dependent upon whether the port concerned can only be connected to exactly one other bridge (i.e. it is served by a point-to-point LAN segment), or can be connected to two or more bridges (i.e. it is served
74
by a shared medium LAN segment). This function allows the P2P status of the link to be manipulated administratively. True is P2P enabled. False is P2P disabled.
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
4. Edge: The port directly connected to the end stations cannot create a
bridging loop in the network. To configure the port as an edge port, set the port to ‘True’ status.
5. Non STP: Set True to disable STP mathematic calculation. Set False to
including the STP mathematic calculation.
6. Click
Apply
.
RSTP Port Configuration interface
SNMP Configuration
Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches, hubs, etc.) on an IP network. SNMP enables network administrators to manage network
Manual Documentation Number: EIR608-xSFP_0708m 75
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
A
performance, find and solve network problems, and plan for network growth. Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP.
System Configuration
Community Strings
Define and remove community strings.
1. String: Enter the name of the string.
2. RO: Read only. Enables requests accompanied by this string t o display MIB-object information.
3. RW: Read write. Enables requests accompanied by this string to display MIB-object information and to set MIB objects.
1. Click
dd
.
2. To remove the community string, select the community string and
Remove
click
. The default community string cannot be edited.
Agent Mode:
Change
Select the SNMP version that you want to use and click
SNMP System Configuration interface
76
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
A
Trap Configuration
A trap manager is a management station that receives traps (the system alerts generated by the switch). If the trap manager is not defined, traps will not be issued. Create a trap manager by entering the IP address of the station and a community string.
1. IP Address: Enter the IP address of the trap manager.
2. Community: Enter the community string.
3. Trap Version: Select the SNMP trap version type (v1 or v2c).
4. Click
dd
.
5. To remove the community string, select the community string and
Remove
click
. You cannot edit the name of the default community string.
Trap Managers interface
SNMPV3 Configuration
Context Table
Configure SNMP v3 context table. Assign the context name of context table. Click
Add
to add context name. Click
context name.
Manual Documentation Number: EIR608-xSFP_0708m 77
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Remove
to remove an unwanted
User Profile
Configure SNMP v3 user table.
User ID: Enter the user name.  Authentication Password: Enter password.  Privacy Password: Enter the private password.
Click
Click
Add
Remove
to remove an unwanted context name.
78
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
SNMP V3 configuration interface
Manual Documentation Number: EIR608-xSFP_0708m 79
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Group Table
Configure SNMP v3 group table. Security Name (User ID): Assign the user name that was set up in the
user table.
Group Name: Enter the group name.  Click
Click
Add
Remove
to remove an unwanted context name.
Access Table
Configure SNMP v3 access table.
Context Prefix: Enter the context name.  Group Name: Enter the group. Security Level: Enter the access level.  Context Match Rule: Select the context match rule.  Read View Name: Set up the read view.  Write View Name: Set up the write view.  Notify View Name: Set up the notify view.
Click
Add
Click
Remove
to remove an unwanted context name.
MIBview Table
Configure MIB view table.
ViewName: Set up the name.  Sub-Oid Tree: Fill the Sub OID.  Type: Select the type – exclude or included.
Click
Click
80
Add
Remove
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
to remove an unwanted context name.
Manual Documentation Number: EIR608-xSFP_0708m
QoS Configuration
QoS Policy and Priority Type
QoS Policy: select the QoS policy rule.
¾ Use an 8,4,2,1 weighted fair queuing scheme: The switch will
follow 8:4:2:1 rate to process the priority queue from the highest to the lowest queue. For example, when processing, 1 frame of the lowest queue, 2 frames of the low queue, 4 frames of the middle queue, and 8 frames of the high queue will be processed at the same time.
¾ Use the strict priority scheme: The highest queue will always
processed f irs t .
Priority Type: there are five priority selections available.  Port-base: the port priority will follow the assigned Port-base – High,
middle, low, or lowest.
¾ COS Only: the port priority will only follow the COS priority
assigned.
¾ TOS only: the port priority will only follow the TOS priority
assigned.
¾ COS first: the port priority will follow the COS priority first, and
then the other priority rule.
¾ TOS first: the port priority will follow the TOS priority first, and then
the other pri o ri ty rule.
Click
Apply
.
Manual Documentation Number: EIR608-xSFP_0708m 81
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
QoS Configuration interface
Port Base Priority
Port: Each port has four priority levels – High, Middle, Low, and
Lowest.
Click
Apply
.
COS Configuration
Set up the COS priority level.
COS priority: Set up the COS priority level 0 to 7 –High, Middle, Low, Lowest.
Click
82
Apply
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
.
Manual Documentation Number: EIR608-xSFP_0708m
TOS Configuration
TOS priority: the system provides 0 to 63 TOS priority levels. Each level has four types of priority – high, midd le, low, and lowest. The default value is ‘Lowest’. When an IP packet is received, the system will check the TOS level value in the IP packet. For example, if the TOS level 25 is high and the port is following the TOS priority policy only, when a packet is received, the system will check the TOS value of the received IP packet. If the TOS value of received IP packet is 25(priority = high), then the packet will have highest priority.
Click
Apply
.
IGMP Configuration
The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP has three fundamental types of message.
Message Description
A message sent from the querier (IGMP router or switch)
Query
asking for a response from each host belonging to the multicast group.
Report
Leave Group
A message sent by a host to the querier to indicate that the host wants to be or is a member of a given group indicated in the report message.
A message sent by a host to the querier to indicate that the host has quit being a member of a specific multicast group.
Manual Documentation Number: EIR608-xSFP_0708m 83
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Enable IGMP protocol on the web management switch setting advanced page. IP multicast addresses range from 224.0.0.0 through
239.255.255.255.
IGMP Protocol: Enable or disable the IGMP protocol.  IGMP Query: Select the IGMP query function (Enable o r Auto) to set
the switch as a querier for an IGMP version 2 multicast network.
Click
X-Ring
Apply
.
IGMP Configuration interface
X-Ring provides network redundancy similar to the Spanning Tree and Rapid Spanning Tree Protocols. However, recovery time is greatly reduced when the X-Ring protocol is used. The protocol identifies one switch as the Ring Master. Packets are blocked from the redundant path unless a ring member becomes disconnected from the rest of the network. When this happens, the protocol automatically restores connectivity using the redundant path. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports to the r ing. Only one switch in the X-Ring gr oup would be set as the backup switch. Other switches are called working switches and their two member ports are called working ports. If a network
84
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Manual Documentation Number: EIR608-xSFP_0708m
connection failure occurs, the backup port will automatically become a working port to recover.
The switch can be set in the ring master or slave mode. The ring master negotiates and places commands to the other switches in the X-Ring group. If there are two or more switches in the master mode, the software will select the switch with lowest MAC address number as the ring master. The X-Ring master mode is enabled using the X-Ring configuration interface. The Ring Master can also be identified using the R.M. LED on the front of the switch.
The switch also supports coupling ring to connect two or more X-Ring groups for redundant backup. The dual homing function is used to prevent a connection lose between the X-Ring group and the upper level/core switch.
Enable X-Ring: Mark the check box to enable the X-Ring function.  Enable Ring Master: Mark the check box to set the switch as the Ring
Master.
st
1
& 2nd Ring Ports: Assign two ports as the member ports. 1st Ring
Port is the working port and 2 Ring Port fails, the system will automatically upgrade the 2
nd
Ring Port is the backup port. When 1st
nd
Ring
Port to be the working port.
Enable Coupling Ring: Mark the check box to enable the coupling ring
function.
Coupling port: Assign the member port.  Control port: Set the switch as the master switch in the coupling ring.  Enable Dual Homing: Set up one of port on the switch to be the Dual
Homing port. In an X-Ring group, only one port can be the Dual Homing port. Dual Homing only works when the X-Ring function is enabled.
Click
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Apply
Manual Documentation Number: EIR608-xSFP_0708m 85
X-ring Interface
Note 1. When X-Ring function is enabled, disable the RSTP function. X-Ring
and RSTP cannot exist at the same time.
2. If the configuration is not saved, it will be lost when the switch is powered off.
86
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Security
In this section, you can configure 802.1x and MAC address table.
802.1X/Radius Configuration
802.1x is an IEEE authentication specification that allows a client to connect to a wireless access point or wired switch but prevents the client from gaining access to the Internet until it proves authority by providing a user name and password, which is verified by a separate server.
System Configuration
1. IEEE 802.1x Protocol: Enable or disable 802.1x protocol.
2. Radius Server IP: Enter the Radius Server IP address.
3. Server Port: Enter the UDP destination port for authentication requests to the Radius Server.
4. Accounting Port: Enter the UDP destination port for accounting requests to the Radius Server.
5. Shared Key: Enter an encryption key for use during authentication sessions. This key must match the encryption key used on the Radius Server.
6. NAS, Identifier: Enter the identifier of the radius client.
7. Click
Apply
.
Manual Documentation Number: EIR608-xSFP_0708m 87
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1x System Configuration interface
802.1x Port Configuration
You can configure 802.1x authentication state for each port. The State choices are Disable, Accept, Reject and Authorize. Use the ‘Space’ key change the state value.
Reject: The port is held in the unauthorized state.  Accept: The port is held in the Authorized state.  Authorized: The port will allow an authentication exchange between
the supplicant and the authentication server.
Disable: The port is held in the Authorized state Click
Apply
.
88
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
802.1x Per Port Setting int erface
Misc Configuration
1. Quiet Period: Sets the period during which the port does not try to acquire a supplicant.
2. TX Period: Sets the period that the port waits before retransmitting the next EAPOL PDU during an authentication session.
3. Supplicant Timeout: Sets the period the switch waits for a supplicant response to an EAP request.
4. Server Timeout: Set the period the switch waits for a server response to an authentication request.
5. Max Requests: Sets the number of authentications that time-out before authentication fails and the authentication session ends.
6. Reauth period: Set the period of time after which connected clients must be re-authenticated.
7. Click
Apply
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
.
Manual Documentation Number: EIR608-xSFP_0708m 89
802.1x Misc Configuration interface
MAC Address Table
Uses the MAC address table to ensure the port security.
Static MAC Address
You can add a static MAC address. This address remains in the switch's address table, regardless of whether the device is physically connected to the switch. Therefore, the switch does not have to re-learn a device's MAC address when the disconnected or powered-off device reconnects to the network. You can add / modify / delete a static MAC address.
Add the Static MAC Address
1. MAC Address: Enter the MAC address of the port that should permanently forward traffic, regardless of the device network activity.
2. Port No.: pull down the port number.
3. Click
Add
.
4. If you want to delete the MAC address from the filtering table, select the
Delete
.
90
MAC address and click
Manual Documentation Number: EIR608-xSFP_0708m
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Static MAC Addresses interface
MAC Filtering
MAC Filtering interface
1. MAC Address: Enter the MAC address that you want to filter.
Add
2. Click
.
3. If you want to delete the MAC address from filtering table, select the MAC address and click
Manual Documentation Number: EIR608-xSFP_0708m 91
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Delete
.
All MAC Addresses
1. Select the port.
2. The selected port of static MAC address information is displayed.
3. Click
Clear M AC Table
information on the screen.
to clear the port static MAC address
All MAC Addr ess interface
Factory Default
This resets the switch to the default configuration with the option of retaining the current IP address and user name/password. Click
92
