B&B Electronics EIR505-XX User Manual

Product Description

Documentation Number: EIR505-xx_5107m

Model EIR505-xx

707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA

Phone [phone] -- General Fax [phone]

Phone [phone] -- General Fax [phone]

Website: www.bb-elec.com

Sales e-mail: [e-mail] -- Fax [phone]

Technical Support e-mail: [e-mail] -- Fax [phone]

European Headquart ers

B&B Electronics

Westlink Commercial Park -- Oranmore, Co. Galway, Ireland

Phone [phone] -- Fax [phone]

Website: www.bb-europe.com

Sales e-mail: [e-mail]

Technical Support e-mail: [e-mail]

B&B Electronics Mfg. Co. Inc. -- December 2007

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Five Port Managed Industrial

Ethernet Switches

User Manual

Manual Documentation Number: EIR505-xx_5107m Table of Contents iii

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

–

Notice

The contents of this manual are based on the firmware, kernel, and
hardware v ersions listed below.

Firmware Version

Kernel Version

Hardware Version

V1.29

V2.05

A5.00

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

www.bb-elec.com

FCC Warning

This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Manual Documentation Number: EIR505-xx_5107m Table of Contents v

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

–

Content

FCC Warning............................................................v

CE Mark Warning.....................................................v

Introduction................................................................1

Features...................................................................1

Package Contents....................................................2

Hardware Description................................................3

Physical Dimension..................................................3

Front Panel...............................................................3

Reset Button.......................................................................3

Bottom View.............................................................4

DIP-switch................................................................4

LED Indicators..........................................................5

Ports.........................................................................6

Cabling.....................................................................8

Wiring the Power Inputs...........................................9

Wiring the Fault Alarm Contact................................9

Wiring the Fault Alarm Contact..............................10

Mounting Installation...............................................11

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

www.bb-elec.com

DIN-Rail Mounting..................................................11

Wall Mount Plate Mounting....................................13

Hardware Installation...............................................14

Network Application................................................15

X-Ring Application..................................................15

Coupling Ring Application......................................16

Dual Homing Application........................................17

Web-Based Management ........................................18

About Web-based Management ............................18

Preparing for Web Management............................18

System Login..........................................................19

Port status..............................................................19

Port status..............................................................20

Single Port Information.....................................................20

Port Statistics .........................................................21

Port Control............................................................22

Switch Settings.......................................................23

Port Mirroring..........................................................24

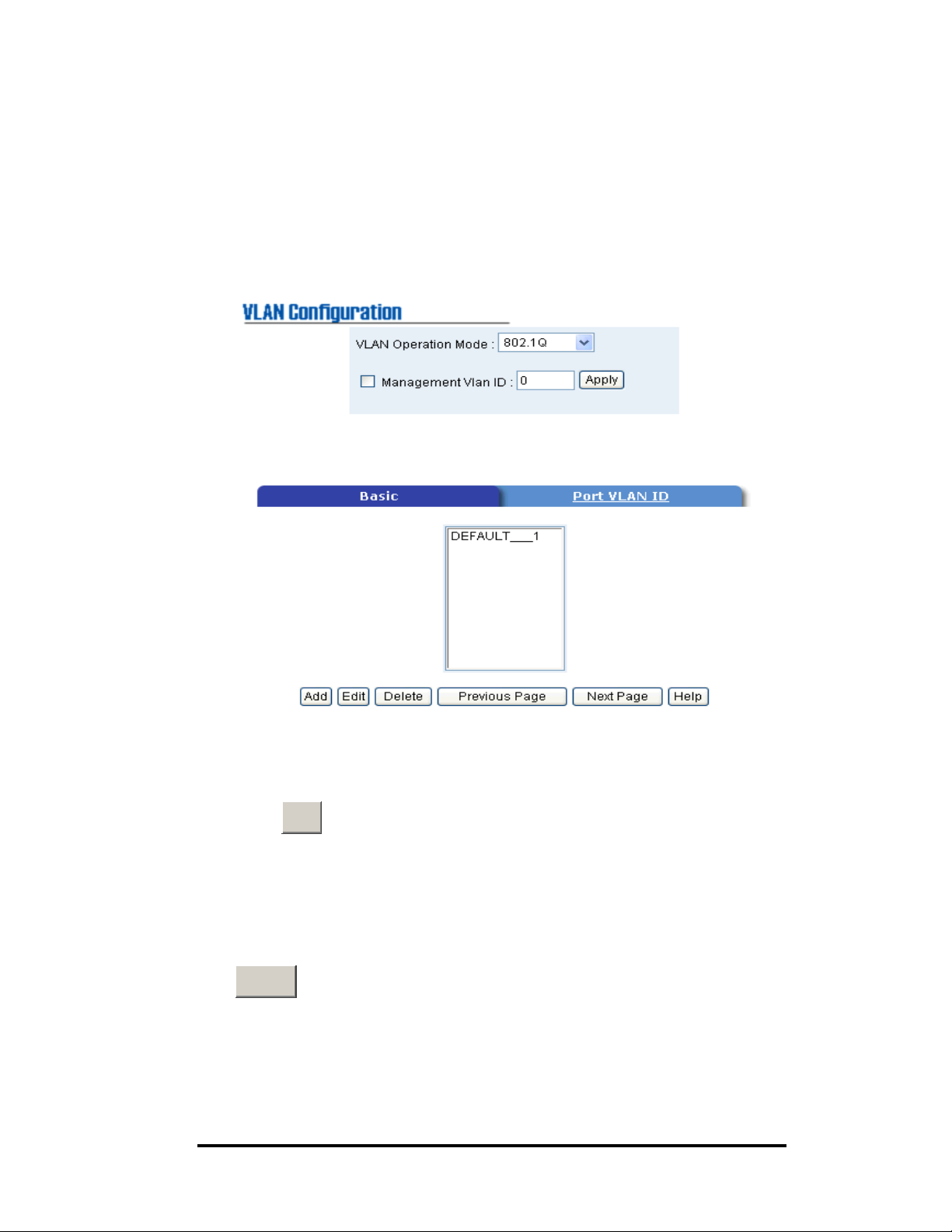

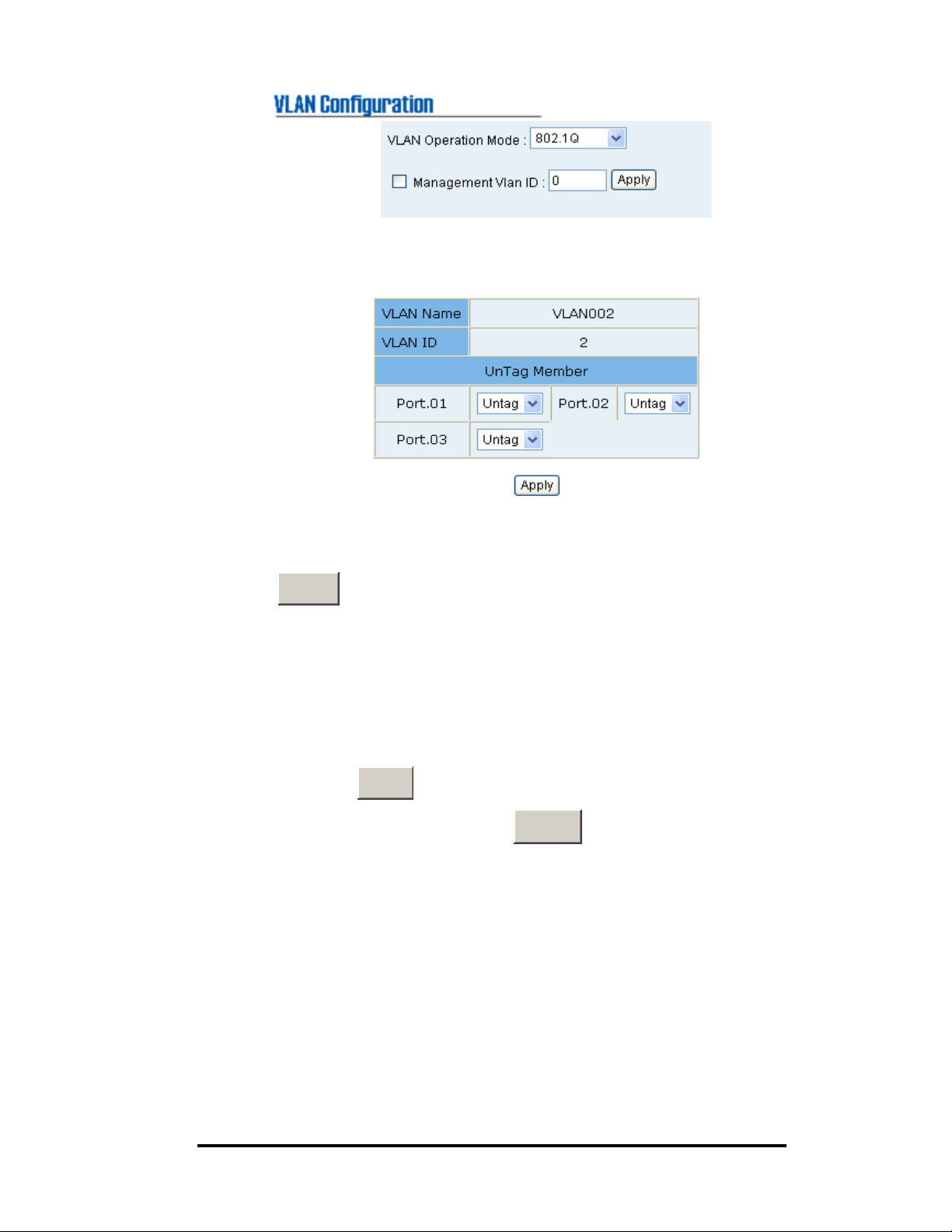

VLAN configuration................................................25

Manual Documentation Number: EIR505-xx_5107M Table of Contents vii

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

–

Port-based VLAN .............................................................25

802.1Q VLAN ...................................................................27

IP Address..............................................................31

SNTP Configuration ...............................................32

IP Security..............................................................35

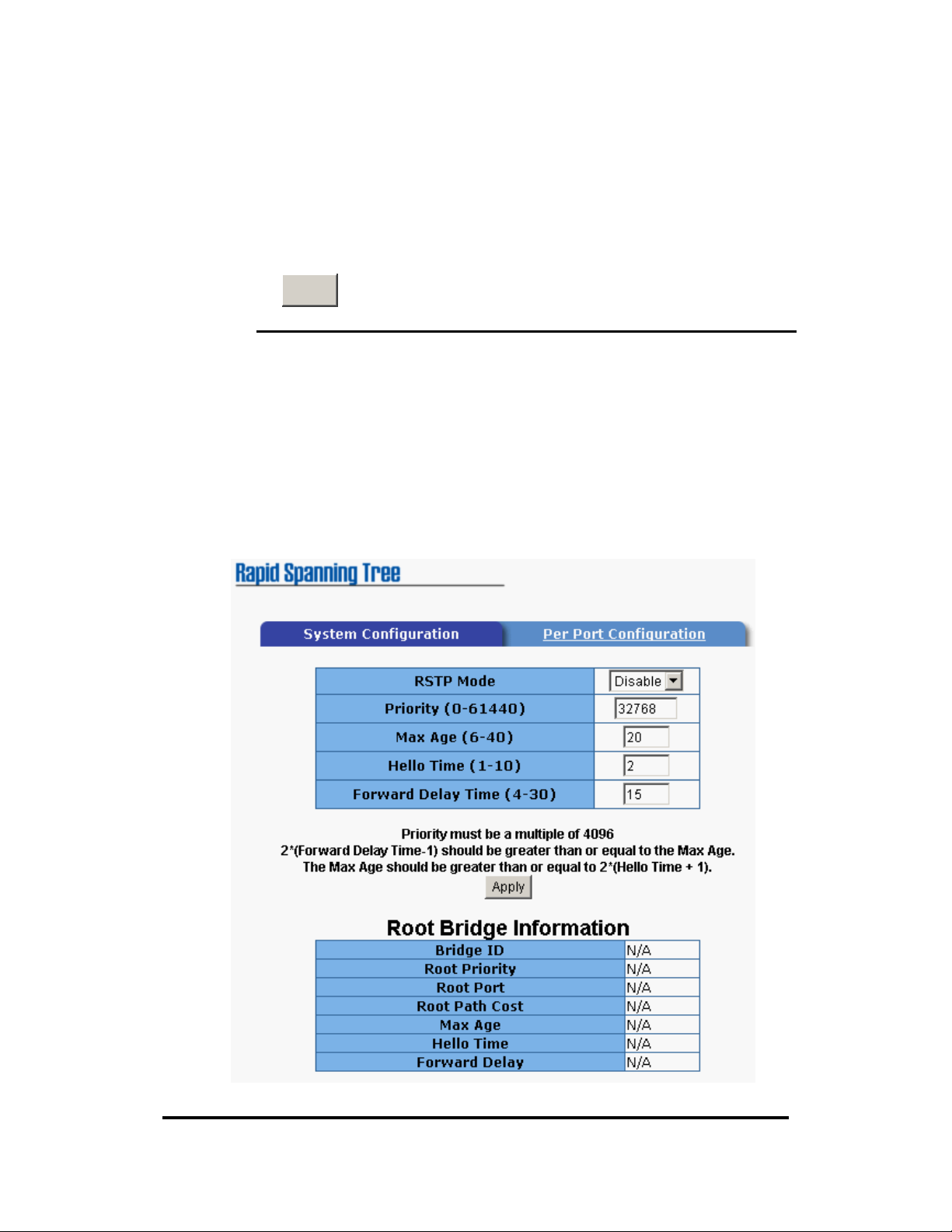

RSTP Configuration ...............................................36

System Configuration.......................................................36

Per Port Configuration......................................................38

X-Ring ....................................................................39

QoS Configuration..................................................41

IGMP......................................................................43

Security Manager...................................................45

Configuration Backup.............................................45

TFTP Restore Configuration.............................................45

TFTP Backup Configuration.............................................46

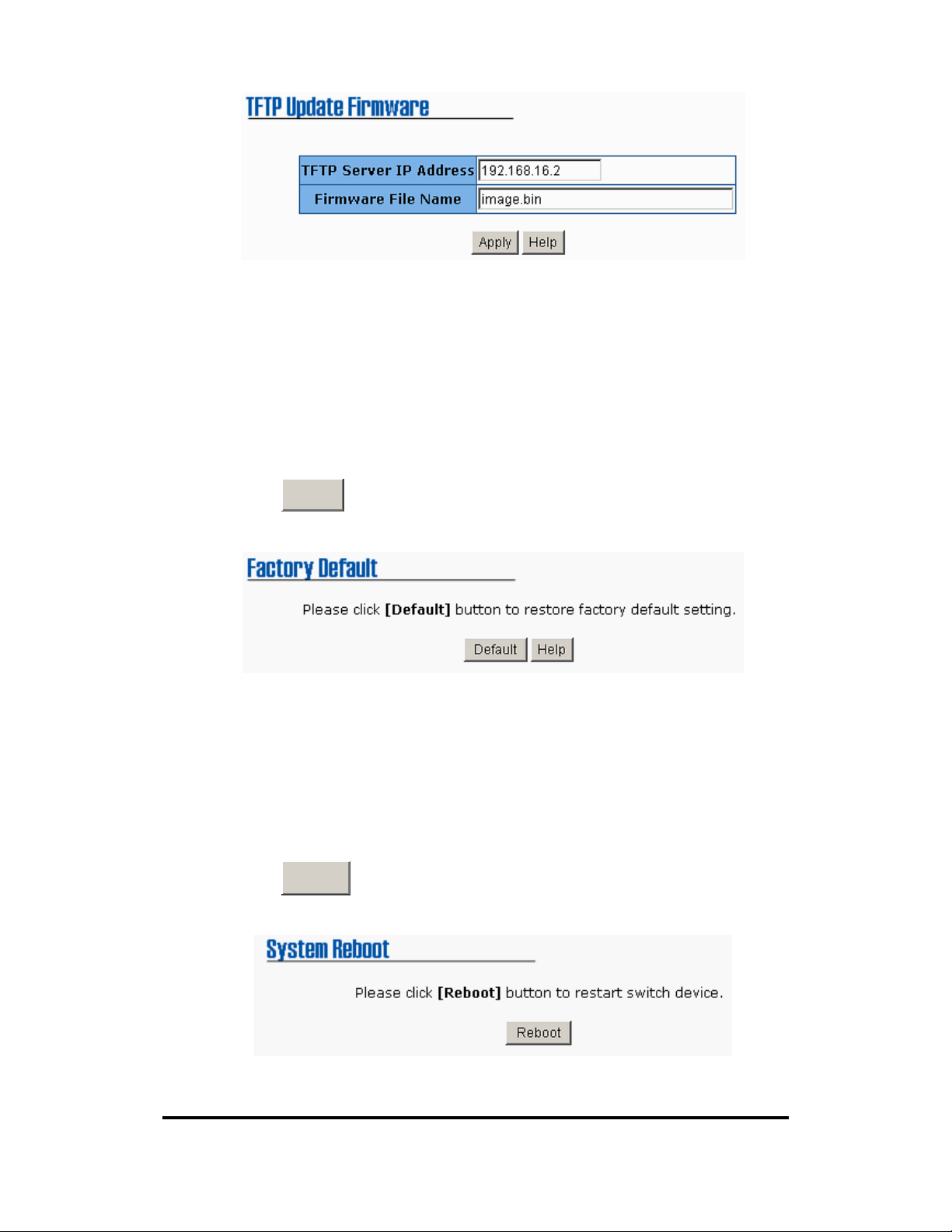

TFTP Update Firmware..........................................46

Factory Default.......................................................47

System Reboot.......................................................47

Save Configuration.................................................48

Rate Control...........................................................48

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone]

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

www.bb-elec.com

Troubles shooting....................................................50

Technical Specification...........................................51

Manual Documentation Number: EIR505-xx_5107M Table of Contents ix

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Introduction

The Elinx EIR505 series of Industrial Managed Ethernet Switches provide
powerful functionality in a small package. De signed for industrial
applications, these switches are highly reliable.

Features

 Conforms to IEEE 802.3 10Base-T, 802.3u 100Base-TX/100Base-FX
 5-port 10/100TX industrial switch (Fiber Optic models have 1 100FX

port)

 RJ-45 ports support auto MDI/MDI-X
 Store-and-Forward switching architecture
 Wide-range redundant input power connections
 DIN rail and panel mount design
 Easy to configure
 Web based management
 IEEE 802.1p class of service and port based, Tag based, and Type of

service priority method

 Each port supports 4 priority queues
 Port based VLAN / 802.1 Q Tag VLAN
 IGMP with Query mode for multi media application
 DHCP client
 Ingress packet filter and egress rate limit.
 Relay alarm output for system events
 Input power reverse polarity protection
 Port mirror for TX only, TX and RX packet
 IEEE 802.3x flow control

¾ Flow control with full-duplex

¾ Back pressure with half-dup lex
 X-Ring function
 SNTP
 TFTP firmware update, system configuration restore and backup
 1Mbits Embedded memory
 2K MAC address table

Manual Documentation Number: EIR505-xx_5107m 1

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Package Contents

 5 Port Managed Industrial Switch
 One DIN-Rail (attached to the swit ch)
 One Panel mount plate and six screws
 User manual

5 10/100TX with X-Ring Web Management User Manual

Industrial switch

Wall Mount Plate Screws DIN-Rail

If any item is missing or damaged, contact B&B
Electronics for a replacement.

2

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

Hardware Description

Physical Dimension

(W x H x D) 2.13in x 5.31in x 4.13 in (54mm x 135mm x 105mm)

Front Panel

EIR505 Front Panel

Reset Button

The reset button is used to restart the reboot the switch or restore it to the
factory default configuration.

 Restart: Press the button for 2 seconds and release.
 Set to factory default value: Press the button for 5 seconds and

release.

Manual Documentation Number: EIR505-xx_5107m 3

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Bottom View

The bottom panel of the EIR-505-xx industrial switch consists of one
terminal block connector with two DC power inputs and one DC IN power
jack.

Bottom Panel of the industrial switch

DIP-switch

The six position DIP-switch is used to configure the relay alarm operation
mode and the master ring operation mode. The default value for each
position is OFF.

DIP Switch No Status Description

OFF Disable port 1 Alarm

1

ON Enable port Alarm.

2

4

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

OFF Disable port Alarm

Manual Documentation Number: EIR505-xx_5107m

ON Enable port Alarm.

OFF Disable port Alarm

3

ON Enable port Alarm.

OFF Disable port Alarm

4

ON Enable port Alarm.

OFF Disable port Alarm

5

ON Enable port Alarm.

OFF Disable the master ring function.

6

Enable the switch as the ring master

ON

in the X-Ring group.

LED Indicators

There are 7 diagnostic LEDs located on the front panel. They provide
real-time status information.

LED Status Meaning

Power

Manual Documentation Number: EIR505-xx_5107m 5

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Green The switch is on

R.M. (Ring Master)

Power 1

Power 2

Fault

Off

The switch is off or no power input
is available

The switch is the master of X-Ring

Green

group
The industrial switch is not the

Off

master of an X-Ring group
Green Power source 1 is available
Off Power source 1 is not available
Green Power source 2 is available
Off Power source 2 is not available
Yellow Power failure or port failure
Off Normal Operation

LNK/ACT (port 5)
RJ-45 or Fiber Optic

FDX/COL (port 5)
RJ-45 or Fiber Optic

Ports

 RJ-45 ports

Green The port is linked
Blinking The port is transmitting or receiving

Off No device attached

The port is operating in full-duplex
Yellow

mode
Blinking Data Packet Collision

The port in half-duplex mode or is
Off

not connected to a device

There are 5x 10/100Mbps auto-sensing ports for 10Base-T or 100Base-TX
device connection. The ports are auto-sensing and auto MDI/MDIX.

6

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

RJ-45 Pin Assignments

Pin Number Assignment

1 Tx+
2 Tx­3 Rx+
6 Rx-

All ports on this switch support automatic MDI/MDI-X operation.
Straight-through cables can be used for all network connections. In
straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable.
The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X port
pin outs.

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)

Straight Through Cable Schematic

Manual Documentation Number: EIR505-xx_5107m 7

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Cross Over Cable Schematic

 Fiber Port
There is one 100Base-FX port. The fiber port is SC type connector in multi
mode (2Km) or single mode (30Km).

Connect the fiber port as described below.

ATTENTION

This is a Class 1 Laser/LED product. Do not stare into
the Laser/LED Beam.

Cabling

 Use Category 5 cabling for RJ-45 port connections. The cable must

be less than 328 ft (100 meters) long.

 Use 8/125 or 9/125 um for single-mode fiber. Distances up to 30

8

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

Kilometers are supported.

 Fuse 50 or 62.5/125 um for multi-mode fiber cable. Distances up to

2Kmare supported.

Wiring the Power Inputs

1. Insert the positive and negative wires into the V+ and V­connector on the terminal block connector

2. Tighten the wire-clamp screws

[NOTE] Use 12~ 24 AWG wire.

V- V+ V- V+

Manual Documentation Number: EIR505-xx_5107m 9

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Wiring the Fault Alarm Contact

The fault alarm contact are located in the middle of terminal block connector
as shown below. Insert the wires and set the Dipswitch to “ON”. When a
power source fails or a link fault occurs, it will be detected and cause an
open circuit. The following figure shows an application example for the fault
alarm contact.

Insert the wires into the fault alarm contact

[NOTE] The wire range of terminal block is from 12~ +24 AWG.

Fault Alarm Contact

The open circuit will form when the

power failure or port link failure.

24V DC Buzzer 24V Battery

10

The fault alarm device will send a

warning signal to warn the user, ex:

alarm sound or flash light.

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

,

Mounting Installation

DIN-Rail Mounting

 Use the screws to attach the DIN-Rail to the industrial

 To remove the DIN-Rail

Rear Panel of
the switch

DIN-Rail

switch

reverse the step 1.

Manual Documentation Number: EIR505-xx_5107m 11

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

1. First, insert the top of DIN-Rail into the track.

2. Then, lightly push the DIN-Rail into the track.

3. Ensure the DIN-Rail is tightly secured to the track.

4. To remove the industrial switch from the track, reverse steps above.

12

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

Panel Mounting

Follow the steps below to mount the industrial switch with the Panel mount
plate.

1. Remove the DIN-Rail from the industrial switch.

2. Place the wall Panel plate on the rear of the industrial switch.

3. Use the screws to attach the Panel plate to the industrial switch

4. Use the hook holes at the corners of the panel mount plate to attach the
industrial switch to the panel.

5. To remove the panel mount plate, reverse steps above

Manual Documentation Number: EIR505-xx_5107m 13

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Hardware Installation

.

1. Unpack the Industrial switch.

2. Ensure the DIN-Rail is tightly screwed to the Industrial switch. If not,
refer to DIN-Rail Mounting section for DIN-Rail installation. To panel
mount the Industrial switch, refer to Panel Mounting section.

3. Apply power to the switch (refer to the Wiring the Power Inputs
section). The power LED will light.

4. Connect CAT 5 cables to the Industrial switch’s RJ-45 ports and to the
network devices.

[NOTE] If the network devices do not support MID/MDIX, a
crossover cable may be required.

5. Connect the fiber optic cables to the industrial switch and network device.
Ensure that the switch’s fiber optic transmitter is connected to the
network devices receiver and vice versa.

6. When all the connections are made and the LEDs show normal
indications, the installation is complete.

14

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Network Application

X-Ring Application

The EIR505 series of Industrial Switches incorporate the X-Ring Protocol to
ensure network reliability and system restoration within 300 ms in the event
of a connection failure. The X-Ring algorithm is similar to the spanning tree
protocol (STP) algorithm but it has faster recovery time. The following figure
below is an example of an X-Ring application.

Manual Documentation Number: EIR505-xx_5107m 15

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Coupling Ring Application

If the network has more than one X-Ring group, the coupling ring function is
used to connect them and add redundancy. This ensur es that transmiss ions
between the two ring groups will not fail. The figure below is an example of
the coupling ring application.

16

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Dual Homing Application

The Dual Homing function is used to prevent a connection loss between the
X-Ring group and the upper level/core switch. Assign a port in each X-ring
group to be the Dual Homing ports The Dual Homing function can only be
used when the X-Ring function is active. Each X-Ring group can have one
Dual Homing port.

[NOTE] In the Dual Homing architecture, the upper level switches must
have Rapid Spanning Tree protocol enabled.

Manual Documentation Number: EIR505-xx_5107m 17

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Web-Based Management

About Web-based Management

The switch has an embedded HTML web site residing in flash memory. This
site offers advanced management features and allows the switch to be
configured from anywhere on the network.

The web site is designed for Internet Explorer 5.0 and uses Java Applets to
reduce bandwidth consumption, enhance access speed, and present an
intuitive user interface.

[NOTE] By default, IE5.0 and later versions do not allow Java Applets to
activate sockets. The user must modify the browser setting to enable Java
Applets to operate network ports.

Preparing for Web Management

Before using web management, install the industrial switch on the network
and verify that a PC on the local network can connect with the switch
through the web browser. The default IP Address, Subnet Mask, Username
and Password is listed below:

 IP Address: 192.168.16.1
 Subnet Mask: 255.255.255.0
 Default Gateway: 192.168.16.254
 User Name: root
 Password: root

18

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

System Login

1. Launch Internet Explorer on the PC.

2. Enter “http:// “+” the IP address of the switch”, in the address window

and then Press “Enter”.

3. The login screen will appear.

4. Enter the user name and password.

5. Press “Enter” or “OK”, the home screen will appear.

Function Menu Bar

Home Interface

Panel Figure Display

Configuration Display Screen

Manual Documentation Number: EIR505-xx_5107m 19

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Port status

Shows the status of each port

 Port: Displays the port number
 Type: Displays the speed and mode, ex: 100TX = 100Mbps
 Link: Displays the ports status (up or down)
 State: Displays the ports status (disabled or enabled). Unlinked is

displayed as “off ”

 Negotiation: Displays the auto negotiation mode (auto or forced).
 Speed Duplex: Displays the port connection speed. “Config” is the

configured value. “Actual” is the current value.

 Flow Control: Displays the flow control status as “Symmetric” or

“Asymmetric” in full mode. “Disable” means that flow control is not
enabled “Config” indicates that the value is user configured. “Actual” is
the current value of the por t.

Port Status interface

Single Port Information

Click the desired port on the Panel figure. The single port information
window will display the current port information.

20

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Port information interface

Port Statistics

Displays port statistics. Click

Clear

button to reset.

Port Statistics Interface

Manual Documentation Number: EIR505-xx_5107m 21

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Port Control

Used to set up the port.

1. Select the port by scrolling down the Port column. The current port

information will be displayed in the table below.

2. State: Enables or disables the port.

3. Negotiation: Sets the negotiation mode to Auto, Nway (specify the

speed/duplex of the port and enable auto-negotiation), or Forced.

4. Speed: Sets the transmit speed of the port

5. Duplex: Sets the port to full-duplex or half-duplex

6. Flow control: Sets flow control function to Symmetric or Asymmetric

in Full Duplex mode(The default value is Disable)

7. Click the

Apply

button to apply configurations

8. Select the port again to verity the configuration.

[NOTE] If the configuration is not saved it will be lost when the switch
is powered off.

Port Control interface

22

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Switch Settings

Used to assign the system name, location and to view system information
 System Name: Assigns a name to the switch. The maximum length is

64 bytes

 System Location: Assigns a physical location for the switch. The

maximum length is 64 bytes

 System Description: Displays the description of switch. This is read

only and cannot be modified

 Firmware Version: Displays the firmware version
 Kernel Version: Displays the kernel software version
 Hardware version: Display the hardware version
 MAC Address: Display the unique hardware address assigned by

manufacturer (this value is different for each switch)

Switch settings interface

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.
[NOTE] The Firmware, Hardware, and Kernel versions listed above are
current as of the date this manual was produced.

Manual Documentation Number: EIR505-xx_5107m 23

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Port Mirroring

Port mirroring is a method to monitor traffic in switched networks. This is
accomplished by mirroring the traffic going in and out of the monitored ports
to a specifically designated port (the mirror port).

1. Port Mirroring Mode: Sets the mirror mode. Select disable to disable

port mirroring. Select TX to monitor data being transmitted by a port.
Select both to monitor port data being transmitted and received by a
port. The default value is “Disable”.

2. Analysis Port: This is the port used to see all monitored port traffic

(This port can be connected to a LAN analyzer or Netxray).

3. Monitor Port: Check the box to moni tor the port. Up to 4 ports can be

designated as monitor ports.

[NOTE]
If the configuration is not saved, it will be lost when the port is
powered off.

Port Mirroring interface

24

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

VLAN configuration

A Virtual LAN (VLAN) can be thought of as a broadcast domain that exists
within a switch or a defined set of switches. By grouping switch ports into
VLANs, traffic flooding is limited since devices can only communicate
directly with devices belonging to the VLAN. Creating a VLAN from a switch
is the logical equivalent of reconnecting a group of devices to another Layer
2 switch. However, the network devices retain their same physical
connection. The EIR505 series switches support port-based and 802.1Q
(tagged-based) VLAN. In the default configuration, the VLAN option is
disabled.

VLAN Configuration interface

Port-based VLAN

With port-based VLAN, the port is assigned to a VLAN. Therefore all
devices attached to a given port should be members of the same VLAN. As
with other VLAN configurations, the packets forwarded using this method do
not leak into other VLAN domains on the network. After the port has been
assigned to a VLAN, devices on the port cannot send to or receive from
devices in other VLANs without the intervention of another layer 3 device or
the ability to tag the data packet with a specific PVID.

Manual Documentation Number: EIR505-xx_5107m 25

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

A

VLAN – Port Base interface

dd

1. Click

to add a new VLAN group. The EIR505 series supports up

to 64 VLAN groups

2. Enter Group name, VLAN ID and select the members of VLAN group

3. Click

Apply

26

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

VLAN—Port Base Add interface

4. The VLAN group will be displayed after apply is clicked

5. Click

6. Use

7. Use

Nex t P ag e

Delete

Edit

button to modify existing VLANs

to view the next VLAN group

button to delete unwanted VLANs

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off

802.1Q VLAN

Tagged-based VLAN is an IEEE 802.1Q specification which allows VLANs
to be created across devices from different venders. IEEE 802.1Q VLAN

Manual Documentation Number: EIR505-xx_5107m 27

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

A

uses a technique to insert a “tag” into the Ethernet frame. The tag contains a
VLAN Identifier (VID).

When the 802.1Q VLAN is enabled, all ports on the switch belong to a
default VLAN (VID 1). The default VLAN can’t be deled. The EIR505 series
will support up to 64 VLAN groups.

 Basic

1. Click

dd

2. Management VLAN ID:

When this option is selected , remote management is only availa ble to
the members of the indicated VLAN Group. Enter the specific VLAN ID
number in Management VLAN ID column, check the box, and click the

Apply

button. Example: If the management VLAN ID is 101 and the

VLAN group ID 101 includes ports 1 , 2, and 4, only ports 1, 2, and 4
can perform remote management functions on the switch. If a port is in
multiple VLAN groups, it can still perform management functions as
long as one VLAN group ID is equal to the Management VLAN ID.

28

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

802.1q VLAN interface

Used for Remote Management Security.

Manual Documentation Number: EIR505-xx_5107m

A

3. Group Name: assign a name for the new VLAN

4. VLAN ID: fill in a VLAN ID. The default is 1

5. From the Available ports box, select ports to add to the VLAN group

dd

and click

button

6. Click

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

802.1q VLAN –Add interface

Next

to bring up the configuration interface:

Manual Documentation Number: EIR505-xx_5107m 29

7. Select outgoing frames as VLAN-Tagged frames or untagged and then

click

Apply



Port VID:

Configure port VID settings

1. Port VLAN ID: enter the port VLAN ID

2. And then, click

3. To reset to the default values, click

Apply

Default

button

30

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

802.1q VLAN – Port VLAN ID interface

[NOTE] If the configuration is not saved, it will be lost if the switch is
powered off.

IP Address

Configure the IP Settings and DHCP client function
 DHCP Client: Use to enable or disable the DHCP client function. When

the DHCP client function is enabled, the industrial switch will be
assigned an IP address from the network DHCP server. After the
“Apply” button is clicked, dialog box will indicate that the user that when
the DHCP client is enabled, the current IP will lost and the new IP must
be looked up on the DHCP server. The switch’s MAC Address will be
required to look up the new IP Address on the DHCP Server. To cancel
the DHCP client function, click “cancel”.

 IP Address: Assign a static IP address. This is not required if DHCP

Manual Documentation Number: EIR505-xx_5107m 31

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Client is enabled. The default IP is 192.168.10.1.

 Subnet Mask: Assign the subnet mask of the IP address. This is not

required if the DHCP Client is enabled.

 Gateway: Assign the network gateway. The default gateway is

192.168.10.254.

 Click

Apply

IP configuration interface

SNTP Configuration

SNTP (Simple Network Time Protocol) allows the switch to synchronize its
time with an SNTP Server.

1. SNTP Client: Enable or Disable SNTP

2. Daylight Saving Time: Enables or disables daylight saving time. When

enabled, the daylight saving time period must be entered.

3. UTC Time zone: Used to calculate lo cal time. Set the switch location

time zone.

Local Time Zone Conversion from UTC Time at 12:00 UTC

32

November Time
Zone
Oscar Time Zone -2 hours 10 am

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

- 1 hour 11am

ADT - Atlantic
Daylight
AST - Atlantic
Standard
EDT - Eastern
Daylight
EST - Eastern
Standard
CDT - Central
Daylight
CST - Central
Standard
MDT - Mountain
Daylight
MST - Mountain

-3 hours 9 am

-4 hours 8 am

-5 hours 7 am

-6 hours 6 am

Standard

-7 hours 5 am

PDT - Pacific
Daylight
PST - Pacific
Standard

-8 hours 4 am

ADT - Alaskan
Daylight
ALA - Alaskan

-9 hours 3 am

Standard
HAW - Hawaiian

-10 hours 2 am

Standard
Nome, Alaska -11 hours 1 am
CET - Central

European
FWT - French Winter

+1 hour 1 pm

MET - Middle
European
MEWT - Middle

Manual Documentation Number: EIR505-xx_5107m 33

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

European Winter
SWT - Swedish
Winter
EET - Eastern
European, Russia

+2 hours 2 pm
Zone 1
BT - Baghdad,

+3 hours 3 pm
USSR Zone 2

ZP4 - Russia Zone 3 +4 hours 4 pm
ZP5 - Russia Zone 4 +5 hours 5 pm
ZP6 - Russia Zone 5 +6 hours 6 pm
WAST - West

+7 hours 7 pm
Australian Standard

CCT - China Coast,

+8 hours 8 pm
USSR Zone 7

JST - Japan
Standard, Russia

+9 hours 9 pm
Zone 8
EAST - East
Australian Standard
GST

+10 hours 10 pm
Guam Standard,
Russia Zone 9
IDLE - International
Date Line
NZST - New

+12 hours Midnight
Zealand Standard
NZT - New Zealand

4. SNTP Sever IP: Enter the IP address of the SNTP server.

5. Switch Timer: Displays the switch’s current time

6. Daylight Saving Period: Enter the daylight saving time period

7. Daylight Saving Offset (mins): Configuring the offset value in minutes

8. Click

Apply

to active the configuration

34

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

SNTP Configuration

IP Security

IP security function grants 10 specific IP addresses permission to access
the switch through a web browser for the switch management.

1. Enable the IP Security: Mark the check box to enable

2. Security IP 1 ~ 10: Enter up to 10 specific IP address.

3. Click

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

Apply

Manual Documentation Number: EIR505-xx_5107m 35

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

IP Security Interface

RSTP Configuration

The Rapid Spanning Tree Protocol (RSTP) is an ev olution of Spanning Tr ee
Protocol (STP). It provides a faster spanning tree convergence after a
topology change. The s w i t c h w ill auto det ec t a device th at is running STP or
RSTP protocol.

System Configuration

Modify RSTP state parame ters

 RSTP mode: Enable or disable RSTP function.
 Priority (0-61440): a value used to identify the root bridge. The bridge

with the lowest value has the highest priorit y and is selected as the root.
If the value changes, the switch must be rebooted. The priority value
must be multiple of 4096 according to the protocol standard rule.

 Max Age (6-40): the number of seconds a bridge waits without

receiving Spanning-tree Protocol configuration messages before
attempting a reconfiguration. Enter a value between 6 and 40.

36

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

 Hello Time (1-10): The time that the control switch sends out a BPDU

packet to check RSTP status. Enter a value between 1 and 10.

 Forward Delay Time (4-30): The number of seconds a port waits

before changing from its Rapid Spanning-Tree Protocol learning and
listening states to the forwarding state. Enter a value between 4
through 30.

 Click

[NOTE]

1. Use the following rule to configure the MAX Age, Hello Time,

If the configuration is not saved it will be lost when the switch
is powered off.

Apply

and Forward Delay Time.

2 x (Forward Delay Time value –1) > = Max Age value >= 2
x (Hello Time value +1)

RSTP– System Configuration Interface

Manual Documentation Number: EIR505-xx_5107m 37

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Per Port Configuration

Configure path cost and priority of every port

1. Select the port in Port column

2. Path Cost: The cost of the path to the other bridge from this transmitting
bridge at the specified port. Enter a number 1 through 200000000

3. Priority: Network Priority. Enter a number from 0 to 240. The value must
be a multipl e of 16

4. Admin P2P: Some of the rapid state transactions that are possible
within RSTP are dependent upon whether the port concerned can only
be connected to one other bridge (i.e. it is served by a point-to-point LAN
segment), or whether it can be connected to two or more bridges (i.e. it
is served by a shared medium LAN segment). This function allows the
P2P status of the link to be manipulated administratively. True is P2P
enabling. False is P2P disabling

5. Admin Edge: The port directly connected to end stations cannot create
a bridging loop. To configure the port as an edge port, set the port to
“True” status

6. Admin Non Stp: The port includes the STP mathematic calculation.
True does not include the STP mathematic calculation. False includes
the STP mathematic calculation

7. Click

Apply

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

38

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

RSTP – Per Port Configuration interface

X-Ring

X-Ring provides network redundancy similar to the Spanning Tree and
Rapid Spanning Tree Protocols. However, recovery time is greatly reduced
when the X-Ring protocol is used. The protocol identifies one switch as the
Ring Master. Packets are blocked from the redundant path unless a ring
member becomes disconnected from the rest of the network. When this
happens, the protocol automatically restores connectivity using the
redundant path.
In the X-Ring topology, every switch should enable X-Ring function and
assign two member ports to the r ing. Only one switch in the X-Ring gr oup
would be set as the backup switch. Other switches are called working
switches and their two member ports are called working ports. If a network
connection failure occurs, the backup port will automatically become a
working port to recover.

The switch has a Dipswitch to configure the switch as the ring master. The

Manual Documentation Number: EIR505-xx_5107m 39

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

ring master has the rights to negotiate and place a command to other
switches in the X-Ring group. If more than one switch is in master mode,
the software will select the switch with lowest MAC address number as the
ring master. An LED on the front panel indicates that the switch is the ring
master.

Coupling ring is used to connect 2 or more X-Ring groups providing a
redundant back-up Dual homing is used to recover from a connection loss
between an X-Ring group and the upper level/core switch.

 Enable X-Ring: Mark the check box to enable the X-Ring function

st

 1

& 2nd Working Ports: Assign two ports as the member ports. One

port will be working port and one port will be the backup port. The
system will automatically decide which port is working port and which
port is backup port

 Enable Coupling Ring: Mark the check box to enable the coupling

ring function

 Coupling port: Assign the member port
 X-Ring Master: Set the switch labeled RM on front panel to on position.

This establishes that switch as a master for the ring.

 Enable Dual Homing: Set up one of port to be the Dual Homing port.

In an X-Ring group, only one can be a Dual Homing port. This function
will only work when the X-Ring function is enabled

 Click

Apply

40

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

X-Ring Interface

[NOTE]

1. When the X-Ring function is enabled, the RSTP function must be
disabled.

2. If the configuration is not saved, it will be lost when the switch is

powered off.

QoS Configuration

 Qos Policy: select the Qos policy rule

¾ Using the 8,4,2,1 weight fair queue scheme: The switch will

follow 8:4:2:1 rate to process priority queue from Highest t o lowest.
For example: the system will process 8 high queue packets, 4
middle queue packets, 2 low queue packets, and one lowest
queue packets at the same time

¾ Use the strict priority scheme: The highest queue will always be

processed f irs t .

 Priority Type: Every port has 5 priority types

¾ Port-base: The port priority will follow the default port priority

assigned – High, middle, low, or lowest

Manual Documentation Number: EIR505-xx_5107m 41

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

¾ CO S only: The port will follow the COS priority assigned
¾ TOS o nly: The port will follow the TOS priority assigned
¾ COS first: The port will follow COS priority first, and then another

priority rule

¾ TOS first: The port will follow TOS priority first, and then another

priority rule

 COS priority: Set the COS priority level 0~7
 TOS priority: The system provides 0 to 63 TOS priority levels. Each

level has 4 types of priority – high, mid, low, and lowest. The default
value is “Lowest”. When the IP packet is received, the system will check
the TOS value.

[NOTE] QoS and Rate control cannot be used simultaneously.

42

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

QoS configuration Interface

IGMP

The Internet Group Management Protocol (IGMP) is an internal protocol of
the Internet Protocol (IP) suite. IP manages multicast traffic by using
switches, routers, and hosts that support IGMP. Enabling IGMP allows the
ports to detect IGMP queries and report packets and manage IP multicast
traffic through the switch. IGMP has three fundamental types of messages:

Manual Documentation Number: EIR505-xx_5107m 43

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Message Description

A message sent from an IGMP router or switch

Query

requesting a response from each host belonging to
the multicast group.

A message sent by a host indicating that the host

Report

wants to be or is a member of a given group.

A message sent by a host indicating that the host

Leave Group

has is no longer a member of a specific multicast
group.

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

44

IGMP Snooping interface

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Security Manager

Use to change the web management login user name and password.

1. User name: enter the new user name(The default is “root”)

2. Password: enter the new password(The default is “root”)

3. Confirm password: reenter the new password

4. Click

Apply

[NOTE] If the configuration is not saved, it will be lost when the switch
is powered off.

Security Manager Interface

Configuration Backup

Used to backup the configuration to a TFTP server and load the backup
configuration from the TFTP server.

TFTP Restore Configuration

Restore flash ROM value from the TFTP server.

1. TFTP Server IP Address: Enter the TFTP server IP

2. Restore File Name: Enter the file name

3. Click

Apply

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m 45

TFTP Restore Configuration interface

TFTP Backup Configuration

Save current flash ROM value to the TFTP server

1. TFTP Server IP Address: Enter the TFTP server IP

2. Backup File Name: Enter the file name

3. Click

Apply

TFTP Backup Configuration interface

TFTP Update Firmware

Use to update firmware. Ensure the TFTP server is ready and the firmware
image is stored on the TFTP server,

1. TFTP Server IP Address: Enter the TFTP server IP Address

2. Firmware File Name: Enter the name of firmware image

3. Click

Apply

46

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

Factory Default

TFTP Update Firmware interface

Reset the Switch to the default configuration.

NOTE: The IP Address,
subnet mask, default gateway, username, and password will remain as
configured by the user.

 Click

Default

Factory Default interface

System Reboot

Reboot the switch in software reset
 Click

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Reboot

System Reboot interface

Manual Documentation Number: EIR505-xx_5107m 47

Save Configuration

Save the configuration to flash memory. If the switch is powered off without
saving the configuration, all changed configuration will lost

 Click

Save Flash

Save Configuration Interface

Rate Control

Set up each port’s bandwidth rat e and packet limitation type
 Limit Packet type: Select the packet type to filter. The packet filter

types are all packet types, broadcast/multicast/unknown, unicast
packets, broadcast/multicast packets, and broadcast packet only. The
broadcast/multicast/unknown, unicast packet, broadcast/multicast
packet, and broadcast packet only are only for ingress. The egress rate
only suppor ts all pac ket types.

 Ports 1 through 5 support port ingress and egress rate control. For

example, assume port 1 is 10Mbps, users can set its effective egress
rate to 1Mbps, and the ingress rate to 500Kbps.
¾ Ingress: Select the port effective ingress rate. The valid range

value is 1MB, 2MB, 4MB, 8MB, 16MB, 32MB and 64MB. The
default value is “disable”

¾ Egress: Select the port effective ingress rate. The valid range

value is 128kbps, 256Kbps, 512Kbps, 1MB, 2MB, 4MB, and 8MB.
The default value is “disable”

 Click

Apply

48

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Manual Documentation Number: EIR505-xx_5107m

[NOTE]

1. If the configuration is not saved, it will be lost when the switch is

powered off.

2. Qos and Rate control cannot exist at the same.

Rate Control Interface

Manual Documentation Number: EIR505-xx_5107m 49

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Trouble shooting

 Verify the power supply is correct (12-48V DC) Do not exceed 48V DC.
 Ensure the proper UTP cable is used for RJ-45 connections: 100Ω

Category 3, 4 or 5 cable for 10Mbps connections or 100Ω Category 5
cable for 100Mbps connections. Ensure that the length of any

twisted-pair connection does not exceed 328 feet (100 meters).

 LED Indicators: Assist in identifying problems.

50

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Technical Specification

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and Back-pressure

Standards

Protocol

Management

Technology

Transfer Rate

Transfer packet
size

IEEE802.1d spanning tree / IEEE802.1w rapid
spanning tree
IEEE802.1p class of service
IEEE802.1Q VLAN Tag

CSMA/CD

Provides Web interface management and one
default button for system default setting

Store and forward switching architecture

14,880 pps for Ethernet port
148,800 pps for Fast Ethernet port

64bytes to 1522 bytes (with VLAN tag)

MAC address

Memory Buffer

Back-plane

2K MAC address table

1Mbits

1.0 Gbps

Packet throughput

1.49Mpps @64bytes (4TX +1 FX)

ability

Manual Documentation Number: EIR505-xx_5107m 51

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

LED

Per port: Link/Activity (Green), Full
duplex/Collision (Yellow)

Per unit: Power (Green), Power 1 (Green),
Power 2 (Green), Fault (Yellow), Master (Green)

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable

Network Cable

Optical ca b l e

Power Supply

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5 cable

EIA/TIA-568 100-ohm (100m)

SC (Multi-mode): 50/125um~62.5/125um
SC (Single mode): 9/125um~10/125um
Availabl e d i s t ance: 2KM (Multi-mode) / 30KM

(single-mode)

Wavelength: 1310nm (multi-mode/ single mode)

Redundant 12 to 48 V DC power inputs with
reverse polarity protection

52

Power

3.64 Watts

consumption

4 selection rules :

 All packets
 Broadcast/ multicast/ unknown unicast

Packet filter

packets

 Broadcast/ multicast packets
 Broadcast packets only

IEEE802.1p class of service support, 4 priority

Class of service

queues per port.

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

port based

Quality of service

X-Ring

VLAN

Spanning tree

Tag based
IPv4 Type of service

300 ms Recovery Time

Port based VLAN and IEEE802.1Q Tag VLAN.
Both port based and Tag based VLAN groups
(up to 64).

IEEE802.1d spanning tree and IEEE802.1w
rapid spanning tree.

IGMP

SNTP

Management IP
security

Port mirror

IGMP v1 and Query mode. Up to 256 groups.

Simple Netw o r k t i me p r otocol

IP address security to prevent intrusion

TX packet only or both TX and RX packet.

Manual Documentation Number: EIR505-xx_5107m 53

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

Install

Alarm

Firmware update

DHCP client

DIN rail and panel mount

One 24VDC, 1A relay output.

TFTP firmware update
TFTP configuration backup and restore.

DHCP client function to obtain the IP address
from a DHCP server.

 Ingress packets filter and egress packet limit
 The egress rate control suppor ts all of

packet type and the limit rates are 128kbps,

Bandwidth control

Operation Temp.

Operation
Humidity
Storage
Temperature

256Kbps, 512Kbps, 1MB, 2M B , 4MB, and
8MB

 Ingress filter packet type combination rules

are Broadcast/Multicast/Unknown Unicast
packet, Broadcast/Multicast packet,
Broadcast packet only and all of packet. The
packet filter rate can be set follow

as:1Mbps、2Mbps、4Mbps、8Mbps、

16Mbps、32Mbps、64Mbps

0℃ to 60℃ (32℉ to 140℉)

5% to 95% (Non-condensing)

-40℃ to 85℃

54

Case Dimension

IP-30, 2.12 (W) x 4.31 (H) x ,4.13 (D) in (5.4 x

13.5 x 10.5 cm)

Manual Documentation Number: EIR505-xx_5107m

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com

FCC Class A, CE EN6100-4-2, CE

EMI

EN6100-4-3, CE EN-6100-4-4,
CE EN6100-4-5, CE EN6100-4-6

Safety

EN60950

IEC60068-2-32 (Free fall), IEC60068-2-27

Stability testing

(Shock), IEC60068-2-6 (Vibration)

Manual Documentation Number: EIR505-xx_5107m 55

B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax [phone] – www.bb-elec.com

B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph [phone] – Fax [phone] – www.bb-europe.com
