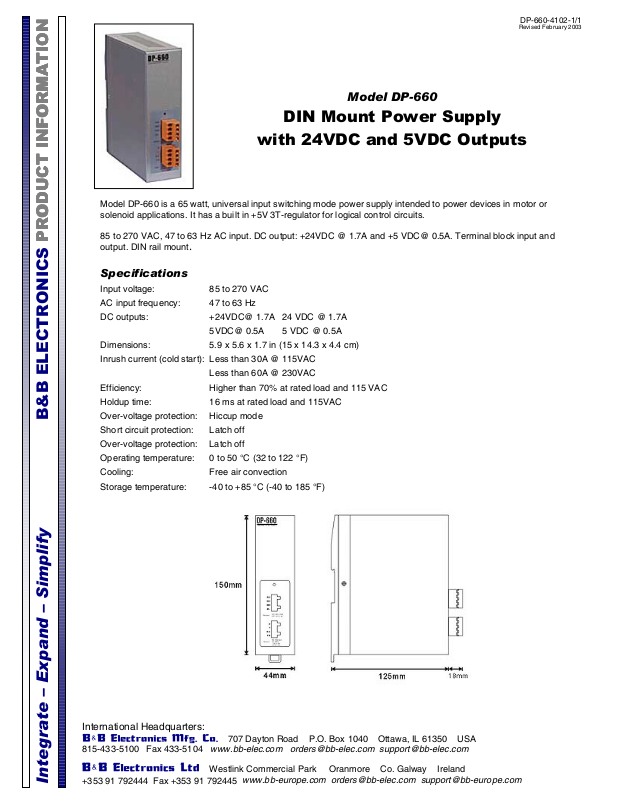

B&B Electronics DP-660 Datasheet

–

–

l

DP-660-4102-1/1

Revised February 2003

Model DP-660

DIN Mount Power Supply

with 24VDC and 5VDC Outputs

Model DP-660 is a 65 watt, universal input switching mode power supply intended to power devices in motor or
solenoid applications. It has a built in +5V 3T-regulator for logical control circuits.

PRODUCT INFORMATION

PRODUCT INFORMATION

PRODUCT INFORMATION

PRODUCT INFORMATION

85 to 270 VAC, 47 to 63 Hz AC input. DC output: +24VDC @ 1.7A and +5 VDC@ 0.5A. Terminal block input and
output. DIN rail mount

Specifications

Input voltage: 85 to 270 VAC

AC input frequency: 47 to 63 Hz

DC outputs: +24VDC@ 1.7A 24 VDC @ 1.7A

Dimensions: 5.9 x 5.6 x 1.7 in (15 x 14.3 x 4.4 cm)

Inrush current (cold start): Less than 30A @ 115VAC

Efficiency: Higher than 70% at rated load and 115 VAC

Holdup time: 16 ms at rated load and 115VAC

Over-voltage protection: Hiccup mode

Short circuit protection: Latch off

Over-voltage protection: Latch off

Operating temperature: 0 to 50 °C (32 to 122 °F)

Cooling: Free air convection

Storage temperature: -40 to +85 °C (-40 to 185 °F)

.

5VDC@ 0.5A 5 VDC @ 0.5A

Less than 60A @ 230VAC
