About the IE-iMcV-E1-Mux/4

Overview

The IE-iMcV-E1-Mux/4 is a media converter that transports four independent E1 lines
over an existing standard 155Mbps-capable fiber optic line operating at an effective
rate of 150Mbps. A second SFP port is available for a 1+1 protection mode. One
serial link (RS-232) and one Ethernet (10/100BaseT) connection are also multiplexed
onto the fiber link(s). Each of these communication channels is transported end-to­end at full wire speed with very low latencies.

The serial link can be used for extending an independent RS-232 interface to the
remote Points of Presence (
devices at the

POP

and supports any data rate up to 120K baud. In addition, each

POP)

location for use in managing or controlling other

unit also supports an RS-232 console port for local configuration by technical support
personnel. Both of these serial links are used for end-to-end system management,
fault detection /isolation and system diagnostics. The remote serial offers serial only.

The IE-iMcV-E1-Mux/4 provides fault indications on the E1 and fiber links resulting
from real-time active faults. The equipment detects both E1 and fiber
well as degraded E1 or fiber lines. The unit will automatically forward

LOS

the remote unit after detecting an

(Loss Of Signal) condition on any incoming E1

line. Severe receive optical link failures will result in the automatic generation of

LOS

events as

AIS

signaling to

AIS

signaling onto the E1 lines connected to the unit receiving the corrupted optical
signal.

In addition,

(Code Violation) errors are detected on all incoming E1 lines and

BER

CV

calculations for the optical line are constantly being performed by circuitry within the
unit's optical receiver. Error conditions are displayed on the unit’s front panel

LED

indicators and reported to system management software (if equipped) where more

GUI

detailed error information can be displayed on the user’s

1+1

Systems equipped with

fiber redundancy can benefit from the enhanced

(SNMP).

reliability of a protected fiber link and the system’s ability to automatically switch to
the “best” fiber line should one line become impaired or fail. This automatic
switchover capability is designed to occur rapidly (<50 milliseconds), minimizing data
loss and system down time. In addition, automatic switchover can be overridden;
this allows the end-user to force the unit to receive on a specific optical line if desired
for testing.

1

The IE-iMcV-E1-Mux/4 offers the following features:

• Four E1 ports on RJ-48 connectors with surge protection

•

One full bandwidth Ethernet 10/100BaseT port

•

1+1

protection switching via two

DDMI

•

•

One end-to-end serial RS-232 port on an RJ-45 connector
Local

•

•

Remote management capability through iMediaChassis series

AIS

•

•

SNMP
MDI/MDIX automatic Ethernet port switching

•

Last Gasp

•

•

E1 port enable/disable
Bandwidth Limiting for Ethernet Port

•

AIS Detection

•

supported on

CLI

management console port on a Mini Jack connector

SFP

ports

generation on signal loss on all E1 interfaces

Alarm TRAP reporting in managed chassis

SFP

-based optical ports

The IE-iMcV-E1-Mux/4 module is a dual-wide iMcV module.

Compatible chassis include the following:

• iMediaChassis series

• MediaChassis series

• IE-MediaChassis series

Product Application

The

IE-iMcV-E1-Mux/4 delivers 4 E1 lines to a customer's site over a protected,
dedicated fiber line. In addition, one serial RS-232 line and one 10/100BaseT
Ethernet line can be carried at the same time. All circuits run at full line rates with no
interaction.

ISP Internet

TDM Network

PSTN

Local Far End

10/100BaseT

(1 Port)

E1

(4 port)

Console

E1-Mux

(Network)

Host

Dedicated

Fiber

Dedicated

Fiber

Protection

(1+1)

E1-Mux

(Subscriber)

Remote

10/100BaseT

(1 Port)

E1

(4 Port)

Serial PortSerial Port

Console

Customer

LAN

Customer

PABX

Console RS232

Remote Far End

2

Managed Modules

The

IE-iMcV-E1-Mux/4 modules are installed as a Host/Remote pair. Host or Remote
configuration is selected by an onboard DIP Switch setting. By default the DIP Switch
setting is for a Host configuration. The Host/Remote pair can be remotely managed
when the HOST is installed in an iMediaChassis with an

Port Interfaces

A fully-configured IE-iMcV-E1-Mux/4 includes the following ports:

• Four E1 ports on RJ-48 connectors short haul

• One 10/100BaseT twisted pair Ethernet port

• One fiber

• One

• One Mini Jack serial RS-232 serial console port

• One user serial RS-232 data port (RJ-45)

The IE-iMcV-E1-Mux/4 is easily configured by using the serial console port
connection at the HOST side, view only at the remote end, or through an
management application such as iView².

SFP

port (requires

SFP

port for optical

SFP

1+1

protection.

/155-ED module for each port)

SNMP

Management Module.

SNMP

3

Console Serial Port Connection

10/100BaseT

Connector

RS-232

Connector

SFP

Ports

E1 RJ-48

Connectors

Console

The IE-iMcV-E1-Mux/4 includes a console serial port. To establish a link between a
module's console port and a local PC, connect the Mini Jack to DB9 adapter that is
included with the IMC module. This serial console port connection provides access

CLI

to the IE-iMcV-E1-Mux/4 module
computer/terminal for

and

parity

send delete.

no flow control

VT-100 emulation, 38.4K baud, 8 data bits, 1 stop bit, no

. Under the VT-100 emulation, set the backspace key to

configuration screens. Set the

4

iView² Management Software

iView² is the IMC Networks management software that features a GUI and gives
network managers the ability to monitor and control manageable IMC Networks
products.

iView² is available in several versions, including WebServer version 3.0, and can also
function as a snap-in module for HP OpenView Network Node Manager and other
third party SNMP Management software. For assistance in selecting the right version
of iView² for your operating system, please visit:

http://www.imcnetworks.com/products/iview2.cfm

2

iView

supports the following platforms:

• Windows 2000

• Windows XP

• Windows Vista

• Windows 7

SNMP

Please see the

Management Module for software configuration options.

5

LED

Operation

10/100BaseT

Connector

Connector

RS-232

E1 RJ-48

Connectors

SFP

Ports

The IE-iMcV-E1-Mux/4 features diagnostic

10/100BaseT Connector

LNK:

• OFF when port is not linked/connected

FDX:

• Glows green when link is established

• Blinks green during data activity

• OFF when port is not connected or when running at half-

duplex

• Glows yellow when port is running at full duplex

• Blinks yellow when collisions occur

LED

s as explained below.

6

E1 RJ-48 Connectors

ALARM:

• OFF during normal operation

• Blinks red+green simultaneously

when

CV

errors detected on the E1

line at far end of the optical line

• Glows red+green when loss of

service (

LOS

) is detected, OR
continuous bit errors are detected
on the E1 line at far end of the
optical line

• Blinks red when local CV errors

detected on E1 line.

• Glows red when

LOS

detected on
the local E1 line, OR
when continuous errors are
detected on the local E1 line

• Receiving AIS signal glows green if

an error is detected down line that
indicates a possible equipment
problem upstream to this unit

STAT:

• Glows green

during normal
operation

• Glows

red+green when
out-of-service or
when the port is
in a loopback or
test state

• Glows red when

the Host to
Remote fiber
link(s) is down or
badly corrupted

SFP Ports

ACT:

• Glows green when the

• OFF when the

SFP

• Glows red+green when the

SFP

port is the active receive line.

is not the receive line

SFP

port is manually forced to

be the active receive line

LNK:

• Glows green when there is a valid link

• Glows red when a loss of optical signal occur,

continuous optical bit errors

RAI

:

• Off when no remote defects are detected

• Glows red+green when remote

MSA

:

• Glows green when no

• Glows red+green when

SFP

alarms are detected

SFP

LOS

alarms or defects are detected

at remote end

• Glows red when

detected locally, i.e., when the

SFP

alarms or misconfigurations are

SFP

is missing, or when

speed is not at 155Mbps

or

BER

detected

LOF

, or with

SFP

7

Connector Pinout and DIP Switch Assignments

DIP Switch Assignments

A single 10-position DIP Switch is located on the unit to set the configuration. The
switch positions are defined as follows:

Switch # Function Settings Factory Default

1 Host/Remote OFF = Host,

OFF

ON = Remote
2 Reserved OFF OFF
3 Reserved OFF OFF
4 Reserved OFF OFF
5 Reserved OFF OFF
6 Reserved OFF OFF
7 Reserved OFF OFF
8 Reserved OFF OFF
9 Reserved OFF OFF

10 Reserved OFF OFF

NOTE

Switch #1 must be set to ON at the Remote location.
Switches #2 through #10 are reserved for factory use only and must be OFF for
proper operation.

8

10/100BaseT Ethernet Mating Connector Pinout

The following table lists the pin configuration for the standard RJ-45 Ethernet
connector.

Pin Signal

1 Transmit +
2 Transmit -
3 Receive +
4 None
5 None
6 Receive -
7 None
8 None

Pin 1

NOTE

MDI/MDIX AutoCross function will automatically transpose the Transmit and
Receive lines if required.

E1 Port Mating Connector Pinout

The following table lists the pin configuration for the standard RJ-48 E1 port mating
connectors.

Pin Signal

1 Receive 1 (Tip in to unit)
2 Receive 2 (Ring in to unit)
3 None
4 Transmit 1 (Tip from unit)
5 Transmit 2 (Ring from unit)
6 None
7 None
8 None

Pin 1

NOTE

The pin configuration is consistent with a DTE interface.

9

RS-232 Port Mating Connector Pinout

The following table lists the pin configuration for the RS-232 port mating connector.

Pin Signal

1 None
2 None
3 None
4 Signal Ground
5 Receive Data (in to unit)
6 Transmit Data (out of unit)
7 None
8 None

Pin 1

This port provides an end-to-end RS-232 line that can support up to 120K Baud and
is transparent to all RS-232 protocols.

RS-232 Serial Console Port

The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating
connector for the console serial port.

Pin DB9-F Pin# Signal Name Direction

Tip 2 Transmit Out of Unit
Ring 3 Receive In to Unit
Sleeve 5 Return Return

Sleeve

Ring

Tip

10

Installation Instructions

Each IE-iMcV-E1-Mux/4 module requires two adjacent slots in an iMediaChassis or
MediaChassis. To install the module in a chassis, remove the blank faceplates
covering the slots where the module is to be installed. Then slide the module into
the chassis card guides until the module is seated securely in the slots. Secure the
module to the chassis by tightening the captive screw.

Host

All IE-iMcV-E1-Mux/4 units are shipped from the factory configured as

units.
The IE-iMcV-E1-Mux/4 modules must be installed in pairs. For two IE-iMcV-E1­Mux/4 units to properly operate together one unit needs to be configured as a

Remote

. Configuration as a Host or Remote is controlled via a DIP switch setting (S1-

1). If installing in a managed chassis, set the card in the managed chassis as a HOST.

Small Form-Factor Pluggable Ports (

The fiber link on the IE-iMcV-E1-Mux/4 module is supported through one
running at 155Mbps. The second SFP port can act as a redundant line. Many

SFP

)

SFP

SFP

s,
including those from IMC Networks, feature enhanced diagnostics capabilities DDMI
(Data and Diagnostic Management Information).

DDMI

statistics provide real-time

access to transceiver operating parameters such as voltage, temperature, laser bias

DDMI

current, and both transmitted and received optical power.
accessed in iView

2

.

information can be

AutoCross Feature

The 10/100BaseT Ethernet port on the IE-iMcV-E1-Mux/4 includes an AutoCross
feature that automatically selects between a crossover workstation and a straight­through connection depending on the connected device.

11

Configuration Options

The following sections describe the configurable features.

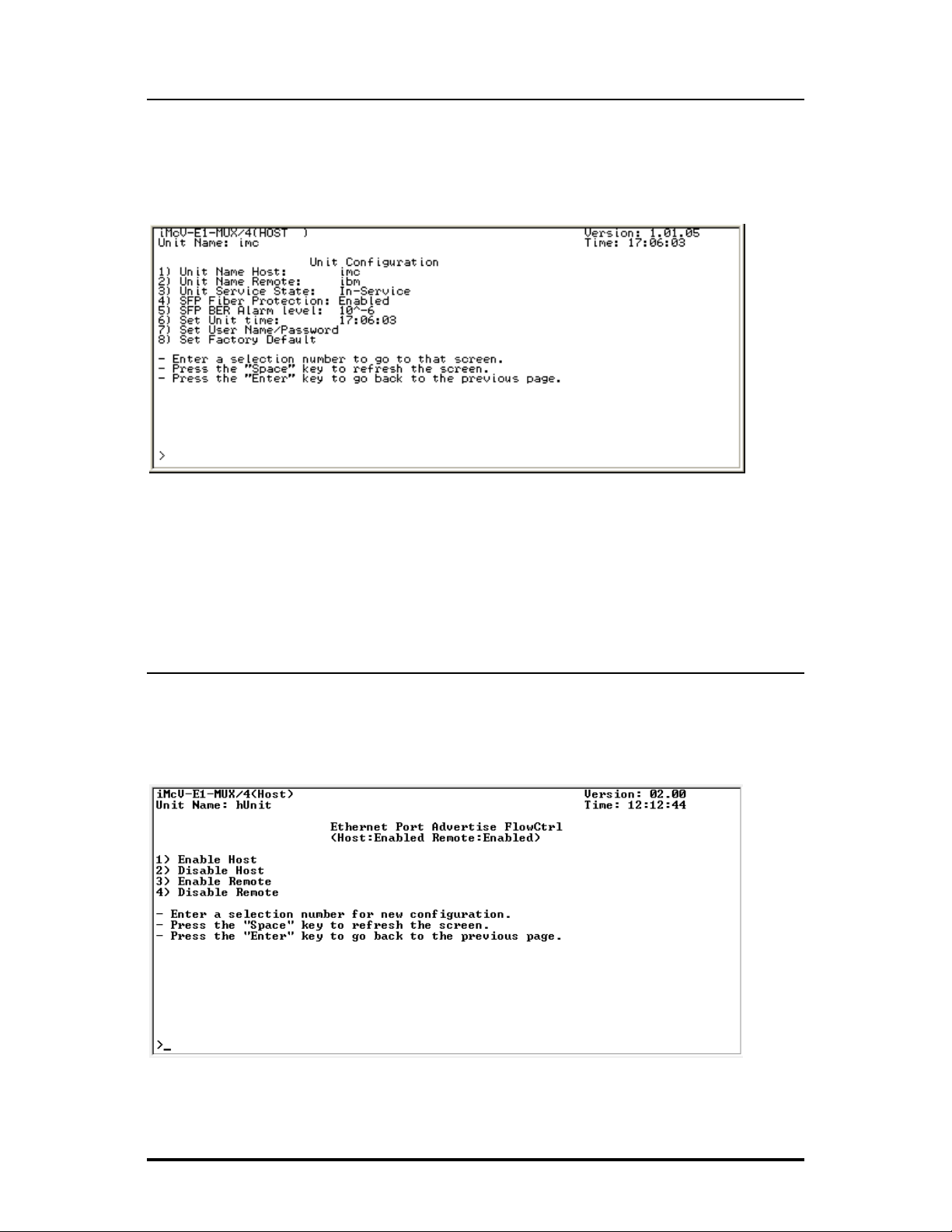

Use the "default" command to restore the unit's default settings. This restores the
card's default configuration and resets the default username and password.

User: admin / Password: admin

Ethernet Line Setup

If the Ethernet port is not used, it can be set to disabled via a console session or via
iView², to effectively block all traffic on this port.

Packet Size

The Ethernet transport can accommodate packets up to 1916 bytes.

Auto Negotiation

The IE-iMcV-E1-Mux/4 ships from the factory with Auto Negotiation enabled on the
Ethernet port. In this mode, the port negotiates for speed, duplex and flow control.

Forcing the Speed, Duplex Mode, and Flow Control

The Ethernet port on the IE-iMcV-E1-Mux/4 can be selectively advertised or manually
forced for 10 Mbps or 100 Mbps operation at Half- or Full-Duplex (i.e., 10 Mbps
Full-Duplex, 10 Mbps Half-Duplex, 100 Mbps Full-Duplex, etc.). Flow control can
also be enabled on the Ethernet port when the connecting equipment supports this.
These features can be enabled through iView² or the serial port.

FX LinkLoss and

LFPT

During normal operation, link integrity pulses are transmitted by all point-to-point
Ethernet devices. When an IE-iMcV-E1-Mux/4 receives valid link pulses, it knows
that the device to which it is connected is up, and that the cable coming from that
device is intact. The appropriate “LNK” (link)

LED

is lit to indicate this. However,
these signals are not normally transmitted across a normal store and forward Ethernet
bridge function. A failed Ethernet line on one end of the fiber link is not forwarded
to the Ethernet port at the other end of the optical transport. A failed optical line is
also not normally forwarded to the Ethernet port. The FX LinkLoss and LFPT
functions are used to enable these features.

For troubleshooting information utilizing the FX LinkLoss and
iMcV-E1-Mux/4 modules, refer to

LFPT

Both the LinkLoss and

features are set to "Disabled" by default.

Troubleshooting

at the end of this manual.

LFPT

features of the IE-

12

FX LinkLoss (FXLL)

FX LinkLoss is a link integrity monitoring feature that forwards fiber link faults to the
RJ-45 DATA port to indicate that a fiber link fault has occurred. FX LinkLoss can be
enabled in iView².

Link Fault Pass-Through (

Link Fault Pass-Through (
the Ethernet port on one module through to the Ethernet port on the other module.

LFPT

can be enabled via iView² or through the console port.

The link fault is passed through the media conversion and is observed at each end. It
acts just as it would if the end devices were directly connected without a fiber link.

E1 Ports Setup

Alarm Level

E1 lines are defined as LOST when no signal is received as defined by ITU G.775
specifications
these conditions lasts for more than 2.5 seconds, an ALARM state is declared. This
error condition must be absent for 10 seconds for the alarm state to clear.

The starting and ending event of all alarm conditions will generate an
when the unit is installed in a managed chassis and set to the IS state. During initial
installation or normal maintenance, the end-user can place the unit in the
Of-Service) state to inhibit unwanted

LOS

, and are considered in error with a

LFPT

)

LFPT

) is a troubleshooting feature that passes a link fault from

BER

of 10^-6. If either of

SNMP

TRAP

OOS

SNMP

TRAP alarms.

(Out-

Last Gasp

This feature alerts the end user if power to the device fails, and is permanently
enabled. Since the IE-iMcV-E1-Mux/4 modules must be installed as a Host/Remote
pair, the Host will report a power failure by sending an alarm trap to management.
The Host will maintain the Last Gasp alarm state until it can verify that power has
been restored.

Unit Service State

When selecting In-Service, Traps reporting is enabled. If Out-of-Service is selected,
Traps reporting is disabled. A Trap is sent when the status is changed from
Enabled/Disabled or Disabled/Enabled.

E1 Port Equipment

Within each E1 port setup, the state of the port can be set to equip or not-equipped.
When set to not-equipped, the end user has the ability to perform maintenance on
the line without impacting the other parts on the module.

13

Loopback

Each E1 port can be tested in loopback mode by enabling either a Host loopback or
Remote loopback test path. This capability allows the end-user to help troubleshoot
and isolate system problems such as improper/broken line terminations, cables or
malfunctioning equipment.

With Host loopback, the E1 copper port, connected to the Host unit, is looped back
to that port within the local unit. E1 data coming from the remote unit to that port
over the optical link is also looped back to the remote unit at the same point within
the local unit.

With remote loopback, an E1 line connected to the Host unit is transported onto the
optical link and looped back within the remote unit back onto the optical link
without passing onto the copper E1 line of the remote unit. The remote’s incoming
E1 copper line is also looped-back to the copper line within the remote unit.

The default value for loopback is "none."

Console Screens

Configuration Using the Console Port

The following section describes configuration using the console screens. The Remote
module is only configured through the Host.

Login Screen

After running through an initial self test, the log-in screen is displayed (the diagnostic
information displayed below is for illustration purposes only and may differ from the
actual screen display):

The username is case sensitive with a maximum length of 16 characters. After a
username is entered, the system prompts the end-user for a password.

14

Password is case sensitive with a maximum length of 16 characters. After the system
validates the username and password, the Main Menu is displayed.

Main Menu

From the main menu, the end-user can view essential unit configuration data—
including active alarms in order of importance—and a clock indicating when the
displayed information was last refreshed.

Menu Options

1

= Refer to the

2

= Refer to the

3

= Refer to the

4

= Refer to the

= Refer to the

5
6

= Refer to the

7

= Refer to the

8 = Log out

Unit Configuration Screen
Port Alarm Status

SFP

Line Status

screen

screen;

Ethernet Port Configuration
Ethernet Port Status
E1 Port Configuration
E1 Port Status

screen

SFP DDMI

screen

screen

alarms are also displayed

screen

NOTE

On all configuration screens, the title is the same as the "option" selected from the
previous screen.

15

Unit Configuration Screen

The unit configuration screen displays the names of the Host and Remote units as

BER

well as the service state, whether fiber protection is enabled and the SFP
level. In addition, the unit time can be set from this screen and the username and
password can be set/reset.

The screen displays the current status for items 1 through 8. For security reasons, the
current username and password are not displayed.

alarm

For items 1 through 8, enter the number of the menu item to be changed, and then
enter the new value when prompted. The unit and port names can be assigned by
the end-user and are used in

Ethernet port Flow Control

Flow Control can be enabled, to allow large amounts of data packets to pass without
dropping them. The feather allows the end user to handle network congestion.

SNMP

associated TRAP alarm messages.

16

SFP

Line Status Screen

The

SFP

Line Status screen displays the status of the Host and Remote

SFP

The detailed
Displayed data includes the manufacturer name, code, part number and revision
number. These values may not be modified.

SFP

For
and optical receive/transmit, levels can be obtained through
Module.

modules that support

information may be viewed by entering "1" for

DDMI

values for temperature, voltage, diode current

SNMP

SFP

links.

SFP

A or "2" for

Management

SFP

B.

17

Port Alarm Status Screen

The Port Alarm Status screen displays the status of the Host and Remote alarms on
each of the unit's ports. This screen can be refreshed as needed to display current
data.

Ethernet Port Configuration Screen

The screen displays the current values for items 1 through 9 for both the Host and
Remote site.

Enter the number of the menu item to change its configuration, and then enter the
new value(s) when prompted.

18

Ethernet Bandwidth Control

This screen displays the settings for the end user to configure bandwidth in 32Kbps
increments up to 100Mbps.

Ethernet Port Status Screen

This screen displays the current Ethernet port status for both the Host and Remote
site.

19

E1 Port Configuration Screen

Use this screen to access the loopback and name details for each of the four E1 ports.

Enter the number of the menu item to edit, and enter the new value(s) when
prompted.

E1 Port Status Screen

Use this screen to display the current status for each of the four E1 ports for the Host
and Remote units.

Enter the number of the menu item to edit, and enter the new value(s) when
prompted.

20

E1 Port Equipment

Within each E1 port setup, the state of the port can be set to equip or not-equipped.
When set to not-equipped, the end user has the ability to perform maintenance on
the line without impacting the other parts on the module.

21

Troubleshooting

• All IE-iMcV-E1-Mux/4 units are shipped configured as Host units via DIP

Switch #1 = OFF. The Remote unit should be set to DIP Switch #1 = ON.
Be sure to confirm that the IE-iMcV-E1-Mux/4 card is set correctly when
used.

• The fiber transport is independent of all other ports and should be

established first. If this is not possible, a physical fiber loopback can be used
for fiber port verification. A fiber loopback will cause all connected ports to
loop back their respected data.

• If the fiber is not connected, all E1 ports will send the all-ones,

This can be physically looped back to verify E1 port operation.

AIS

signal.

22

Fiber Optic Port Verification

As a troubleshooting aid, the fiber optic ports can be verified by placing a physical

LED

loopback optical line on the ports and verify the

behavior as shown:

LED

The ACT

RAI LED

will be configured to either the A or B fiber line as the active line. The

is RED/GREEN indicating that there is something wrong at the far end of the
fiber line (in this case, the remote unit is missing). The ALARM LED is RED because
the E1 port is not connected. The STAT LED is RED when there is no fiber link but
turns GREEN when the fiber link is valid.

NOTE

The E1 ports are all sending

LOS

the

on the E1 port. Without the fiber looped, it is because of the

AIS

. However, with the fiber looped, it is because of

LOS

of the

fiber port.

WARNING

An optical loopback will also loop back the Ethernet port. If the network cannot
tolerate this, remove the Ethernet port connection before connecting the fiber
loopback.

23

E1 Port Verification

By placing a physical loopback connection on the E1 port, a valid signal can be
detected by each individual E1 port to verify its operation. Without the fiber looped,
the ALARM
problem at the far end of the fiber transport (In this case the far end unit is missing)
and the STAT LED is RED because the fiber is in LOS. With the fiber looped, the E1
port will only show a normal GREEN STAT LED.

LED

for the looped E1 port will show RED/GREEN indicating there is a

24

Normal Operation

Under normal operation the following



10/100BaseT

RS-232

E1

E1

E1

E1

LED

display is given:

GREEN LNK

10/100BaseT

RS-232

GREEN

ACT, LNK, MSA

E1

E1

E1

E1

GREEN STAT



10/100BaseT

RS-232

E1

E1

E1

E1

GREEN LNK

10/100BaseT

RS-232

GREEN

ACT, LNK, MSA

E1

E1

E1

E1

GREEN STAT

25

Specifications

Power Consumption (Typical)

0.96A @ +5 VDC

Operating Temperature

-40°C to +158°F (-40°C to +70°C)

Storage Temperature

-40°F to +158°F (-40°C to +70°C)

Humidity

5 to 95% (non-condensing); 0 to 10,000 ft. altitude

Dimensions

Dual Slot iMcV module

Standards/Compliance

• IEEE 802.3x Flow Control

• IEEE 802.3i 10Base-T twisted pair

• IEEE 802.3u 100Base-TX twisted pair

• IEEE 802.3u 100Base-FX or SX fiber

• ITU G.775

• GR-820-CORE

26

Fiber Optic Cleaning Guidelines

Fiber Optic transmitters and receivers are extremely susceptible to contamination by
particles of dirt or dust, which can obstruct the optic path and cause performance
degradation. Good system performance requires clean optics and connector ferrules.

Use fiber patch cords (or connectors, as appropriate) only from a reputable

1.

supplier; low-quality components can cause many hard-to-diagnose problems in
an installation.

2. Dust caps are installed at IMC Networks to ensure factory-clean optical devices.

These protective caps should not be removed until the moment of connecting
the fiber cable to the device. Should it be necessary to disconnect the fiber
device, reinstall the protective dust caps.

Store spare caps in a dust-free environment such as a sealed plastic bag or box

3.

so that when reinstalled they do not introduce any contamination to the optics.

If it is suspected that the optics have been contaminated, alternate between

4.

blasting with clean, dry, compressed air and flushing with methanol to remove
particles of dirt.

Electrostatic Discharge Precautions

Electrostatic discharge (ESD) can cause damage to any product, add-in modules or
stand alone units, containing electronic components. Always observe the following
precautions when installing or handling these kinds of products

Do not remove unit from its protective packaging until ready to install.

1.

Wear an ESD wrist grounding strap before handling any module or component.

2.

If the wrist strap is not available, maintain grounded contact with the system unit
throughout any procedure requiring ESD protection.

Hold the units by the edges; do not touch the electronic components or gold

3.

connectors.

After removal, always place the boards on a grounded, static-free surface, ESD

4.

pad or in a proper ESD bag. Do not slide the modules or stand alone units over
any surface.

WARNING!

Integrated circuits and fiber optic components are
extremely susceptible to electrostatic discharge damage. Do not
handle these components directly unless you are a qualified service
technician and use tools and techniques that conform to accepted
industry practices.

27

IMC Networks Technical Support

Tel:

[phone] or [phone] (in the U.S. and Canada);

[phone] (Europe)

Fax:

E-Mail:

Web:

[phone]

[e-mail]

www.imcnetworks.com

28

Definition of Terms/Acronyms

The following are terms and phrases used within this manual (shown in
which are found in documents associated with this equipment.

1+1

The Term “1+1” refers to line protection where identical
information is transmitted on two redundant lines. The Receiver

BER

of the line.

AIS

chooses the “best” line to use based on the

Alarm Indication Signal: Used in E1 signaling, the AIS is a
predetermined bit stream (all ones) that is transmitted (forwarded)
upon the loss of an incoming E1 signal or when the E1 signal is
disrupted.

AN

Auto Negotiation: A signaling protocol used by an Ethernet PHY to
determine the characteristics (speed, duplex mode) of its “link

BER

partner” and configure itself automatically

Bit Error Rate: The percentage of bits with errors divided by the
total number of bits that have been transmitted, received or
processed over a one second time period.

CLI

Command Line Interface: An interface screen, often DOS-based,
used for system management and diagnostics requiring the user to

GUI

type commands rather than use a

.

italics

), or

CV

DDMI

FFL

GUI

HDB3

IS

Code Violation: An anomaly of a decoded physical-layer signal
stream resulting in coding (signaling) error(s). Noise bursts or
intermittent connections on a link are the usual causes of code
violations; an

HDB3

coding error.

Digital Diagnostic Monitor Interface: A defined serial interface and
data format typically used to access SFP internal information

Fiber Fault Loopback: When the fiber line fails, the Ethernet port
that is being forwarded over the fiber line is forced out of LINK.
Similar to the Fiber Alert function.

Graphical User Interface: Software that provides a visual interface
to enable an end-user to manage and monitor network devices.

High Density Bipolar 3 Coding: A physical-layer signal encoding
scheme defined for E1 transmission which ensures sufficient
signaling transitions for robust clock/data recovery.

In-Service stat is the normal state of an active port with normal
error reporting.

29

LED

Light Emitting Diode: A small stack of lights to indicate link,
duplex or other options.

LFPT

LOF

LOS

MDI/MDIX

MIB

MSA

Link Fault Pass-Through: LFPT can be enabled via iView² or
through the console port.

Loss Of Frame: An error condition where the receiver/decoder
misses detection of the framing signal.

Loss Of Signal: An error condition where the receiving line
interface unit does not detect a signal.

Media-Dependent Interface/ Media-Dependent Interface
Crossover. The ability of an Ethernet port to automatically detect
and configure its cabling connections to accommodate crossover
or non-crossover wiring, depending on its link partner and cabling.

Management Information Base: A database of objects that can be
monitored by a network management system. Both SNMP and
RMON use standardized MIB formats that allow any SNMP and
RMON tools to monitor any device defined by a MIB.

Multi-Source Agreement (SFP): The standard an SFP must meet to
be compatible in network devices.

OOS

POP

RAI

SFP

SNMP

Out-Of-Service, OOS is used by the CRAFT personnel to turn OFF
the alarm reporting so they can service the line without causing
alarm TRAPS to be sent to the NOC Center. The LEDs display a
line status but do not report any line related alarms back to the
NOC. A card removal or insertion is still reported, but a PORT
up/down or changes to its configuration are not.

Point(s) Of Presence: The demarcation point where carrier owned
equipment is located at the customer site.

Remote Alarm Indication: Status information received from the
line indicating there is an alarm condition at the far end of the
transport.

Small Form-Factor Pluggable: An industry standard optical
pluggable module.

Simple Network Management Protocol: A set of protocols for
managing complex networks over a standards-based IP network.

30

Certifications

CE: The products described herein comply with the Council Directive on

Electromagnetic Compatibility (2004/108/EC).

European Directive 2002/96/EC (WEEE) requires that any equipment that bears this
symbol on product or packaging must not be disposed of with unsorted municipal
waste. This symbol indicates that the equipment should be disposed of separately
from regular household waste. It is the consumer’s responsibility to dispose of this
and all equipment so marked through designated collection facilities appointed by
government or local authorities. Following these steps through proper disposal and
recycling will help prevent potential negative consequences to the environment and
human health. For more detailed information about proper disposal, please contact
local authorities, waste disposal services, or the point of purchase for this equipment.

31

19772 Pauling • Foothill Ranch, CA 92610-2611 USA

TEL: [phone] • FAX: [phone]

www.imcnetworks.com

© 2011 IMC Networks. All rights reserved.
The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any
errors that may appear in this document. IE-iMcV-E1-Mux/4 is a trademark of IMC Networks. Other brands or product
names may be trademarks and are the property of their respective companies.

Document Number 57-80400-03 A0 December 2011
