1 About the IE-ModeConverter
The IE-ModeConverter is a pure media (mode) converter that converts any fiber
optics type to any other fiber optics type. It is a PHY-to-PHY protocol and speed
independent converter and is not intended for applications that require retiming or
any Layer 2 functions. The IE-ModeConverter supports extended temperature
operation. This product is applicable to Ethernet, SONET, and Fiber Channel
applications.
The IE-ModeConverter requires two small form-factor (SFP) modules (sold separately),
which provide greater fiber flexibility in the network environment. The hotswappable nature of the SFPs and the numerous fiber modes and types available in
SFPs allow for easy configuration and future upgrading as network demands evolve.
The SFP modules must be MSA compliant and support the same speed range.
The IE-ModeConverter operates as a mode converter only and not as a rate
converter.
The IE-ModeConverter does not provide support for copper SPFs.
Features
The IE-ModeConverter provides the ability to change optical transport characteristics
using easy-to-install SFP devices. This mix-and-match functionality is only limited by
the available IMC Networks’ SFP units. For more information about SFPs, visit
https://www.imcnetworks.com/Products/Small_Form_Factor_Pluggable.cfm
The key features of the IE-ModeConverter are
• Uses the MiniMc Form Factor
• Supports a 7VDC to 50VDC terminal block option with cascading power
• Supports an external 5VDC power option (not extended temperature)
• Allows extended temperature range from -31° to 158° F (-35° to 70° C)
• Uses all standard MSA-complaint SFP devices (excluding copper SFPs)
• Provides extensive diagnostic LED functions
• Supports LinkLoss functionality
• Supports DIN Rail mounting
Applications
The standard application is the conversion of a short-range, multi-mode fiber
interface to a long-range single-mode fiber line. In addition, CWDM, DWDM, or
single-strand fiber can be supported with the appropriate SFP. This allows you to
purchase low cost multi-mode fiber blade cards for your network equipment and
support long-distance single-mode fiber links.
Installing the IE-ModeConverter
The IE-ModeConverter installs anywhere as a standalone, table-top device or on a
DIN rail.
As a standalone device, install it in locations with limited space.
If multiple connections are required, use an IE-PowerTray/18 enclosure (sold
separately). The tray allows for 18 conversions in a 1.5 rack unit of space. The units
can also be powered by daisy-chaining DC power (refer to
Cascading DC Power
on
page 4).
SFP Port Requirements
The Industrial SFP/SFP requires two SFP Modules of the same speed, either two fast
Ethernet (100Mbps) modules or two Gigabit Ethernet (1000Mbps) modules,
regardless of fibertype.
NOTE
Both SFPs must operate at the same rate..
DIN Rail Mounting

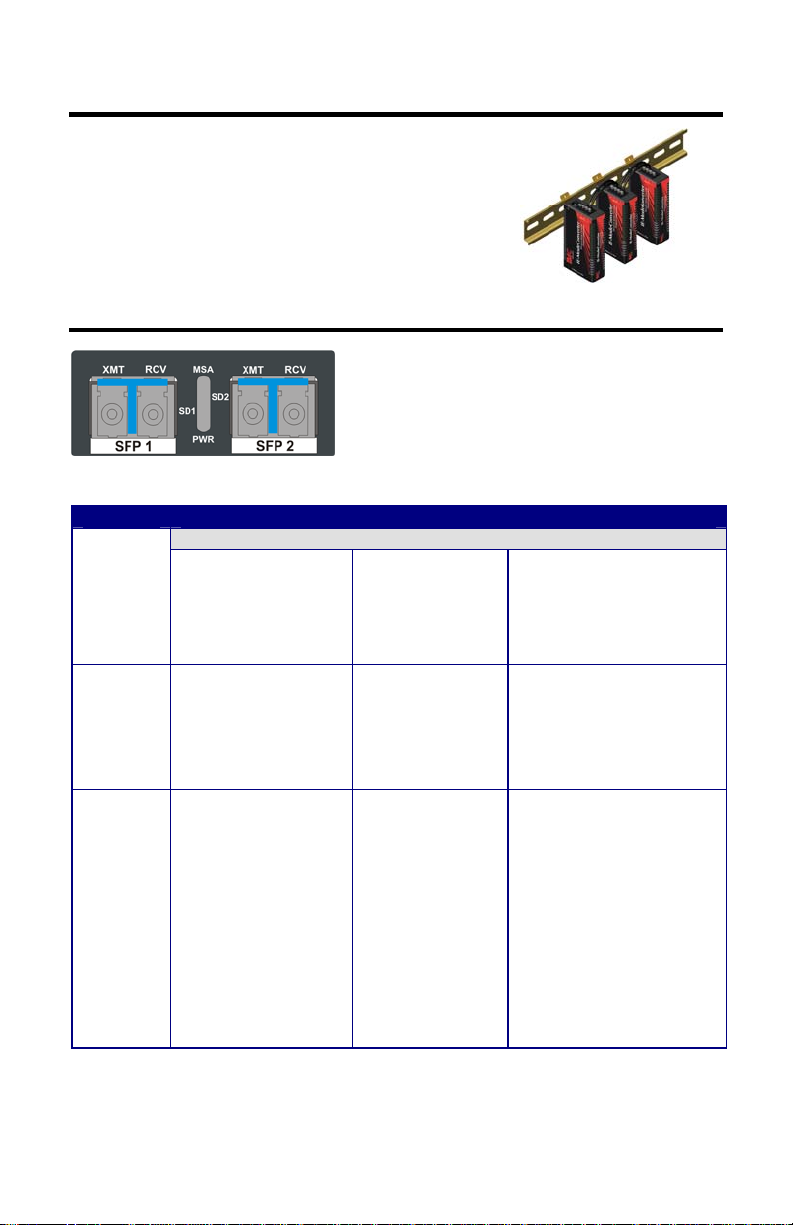

The IE-ModeConverter ships from the factory with DIN
clips, allowing installation on a DIN rail. It mounts
perpendicular to the DIN rail (as shown).
Use the supplied screws to attach the DIN clips to the IEModeConverter, and then snap the converter to the DIN
rail.
To remove the converter from the DIN rail, use a flat-head
screwdriver in the slot to gently pry the converter from the
rail.
NOTE
The DIN clips are designed for use on a DIN-35 rail.
2
Powering the IE-ModeConverter
The IE-ModeConverter requires an external DC power source and has two options
for powering as follows:
• A country-specific, AC to DC power adapter (included).
• User supplied LPS DC power via a four-position DC power block.
For extended temperature operation the DC terminal block must be used because
the supplied AC to DC converter is not rated for extended temperature operation.
The power source used with the DC terminal block should be a Limited Power
Source (LPS).
DC Terminal Block Option
The IE-ModeConverter DC power option includes a 7VDC to 50VDC terminal block
with a standard +5VDC mini-jack. The DC terminal block has redundant DC inputs
intended for cascading DC power to an adjacent unit.
Connect the power source to any one positive and one negative terminal on the IEModeConverter.
NOTE
When using stranded wire, the leads must be tinned. The chassis is not
protected against mis-wiring; if mis-wired the chassis will not function. The
chassis is internally connected to the negative power terminal.
3
Cascading DC Power
If installing multiple IE-ModeConverters on a DIN rail,
you can use one DC input source and then cascade from
one DC terminal block to the next, until reaching the
maximum electrical current available.
LED Operation
The IE-ModeConverter contains four status LED
indicators. Each LED is dual color and has three
states: off, red, or green. A loss of signal on one
SFP causes the TX of the other SFP to turn off.
This action does not activate the red TX Fault
LED.
LED Color or State
Red OFF Green
Card does not pass the
PWR
SD I
SD 2
MSA LEDs One or both SFPs are
self-test.
LED transmitter has an
active fault.
not installed or not
detected. The TX
inhibit must not be
active if a SFP is
missing. Or, both SFPs
are installed, but their
speed settings are
different. This
condition disables both
SFPs.
Unit does not have
power.
No active fault on
transmitter.
LOS indication on
receiver.
One or both SFPs
are not an IMC
Networks’ device.
The may still
function but IMC
cannot warrant
functionality or
performance using
non IMC SFPs.
Power is applied to the card.
All internal self-test functions
must pass before the PWR
LED is green.
Valid signal is detected by
the SFP and LED transmitter
is not in fault.
Both SFPs are installed with
IMC Networks’ devices at
the same speed setting.
4
DC Power Supply Precautions
The following precautions must be observed when installing the chassis model with
an internal DC power supply.
1.
Check nameplate ratings to ensure there is no overloading of supply circuits that
could effect overcurrent protection and supply wiring.
2.
In addition, the following must be observed:
a.
Connect the equipment to a 35 to 75 VDC power source that is electrically
isolated from the alternating current source. The 35 to 75 VDC power
source is connected to a SELV DC source.
b.
Route input wiring to terminal block and secure in such a manner that it is
protected from damage and stress. Do not route wiring past sharp edges or
moving parts.
c.
Incorporate a readily accessible disconnect device, with a 3mm minimum
contact gap in the fixed wiring.
3.
Reliable Earthing of this equipment must be maintained. Particular attention
should be given to supply connections when connecting to power strips, rather
than direct connections to the branch circuit.
5
IMC Networks Technical Support
Tel:
(949) 465-3000 or (800) 624-1070 (in the U.S. and Canada);
+32-16-550880 (Europe)
Fax:
E-Mail:
Web:
(949) 465-3020
techsupport@imcnetworks.com
www.imcnetworks.com
Specifications
Operating Temperature:
-31° to 158° F (-35° to 70° C)
Storage Temperature:
-49° to 185° F (-45° to 85° C)
Shipping Weight:
0.25 lbs (0.11 kg)
Dimensions:
0.83” H x 1.80” W x 3.35” D (2.11 x 4.57 x 8.51 cm)
AC Wall Adapter:
100/240 ±10% VAC input, 5 VDC output @ 10 watts
DC Input Voltage:
+7VDC to +50VDC @ 2.5 watts. Actual current consumption may vary depending
on the type of SFP modules installed. When not using the supplied AC/DC converter
the externally supplied DC power must be provided from a LPS source.
Standards/Compliance
SFP-MSA SFP standard (September 14, 2000)
SFF-8472 DDMI standard (Revision 1.0)
All SFPs used in this product should be certified to IEC 60825-1.
6
Safety Certifications
UL/CUL: Listed to Safety of Information Technology Equipment, including
Electrical Business Equipment.
CE: The products described herein comply with the Council Directive on
Electromagnetic Compatibility (89/336/EEC) and the Council Directive
on Electrical Equipment Designed for use within Certain Voltage Limits
(73/23/EEC). Certified to Safety of Information Technology Equipment,
Including Electrical Business Equipment. For further details, contact
IMC Networks.
Class 1 Laser product, Luokan 1 Laserlaite,
Laser Klasse 1, Appareil A’Laser de Classe 1
European Directive 2002/96/EC (WEEE) requires that any equipment that bears this
symbol on product or packaging must not be disposed of with unsorted municipal
waste. This symbol indicates that the equipment should be disposed of separately
from regular household waste. It is the consumer’s responsibility to dispose of this
and all equipment so marked through designated collection facilities appointed by
government or local authorities. Following these steps through proper disposal and
recycling will help prevent potential negative consequences to the environment and
human health. For more detailed information about proper disposal, please contact
local authorities, waste disposal services, or the point of purchase for this equipment.
7
19772 Pauling • Foothill Ranch, CA 92610-2611 USA
TEL: (949) 465-3000 • FAX: (949) 465-3020
www.imcnetworks.com
© 2007 IMC Networks. All rights reserved.
The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any
errors that may appear in this document. IE-ModeConverter is a trademark of IMC Networks. Other brands or product
names may be trademarks and are the property of their respective companies.
Document Number 55-80619-00 A0 December 2007
Loading...
