B&B Electronics 855-12840-49 User Manual

MediaConverter

Series

Operation Manual

FCC Radio Frequency Interference Statement

MediaConverter/1 and /4

This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses and can radiate radio frequency e nergy and, if not ins talled and used in

accordance with the instruction m anual, may cause harmful interfere nce to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class

B limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de

classe B prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

MediaConverter/8 and /12

This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses and can radiate radio frequency e nergy and, if not ins talled and used in

accordance with the instruction m anual, may cause harmful interfere nce to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class

A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de

classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

ii

LIMITED LIFETIME WARRANTY

Effective for products of B&B Electronics shipped on or after May 1, 2013, B&B Electronics warrants that each such
product shall be free from defects in material and workmanship for its lifetime. This limited lifetime warranty is
applicable solely to the original user and is not transferable.

This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of
products in accordance with their written specifications.

Pursuant to the warranty, within the warranty period, B&B Electronics, at its option will:

1. Replace the product with a functional equivalent;

2. Repair the product; or

3. Provide a partial refund of purchase price based on a depreciated value.

Products of other manufacturers sold by B&B Electronics are not subject to any warranty or indemnity offered by
B&B Electronics, but may be subject to the warranties of the other manufacturers.

Notwithstanding the foregoing, under no circumstances shall B&B Electronics have any warranty obligations or any
other liability for: (i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any
third party except in accordance with the written instructions or advice of the B&B Electronics or the manufacturer of
the products, including without limitation surge and overvoltage conditions that exceed specified ratings, (ii) any
products which have been adjusted, modified or repaired by any party other than B&B Electronics or (iii) any
descriptions, illustrations, figures as to performance, drawings and particulars of weights and dimensions contained
in the B&B Electronics’ catalogs, price lists, marketing materials or elsewhere since they are merely intended to
represent a general idea of the products and do not form part of this price quote and do not constitute a warranty
of any kind, whether express or implied, as to any of the B&B Electronics’ products.

THE REPAIR OR REPLACEMENT OF THE DEFECTIVE ITEMS IN ACCORDANCE WITH THE EXPRESS WARRANTY SET
FORTH ABOVE IS B&B ELECTRONIC’ SOLE OBLIGATION UNDER THIS WARRANTY. THE WARRANTY CONTAINED IN
THIS SECTION SHALL EXTEND TO THE ORIGINAL USER ONLY, IS IN LIEU OF ANY AND ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, AND ALL SUCH WARRANTIES AND INDEMNITIES ARE EXPRESSLY DISCLAIMED, INCLUDING
WITHOUT LIMITATION (I) THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND OF
MERCHANTABILITY AND (II) ANY WARRANTY THAT THE PRODUCTS ARE DO NOT INFRINGE OR VIOLATE THE
INTELLECTUAL PROPERTY RIGHTS OF ANY THIRD PARTY. IN NO EVENT SHALL B&B ELECTRONICS BE LIABLE FOR
LOSS OF BUSINESS, LOSS OF USE OR OF DATA INTERRUPTION OF BUSINESS, LOST PROFITS OR GOODWILL OR
OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES. B&B ELECTRONIC SHALL DISREGARD
AND NOT BE BOUND BY ANY REPRESENTATIONS, WARRANTIES OR INDEMNITIES MADE BY ANY OTHER PERSON,
INCLUDING WITHOUT LIMITATION EMPLOYEES, DISTRIBUTORS, RESELLERS OR DEALERS OF B&B ELECTRONIC
WHICH ARE INCONSISTENT WITH THE WARRANTY, SET FORTH ABOVE.

iii

Table of Contents

FCC Radio Frequency Interference Statement .............................................................. ii

Limited Lifetime Warranty ........................................

About the Modular Media Converters ............................................................................ 1

About McPIMs .......................................................................................................................... 1

About McLIMs .......................................................................................................................... 2

About McGigabit ..................................................................................................................... 2

Configuring Media Conversion Modules ....................................................................... 2

LinkLoss, FiberAlert and Link Fault Pass-Through ....................................................... 6

Installing Media Conversion Modules .......................................................................... 11

LED Operation ....................................................................................................................... 13

Installation Troubleshooting ............................................................................................ 16

Specifications ......................................................................................................................... 18

B&B Electronics Technical Support ................................................................................ 18

Electrostatic Discharge Precautions ............................................................................... 18

Safety Certifications ............................................................................................................. 21

Error! Bookmark not defined.

iv

About the Modular Media Converters

The Modular Media Converter Series includes modules that convert copper to
single-mode or multi-mode fiber at Ethernet, Fast Ethernet and Gigabit speeds.

Modular Media Converter series chassis provide power to media converter
modules, and are available with one, four, eight or twelve slots for installing any
combination of McPIMs (10Mbps Ethernet), McLIMs (100 Mbps Fast Ethernet),
McLIM TP-TX/FX (Switching 10/100 Mbps) and McGigabit modules (1.25 Gbps
Ethernet).

Media

Description

Converter

1

Is a standalone chassis which includes one media conversion
module slot, and a fixed, internal 115/230 VAC power supply.

4 Is a standalone chassis which includes four media conversion

module slots, and a fixed, internal 120/240 VAC power supply.

8 Is a 1U high, Rackmountable chassis that includes eight media

module slots and a fixed 120/240 VAC power supply.

12 Is a Rackmountable chassis and includes twelve media conversion

module slots and a 115/230 VAC power supply. MediaConverter/12
is 1U high and has the power on the rear of the chassis with media
conversion module slots on the front. For redundancy a second
power supply maybe installed.

About McPIMs

McPIMs (Media Converter Port Interface Modules) are 10 Mbps Ethernet modules
which provide a single-conversion between 10Base-T twisted pair and 10Base-FL
single-mode or multi-mode fiber. McPIMs include one RJ-45 connector and one
pair of ST or SC fiber optic connectors. Each McPIM requires one slot in a media
converter chassis.

1

About McLIMs

McLIMs (Media Converter Link Interface Modules) are 100 Mbps Fast Ethernet
modules which provide a single-conversion between 100Base-TX twisted pair and
100Base-FX (McLIM TX/FX) or 100Base-SX (McLIM TX/SX) fiber and support Half
or Full-Duplex.

McLIM TP-TX/FX is an Auto Negotiating, switching media converter which offers
plug-and-play operation to convert 10 Mbps or 100 Mbps, Half-or-Full-Duplex
twisted pair to 100Base-FX, Full-Duplex fiber. McLIM TP-TX/FX allows jumbo
packets of up to 1916 bytes.

McLIMs include one RJ-45 connector for the twisted pair port and one pair of
fiber connectors for the fiber port. McLIMs are also available in single-strand
fiber versions which include one SC fiber connector. Each McLIM requires one
slot in a media converter chassis.

About McGigabit

McGigabit is a Gigabit Ethernet module which provides a single-conversion
between 1000Base-SX (multi-mode) or LX (single-mode) fiber and 1000Base-T
copper. McGigabit offers plug-and-plan operation, and always operates at Full­Duplex. McGigabit modules include one RJ-45 connector for the twisted pair
port and one pair of SC fiber connectors. Single-strand single-mode fiber
versions are also available. Each McGigabit requires one slot in a media converter
chassis.

NOTE

This Manual refers to McPIM, McLIM and McGigabit modules as “Media Conversion
Modules” except where differences require indication.

Configuring Media Conversion Modules

The McPIMs and McLIMs can be configured for a variety of features before
installation (see board Diagrams/Configuration Table for specific information).

McLIM TP-TX/FX and McGigabit have plug-and-play operation and require
no configuration.

The illustrations show the location of the configuration

jumpers and switches on the various Media Conversion Modules.

2

Board Diagrams and Jumper/Switch Settings

NOTE

To determine which board diagram matches the module (-20, -30, -40, -50, etc.),
compare the jumper locations with the diagrams found above. 10/100 Switching
modules and Gigabit modules sets do not require any configuration and are not
shown above.

3

Media Converter Jumper/DIP Switch Configuration Table

Module/Board Feature

McPIM TP/FO (-20) TP Dist. (100+ M)

McPIM TP/FO (-40) FiberAlert

McPIM TP/FO (-10)
with Pulsing
FiberAlert

McLIM TX/FX (-50) FiberAlert

McLIM TX/FX (-00, -

10) TX/FX With
AutoCross

McLIM TX/FX (-20,

30) with AutoCross
MDI-II/MDI-X

Some features may not be available on all versions of modules.

Shielded Cable
FO LinkLoss
FiberAlert

FO LinkLoss
TP Dist. (100+ M)

Pulsing FiberAlert
TP LinkLoss
FO LinkLoss

Auto Negotiation
FX LinkLoss
TX LinkLoss

FiberAlert
Auto Negotiation
TX LinkLoss
FX LinkLoss

FiberAlert
Auto Negotiation
TX LinkLoss
FX LinkLoss

Jumper
Position

JP2
JP3
JP4
JP5

JP1
JP2
JP3

JP2
N/A
N/A

JP1
JP2
JP3
JP4

JP2
JP3
JP4
JP5

S1
S2
S3
S4

NOTE

ON (pins)

one or none

both

1-2
2-3

1-2
1-2
1-2

1-2

ALWAYS

ENA

ALWAYS

ENA

1-2
1-2
1-2
1-2

1-2
1-2
1-2
1-2

N/A N/A OFF

OFF

(pins)

Both

one or

none

2-3
1-2

2-3
2-3
2-3

2-3
N/A
N/A

2-3

2-3

2-3

2-3

2-3

2-3

2-3

2-3

Factory

Default

OFF
OFF
OFF
OFF

OFF
OFF
OFF

OFF

ALWAYS

ENA

ALWAYS

ENA
OFF

ON
OFF
OFF

OFF

ON
OFF
OFF

ON
OFF
OFF

4

Twisted Pair Crossover/Straight-Through Connections

Whether using crossover or straight-through CAT5 twisted pair cabling, all
Switching Modules will support both types of connections by one of the
following methods:

AutoCross

MDI-II/MDI­X Switch

Device­Dependent

McLIM TX/FX (-00) and McGigabit include AutoCross, a feature that

automatically selects between a crossover workstation or straight­through connection depending on the connected device.

All McPIMs feature a 2-position switch, located at position S1 (see table
for location on boards), for selecting a crossover workstation
connection or straight-through connection.

The switch is labeled with “X” for a crossover connection (factory
default) and an “ll” for a straight-through connection. Select the
appropriate setting by moving the switch to the proper position before
installing the media conversion module. If uncertain whether crossover
or straight-through is needed, set the switch to the position that makes
the link LED glow.

The end device connected to the McLIM TX/FX and TX/SX (-50)
determines the type of twisted pair connection: this McLIM does
include AutoCross or a MDI-II/MDI-X switch.

Twisted Pair Cable Distance

Some McPIM TP/FOs features a 2-position jumper, located at position JP2, for
selecting longer twisted pair cable distances (distances greater than 100 meters).
Place the jumper over both pins for distances up to 100 meters (factory default).
Remove the jumper shunt or place it on only one pin for distances of 100 meters
or more.

NOTE

The product on the other side of the conversion must be able to support longer

cable distances.

Twisted Pair Cable Type

Some McPIM TP/FOs (-20 and -40) features a 2-position jumper, located at
position JP3, for selecting either a shielded or unshielded twisted pair link
segment. Remove the jumper shunt or place it on only one pin to select an
unshielded twisted pair link segment (factory default). Place the jumper shunt
over both pins to select a shielded twisted pair link segment.

5

LinkLoss, FiberAlert and Link Fault Pass-Through

McPIM TP/FO and McLIM TX/FX and TX/SX include the following features:

FO/FX LinkLoss (a.k.a. "Fiber LinkLoss" or "LinkLoss")

•

•

TP/TX LinkLoss (a.k.a. "Twisted Pair LinkLoss” or "Reverse LinkLoss”)

•

FiberAlert and Pulsing FiberAlert

FiberAlert and LinkLoss are advanced troubleshooting features that can help you
locate "silent failures" on your network. However, it is vital to understand exactly
how FiberAlert and LinkLoss work, and how they will react in the network
configuration, before attempting to install the enclosed module(s).

WARNING

Installing modules without understanding the effects of FiberAlert and LinkLoss can

cause perfectly functioning units to appear flawed or non-functional.

6

Link Integrity

During normal operation, link integrity pulses are transmitted by all point-to­point Ethernet devices. When an B&B Electronics media converter receives valid
link pulses, it knows that the device to which it is connected is up and sending
pulses, and that the copper or fiber cable coming from that device is intact. The
appropriate “LNK” (link) LED is lit to indicate this.

The B&B Electronics media converter also sends out link pulses from its copper
and fiber transmitters, but normally has no way of knowing whether the cable to
the other device is intact and the link pulses are reaching the other end. The
combination of FiberAlert and LinkLoss allows this information to be obtained,
even when physical access to a remote device (and its link integrity LED) is not
available.

FO/FX LinkLoss

FO/FX LinkLoss is a troubleshooting feature. When a fault occurs on the fiber
segment of a conversion, FO/FX LinkLoss detects the fault and passes this
information to the twisted pair segment. If a media converter is not receiving a
fiber link, FO/FX LinkLoss disables the transmitter on the media converter's
twisted pair port. This results in a loss of link on the device connected to the
twisted pair port.

TP/TX LinkLoss

TP/TX LinkLoss is another troubleshooting feature. When a fault occurs on the
twisted pair segment of a conversion, TP/TX LinkLoss detects the fault and passes
this information to the fiber segment. If a media converter is not receiving a
twisted pair link, TP/TX LinkLoss disables the transmitter on the media converter's
fiber port. This results in a loss of link on the device connected to the fiber port.

7

Link Fault Pass Through

Link Fault Pass Through (LFPT) is a troubleshooting feature that combines TX and
FX LinkLoss from both the local and remote media converter modules (only
available on the McLIM the 100 Mbps TX/FX -00, -10, -20, -30). LFPT is enabled
by turning on both FX and TX LinkLoss on both modules. This feature allows
both end segments of the conversion to detect link faults occurring in the media
conversion chain. FiberAlert can also be added to the remote side of the pair to
further assist in locating a fault.

FiberAlert

FiberAlert minimizes the problems associated with the loss of one strand of fiber.
If a strand is unavailable, the B&B Electronics device at the receiver end notes the
loss of link. The device will then stop transmitting data and the link signal until a
signal or link pulse is received. The result is that the link LED on BOTH sides of
the fiber connection will go out indicating a fault somewhere in the fiber loop.
Using FiberAlert, a local site administrator is notified of a fault and can quickly
determine where a cable fault is located.

WARNING

Enable FiberAlert on ONE side of a media conversion only;

enabling it on both sides will keep both transmitters off indefinitely!

Local Site

XMT

RCV

LED

LED OFF = Broken Link

Product with enabled —Remote Site stops transmitting

FiberAlert

Local Link LED is OFF indicating a break in the fiber loop

Cable Break

8

Remote Site

RCV

XMT

LED

Pulsing FiberAlert

Pulsing FiberAlert minimizes the problems associated with the loss of one strand
of fiber. If a strand is unavailable, the device at the receiver end notes the loss of
link. The device will stop transmitting data and start sending link pulses. Until a
valid link is received, the fiber link LED will be OFF on the device on the receiver
side of the fiber strand with the fault while the fiber Link LED on the other unit
will blink. Pulsing FiberAlert notifies a local site administrator of a fault, allowing
quick determination of where a cable fault resides.

NOTE

Pulsing FiberAlert can be enabled on BOTH sides of a conversion.

Using FiberAlert and LinkLoss (All Models without LFPT
Capability)

The following chart provides an overview of the troubleshooting features, their
functionality and the recommended settings for a pair of media converters in a
typical central/main site to remote site application:

LinkLoss / FiberAlert Comparison

Feature Fault Location Disabled LED Enable at:

FX LinkLoss Fiber Twisted Pair Main Site Only

TX LinkLoss Twisted Pair Fiber Remote Site Only

FiberAlert Fiber Fiber Remote Site Only

For more information about these features, refer to their specific sections.

Configuring LinkLoss and FiberAlert

9

Configure LinkLoss and FiberAlert with separate 3-pin jumper blocks or DIP

g

g

g

Switches located at various positions depending on module and board type. See
the table to determine what features the module offers as well as the jumper
locations and ON/OFF positions.

Auto Negotiation

The following chart states the availability of the Auto Negotiation feature on
media conversion modules.

Auto Negotiation Product Comparison

10 Mbps Modules

Auto
Ne

100 Mbps Modules

Auto
Ne

10/100 Mbps Modules Auto

Ne

otiation

otiation

otiation

Not Available

DIP Switch Selectable

Always Enabled

Auto Negotiation on 100 Mbps Modules

When Auto Negotiation is enabled, the media converter negotiates as a 100
Mbps Full-Duplex device; if the device the media converter is connected to can
operate at 100 Mbps Full-Duplex, a link will be established.

If the twisted pair port on the other device does not have the ability to Auto
Negotiate, or if a 100 Mbps Half-Duplex connection is desired, Auto Negotiation
on the media converter must be disabled. Half- and Full-Duplex settings must be
manually set and match on both end devices to which the media converters are
connected. The diagram below shows a typical application, followed by a table
with three possible configurations.

End to End

Switch TX/FX

Connection

Half-Duplex Manually configure HDX Auto Negotiation Off

Full-Duplex Manually configure FDX Auto Negotiation Off

Full-Duplex Auto Negotiation On Auto Negotiation On

10

Configure Auto Negotiation on 100 Mbps Modules with a 3-pin jumper block
located on the module’s PCB or DIP Switch, depending on the Model. Refer to
the Jumper Configuration Table of this manual to verify jumper position and
default setting.

Auto Negotiation on 10/100 Switching Modules

Auto Negotiation is a standard feature on 10/100 Switching Modules. The fiber
port always operates at 100 Mbps FDX; the copper port auto-senses the
connected device’s speed and duplex mode: 10 Mbps or 100 Mbps and HDX or
FDX (including Flow Control).

NOTE

McLIM TPTX/FX is a Plug-And-Play device, therefore Auto Negotiation is always

enabled.

The following table states the availability of Auto negotiation on media
conversion modules.

Auto Negotiation Product Comparison

McPIM TP/FO Auto
McLIM TX/FX and TX/SX

Negotiation Not Available/Applicable

Negotiation DIP Switch Selectable
Auto
McLIM TP-TX/FX

TX/FX Auto Negotiation Always

Enabled

Installing Media Conversion Modules

The media conversion modules can be installed in any available slot in a media
converter chassis. Media conversion modules are hot-swappable.

Media conversion modules ship with brackets for securing them to the media
converter chassis. To install a module, simply unscrew the blank bracket
converting the slot where the module is installed. Slide the module into the
chassis, via the card guides, until the module is seated securely in the connector.
Hand tighten the thumb screw until snug. Finish tightening the thumb screw
using a screw driver, being careful to not over-tighten.

11

NOTE

Media converter chassis ship with all but one media conversion module slot covered
with “blank” brackets. Be sure to keep unused slots covered for EMI containment. It
is a good idea to save any “blanks” removed during installation for future use if
configuration requirements change.

Installation Tip

Since single-strand fiber products use optics that transmit and receive on two
different wavelengths, the single-strand fiber products must be deployed in pairs, or
connect two compatible B&B Electronics single-strand fiber products. For example,
connect Compact Media Converter, TX/SSFX-SM1310-SC (which has 1310 xmt and
1550 rcv) to a product which has 1550 xmt and 1310 rcv, e.g. 100 Mbps TX/SSFX­SM1550-SC Module. The two connected products must also have the same speed
and distance capabilities (i.e. both are single-mode [20 km] or both are single/PLUS
[40 km]).

12

Power Supply Installation

When installing a redundant power supply module into a powered-on 12-Slot
chassis, B&B Electronics recommends setting the ON/OFF switch on the module
(if present) to OFF. After installing the power supply, turn its switch ON.

If the redundant power supply module does NOT have an ON/OFF switch, B&B
Electronics recommends powering-down the chassis before installing the power
supply. Turn the chassis back ON after installing the power supply.

LED Operation

Each media conversion module features diagnostic LEDs (see diagrams below)
that provide information on features and ports.

LEDs on on McPIM TP/FO

The LED functions for McPIM TP/FO with fiber ports are as follows:

FO LINK
FIBERALERT
TP LINK
ACTIVITY

Glows green when link is established on the fiber port.

Glows amber when

FiberAlert

is enabled

Glows green when link is established on the TP port.

Blinks amber when data is being passed on either port.

NOTE

On a -40 McPIM TP/FO, the TP RCV, TP LNK and FO Link LEDs flicker at a rate

proportional to the rate that passes on the ports; when the rate is low, the LEDs

flicker visibly, while they appear to glow when the rate is high.

13

LEDs on McPIM TP/FO (-10)

The LED functions on McPIM TP/FO (-10) are as follows:

FO LINK/ACT

Glows green when link is established on the FO port; blinks
green when activity is detected on the port.

TP LINK/ACT

Glows amber when link is established on the TP port; blinks
amber when activity is detected on the port.

LEDs on McLIM TP-TX/FX

The LED functions on McLIM TP-TX/FX are as follows:

FX LINK/ACT

Glows green when link is established on the FX port; blinks

green when activity is detected on the port.

TX LINK/ACT

Glows green when link is established on the TP/TX port; blinks

green when activity is detected on the port.

LEDs on McLIM TX/FX and TX/SX (-50)

The LED functions on McLIM TX/FX are as follows:

FX LINK

Glows green when link is established on the FX port.

FX ACTIVITY
TX PAIR LINK

Glows amber if data is being passed on the FX port.

Glows green if link is established on the TX port.

14

TX ACTIVITY

Glows amber when data is being passed on the TX port.

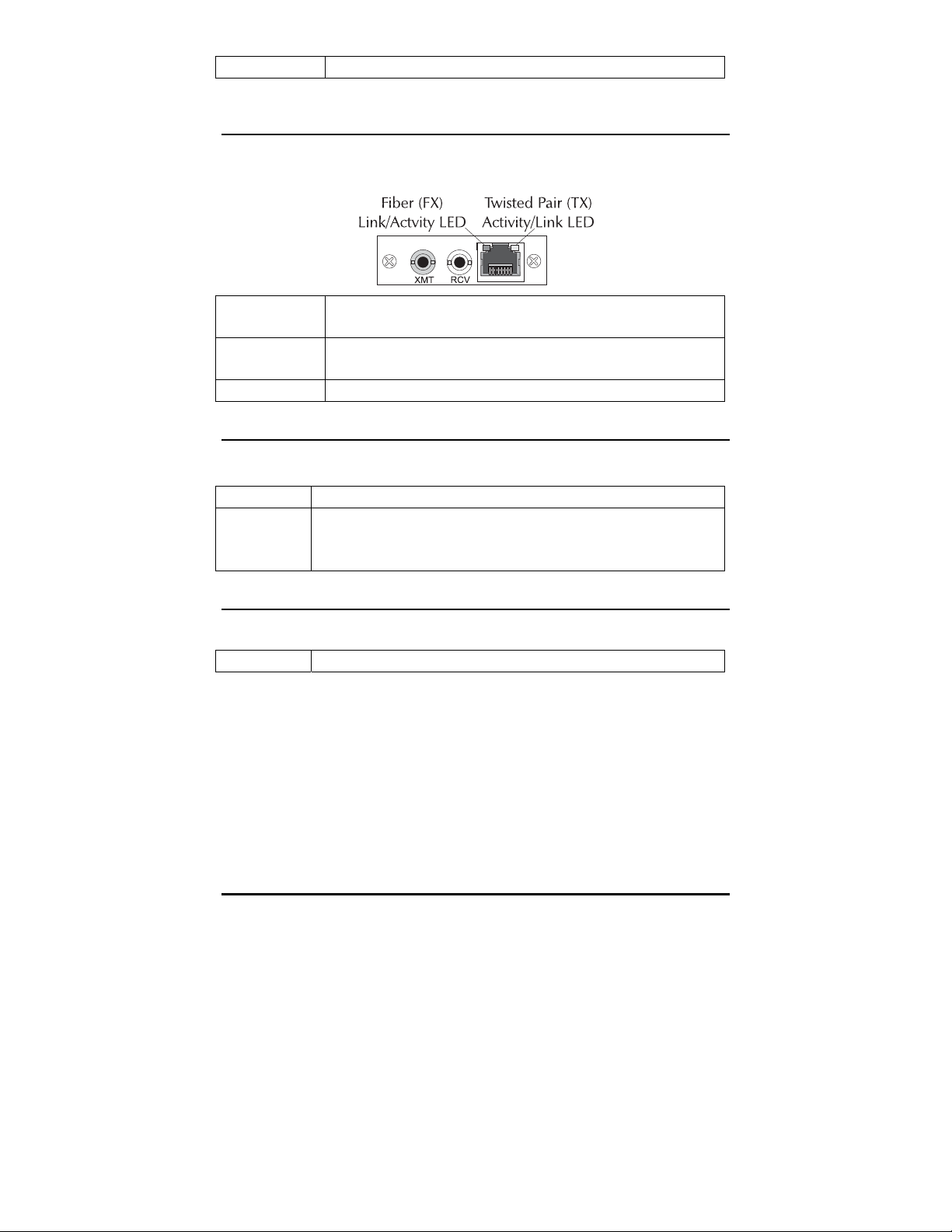

LEDs on McGigabit and McLIM TX/FX and TX/SX (-00, -10, 20,

30)

The LED functions on McGigabit and McLIM TX/FX and TX/SX Modules are as
follows:

FX LINK/ACT

Glows green when link is established on the FX port; blinks

green when activity is detected on the port.

TX LINK/ACT

Glows amber when link is established on the TX port; blinks

amber when activity is detected on the port.

ACTIVITY

Glows green in normal operation.

LEDs on MediaConverter Chassis

4-Slot and 8-Slot chassis include LEDs on the back of the chassis.

POWER
ACTIVITY

Glows green when chassis has power.

This LED blinks green when data is being passed on either port

of a module that does not include Link/Activity LEDs; applicable
to modules only.

LEDs on Power Supplies

Power supplies include the following LEDs:

POWER

Glows green when powered-on.

15

Installation Troubleshooting

The following information assists in troubleshooting the Modular Media
Converters:

During installation, first test the fiber and twisted pair connections with all

•
troubleshooting features disabled, then enable these features, if desired, just
before final installation. This will reduce the features’ interference with
testing.

When working with units where the features cannot be connect, establish

•
BOTH the twisted pair and fiber connections in order to establish link LEDs.

To test a media converter by itself, have an appropriate fiber patch cable,

•
then follow these steps to test:

1.

Connect the media converter to the twisted pair device with a twisted pair
cable.

Loop a single strand of fiber from the transmit port to the receive port of the

2.
media converter.

3.

Verify that both the twisted pair and the fiber link (see LEDs, below) on the
media converter.

NOTE

Use caution when conducting a loopback test; it is possible to create a network loop
if connecting the twisted pair port to an active network switch. B&B Electronics
recommends connecting the twisted pair cable to a PC for this type of test.

•

Make sure to use the appropriate twisted pair cable, and have the
crossover/straight-through switch set correctly if the media converter does
not include AutoCross.

•

If using a high powered device (which is designed for long distance
installations) for a short distance installation, the fiber transmitters may
overdrive the receivers and cause data loss. If this is the case, an optical
attenuator may need to be added to the connection.

16

Rackmount Instructions

Elevated
Operating
Ambient

Reduced Air
Flow

Circuit
Overloading

Reliable
Grounding

If installed in a closed or multi-unit rack assembly, the operating
ambient temperature of the rack environment may be greater
than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the
maximum ambient temperature (Tma) specified by the
manufacturer.

Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is
not compromised.

Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of
the circuits might have on over current protection and supply
wiring. Approximate consideration of equipment nameplate
ratings should be used when addressing this concern.

Reliable grounding of Rackmounted equipment should be
maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit
(e.g. use of power strips).

17

Specifications

Operating Temperature

+32°F to +122°F (0°C to +50°C); 5% to 95% (non-condensing), 0 – 10,000 ft.
altitude

Storage Temperature

-13°F to +158°F (-25°C to +70°C); 5% to 95% (non-condensing)

*Some products may support lower operating and storage temperatures.

Electrical

Media

Converte

r

1 115/230 or 120-240 VAC , 50/60Hz, 0.3A/0.15A 51 BTU/hour

4 120/240 VAC , 50/60Hz, 1A/0.5A 67 BTU/hour

8 120/240 or 100-240 VAC, 50/60Hz, 1.6/0.8A 67 BTU/hour

12 115/230 or 120-240 VAC, 50/60Hz, 1.2/0.6A 137 BTU/hour for AC unit

AC Input Load Maximum Heat

Generated

Dimensions

MediaConverter/1

MediaConverter/4

MediaConverter/8

MediaConverter/12

H=1.6” x W= 4.8” x D=4.5” (4 x 12.1 x 11.5 cm)

H=1.7” x W= 9.1” x D=5” (4.4 x 23.1 x 12.6cm)

H=1.7” x W= 17.4” x D=5” (4.4 x 44.2 x 12.8 cm)

H=1.7” x W= 19” x D=9” (4.4 x 48.3 x 22.9 cm)

B&B Electronics Technical Support

Tel:

[phone] (in the U.S. and Canada)

Monday-Friday, 7:00am-7”00pm CST

[phone] (Europe)

Monday through Friday 8:00am - 5:00pm GMT

Fax:

E-Mail:

Web:

[phone]

[e-mail]

www.bb-elec.com

18

Fiber Optic Cleaning Guidelines

Fiber Optic transmitters and receivers are extremely susceptible to contamination
by particles of dirt or dust, which can obstruct the optic path and cause
performance degradation. Good system performance requires clean optics and
connector ferrules.

Use fiber patch cords (or connectors, if you terminate your own fiber) only

1.
from a reputable supplier; low-quality components can cause many hard-to­diagnose problems in an installation.

2.

Dust caps are installed at B&B Electronics to ensure factory-clean optical
devices. These protective caps should not be removed until the moment of
connecting the fiber cable to the device. Should it be necessary to
disconnect the fiber device, reinstall the protective dust caps.

Store spare caps in a dust-free environment such as a sealed plastic bag or

3.
box so that when reinstalled they do not introduce any contamination to the
optics.

4.

If it is suspected that the optics have been contaminated, alternate between
blasting with clean, dry, compressed air and flushing with methanol to
remove particles of dirt.

Electrostatic Discharge Precautions

Electrostatic discharge (ESD) can cause damage to any product, add-in modules
or stand alone units, containing electronic components. Always observe the
following precautions when installing or handling these kinds of products

1.

Do not remove unit from its protective packaging until ready to install.

2.

Wear an ESD wrist grounding strap before handling any module or
component. If the wrist strap is not available, maintain grounded contact
with the system unit throughout any procedure requiring ESD protection.

3.

Hold the units by the edges; do not touch the electronic components or gold
connectors.

After removal, always place the boards on a grounded, static-free surface,

4.
ESD pad or in a proper ESD bag. Do not slide the modules or stand alone
units over any surface.

19

WARNING!

Integrated circuits and fiber optic components are
extremely susceptible to electrostatic discharge damage. Do not
handle these components directly unless you are a qualified
service technician and use tools and techniques that conform to
accepted industry practices.

20

Safety Certifications

UL/CUL: Listed to Safety of Information Technology Equipment, including

Electrical Business Equipment.

CE: The products described herein comply with the Council Directive on

Electromagnetic Compatibility (2004/108/EC) and the Council
Directive on Electrical Equipment Designed for use within Certain
Voltage Limits (2006/95/EC). Certified to Safety of Information
Technology Equipment, Including Electrical Business Equipment.
For further details, contact B&B Electronics.

Class 1 Laser product, Luokan 1 Laserlaite,
Laser Klasse 1, Appareil A’Laser de Classe 1

European Directive 2002/96/EC (WEEE) requires that any equipment that bears
this symbol on product or packaging must not be disposed of with unsorted
municipal waste. This symbol indicates that the equipment should be disposed
of separately from regular household waste. It is the consumer’s responsibility to
dispose of this and all equipment so marked through designated collection
facilities appointed by government or local authorities. Following these steps
through proper disposal and recycling will help prevent potential negative
consequences to the environment and human health. For more detailed
information about proper disposal, please contact local authorities, waste
disposal services, or the point of purchase for this equipment.

21

International Headquarters

B&B Electronics

707 Dayton Road

Ottawa, IL 61350 USA

Phone [phone] — General Fax [phone]

Website: www.bb-elec.com

European Headquarters

B&B Electronics

Westlink Commercial Park

Oranmore, Co. Galway, Ireland

Phone [phone] — Fax [phone]S5

Website: www.bb-elec.com

© 2013 B&B Electronics. All rights reserved.

The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for
any errors that may appear in this document. MediaConverter Series is a trademark of B&B Electronics. Other
brands or product names may be trademarks and are the property of their respective companies.

Document Number 51-80780-08 A5 August 2013

1
