B&B Electronics 852-10911-29 User Manual
PoE Giga-McBasic and PoE+ Giga-McBasic
Operation Manual
Above illustration is representative; several models are available.
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which the user will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class B
limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe B
prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.
Warranty
IMC Networks warrants to the original end-user purchaser that this product, EXCLUSIVE OF SOFTWARE, shall be free
from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions
and directions for a period of six (6) years after the original date of purchase. IMC Networks warrants to the original enduser purchaser that all SFPs shall be free from defects in materials and workmanship under normal and proper use in
accordance with IMC Networks' instructions and directions for a period of one (1) year after the original date of purchase.
This warranty is subject to the limitations set forth below.
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such
warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable
use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician
or by any other causes unrelated to defective materials or workmanship. Any replaced or repaired products or parts carry
a ninety (90) day warranty or the remainder of the initial warranty period, whichever is longer.
To receive in-warranty service, the defective product must be received at IMC Networks no later than the end of the
warranty period. The product must be accompanied by proof of purchase, satisfactory to IMC Networks, denoting
product serial number and purchase date, a written description of the defect and a Return Merchandise Authorization
(RMA) number issued by IMC Networks. No products will be accepted by IMC Networks which do not have an RMA
number. For an RMA number, contact IMC Networks at PHONE: (800) 624-1070 (in the U.S and Canada) or (949) 4653000 or FAX: (949) 465-3020. The end-user shall return the defective product to IMC Networks, freight, customs and
handling charges prepaid. End-user agrees to accept all liability for loss of or damages to the returned product during
shipment. IMC Networks shall repair or replace the returned product, at its option, and return the repaired or new
product to the end-user, freight prepaid, via method to be determined by IMC Networks. IMC Networks shall not be
liable for any costs of procurement of substitute goods, loss of profits, or any incidental, consequential, and/or special
damages of any kind resulting from a breach of any applicable express or implied warranty, breach of any obligation
arising from breach of warranty, or otherwise with respect to the manufacture and sale of any IMC Networks product,
whether or not IMC Networks has been advised of the possibility of such loss or damage.
EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, IMC NETWORKS MAKES NO OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS IMC NETWORKS PRODUCT, INCLUDING WITHOUT
LIMITATION ANY SOFTWARE ASSOCIATED OR INCLUDED. IMC NETWORKS SHALL DISREGARD AND NOT BE
BOUND BY ANY REPRESENTATIONS OR WARRANTIES MADE BY ANY OTHER PERSON, INCLUDING EMPLOYEES,
DISTRIBUTORS, RESELLERS OR DEALERS OF IMC NETWORKS, WHICH ARE INCONSISTENT WITH THE WARRANTY
SET FORTH ABOVE. ALL IMPLIED WARRANTIES INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE HEREBY LIMITED TO THE DURATION OF THE EXPRESS WARRANTY STATED ABOVE.
Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials
accurately describe IMC Networks product specifications and capabilities at the time of publication. However, because of
ongoing improvements and updating of IMC Networks products, IMC Networks cannot guarantee the accuracy of printed
materials after the date of publication and disclaims liability for changes, errors or omissions.
ii
Table of Contents
FCC Radio Frequency Interference Statement ....................................................ii
Warranty............................................................................................................ii
About the PoE Giga-McBasic..............................................................................1
Installation .........................................................................................................2
DIP Switch Configuration SFP and 1x9...............................................................2
LED Operation SFP and 1x9...............................................................................4
Troubleshooting .................................................................................................6
Specifications for the PoE Giga-McBasic .............................................................7
About the PoE+ Giga-McBasic..........................................................................9
Installation .......................................................................................................10
DIP Switch Configuration SFP and 1x9.............................................................10
LED Operation SFP and 1x9.............................................................................12
Troubleshooting ...............................................................................................14
RJ-45 Pinouts ...................................................................................................14
Specifications for the PoE+ Giga-McBasic .......................................................15
PoE Precautions (For Inside-a-Building Installation ONLY) ................................16
IMC Networks Technical Support.....................................................................17
Fiber Optic Cleaning Guidelines.......................................................................18
Electrostatic Discharge Precautions...................................................................19
Safety Certifications..........................................................................................20
iii
About the PoE Giga-McBasic
The PoE Giga-McBasic is a solution for private network applications that require
power over Ethernet for installations inside buildings where PoE is required to power
an Ethernet device. The standalone unit offers a model with one SFP or fixed fiber
transceiver, 1x9, uplink for the network connection, one PSE 10/100/1000Base-T
copper port that provides Power-over-Ethernet (PoE) (IEEE802.3af), and one 10/100/
1000Mbps copper port, to connect a non-PoE unit to the same fiber uplink. As a
fiber-fed demarcation unit, it provides both power and data to a remote device over
a standard CAT5 copper line, eliminating the need for a power connection to the
remote device. The PoE Giga-McBasic provides up to 15.4 watts on one copper
port, and is powered by an internal power supply, supporting 100-240 VAC. For
more robust power requirements on both copper ports, refer to the information
about the PoE+ Giga-McBasic.
NOTE
Unless noted otherwise, any reference is applicable for both the 1x9 and SFP version of
the
PoE Giga-McBasic
in this manual.
The PoE Giga-McBasic is a solution for private network applications that require
power over Ethernet for locations inside buildings where PoE is required to power an
Ethernet device. The standalone unit offers a model with one SFP or fixed fiber
transceiver, 1x9, uplink for the network connection, one PSE 10/100/1000Base-T
copper port that provides PoE (IEEE802.3af), and one 10/100/1000Mbps copper port.
As a fiber-fed demarcation unit, it provides both power and data to a remote device
over a standard CAT5 copper line, eliminating the need for a power connection to
the remote device. The PoE Giga-McBasic provisions up to 15.4 watts on one copper
port, and can be powered by an external AC adapter or DC terminal block. For
more robust power requirements on both copper ports, please refer to the
information about the PoE+ Giga-McBasic.
The SFP uplink can support fiber or copper SFPs. The fiber SFP, available in SC or LC
connectors, supports 100FDX or 1000FDX; a copper SFP supports the SGMII
interface (10/100/1000Mbps). The SFP, with or without DDMI, is available for
purchase through IMC Networks Distributors. The SFP must be MSA-compliant.
The copper ports auto negotiate to the connected device’s speed and duplex mode:
10 Mbps, 100 Mbps or 1000 Mbps, and HDX or FDX (including Flow Control). The
PoE+ Giga-McBasic supports jumbo frames up to 10240.
1
Installation
PoE Giga-McBasic installs virtually anywhere: as a standalone, table-top device, with
rackmount ears,or using a Wallmount bracket. The rackmount ears and wallmount
bracket are optional accessories available through IMC Networks distributors.
Installation Tip
Several models of the PoE Giga-McBasic support single-strand fiber for operation. Since singlestrand fiber products use optics that transmit and receive on two different wavelengths, singlestrand fiber products must be deployed in pairs. For example, connect a PoE Giga-McBasic ,
TX/SSLX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a product which has 1550 xmt
and 1310 rcv, e.g. PoE Giga-McBasic, TX/SSLX-SM1550-SC. The two connected products must
also have the same speed and distance capabilities (i.e. both are single-mode [20km] or both
are single/PLUS [40km]).
DIP Switch Configuration SFP and 1x9
PoE Giga-McBasic SFP
DIP
Switch
1
Name Description Default
Setting
PoE Reset ON forces Port 2,
PSE/PoE, to OFF on LOS
OFF
DIP Switch
of Fiber input
2
3
Factory Set Do not change OFF
LoSpd SFP ON sets SFP for low
OFF
speed operation
4
5
6
7
8
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
LoSPd DSW for PoE Giga-McBasic
The DIP Switch for LoSPd is to allow the end user to set a speed for a fiber SFP under
the following conditions:
• Setting the LoSPd DSW to ON will force the SFP to operate at 100Mbps. When
set in the default of OFF, the SFP will run at its maximum rate of the SFP
installed. (100 or 1000 Mbps supported)
• If a dual speed fiber SFP 100/1000Mbps is installed, setting the LoSpd to ON will
force the SFP to operate at 100Mbps.
2
NOTE
Under no conditions will the LoSPd DSW impact any copper SFPs. Some 1000Mbps SFPs
may not function properly when forced to 100Mbps.
PoE Reset DSW
When set to ON, it will force the PSE output power on the copper port OFF when
the LINK state is lost on the SFP line (copper or fiber SFP). By default, the DSW is
set to OFF.
PoE Giga-McBasic 1x9
DIP
Switch
1
Name Description Default
Setting
PoE Reset ON forces Port 2,
PSE/PoE, to OFF on
OFF
DIP Switch
LOS of Fiber input
2
3
4
5
6
7
8
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
Factory Set Do not change OFF
PoE Reset DSW
When set to ON, it will force the PSE output power on the copper port OFF when
the LINK state is lost on the fiber segment. By default, the DSW is set to OFF.
3
LED Operation SFP and 1x9
The PoE Giga-McBasic includes LEDs for three ports, as shown below:
PoE Giga-McBasic SFP
SFP LED Functions are as follows:
FLT
Glows red when a fault has been detected on the unit
LNK
Glows green with a valid link
1000 Mbps
Glows green when SFP is running at 1000Mbps
PWR
Glows green when unit is powered
RJ-45 LED Functions are as follows:
LNK/ACT
(TX1, TX2)
Glows green with a valid link
Blinks green when activity is detected
PSE
(TX2)
Glows green when port is supplying PoE power
Blinks green during training and fault conditions: a series of two
flashes indicates an over current fault; a series of five flashes indicates
invalid low or high discovery signature resistance
FDX
(TX1)
Off if the port is not supplying power
Glows amber when port is running full duplex
4

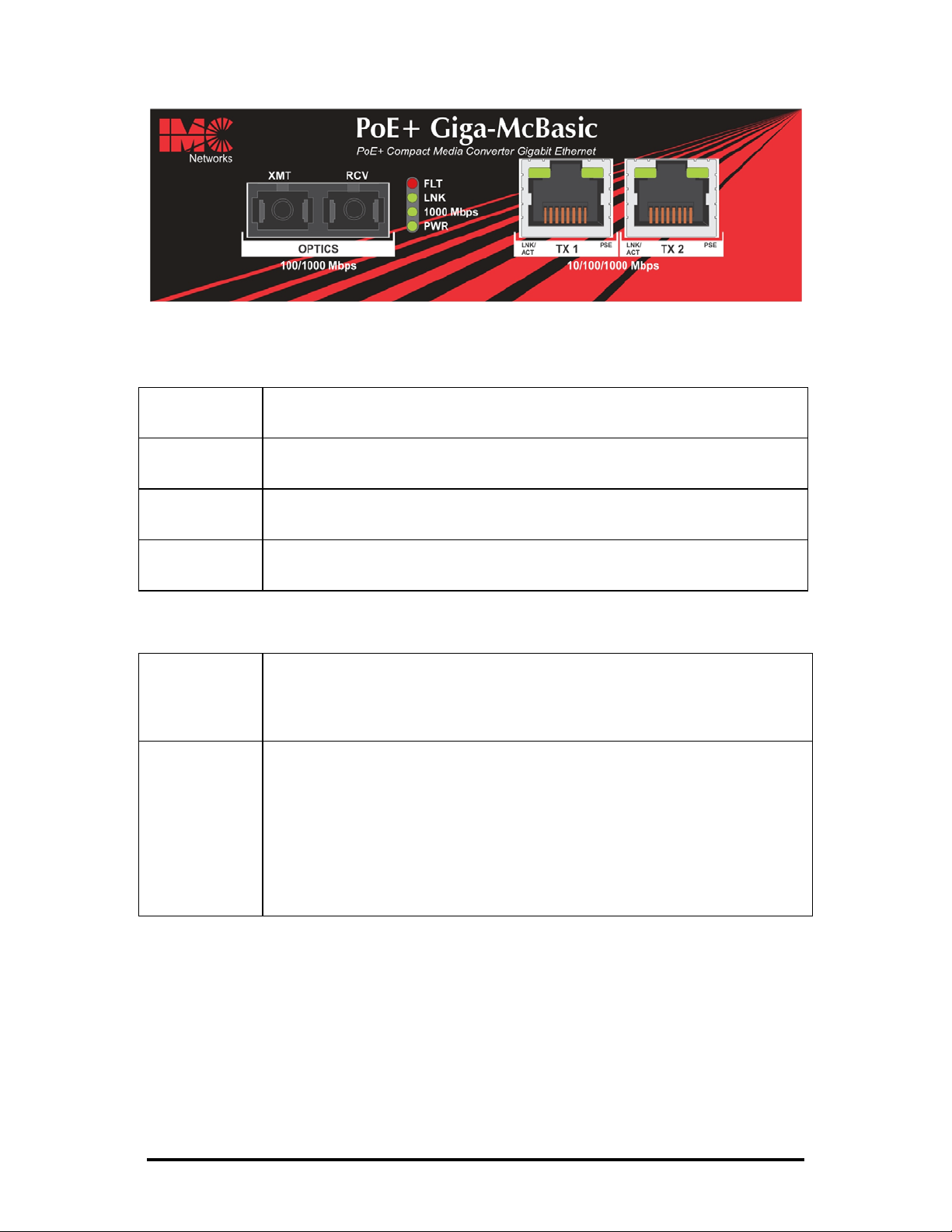

PoE Giga-McBasic 1x9
1x9 LED Functions are as follows:
FLT
Glows red when a fault has been detected on the unit
LNK
Glows green with a valid link
1000 Mbps
Glows green when is running at 1000Mbps
PWR
Glows green when unit is powered
RJ-45 LED Functions are as follows:
LNK/ACT
(TX1. TX2)
Glows green with a valid link
Blinks green when activity is detected
PSE
(TX2)
Glows green when port is supplying PoE power
Blinks green during training and fault conditions: a series of two
flashes indicates an over current fault; a series of five flashes indicates
invalid low or high discovery signature resistance
Off if the port is not supplying power
FDX
(TX1)
Glows amber when port is running full duplex
NOTE
The fixed twisted pair port labeled PSE is the only port capable of providing PoE.
5
