The

N-TRON

® 716TX

Industrial Ethernet switch
combines outstanding performance and ease of use. It is
ideally suited for connecting Ethernet enabled industrial
and/or security equipment and is a fully managed switch.

PRODUCT FEATURES

• Sixteen 10/100BaseTX RJ-45 Ports

• -40

• ESD and Surge Protection Diodes on all Ports

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Store-and-forward Technology

• Rugged DIN-Rail Enclosure

• Redundant Power Inputs (10-30VDC)

• Confi gurable Alarm Contact & Bi-Color Fault Status LED

o

C to 70oC Operating temperature

Fully Managed Features:

• SNMP v1, v2, v3 and Web Browser Management

• Detailed Ring Map and Fault Location Charting

• N-Ring

• N-View

• N-Link

• Plug-and-play IGMP Support

• 802.1Q tag VLAN and Port VLAN

• 802.1p QoS and Port QoS

™

Technology with ~30ms Healing

™

OPC Monitoring

™

Redundant N-Ring Coupling

• EtherNet/IP™ CIP Messaging

• LLDP (Link Layer Discovery Protocol)

• Port Trunking

• Port Mirroring

• 802.1d, 802.1w, 802.1D RSTP

• DHCP Server, Option 82 relay, Option 61

Management Features

The

716TX

confi gured using a web browser.
IGMP Snooping - Internet Group Management Protocol is a feature

that allows the
intelligently.

VLAN - V irtual Local Area Network allows you to segment the switch
in order to create two or more separate local area network domains.

QoS - Quality of Service provides prioritization of network traffi c
in order to provide better network service. The primary goal of QoS
is to improve the latency of prioritized Ethernet packets required
for ring management, real-time, and other interactive applications.

Port Trunking - Trunking (link aggregation) enables multiple
physical ports to be linked together and function as one uplink to
another
manner, thereby increasing the bandwidth between switches. This
configuration can provide increased bandwidth and redundancy
to applications requiring high levels of fault tolerant operation.

Port Mirroring - This function allows the traffi c on one port to be
duplicated and sent to a designated mirror port. Port mirroring can be
used to monitor Ethernet traffi c on the designated source port using
the assigned mirror port.

DHCP-DHCP Server / Client automates the assignment of IP addresses.
DHCP Option 82 assures that if a device on a specifi c port is replaced,
the replacement receives the same IP address as the original device.

offers several management functions that can be easily

716TX

switch to forward and fi lter multicast traffi c

N-TRON

trunking capable switch confi gured in the same

Rapid Spanning Tree Protocol

RSTP allows the switch to be c onfi gured in a ring or mesh topology,
and provides support for redundant path communications with high
speed (rapid) healing.

Remote Monitoring Options

For ease of confi guration and monitoring, the

N-View

browser management and
server software. The
popular HMI software packages to add network traffi c monitoring,
trending, and alarming to any application using
In addition, SNMP is available for switch link and status monitoring.
The alarm contact and status LED can be confi gured to respond to
power failure on power input 1 or input 2,
break high, partial break low, or if multiple ring managers are detected.

N-TRON N-View

OLE for process control (OPC)

software can be combined with

716TX

N-TRON

N-Ring

offers web

switches.

broken, partial

N-Ring T echnology

N-TRON's 716TX

offers expanded ring size capacity, detailed fault diagnostics, and a
standard healing time of ~30ms. The
checks the health of the ring via packets. If the ring manager stops
receiving these health check packets, it converts the ring to a linear
topology within ~30ms.

ring manager using

N-TRON's

716TX

ring manager periodically

When all switches in the ring are

N-Ring

technology

N-TRON

fully managed switches, a detailed ring map and fault location chart
will also be provided on the ring manager’s web browser and OPC
server to identfy the health status of the ring.

linking of two
can participate in

Industrial Packaging and Specifi cations

716TX

The
housed in a rugged steel DIN-Rail enclosure. It has extended industrial
specifi cations and features to meet or exceed the operating parameters
of connected equipment. These include extended temperature ratings,
extended shock and vibration specs, redundant power inputs, and high
MTBF (greater than 2M hours).

Ease of Use

The 10/100BaseTX ports are auto sensing and auto confi guring. Each
copper port is automatically negotiated for maximum speed and
performance by default, but can also be hard coded through the user
interface. A high speed processor allows wire speed capability on all

N-Rings

is designed to operate in industrial environments. It is

. Up to 250 fully managed

N-Ring

topologies.

N-Link

N-TRON

™ allows the

switches

THE INDUSTRIAL NETWORK COMPANY

716TX

Industrial Ethernet Switch Ordering Information

716TX Sixteen 10/100BaseTX Ports
700-PM Panel Mount kit
URMK Universal Rack Mount Kit
NTPS-24-1.3

N-TRON

Power Supply - (1.3 Amp @ 24VDC)

716TX Specifi cations

Switch Properties

Number of MAC Addresses: 8000
Aging Time: Programmable
Latency Typical: 2.6 μs
Switching Method: Store-and-Forward

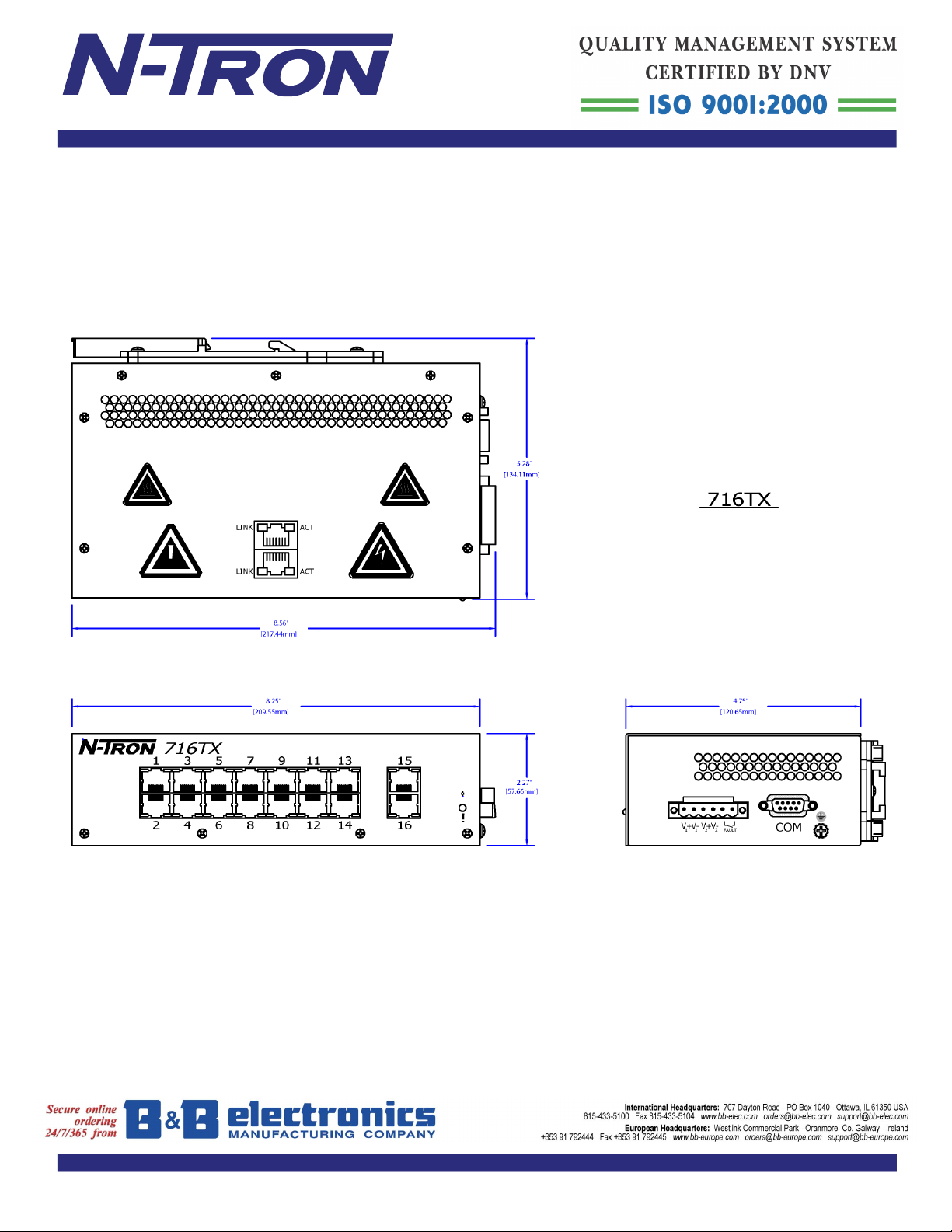

Case Dimensions

Height: 2.3" (5.8 cm)
Width: 8.3" (21.0 cm)
Depth: 4.8" (12.1 cm)
Weight (max): 3.3 lbs (1.5 kg)
DIN-Rail Mount: 35mm

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Connectors

10/100BaseTX: Sixteen (16) RJ-45 Copper Ports

Recommended Wiring Clearance

Front: 4" (10.16 cm)
Side: 1" (2.54 cm)

Electrical

Redundant Input Voltage: 10-30 VDC (Regulated)
Input Current (max): 620mA max. @ 24VDC
N-TRON Power Supply: NTPS-24-1.3 (1.3A

@24V)

Environmental

o

Operating Temperature: -40
Storage Temperature: -40

C to 70oC

o

C to 85oC

Operating Humidity: 5% to 95%

(Non Condensing)

Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Reliability

MTBF: >2 Million Hours

Regulatory Approvals

FCC Title 47, Part 15, Subpart B - Class A; ICES-003 - Class A
UL Listed (US and Canada) 1604; ANSI/ISA-12.12.01-2007

Class I, Div 2, Groups A, B, C, D, and T4A
CE: EN61000-6-2:2001: EN61000-4-2, 3, 4, 5, 6
EN5501 1:1998+A1:1999+A2:2002-Class A
EN50155 for Railway applications
GOST-R Certifi ed, RoHS Compliant

Designed to comply with:
IEEE 1613 for Electric Utility Substations
NEMA TS1/ TS2 for Traffi c control
