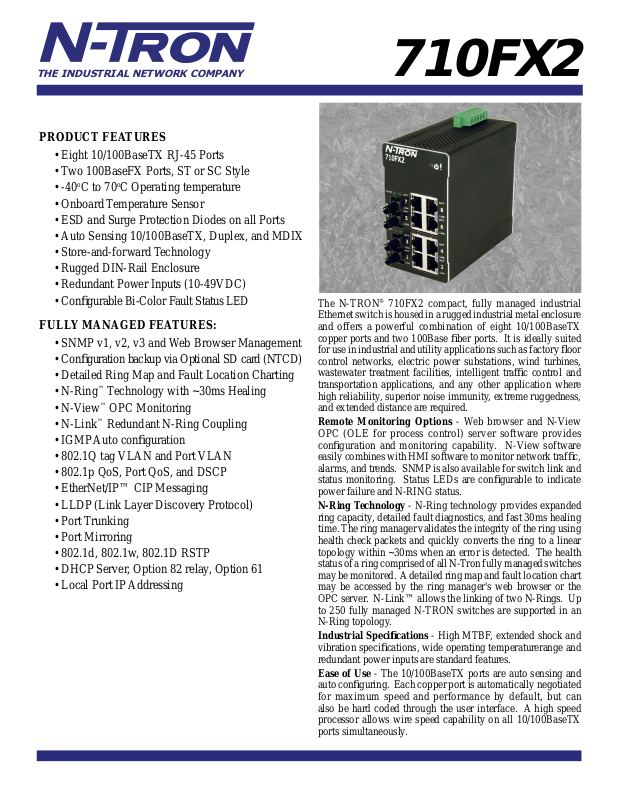

B&B Electronics 710FXE2-SC-15 Datasheet

THE INDUSTRIAL NETWORK COMPANY

PRODUCT FEATURES

• Eight 10/100BaseTX RJ-45 Ports

• Two 100BaseFX Ports, ST or SC Style

• -40

o

C to 70oC Operating temperature

• Onboard Temperature Sensor

• ESD and Surge Protection Diodes on all Ports

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Store-and-forward Technology

• Rugged DIN-Rail Enclosure

• Redundant Power Inputs (10-49VDC)

• Confi gurable Bi-Color Fault Status LED

FULLY MANAGED FEATURES:

• SNMP v1, v2, v3 and Web Browser Management

• Confi guration backup via Optional SD card (NTCD)

• Detailed Ring Map and Fault Location Charting

• N-Ring

• N-View

• N-Link

™

Technology with ~30ms Healing

™

OPC Monitoring

™

Redundant N-Ring Coupling

• IGMP Auto confi guration

• 802.1Q tag VLAN and Port VLAN

• 802.1p QoS, Port QoS, and DSCP

• EtherNet/IP™ CIP Messaging

• LLDP (Link Layer Discovery Protocol)

• Port Trunking

• Port Mirroring

• 802.1d, 802.1w, 802.1D RSTP

• DHCP Server, Option 82 relay, Option 61

• Local Port IP Addressing

710FX2

The N-TRON® 710FX2 compact, fully managed industrial
Ethernet switch is housed in a rugged industrial metal enclosure
and offers a powerful combination of eight 10/100BaseTX
copper ports and two 100Base fi ber ports. It is ideally suited
for use in industrial and utility applications such as factory fl oor
control networks, electric power substations, wind turbines,
wastewater treatment facilities, intelligent traffi c control and
transportation applications, and any other application where
high reliability, superior noise immunity, extreme ruggedness,
and extended distance are required.

Remote Monitoring Options - Web browser and N-View
OPC (OLE for process control) server software provides
confi guration and monitoring capability. N-View software
easily combines with HMI software to monitor network traffi c,
alarms, and trends. SNMP is also available for switch link and
status monitoring. Status LEDs are confi gurable to indicate
power failure and N-RING status.

N-Ring Technology - N-Ring technology provides expanded
ring capacity , detailed fault diagnostics, and fast 30ms healing
time. The ring manager validates the integrity of the ring using
health check packets and quickly converts the ring to a linear
topology within ~30ms when an error is detected. The health
status of a ring comprised of all N-Tron fully managed switches
may be monitored. A detailed ring map and fault location chart
may be accessed by the ring manager's web browser or the
OPC server. N-Link™ allows the linking of two N-Rings. Up
to 250 fully managed N-TRON switches are supported in an
N-Ring topology.

Industrial Specifi cations - High MTBF, extended shock and
vibration specifi cations, wide operating temperaturerange and
redundant power inputs are standard features.

Ease of Use - The 10/100BaseTX ports are auto sensing and
auto confi guring. Each copper port is automatically negotiated
for maximum speed and performance by default, but can
also be hard coded through the user interface. A high speed
processor allows wire speed capability on all 10/100BaseTX
ports simultaneously.

THE INDUSTRIAL NETWORK COMPANY

710FX2

Industrial Ethernet Switch Ordering Information

710FX2-XX Eight 10/100BaseTX Ports, Two Multimode 100BaseFX Ports, ST or SC Style
710FXE2-XX-YY Eight 10/100BaseTX Ports, Two Singlemode 100BaseFX Ports, ST or SC Style

NTCD128 Optional confi guration card for backup / restore
NTPS-24-1.3

N-TRON

Power Supply - (1.3 Amp @ 24VDC)
CPMA-1 Compact panel mount (factory installed option only)
URMK Universal Rack Mount Kit

Where: XX = ST or SC
YY = 15, 40, or 80 for Singlemode, Blank for Multimode
E = Singlemode, and Blank Otherwise

710FX2 Specifi cations

Switch Properties

Number of MAC Addresses: 8000
Aging Time: Programmable
Latency Typical: 2.6 μs

Switching Method: Store-and-Forward

Case Dimensions

Height: 4.3" (10.8 cm)
Width: 2.4" (6.1 cm)
Depth: 4.6" (11.5 cm)
Weight (max): 1.4lbs (0.63 kg)
DIN-Rail Mount: 35mm

Electrical

Redundant Input Voltage: 10-49 VDC (Regulated)
Input Current (max): 460mA max.@24VDC

N-TRON Power Supply: NTPS-24-1.3 (1.3A@24V)

Environmental

Operating Temperature: -40
Storage Temperature: -40

o

C to 70oC

o

C to 85oC

Operating Humidity: 5% to 95%

(Non Condensing)

Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Reliability

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

100 Mb Fiber Transceiver Characteristics

Fiber Length 2km* 15km** 40km** 80km**
TX Power Min -19dBm/-14dBm -15dBm/-7dBm -5dBm/0dBm -5dBm/0dBm
RX Sensitivity Max -32dBm -34dBm -34dBm -34dBm
Wavelength 1310nm 1310nm 1310nm 1550nm

* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable

Connectors

10/100BaseTX: Eight (8) RJ-45 Copper Ports
100BaseFX: Two 100BaseFX Ports, ST or SC Style

Recommended Wiring Clearance

Front: 4" (10.2 cm)
Side: 1" (2.6 cm)

Regulatory Approvals

FCC: Title 47, Part 15, Subpart B, Class A; ICES-003: Class A;
ANSI C63.4

CE: EN 61000-6-2, 4; IEC 61000-4-2, 3, 4, 5, 6, 8, 11
GOST-R Certifi ed, RoHS Compliant

CURRENTLY IN STANDARDS TESTING FOR:
UL/cUL: Hazardous Locations Class I, Div 2, Groups A, B, C, D, T4A

Non-hazardous Locations NASI/ISA 12.12.01-2007
Designed to comply with:

IEEE 1613 for Electric Utility Substations
NEMA TS1/ TS2 for Traffi c control
IEC-61850
