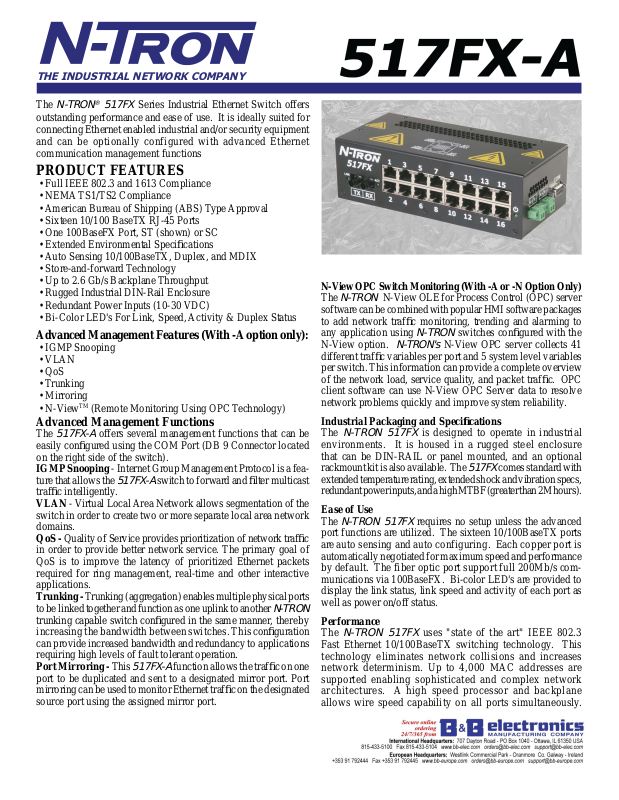

N-TRON® 517FX
outstanding performance and ease of use. It is ideally suited for connecting Ethernet enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions
Series Industrial Ethernet Switch offers
PRODUCT FEATURES
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) Type Approval
• Sixteen 10/100 BaseTX RJ-45 Ports
• One 100BaseFX Port, ST (shown) or SC
• Extended Environmental Specifi cations
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Up to 2.6 Gb/s Backplane Throughput
• Rugged Industrial DIN-Rail Enclosure
• Redundant Power Inputs (10-30 VDC)
• Bi-Color LED's For Link, Speed, Activity & Duplex Status
Advanced Management Features (With -A option only):
• IGMP Snooping
• VLAN
• QoS
• Trunking
• Mirroring
• N-View
Advanced Management Functions
The easily confi gured using the COM Port (DB 9 Connector located on the right side of the switch). IGMP Snooping - Internet Group Management Protocol is a fea­ture that allows the traffi c intelligently. VLAN - Virtual Local Area Network allows segmentation of the switch in order to create two or more separate local area network domains. QoS - Quality of Service provides prioritization of network traffi c in order to provide better network service. The primary goal of QoS is to improve the latency of prioritized Ethernet packets required for ring management, real-time and other interactive applications. T runking - Trunking (aggregation) enables multiple physical ports to be linked together and function as one uplink to another trunking capable switch confi gured in the same manner, thereby increasing the bandwidth between switches. This c on fi guration can provide increased bandwidth and redundancy to applications requiring high levels of fault tolerant operation. Port Mirroring - This port to be duplicated and sent to a designated mirror port. Port mirroring can be used to monitor Ethernet traffi c on the designated source port using the assigned mirror port.
TM
517FX-A
(Remote Monitoring Using OPC Technology)
offers several management functions that can be
517FX-A
switch to forward and fi lter multicast
N- TRON
517FX-A
function allows the traffi c on one
N-View OPC Switch Monitoring (With -A or -N Option Only)
The
N-TRON
software can be combined with popular HMI software packages to add network traffi c monitoring, trending and alarming to any application using N-View option. different traffi c variables per port and 5 system level variables per switch. This information can provide a complete overview of the network load, service quality, and packet traffi c. OPC client software can use N-View OPC Server data to resolve network problems quickly and improve system reliability.
Industrial Packaging and Specifi cations
The
N-TRON 517FX
environments. It is housed in a rugged steel enclosure that can be DIN-RAIL or panel mounted, and an optional rackmount kit is also available. The extended temperature rating, extended shock and vibration specs, redundant power inputs, and a high MTBF (greater than 2M hours).
Ease of Use
The
N-TRON 517FX
port functions are utilized. The sixteen 10/100BaseTX ports are auto sensing and auto configuring. Each copper port is automatically negotiated for maximum speed and performance by default. The fiber optic port support full 200Mb/s com­munications via 100BaseFX. Bi-color LED's are provided to display the link status, link speed and activity of each port as well as power on/off status.
Performance
The
N-TRON 517FX
Fast Ethernet 10/100BaseTX switching technology. This technology eliminates network collisions and increases network determinism. Up to 4,000 MAC addresses are supported enabling sophisticated and complex network architectures. A high speed processor and backplane allows wire speed capability on all ports simultaneously.
N-View OLE for Process Control (OPC) server
N-TRON
N-TRON's
is designed to operate in industrial
requires no setup unless the advanced
uses "state of the art" IEEE 802.3
switches confi gured with the
N-View OPC server collects 41
517FX
comes standard with
THE INDUSTRIAL NETWORK COMPANY
517FX Industrial Ethernet Switch Ordering Information
517FX-A-XX-S Sixteen 10/100BaseTX Ports, One Multimode 100BaseFX Fiber Optic Port 517FXE-A-XX-YY Sixteen 10/100BaseTX Ports, One Singlemode 100BaseFX Fiber Optic Port
Where: A = A for Advanced Management Features, or N for N-View,and Blank Otherwise, N-View included in -A; XX = ST or SC, YY = 15, 40 or 80 for singlemode, blank for multimode S = Standard Temperature Rating -20ºC to 70ºC, Blank for -40ºC to 85ºC
517FX-A Specifi cations
Switch Properties
Number of MAC Addresses: 4,000 Aging Time: 300 s Latency Typ.: 2.1 μs Backplane Speed: 2.6Gb/s Switching Method: Store & Forward

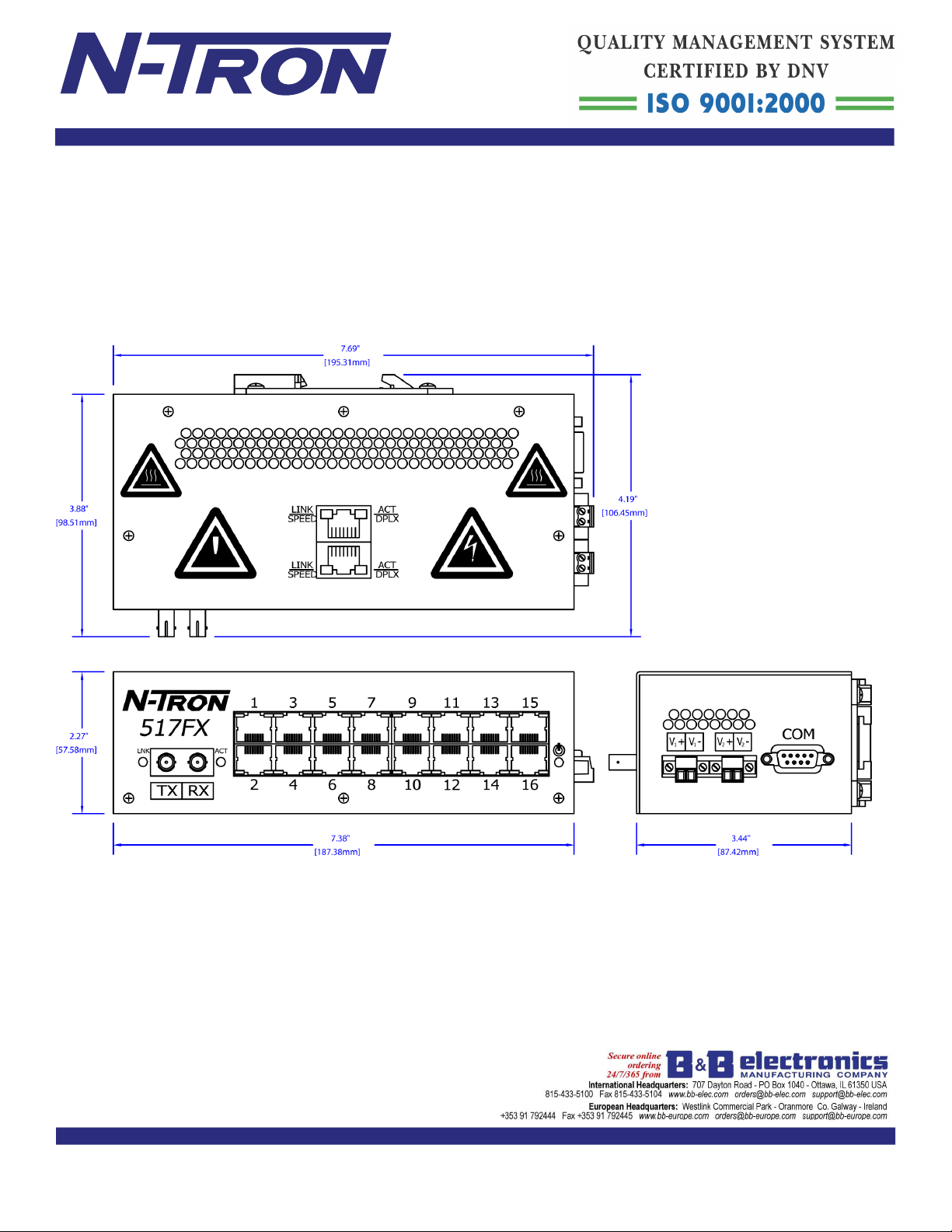

Case Dimensions:
Height: 2.3" (5.8cm) Width: 7.4" (18.8cm) Depth: 3.5" (8.8cm) Weight: 2.2 lbs (1.0kg) Din-Rail: 35mm
Electrical
Redundant Input Voltage: 10-30 VDC Input Current: 440 mA@24V Inrush: 8.5Amp/0.8ms@24V
Environmental
Operating and Storage Temp: -20ºC to 70ºC (Standard)
-40ºC to 85ºC (Extended)
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms Vibration/Seismic: 50g, 5-200Hz, Triaxial
Reliability
MTBF: >2Million Hours
Network Media
10BaseT: >Cat3 Cable 100BaseTX: >Cat5 Cable
100BaseFX
Multimode: 50-62.5/125μm Singlemode: 7-10/125μm
Fiber Transceiver Characteristics
Fiber Length 2km* 15km** 40km** 80km** TX Power Min -19dBm -15dBm -5dBm -5dBm RX Sensitivity Max -32dBm -29dBm -34dBm -34dBm Wavelength 1310nm 1310nm 1310nm 1550nm
* Multimode Fiber Optic Cable ** Singlemode Fiber Optic Cable
Connectors
10/100BaseTX: Sixteen (16) RJ-45 Copper Ports 100BaseFX: One (1) SC or ST Duplex Port
Serial Confi guration Port
Com Parameters: 9600,n,8,1
Recommended Wiring Clearance
Front: 4" (10.16 cm) Side: 1" (2.54 cm)
Regulatory Approvals
FCC/CE (CFR 47, Part 15, Subpart B, Class A) EMC Dir 89/336/EEC, EN 50204, EN 5501 1 EN61000-4-2/3/4/5/6/8/1 1, EN61000-6-2/4 ANSI C63.4, ICES-003
UL /cUL: Class I, Div 2, Groups A, B, C, D and T4A UL 508 and UL 1604
CAN/CSA-C22.2 No.213, ATEX II 3 G Ex nA ABS T ype Approval for Shipboard Applications GOST-R Certifi ed, RoHS Compliant
Designed to comply with:
IEEE 1613 for Electric Utility Substations NEMA TS1/TS2 for Traffi c Control
Contact Information
N-TRON Corp. N-TRON Europe GmbH 820 S. University Blvd., Suite 4E Alte Steinhauserstr 19 Mobile, AL36609USA 6330 Cham / Zg Switzerland TEL: (251) 342-2164 TEL: +41 41 7406636 FAX: (251) 342-6353 FAX: +41 41 7406637 Website: www.n-tron.com Email: N-TRON_info@n-tron.com
REV 090804
® 2009
N-TRON
, Corp.
may be trademarks and/or registered trademarks of their respective company. Specifi cations subject to change without notice. The responsibility for the use and application
N-TRON
of shall not be liable for any damage resulting from the installation, use, or misuse of this product.
products rests with the end user.
, N-TRON
and the
N-TRON
N-TRON
makes no warranties as to the fi tness or suitability of any
logo are trademarks of
N-TRON
, Corp. Product names mentioned herein are for identifi cation purposes only and
N-TRON
Printed in USA.
product for any specifi c application.
N-TRON
Corporation
