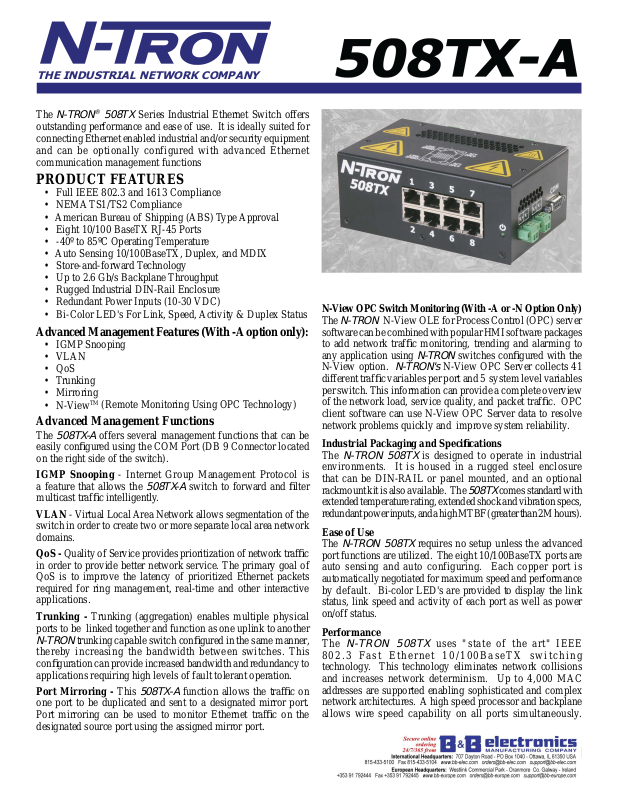

B&B Electronics 508TX-A Datasheet

THE INDUSTRIAL NETWORK COMPANY
The
N-TRON® 508TX
outstanding performance and ease of use. It is ideally suited for connecting Ethernet enabled industrial and/or security equipment and can be optionally configured with advanced Ethernet communication management functions
Series Industrial Ethernet Switch offers
PRODUCT FEATURES
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) Type Approval
• Eight 10/100 BaseTX RJ-45 Ports
• -40º to 85ºC Operating Temperature
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Up to 2.6 Gb/s Backplane Throughput
• Rugged Industrial DIN-Rail Enclosure
• Redundant Power Inputs (10-30 VDC)
• Bi-Color LED's For Link, Speed, Activity & Duplex Status
Advanced Management Features (With -A option only):
• IGMP Snooping
• VLAN
• QoS
• Trunking
• Mirroring
• N-View
Advanced Management Functions
The
508TX-A
easily confi gured using the COM Port (DB 9 Connector located on the right side of the switch).
IGMP Snooping - Internet Group Management Protocol is a feature that allows the multicast traffi c intelligently.
VLAN - Virtual Local Area Network allows segmentation of the switch in order to create two or more separate local area network domains.
QoS - Quality of Service provides prioritization of network traffi c in order to provide better network service. The primary goal of QoS is to improve the latency of prioritized Ethernet packets required for ring management, real-time and other interactive applications.
Trunking - Trunking (aggregation) enables multiple physical ports to be linked together and function as one uplink to another
N-TRON
thereby increasing the bandwidth between switches. This confi guration can provide increased bandwidth and redundancy to applications requiring high levels of fault tolerant operation.
Port Mirroring - This one port to be duplicated and sent to a designated mirror port. Port mirroring can be used to monitor Ethernet traffi c o n t h e designated source port using the assigned mirror port.
TM
(Remote Monitoring Using OPC Technology)
offers several management functions that can be
508TX-A
trunking capable switch con gured in the same manner,
508TX-A
switch to forward and fi lter
function allows the traffi c on
N-View OPC Switch Monitoring (With -A or -N Option Only)
The
N-TRON
software can be combined with popular HMI software packages to add network traffi c monitoring, trending and alarming to any application using N-View option. different traffi c variables per port and 5 system level variables per switch. This information can provide a complete overview of the network load, service quality, and packet traffi c. OPC client software can use N-View OPC Server data to resolve network problems quickly and improve system reliability.
Industrial Packaging and Specifi cations
The
N-TRON 508TX
environments. It is housed in a rugged steel enclosure that can be DIN-RAIL or panel mounted, and an optional rackmount kit is also available. The extended temperature rating, extended shock and vibration specs, redundant power inputs, and a high MTBF (greater than 2M hours).
Ease of Use
The
N-TRON 508TX
port functions are utilized. The eight 10/100BaseTX ports are auto sensing and auto configuring. Each copper port is automatically negotiated for maximum speed and performance by default. Bi-color LED's are provided to display the link status, link speed and activity of each port as well as power on/off status.
Performance
The
N-TRON 508TX
802.3 Fast Ethernet 10/100BaseTX switching technology. This technology eliminates network collisions and increases network determinism. Up to 4,000 MAC addresses are supported enabling sophisticated and complex network architectures. A high speed processor and backplane allows wire speed capability on all ports simultaneously.
N-View OLE for Process Control (OPC) server
N-TRON
N-TRON's
is designed to operate in industrial
requires no setup unless the advanced
switches confi gured with the
N-View OPC Server collects 41
508TX
comes standard with
uses "state of the art" IEEE
THE INDUSTRIAL NETWORK COMPANY
508TX Industrial Ethernet Switch Ordering Information
508TX Eight 10/100BaseTX Ports 508TX-N 508TX with N-View 508TX-A 508TX with N-View and Advanced Management Features
508TX-A Specifi cations
Switch Properties
Number of MAC Addresses: 4,000 Aging Time: 20s, Programmable (-A) Latency Type.: 2.1 μs Backplane Speed: 2.6Gb/s Switching Method: Store & Forward
Serial Confi guration Port
Com Parameters: 9600,n,8,1
Network Media
10BaseT: >Cat3 Cable 100BaseTX: >Cat5 Cable
Case Dimensions
Height: 2.3" (5.8cm) Width: 5.9" (15cm) Depth: 3.5" (8.8cm) Weight: 1.6 lbs (0.8kg)
Connectors
10/100BaseTX: Eight (8) RJ-45 Copper Ports
Recommended Wiring Clearance
Front: 4" (10.16 cm) Side: 1" (2.54 cm)
Din-Rail: 35mm
Electrical
Redundant Input Voltage: 10-30 VDC Input Current: 200 mA@24V Inrush: 9.0Amp/0.6ms@24V
Regulatory Approvals
FCC/CE (CFR 47, Part 15, Subpart B, Class A) EMC Dir 89/336/EEC, EN 50204, EN 5501 1 EN61000-4-2/3/4/5/6/8/1 1, EN61000-6-2/4 ANSI C63.4, ICES-003
Environmental
Operating Temperature: -20oC to 70oC (Standard)
-40oC to 85oC (Extended) Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
UL /cUL: Class I, Div 2, Groups A, B, C, D and T4A UL 508 and UL 1604
CAN/CSA-C22.2 No.213, ATEX II 3 G Ex nA ABS T ype Approval for Shipboard Applications GOST-R Certifi ed, RoHS Compliant
Designed to comply with:
IEEE 1613 for Electric Utility Substations NEMA TS1/TS2 for Traffi c Control
Shock and Vibration (bulkhead mounting)
Shock: 200g @ 10ms Vibration/Seismic: 50g, 5-200Hz, Triaxial
Contact Information
Reliability
MTBF: >2Million Hours
® 2009
N-TRON
, Corp.
may be trademarks and/or registered trademarks of their respective company. Specifi cations subject to change without notice. The responsibility for the use and application
N-TRON
of shall not be liable for any damage resulting from the installation, use, or misuse of this product.
products rests with the end user.
, N-TRON
and the
N-TRON
N-TRON
logo are trademarks of
makes no warranties as to the fi tness or suitability of any
N-TRON Corp. N-TRON Europe GmbH 820 S. University Blvd., Suite 4E Alte Steinhauserstr 19 Mobile, AL36609USA 6330 Cham / Zg Switzerland TEL: (251) 342-2164 TEL: +41 41 7406636 FAX: (251) 342-6353 FAX: +41 41 7406637 Website: www.n-tron.com Email: N-TRON_info@n-tron.com
N-TRON
, Corp. Product names mentioned herein are for identifi cation purposes only and
N-TRON
Printed in USA.
product for any specifi c application.
N-TRON
REV 090804
Corporation
