B&B Electronics 104TX Datasheet
THE INDUSTRIAL NETWORK COMPANY
®
The
N- TRON
104TX
is a low cost unmanaged four port
Industrial Ethernet Switch. It is housed in a hardened, metal,
DIN-Rail enclosure, and is designed for use in
mission critical data acquisition, control, and Ethernet I/O
applications.
PRODUCT FEATURES
• Compact, Space Saving Package
• Full IEEE 802.3 Compliance
• American Bureau of Shipping (ABS) Type Approval
• EN50155 for Railway applications
• Four 10/100BaseTX RJ-45 Ports
• Unmanaged Operation
• Extended Environmental Specifi cations
• -40ºC to 80º Operating Temperature
• >2M Hours MTBF
• Supports Full/Half Duplex Operation
• Up to 800 Mb/s Maximum Throughput
• MDIX Auto Sensing Cable
• Auto Sensing Speed and Flow Control
• Full Wire Speed Communications
• Store-and-forward Technology
• Redundant Power Inputs (10-30 VDC)
• LED Link/Activity Status Indication
• Hardened Metal DIN-Rail Enclosure
PRODUCT OVERVIEW
The
104TX
Industrial Network Switch is designed to
solve the most demanding industrial communication
requirements while providing high throughput and
minimum downtime.
The
104TX
provides four RJ-45 auto sensing
10/100BaseTX ports. All ports are full/half duplex
capable, using "state of the art" Ethernet switching
technology. The
104TX
auto-negotiates the speed
and flow control capabilities of the four TX port
connections, and configures itself automatically.
Since the
104TX
is auto sensing, there will be no need
to make extensive wiring changes if upgrades are made
to the host computers, plant systems, or Ethernet I/O
modules. The switching fabric simply scales up or down
automatically to match specifi c network environments.
The
104TX
supports up to 2,000 MAC addresses,
enabling these products to support extremely sophisticated
and complex network architectures.
The
104TX
is an ideal candidate for upgrading
existing hubs and repeaters to increase bandwidth
and determinism by virtually eliminating network
collisions. The
N-TRON 104TX
combines affordability
and the plug & play simplicity of the unmanaged hub.
The
104TX
can simplify plant wiring by eliminating the
need to bring data acquisition and control network
connections back to a climate controlled environment.
The
104TX
has extended operating environmental
specifi cations to meet the harsh needs of the industrial
environment. For cost savings and convenience the
network switch can be DIN-Rail mounted alongside
Ethernet I/O or other Industrial Equipment.
To increase reliability the
104TX
provides dual
redundant power inputs. LED's are provided to display
the link status and activity of each port.
THE INDUSTRIAL NETWORK COMPANY
104TX SPECIFICATIONS
BENEFITS

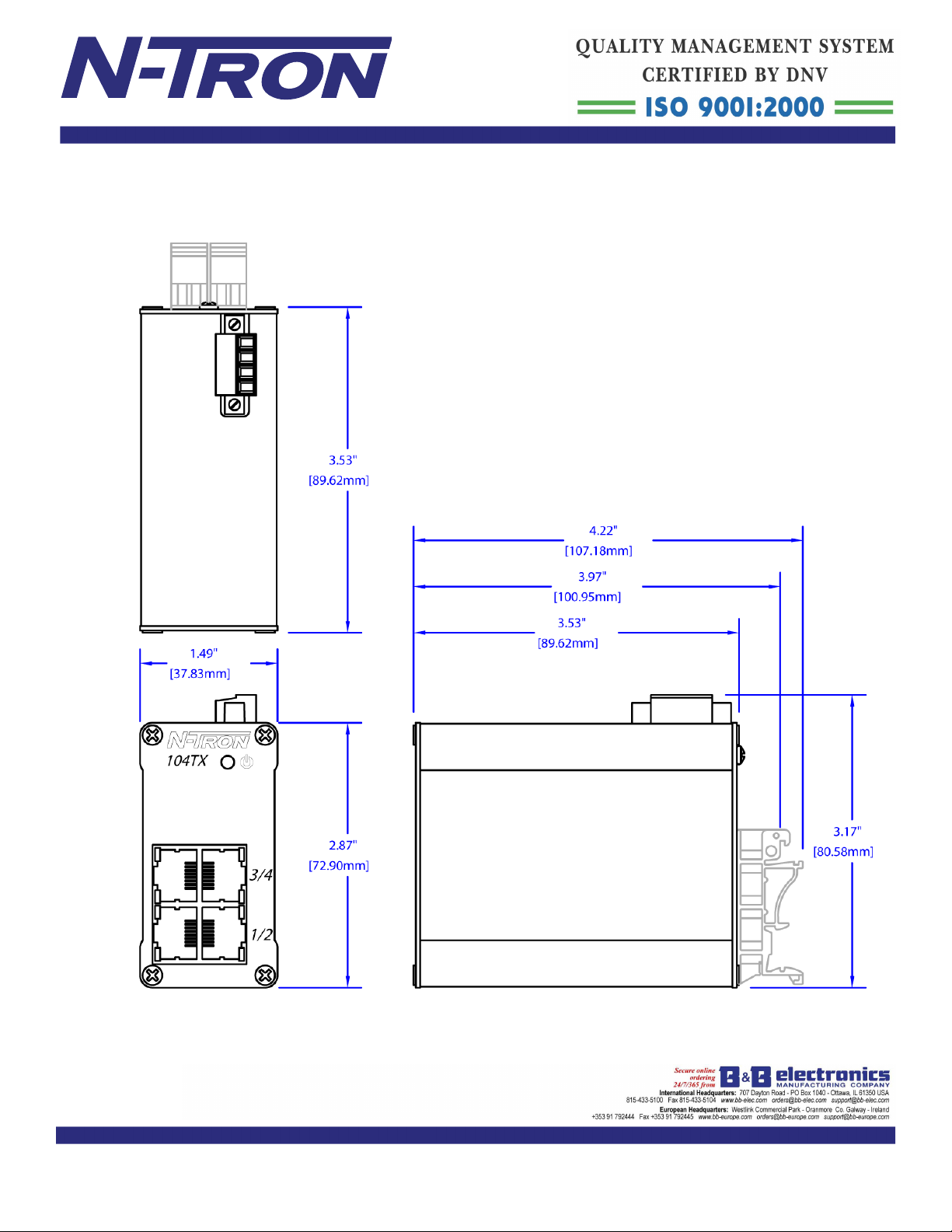

Case Dimensions
Height: 2.9" (7.3cm)
Width: 1.5" (3.8 cm)
Depth: 3.6" (9 cm)
Weight: 0.6 lbs. (0.28 kg)
DIN-Rail: 35mm
Electrical
Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V
Environmental
Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Reliablity
MTBF: >2 Million Hours
Network Media
10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable
Connectors
10/100BaseTX: Four (4) RJ-45 TX
Copper Ports
Recommended Wiring Clearance
Front: 2" (5.08 cm)
Top: 1" (2.54 cm)
Industrial Network Switch
• Compact Size / Small Footprint
• Extended Environmental Specifi cations
• Hardened Metal DIN-Rail Enclosure
• High Performance
• High MTBF >2M Hours
• ESD Protection Diodes on RJ-45 Ports
• Surge Protection Diodes on Power Inputs
Ease of Use
• Plug & Play Operation
• Auto Sensing 10/100BaseTX
• Auto Negotiation Full/Half Duplex
• MDIX Auto Cable Sensing
• Unmanaged Operation
Increased Performance
• Full Wire Speed Capable
• Full Duplex Capable
• Eliminates Network Collisions
• Increases Network Determinism
Regulatory Approvals
FCC Title 47 Part 15 Class A
ICES-003- Class A
CE: EN61000-6-2,4
EN61000-4-2,3,4,5,6
EN55011 Class A
UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000,
Class I, Div 2, Groups A,B,C,D,T4A
ABS Type Approval for Shipboard Applications
DNV Type Approval Certifi cation
EN50155 for Railway Applications
RoHS Compliant; GOST-R Certifi ed
Ordering Information
104TX Four 10/100BaseTX Ports
NTPS-24-1.3 DIN-Rail Power Supply
24V@1.3 Amp
® 2009
N-TRON
, Corp.
N-TRON
and the
may be trademarks and/or registered trademarks of their respective company. Specifi cations subject to change without notice. The responsibility for the use and application
N-TRON
of
shall not be liable for any damage resulting from the installation, use, or misuse of this product.
products rests with the end user.
N-TRON
N-TRON
Designed to comply with:
IEEE 1613 for Electric Utility Substations;
and NEMA TS1/TS2 for Traffi c Control Equipment
Contact Information
N-TRON Corp. N-TRON Europe GmbH
820 S. University Blvd., Suite 4E Alte Steinhauserstr 19
Mobile, AL 36609 USA 6330 Cham / Zg Switzerland
TEL: (251) 342-2164 TEL: +41 41 7406636
FAX: (251) 342-6353 FAX: +41 41 7406637
Website: www.n-tron.com
Email: N-TRON_info@n-tron.com
logo are trademarks of
makes no warranties as to the fi tness or suitability of any
N-TRON
, Corp. Product names mentioned herein are for identifi cation purposes only and
Printed in USA.
N-TRON
product for any specifi c application.
REV 090805
