Page 1
Radarfield
a
b

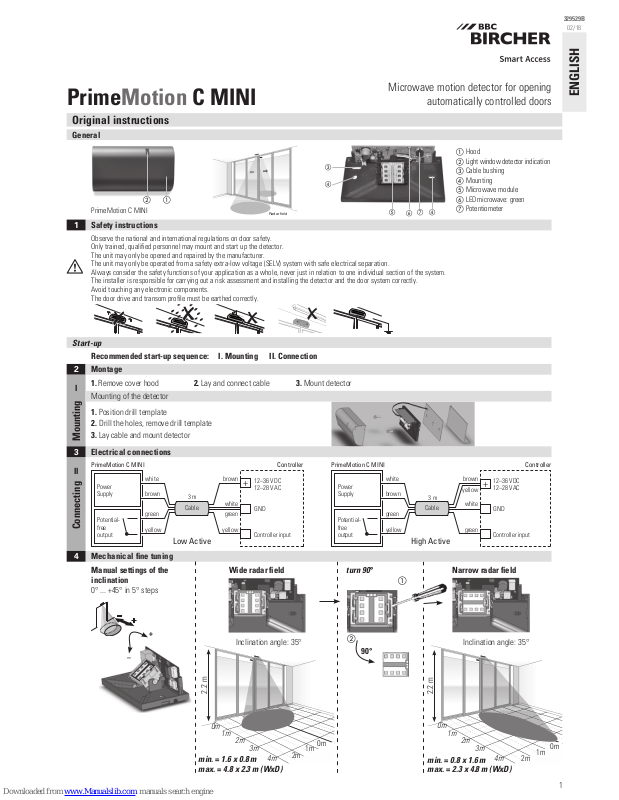

PrimeMotion C MINI
PrimeMotion C MINI
+
3 m
PrimeMotion C MINI
3 m
+
–
+
+
–
1m
2m
1m
2m
0m
0m
1m
2m
3m
4m
2.2 m
b
90°
1m
2m
1m
2m
0m
0m
1m
2m
3m
4m
2.2 m
1
a
PrimeMotion C MINI
Connecting
Observe the national and international regulations on door safety.
Only trained, qualied personnel may mount and start up the detector.
The unit may only be opened and repaired by the manufacturer.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom prole must be earthed correctly.
Start-up
2 Montage
Original instructions
Recommended start-up sequence: I. Mounting II. Connection
Mounting
I
General
Safety instructions
1
1. Remove cover hood 2. Lay and connect cable 3. Mount detector
Microwave motion detector for opening
automatically controlled doors
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
Mounting of the detector
II
Electrical connections3
Mechanical ne tuning
4
Wide radar eld
min. = 0.8 x 1.6 m
max. = 2.3 x 4.8 m (WxD)
Inclination angle: 35° Inclination angle: 35°
Low Active
High Active
Radar eld
a Hood
b Light window detector indication
Cable bushing
Mounting
Microwave module
LED microwave: green
Potentiometer
min. = 1.6 x 0.8 m
max. = 4.8 x 2.3 m (WxD)
turn 90° Narrow radar eld
329529B
02/18
Controller Controller
Power
Supply
Power
Supply
12–36 VDC
12–28 VAC
12–36 VDC
12–28 VAC
GND GND
Controller input Controller input
white whitebrown brown
white white
green
Cable Cable
yellow green
yellow
brown brown
green green
yellow yellow
Potential-
free
output
Potential-
free
output
Manual settings of the
inclination
0° ... +45° in 5° steps
ENGLISH
Page 2
2
BBC Bircher Smart Access
Bircher Reglomat AG
Wiesengasse 20
CH-8222 Beringen
www.bircher.com
Made in China / Designed in Switzerland
5
Conguration by hand of radar eld with potentiometer
Smallest radar eld medium radar eld Largest radar eld
Factory settings
Potentiometer
Radar function Description
Field size
1 = Smallest radar eld
2 ... 8 = Medium radar eld
9 = Largest radar eld size
green LED
Fault Remedy
continuously
lit
Radar tripping when door is closing
1. Set angle of radar further away from the door.
2. Adjust radar eld size.
Radar false tripping without
apparent external inuence
1. Avoid light sources (e.g. uorescent tubes) in the immediate vicinity of the detector.
2. No moving objects (plants, advertising posters, etc.) in the vicinity of the detector.
3. Avoid strong vibration at the radar detector.
4. Possible inuence from a second radar detector in the vicinity (very unlikely).
Contact11
Technology
Radar 24.125 GHz
Mounting height
1.8 – 4 m
Operating voltage
12–36 VDC / 12–28 VAC
Operating current
max. 32 mA at 24 VDC
Power consumption
max. 1.3 W
Output radar
max. switching voltage: 48 VAC / VDC
max. switching current: 120 mA
max. switching capacity: 550 mW
Protection type
Suitable for use acc. to IP54
Operating temperature
– 20° to 60° C
Dimensions
120 x 64 x 44 mm (L x W x D)
Weight
95 g
Cable length
3 m
7 Technical data
Remedying malfunctions6
EU Declaration of Conformity8
WEEE9
FCC approval10
Bircher Reglomat AG hereby declares that the device types specied in these operating instructions comply with the directives
2014/53/EU, 2011/65/EU.
The full text of the EU Declaration of Conformity is available at the following address:
www.smartaccess.bircher.com/downloads-bbc-bircher-smart-access
Devices with this symbol must be treated separately during disposal. This must be done in accordance with the laws of the
respective countries for environmentally sound disposal, processing and recycling of electrical and electronic equipment.
This device meets the requirements of Part 15 of the FCC regulations and the RSS-210 standard of Industry Canada.
Warning: Changes or modications made to this device may void the FCC authorisation to operate this device.
