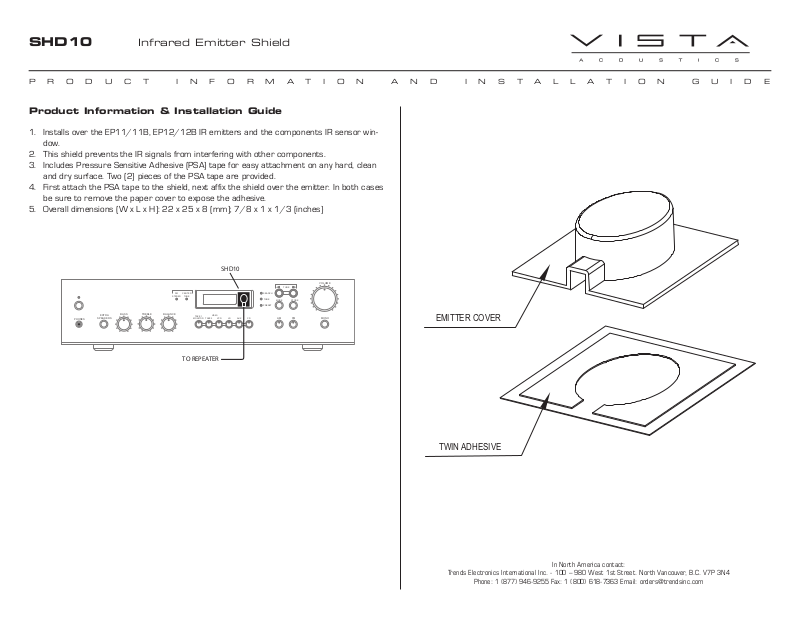

SHD10 Infrared Emitter Shield

PRODUCT INFORMATION AND INSTALLATION GUIDE

Product Information & Installation Guide

1. Installs over the EP11/11B, EP12/12B IR emitters and the components IR sensor win­dow.

2. This shield prevents the IR signals from interfering with other components.

3. Includes Pressure Sensitive Adhesive (PSA) tape for easy attachment on any hard, clean
and dry surface. Two (2) pieces of the PSA tape are provided.

4. First attach the PSA tape to the shield, next affix the shield over the emitter. In both cases
be sure to remove the paper cover to expose the adhesive.

5. Overall dimensions (W x L x H): 22 x 25 x 8 (mm); 7/8 x 1 x 1/3 (inches)

SHD10

VOLUME

MONO

FM

EMITTER COVER

PHONES

EXTRA

SPEAKERS

TUNE

FM

CENTER

STEREO

TUNE

BALANCE

TREBLE

BASS

TAPE 1

MONITOR

VIDEO

VCR

TAPE 2

LD

SEARCH

TUNE

MODE STORE

PRESET

AUX

CD

AM

TO REPEATER

TWIN ADHESIVE
