Bazooka RS10A 27, RS8A 22, RS6A 17 User Manual
DESIGN &
ENGINEERING
AWARD
I
N
N
O
V
A
T
I
O
N
S
'
9
1
C
O
N
S
U
M
E
R
E
L
E
C
T
R
O
N
I
C
S
S
H
O
W
S
CONGRATULATIONS
Dear Friend,
®
Thank you for selecting Bazooka
system. The Bazooka Reference series represents SAS‘s continued commitment to
efficiency and design. An innovative manufacturing process developed by SAS for
the Bazooka provides consumers with state-of-the-art speaker system design. At
SAS, we take pride in manufacturing the most revolutionary bass speaker systems
ever created, featuring our patented Bass Tubes
you will take pride in owning them.
Several years ago, we realized that efficiency was the wave of the future in
autosound, so we made a commitment to design, manufacture, and deliver the most
efficient speaker systems possible.
Today we market our patented speaker systems worldwide and the high quality of
the Bazooka brand is well respected by consumers and dealers of all nationalities.
When properly installed, Bazooka subwoofer speaker systems will give you
years of clean uninterrupted sound reproduction. Therefore, I urge you to take a
few minutes of your time to review this instruction booklet. It was designed to give
you a better understanding of our products and to explain how to apply them properly.
subwoofer speaker systems for your car stereo
®
enclosure design, and we hope
Thank you again for choosing Bazookas. Our early commitment to quality has
made them the product of choice, and I am sure you will agree that you have made
the right one! Enjoy!
Sincerely,
JON C. JORDAN
President
SAS/BAZOOKA
1
CONTENTS
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 4,5

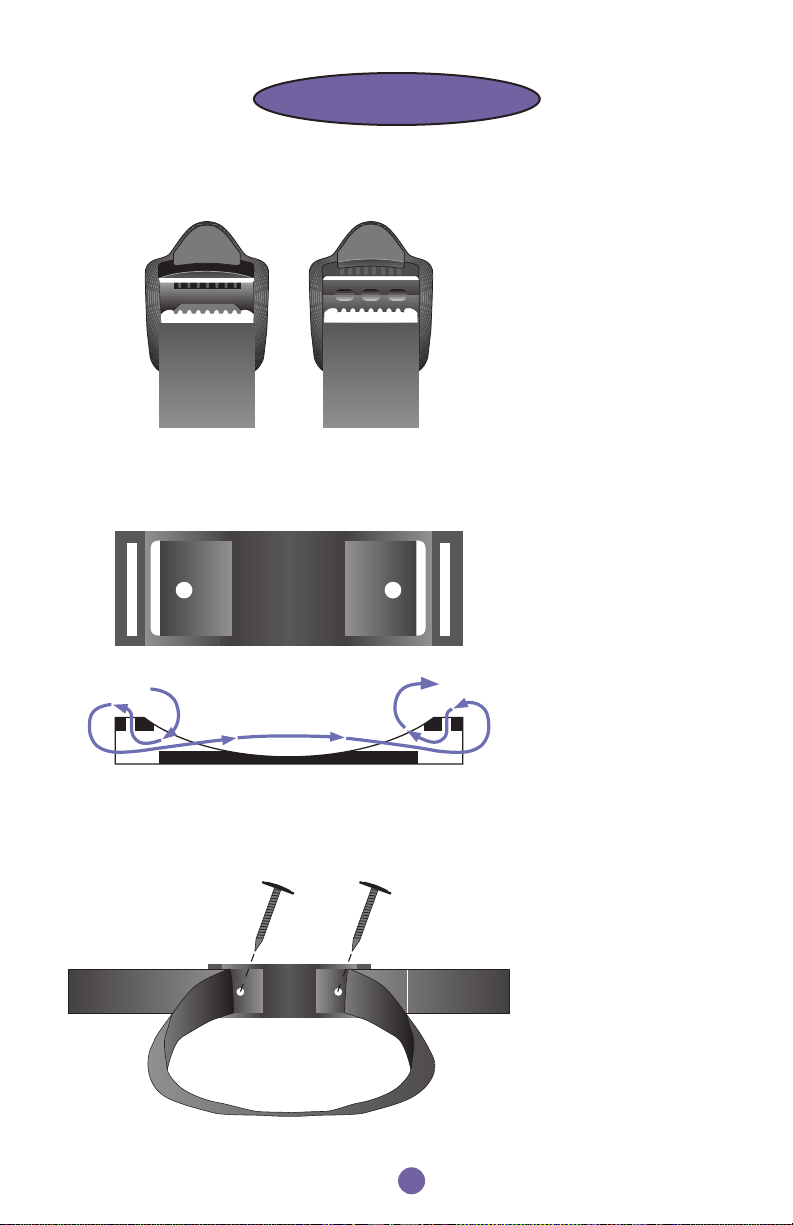

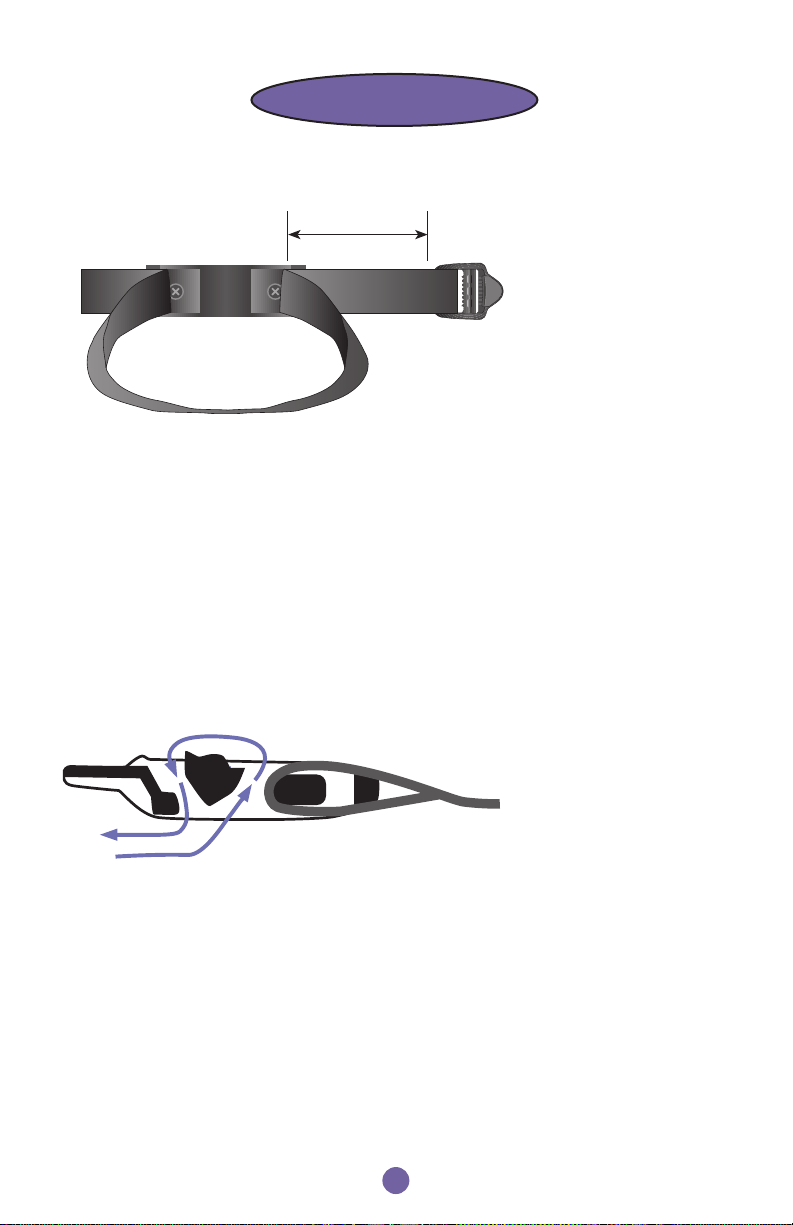

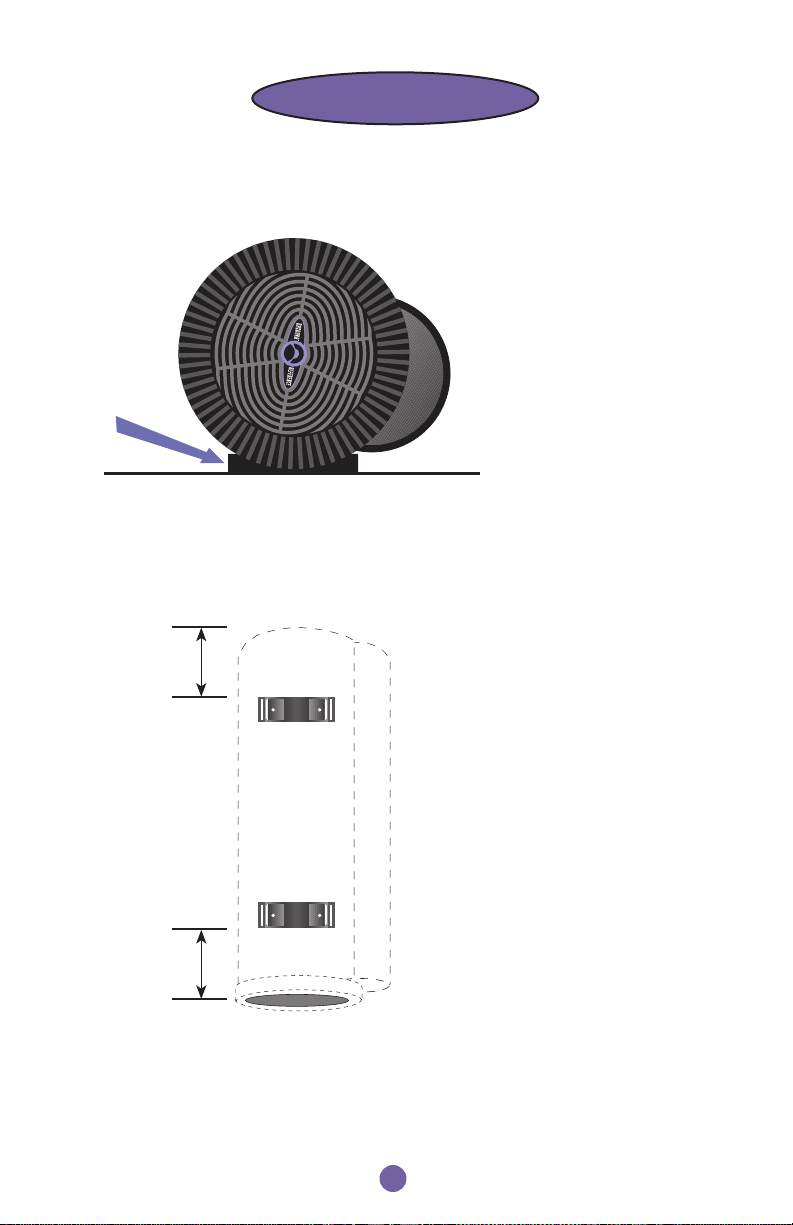

Mounting The Bazooka . . . . . . . . . . . . . . . . . . . . . . . . . .pg 6,7,8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 9
Power Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 10
Ground Wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 10,11
Remote Turn On Options . . . . . . . . . . . . . . . . . . . . . . . . .pg 11,12
Input Signal Connections . . . . . . . . . . . . . . . . . . . . . . . .pg 12
Phase Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 12,13
Optional High Level Output . . . . . . . . . . . . . . . . . . . . . . .pg 13
Adjusting the Crossover . . . . . . . . . . . . . . . . . . . . . . . . .pg 14
Adjusting Level Gain . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 14
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .pg 14
PRACTICE SAFE LISTENING
Continuous exposure to high volumes of sound may cause permanent hearing loss.
High powered auto sound systems are capable of producing sounds well over 130
dB. Even short periods of play at high volume levels can impair your ability to hear
necessary traffic sounds and may constitute a hazard. Please use common sense
and practice SAFE LISTENING !
If you have any questions contact
the SAS Technical Support Department at:
Phone - (504) 272 7135 • Fax - (504) 272-9844
Email - tech@ sasbazooka.com • Website - www.sasbazooka.com
In Canada: (604) 988 2966
15049 Florida Blvd., Baton Rouge, LA. 70819
2
SYSTEM FEATURES
RS6A RS8A RS10A
Woofer Size 6.5“ 8“ 10“
Voice Coil Size 1“ high power /high temp 1.5“ high power /high temp 1.5“ high power /high temp
Magnet Size 20 oz. 28 oz. 28 oz.
Frequency response 39-250 hz. 39-250 hz. 39-250 hz.
Efficiency 100 dB* 102 dB* 104 dB*
Dimensions 18.325“x6.75“x8“ 18.325“x8.5“x10“ 21.1“x10.3“x12.2“
Weight 15 lbs. 20 lbs. 25 lbs.
Impedance 4 ohms 4 ohms 4 ohms
BASS TUBES
®
enclosure - patented Bass Reflex/ducted port alignment
• 6 1/2”, 8”, or 10” SUBWOOFER
• BASS-REFLEX ENCLOSURE
• HIGH EFFICIENCY OUTPUT
OPTIMIZED FOR SPACE EFFICIENCY
• DESIGNED FOR CORNER LOADING
• MOISTURE RESISTANT ENCLOSURE
• BUILT IN 80 WATT MONO AMPLIFIER @ 4 OHMS
• AMP IS 2 OHM STABLE
• CONTINUOUSLY VARIABLE 18dB ELECTRONIC CROSSOVER
• NOISE REJECTING BALANCED INPUT CIRCUITRY
• BALANCED LOW LEVEL INPUT
• BALANCED HIGH LEVEL INPUT
• INPUTS ARE SUMMED MONO INTERNALLY
• HIGH LEVEL OUTPUT FOR AN OPTIONAL BAZOOKA SLAVE UNIT
• 120 WATTS MONO INTO 2 OHMS
• SELECTABLE AUTOMATIC TURN ON FEATURE
• 2 YEAR WARRANTY
• LARGE MAGNET FOR INCREASED POWER HANDLING
SPECIFICATIONS
* The efficiency levels of all Bazooka subwoofer speaker systems are measured in the typical environment: In the low
bass region with one watt of power.
3
TRUCK INSTALLATION
tube size is exagerated for emphasis
SEDAN INSTALLATION
tube size is exagerated for emphasis
HATCHBACK INSTALLATION
tube size is exagerated for emphasis
Figure 1
Figure 2
INSTALLATION
Figure 3
4
