Dear customer,
Congratulations on your purchase of a Bazooka PMW highperformance subwoofer. At Bazooka we are fanatics about accurate
music reproduction. Your selection of our products for your sound
system indicates that quality sound is also important to you too. At SAS,
we take great pride in manufacturing revolutionary audio products,
and through the years of engineering expertise, hand craftsmanship
and critical testing procedures, we have created the RSW highperformance series of subwoofers. We hope that you will take as much
pride in owning and using one of these high-quality audio products as
we do designing and manufacturing them.
When properly installed and operated, your Bazooka PMW subwoofer
will give you years of clean uninterrupted sound reproduction.
Therefore, we urge you to take a few minutes to carefully read through
this manual. It will explain how to properly build an enclosure to
optimize performance and longevity of the subwoofer.
Sound can be deceiving. Over time your hearing comfort level adapts
to higher volumes of sound. What may have sounded normal can
actually be too loud and harmful to your hearing. Guard against this by
setting your equipment at a safe level before your hearing adapts.
To establish a “safe level”,
Start with your volume control at a low setting.
Slowly increase the volume control until you can hear
comfortably, clearly and without distortion.
Once you have established a comfortable “sound level”, make a
note of this position and do not go above this setting
Taking a minute to do this will help prevent your hearing from being
damaged and allow you to enjoy listening to music throughout your
lifetime.
1
Page 3
CALCULATING ENCLOSURE VOLUME
It is difficult to give exact box dimensions that are universal for all cars
and trucks. It is for this reason that you must be able to calculate the
space in which you have available in order to achieve the proper air
volume required. It is recommended to build your enclosure from 3/4”
thick MDF (medium density fiberboard). Make sure the enclosure is
sealed air tight.
Calculating External Volume
1.) To calculate box volume, measure the outside Width x Height x
Depth of the enclosure.
Example 12” x 14” x 9” = 1512”.
2.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”.
Example 1512 1728 = .875 Cubic feet.
Calculating Internal Volume
1.) To calculate the internal (net) volume of the above box you must
first multiply the thickness of the wood you are using by Two (2).
Example 3/4” x 2 = 1.5”.
2.) Next subtract 1.5 from each of the outside measurements of the box.
Width Height Depth
12-1.5=10.5 14 -1.5 = 12.5 9 -1.5 = 7.5
3.) Multiply the new totals (H x W x D)
Example: 10.5 x 12.5 x 7.5 = 984.375
4.) Next you must convert cubic inches into cubic feet. To do this, you
must divide the cubic inch total by 1728”
Example 984.375 1728 = .5696 Cubic feet.
2
Page 4
PRODUCT SPECIFICATIONS
PMW1024DVC
IN
D
IV
P
AR
ID
UA
AL
L
SE
L
RIE
EL
S
Free Air Resonance. (FS) 34 34 34
Total Q of driver @ FS including all resistance. (Qts) .77 .40 .40
Q of driver @ FS including non electrical resistance. (Qms) 8.93 8.93 8.93
Q of driver @ FS including electrical resistance. (Qes) .84 .42 .43
The driver's compliance expressed as an equivalent (Vas) 1.08 1.08 1.08
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.12 1.12 1.12
The DC resistance of the driver's voice coil (ohms). (Re) 3.4 1.7 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/400 300/400 300/400
Max Power handling (Standard/ With Liquid Cooling) (W) 500/500 500/500 500/500
The driver's voice coil inductance (millihenries). (Le) 1.09 1.13 4.59
The drivers sensitivity (dB @ 1W 1M). (Sens) 84 86 86
PMW1224DVC
Free Air Resonance. (FS) 32 32 32
Total Q of driver @ FS including all resistance. (Qts) .87 .48 .48
Q of driver @ FS including non electrical resistance. (Qms) 8.05 8.05 8.05
Q of driver @ FS including electrical resistance. (Qes) .98 .50 .51
The driver's compliance expressed as an equivalent (Vas) 2.34 2.34 2.34
volume of air (Cubic Ft.).
The driver's linear displacement (Inches). (Xmax) 1.12 1.12 1.12
The DC resistance of the driver's voice coil (ohms). (Re) 3.4 1.7 6.8
RMS Power Handling (Standard/ With Liquid Cooling) (W) 300/400 300/400 300/400
Max Power handling (Standard/ With Liquid Cooling) (W) 500/500 500/500 500/500
The driver's voice coil inductance (millihenries). (Le) 1.06 1.09 4.39
The drivers sensitivity (dB @ 1W 1M). (Sens) 86 88 88
3
Page 5
Please Note: Our suggested box volumes are given as internal air requirements with
PMW1024DVC RECOMMENDED ENCLOSURES
voice coils in parallel.
Sealed Enclosure
Box Volume * 0.56 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
Maximum Power
Handling 500 Watts

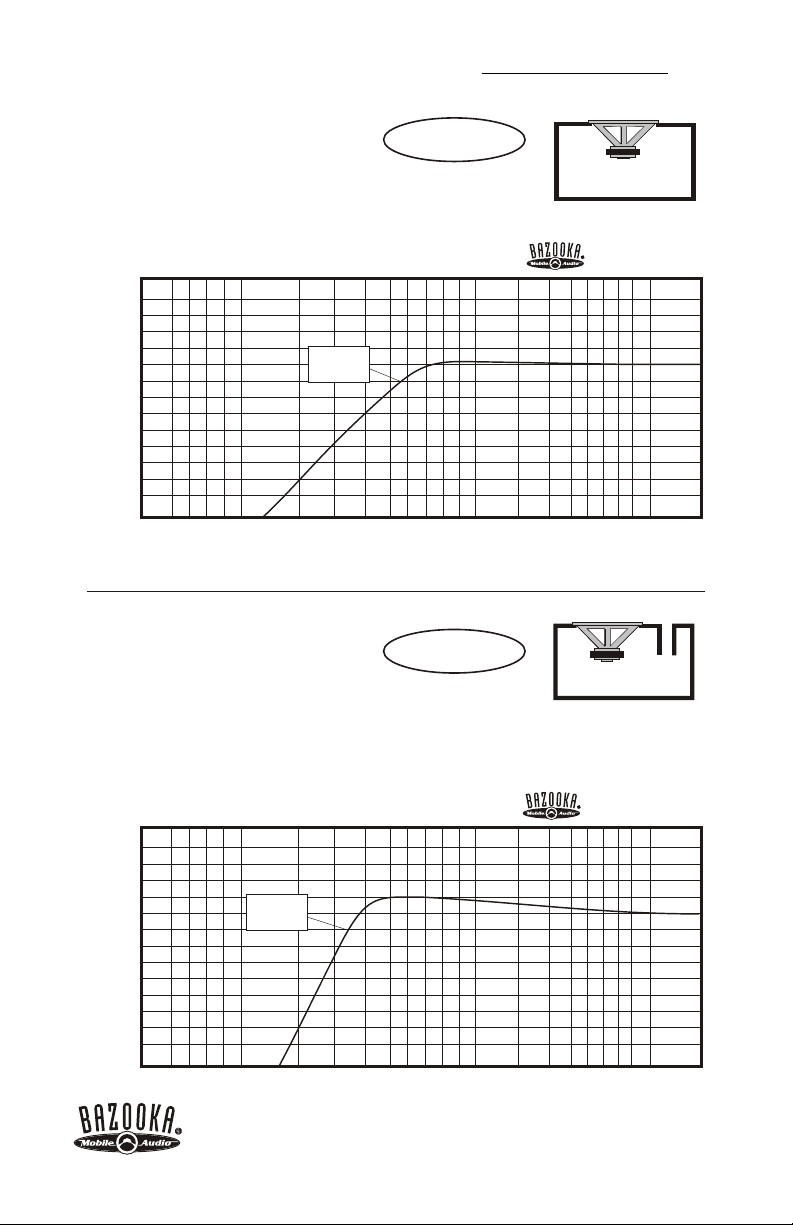

PMW1024DVC Amplitude Response (dB/Hz)PMW1024DVC Amplitude Response (dB/Hz)
1212
66
dBdB
00
-6-6
-12-12
-18-18
-24-24
5 Hz5 Hz 1010 5050 100100 500500 10001000
F3 = 68F3 = 68
FrequencyFrequency
Ported Enclosure
Box Volume *1.4 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 3 Inches
Port Length 7.31 Inches
* Box is given as internal air volume including port and driver displacement.
Maximum Power
Handling 400 Watts
Sealed Enclosure Sealed Enclosure
PMW1024DVC Amplitude Response (dB/Hz)PMW1024DVC Amplitude Response (dB/Hz)
1212
66
dBdB
00
-6-6
-12-12
-18-18
-24-24
5 Hz5 Hz 1010 5050 100100 500500 10001000
F3 = 34F3 = 34
Ported Enclosure Ported Enclosure
FrequencyFrequency
4
Page 6
Please Note: Our suggested box volumes are given as internal air requirements with
PMW1224DVC RECOMMENDED ENCLOSURES
voice coils in parallel.
Sealed Enclosure
Box Volume * 1.00 Cu Ft.
* Box is given as internal air volume including driver
Displacement.
Maximum Power
Handling 500 Watts

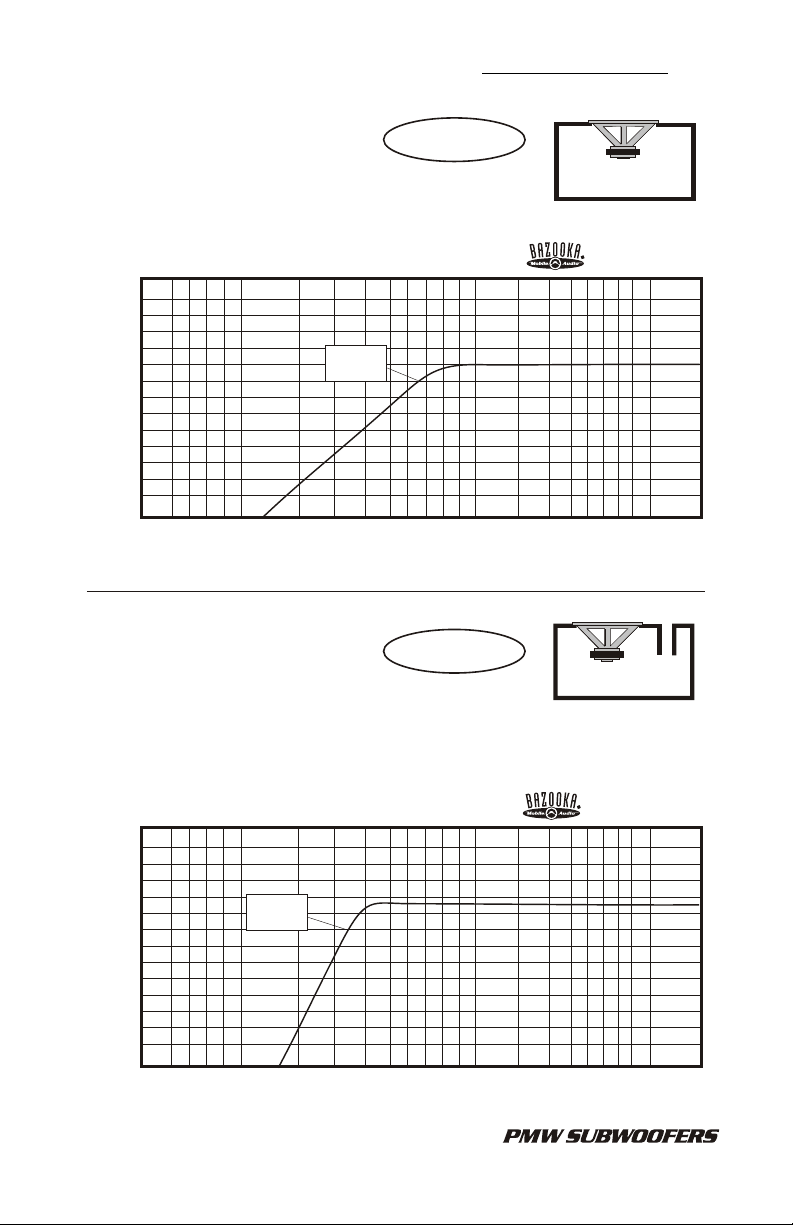

PMW1224DVC Amplitude Response (dB/Hz)PMW1224DVC Amplitude Response (dB/Hz)
1212
66
dBdB
00
-6-6
-12-12
-18-18
-24-24
5 Hz5 Hz 1010 5050 100100 500500 10001000
F3 = 58F3 = 58
FrequencyFrequency
Ported Enclosure
Box Volume *2.0 Cu Ft.
Port Frequency (Fb) 40Hz
Port Diameter 4 Inches
Port Length 8.35 Inches
* Box is given as internal air volume including port and driver displacement.
Maximum Power
Handling 400 Watts
Sealed Enclosure Sealed Enclosure
PMW1224DVC Amplitude Response (dB/Hz)PMW1224DVC Amplitude Response (dB/Hz)
1212
66
dBdB
00
-6-6
-12-12
-18-18
-24-24
5 Hz5 Hz 1010 5050 100100 500500 10001000
F3 = 35F3 = 35
Ported Enclosure Ported Enclosure
FrequencyFrequency
5
Page 7

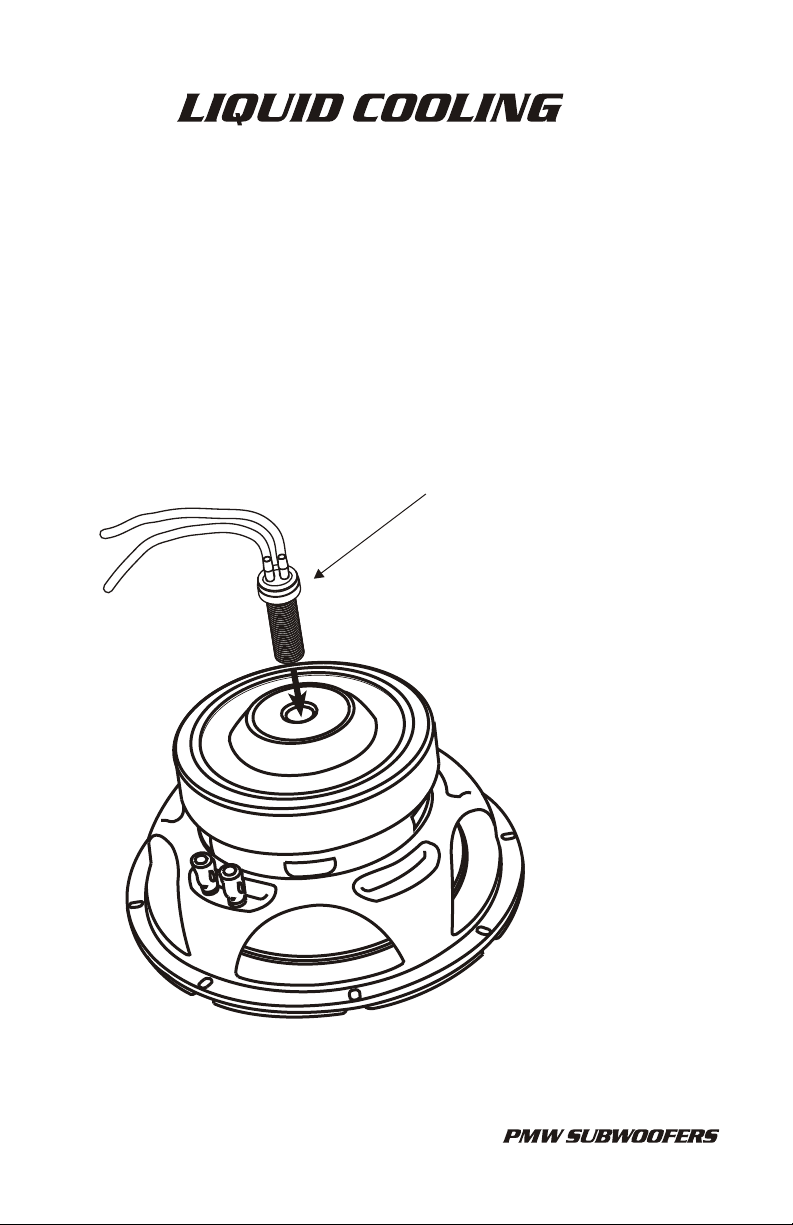

The innovative design of the PMW component Woofers allows
you to liquid cool the voice coil motor assembly for maximum
power handling capability. With the addition of the CHIL
PLUG and the CHIL KIT from your local dealer, or directly from
SAS, you can easily add liquid cooling to your PMW Series
Component Woofer.
CHIL Plug
Utilizing the optional CHIL
plug can increase the PMW
woofers power handling up
to 50%.
6
Page 8
PMW MANUAL
REV 02.13.04
