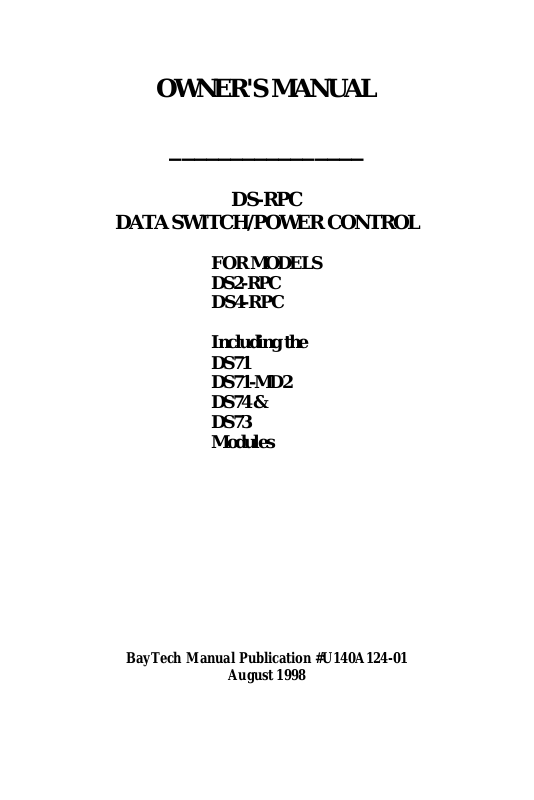

OWNER'S MANUAL

________________

DS-RPC

DATA SWITCH/POWER CONTROL

FOR MODELS DS2-RPC DS4-RPC

Including the DS71 DS71-MD2 DS74 & DS73 Modules

BayTech Manual Publication #U140A124-01

August 1998

BayTech, Telplex, LaserShare, Print Master and TRAN-X are registered trademarks of Bay Technical Associates, Inc.

IBM, IBM PC, IBM PC/AT, IBM PC/XT are products and registered trademarks of International Business Machines Corporation.

Hewlett-Packard LaserJet is a product and registered trademark of the Hewlett-Packard Company.

PROCOMM PLUS is a product and registered trademark of Datastorm Technologies, Inc.



Windows 95

is a product and registered trademark of Microsoft

Corporation.

DS-RPC OWNER’S MANUAL ABOUT THIS OWNER’S MANUAL __________________________________________________________________________________________

ABOUT THIS OWNER’S MANUAL

This document provides information required for installing and operating your Bay Tech equipment. It should allow the user to connect, power up, and access an applications menu where peripheral equipment can be controlled. We recommend reading this manual carefully, while placing special emphasis on correct cabling and configuration. If you have any problems with your installation, please contact a BayTech Applications Engineer at 228-467-8231, call toll free from anywhere in the United States using 1-800-523-2702 or contact us at our Web Site,

www.baytechdcd.com.

BayTech manufactures many remote site management products, data switches, data collection multiplexers, remote power controllers, and peripheral print sharers. If you would like information on any of these products, please contact BayTech Customer Service at the numbers previously listed.

Conventions used in this manual include:

CAUTION: This term is used to denote any condition that could possibly result in physical harm to personnel or damage to equipment.

IMPORTANT: This term is used to denote conditions that could result in the loss of communications or to highlight the proper functioning of equipment.

NOTE: This term is used to denote items of interest to the user. <cr>: Carriage Return or ENTER

iii

DS-RPC OWNER’S MANUAL ABOUT THIS OWNER’S MANUAL __________________________________________________________________________________________

The information in this document is subject to change without notice. The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for their applications of any products specified in this document. The information in this document is proprietary to Bay Technical Associates, Inc.

In the interest of improving internal design, operational function, and/or reliability, Bay Technical Associates, Inc reserves the right to make changes to the products described in this document without notice.

Bay Technical Associates, Inc does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

This manual replaces BayTech Publication U140A124.

We welcome any comments you may have about our products, and we hope that you will continue to look to BayTech for your data communication needs.

DS-RPC OWNER’S MANUAL TABLE OF CONTENTS __________________________________________________________________________________________

ABOUT THIS OWNER’S MANUAL iii INTRODUCTION TO THE DS-RPC 1

PROGRAMMABLE FEATURES OF THE DS MODULES 3

DS-RPC QUICK START 6

EIA-232 SERIAL CONNECTION 6 OPERATION 6 DS-RPC CONFIGURATION 8

INSTALLATION 10

UNPACKING 10 PREPARING THE INSTALLATION SITE 11 POWER 11

POWER ON/OFF STATE 12 POWER UP SEQUENCE 12 CIRCUIT BREAKER 12

CABLING 13

RJ-45 CABLES AND ADAPTERS 13 MODEM CONNECTIONS 16

DETAILED OPERATION AND CONFIGURATION 18

CONNECTING TO THE DS-SERIES 18

EIA-232 SERIAL CONNECTION 18 INTERNAL MODEM CONNECTION DS71-MD2 (ONLY) 19 EXTERNAL MODEM CONNECTION 19 10BASE-T NETWORK PORT CONNECTION 20

OPERATION 21

ACCESSING MAIN MENU 21 SELECTING A DEVICE 23 PPP DIAL-UP CONNECTION 25

CONFIGURATION 26

DS71 OR DS71-MD2 CONFIGURATION 26

STATUS 27 SERIAL PORT CONFIGURATION 28

DS71 29

DS-RPC OWNER’S MANUAL TABLE OF CONTENTS __________________________________________________________________________________________

DS71-MD2 31 PORT DEVICE NAME 34 PORT SELECT CODE 35 ATTENTION CHARACTER 36 DISCONNECT TIME GUARD 37 CONNECT PORT ID ECHO 38 LOGIN SETUP 39

HEADER 39

PASSWORD 40

MENU 41

AUTO CONNECT PORT 42 DCD LOGON/LOGOFF (DS71 ONLY) 44 LOCAL MODEM SETUP (DS71-MD2 ONLY) 45

RINGS TO ANSWER 46

MODEM TO MODEM XON/XOFF 46

CONNECTIVITY TIMEOUT 47

ESCAPE CHARACTER 48 UNIT ID 49 I/O MODULES RESET 49 UNIT RESET 49 MENU DRIVEN SELECTION 50 ACCESS CHARACTER STRING 50

DS74 CONFIGURATION 51

SERIAL PORT CONFIGURATION 52 PORT DEVICE NAME 52

DS73 CONFIGURATION 53

MODULE IP ADDRESS 54 DIAL-UP ADDRESS 55 SUBNET MASK 56 GATEWAY 57 PRIMARY DNS 57 SECONDARY DNS 58 PRIMARY NBNS 59 SECONDARY NBNS 59 USER NAME 60 PASSWORD 60 MODULE NAME 61

RPC OPERATION 62

ACCESSING MAIN MENU 62 CONTROLLING RECEPTACLES 63

RPC CONFIGURATION 64

CHANGE PASSWORD 65 DISABLING A PASSWORD 66 CHANGE OUTLET NAME 66 ENABLE/DISABLE CONFIRMATION 67 ENABLE/DISABLE STATUS MENU 67

DS-RPC OWNER’S MANUAL TABLE OF CONTENTS __________________________________________________________________________________________

TECHNICAL SUPPORT 69

EQUIPMENT SETUP 70

REPACKAGING, SHIPPING AND RETURNING TO THE FACTORY

71 FCC RADIO FREQUENCY INTERFACE STATEMENT 72 APPENDIX A – SPECIFICATIONS 74 APPENDIX B – MODEM COMMANDS 76 APPENDIX C – WINDOWS 95 TUTORIAL 78 APPENDIX D – DRAWINGS 81 APPENDIX E – ASCII CHARACTER DEFINITION 85 INDEX 86

vii

DS-RPC OWNER’S MANUAL INTRODUCTION TO THE DS-RPC __________________________________________________________________________________________

INTRODUCTION TO THE DS-RPC

BayTech’s DS-RPC provides a single dialup or EIA-232 gateway to multiple EIA-232 devices. Used for accessing remote equipment or simply switching between multiple ports, the DS-RPC provides a full duplex connection between the host and up to 12 peripherals. In a typical application, the host module connects to a local or remote computer, and the peripheral port modules connect to devices such as routers, hubs, servers, and Data Service Units (DSU’s). The DS-RPC is also compatible with other BayTech products including the Remote Power Control (RPC) unit.

DS-RPC OWNER’S MANUAL INTRODUCTION TO THE DS-RPC __________________________________________________________________________________________

Port selection is accomplished two different ways.

(1) Use a simple menu-driven selection sequence or (2) send an ASCII character string to select a port. The DS-RPC

also has four individual relay controlled, 115 VAC power receptacles. Each receptacle is controlled by sending simple commands from a local or remote location.

The DS2-RPC base unit consists of two slots for a host communications module and a peripheral communications module. The DS4-RPC base unit consists of four slots for a host communications module and up to three peripheral communications modules. Both control the four power outlets, LEDs, non-volatile storage, and data flow between connected modules. The data bus is an internal matrix of high speed serial channels that allows independent and simultaneous transmission of data between modules.

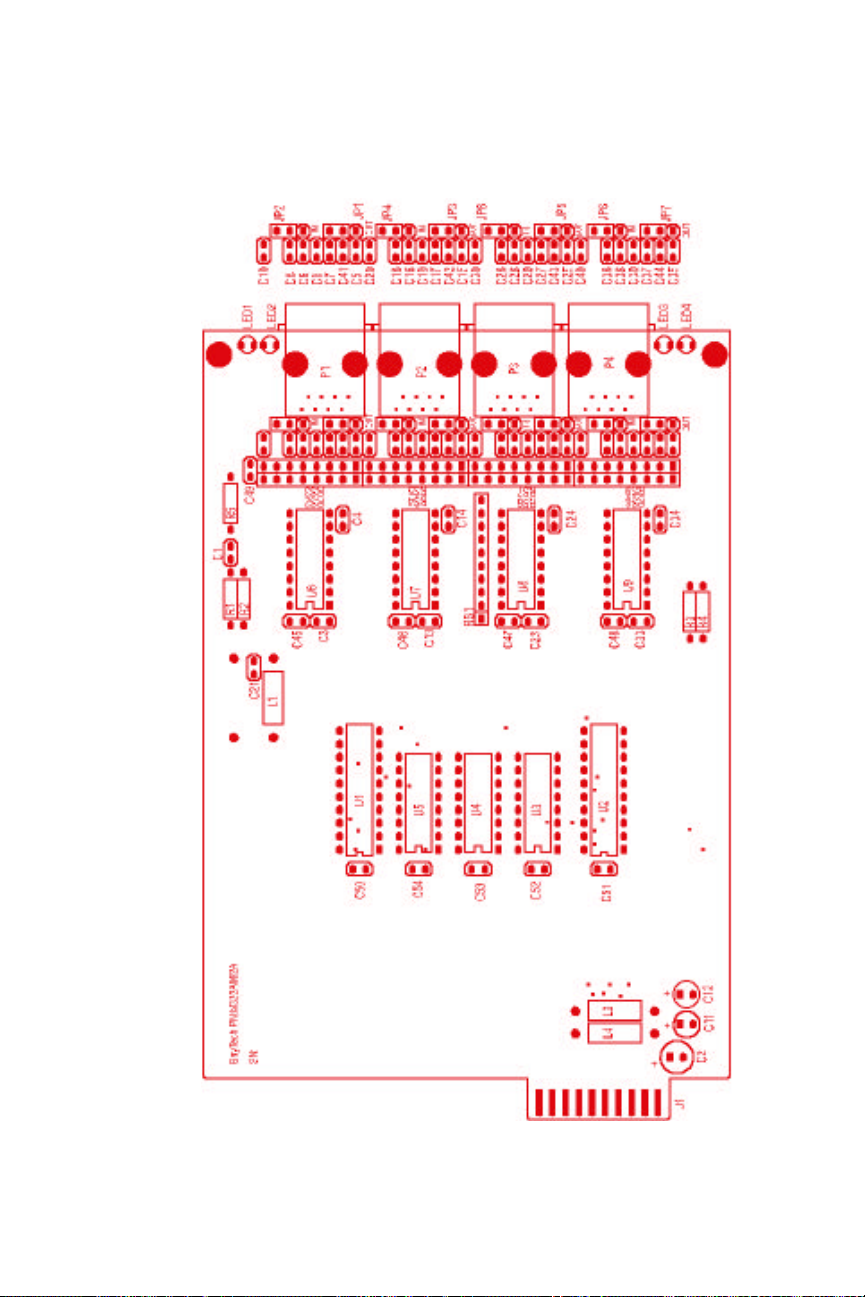

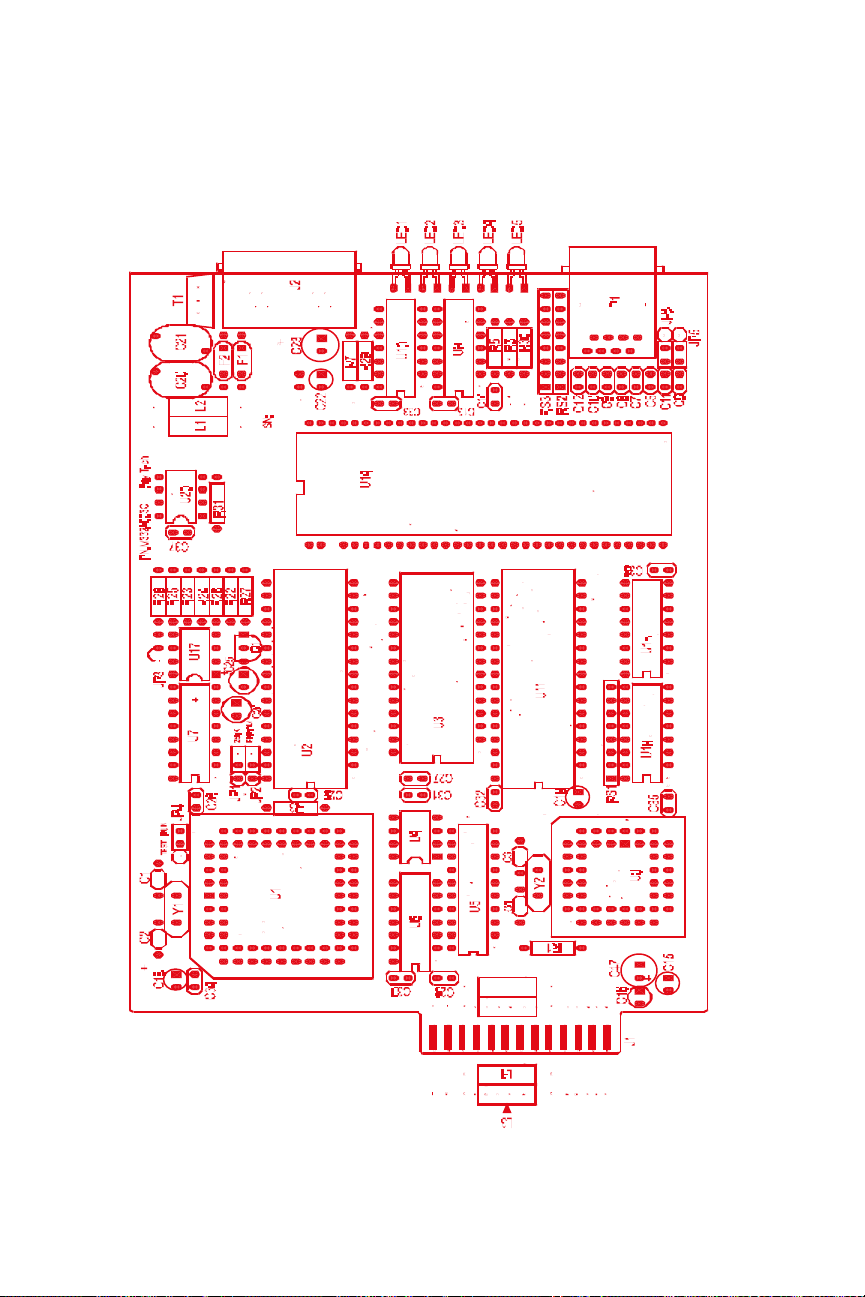

The DS71 host communications module is a system data controller that directs operations between the base unit, system modules, and externally connected devices. The DS71 provides primary user access for systems communications. The DS71-MD2 has a high speed EIA-232 port and an internal modem for remote or local data acquisition and control. The DS74 is a 4-port high speed EIA-232 peripheral communications module that provides bi-directional communications between the host device and a selected peripheral device connected to a DS74 port. The DS74 has selectable serial configuration for baud rate, word size, stop bits, parity, DTR, RTS inactive state and XON/XOFF handshaking for each port.

DS-RPC OWNER’S MANUAL

Unit information that appears upon login

INTRODUCTION TO THE DS-RPC __________________________________________________________________________________________

PROGRAMMABLE FEATURES OF THE DS MODULES

Highlighted features indicate items most often programmed

FEATURE DESCRIPTION ACTION PAGE

NO.

DS71 or DS71-MD2 HOST MODULE

Serial Port Configuration

Port Device Name

Port Select Code

Attention Character

Disconnect Time Guard

Port ID Echo

Header

Password

Sets serial port speed of the DS71 and DS71-MD2 Default = 9600, 8, 1, N,

Xon/Xoff Disabled

Uniquely identifies the port (or device connected to the port). Default = Host

EIA-232 and Host MODEM (DS71MD2 only)

ASCII character string used to select a port or module. Default = $BT

A character sent in sequence five times to invoke the main menu.

Default = ;

Provides reliable binary data transmission. Default = Disabled

Echoes the module number and port number when you connect to the port.

Default = Disabled

Default = DS71 or DS71-MD2

Password protection for dial-up and EIA-232 connections.

Default = Disabled

Provides a menu interface for device selection, and configuration.

Default = Enabled

Enter baud rate, data bits, stop bits, parity, and Xon/Xoff

Enter the device name 34

Enter Port Select Code 35

Enter Attention Character 36

Enable/Disable Disconnect Time Guard

Enable/Disable Connect Port ID Echo

Enable/Disable Header 39

Enable/ Disable, and Program Password

Enable/Disable Menu 41

Auto Connect Port

DCD Logon/Logoff (DS71 only)

Allows automatic connection to a specified port upon dial-up or EIA-232 connection.

Default = Disabled

External modem returns to logoff state when DCD line goes low.

Default = Enabled

Table 1

Enable,/Disable, and Program Auto Connect Port.

Enable/Disable menu selection and make hardware jumper change

DS-RPC OWNER’S MANUAL INTRODUCTION TO THE DS-RPC __________________________________________________________________________________________

PROGRAMMABLE FEATURES OF THE DS MODULES (con’t)

FEATURE DESCRIPTION ACTION PAGE

NO.

DS71-MD2 HOST MODULE

Rings to Answer(*)

Modem to Modem Xon/Xoff(*)

Connectivity Timeout(*)

Escape Character(*)

Unit ID

Serial Port Configuration

Port Device Name

Table 1 (con’t)

The number of times the modem rings before it automatically answers.

Default = 2 rings

ASCII character used to stop or start transmission of data.

Default = Disabled

Configures the amount of connectivity (5 to 255 minutes) before modem disconnects. Default = 60 minutes

Allows ASCII characters to be interpreted as commands instead of data.

Default = 43 (+)

Unique ID for DS-Series unit.

Default = DS71 or DS71-MD2

DS74 PERIPHERAL I/O MODULE

Sets serial port speed for each I/O port on the DS74. Default = 9600, 8, 1, N,

Xon/Xoff Disabled, RTS/DTR Low

Unique ID for each I/O port as displayed on the main menu. Default = Device A, Device B, Device C, Device D, etc.

Enter number of rings to auto answer

Enable/ Disable Modem to Modem

Enter timeout in minutes. Enter 0 to disable

Enter the character you wish to use as an escape

Enter unit ID 48

Enter baud rate, data bits, stop bits, parity, Xon/Xoff, and DTR/RTS line driver

Enter port device name 52

DS-RPC OWNER’S MANUAL INTRODUCTION TO THE DS-RPC __________________________________________________________________________________________

PROGRAMMABLE FEATURES OF THE DS MODULES (con’t)

FEATURE DESCRIPTION ACTION PAGE

NO.

DS73TP N ETWORK MODULE

Module IP Address

Dial-in IP Address

Subnet Mask

Gateway

Primary DNS

Secondary DNS

Primary NBNS

Secondary NBNS

User Name

Password

Module Name

IP Address for the DS73TP to access the network. Default = 0.0.0.0

IP Address for the network to access the DS73TP. Default = 0.0.0.0

Consists of four bytes, each byte ranging from 0 to 255. Default = 0.0.0.0

Primary Domain Name System address.

Default = 0.0.0.0

Secondary Domain Name System address. Default = 0.0.0.0

Primary Net BIOS Name Server.

Default = 0.0.0.0

Secondary Net BIOS Name Server.

Default = 0.0.0.0

Unique User ID. Default = user1 Enter User Name up to 8

Password for the Dial-Up PPP. Default = BTA

Unique ID for the module.

Default = DS73TP

Enter the IP Address in dotted decimal format 0.0.0.0

Enter the Subnet Mask in dotted decimal format 0.0.0.0

Enter the Gateway in dotted decimal format. 0.0.0.0

Enter Primary DNS Address 57

Enter Secondary DNS Address

Enter Primary NBNS Address

Enter Secondary NBNS Address

characters

Enter Password up to 8 characters

Enter Module Name up to 8 characters

DS-RPC OWNER’S MANUAL QUICK START __________________________________________________________________________________________

DS-RPC QUICK START

This section, “Quick Start,” describes the basic steps required to set up and configure your DS-RPC. If you need to acquaint yourself further with setup, configuration, and operations, see “Detailed Operations and Configuration” beginning on page 18.

EIA-232 SERIAL CONNECTION

Using the 9FRJ45PC-4 adapter and the RJ08X007 (8 pin crossed) cable, connect the serial port of your computer to the RJ-45 port labeled “EIA-232” on the DS71 or DS71-MD2 module.

Load serial port communications software. Set serial communications parameters to 9600 bps, 8 data bits, 1 stop bit, and no parity.

OPERATION

Accessing Main Menu Power on the DS-RPC. The following

header and main menu appears if using the DS71:

Data Switch Series - F.2.01 Bay Technical Associates Unit ID: DS71 Port Select Code: $BT Attention Character : ;

Device A (2,1)...............1

Device B (2,2)...............2

Device C (2,3)...............3

Device D (2,4)...............4

DS-RPC (3,1)……...…5

Configure.................................C

I/O Modules Reset..................RM

Unit Reset................................RU

Exit.........................…...............X

Logout.......................................T

Enter Request:

NOTE: The DS71 and DS71-MD2 have some menus that are

different. Where this situation occurs it will be addressed.

DS-RPC OWNER’S MANUAL QUICK START __________________________________________________________________________________________

Or this menu if the DS71-MD2 is used:

Data Switch Series - F.0.13 Bay Technical Associates Unit ID: DS71-MD2 Port Select Code: $BT Attention Character : ;

Use the “Attention Character” to display the remainder of the menu.

Device A (2,1)...............1

Device B (2,2)...............2

Device C (2,3)...............3

Device D (2,4)...............4

DS-RPC (3,1)…………5

Configure.................................C

I/O Modules Reset..................RM

Unit Reset................................RU

Exit.........................…...............X

Logout.......................................T

Enter Request:

NOTE: These menus depict a typical DS2-RPC setup. The DS4-

RPC may have more menu items, depending on the setup.

If this is not an initial set-up and Password has already been enabled, you are prompted to login. After logging in successfully, access the main menu by sending the attention character five times (;;;;;).

Selecting a Device From the main menu, select the number of

the device you wish to access, followed by <cr>. To return to the main menu, send the attention character five times (;;;;;).

DS-RPC OWNER’S MANUAL QUICK START __________________________________________________________________________________________

Accessing RPC Menu Select the RPC module. The following

status menu appears:

Circuit Breaker : On

1) . . . OUTLET 1 : Off

2) . . . OUTLET 2 : Off

3) . . . OUTLET 3 : Off

4) . . . OUTLET 4 : Off RPC >

If the status menu fails to appear, ensure the correct cables and adapters are being used and that they are connected properly. Also, verify the serial communication parameters are correctly configured.

Controlling Receptacles To set or change the status of the

receptacles, enter one of the following commands: ON n, OFF n, REBOOT n, where “n” is the outlet number you want to command. Entering an outlet number of “0” sends the command to all outlets. Reboot only works on outlets which are in the “ON” condition.

DS-RPC MODULE CONFIGURATION

Accessing Configuration From the DS-RPC Main Menu, select Menu C, “Configuration,” followed by <cr>. The

following selection menu appears:

Configuration

Module 1 ................................................1

Module 2 ................................................2

Module 3 ……………………………….3

Select Port .............................................S

Exit ........................................................X

Enter Request :

DS-RPC OWNER’S MANUAL QUICK START __________________________________________________________________________________________

To configure a module, enter the number associated with it followed by <cr>. For detailed configuration of each module refer to:

DS71 or DS71-MD2 page 26 DS74 page 51 DS73 page 53

RPC page 64

DS-RPC OWNER’S MANUAL INSTALLATION __________________________________________________________________________________________

INSTALLATION

UNPACKING

Compare the unit and serial number of the equipment you received to the packing slip located on the outside of the box. Log this information on the sheet on page 70. Inspect equipment carefully for damage that may have occurred in shipment. If there is damage to the equipment or if materials are missing, contact BayTech customer service at 228-467-8231 or call toll free inside the United States at 800-523-2702. At a minimum, you should receive the following:

a.  The DS-RPC Unit b.  This manual with any applicable addendum(s). c.  1 ea 9FRJ45PC4 adapter d.  1 ea RJ08X007(RJ45) crossed modular cable e.  1 ea RJ-11 telco cable -- RJ04X007 (DS71-MD2 only). f.  1 ea 25MRJ45MD-6 adapter (DS71 only)

NOTE: Keep the shipping container and packing material in the event future shipment is required.

DS-RPC OWNER’S MANUAL INSTALLATION __________________________________________________________________________________________

PREPARING THE INSTALLATION SITE

The installation area should be clean and free of extreme temperatures and humidity. Allow sufficient space behind the unit for cabling.

POWER

CAUTION: This unit is intended for indoor use only. Do not

install near water or expose this unit to moisture. To prevent heat buildup, do not coil the power cord when in use. Do not use extension cords. Do not attempt to make any internal changes to the power source. Do not attempt to modify any portion or component of a DS-RPC unit unless specifically directed to. BayTech must perform any internal changes.

CAUTION: High-voltage surges and spikes can damage this equipment. To protect from such power surges and spikes, this unit must have a good earth ground. A grounding screw connection is located near the power switch on the back of the unit.

CAUTION: Before removing or replacing any modules, turn off main power switch located on the DS-RPC unit. Communication to the DS-RPC will be disrupted while power is off.

CAUTION: Before removing or replacing any cables or power cords, turn off main power switch located on the DS-RPC. Communication to the unit will be disrupted while power is off.

CAUTION: Do not exceed the AC current rating for the selected model. (See Appendix A “SPECIFICATIONS” for the DS-RPC).

CAUTION: Although the power switch is turned OFF, the unit is not totally isolated from the power supply. In order to be absolutely removed from the power supply, the power cord must be unplugged from the unit.

DS-RPC OWNER’S MANUAL INSTALLATION __________________________________________________________________________________________

CAUTION: For PERMANENTLY CONNECTED

EQUIPMENT, a readily accessible disconnect device shall be incorporated in the fixed wiring. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and easily accessible.

Applying power illuminates a green LED on the front panel of the DSRPC. When the power switch is off, devices connected to the unit are not receiving power.

POWER ON/OFF STATE

Each receptacle is individually controlled by an internal relay. Upon initialization of power, the status of each receptacle will return to the state it was in prior to losing power. For example, if Outlet 1 and Outlet 2 are “ON” and power is removed from the DS-RPC, the status of Outlet 1 and Outlet 2 will return to “ON” when power is restored to the DS-RPC.

POWER UP SEQUENCE

In order to minimize power surges, the DS-RPC sequences power to each outlet in the “ON” state in 0.3-second intervals. When power is applied to the DS-RPC, the initialization sequence requires a delay of 10 seconds before power is available at the service receptacles. Following the 10second delay, the DS-RPC sequences power to each outlet that is turned “ON.” If you choose the option requesting the DS-RPC to reboot all connected equipment, the DS-RPC sequences power to each outlet turned “ON” in 0.1-second intervals.

CIRCUIT BREAKER

In the case of power overload, the circuit breaker automatically trips. Determine the cause of the tripped circuit breaker, correct the problem then reset the circuit breaker by depressing the circuit breaker switch.

DS-RPC OWNER’S MANUAL CABLING __________________________________________________________________________________________

CABLING

RJ-45 CABLES AND ADAPTERS

IMPORTANT: The DS-RPC host communications modules have

an RJ-45 port which uses an 8-pin crossed modular cable to connect to a local EIA-232 device such as a computer terminal or external modem. Most serial computers do not have RJ-45 connections; therefore an adapter is provided with this unit to convert from a DE-9 connector to an RJ-45 connector (Bay Tech Part No. 9FRJ45PC-4). An adapter to convert from a DB-25 connector to an RJ-45 connector is also available from Bay Tech, upon request (Bay Tech Part No. 25FRJ45PC-4). The 8-pin crossed modular cable is configured to operate with these adapters.

CAUTION: All power should be removed from the DS-RPC prior to removing or installing cables.

Figures 1 and 2 provide visual representation of an RJ-45 receptacle and plug; pin number assignments are given in Tables 2 and 3.

Fig. 1: RJ-45 Receptacle Fig. 2: RJ-45 Plug

DS73TP CONNECTION

You should connect a straight cable between the RJ-45 ports of the DS73TP module and the network hub. The “LINK” light will light green when a good link has been established.

DS-RPC OWNER’S MANUAL CABLING __________________________________________________________________________________________

Tables 2 and 3 define the pin layout for the DS71 or DS71-MD2 and DS74.

DS71 EIA-232 RJ-45 Pin/Signal Definition

Pin EIA-232

Signal

1 Handshake

Out

(DTR) Line Driver Inactive State = High: +12V when power is applied. Used as a handshake line to enable/disable the receiving of characters.

2 Gnd Signal ground

Description

3 Handshake

Out

(RTS) Line Driver Inactive State = High: +12 V when power is applied. Not used to enable/disable.

4 TX Out Transmit Data (data out)

5 RX In Receive Data (data in)

6 HandshakeIn(DSR) Handshake In. –12V when not used.

7 Gnd or

DCD In

Signal ground when Jumper JP6-2 is connected to JP6-3. In order for the DS71 to take advantage of “DCD Logon/Logoff” and “Auto Connect Port”, Jumper JP6-2 is connected to JP6-1 providing DCD In.

8 HandshakeIn(CTS) Used as a handshake line to enable/disable the receiving of

characters.

Table 2 DS71 PIN SIGNAL DEFINITION

DS-RPC OWNER’S MANUAL CABLING __________________________________________________________________________________________

DS74 EIA-232 RJ-45 Pin/Signal Definition

Pin EIA-232

Signal

1 Handshake

Out

2 Gnd Signal ground

(DTR) Line Driver Inactive State = Low: Used as a handshake line to enable/disable the receiving of characters. –12V when port is not selected unless programmed differently.

Description

3 Handshake

Out

4 TX Out Transmit Data (data out)

5 RX In Receive Data (data in)

6 HandshakeIn(DSR) Handshake In. +12V when not used.

7 Gnd Signal ground

8 HandshakeIn(CTS) Used as a handshake line to enable/disable the receiving of

Table 3 DS74 PIN SIGNAL DEFINITION

(RTS) Line Driver Inactive State = Low: –12V when port is not selected unless programmed differently.

characters.

The DS74 module has four RJ-45 ports for connecting to peripheral devices. BayTech has a complete line of modular adapters and cables that may be helpful with your installation. For more information on these cables and adapters, contact BayTech’s Applications Engineers.

DS-RPC OWNER’S MANUAL CABLING __________________________________________________________________________________________

MODEM CONNECTIONS

In addition to the RJ-45 port, the DS71-MD2 Host Communications Module has two RJ-11 ports for connecting to telephone lines. You may connect either RJ-11 port to a Telco wall jack using a standard RJ-11 straight through cable. These ports are in parallel and the second port is available for another telco device.

Connect an external modem to the EIA-232 serial port on the DS71 host module by using the 25MRJ45MD-6 adapter and RJ08X007 8-bit crossed modular cable supplied with this unit.

Fig 3: MD-6 MODEM Serial Port Adapter BayTech Part No 25MRJ45MD-6

DS-RPC OWNER’S MANUAL CABLING __________________________________________________________________________________________

IMPORTANT: Use crossed RJ-45 cables when using modular

connectors to interface the DS-RPC to another BayTech product with modular connectors, such as the RPC Remote Power Control Unit.

RJ-45RJ-45

CONDUCTOR

COLOR

BLUE ORANGE

BLACK

RED GREEN

YELLOW BROWN

GRAY

2 3

4 5

7 8 8

Fig 4: Crossed 8-pin Modular Cable BayTech Part No. RJ08X007

2 3

4 5

COLOR

BLUE ORANGE

BLACK

RED GREEN

YELLOW BROWN

GRAY

Fig 5: DE-9 PC Serial Port Adapter

BayTech Part No. 9FRJ45PC4

DS-RPC OWNER’S MANUAL DETAILED OPERATION AND CONFIGURATION __________________________________________________________________________________________

DETAILED OPERATION AND CONFIGURATION

The following section, “Detailed Operation and Configuration,” provides a detailed approach to accessing, operating, and configuring the DS-RPC.

NOTE: It is important that you type all commands correctly. Any combination of wrong entries results in an error message.

CONNECTING TO THE DS-RPC

EIA-232 SERIAL The DS71 Host Module has an RJ-45 port CONNECTION for connecting to a local EIA-232 device,

such as a computer terminal or external modem. Most serial computers do not have RJ-45 connections; therefore, an adapter is provided with this unit to convert from a DE-9 connector to an RJ-45 connector (BayTech Part No. 9FRJ45PC-4). If you are connecting to a modem, use a modem adapter (BayTech Part No. 25MRJ45MD-6) and an RJ08X007 8-pin crossed modular cable.

BayTech also manufactures a computer/terminal adapter (BayTech Part No. 25FRJ45PC-4) for converting from a DB-25 connector to an RJ-45 connector.

If you require a different adapter than the one supplied with this unit, contact BayTech’s Applications Engineers.

Using the 9FRJ45PC-4 adapter (or other adapter) and the RJ08X007 crossed modular cable, connect the serial port of your computer to the RJ-45 port labeled EIA-232 on the DS71 or DS71-MD2 module.

DS-RPC OWNER’S MANUAL DETAILED OPERATION AND CONFIGURATION __________________________________________________________________________________________

Load serial port communications software. Configure serial communications parameters for the host terminal to match the DS71 or DS71-MD2 module. The DS71 or DS71MD2 modules have factory serial communications parameters of 9600 bps, 8 data bits, 1 stop bit, no parity, XON/XOFF disabled.

INTERNAL MODEM The DS71-MD2 has a 14.4K bps internal CONNECTION modem for remote access. (DS71-MD2 ONLY)

IMPORTANT: The DS71-MD2 modem option has priority over

the EIA-232 serial port. If a serial port user is in configuration mode or connected to a DS74 I/O port when a modem connection is established, the serial port user will be “booted” off, allowing the remote user to communicate with the DS-RPC.

Using the RJ04X007 (RJ-11) modular cable , connect either port labeled “LINE” on the DS71-MD2 module to the telco wall jack. Using communications software, dial the modem using the ATDT command .

NOTE: Both “LINE” ports are active and either can be used. The second “LINE” port is available for growth.

EXTERNAL MODEM Using the 25MRJ45MD-6 adapter (or other CONNECTION applicable adapter) and the RJ08X007

crossed cable, connect the COM (or serial) port of the modem to the RJ-45 port labeled EIA-232 on the DS71 or DS71-MD2 module. Using an RJ04X007 (RJ-11) modular cable, connect the port labeled “LINE” on the modem to the telco wall jack. Using a communications software package, dial the modem.

DS-RPC OWNER’S MANUAL DETAILED OPERATION AND CONFIGURATION __________________________________________________________________________________________

10BASE-T NETWORK Using a straight 10Base-T cable, connect the PORT CONNECTION RJ-45 port labeled ETHERNET on the

DS73TP module to an RJ-45 port on the network hub. The LINK (link integrity) LED, located on the front panel of the DS73TP, illuminates when a good connection is established between the DS73TP and the hub.

DS-RPC OWNER’S MANUAL DETAILED OPERATION AND CONFIGURATION __________________________________________________________________________________________

OPERATION

ACCESSING MAIN Power on the DS-RPC. A similar MENU heading and main menu appears if using the

DS71:

Data Switch Series - F.2.01 Bay Technical Associates Unit ID: DS71 Port Select Code: $BT Attention Character : ;

Device A (2,1)...............1

Device B (2,2)...............2

Device C (2,3)...............3

Device D (2,4)...............4

DS-RPC (3,1)…………5

Configure.................................C

I/O Modules Reset..................RM

Unit Reset................................RU

Exit.........................…...............X,

Logout.......................................T

Enter Request:

NOTE: The DS71 and DS71-MD2 have some menus which are

different. Where this situation occurs it will be addressed.

Or this menu if the DS71-MD2 is used:

Data Switch Series - F.0.13 Bay Technical Associates Unit ID: DS71-MD2 Port Select Code: $BT Attention Character : ;

Use the “Attention Character” to display the remainder of the menu.

+ 67 hidden pages

Bay Technical Associates DS2-RPC, DS73, DS4-RPC User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
