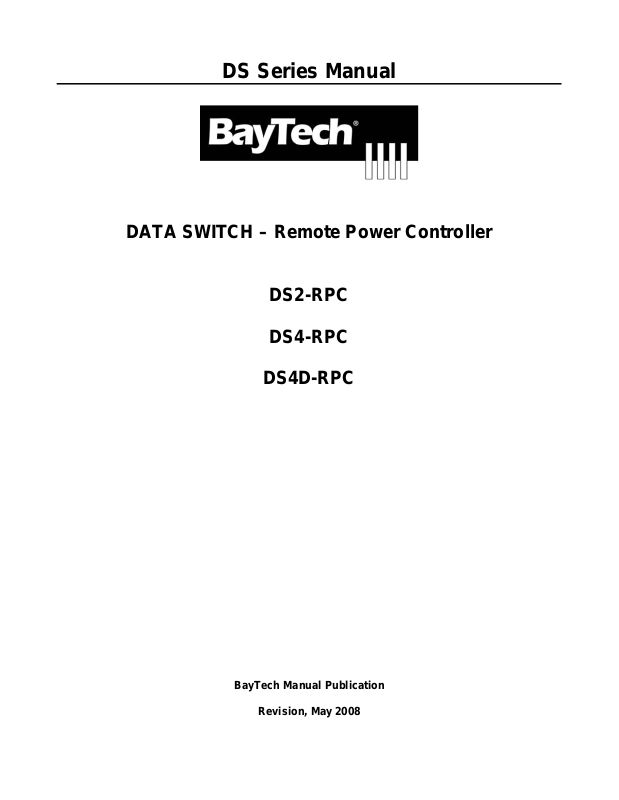

Bay Technical Associates DS2-RPC, DS4D-RPC User Manual

DS Series Manual
DATA SWITCH – Remote Power Controller
DS2-RPC DS4-RPC
DS4D-RPC
BayTech Manual Publication
Revision, May 2008
Copyright 2007 by Bay Technical Associates, Inc. BayTech, is a registered trademarks of Bay Technical Associates, Inc. Windows 2000®, Windows XP® are products and registered trademark of Microsoft
Corporation. Tera Term is a product and registered trademark of Vector, Inc.
2
ABOUT THIS OWNER’S MANUAL........................................................................................................4
Connection Description.......................................................................................................................5
Installation...............................................................................................................................................5
Power..................................................................................................................................................5
QUICK START: DS-RPC........................................................................................................................7
Serial Setup.........................................................................................................................................7

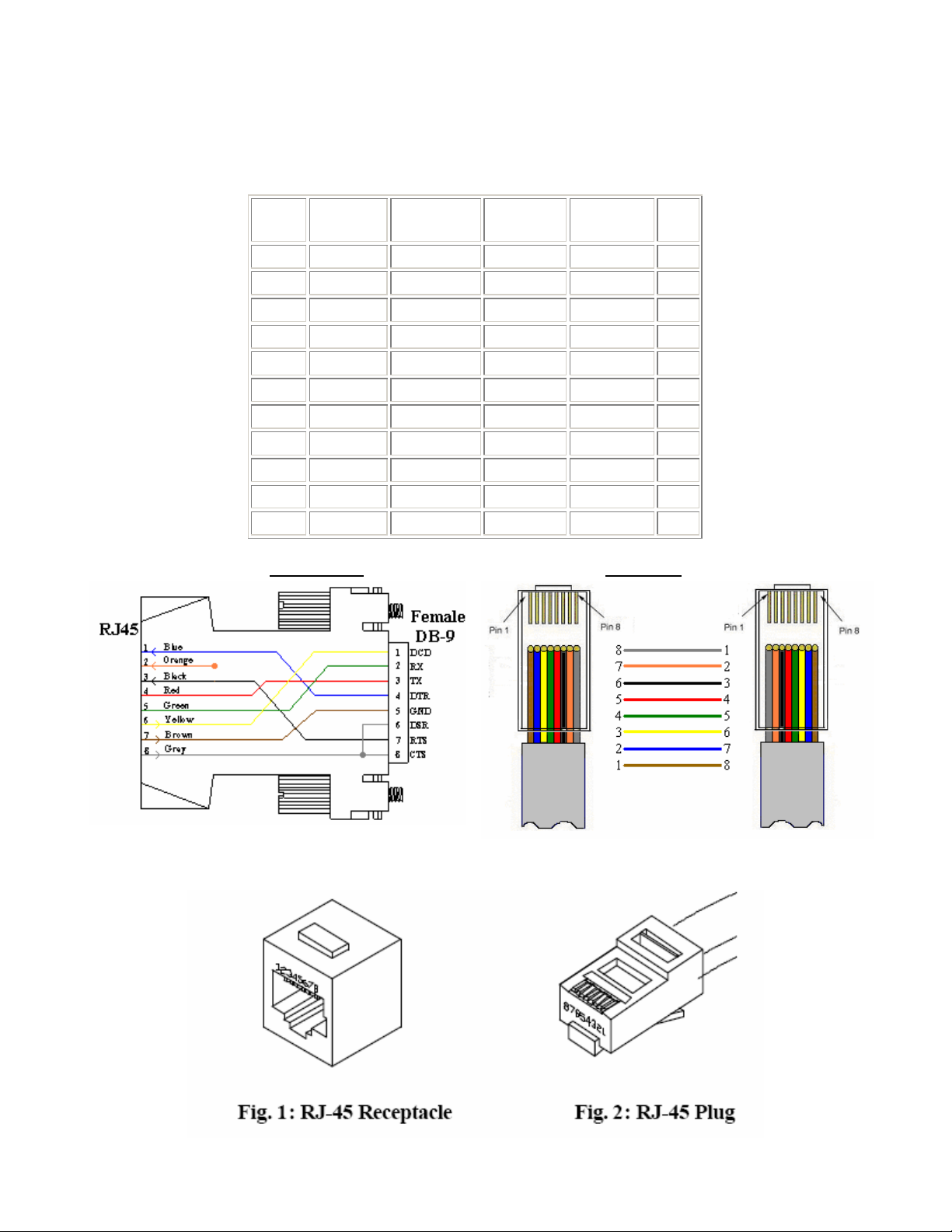

Cabling .................................................................................................................................................10
RJ-45 Cables and Adapters..............................................................................................................10
Opening Menu Status...........................................................................................................................11
HELP.................................................................................................................................................12
Receptacle Controls......................................................................................................................12
Configuration Menu.......................................................................................................................13
Display Current Electrical Characteristics: ....................................................................................13
Logging Out...................................................................................................................................14
Current User Password:................................................................................................................14
Identify Current User .....................................................................................................................14
Unit Identification...........................................................................................................................14
DS-RPC Configuration Menu............................................................................................................14
Manage Users...............................................................................................................................15
Assign Outlets:...........................................................................................................................15
Add a User:................................................................................................................................16
Delete a User:............................................................................................................................16
Rename a User:.........................................................................................................................17
Change Outlet Name.....................................................................................................................17
Enable/Disable Confirmation.........................................................................................................17
Enable/Disable Status Menu.........................................................................................................17
Change Unit ID..............................................................................................................................18
Change Alarm Threshold...............................................................................................................18
DS-RPC Factory Reset:........................................................................................................................19
BayTech Product Warranty...................................................................................................................20
Technical Support.............................................................................................................................21
Return Authorization Process: ..........................................................................................................22
3
ABOUT THIS OWNER’S MANUAL
This document provides information required for installing and operating your Bay Tech equipment. It should allow the user to connect to, power up, and access an applications menu where peripheral equipment can be controlled. We recommend reading this manual carefully, while placing special emphasis on correct cabling and configuration. If you have any problems with your installation, please contact a BayTech Applications Engineer at 228-563-7334, or toll free from anywhere in the United States using 1-800-523-2702 or contact us at our Web Site, www.baytech.net.
BayTech manufactures many remote site management products, data switches, data collection multiplexers, and remote power controllers. If you would like information on any of these products, please contact BayTech Customer Service at the above numbers or visit our web site.
Conventions used in this manual include:
CAUTION: This term is used to denote any condition that could possibly result in physical harm to personnel or damage to equipment. IMPORTANT: This term is used to denote conditions that could result in the loss of communications or to highlight the proper functioning of equipment.
NOTE: This term is used to denote items of interest to the user. <cr>: Carriage Return or ENTER
The information in this document is subject to change without notice. The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for their applications of any products specified in this document. The information in this document is proprietary to Bay Technical Associates, Inc.
In the interest of improving internal design, operational function, and/or reliability, Bay Technical Associates, Inc reserves the right to make changes to the products described in this document without notice.
Bay Technical Associates, Inc does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
BayTech units are in accordance with the general requirements of Standard for Information Technology Equipment (ETL listed, conforms to UL STD 1950 3RD EDITION CERTIFIED CAN/CSA 22.2 NO. 950-95, CE conforms to IEC 60950-1).
We welcome any comments you may have about our products, and we hope that you will continue to look to BayTech for your remote management needs.
4
Connection Description
BayTech's Host communication module determines the type of interface that controls user access to the DS Series data switch and other DS Series connected modules. The Host module is a system data controller that directs operations between this base unit, system modules and externally connected devices.
Installation
UNPACKING
Compare the unit and serial number of the equipment you received to the packing slip located on the outside of the box. Inspect equipment carefully for damage that may have occurred in shipment. If there is damage to the equipment or if materials are missing, contact BayTech technical support at 228- 563-7334 or call toll free inside the United States at 800-523-2702. At a minimum, you should receive the following:
1. DS-RPC series unit and/or DS modules.
2. Manual insert describing the location of the User’s Guide on BayTech’s website at
www.baytech.net.
3. Power Cords that may be attached to the unit (if order requested detachable cords).
4. 1 ea. DE-9 (9 pin) PC com port adapter -- 9FRJ45PC (with Cisco Interface) or 9FRJ45PC-1.
5. 1 ea. RJ-45 Roll over cable -- RJ08X007.
NOTE: Keep shipping container and packing material in the event future shipment is required.
PREPARING THE INSTALLATION
The installation area should be clean and free of extreme temperatures and humidity. Allow sufficient space behind the DS unit for cabling and receptacle connections. Access to installation site should be restricted to authorized personnel. Installation of these units should be limited to ITE and Telco server environments.
Power
• 120 VAC Model: Internal 120 VAC 60 Hz (10 Amps Maximum Load).
• 230 VAC Model: Internal 230 VAC 60 Hz (10 Amps Maximum Load).
CAUTION:
temperatures and humidity. Do not install near water or expose this unit to moisture. To prevent heat buildup, do not coil the power cord when in use. Do not use extension cords. Do not attempt to make any internal changes to the power source. Do not attempt to modify any portion or component of a DS72 module unless specifically directed by BayTech Technical Support. BayTech must perform any internal changes.
CAUTION: High-voltage surges and spikes can damage this equipment. To protect from such power surges and spikes, this unit must have a good earth ground. A grounding screw connection is located near the power switch on the back of the unit.
This unit is intended for indoor use only in a clean and free of extreme
5
CAUTION: Before removing or replacing any modules, turn off main power switch located on the DS-Series Base Unit. Communication to the DS-Series Data Switch will be disrupted while power is off.
CAUTION: For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device (Circuit Breaker rated not to exceed the amperage rating of the unit) shall be incorporated in the fixed wiring between the power source and the Baytech unit. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and easily accessible. The outlets providing power to the unit shall be protected against over current and short circuit by suitable rated protective devices.
6
QUICK START: DS-RPC
by Bay Technical Associates
For those Administrators who have requested the bare minimum for this type of equipment, follow these steps exactly. If this is a new unit shipped directly from Baytech, follow the steps. If this is a previously own unit, perform a factory reset to clear out any users and passwords still in the unit.
RPC Controller Configuration:
Before continuing your System Administrator needs to tell you to use DHCP or give you an IP Address, Subnet Address, and Gateway Address.
1. Connect the 9FRJ45PC-4 or 9FRJ45PC-1 adapter to your PC.
2. Connect the supplied rollover flat cable RJ08X007 to the adapter and to the EIA232 serial port on the Baytech HOST Module.
3. Use terminal emulation software to access the unit, (i.e. Microsoft Hyper-terminal). Set the PC serial port configuration to the following: 9600 bps, 8 data bits, 1stop bit and no parity.
4. If you get only a blinking cursor Press ‘Enter’. If still only a blinking cursor, Type 5 semi-colons (;),The Attention Character will not echo on the screen. There is a one second delay before the menu is displayed. You should see a menu similar to (Figure 1).
5. Select ‘DS-RPC’ and type ‘config’ at the prompt for the configuration menu. You should see a menu similar to (Figure 2).
6. Select Manage Users. You should see a menu similar to (Figure 3)
7. IMPORTANT NOTE: the first user added will be the ADMIN user. Type ‘A’ and press ‘Enter’. Type the name of the admin user. The name is case sensitive.
8. Select the number of the user. You should see a menu similar to (Figure 4).
9. Select ‘Add Outlet(s)’ to add a few outlets (i.e. 1,2,4) and press ‘Enter’ or select ‘Add All Outlet’. A ‘Y’ signifies the outlet has been assigned to the user.
10. Press ‘Enter’ Repeat steps 6 thru 9 to add other users.
11. Press ‘Enter’ until get to the Host module network menu (Figure 1).
At this point you have enough basic configurations needed to operate the RPC part of the DS­RPC unit.
Serial Setup
• Connect the 9FRJ45PC-4 adapter to the user’s computer
• Connect the Host Module’s EIA-232 port to the adapter via the RJ08X007 rolled flat ribbon cable.
• Use terminal emulation software to access the unit, 9600 bps, 8 data bits, 1stop bit and no
parity.
NOTE: At any time during the session you need to go to another menu, use the Attention
Character = semi-colon (;). Press the attention character key 5 consecutive times to get back to the main status menu.
NOTE: User Name and Password feature is case sensitive. Default is ‘root/baytech’, If the DS­RPC login is enabled, the default User Name is ‘admin’, password is ‘baytech’ lower case or ‘BTA’ upper case.
7
