Page 1

Installing and Operating BayStack ARN Routers

Router Software Version 11.00 Rev. 4n Site Manager Software Version 5.00 Rev. 4n

Part No. 114200 Rev. A November 1996

Page 2

4401 Great America Parkway 8 Federal Street Santa Clara, CA 95054 Billerica, MA 01821

and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty . Users must take full responsibility for their applications of an y products speciﬁed in this document. The information in this document is proprietary to Bay Networks, Inc.

The software described in this document is furnished under a license agreement and may only be used in accordance with the terms of that license. A summary of the Software License is included in this document.

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Notice for All Other Executive Agencies

Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.

Trademarks of Bay Networks, Inc.

ACE, AFN, AN, BCN, BLN, BN, BNX, CN, FN, FRE, GAME, LN, Optivity, PPX, SynOptics, SynOptics Communications, Wellﬂeet and the Wellﬂeet logo are registered trademarks and ANH, ARN, ASN, Bay•SIS, BayStack, BCNX, BLNX, EZ Install, EZ Internetwork, EZ LAN, PathMan, PhonePlus, Quick2Conﬁg, RouterMan, SPEX, Bay Networks, Bay Networks Press, the Bay Networks logo and the SynOptics logo are trademarks of Bay Networks, Inc.

Third-Party T rademarks

All other trademarks and registered trademarks are the property of their respective owners.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Bay Networks, Inc. reserves the right to make changes to the products described in this document without notice.

Bay Networks, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Portions of the code in this software product are Copyright © 1988, Regents of the Univ ersity of California. All rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that such portions of the software were developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from such portions of the software without speciﬁc prior written permission.

SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third parties).

114200 Rev. A

Page 3

USA Requirements Only

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

This equipment generates, uses, and can radiate radio-frequency energy. If you do not install and use this equipment according to the instruction manual, this product may interfere with radio communications. This product has been tested and found to comply with the limits for a Class A computing device, pursuant to Subpart J of Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Operating this equipment in a residential area is likely to interfere with radio communications; in which case, the user, at his/her own expense, must correct the interference.

Shielded-compliant cables must be used with this unit to ensure compliance with the Class A limits.

European Requirements Only

EN 55 022 Declaration of Conformance

This is to certify that the Bay Networks products in this book are shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022:1987 Class A (CISPR 22:1985/BS 6527:1988).

This is a Class A product. In a domestic en vironment this product may cause radio interference in which case the user may be required to take adequate measures.

EN 55 022 Declaration of Conformance

114200 Rev. A

iii

Page 4

Japan/Nippon Requirements Only

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the 1st category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Ofﬁce Machines that are aimed at preventing radio interference in commercial and/or industrial areas.

Consequently, when this equipment is used in a residential area or in an adjacent area thereto, radio interference may be caused to equipment such as radios and TV receivers.

Compliance with the applicable regulations is dependent upon the use of shielded cables. The user is responsible for procuring the appropriate cables. Read instructions for correct handling.

114200 Rev. A

Page 5

Canada Requirements Only

Canada CS-03 Rules and Regulations

Note:

The Canadian Department of Communications label identiﬁes certiﬁed equipment. The certiﬁcation means that the equipment meets certain telecommunications network protective operations and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company's inside wiring associated with a single line individual service may be extended by means of a certiﬁed connector assembly (telephone extension cord). The customer should be aware that compliance with the above conditions may not prevent the degradation of service in some situations.

Repairs to certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution:

inspection authority, or electrician, as appropriate.

Canada CS-03 -- Règles et règlements

Note:

qu’il respecte certaines exigences de sécurité et de fonctionnement visant les réseaux de télécommunications. Le ministère ne garantit pas que l’appareillage fonctionnera à la satisfaction de l’utilisateur.

Avant d’installer l’appareillage, s’assurer qu’il peut être branché aux installations du service de télécommunications local. L’appareillage doit aussi être raccordé selon des méthodes acceptées. Dans certains cas, le câblage interne du service de télécommunications utilisé pour une ligne individuelle peut être allongé au moyen d’un connecteur certiﬁé (prolongateur téléphonique). Le client doit toutefois prendre note qu’une telle installation n’assure pas un service parfait en tout temps.

Les réparations de l’appareillage certiﬁé devraient être conﬁées à un service d’entretien canadien désigné par le fournisseur. En cas de réparation ou de modiﬁcation effectuées par l’utilisateur ou de mauvais fonctionnement de l’appareillage, le service de télécommunications peut demander le débranchment de l’appareillage.

Pour leur propre sécurité, les utilisateurs devraient s’assurer que les mises à la terre des lignes de distribution d’électricité, des lignes téléphoniques et de la tuyauterie métallique interne sont raccordées ensemble. Cette mesure de sécurité est particulièrement importante en milieu rural.

Attention:

aux pouvoirs de réglementation en cause ou à un électricien, selon le cas.

Users should not attempt to make such connections themselves, but should contact the appropriate electric

L’étiquette du ministère des Communications du Canada indique que l’appareillage est certiﬁé, c’est-à-dire

Les utilisateurs ne doivent pas procéder à ces raccordements eux-mêmes mais doivent plutôt faire appel

114200 Rev. A

Page 6

Canada Requirements Only

(continued)

D. O. C. Explanatory Notes: Equipment Attachment Limitations

The Canadian Department of Communications label identiﬁes certiﬁed equipment. This certiﬁcation meets certain telecommunication network protective, operational and safety requirements. The department does not guarantee the equipment will operate to the users satisfaction.

Before installing the equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line indi vidual service may be e xtended by means of a certiﬁed connector assembly (telephone extension cord). The customer should be aware that compliance with the above condition may not prevent degradation of service in some situations.

Repairs to certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Caution:

inspection authority, or electrician, as appropriate.

Users should not attempt to make such connections themselves, but should contact the appropriate electrical

Notes explicatives du ministère des Communications: limites visant les accessoires

L’étiquette du ministère des Communications du Canada indique que l’appareillage est certiﬁé, c’est-à-dire qu’il respecte certaines exigences de sécurité et de fonctionnement visant les réseaux de télécommunications. Le ministère ne garantit pas que l’appareillage fonctionnera à la satisfaction de l’utilisateur.

Attention:

aux pouvoirs de réglementation en cause ou à un électricien, selon le cas.

Les utilisateurs ne doivent pas procéder à ces raccordements eux-mêmes mais doivent plutôt faire appel

114200 Rev. A

Page 7

Canada Requirements Only

(continued)

Canadian Department of Communications Radio Interference Regulations

This digital apparatus (Access Feeder Node, Access Link Node, Access Node, Access Stack Node, Backbone Concentrator Node, Backbone Concentrator Node Switch, Backbone Link Node, Backbone Link Node Switch, Concentrator Node, Feeder Node, Link Node) does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.

Réglement sur le brouillage radioélectrique du ministère des Communications

Cet appareil numérique (Access Feeder Node, Access Link Node, Access Node, Access Stack Node, Backbone Concentrator Node, Backbone Concentrator Node Switch, Backbone Link Node, Backbone Link Node Switch, Concentrator Node, Feeder Node, Link Node) respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Réglement sur le brouillage radioélectrique du ministère des Communications du Canada.

114200 Rev. A

vii

Page 8

Bay Networks Software License

Note:

This is Bay Networks basic license document. In the absence of a software license agreement specifying varying terms, this license -- or the license included with the particular product -- shall govern licensee’s use of Bay Networks software.

This Software License shall govern the licensing of all software provided to licensee by Bay Networks (“Software”). Bay Networks will provide licensee with Software in machine-readable form and related documentation (“Documentation”). The Software provided under this license is proprietary to Bay Networks and to third parties from whom Bay Networks has acquired license rights. Bay Networks will not grant any Software license whatsoev er , either explicitly or implicitly, except by acceptance of an order for either Software or for a Bay Networks product (“Equipment”) that is packaged with Software. Each such license is subject to the following restrictions:

1. Upon delivery of the Software, Bay Networks grants to licensee a personal, nontransferable, none xclusiv e license to use the Software with the Equipment with which or for which it was originally acquired, including use at any of licensee’s facilities to which the Equipment may be transferred, for the useful life of the Equipment unless earlier terminated by default or cancellation. Use of the Software shall be limited to such Equipment and to such facility. Software which is licensed for use on hardware not offered by Bay Networks is not subject to restricted use on any Equipment, however, unless otherwise speciﬁed on the Documentation, each licensed copy of such Software may only be installed on one hardware item at any time.

2. Licensee may use the Software with backup Equipment only if the Equipment with which or for which it was acquired is inoperative.

3. Licensee may make a single copy of the Software (but not ﬁrmware) for safekeeping (archives) or backup purposes.

4. Licensee may modify Software (but not ﬁrmware), or combine it with other software, subject to the provision that those portions of the resulting software which incorporate Software are subject to the restrictions of this license. Licensee shall not make the resulting software available for use by any third party.

5. Neither title nor ownership to Software passes to licensee.

6. Licensee shall not provide, or otherwise make available, any Software, in whole or in part, in any form, to any third party. Third parties do not include consultants, subcontractors, or agents of licensee who have licensee’s permission to use the Software at licensee’s facility, and who have agreed in writing to use the Software only in accordance with the restrictions of this license.

7. Third-party owners from whom Bay Networks has acquired license rights to software that is incorporated into Bay Networks products shall have the right to enforce the provisions of this license against licensee.

8. Licensee shall not remove or obscure any copyright, patent, trademark, trade secret, or similar intellectual property or restricted rights notice within or afﬁxed to any Software and shall reproduce and afﬁx such notice on any backup copy of Software or copies of software resulting from modiﬁcation or combination performed by licensee as permitted by this license.

viii

114200 Rev. A

Page 9

Bay Networks Software License

9. Licensee shall not reverse assemble, reverse compile, or in any way reverse engineer the Software. [Note: For licensees in the European Community, the Softw are Directiv e dated 14 May 1991 (as may be amended from time to time) shall apply for interoperability purposes. Licensee must notify Bay Networks in writing of any such intended examination of the Software and Bay Networks may provide review and assistance.]

10. Notwithstanding any foregoing terms to the contrary, if licensee licenses the Bay Networks product “Site Manager,” licensee may duplicate and install the Site Manager product as speciﬁed in the Documentation. This right is granted solely as necessary for use of Site Manager on hardware installed with licensee’s network.

11. This license will automatically terminate upon improper handling of Software, such as by disclosure, or Bay Networks may terminate this license by written notice to licensee if licensee fails to comply with any of the material provisions of this license and fails to cure such failure within thirty (30) days after the receipt of written notice from Bay Networks. Upon termination of this license, licensee shall discontinue all use of the Software and return the Software and Documentation, including all copies, to Bay Networks.

12. Licensee’s obligations under this license shall survive expiration or termination of this license.

(continued)

114200 Rev. A

Page 10

Page 11

About This Guide

Before You Begin .............................................................................................................xxi

Conventions .....................................................................................................................xxi

Acronyms ........................................................................................................................xxii

Ordering Bay Networks Publications .............................................................................xxiv

Technical Support and Online Services

Bay Networks Customer Service ...................................................................................xxvi

Bay Networks Information Services ..............................................................................xxvii

World Wide Web .....................................................................................................xxvii

Customer Service FTP ...........................................................................................xxvii

Support Source CD ............................................................................................... xxviii

CompuServe ......................................................................................................... xxviii

InfoFACTS ...............................................................................................................xxix

How to Get Help ......................................................................................................xxix

Chapter 1 Installing the BayStack Advanced Remote Node

Preparing to Install the ARN ...........................................................................................1-2

Verifying Shipment Contents ....................................................................................1-2

Supplying Equipment ...............................................................................................1-4

Cables ................................................................................................................1-4

Service Console ................................................................................................1-4

Mounting Hardware ...........................................................................................1-4

Verifying Site Requirements .....................................................................................1-5

Installing the ARN ...........................................................................................................1-5

Positioning the ARN on a Flat Surface .....................................................................1-5

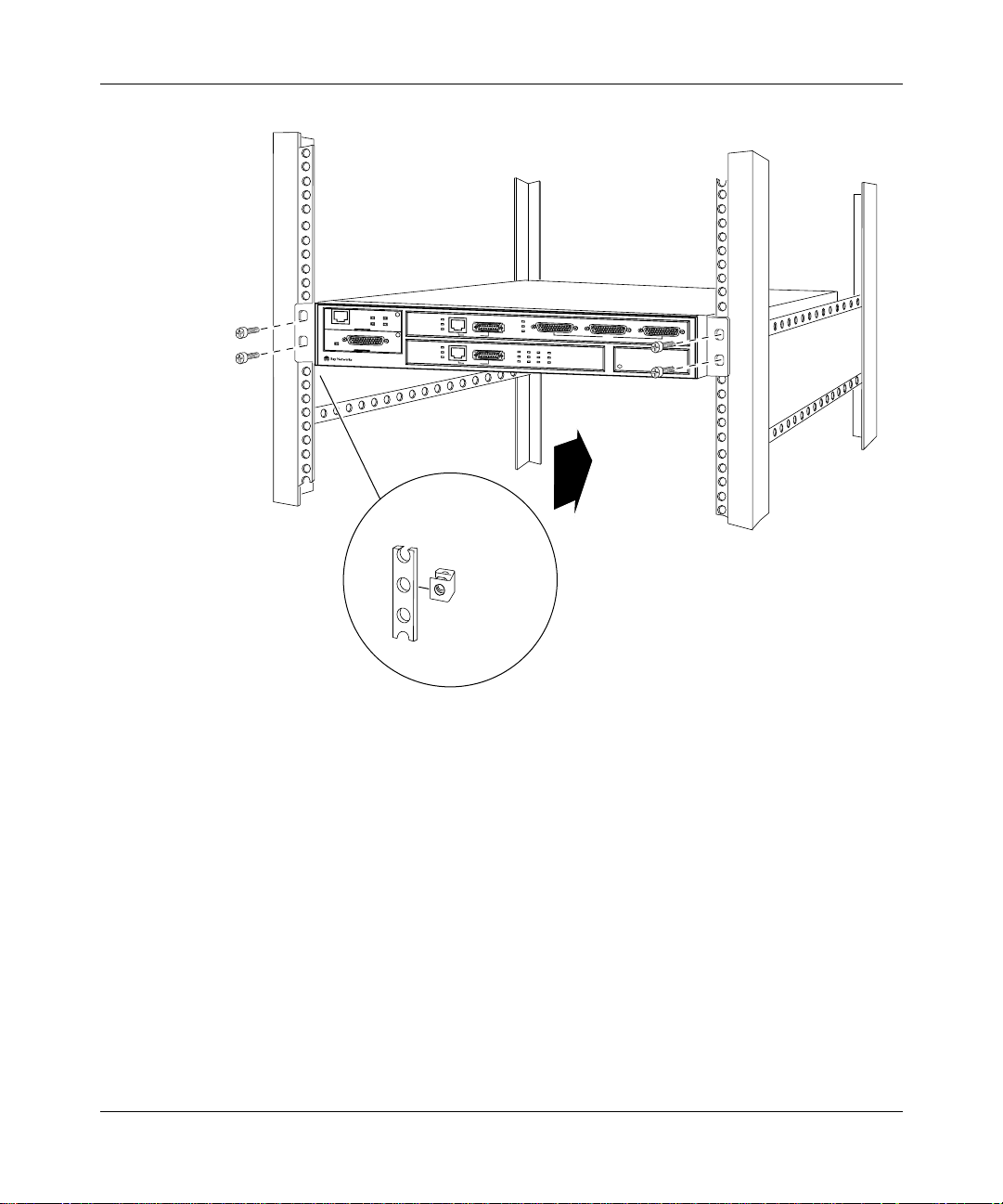

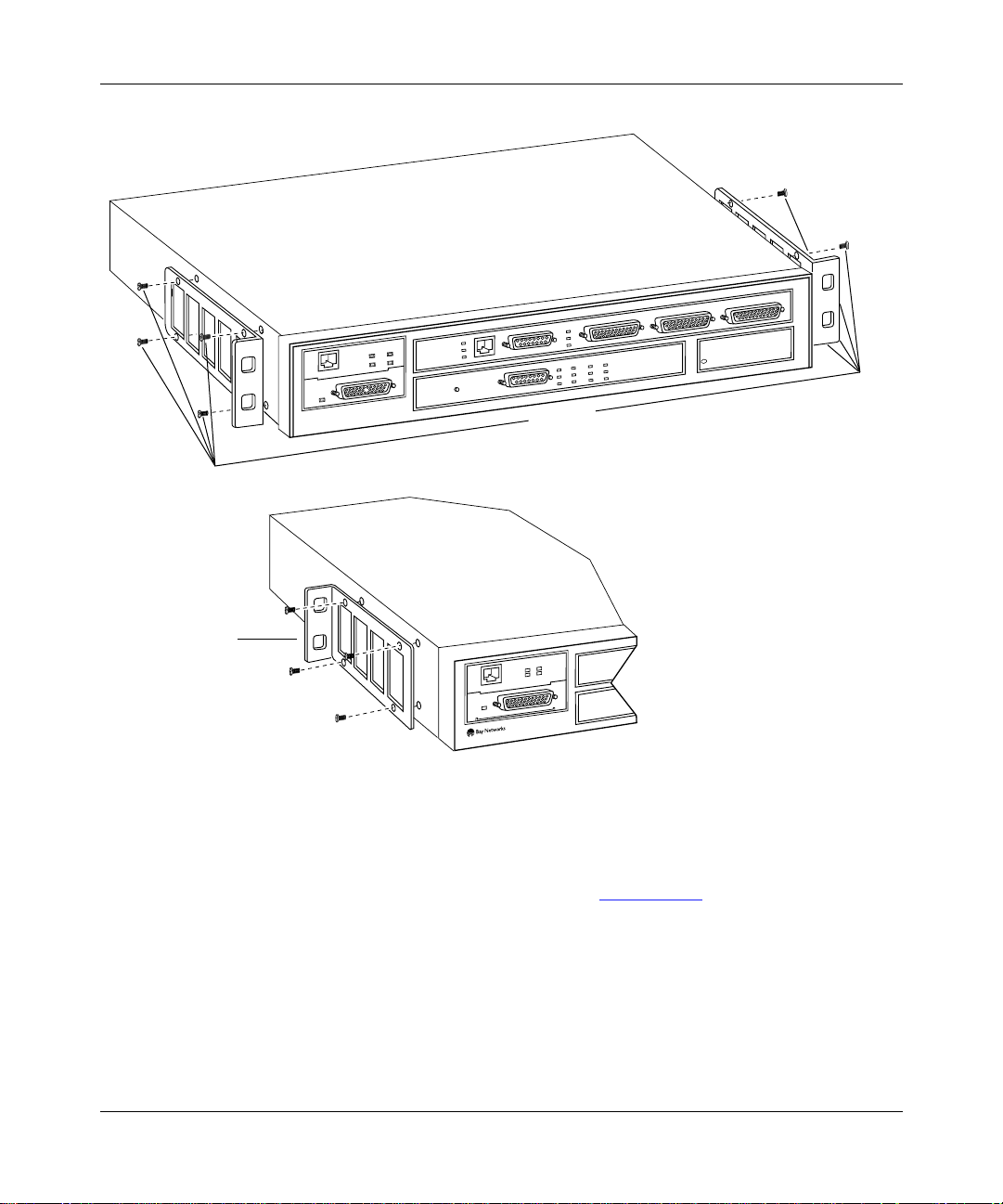

Rack-Mounting the ARN ..........................................................................................1-6

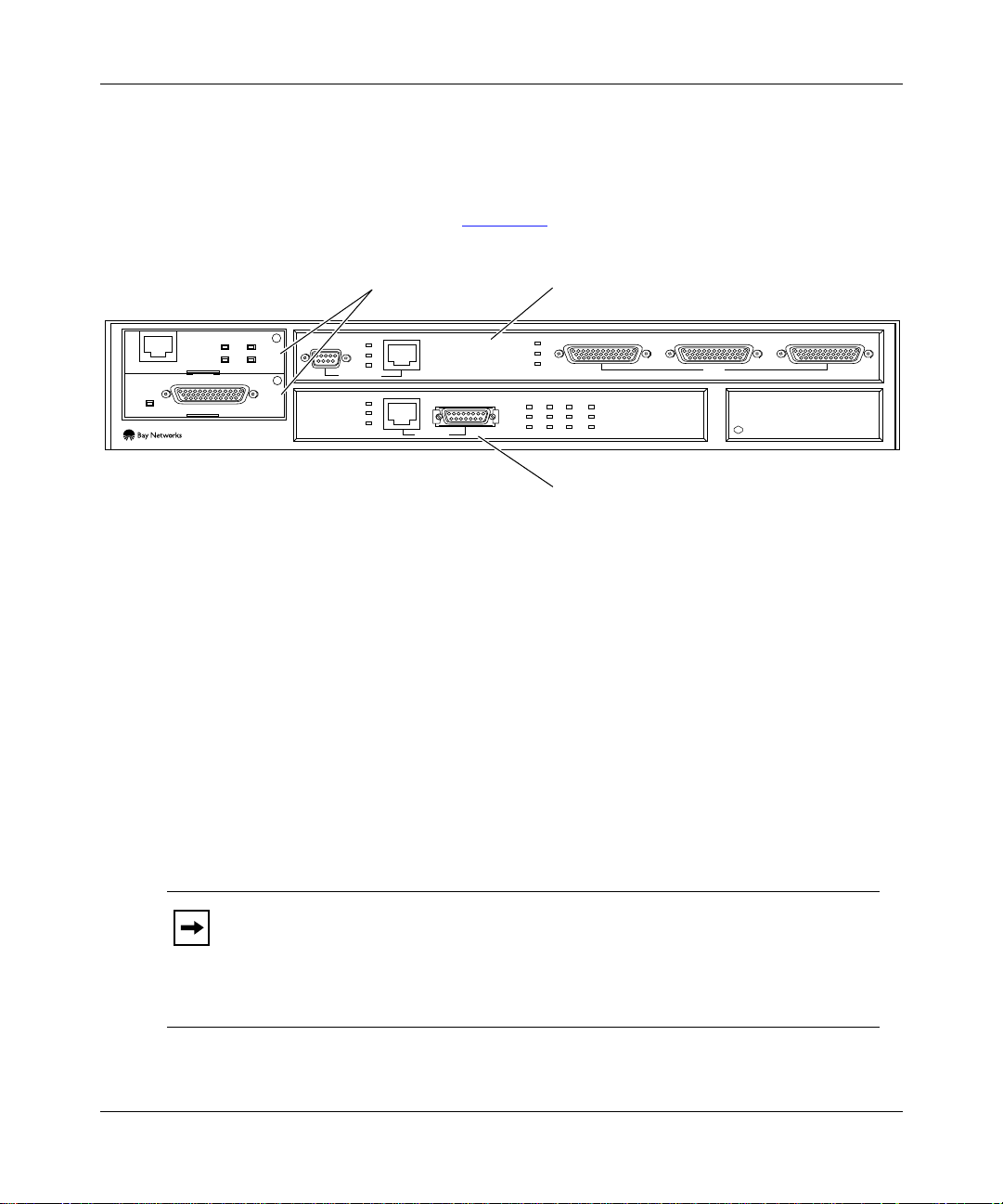

Understanding the ARN Module Locations ....................................................................1-9

Connecting Communications Cables ...........................................................................1-10

114200 Rev. A

Page 12

Connecting to an Ethernet Interface ......................................................................1-10

Connecting to an AUI Interface ........................................................................1-11

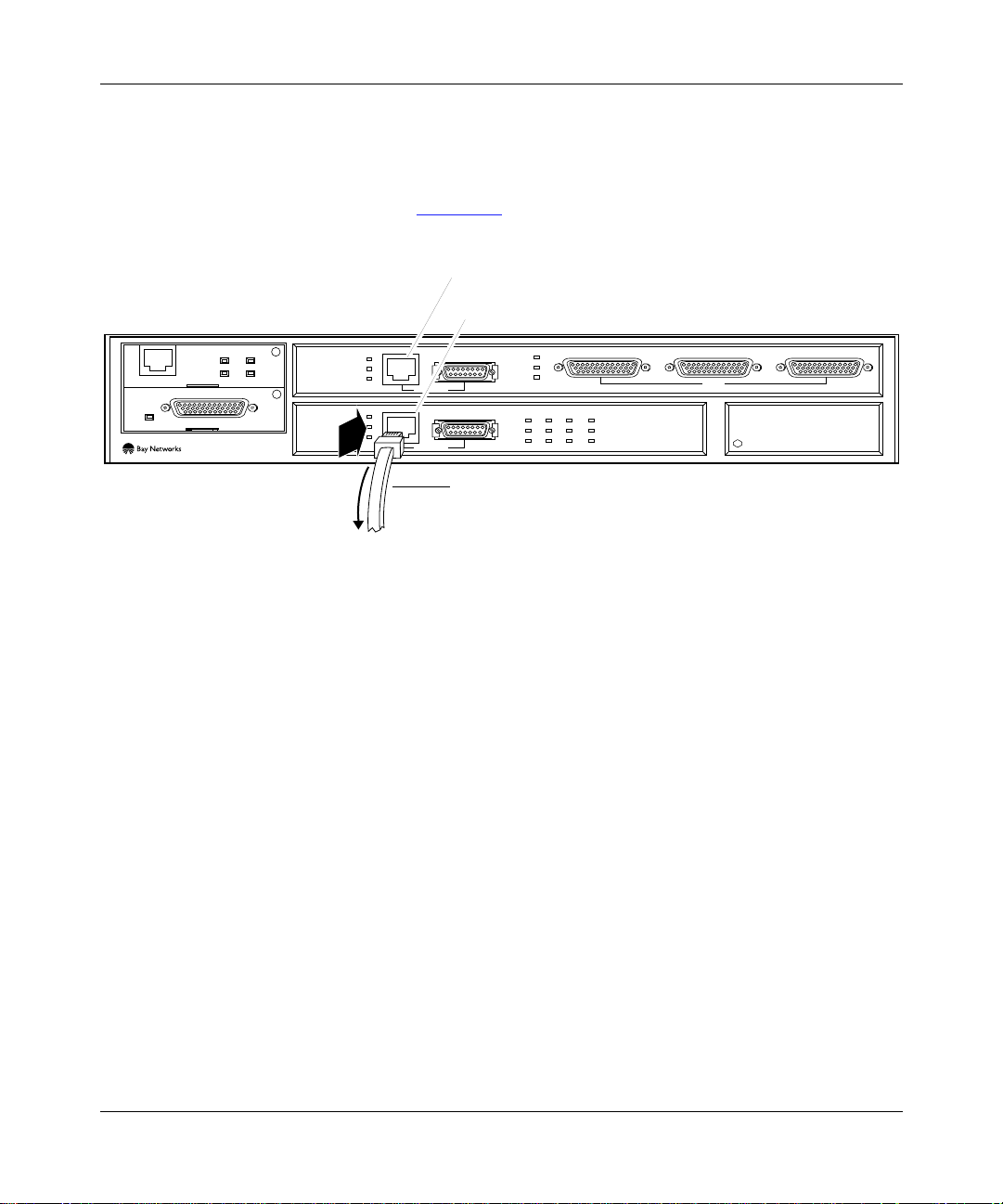

Connecting to a 10Base-T Interface ................................................................1-12

Connecting to a Token Ring Interface ....................................................................1-13

Connecting to an STP Token Ring Interface ....................................................1-13

Connecting to a UTP Token Ring Interface ......................................................1-14

Connecting to a Serial Interface .............................................................................1-15

Connecting to an ISDN Interface ...........................................................................1-17

Connecting to a DSU/CSU Interface ......................................................................1-18

Connecting to a V.34 Modem Interface ..................................................................1-19

Connecting a Management Console ............................................................................1-20

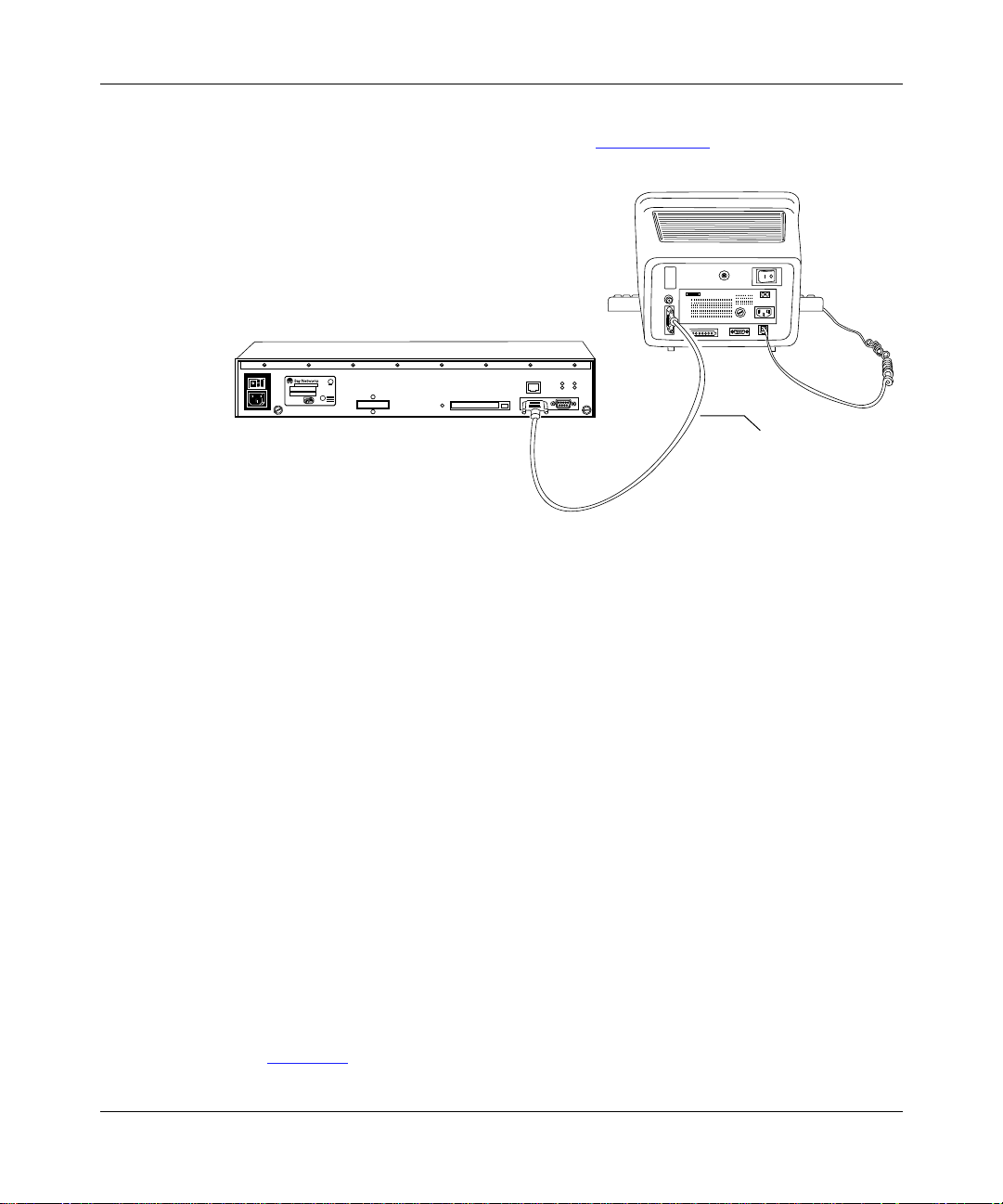

Connecting a Terminal Console .............................................................................1-21

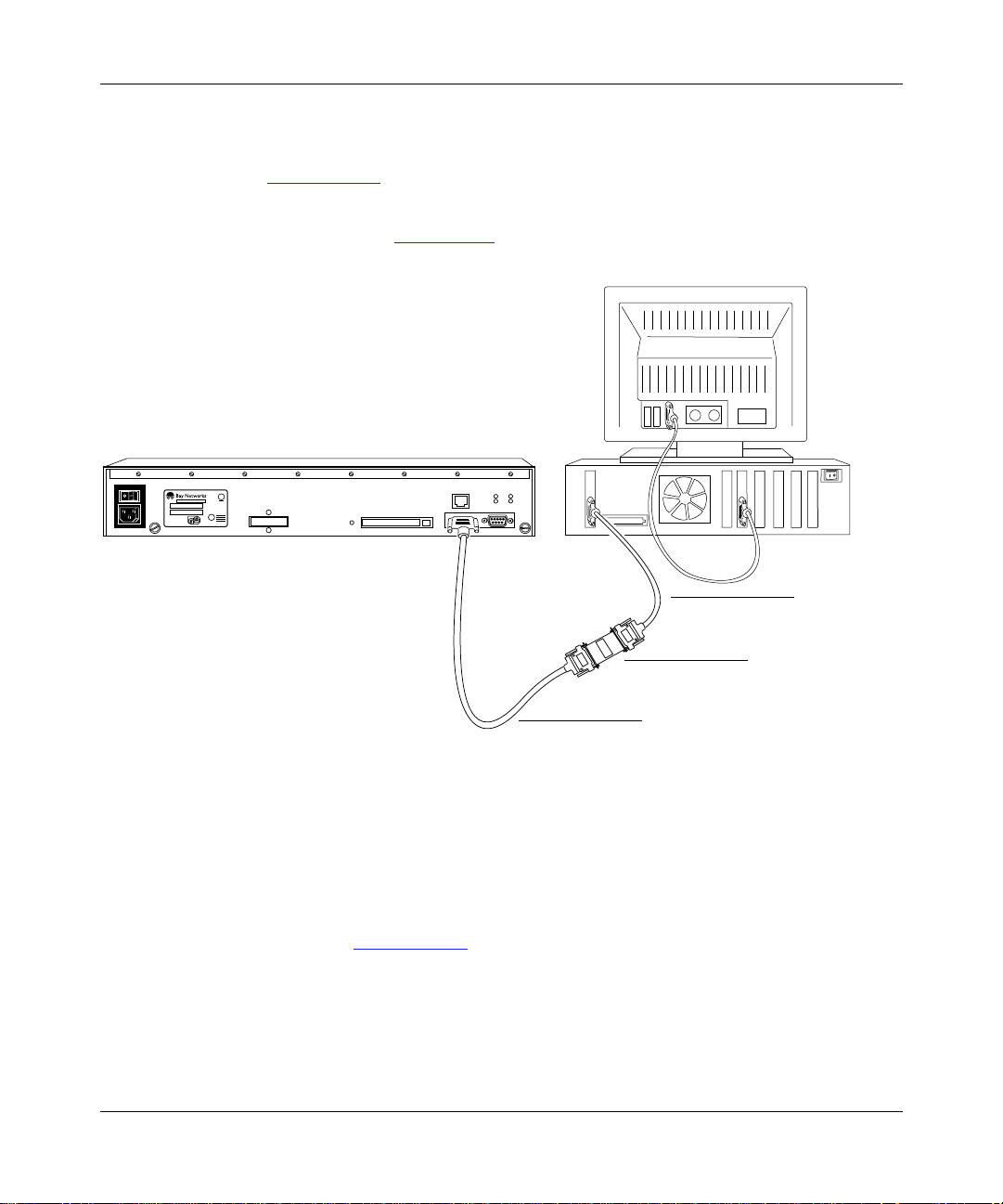

Connecting a PC Console ......................................................................................1-22

Connecting a Modem ...................................................................................................1-24

Connecting to the Back-Panel Modem Port ...........................................................1-24

Connecting to a V.34 Modem Module ....................................................................1-26

Connecting the Power Cable ........................................................................................1-27

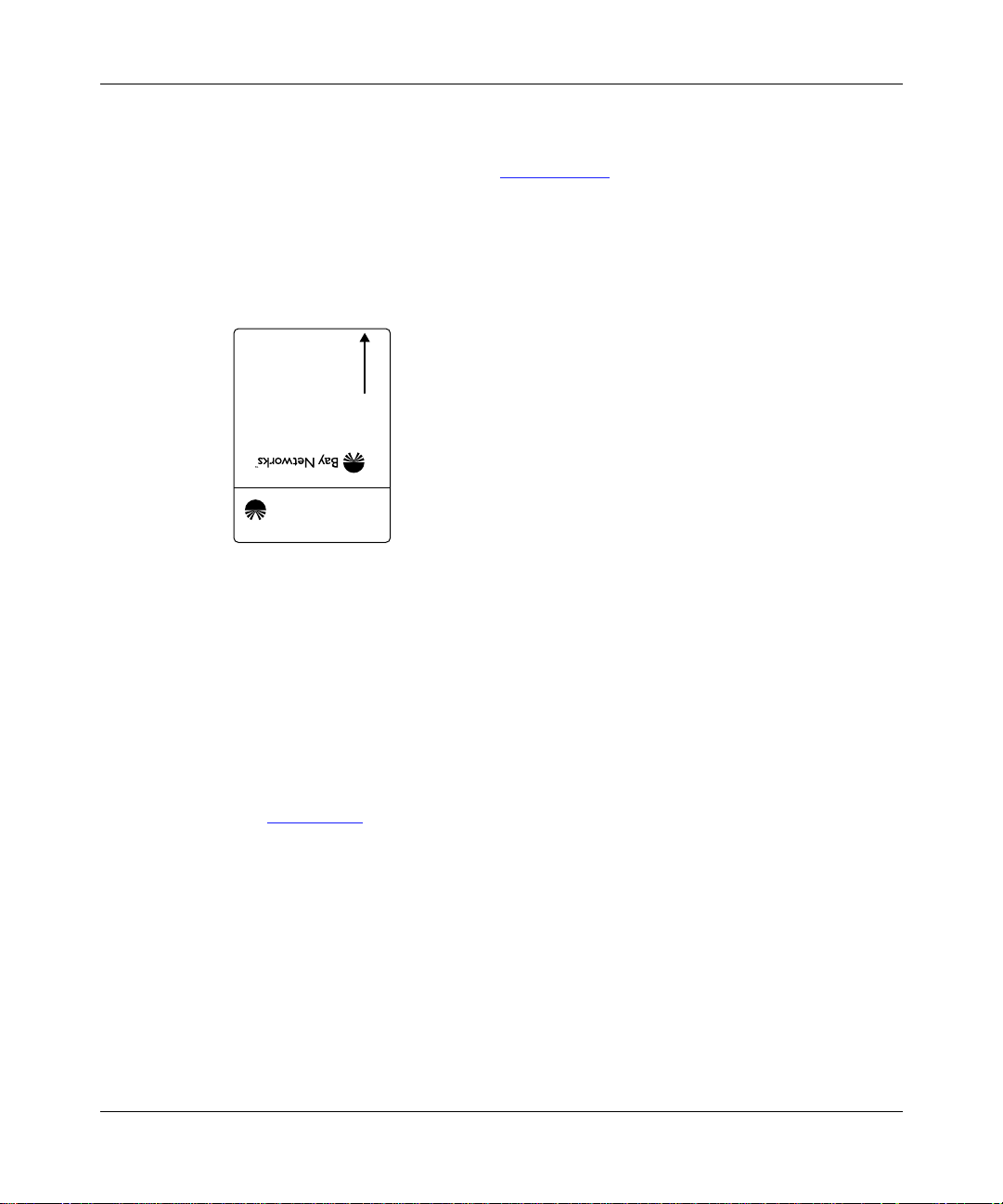

Installing the Flash Memory Card .................................................................................1-28

Where to Go Next .........................................................................................................1-29

Chapter 2 Starting the ARN

Software Installation .......................................................................................................2-1

Understanding the ARN Boot Options ............................................................................2-2

Starting the ARN for the First Time .................................................................................2-4

Using EZ-Install ..............................................................................................................2-5

Using Netboot, Directed Netboot, or Local Boot .............................................................2-6

Interrupting the Boot Process ..................................................................................2-6

Logging in to the Command Line Software ..............................................................2-7

Continuing with Netboot ...........................................................................................2-8

Continuing with Directed Netboot ...........................................................................2-11

Continuing with Local Boot (the Quick-Start Procedure) .......................................2-15

Where to Go Next .........................................................................................................2-17

xii

114200 Rev. A

Page 13

Chapter 3 Operating the ARN

LED Descriptions ............................................................................................................3-2

Base Module LEDs ..................................................................................................3-2

Diagnostic LEDs ................................................................................................3-2

Ethernet LEDs ...................................................................................................3-4

Token Ring LEDs ...............................................................................................3-4

Expansion Module LEDs ..........................................................................................3-5

Ethernet LEDs ...................................................................................................3-5

Token Ring LEDs ...............................................................................................3-5

Serial LEDs ........................................................................................................3-6

Adapter Module LEDs ..............................................................................................3-6

Serial LED .........................................................................................................3-6

ISDN BRI LEDs (S/T or U Interfaces) ................................................................3-7

DSU/CSU LEDs .................................................................................................3-7

V.34 Modem LEDs .............................................................................................3-8

Back-Panel LEDs .....................................................................................................3-8

Ensuring a Successful Installation ..................................................................................3-9

Powering On and Off the ARN ......................................................................................3-10

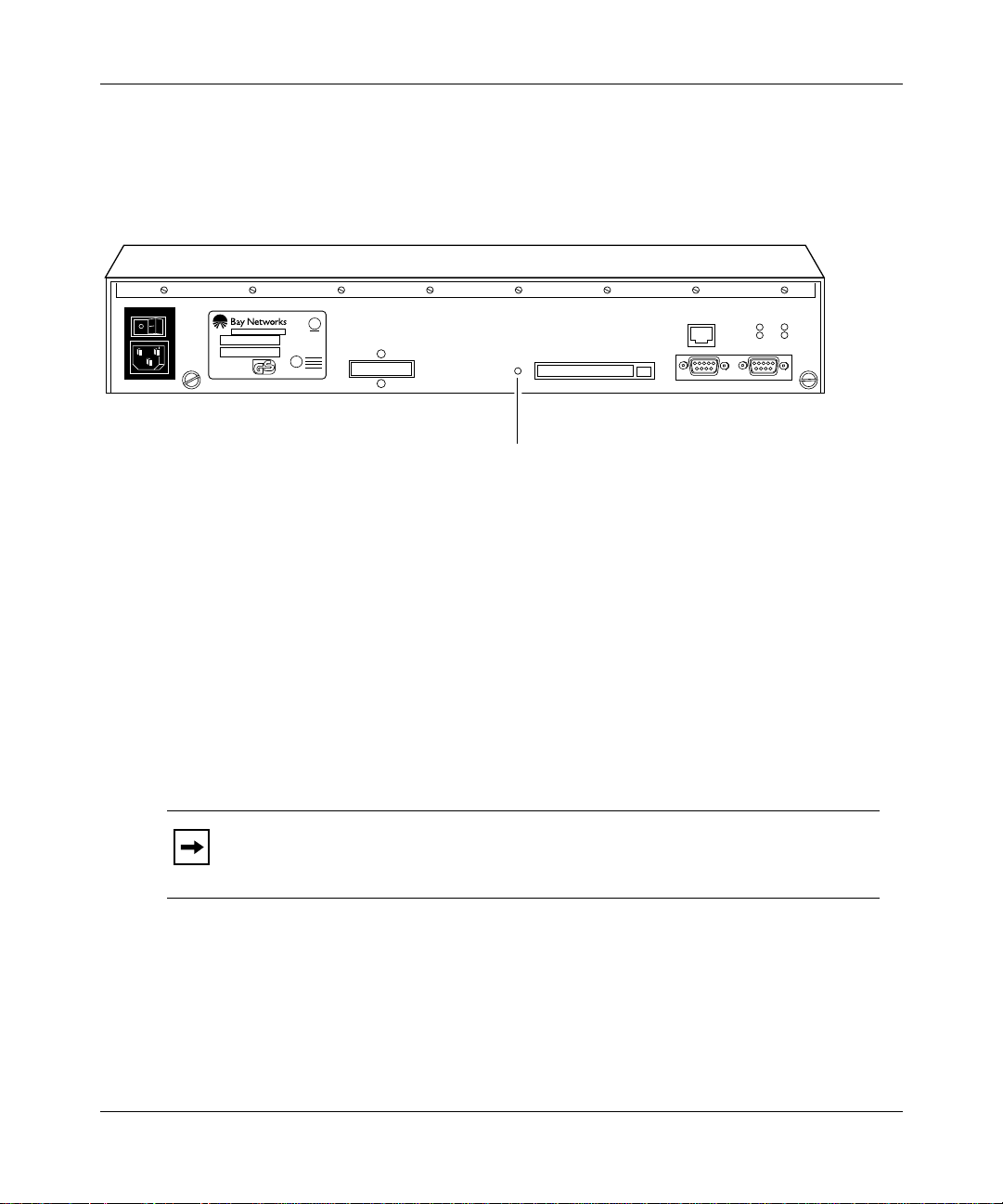

Resetting the ARN ........................................................................................................3-11

Removing a Flash Memory Card ..................................................................................3-12

Protecting Memory Card Files ......................................................................................3-13

Where to Go Next .........................................................................................................3-14

Appendix A Conﬁguring the ARN for Netboot and Directed Netboot

Using the ifconﬁg Command ......................................................................................... A-1

Conﬁguring an IP Serial or DSU/CSU Interface for Netbooting .............................. A-2

Conﬁguring an Ethernet Interface for Network Booting ........................................... A-4

Conﬁguring a Token Ring Interface for Network Booting ......................................... A-5

Enabling and Disabling Interfaces with ifconﬁg ....................................................... A-6

ifconﬁg Command Examples .................................................................................. A-6

Using the bconﬁg Command ......................................................................................... A-7

bconﬁg Command Format ....................................................................................... A-7

bconﬁg Command Examples .................................................................................. A-8

V erifying Y our Conﬁguration ........................................................................................... A-8

114200 Rev. A

xiii

Page 14

Appendix B Using Local Boot (the Quick-Start Procedure)

Understanding Quick-Start Connector Names and Numbers ........................................ B-2

Filling Out the Worksheets ............................................................................................. B-3

Global Information Worksheet ................................................................................. B-4

Router Protocol Worksheets ................................................................................... B-7

Wide Area Protocol Worksheets ........................................................................... B-11

Running the Quick-Start Script .................................................................................... B-15

Appendix C Technical Speciﬁcations

Physical Speciﬁcations .................................................................................................. C-1

Electrical Speciﬁcations .................................................................................................C-2

Environmental Speciﬁcations ........................................................................................C-2

Hardware Communications Options ..............................................................................C-3

Ethernet Attachment Unit Interface (AUI) ................................................................C-5

Ethernet 10Base-T Interface ................................................................................... C-6

Token Ring STP Interface ....................................................................................... C-7

Token Ring UTP Interface ....................................................................................... C-8

Serial Interfaces ...................................................................................................... C-8

ISDN BRI U Interface ............................................................................................ C-10

ISDN BRI S/T Interface ......................................................................................... C-11

56/64K DSU/CSU Interface ...................................................................................C-12

RJ-11 Interface (for V.34 Modem) ......................................................................... C-13

Local Console Connections ..................................................................................C-13

Service Modem Connections ................................................................................ C-14

Appendix D Requirements for European Operation

ARN Ethernet Base Model Safety Status ...................................................................... D-1

ARN Token Ring Base Model Safety Status .................................................................. D-2

ARN Expansion Modules Safety Status ........................................................................ D-2

Synchronous Cabling Requirements ............................................................................. D-3

Serial Adapter Module Requirements ............................................................................D-7

ISDN BRI Adapter Module Requirements ..................................................................... D-8

xiv

114200 Rev. A

Page 15

Power Requirements for ISDN BRI and Serial Adapter Modules ..................................D-9

Clearance and Creepage Distances for ISDN BRI and Serial Adapter Modules ..........D-9

Index

114200 Rev. A

Page 16

Page 17

Figures

Figure 1-1. Accessories in the ARN Shipping Container ...........................................1-3

Figure 1-2. Attaching Flange Brackets to Rack-Mount the ARN ................................1-7

Figure 1-3. Installing the ARN in an Electronic Enclosure Rack ................................1-8

Figure 1-4. ARN Module Locations ............................................................................1-9

Figure 1-5. Connecting an AUI Cable .......................................................................1-11

Figure 1-6. Connecting a 10Base-T Ethernet Cable ................................................1-12

Figure 1-7. Connecting a Token Ring STP Cable .....................................................1-13

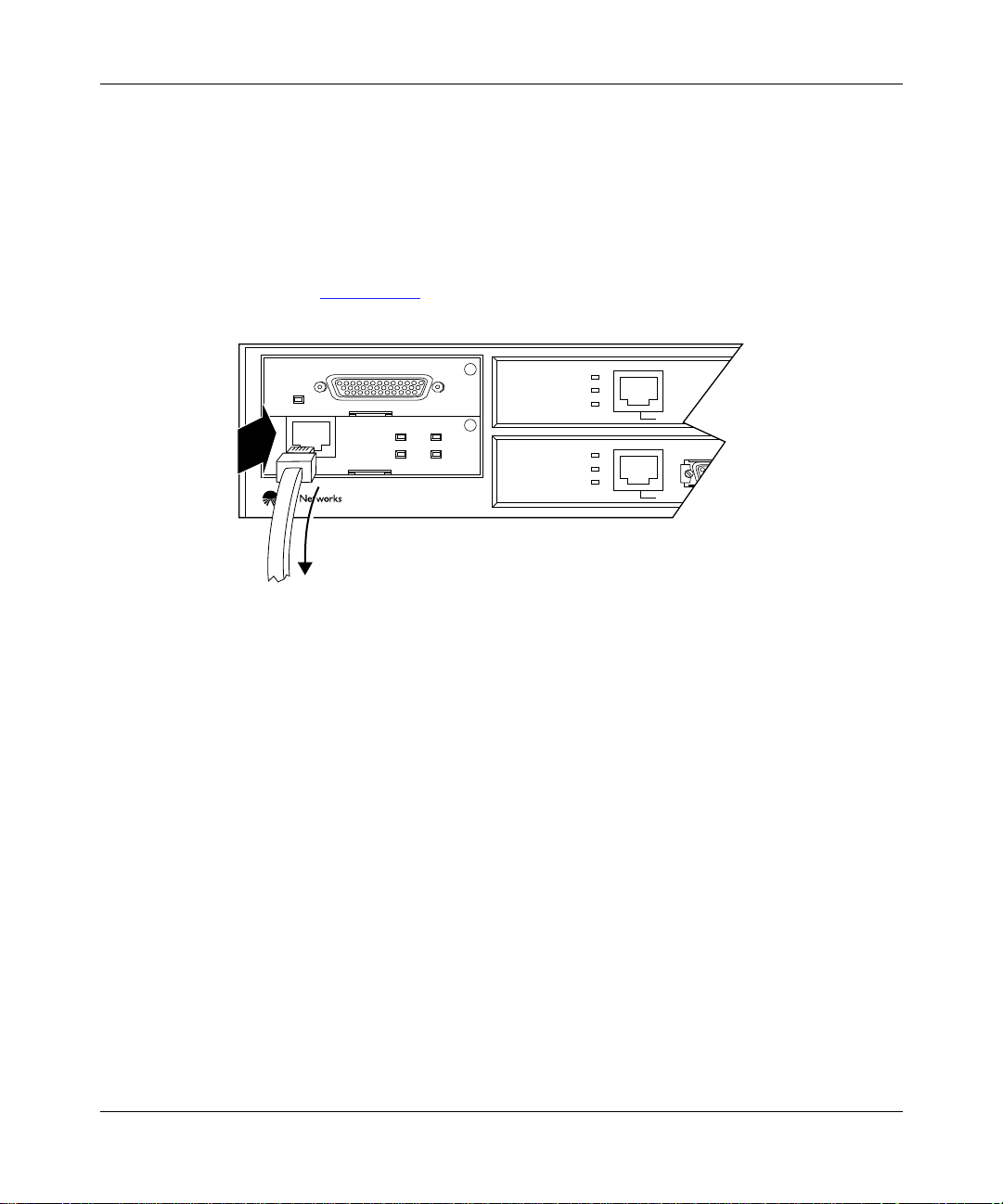

Figure 1-8. Connecting Token Ring UTP Cables ......................................................1-14

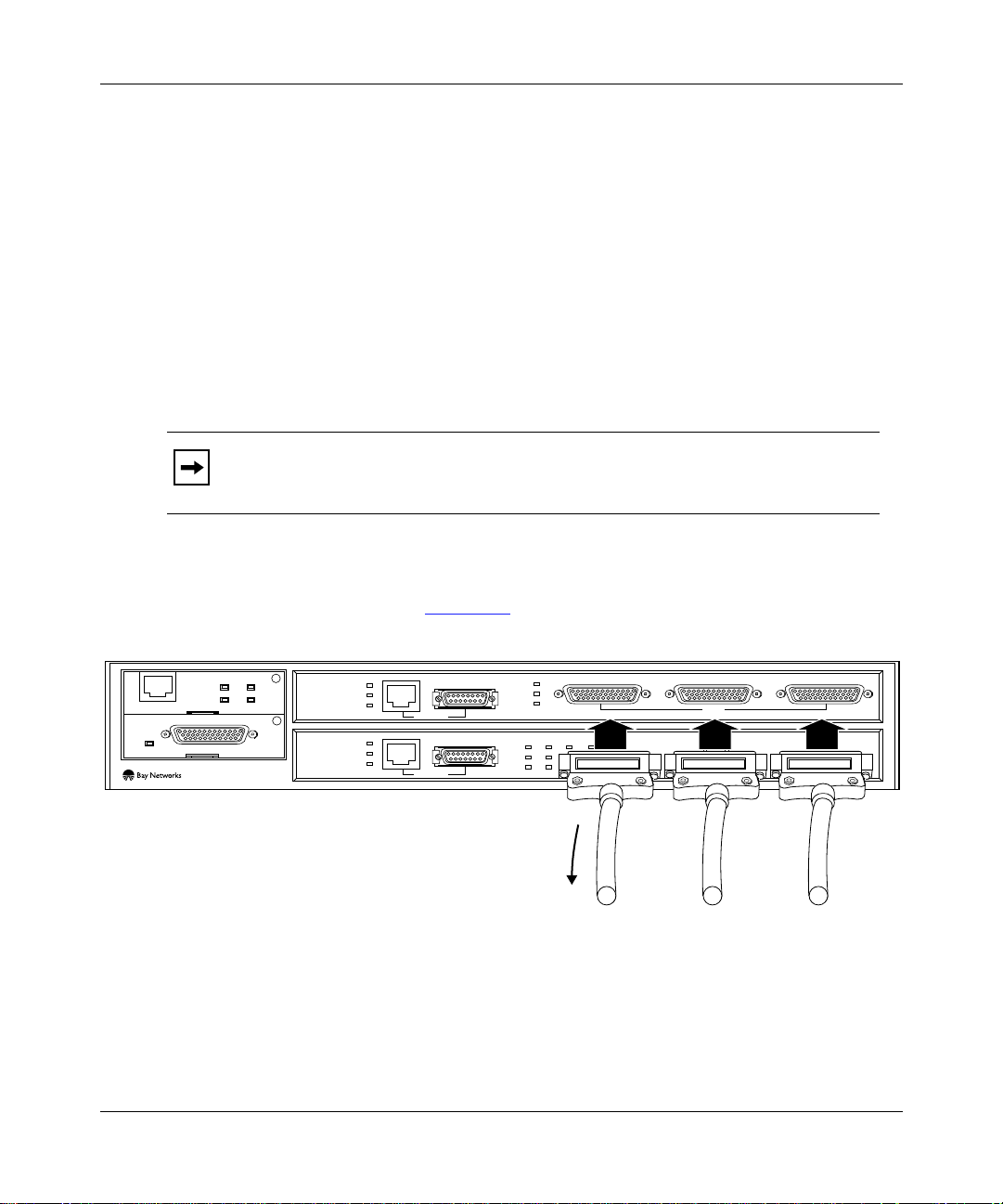

Figure 1-9. Connecting Serial Cables to an Expansion Module ...............................1-15

Figure 1-10. Connecting a Serial Cable to a Serial Adapter Module .........................1-16

Figure 1-11. Connecting an ISDN BRI Cable .............................................................1-17

Figure 1-12. Connecting a DSU/CSU Cable ..............................................................1-18

Figure 1-13. Connecting an RJ-11Cable ....................................................................1-20

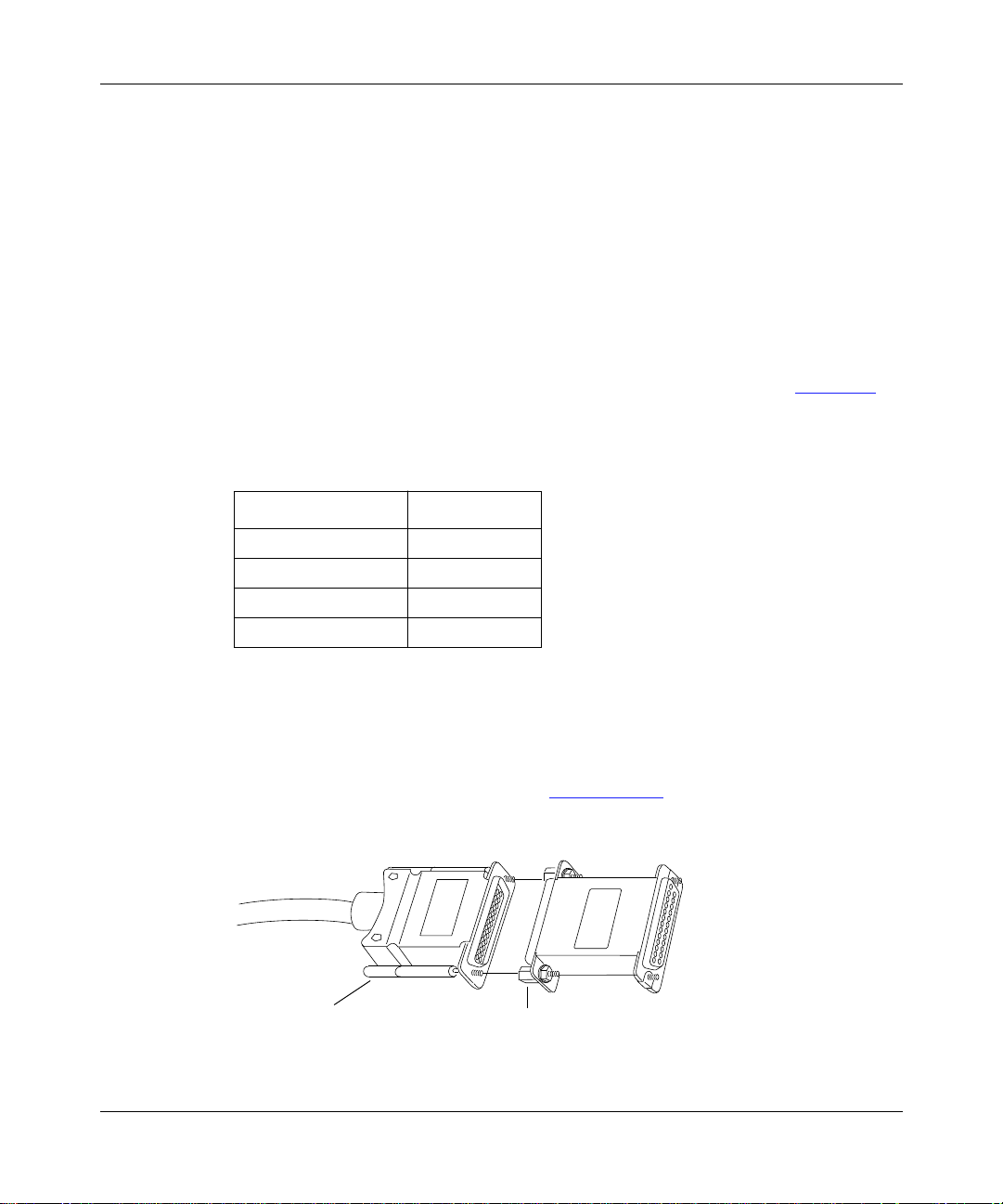

Figure 1-14. Attaching the Null Modem Adapter ........................................................1-21

Figure 1-15. Connecting a Terminal Console to an ARN ...........................................1-22

Figure 1-16. Connecting a PC Console to an ARN ....................................................1-23

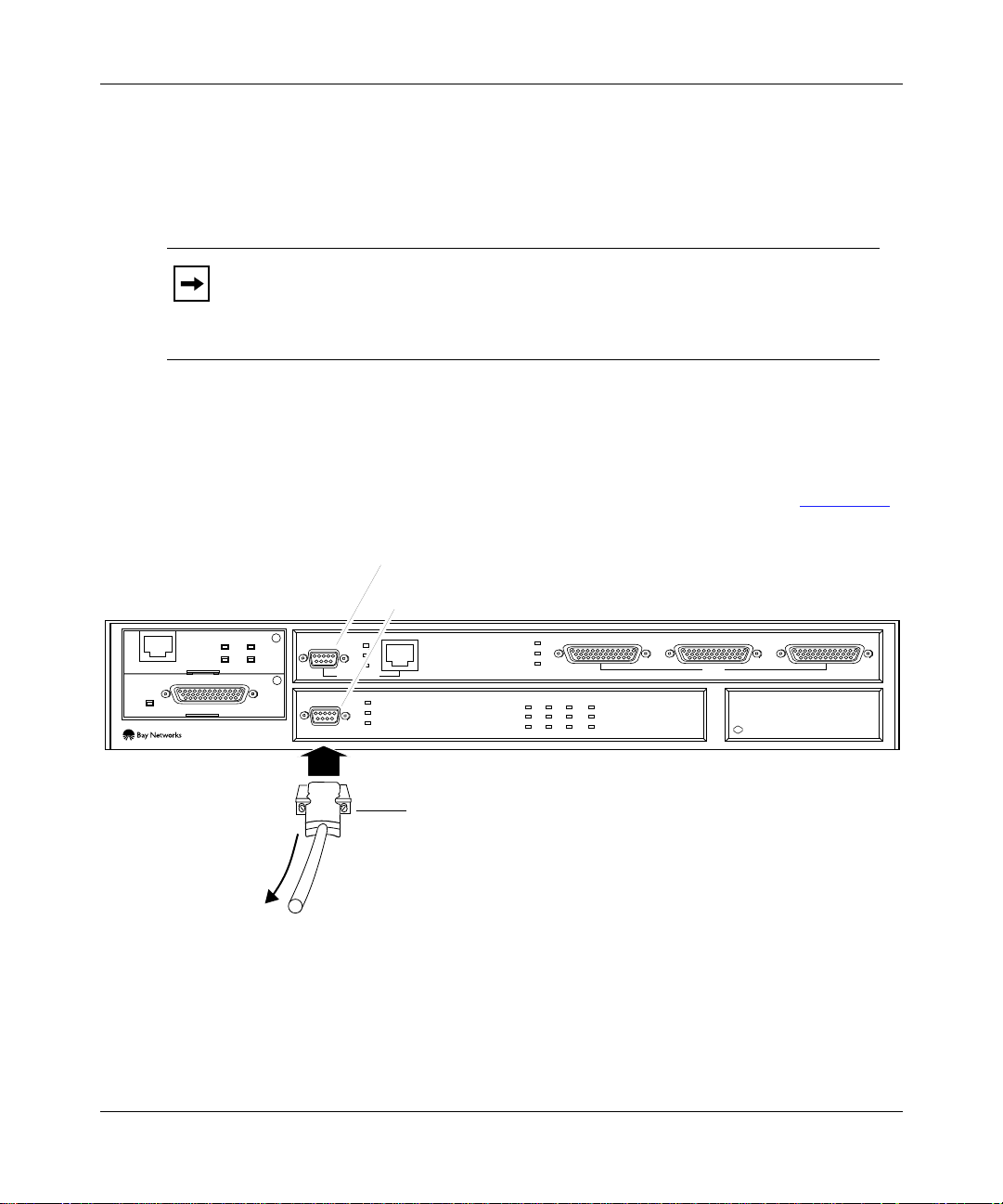

Figure 1-17. Connecting a Modem to an ARN ...........................................................1-25

Figure 1-18. Connecting the Power Cable .................................................................1-27

Figure 1-19. Flash Memory Card ...............................................................................1-28

Figure 1-20. Inserting the Flash Memory Card in the ARN Receptacle .....................1-29

Figure 2-1. Verifying the Interface Conﬁguration ........................................................2-9

Figure 2-2. Verifying Directed Netboot Conﬁguration ...............................................2-13

Figure 3-1. ARN Base Module Diagnostic LEDs ........................................................3-2

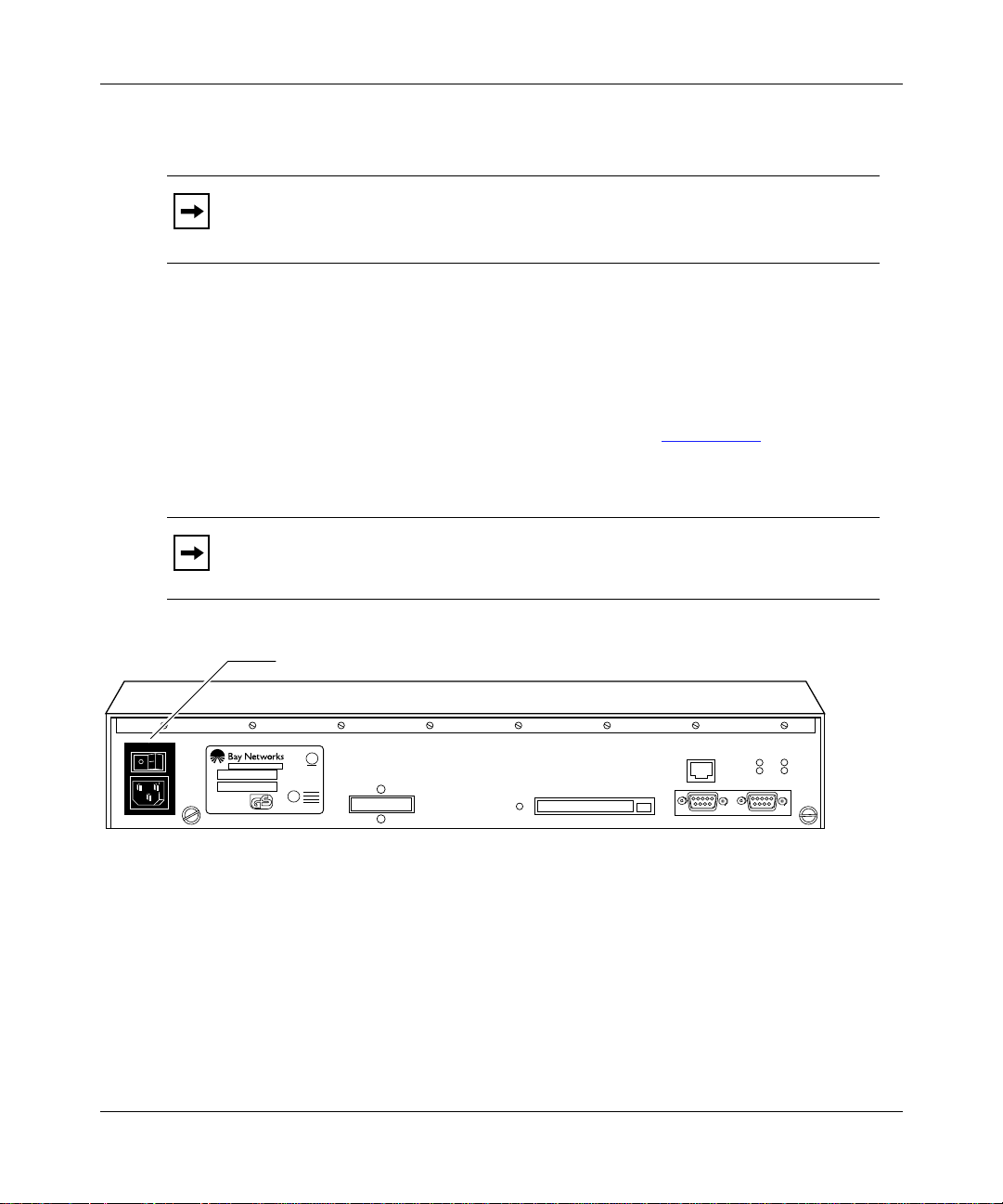

Figure 3-2. ARN Power Switch .................................................................................3-10

Figure 3-3. ARN Reset Button ..................................................................................3-11

Figure 3-4. Removing an ARN Flash Memory Card ................................................3-12

Figure 3-5. Memory Card Read/Write Protect Switch ..............................................3-13

Figure B-1. ARN Module Locations ........................................................................... B-2

Figure B-2. Starting the IP Interface Test ................................................................. B-17

114200 Rev. A

xvii

Page 18

Figure D-1. Cable 7837 (V.28 Compliant) ..................................................................D-3

Figure D-2. Cable 7220 (V.35 Compliant) ..................................................................D-4

Figure D-3. Cable 7224 (X.21 Compliant) ..................................................................D-6

Figure D-4. Clearance and Creepage Distances for ISDN BRI and

Serial Adapter Modules ........................................................................ D-10

xviii

114200 Rev. A

Page 19

Tables

Table 1-1. Installation Space Requirements .............................................................1-5

Table 1-2. V.34 Modem Adapter Module Defaults ..................................................1-19

Table 1-3. Console Parameters ..............................................................................1-21

Table 1-4. External Modem Parameters .................................................................1-24

Table 1-5. Back-Panel V.34 Modem Defaults ..........................................................1-26

Table 2-1. Summary of Initial Startup Options ..........................................................2-2

Table 2-2. Your ifconﬁg Command -- Netboot ...........................................................2-8

Table 2-3. Your ifconﬁg Command -- Directed Netboot ..........................................2-11

Table 2-4. Your bconﬁg Commands ........................................................................2-12

Table 3-1. Base Module Diagnostic LEDs ................................................................3-3

Table 3-2. Base Module Ethernet LEDs ...................................................................3-4

Table 3-3. Base Module Token Ring LEDs ...............................................................3-4

Table 3-4. Expansion Module Ethernet LEDs ...........................................................3-5

Table 3-5. Expansion Module Token Ring LEDs .......................................................3-5

Table 3-6. Expansion Module Serial LEDs ...............................................................3-6

Table 3-7. Serial LED ................................................................................................3-6

Table 3-8. ISDN BRI LEDs ........................................................................................3-7

Table 3-9. DSU/CSU LEDs .......................................................................................3-7

Table 3-10. V.34 Modem LEDs ...................................................................................3-8

Table 3-11. Boot Status LEDs .....................................................................................3-9

Table A-1. ifconﬁg Command Settings for a COM Interface .....................................A-2

Table A-2. ifconﬁg Command Settings for an Ethernet Interface ............................. A-4

Table A-3. ifconﬁg Command Settings for a Token Ring Interface ........................... A-5

Table A-4. ifconﬁg Settings to Enable and Disable Netboot Interfaces .................... A-6

Table A-5. bconﬁg Command Settings ..................................................................... A-7

Table B-1. Quick-Start Connector Names and Numbers ......................................... B-2

Table B-2. Quick-Start Commands ........................................................................ B-16

Table C-1. ARN Wall Outlet Requirements ...............................................................C-2

Table C-2. Network Interfaces Available on ARNs ................................................... C-4

114200 Rev. A

xix

Page 20

Table C-3. AUI Pin Assignments ..............................................................................C-5

Table C-4. 10Base-T Interface Pin Assignments ......................................................C-6

Table C-5. Token Ring STP Interface Pin Assignments ........................................... C-7

Table C-6. Token Ring UTP Interface Pin Assignments ...........................................C-8

Table C-7. Serial Interface Pin Assignments ............................................................ C-9

Table C-8. ISDN BRI U Interface Pin Assignments ................................................ C-10

Table C-9. ISDN BRI S/T Interface Pin Assignments ............................................. C-11

Table C-10. DSU/CSU Interface Pin Assignments ................................................... C-12

Table C-11. V.34 Interface Pin Assignments ............................................................ C-13

Table C-12. Local Console Port DB-9 Pin Assignments ...........................................C-14

Table C-13. Service Modem Port DB-9 Pin Assignments ........................................C-15

Table D-1. Safety Status (Order Nos. CV1001001, CV1001002, CV1001003,

CV1001004, CV1001005) ....................................................................... D-1

Table D-2. Safety Status (Order Nos. CV1101001, CV1101002, CV1101003,

CV1101004, CV1101005) ....................................................................... D-2

Table D-3. Safety Status (Order Nos. CV0004011, CV0004012, CV0004013,

CV0004014, CV0004015) ....................................................................... D-2

Table D-4. WAN Interface (Order No. 7837) .............................................................D-3

Table D-5. V.35 Interface (Order No. 7220) ..............................................................D-5

Table D-6. X.21 Interface (Order No. 7224) ..............................................................D-6

Table D-7. Safety Status (Order No. CV0004001) ....................................................D-7

Table D-8. ISDN BRI Safety Status (Order No. CV0004002) ................................... D-8

Table D-9. ISDN Connector Pinouts .........................................................................D-8

Table D-10. ISDN BRI Power Requirements .............................................................. D-9

Table D-11. Clearance and Creepage Distances for ISDN BRI and

Serial Adapter Modules ........................................................................ D-10

114200 Rev. A

Page 21

About This Guide

This guide explains how to install, start, and operate a BayStack™ Advanced Remote Node™ (ARN™) router, including instructions to

• Physically install the ARN

• Attach communications equipment

• Connect the ARN to the network using one of the software conﬁguration options

• Use the ARN operator switches and interpret LED displays

Before Y ou Begin

Before using this guide, you must coordinate with the network administrator for the ARN that you are installing.

Conventions

angle brackets (< >) Indicate that you choose the text to enter based on the

bold text

brackets ([ ]) Indicate optional elements. You can choose none, one,

114200 Rev. A

description inside the brackets. Do not type the brackets when entering the command.

ping

Example: if command syntax is you enter

Indicates text that you need to enter command names in text. Example: Use the

or all of the options.

ping 192.32.10.12

dinfo

command.

<ip_address>

xxi

Page 22

Installing and Operating BayStack ARN Routers

Acronyms

italic text

Indicates variable values in command syntax descriptions, new terms, ﬁle and directory names, and

book titles. quotation marks (“ ”) Indicate the title of a chapter or section within a book. separator ( > ) Separates menu and option names in instructions and

internal pin-to-pin wire connections.

Example: Protocols > AppleTalk identiﬁes the

AppleTalk option in the Protocols menu.

Example: Pin 7 > 19 > 20

screen text

Indicates data that appears on the screen.

Example:

Set Bay Networks Trap Monitor Filters

vertical line (|) Indicates that you enter only one of the parts of the

command. The vertical line separates choices. Do not

type the vertical line when entering the command.

Example: If the command syntax is

show at routes

nets

, you enter either

show at nets

, but not both.

xxii

ANSI American National Standards Institute AUI Attachment Unit Interface BootP Bootstrap Protocol BRI Basic Rate Interface CCITT (now ITU-T) CSMA/CD carrier sense multiple access with collision detection CSU channel service unit CTS clear to send DCD data carrier detect DCE data communications equipment DCM Data Collection Module DLCMI Data Link Control Management Interface DSR data set ready DSU data service unit

114200 Rev. A

Page 23

About This Guide

DTE data terminal equipment DTR data terminal ready EIA Electronic Industries Association GUI graphical user interface HDLC high-level data link control IEEE Institute of Electrical and Electronic Engineers IP Internet Protocol ISDN Integrated Services Digital Network ISO International Organization for Standardization ITU-T International T elecommunications Union–Telecommunications LED light-emitting diode LMI Local Management Interface MAC media access control MAU media access unit NBMA nonbroadcast multi-access NEMA National Electrical Manufacturers Association NVFS Nonvolatile File System OSI Open Systems Interconnection OSPF Open Shortest Path First Protocol PCMCIA Personal Computer Memory Card International Association PPP Point-to-Point Protocol RIP Routing Information Protocol RLSD received line signal detection RTS request to send SMDS switched multimegabit data service SNMP Simple Network Management Protocol SQE signal quality error STP shielded twisted-pair TCP/IP Transmission Control Protocol/Internet Protocol TELNET Telecommunication Network TFTP Trivial File Transfer Protocol TPE twisted-pair Ethernet UTP unshielded twisted-pair

114200 Rev. A

xxiii

Page 24

Installing and Operating BayStack ARN Routers

Ordering Bay Networks Publications

To purchase additional copies of this document or other Bay Networks publications, order by part number from the Bay Networks Press telephone or fax numbers:

• Telephone - U.S./Canada 1-888-4BAYPRESS

• Telephone - International 1-510-490-4752

• Fax 1-510-498-2609 You can also use these numbers to request a free catalog of Bay Networks Press

product publications.

™

at the following

xxiv

114200 Rev. A

Page 25

Technical Support and Online Services

To ensure comprehensive network support to our customers and partners worldwide, Bay Networks Customer Service has Technical Response Centers in key locations around the globe:

• Billerica, Massachusetts

• Santa Clara, California

• Sydney, Australia

• Tokyo, Japan

• Valbonne, France

114200 Rev. A

The Technical Response Centers are connected via a redundant Frame Relay Network to a Common Problem Resolution system, enabling them to transmit and share information, and to provide live, around-the-clock support 365 days a year.

Bay Networks Information Services complement the Bay Networks Service program portfolio by giving customers and partners access to the most current technical and support information through a choice of access/retrieval means. These include the World W ide Web, CompuServ e, Support Source CD, Customer Support FTP, and InfoFACTS document fax service.

xxv

Page 26

Installing and Operating BayStack ARN Routers

Bay Networks Customer Service

If you purchased your Bay Networks product from a distributor or authorized reseller, contact that distributor’s or reseller’s technical support staf f for assistance with installation, conﬁguration, troubleshooting, or integration issues.

Customers can also purchase direct support from Bay Networks through a variety of service programs. As part of our PhonePlus™ program, Bay Netw orks Service sets the industry standard, with 24-hour, 7-days-a-week telephone support available worldwide at no extra cost. Our complete range of contract and noncontract services also includes equipment staging and integration, installation support, on-site services, and replacement parts delivery -- within approximately 4 hours.

To purchase any of the Bay Networks support programs, or if you have questions on program features, use the following numbers:

Region Telephone Number Fax Number

United States and Canada

1-800-2LANWAN; enter Express Routing Code (ERC) 290 when prompted

(508) 670-8766

xxvi

(508) 436-8880 (direct) Europe (33) 92-968-300 (33) 92-968-301 Asia/Paciﬁc Region (612) 9927-8800 (612) 9927-8811 Latin America (407) 997-1713 (407) 997-1714

In addition, you can receive information on support programs from your local Bay Networks ﬁeld sales ofﬁce, or purchase Bay Networks support directly from your authorized partner.

114200 Rev. A

Page 27

Bay Networks Information Services

Bay Networks Information Services provide up-to-date support information as a ﬁrst-line resource for network administration, expansion, and maintenance. This information is available from a variety of sources.

W orld Wide Web

The Bay Networks Customer Support Web Server offers a diverse library of technical documents, software agents, and other important technical information to Bay Networks customers and partners.

A special beneﬁt for contracted customers and resellers is the ability to access the Web Server to perform Case Management. This feature enables your support staff to interact directly with the network experts in our worldwide Technical Response Centers. A registered contact with a valid Site ID can

• View a listing of support cases and determine the current status of any open case. Case history data includes severity designation, and telephone, e-mail, or other logs associated with the case.

Technical Support and Online Services

• Customize the listing of cases according to a variety of criteria, including date, severity, status, and case ID.

• Log notes to existing open cases.

• Create new cases for rapid, efﬁcient handling of noncritical network situations.

• Communicate directly via e-mail with the speciﬁc technical resources assigned to your case.

The Bay Networks URL is menu item on that home page.

Customer Service FTP

Accessible via URL combines and organizes support ﬁles and documentation from across the Bay Networks product suite, including switching products from our Centillion™ and Xylogics site lets you quickly locate information on any of your Bay Networks products.

114200 Rev. A

http://www.baynetworks.com

ftp://support.baynetworks.com

. Customer Service is a

(134.177.3.26), this site

business units. Central management and sponsorship of this FTP

xxvii

Page 28

Installing and Operating BayStack ARN Routers

Support Source CD

This CD-ROM -- sent quarterly to all contracted customers -- is a complete Bay Networks Service troubleshooting knowledge database with an intelligent text search engine.

The Support Source CD contains extracts from our problem-tracking database; information from the Bay Networks Forum on CompuServe; comprehensive technical documentation, such as Customer Support Bulletins, Release Notes, software patches and ﬁxes; and complete information on all Bay Networks Service programs.

You can run a single version on Macintosh Windows 3.1, Windows 95, Windows NT, DOS, or UNIX computing platforms. A Web links feature enables you to go directly from the CD to various Bay Networks Web pages.

CompuServe

For assistance with noncritical network support issues, Bay Networks Information Services maintain an active forum on CompuServe, a global bulletin-board system. This forum provides ﬁle services, technology conferences, and a message section to get assistance from other users.

xxviii

The message section is monitored by Bay Networks engineers, who provide assistance wherever possible. Customers and resellers holding Bay Networks service contracts also have access to special libraries for advanced levels of support documentation and software. To take advantage of CompuServe’ s recently enhanced menu options, the Bay Networks Forum has been re-engineered to allow links to our Web sites and FTP sites.

We recommend the use of CompuServe Information Manager software to access these Bay Networks Information Services resources. To open an account and receive a local dial-up number in the United States, call CompuServe at 1-800-524-3388. Outside of the United States, call 1-614-529-1349, or your nearest CompuServe ofﬁce. Ask for Representative No. 591. When you’re on line with your CompuServe account, you can reach us with the command GO BAYNET.

114200 Rev. A

Page 29

InfoFACTS

InfoFACTS is the Bay Networks free 24-hour fax-on-demand service. This automated system has libraries of technical and product documents designed to help you manage and troubleshoot your Bay Networks products. The system responds to a fax from the caller or to a third party within minutes of being accessed.

To use InfoFACTS in the United States or Canada, call toll-free 1-800-786-3228. Outside of North America, toll calls can be made to 1-408-764-1002. In Europe, toll-free numbers are also available for contacting both InfoFACTS and CompuServe. Please check our Web page for the listing in your country.

How to Get Help

Use the following numbers to reach your Bay Networks Technical Response Center:

Technical Response Center Telephone Number Fax Number

Billerica, MA 1-800-2LANWAN (508) 670-8765 Santa Clara, CA 1-800-2LANWAN (408) 764-1188 Valbonne, France (33) 92-968-968 (33) 92-966-998 Sydney, Australia (612) 9927-8800 (612) 9927-8811 Tokyo, Japan (81) 3-5402-0180 (81) 3-5402-0173

Technical Support and Online Services

114200 Rev. A xxix

Page 30

Page 31

Chapter 1

Installing the BayStack Advanced Remote Node

This chapter describes how to install the BayStack ARN. Topics include the following:

• Preparing to install the ARN

• Installing the ARN

• Connecting communication cables

• Connecting a management console

• Connecting a modem

• Connecting the power cable

• Installing the Flash memory card

Note: The installation instructions in this chapter assume that wiring is

already installed on the premises using common cable system practices. Your exact installation procedure may differ slightly, depending on your particular cable system.

114200 Rev. A 1-1

Page 32

Installing and Operating BayStack ARN Routers

Preparing to Install the ARN

Verify the following before beginning the installation, as explained in the sections that follow:

• Your shipment is complete and undamaged.

• You have the proper equipment and tools.

• Your installation site meets physical, electrical, and environmental requirements.

• You have the communications devices and the cabling that you need to attach to the ARN.

Verifying Shipment Contents

We strongly suggest that you inspect all items for shipping damage. If you detect any damage, do not install the ARN. Call the Bay Networks Technical Response Center in your area, as described in “About This Guide.”

In addition to the ARN and this manual, your shipping container should contain several other hardware accessory items. Verify that the items in the shipping container match those on the packing list.

Note: You can ﬁnd the packing list afﬁxed to the shipping container.

Refer to the following checklist when verifying the contents of the shipping container:

__ One power cable for connecting the ARN to a wall outlet. __ One cable kit (Order No. 110310) for connecting an optional local console or

modem. The console/modem cable kit contains one 15-foot AT standard molded serial cable (with DB-9 receptacle to DB-25 plug connectors) and one null modem crossover adapter (with DB-25 to DB-25 receptacle connectors).

__ Two ﬂange brackets and eight #6 ﬂathead screws. __ Four #10 cagenut screws and washers for rack-mounting the ARN. __ Four rubber feet (for table-top operation).

1-2 114200 Rev. A

Page 33

Installing the BayStack Advanced Remote Node

Figure 1-1 illustrates the ARN shipping accessories.

Power cable

Console/modem cable (DB-9 receptacle to DB-25 plug cable)

DB-25 receptacle null modem adapter

Two flange brackets

Eight #6 flathead screws

Four cagenuts

Four #10 cagenut screws and washers

Four rubber feet

ARN0048A

Figure 1-1. Accessories in the ARN Shipping Container

114200 Rev. A 1-3

Page 34

Installing and Operating BayStack ARN Routers

Supplying Equipment

You may need items that are not part of the ARN accessory package. Before installing the ARN hardware, ensure that you have all the cables, tools, and other equipment that you need.

Cables

Unless they were speciﬁcally ordered, the cables necessary for your network conﬁguration are not part of the ARN accessory package. If you do not have the proper cables, contact your network administrator or see the Cable Guide for

Routers and BNX Platforms.

Service Console

You can attach an optional VT-100 console (or equiv alent) to the ARN to monitor the results of startup diagnostics and perform manual boot conﬁgurations. Or you can attach any AT-compatible modem to allow remote dial-in access to diagnostics and conﬁguration.

Note: To use the Netboot, Directed Netboot, or Local Boot conﬁguration

options (see Chapter 3), you must have a local terminal connected the ﬁrst time the ARN powers up.

Mounting Hardware

To rack-mount the ARN, you need a Phillips screwdriver and an electronic enclosure rack that meets the following speciﬁcations:

• Heavy-duty steel construction

• Electronic Industries Association (EIA) standard hole-spacing

• Width of 19 in. (48.26 cm) and depth of 24 in. (60.96 cm)

If the rack does not have threaded rail holes, you must use cagenuts (see

igure 1-1) to use with the cagenut screws.

1-4 114200 Rev. A

Page 35

Verifying Site Requirements

The installation site must provide a certain amount of free space around the ARN to dissipate heat, as detailed in T

Table 1-1. Installation Space Requirements

Width Depth (minimum) Depth (for servicing)

22.5 in. (57.2 cm) 15 in. (38.1 cm) 25 in. (63.5 cm)

In addition, the installation site must meet the electrical and environmental speciﬁcations listed in Appendix C.

Caution: You must use grounded electrical power outlets with the ARN.

Installing the ARN

Installing the BayStack Advanced Remote Node

able 1-1.

Once you are ready to install the ARN in its ﬁnal location, you can

• Position the ARN on a ﬂat, sturdy, horizontal surface.

• Mount the ARN in an electronic enclosure rack.

Positioning the ARN on a Flat Surface

When positioning the ARN on a ﬂat surface, make sure that the surface is

• Large enough for the ARN to operate properly

• Sturdy enough to support the combined weight of the ARN and any cables that you connect

We recommend that you place the self-adhesive, rubber feet on the bottom of the ARN chassis (shipped with the ARN). These feet not only protect the surface on which you position the ARN, they provide added friction against the weight of any cables that you attach to the device.

114200 Rev. A 1-5

Page 36

Installing and Operating BayStack ARN Routers

Rack-Mounting the ARN

For this procedure, you need

• Four #10 cagenut screws and washers (shipped with the ARN)

• Two ﬂange brackets and eight #6 ﬂathead screws (shipped with the ARN)

• A Phillips screwdriver

• An electronic enclosure rack

Note: If the rack does not have threaded rail holes, you must supply and attach

four cagenuts.

To rack-mount the ARN:

1. Attach a ﬂange bracket to both sides of the ARN.

On each side of the chassis:

a. Align the holes in the longer end of the ﬂange bracket with the

mounting holes near the front panel of the ARN (F

igure 1-2).

b. Insert a #6 ﬂathead screw through each hole and into the ARN. c. Tighten the four screws with a Phillips screwdriver.

1-6 114200 Rev. A

Page 37

Installing the BayStack Advanced Remote Node

RLSD3

RLSD4

RLSD5

Base

Pwr

Run

Adapter1

RPS

Boot

Adapter2

Fan

Fail

Screws (8 places)

Expansion

DCM

PCMCIA

BayStack Advanced Remote Node

ISDN BRI

withNT1

RLSD

Alternative bracket position (2 places)

ARN0004A

Figure 1-2. Attaching Flange Brackets to Rack-Mount the ARN

Align the holes in the shorter end of the ﬂange bracket with the holes in

the front vertical supports of the rack (F

114200 Rev. A 1-7

igure 1-3).

Page 38

Installing and Operating BayStack ARN Routers

ISDN BRI

withNT1

COM

RLSD

Serial

10BaseT

Ethernet 2

10BaseT

Ethernet 1

Cagenut screw (4 places)

Rail without threaded holes

RLSD3

AUI

COM3 COM4 COM5

RLSD4

RLSD5

Run

Pwr

Base

Expansion

Boot

RPS

Adapter1

DCM

Fail

Fan

Adapter2

PCMCIA

Serial

BayStack Advanced Remote Node

Use cagenut

ARN0005A

Figure 1-3. Installing the ARN in an Electronic Enclosure Rack

Insert a cagenut screw through each bracket hole and into the

corresponding holes in the rack.

4. Tighten each cagenut screw with a Phillips screwdriver.

1-8 114200 Rev. A

Page 39

Installing the BayStack Advanced Remote Node

Understanding the ARN Module Locations

The ARN is designed to scale to your needs. In addition to either an Ethernet or token ring base module, the ARN can contain an optional expansion module and up to two adapter modules (F

igure 1-4).

Adapter modules

ISDN BRI

withNT1

RLSD

COM

Serial

STP

RCVR

NSRT

WFLT

Token Ring 2

UTP

10BaseT

Ethernet 1

Figure 1-4. ARN Module Locations

The ARN is available in the following base module conﬁgurations:

• One Ethernet AUI and Ethernet 10Base-T interface

• One Token Ring interface (STP only)

The ARN supports the following expansion modules:

• One Ethernet AUI and Ethernet 10Base-T interface

• One Token Ring interface (STP and UTP)

• Three serial interfaces

• One Ethernet AUI and Ethernet 10Base-T interface and three serial interfaces

• One Token Ring interface (STP and UTP) and three serial interfaces

Expansion module

RLSD3

RLSD4

RLSD5

AUI

Run

Boot

Fail

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

Base module

BayStack Advanced Remote Node

ARN0006A

Note: The Ethernet base and expansion modules can also contain an optional

data collection module (DCM). The DCM gathers Ethernet statistics for a remote monitoring (RMON) utility. Your network administrator can refer to Conﬁguring Remote Access for additional information about how to enable and use the DCM.

114200 Rev. A 1-9

Page 40

Installing and Operating BayStack ARN Routers

The ARN also supports up to two of the following adapter modules:

• Single serial interface

• Single ISDN BRI S/T interface

• Single ISDN BRI U interface

• Single V.34 modem adapter interface

• Single 56/64K DSU/CSU interface

Connecting Communications Cables

Gather the communications equipment and cabling that you will attach to the ARN. If you do not have the proper cables, contact your network administrator or see the Cable Guide for Routers and BNX Platforms.

Note: Refer to Appendix C, later in this manual, for ARN cable interface

descriptions.

Connecting to an Ethernet Interface

You can connect an Ethernet cable to any ARN base or expansion module that contains an Ethernet interface option. Each Ethernet interface option offers two Ethernet interface types -- an AUI transceiver interface or a 10Base-T interface.

Note: You can use only one Ethernet interface on an ARN base or expansion

module at any time. For example, you can connect to either the AUI transceiver interface or the 10Base-T interface on a base module, but you cannot use both interfaces at the same time.

1-10 114200 Rev. A

Page 41

Installing the BayStack Advanced Remote Node

Connecting to an AUI Interface

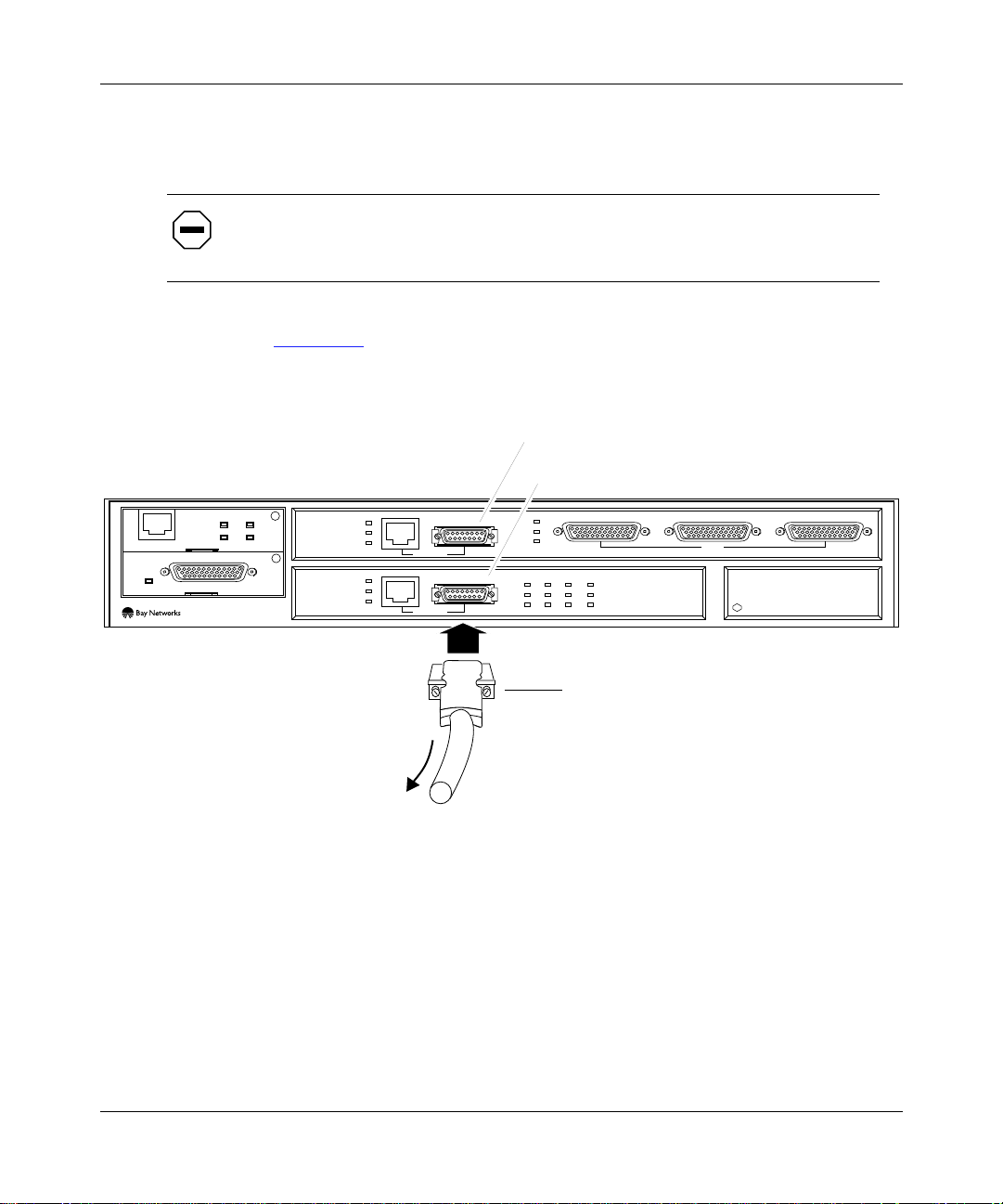

To connect an Ethernet AUI transceiver cable to an AUI interface:

Caution: Connecting the ARN AUI interface directly to the AUI interface on

an Ethernet station violates IEEE 802.3 standards. The AUI interface is designed only for connection to a transceiver.

1. Connect an Ethernet AUI drop cable to the interface labeled AUI

igure 1-5).

The cable must have a 15-position D-SUB receptacle.

Expansion module AUI interface

Base module AUI interface

ISDN BRI

withNT1

RLSD

COM

Serial

10BaseT

To Ethernet transceiver

Ethernet 2

Ethernet 1

Figure 1-5. Connecting an AUI Cable

Secure the AUI cable using the slide lock on the interface.

3. Connect the other end of the cable to an Ethernet transceiver.

AUI

RLSD3

RLSD4

RLSD5

Run

Boot

Diag

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

Ethernet AUI drop cable

ARN0063A

114200 Rev. A 1-11

Page 42

Installing and Operating BayStack ARN Routers

Connecting to a 10Base-T Interface

To connect an unshielded twisted-pair (UTP) cable to the base module or expansion module 10Base-T interface, insert the UTP jack into the RJ-45 interface, as shown in F

igure 1-6.

Expansion module 10Base-T interface

Base module 10Base-T interface

ISDN BRI

withNT1

RLSD

COM

Serial

To Ethernet network

10BaseT

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Pwr

Boot

RPS

Diag

Fan

Ethernet 10Base-T cables

Figure 1-6. Connecting a 10Base-T Ethernet Cable

COM3 COM4 COM5

Serial

Base

Expansion

Adapter1

DCM

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0062A

1-12 114200 Rev. A

Page 43

Installing the BayStack Advanced Remote Node

Connecting to a Token Ring Interface

You can connect a token ring cable to any ARN base module or expansion module that contains a token ring interface option. Each of these interface options offers two token ring interface types -- an STP interface or a UTP interface.

Note: You can use only one token ring interface on an ARN base or expansion

module at any time. For example, you can connect to either the STP interface or the UTP interface on a base module, but you cannot use both interfaces at the same time.

Connecting to an STP Token Ring Interface

To connect a token ring STP cable to the base module or expansion module token ring interface:

1. Attach the 9-pin D-SUB plug to the token ring STP interface (Figure 1-7).

Expansion module STP interface

Base module STP interface

ISDN BRI

withNT1

RLSD

COM

Serial

STP

Token Ring 1

RCVR

NSRT

WFLT

Token Ring 2

RCVR

NSRT

WFLT

UTP

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

Token Ring STP cables

To Token Ring network

ARN0068A

Figure 1-7. Connecting a Token Ring STP Cable

Secure the token ring cable using the capture screws.

114200 Rev. A 1-13

Page 44

Installing and Operating BayStack ARN Routers

Connecting to a UTP Token Ring Interface

T o connect a Token Ring UTP cable to the expansion module token ring interface, insert the RJ-45 connector into the UTP interface, as shown in F

igure 1-8.

Expansion module UTP interface

ISDN BRI

withNT1

RLSD

COM

Serial

STP

Token Ring 2

STP

Token Ring 1

RCVR

NSRT

WFLT

RCVR

NSRT

WFLT

To Token Ring network

UTP

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

Token Ring UTP cables

Figure 1-8. Connecting Token Ring UTP Cables

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0069A

1-14 114200 Rev. A

Page 45

Connecting to a Serial Interface

The ARN supports up to ﬁve serial interfaces. You can connect

• Up to three, 44-pin serial cables to an ARN that contains an Ethernet/tri-serial, Token Ring/tri-serial, or Tri-Serial expansion module

• One, 44-pin serial cable to each Serial adapter module (the ARN can support two)

To connect to a serial interface:

1. Locate the RS-232, RS-422, RS-530, V.28, V.35, or X.21 interface cable.

See the Cable Guide for Routers and BNX Platforms.

Note: The Cable Guide for Routers and BNX Platforms refers to serial cables

that transmit synchronous data as “synchronous” cables.

2. Connect the cable to a serial interface.

Installing the BayStack Advanced Remote Node

The serial interfaces on an ARN expansion module are labeled COM3, COM4, or COM5 (F

ISDN BRI

withNT1

RLSD

COM

Serial

Figure 1-9. Connecting Serial Cables to an Expansion Module

10BaseT

igure 1-9).

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

To RS-232, RS-422, RS-530, V.35, or X.21 interface

COM3 COM4 COM5

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

Serial

BayStack Advanced Remote Node

ARN0067A

114200 Rev. A 1-15

Page 46

Installing and Operating BayStack ARN Routers

10BaseT

Ethernet 1

10BaseT

Ethernet 2

On an ARN adapter module, the serial interface is labeled COM

igure 1-10).

ISDN BRI

RLSD

withNT1

COM

To RS-232, RS-422, RS-530, V.35, or X.21 interface

ARN0066A

Figure 1-10. Connecting a Serial Cable to a Serial Adapter Module

Secure the cable to the interface using the capture screws on the cable.

4. Connect the remote end of each cable to the appropriate communications

equipment.

1-16 114200 Rev. A

Page 47

10BaseT

Ethernet 1

10BaseT

Ethernet 2

Connecting to an ISDN Interface

You can connect an ISDN cable to any ARN that contains an ISDN BRI S/T or U adapter module.

To connect to an ISDN BRI interface:

1. Insert the ISDN cable into the ISDN BRI interface (Figure 1-11).

Installing the BayStack Advanced Remote Node

RLSD

ISDN BRI

To ISDN switch

withNT1

COM

Serial

ARN0064A

Figure 1-11. Connecting an ISDN BRI Cable

Connect the other end of the cable to the ISDN communications device.

114200 Rev. A 1-17

Page 48

Installing and Operating BayStack ARN Routers

DDS

TxD

RxD CDTest

56K/64K

DSU/CSU

10BaseT

Ethernet 1

10BaseT

Ethernet 2

COM

RLSD

Serial

Connecting to a DSU/CSU Interface

You can connect a DSU/CSU cable to any ARN that contains a DSU/CSU adapter module.

To connect to a DSU/CSU interface:

1. Insert the DSU/CSU cable connector into the DSU/CSU interface labeled

DDS (F

igure 1-12).

To digital line wall jack

ARN0065A

Figure 1-12. Connecting a DSU/CSU Cable

Connect the other end of the cable to a digital line (for example, a digital

line wall jack that connects to an ofﬁce channel unit [OCU]).

1-18 114200 Rev. A

Page 49

Installing the BayStack Advanced Remote Node

Connecting to a V.34 Modem Interface

You can connect an RJ-11 telephone cable to any ARN that contains a V.34 modem adapter module.

Note: The default settings for the front-panel V.34 modem adapter module

differ from the default settings for the back-panel V.34 modem. Refer to “Connecting to a V.34 Modem Module” earlier in this chapter for information about the V.34 modem adapter and its default settings.

Table 1-2 provides the default settings for the V.34 modem adapter module.

Table 1-2. V.34 Modem Adapter Module Defaults

Modem Signal/Parameter Value

Clear To Send (CTS) On Data Terminal Ready (DTR) Depends on the modem type. Set the modem to

Data Carrier Detect (DCD) or RLSD On while carrier is present (the ARN uses DCD to

Data Set Ready (DSR) On Ready to Send (RTS) Ignore Synchronous/Asynchronous Mode Asynchronous AutoAnswer Set on

Local Character Echo Off Supervisory Functions Off Baud Rate 28800 Data Bits 8 Stop Bits 1 Parity None

answer incoming calls when DTR is active.

detect modem connect and disconnect).

rings with DTR active (n must be greater

than 0).

114200 Rev. A 1-19

Page 50

Installing and Operating BayStack ARN Routers

COM

Telco

RLSD

DTR

RLSD

Serial

V.34 Modem

Console

Modem

TxRxRLSD

DTR

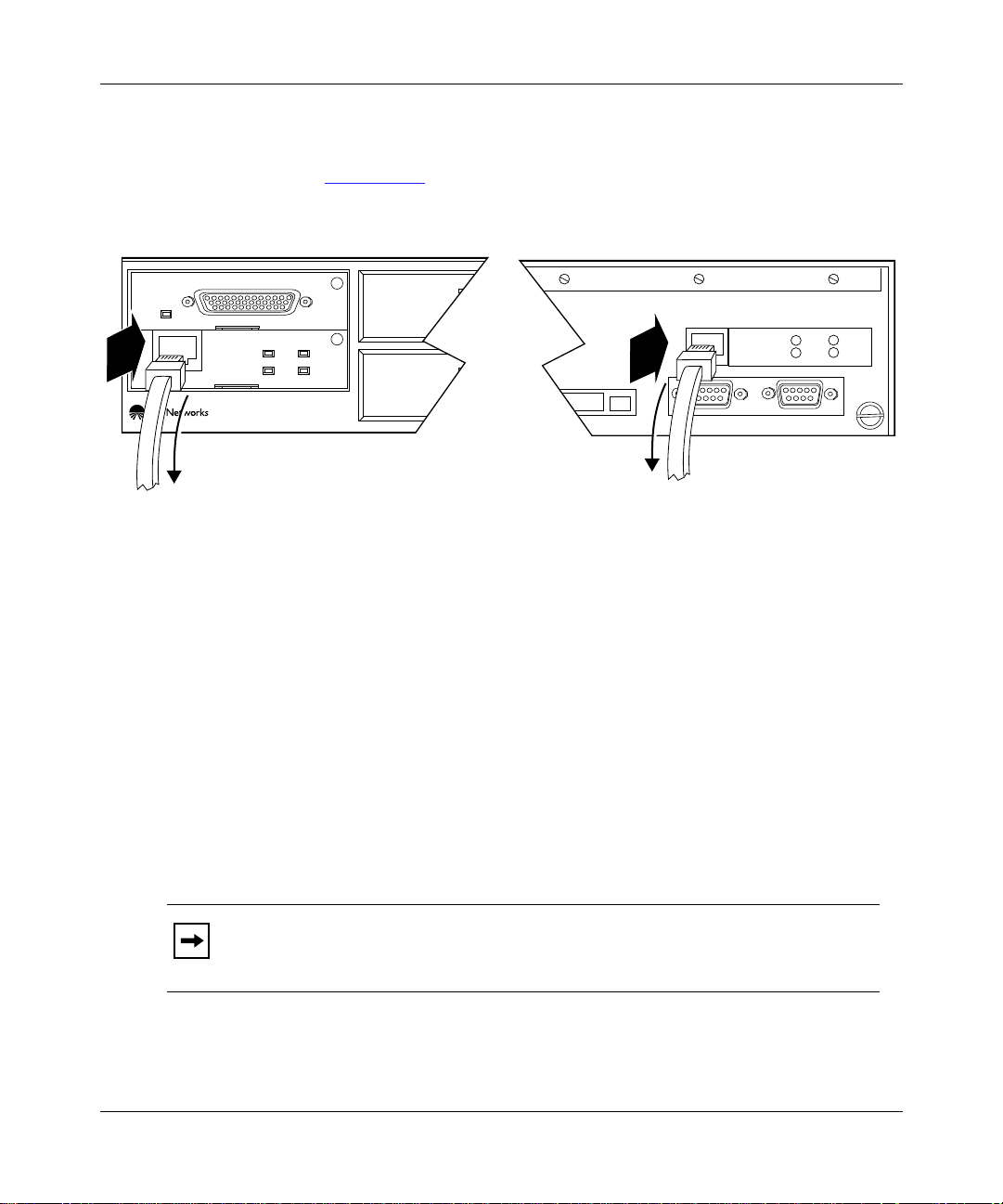

To connect to a V.34 modem interface:

1. Insert the RJ-11 telephone cable into the V.34 modem interface labeled

Telco (F

igure 1-13).

Front-panel V.34 Modem Interface

To RJ-11 telephone receptacle

ARN0071A

To RJ-11 telephone receptacle

Figure 1-13. Connecting an RJ-11Cable

Connect the other end of the cable to an analog telephone line (for

example, the telephone wall receptacle).

Connecting a Management Console

Use the back-panel console port to connect an ASCII-based terminal or a personal

computer terminal emulator to the ARN.

Back-panel V.34 Modem Interface

ARN0072A

Using a local terminal, you can monitor the results of startup diagnostics and set the boot conﬁguration. Using an attached modem, you can allow remote dial-in access to diagnostics.

Note: To use the Netboot, Directed Netboot, or Local Boot software

conﬁguration options, you must connect a console the ﬁrst time you power up the ARN, as described in Chapter 3.

1-20 114200 Rev. A

Page 51

Connecting a Terminal Console

You need both pieces in the ARN console/modem cable kit (Order No. 110310) to connect a terminal console:

• Order No. 110307 serial console/modem cable (with 9-pin receptacle to 25-pin plug connectors)

• Order No. 110308 null modem crossover adapter (with two 25-pin receptacle connectors)

Once you have the appropriate equipment, complete the following steps:

1. Power on and conﬁgure the console, using the parameters in Table 1-3.

Refer to the console user manual for instructions.

Table 1-3. Console Parameters

Parameter Value

Baud Rate 9600 Data Bits 8 Stop Bits 1 Parity None

Installing the BayStack Advanced Remote Node

2. Power off the console.

3. Attach the null modem crossover adapter to the 25-pin cable connector.

4. Insert the screw on the cable connector into the receptacle on the adapter

connector and tighten the screw (F

Console cable

Rotate to tighten screw

Screw receptacle

igure 1-14).

Null modem adapter

AN0010A

Figure 1-14. Attaching the Null Modem Adapter

114200 Rev. A 1-21

Page 52

Installing and Operating BayStack ARN Routers

5. Attach the 25-pin receptacle connector on the combined cable and

adapter to the console host connector (F

igure 1-15).

100-240~

1.2A

50-60Hz

Redundant Power

Figure 1-15. Connecting a Terminal Console to an ARN

Insert the 9-pin receptacle end of the console cable into the ARN console

port connector.

The console is now connected to the ARN.

Connecting a PC Console

You need both pieces in the ARN console/modem cable kit to connect a PC:

• Order No. 110307 serial console/modem cable (with 9-pin receptacle to 25-pin plug connectors)

COMM

Modem

20 mA PR

Console cable plus null modem adapter

ARN0058A

• Order No. 110308 null modem crossover adapter (with two 25-pin receptacle connectors)

You also need another standard AT serial cable with a 25-pin plug connector. Once you have the correct equipment, complete the following steps:

1. Power on and conﬁgure the PC console, using the parameters in

able 1-3 and instructions in the console user manual.

1-22 114200 Rev. A

Page 53

Installing the BayStack Advanced Remote Node

Power off the PC console.

3. Insert the 9-pin receptacle end of the console cable into the console port

igure 1-16).

4. Attach the null modem crossover adapter to the other end of the console

cable (refer to F

100-240~

1.2A

50-60Hz

Redundant Power

igure 1-14).

Modem

PC cable

Null modem adapter

Console cable

ARN0056A

Figure 1-16. Connecting a PC Console to an ARN

Attach the 25-pin receptacle end of the cable-plus-adapter to the PC

console cable 25-pin plug connector.

6. Connect the complete cable unit to the communications port at the back

of the PC (F

114200 Rev. A 1-23

igure 1-16).

Page 54

Installing and Operating BayStack ARN Routers

Connecting a Modem

You can connect a modem to the ARN using the back-panel modem port or you can connect a telephone line directly to an optional, back-panel V.34 modem adapter module.

Note: To use the Netboot, Directed Netboot, or Local Boot software

conﬁguration options, you must connect a console the ﬁrst time you power up the ARN. Refer to Chapter 3 for details.

A modem provides remote access to the ARN for a system administrator. We recommend that you connect a modem in case the ARN experiences system problems.

Connecting to the Back-Panel Modem Port

To connect a modem to the ARN back panel, you need an AT (or Hayes) compatible modem and the Order No. 110307 modem cable that came in the ARN console/modem cable kit.

Note: Do not use the Order No. 110308 null modem crossover adapter in the

ARN cable kit to connect to a modem.

Complete the following steps:

1. Conﬁgure the modem, using the parameters in Table 1-4.

Table 1-4. External Modem Parameters

Modem Signal/Parameter Value

Clear To Send (CTS) On Data Terminal Ready (DTR) Set to answer all incoming calls. Data Carrier Detect (DCD) or RLSD On while carrier is present (the ARN uses DCD to

detect modem connect and disconnect). Data Set Ready (DSR) On Ready to Send (RTS) Ignored

(continued)

1-24 114200 Rev. A

Page 55

Installing the BayStack Advanced Remote Node

Table 1-4. External Modem Parameters

(continued)

Modem Signal/Parameter Value

Synchronous/Asynchronous Mode Asynchronous AutoAnswer Answer on 2 rings with DTR active. Local Character Echo Off Supervisory Functions Off Baud Rate 9600 Data Bits 8 Stop Bits 1 Parity None

Refer to the modem user guide for instructions.

2. Power off the modem.

3. Insert the 9-pin receptacle end of the modem cable into the front-panel

console port (F

igure 1-17).

PHONE

DIAL

NMS DTE

(LEASE

(LEASED)

DWR

3810

100-240~

1.2A 50-60Hz

Redundant Power

Console

Modem cable

ARN0057A

Figure 1-17. Connecting a Modem to an ARN

Insert the 25-pin plug at the other end of the modem cable into the

modem RS-232 data communications port

114200 Rev. A 1-25

Page 56

Installing and Operating BayStack ARN Routers

Connecting to a V.34 Modem Module

If your ARN contains an optional, back-panel V.34 modem module, you need only connect the telephone line to the V.34 interface for access to the router.

Note: The default settings for the back-panel V.34 modem differ from the

default settings for the front-panel V.34 modem adapter module. Refer to “Connecting to a V.34 Modem Interface” earlier in this chapter for information about the V.34 modem adapter and its default settings.

Table 1-5 provides the default settings for the back-panel V.34 modem adapter.

Table 1-5. Back-Panel V.34 Modem Defaults

Modem Signal/Parameter Value

Clear To Send (CTS) On Data Terminal Ready (DTR) Set to answer all incoming calls. Data Carrier Detect (DCD) or RLSD On while carrier is present (the ARN uses DCD to

Data Set Ready (DSR) On Ready to Send (RTS) Ignored Synchronous/Asynchronous Mode Asynchronous AutoAnswer Answer on 2 rings with DTR active. Local Character Echo Off Supervisory Functions Off Baud Rate 9600 Data Bits 8 Stop Bits 1 Parity None

detect modem connect and disconnect).

Note: Physically connecting to either a front-panel or back-panel V.34 modem

interface is essentially the same. Refer to “Connecting to a V.34 Modem Interface” earlier in this chapter for details.

1-26 114200 Rev. A

Page 57

Connecting the Power Cable

Complete these steps to connect the power cable:

1. Connect the power cable to the power connector on the ARN back panel

igure 1-18).

Danger: Be sure that the power switch is in the OFF (0) position before you

connect the power cable.

Installing the BayStack Advanced Remote Node

Power cable

100-240~

1.2A

50-60Hz

Redundant power supply cable

Redundant Power

ARN0017A

Figure 1-18. Connecting the Power Cable

Connect the remote end of the power cable to a grounded outlet.

Note: For information about connecting a redundant power supply to the

ARN, refer to your redundant power supply documentation.

114200 Rev. A 1-27

Page 58

Installing and Operating BayStack ARN Routers

Installing the Flash Memory Card

A PCMCIA Flash memory card (Figure 1-19) provides storage capability for the Nonvolatile File System (NVFS) in the ARN. When you remove a formatted memory card, the NVFS automatically removes access to the card. When you insert and format a card or insert an already formatted card, the NVFS automatically provides access.

INSERT

AN0060A

Figure 1-19. Flash Memory Card

Before starting the ARN, install the Flash memory card supplied with the router by following these steps:

1. Position the card with the label facing up and the INSERT arrow

pointing toward the card receptacle.

2. Insert the card into the receptacle.

igure 1-20 shows how to insert the Flash memory card in an ARN.

3. Gently push the card until it ﬁts snugly into place.

If the card is new, and you did not obtain it from Bay Networks, you must format the card before attempting to write to it. You can format the card using Site Manager software or the

format command available with the Bay Networks

Technician Interface. (Refer to Using Technician Interface Software for instructions.)

1-28 114200 Rev. A

Page 59

Installing the BayStack Advanced Remote Node

100-240~

1.2A

50-60Hz

Redundant Power

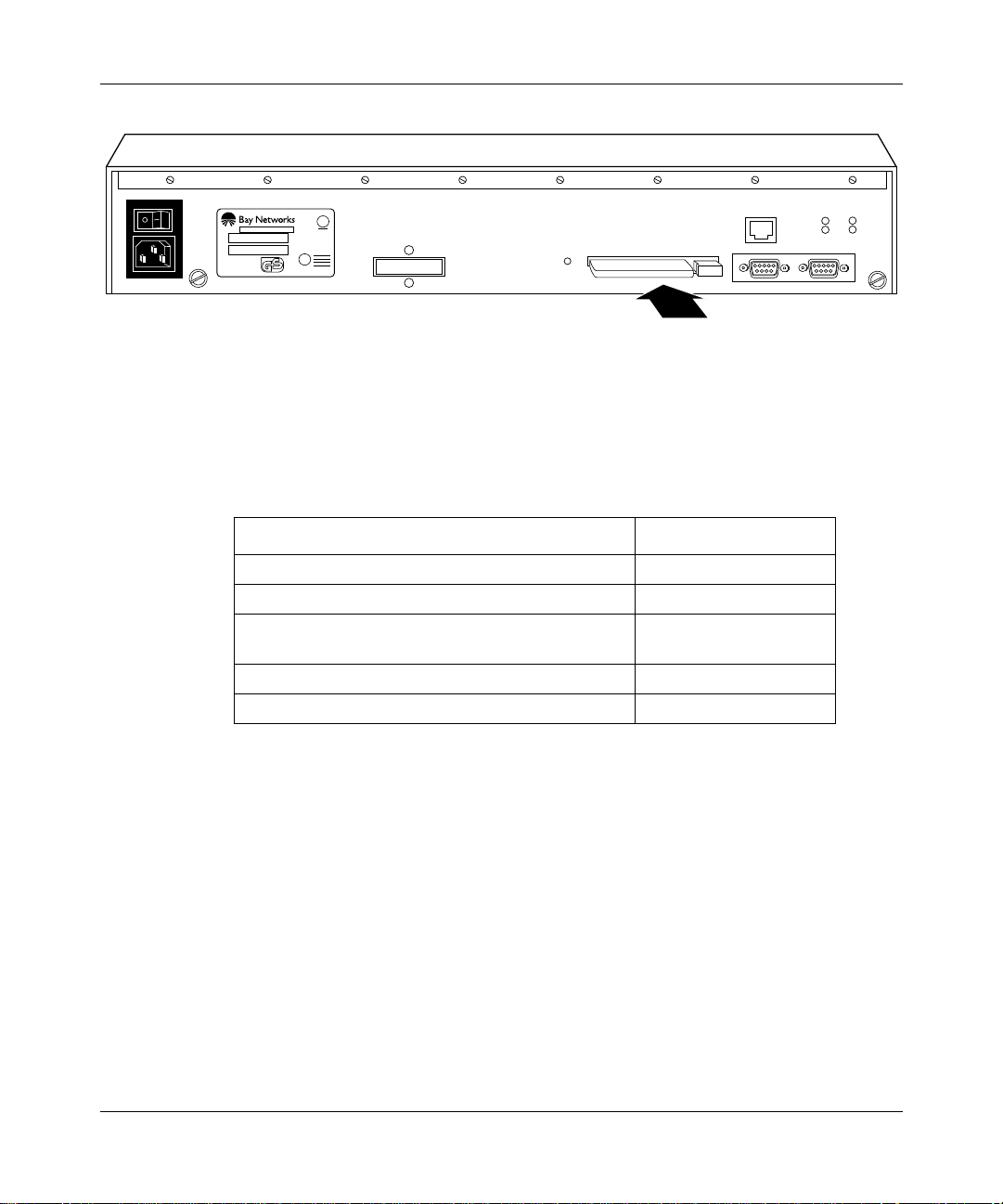

Figure 1-20. Inserting the Flash Memory Card in the ARN Receptacle

Where to Go Next

Use the following table to determine where you want to go next.

For information about Go to

Starting the ARN Chapter 2 Operating the ARN Chapter 3 Conﬁguring the ARN for Netboot and Directed

Netboot Using Local Boot (the Quick-Start Procedure) Appendix B ARN Technical Speciﬁcations Appendix C

Appendix A

Console Modem

ARN0018A

114200 Rev. A 1-29

Page 60

Page 61

Chapter 2

Starting the ARN

The ﬁrst time you start the ARN, you complete an important software conﬁguration process -- you provide the ARN with the ﬁles it needs to operate over the network. This chapter discusses the need for these speciﬁc startup ﬁles, what methods you can use to ensure that the router installs and uses the appropriate ﬁles, and how to use each of these installation methods.

Note: Coordinate the initial startup of the ARN with your network

administrator. This person refers to Conﬁguring Remote Access to determine which software conﬁguration option is best for your site and for instructions on setting up a boot server.

Software Installation

Before it can operate, the ARN hardware must install two startup ﬁles -- a software image and a conﬁguration ﬁle.

The software image is a group of executable ﬁles that operate the protocols that the network requires. The process of installing and using this image is called booting. The software image that the ARN uses is called arn.exe.

To bridge and route trafﬁc, the ARN also needs a conﬁguration ﬁle that is tailored to the network. A conﬁguration ﬁle is a binary system ﬁle that contains hardware and software conﬁguration data. The default conﬁguration ﬁle is named conﬁg. Bay Networks ships the executable and default conﬁguration ﬁles on PCMCIA Flash cards.

114200 Rev. A 2-1

Page 62

Installing and Operating BayStack ARN Routers

You must complete an initial startup procedure to obtain the executable and default conﬁguration ﬁles and connect the ARN to the network. Getting a ﬁle o ver the network is called network booting, or netbooting. Getting a ﬁle from the ARN ﬁle system, stored in Flash memory, is called local booting.

Caution: The ARN must contain a Flash memory card if you plan to obtain

any startup ﬁles through the local boot procedure. If you attempt to local boot the ARN without the Flash memory card inserted, the router does not operate. Refer to “Installing the Flash Memory Card” in Chapter 1 for instructions.

Understanding the ARN Boot Options

You use one of four boot options to complete software installation: EZ-Install, Netboot, Directed Netboot, or Local Boot. T the sections that follow provide steps for completing each option.

Table 2-1. Summary of Initial Startup Options

Source for Boot Option

Source for Image ﬁle

Conﬁguration

File Description and Requirements

able 2-1 summarizes the four options;

EZ-Install Local Network

(serial interface

only)

Netboot* Local

or Network

Local

Network

The default option. The ARN boots from local Flash memory, then obtains its conﬁguration ﬁle from a remote workstation that is conﬁgured as a Boot Protocol (BootP) server. The ARN saves the conﬁguration to the Flash memory

This option requires a High-Level Data Link Control (HDLC) or Frame Relay serial connection.

The ARN locates and obtains at least one startup ﬁle from a remote workstation that is conﬁgured as a BootP server.

This option requires a communications connection over an HDLC, Frame Relay, Ethernet, token ring, or DSU/CSU interface, and a local console connection.

(continued)

2-2 114200 Rev. A

Page 63

Starting the ARN

Table 2-1. Summary of Initial Startup Options

Source for Boot Option

Directed Netboot†

Local Boot Local Local The ARN boots from a local software image and generic

*. The ARN supports netboot over serial, Ethernet, token ring, and DSU/CSU interfaces only. †. The ARN supports directed netboot over serial, Ethernet, token ring, and DSU/CSU interfaces only.

Source for Image ﬁle

Local or Network

Conﬁguration

File Description and Requirements

Local

Network

The ARN obtains at least one startup ﬁle from a remote workstation that is conﬁgured as a Trivial File Transfer Protocol (TFTP) server. You must specify the IP address of the TFTP server and the complete path to the startup ﬁles before booting.

This option requires a communications connection over an HDLC, Frame Relay, Ethernet, token ring, or DSU/CSU interface, and a local console connection.

startup conﬁguration ﬁle. You create a customized conﬁguration ﬁle by running the Quick-Start script.

This option requires a local console connection.

(continued)

114200 Rev. A 2-3

Page 64

Installing and Operating BayStack ARN Routers

Starting the ARN for the First Time

The ARN f actory defaults are set to ﬁnd the conﬁguration and image ﬁles from the following locations:

• Conﬁguration ﬁle -- over the network

• Image ﬁle -- on the local PCMCIA Flash memory card These default settings work with the default EZ-Install procedure. The ﬁrst time you power on an ARN, the router steps through its diagnostic tests

and then attempts to boot over all of its serial (COM) interfaces using EZ-Install. If your network administrator has conﬁgured the network for the EZ-Install

procedure, the router boots using its local image and obtains its conﬁguration ﬁle over the network. Your network administrator can then connect to the ARN and manage it remotely. Refer to the next section, “Using EZ-Install,” for more information.

If your network administrator does not conﬁgure the network for EZ-Install, the ARN cannot obtain its conﬁguration ﬁle from the network, and the EZ-Install procedure fails. The ARN then attempts to boot locally with the conﬁguration ﬁle that resides on its Flash memory card. Refer to “Using Netboot, Directed Netboot, or Local Boot” for more information.

If both the EZ-Install and local boot attempts fail, the EZ-Install and local boot processes repeat until one of the following occurs:

• The ARN boots successfully.

• You interrupt the boot process to enter the ARN monitor.

• You turn off the ARN. The following sections describe how to use each of the different boot options for

the ARN.

2-4 114200 Rev. A

Page 65

Using EZ-Install

EZ-Install is the default installation option. This option requires that your network administrator has set up the network so that you can start the EZ-Install procedure. In addition, this option requires that you

• Install a Flash memory card.

• Connect at least one serial (COM) interface to the network. Refer to Chapter 1 for instructions on how to perform any of these tasks.

Note: If your ARN does not have a COM interface, you must conﬁgure the

ARN using netboot or directed netboot over an Ethernet, token ring, or DSU/CSU interface, or local boot the ARN and run the Quick-Start script. Go to the next section, “Using Netboot, Directed Netboot, or Local Boot,” for more information.

To use EZ-Install:

1. Press the power switch on the ARN back panel to the ON position.

Starting the ARN

The ARN comes on and activates EZ-Install.

Note: If you power on the ARN before the network administrator is ready,

restart the ARN by pressing the reset button on the rear panel. See Chapter 3 for more information on resetting the ARN.

2. Ensure that the ARN boots correctly.

When the ARN boots, its LEDs ﬂash in a particular order. See Chapter 3 for information on checking the ARN front-panel LEDs to ensure that the installation was successful and that the router is operating properly.

114200 Rev. A 2-5

Page 66

Installing and Operating BayStack ARN Routers

Using Netboot, Directed Netboot, or Local Boot

You must use a command line interface that accesses the router software when you netboot or local boot the ARN. To use a command line interface, you can

• Wait for the ARN to local boot (that is, wait for the router to fail EZ-Install and then attempt to boot using its local conﬁguration ﬁle). After the ARN boots locally, you can log in to the Technician Interface and redeﬁne the boot process.

• Interrupt the boot process using a break sequence and log in to the ARN monitor to redeﬁne the boot process.

Using the netboot, directed netboot, or local boot options requires that you

• Connect any necessary communications cables to access the network.

• Connect a management console.

• Connect the ARN power cable.

• Install a Flash memory card.

Refer to Chapter 1 for instructions on how to perform these tasks.

Interrupting the Boot Process

Interrupting the boot process automatically starts the ARN monitor. Using the ARN monitor allows you to bypass the EZ-Install procedure.

Note: Before you power on the ARN, make sure that you have installed the

router and connected the necessary management console equipment (refer to Chapter 1 for instructions).

To interrupt the boot process:

1. Press the power switch on the ARN back panel to the On position.

As the router powers on, your console displays the ARN diagnostic tests. After successfully completing these tests, the router begins the EZ-Install procedure and attempts to boot over the network.

2-6 114200 Rev. A

Page 67

While the router is running the EZ-Install procedure, issue a break

sequence from the management console.

The ARN monitor login prompt appears.

Note: Be sure to issue a break sequence before the boot process completes.

Break sequences can vary, depending on the console equipment type. Some console terminals have speciﬁc break keys on their keyboards; other management terminals require a speciﬁc key sequence to issue a break (for example,

Cntrl-C or ~ #). Refer to your console terminal or terminal emulator

documentation for the break sequence speciﬁc to your console equipment.

Logging in to the Command Line Software

Regardless of the command line software used -- ARN monitor or Technician Interface -- the procedures are identical from the login prompt.

To log in to the command line:

1. Type the following command at the login prompt and press the Return

key:

Starting the ARN

Manager

Note the use of an uppercase “M.” The T echnician Interf ace or ARN monitor command line prompt appears. You

are now using a command line interface to the router.

2. To use the netboot, directed netboot, or the local boot option, go to one of

the following sections that describes the procedure you want to use:

• Continuing with Netboot

• Continuing with Directed Netboot

• Continuing with Local Boot

114200 Rev. A 2-7

Page 68

Installing and Operating BayStack ARN Routers

Continuing with Netboot

Note: Continuing with the netboot option requires that you have already

logged in to the Technician Interface or ARN monitor command line software. Refer to the previous section, “Logging in to the Command Line Software,” for instructions.

You must have at least one serial, Ethernet, or token ring interface connected to the network to use the netboot option. Before you start the netboot procedure, ask your network administrator to

• Verify that the network is set up for the netboot procedure.

• Provide you with the interface conﬁguration command (

ifconﬁg) to use in

Step 4.

Note: Refer to Appendix A for more information about the ifconﬁg command.

ifconﬁg command conﬁgures the parameters necessary to load the software

The image and conﬁguration ﬁles from a remote server over the network. Write the command in T

Table 2-2. Your ifconﬁg Command -- Netboot

ifconﬁg

able 2-2 for your reference.

You can use the ARN Monitor, Technician Interface, or Site Manager to perform netboot. However, this guide assumes that you are using either the ARN monitor or the Technician Interface. To manage the ARN from a remote site, refer to Conﬁguring Remote Access.

2-8 114200 Rev. A

Page 69

Starting the ARN

To use the netboot option:

1. Enter the ifconﬁg command (refer to Table 2-2) at the command line

prompt and press the Return key.

The following is a sample command:

ifconﬁg com1 9.0.0.2 255.0.0.0 9.0.0.3

Refer to Appendix A for more information about the ifconﬁg command.

2. Enter the following command and press the Return key to verify the

conﬁguration you speciﬁed in Step 1:

getcfg

The getcfg command shows the source -- either local or network -- of the boot image and the network conﬁguration ﬁle. It also shows the interface conﬁguration that you speciﬁed using the

ifconﬁg command.

Verify the interface conﬁguration, as shown in F

$ getcfg

Boot Options

boot image = local boot config = network

Netboot Parameters:

MAU1...None XCVR2..None COM1...IP=9.0.0.2, Mask=255.0.0.0, Next Hop=9.0.0.3 COM2...EZ-Install COM3...EZ-Install COM4...EZ-Install COM5...EZ-Install

igure 2-1.

Figure 2-1. Verifying the Interface Conﬁguration

ARN0079A

114200 Rev. A 2-9

Page 70

Installing and Operating BayStack ARN Routers

If getcfg displays the correct information, continue to the next step. Otherwise, reenter the correct administrator if you need assistance.

3. Enter the following command and press the Return key to boot the ARN:

boot

Your console displays messages indicating the progress of the netboot procedure.

Note: If the ARN cannot ﬁnd a software image or conﬁguration ﬁle using the

netboot procedure, it attempts to local boot once. If both attempts fail, the ARN continues to netboot and local boot until it boots successfully. If the ARN remains in this loop, refer to “Interrupting the Boot Process” earlier in this chapter.

4. Ensure that the ARN boots correctly.

ifconﬁg command. Contact your network

Contact your network administrator to verify that the ARN is now connected to the network. Your network administrator can refer to Conﬁguring Remote Access to troubleshoot any problems.

Contact your local Bay Networks Technical Response Center if you need additional assistance.

After connecting the ARN to the netw ork, you can replace the local console with a modem connection to enable remote dial-in access.

2-10 114200 Rev. A

Page 71

Continuing with Directed Netboot

Note: Continuing with the directed netboot option requires that you have

already logged in to the Technician Interface or ARN monitor command line software. Refer to the previous section, “Logging in to the Command Line Software,” for instructions.

You must have at least one serial, DSU/CSU, Ethernet, or token ring interface connected to the network to use the directed netboot option. Before you start the directed netboot procedure, ask your network administrator to

• Verify that the network is set up so that you can start the directed netboot procedure.

• Provide you with the ifconﬁg command to use in Step 1.

Starting the ARN

• Provide you with the boot option conﬁguration commands (

bconﬁg) to use in

Step 2.

Note: Refer to Appendix A for more information about the ifconﬁg and

bconﬁg commands.

ifconﬁg command conﬁgures the parameters necessary to load the software

The image and conﬁguration ﬁles from a remote server over the network. Write the command in T

Table 2-3. Your ifconﬁg Command -- Directed Netboot

ifconﬁg

able 2-3 for your reference.

114200 Rev. A 2-11

Page 72

Installing and Operating BayStack ARN Routers

The bconﬁg commands let you specify the location of a startup ﬁle. To use directed netboot, the location must includes the following information:

• The source of the image and conﬁguration ﬁles (local or network)

• The address of the TFTP server

• The full directory path description locating the ﬁles on the TFTP server

Write the commands in T

Table 2-4. Your bconﬁg Commands

bconﬁg image bconﬁg conﬁg

able 2-4 for your reference.

You can use the ARN monitor, Technician Interface, or Site Manager to perform directed netboot. However, this guide assumes that you are using either the ARN monitor or the Technician Interface. To manage the ARN from a remote site, refer to Conﬁguring Remote Access.

To use the directed netboot feature:

1. Enter the ifconﬁg command (refer to Table 2-3) at the command line

prompt and press the Return key.

The following is a sample command:

ifconﬁg com1 9.0.0.2 255.0.0.0 9.0.0.3

Refer to Appendix A for more information about the ifconﬁg command.

2. Enter the bconﬁg commands (refer to Table 2-4) at the command line

prompt and press the Return key.

You must enter one

bconﬁg command to specify the location of the software

image, and another to specify the location of the conﬁguration ﬁle. The following are sample commands:

bconﬁg image network 192.32.5.8 /usr/arnstartup/krnl_arn.exe bconﬁg conﬁg network 192.32.5.8 /usr/arnstartup/conﬁg

Refer to Appendix A for more information about the bconﬁg command.

2-12 114200 Rev. A

Page 73

Starting the ARN

Type the following command and press the Return key to verify the

conﬁguration you speciﬁed in Step 3:

getcfg

The getcfg command shows the location of the boot image and the network conﬁguration ﬁle, the interface conﬁguration that you speciﬁed using the

ifconﬁg command, as well as the TFTP server information and ﬁle paths that

you speciﬁed using the

bconﬁg commands.

Verify the interface conﬁguration, as shown in F

$ getcfg

Boot Options boot image = network boot config = network host IP address = 192.32.5.8 image pathname = "/usr/arnstartup/krnl_arn.exe" config pathname = "/usr/arnstartup/config"

Netboot Parameters:

MAU1...None XCVR2..None COM1...IP=9.0.0.2, Mask=255.0.0.0, Next Hop=9.0.0.3 COM2...EZ-Install (disabled) COM3...EZ-Install (disabled) COM4...EZ-Install (disabled) COM5...EZ-Install (disabled)

igure 2-2.

Figure 2-2. Verifying Directed Netboot Conﬁguration

ARN0080A

If getcfg displays the correct information, continue to Step 4. Otherwise, reenter the correct

ifconﬁg and bconﬁg commands. Contact your network

administrator if you need assistance.

4. Type the following command and press the Return key to boot the ARN:

boot

114200 Rev. A 2-13

Page 74

Installing and Operating BayStack ARN Routers

Note: If the ARN cannot ﬁnd a software image or conﬁguration ﬁle using the

directed netboot procedure, it attempts to netboot once. If the netboot procedure fails, the ARN tries to local boot once. If all three boot attempts fail, the ARN continues to try directed netboot, netboot, and local boot until it boots successfully. If the ARN remains in this loop, refer to “Interrupting the Boot Process” earlier in this chapter.

5. Ensure that the ARN boots correctly.

Contact your network administrator to verify that the ARN is now connected to the network. Your network administrator can refer to Conﬁguring Remote Access to troubleshoot any problems.

Contact your local Bay Networks Technical Response Center if you need additional assistance.

After connecting the ARN to the netw ork, you can replace the console connection with a modem connection to enable remote dial-in access.

2-14 114200 Rev. A

Page 75

Continuing with Local Boot (the Quick-Start Procedure)

Note: Continuing with the local boot option requires that you have already

logged in to the Technician Interface or ARN monitor command line software. Refer to the previous section, “Logging in to the Command Line Software,” for instructions.

You can use either the ARN monitor or the Technician Interface to conﬁgure the ARN to local boot. However, you must use the Technician Interface to run the Quick-Start script.

Before starting the local boot procedure, ask your network administrator to assist you in completing the Quick-Start worksheets in Appendix B.

To use the local boot feature:

1. At the command line prompt, type the following command and press the

Return key to conﬁgure the ARN to use its local config file:

bconﬁg conﬁg local

Starting the ARN

Note: The default setting for ﬁnding the software image is local; you do not

have to change this setting for the local boot option.

Type the following command and press the Return key to boot the ARN:

boot

Note: If the ARN tries to local boot and cannot ﬁnd a software image or

conﬁguration ﬁle, it attempts to netboot once. If both attempts fail, the ARN continues to local boot and netboot until it boots successfully. If the ARN remains in this loop, refer to “Interrupting the Boot Process” earlier in this chapter.

114200 Rev. A 2-15

Page 76

Installing and Operating BayStack ARN Routers

3. Ensure that the ARN boots correctly.

After the ARN boots using its local softw are image and conﬁguration ﬁle, the Technician Interface login prompt appears.

4. Type the following command at the login prompt and press the Return

key:

Manager

Note the use of an uppercase “M.” The Technician Interface prompt (

Note: To check the contents of the router local ﬁle system on the installed

Flash memory card, type

dir and press the Return key. The arn.exe software

$) appears.

image, conﬁg ﬁle, and inst_arn.bat ﬁle should appear among the ﬁles listed.

5. Enter the following command and press the Return key to run the

Quick-Start script:

run inst_arn.bat

The Quick-Start script begins running.

6. Using your completed Quick-Start worksheet from Appendix B, enter the

appropriate network information as the prompts appear.

The ARN uses this information to conﬁgure interfaces to the network. Refer to Appendix B for sample Quick-Start screen output and for

information on using Quick-Start commands.

7. Choose whether you want to conﬁgure another module/port.

Entering interface prompt. Entering

n stops the Quick-Start script and returns you to the Technician

y allows you to conﬁgure another module/port.

Once the install script completes, the ARN starts bridging and routing trafﬁc.

Contact your network administrator to verify that the ARN is now connected to the network. Your network administrator can refer to Conﬁguring Remote Access to troubleshoot any problems.

2-16 114200 Rev. A

Page 77

Contact your local Bay Networks Technical Response Center if you need additional assistance.

After conﬁguring the ARN network interface, you can replace the console connection with a modem connection to enable remote dial-in access.

Where to Go Next

Use the following table to determine where you want to go next.

For information about Go to

Installing the ARN Chapter 1 Operating the ARN Chapter 3 Conﬁguring the ARN for Netboot and Directed

Netboot Using Local Boot (the Quick-Start Procedure) Appendix B ARN Technical Speciﬁcations Appendix C

Starting the ARN

Appendix A

114200 Rev. A 2-17

Page 78

Page 79

Chapter 3

Operating the ARN

This chapter describes how to

• Locate and understand the function of base module LEDs

• Use the expansion module and adapter module LEDs to check the status of various interfaces

• Ensure a successful installation using the base module LEDs

• Power on and off the ARN

• Reset the ARN

• Remove a Flash memory card

• Protect the ﬁles on the Flash memory card

114200 Rev. A 3-1

Page 80

Installing and Operating BayStack ARN Routers

Run

Boot

Fail

Pwr

RPS

Fan

Base

Adapter1

Adapter2

Expansion

DCM

PCMCIA

AUI

LED Descriptions

LEDs on the ARN front and back panels pro vide information about how the ARN is operating. The following sections describe the LEDs on the ARN base modules, expansion modules, adapter modules, and the ARN back panel.

Base Module LEDs

The ARN base module LEDs include diagnostic LEDs and either Ethernet or token ring interface LEDs.

Diagnostic LEDs

The base module diagnostic LEDs (F itself. All of these LEDs light brieﬂy when you plug the ARN into the wall outlet and turn on the power switch.

ISDN BRI

withNT1

RLSD

COM

Serial

Figure 3-1. ARN Base Module Diagnostic LEDs

10BaseT

AUI

Ethernet 2

AUI

Ethernet 1

RLSD3

RLSD4

RLSD5

Run

Boot

Fail

igure 3-1) indicate the status of the ARN

COM3 COM4 COM5

Serial

Pwr

Base

Expansion

RPS

Adapter1

DCM

Fan

Adapter2

PCMCIA

BayStack Advanced Remote Node

ARN0059A

3-2 114200 Rev. A

Page 81

Operating the ARN

Table 3-1 describes the base module diagnostic LEDs.

Table 3-1. Base Module Diagnostic LEDs

LED Meaning

Run Flashes for 1 to 3 minutes, indicating that diagnostic tests are

running. When it lights again and remains on, the ARN is operational.

Boot Lights for 1 to 3 minutes, indicating that diagnostic tests were

successful and the ARN is booting. Fail Lights again and remains on when diagnostic failure occurs. Pwr Lights and remains on when the ARN is on and receiving

power. RPS Lights and remains on when the redundant power supply

(optional) is operating. Fan Lights and remains on when the ARN cooling fan is operating. Base Lights and remains on when the base module is operating

properly . Flashes slowly to indicate that the module is running

its diagnostic tests. Flashes rapidly to indicate that the module

failed its diagnostic tests. Adapter1 Lights and remains on when adapter module #1 is operating

properly . Flashes slowly to indicate that the module is running

its diagnostic tests. Flashes rapidly to indicate that the module

failed its diagnostic tests. Adapter2 Lights and remains on when adapter module #2 is operating

properly . Flashes slowly to indicate that the module is running

its diagnostic tests. Flashes rapidly to indicate that the module

failed its diagnostic tests. Expansion Lights and remains on when an expansion module is installed

and operating properly. Flashes slowly to indicate that the

module is running its diagnostic tests. Flashes rapidly to

indicate that the module failed its diagnostic tests. DCM Lights and remains on when an RMON DCM is installed and

operating properly. Flashes slowly to indicate that the module

is running its diagnostic tests. Flashes rapidly to indicate that

the module failed its diagnostic tests. PCMCIA Lights and remains on when the ARN contains a ﬂash

memory card in its PCMCIA slot.

114200 Rev. A 3-3

Page 82

Installing and Operating BayStack ARN Routers

Ethernet LEDs

able 3-2 describes the base module Ethernet LEDs.

Table 3-2. Base Module Ethernet LEDs

LED Meaning

Tx (Transmit)

Rx (Receive)

Cl (Collision)

Lights when the Ethernet interface transmits data.

Lights when the Ethernet interface receives data.

Lights when the Ethernet interface detects a collision.

Token Ring LEDs

able 3-3 describes the base module token ring LEDs.

Table 3-3. Base Module Token Ring LEDs

LED Meaning

RCVR (Receiver)

NSRT (Insert)

WFLT (Wire Fault)

Lights when the interface is connected to the network.

Lights when you insert the ARN into the token ring network.

Lights when the token ring hardware detects a wire fault

condition.

3-4 114200 Rev. A

Page 83

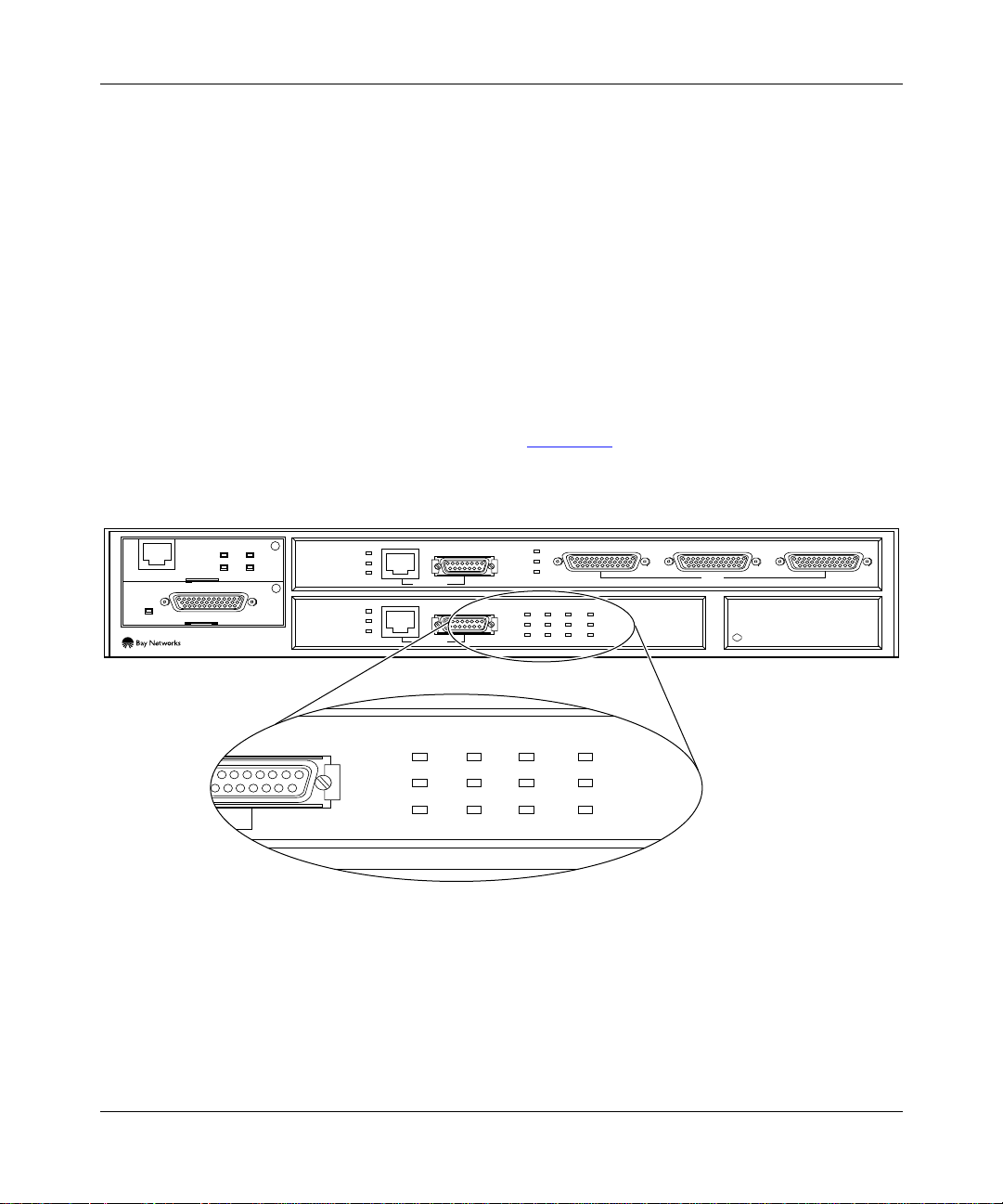

Expansion Module LEDs

An ARN expansion module can contain Ethernet, token ring, or serial interface LEDs.

Ethernet LEDs

able 3-4 describes the expansion module Ethernet LEDs.

Table 3-4. Expansion Module Ethernet LEDs

LED Meaning

Operating the ARN

Tx (Transmit)

Rx (Receive)

Cl (Collision)

Lights when the interface is transmitting data over the

network.

Lights when the interface is receiving data from the network.

Lights when the interface detects a collision on the network.

Token Ring LEDs

able 3-5 describes the expansion module token ring LEDs.

Table 3-5. Expansion Module Token Ring LEDs

LED Meaning

RCVR (Receiver)

NSRT (Insert)

WFLT (Wire Fault)

Lights when the interface is connected to the network.

Lights when you insert the ARN into the Token Ring network.

Lights when the Token Ring hardware detects a wire fault

condition.

114200 Rev. A 3-5

Page 84

Installing and Operating BayStack ARN Routers

Serial LEDs

able 3-6 describes the expansion module serial interface LEDs.

Table 3-6. Expansion Module Serial LEDs

LED Meaning

RLSD3 (Received Line Signal Detection 3)

RLSD4 (Received Line Signal Detection 4)

RLSD5 (Received Line Signal Detection 5)

Adapter Module LEDs

An ARN adapter module can contain serial, ISDN, DSU/CSU, or V.34 modem LEDs.

Serial LED

able 3-7 describes the serial adapter module LED.

Table 3-7. Serial LED

LED Meaning

RLSD (Received Line Signal Detection)

Lights when Received Line Signal Detection is active on

COM 3.

Lights when Received Line Signal Detection is active on

COM 4.

Lights when Received Line Signal Detection is active on

COM 5.

Lights when Received Line Signal Detection is active on the

serial interface.

3-6 114200 Rev. A

Page 85

Operating the ARN

ISDN BRI LEDs (S/T or U Interfaces)

able 3-8 describes the ISDN adapter module LEDs.

Table 3-8. ISDN BRI LEDs

LED Meaning S/T Interface

Unlabeled LED Lights when the ARN is using the D-channel.

U Interface

D (D-channel; 16-KB Management Channel)

DD (Data Detect)

B1 (B-Channel #1; 64-KB Data Channel)

B2 (B-Channel #2; 64-KB Data Channel)

Lights when the ARN is using the D-channel.

Lights when the interface detects connection to an external

device (that is, a switch).

Lights when the ARN is using B-channel #1.

Lights when the ARN is using B-channel #2.

DSU/CSU LEDs

able 3-9 describes the DSU/CSU adapter module LEDs.

Table 3-9. DSU/CSU LEDs

LED Meaning

TxD (Transmit Data)

RxD (Receive Data)

CD (Carrier Detect)

Test Lights when the interface is in test or loopback mode.

Lights when the interface transmits data over the network.

Lights when the interface receives data from the network.

Lights when the interface detects a connection to another

device.

114200 Rev. A 3-7

Page 86

Installing and Operating BayStack ARN Routers

V.34 Modem LEDs

able 3-10 describes the V.34 modem adapter module LEDs.

Table 3-10. V.34 Modem LEDs

LED Meaning

TX (Transmit)

RX (Receive)

RLSD (Received Line Signal Detection)

DTR (Data T erminal Ready)

Back-Panel LEDs

The ARN back-panel allows for an optional V.34 Modem Adapter module. Refer to the previous section, “V.34 Modem LEDs,” for more information about these LEDs.

Lights when the interface transmits data over the network.

Lights when the interface receives data from the network.

Lights when the modem activates.

Lights when the interface is ready to transmit data.

3-8 114200 Rev. A

Page 87

Ensuring a Successful Installation

After connecting the ARN to the netw ork, you can ensure a successful installation by checking the diagnostic LEDs on the front panel of the base module (refer to

igure 3-1).

When you power on the ARN, the following sequence of front panel LED activity should occur:

• All base module LEDs light momentarily; this tests that the LEDs are operational.

• The Run, Boot, and Fail LEDs count through a short, initial startup sequence.

• The Pwr (power) LED lights and remains on.

• The Run LED begins ﬂashing and continues to ﬂash until the ARN completes all diagnostic tests.

• As the diagnostic procedure tests each module, the LED representing that module ﬂashes slowly. If the module passes its diagnostic test, the LED remains on. If the module fails its diagnostic test, the Fail LED remains on and the module LED ﬂashes rapidly.

Operating the ARN

• After completing the diagnostic testing procedure, the boot process begins. The Run and Boot LEDs indicate the boot status as shown in T

Table 3-11. Boot Status LEDs

Boot Status Run LED Boot LED

Local Boot Off On Netboot (attempting) Off Flashing Netboot (downloading) Flashing On Interrupted (using ARN monitor) Flashing Flashing

able 3-11.

• After the boot process completes, the Run LED lights and the Boot LED turns off, indicating that the ARN is operational.

If the LEDs on the ARN light in this sequence, your installation is successful. Contact your network administrator to verify that the ARN is now connected to the network.

114200 Rev. A 3-9

Page 88

Installing and Operating BayStack ARN Routers

If the LEDs do not light in this sequence, your network administrator can refer to Conﬁguring Remote Access to help troubleshoot the problem.

Note: If the ARN does not contain an expansion module, an adapter module, a

redundant power supply, a data collection module, or a Flash card, the LEDs associated with these components remain off.

If you need additional assistance, contact your local Bay Networks Technical Response Center.

Powering On and Off the ARN

The ARN power switch is located on the back panel (Figure 3-2). To power on an ARN, press the power switch to the ON position (1). To power off the ARN, press the power switch to the OFF position (0).

Note: To ensure a complete po wer cycle, we recommend that you w ait at least

4 seconds between powering off the ARN and powering it back on.

Power switch

100-240~

1.2A

50-60Hz

Redundant Power

Console Modem

ARN0019A

Figure 3-2. ARN Power Switch

3-10 114200 Rev. A

Page 89

Resetting the ARN

The Reset button is set inside the ARN back panel and resides next to the Flash card slot, as shown in Figure 3-3.

100-240~

1.2A

50-60Hz

Operating the ARN

Redundant Power

Console Modem

Figure 3-3. ARN Reset Button

To press the Reset button, insert a small pointed object (for example, a paper clip) into the Reset button hole.

You can use the Reset button to reboot the ARN hardware without cycling power,

as follows:

•To warm-boot the ARN (no diagnostic tests run), press the Reset button for less than 5 seconds.

•To cold-boot the ARN (diagnostic tests run), press the Reset button for more than 5 seconds.

Note: If you reset the ARN while it is running its diagnostic tests, the LEDs

remain in the state they were in when you pressed the Reset button. You must cycle power on the ARN to reset the LEDs.

Reset button

ARN0052A

114200 Rev. A 3-11

Page 90

Installing and Operating BayStack ARN Routers

Removing a Flash Memory Card

To remove a memory card from an ARN:

1. Press the Eject button next to the card receptacle on the back panel.

2. Pull the memory card out of the card receptacle.

See F

igure 3-4.

Caution: Do not remo v e the Flash memory card while the router is operating.

Removing the memory card interferes with current networking operations.

Redundant Power

100-240~

1.2A

50-60Hz

Console Modem

ARN0053A

Figure 3-4. Removing an ARN Flash Memory Card

To insert another memory card into the receptacle, refer to “Installing the Flash Memory Card” in Chapter 2.

When you remove a formatted memory card, the NVFS automatically removes access to the card. When you insert and format a card or insert an already formatted card, the NVFS automatically provides access.

3-12 114200 Rev. A

Page 91

Protecting Memory Card Files

Bay Networks ships each memory card with its Read/Write Protect switch in the unprotected position (F and saving your conﬁguration, you may want to write-protect the memory card for backup purposes.

Note: You typically do not operate the ARN with a write-protected memory

card. We recommend making a copy of your conﬁguration on another memory card, write-protecting the card, and storing it in a safe place.

To change memory card protection, complete the following steps:

1. Remove the memory card as described in the previous section.

2. Adjust the read-write protect switch, which is located on the edge

opposite the INSERT arrow of the memory card (F

igure 3-5). After successfully loading the conﬁguration ﬁle

Operating the ARN

igure 3-5).

Unprotected

Protected

6948

Figure 3-5. Memory Card Read/Write Protect Switch

Reinsert the memory card into the card receptacle.

114200 Rev. A 3-13

Page 92

Installing and Operating BayStack ARN Routers

Where to Go Next

Use the following table to determine where you want to go next.

For information about Go to

Installing the ARN Chapter 1 Starting the ARN Chapter 2 Conﬁguring the ARN for Netboot and Directed

Netboot Using Local Boot (the Quick-Start Procedure) Appendix B ARN Technical Speciﬁcations Appendix C

Appendix A

3-14 114200 Rev. A

Page 93

Appendix A

Conﬁguring the ARN for Netboot and

Directed Netboot

The following commands conﬁgure the ARN for netboot and directed netboot:

• Use the i network. You need this information to complete the procedure in “Continuing with Netboot” in Chapter 2.

• Use the software image and conﬁguration ﬁle. You need this information to complete the procedure in “Continuing with Directed Netboot” in Chapter 2.

Contact your network administrator for additional assistance in determining the appropriate at your site. (Your network administrator has information on these commands in Conﬁguring Remote Access.)

fconﬁg command to conﬁgure the router initial IP interface to the

bconﬁg command to specify the location and name of the ARN

ifconﬁg command and bconﬁg commands that you need for the ARN

Using the ifconﬁg Command

A router interface cannot communicate in an IP network without an IP address. Because an ARN netboots over one of its serial, DSU/CSU, Ethernet, or Token Ring links, the netboot interface must have a valid IP address.

You use the

• Conﬁgure the router’s initial IP interface to the network. (The initial IP interface should be a serial interface if you are using EZ-Install.) You also use the same procedure to conﬁgure other serial interfaces for the netbooting procedure.

ifconﬁg command to do the following:

• Conﬁgure Ethernet or token ring interfaces for the netbooting procedure.

114200 Rev. A A-1

Page 94

Installing and Operating BayStack ARN Routers

• Enable or disable netbooting on an interface.

The following sections describe each use of the

ifconﬁg command.

Conﬁguring an IP Serial or DSU/CSU Interface for Netbooting

Conﬁgure a serial or DSU/CSU (COM) interface to the IP network using the following interface conﬁguration command:

ifconﬁg [

hop address>

The synchronous options variable indicates some combination of the following settings:

-d | -fr [-annexd | -lmi | -annexa] | -int_clk]

[

Note: Make sure to separate command options with spaces.

able A-1 describes the ifconﬁg command arguments for conﬁguring a COM

interface.

Table A-1. ifconﬁg Command Settings for a COM Interface

synchronous options] <interface> [<IP address> <subnet mask> [<next

]]

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. This

setting tries four W AN conﬁgur ations in the f ollowing order until it ﬁnds the correct type for the router connection to the network:

1. Bay Networks HDLC encapsulation (also referred to as Bay Networks Standard Point-to-Point) with external clocking

2. Frame Relay Annex D

3. Frame Relay LMI

4. Frame Relay Annex A

(continued)

A-2 114200 Rev. A

Page 95

Configuring the ARN for Netboot and Directed Netboot

Table A-1. ifconﬁg Command Settings for a COM Interface

Setting Description

Frame Relay Settings

-fr Conﬁgures the router COM interface as a Frame Relay connection.

With this setting, use one of the following options to specify a DLCMI setting: -annexd, -annexa, or -lmi.

-annexd

-annexa

-lmi

-int_clk Sets the serial interface to internal clocking at 1.25 MB/s. If y ou do not

When one of these options is used with the -fr setting, it speciﬁes a DLCMI setting. Use the same setting as the network to which the router’s Frame Relay interface is connected. The default setting for Frame Relay is -annexd.

Internal Clocking Setting

specify this setting, the router defaults to external clocking.

IP Connector Setting

Speciﬁes the IP connector you are conﬁguring. Use the format com<

port #

IP Address Settings

Speciﬁes the IP address of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP subnet mask of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP address of the next-hop router. Provide this address in dotted decimal notation. Specify this address only if there are intermediate routers between the router and the BootP server.

(continued)

114200 Rev. A A-3

Page 96

Installing and Operating BayStack ARN Routers

Conﬁguring an Ethernet Interface for Network Booting

To conﬁgure an ARN Ethernet interface for network booting, use the following command format:

ifconﬁg [-d]

]]

Table A-2 describes the ifconﬁg command arguments for conﬁguring the router’s

Ethernet interface.

Table A-2. ifconﬁg Command Settings for an Ethernet Interface

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. Resetting

an Ethernet interface makes it inactive in the network booting process. (The output of the getcfg command shows the default as None.)

IP Connector Setting

Speciﬁes the IP connector you are conﬁguring. Use the format xcvr<

port

#>.

IP Address Settings

Speciﬁes the IP address of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP subnet mask of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP address of the next-hop router. Provide this address in dotted decimal notation. Specify this address only if there are intermediate routers between the router and the BootP server.

A-4 114200 Rev. A

Page 97

Configuring the ARN for Netboot and Directed Netboot

Conﬁguring a Token Ring Interface for Network Booting

To conﬁgure an ARN token ring interface for network booting, use the following command format:

ifconﬁg [-d] [ -r<

address>

]]

speed

> ]

<interface> [<IP address> <subnet mask> [<next hop

Table A-3 describes the ifconﬁg command arguments for conﬁguring the router

token ring interface.

Table A-3. ifconﬁg Command Settings for a Token Ring Interface

Setting Description

Default Setting

-d Resets the router IP interface settings to the default values. Resetting

a Token Ring interface makes it inactive in the network booting process. (The output of the getcfg command shows the default as None.)

IP Connector Setting

-r

<speed>

Speciﬁes the speed of the Token Ring interface. Enter either 16 or 4 (Mb/s). The default is 16 Mb/s.

Speciﬁes the IP connector you are conﬁguring. Use the format mau<

port

#>.

IP Address Settings

Speciﬁes the IP address of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP subnet mask of the interface you set with Provide this address in dotted decimal notation.

Speciﬁes the IP address of the next-hop router. Provide this address in dotted decimal notation. Specify this address only if there are intermediate routers between the router and the BootP server.

114200 Rev. A A-5

Page 98

Installing and Operating BayStack ARN Routers

Enabling and Disabling Interfaces with ifconﬁg

To enable or disable an ARN interface for the network boot process, use the following command formats:

ifconﬁg -disable ifconﬁg -enable

Table A-4 describes the ifconﬁg command arguments for enabling and disabling

interfaces for network booting.

Table A-4. ifconﬁg Settings to Enable and Disable Netboot Interfaces

Setting Description

interface>

Speciﬁes the IP connector you are enabling or disabling for network

booting. Use one of the following formats:

xcvr com mau

ifconﬁg Command Examples

1. Conﬁgure the current interface for the default Netboot procedure.

ifconﬁg -d

2. Specify the IP address and subnet mask of the base module Ethernet interface.

ifconﬁg xcvr1 21.3.5.62 255.255.255.0

3. Specify the IP address and subnet mask of the expansion module Ethernet interface.

ifconﬁg xcvr2 21.3.5.61 255.255.255.0

4. Conﬁgure the IP address and Frame Relay DLCMI of the third serial interface on the expansion module.

ifconﬁg com3 21.3.5.62 -fr -annexa

5. Specify the IP address and subnet mask of the base module token ring interface.

ifconﬁg mau1 21.3.4.77 255.255.255.0

A-6 114200 Rev. A

Page 99

Configuring the ARN for Netboot and Directed Netboot

Using the bconﬁg Command

To use netboot, you use the bconﬁg command to specify that the ARN conﬁguration ﬁle or software image resides on the network. To use directed netboot, you use the the full pathname to the software image and conﬁguration ﬁle. To use local boot, you use the

bconﬁg command to specify that the conﬁguration ﬁle and software

image both reside on the local ﬁle system (that is, the PCMCIA Flash card).

bconﬁg Command Format

To conﬁgure an interface for netboot, use the following format for the bconﬁg command:

bconﬁg -d [image | conﬁg]

To conﬁgure an interface for directed netboot, use the following format:

bconﬁg command to specify the IP address of the server and

bconﬁg [image | conﬁg] [local | network [

You must use the

bconﬁg command twice: once to specify the location of the

software image, and again to specify the location of the conﬁguration ﬁle. Refer to T

Table A-5. bconﬁg Command Settings

Option Description

image Indicates the router’s software image. conﬁg Indicates the router’s conﬁguration ﬁle. local Indicates that the speciﬁed ﬁle (image or conﬁg) resides in the router’s local ﬁle system. network Indicates that the speciﬁed ﬁle (image or conﬁg) resides on a remote ﬁle system.

-d Reverts to the default values for the software image or conﬁguration ﬁle and nulliﬁes any

Speciﬁes the IP address of the TFTP server. If both the software image and conﬁguration ﬁle are on the network, both ﬁles must reside on the same host.

Speciﬁes the complete pathname of the remote software image or conﬁguration ﬁle.

previously speciﬁed IP address and pathname for the ﬁle, thus disabling directed netboot.

able A-5 for a complete description of the bconﬁg command.

]]

114200 Rev. A A-7

Page 100

Installing and Operating BayStack ARN Routers

bconﬁg Command Examples

1. Conﬁgure the default netboot procedure -- use a local image ﬁle and look for the conﬁguration ﬁle over the network using BootP.

bconﬁg -d image (or bconﬁg image local) bconﬁg -d conﬁg (or bconﬁg conﬁg network)

2. Use netboot for both the boot image and conﬁguration ﬁle.

bconﬁg image network bconﬁg conﬁg network

3. Use a local conﬁguration ﬁle and directed netboot for the boot image ﬁle.

bconﬁg image network 21.3.5.62 /usr/mykernel.exe bconﬁg conﬁg local

4. Use a local boot image ﬁle and directed netboot for the conﬁguration ﬁle.

bconﬁg image local bconﬁg conﬁg network 21.3.5.62 /usr/arnstartup/conﬁg

5. Use directed netboot for both the boot image and conﬁguration ﬁle.

bconﬁg image network 21.3.5.62 /usr/mykernel.exe bconﬁg conﬁg network 21.3.5.62 /usr/arnstartup/conﬁg

Verifying Your Conﬁguration

You can use the getcfg command to verify

• Whether the router is set to boot using a local or remote software image

• Whether the router is set to conﬁgure using a local or remote conﬁguration ﬁle

• The conﬁguration of any serial, DSU/CSU, Ethernet, and token ring connectors

Enter the following command to display the ARN startup options:

getcfg

A-8 114200 Rev. A
