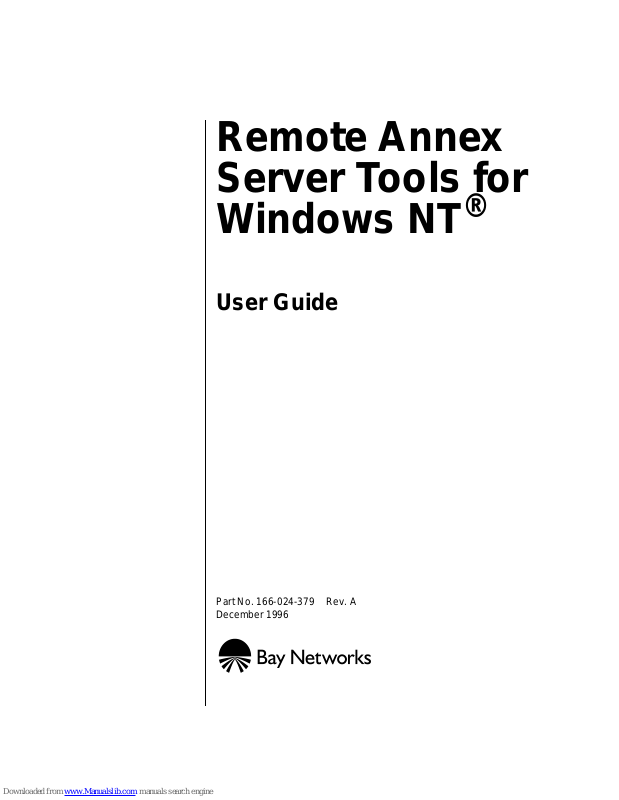

Bay Networks Remote Annex, Remote Annex Server Tools User Manual

Remote Annex Server Tools for

Windows NT

User Guide

Part No. 166-024-379 Rev. A December 1996

recommendations in this document are believed to be accurate and reliable, b ut are presented without express or implied warranty. Users must take full responsibility for their applications of any products speciﬁed in this document. The information in this document is proprietary to Bay Networks, Inc.

The software described in this document is furnished under a license agreement and may only be used in accordance with the terms of that license.

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Notice for All Other Executive Agencies

Notwithstanding any other license agreement that may pertain to, or accompany the deli very of, this computer softw are, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in the Commercial Computer Software-Restricted Rights clause at FAR 52.227-19.

Trademarks of Bay Networks, Inc.

Annex, Remote Annex, Annex Manager , Remote Annex 2000, Remote Annex 4000, Remote Anne x 6100, Remote Annex 6300, Remote Annex 5390/Async, Remote Annex 5391/CT1, Remote Annex 5393/PRI, BayStack Remote Anne x 2000 Server,Quick2Conﬁg, Bay Networks, Bay Networks Press, and the Bay Networks logo are trademarks of Bay Networks, Inc.

Third Party Trademarks

All other trademarks and registered trademarks are the property of their respective owners.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability , Bay Netw orks, Inc. reserves the right to make changes to the products described in this document without notice.

Bay Networks, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third parties).

Contents

Preface

About this Book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Documentation Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Chapter 1 Introduction

NA Utility Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Windows NT

Using Remote Annex Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

User Authentication Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Name Server Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Logging Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Documentation Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Platform Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Chapter 2 Selecting Server Tools Options

Selecting a Security Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Creating a Remote Users Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Creating a RADIUS Authentication and Accounting Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Selecting Booting/Logging Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

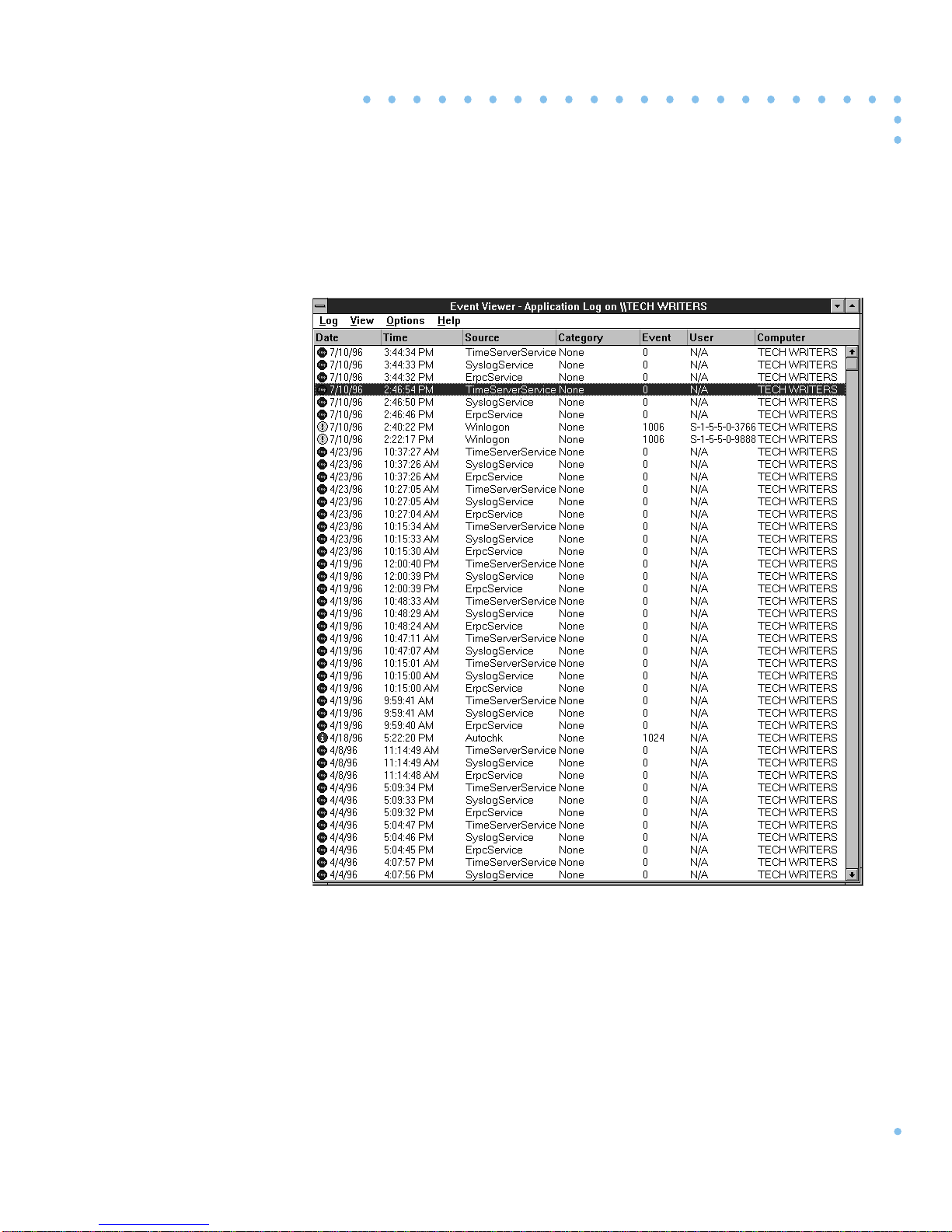

Using the Event Viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Configuring a RADIUS Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Creating and Configuring a RADIUS Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Modifying RADIUS Server Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Deleting RADIUS Server Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Displaying Version Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Server Access Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Chapter 3 Understanding Erpcd

Editing Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Using the acp_userinfo File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Defining User Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Using the acp_keys File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Creating Encryption Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Using the acp_dialup File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Using Local and Remote Addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Chapter 4 Using Security Features

Using Windows NT® Domain Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Support for Multiple Domains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Multiple Domain Authentication Setup Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Setting Remote Annex Security Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Security Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Types of Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

PPP Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

CLI Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Remote Annex Server Tools for Windows NT

User Guide

iii

Contents

Virtual CLI Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

AppleTalk Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Port Server Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Additional Security Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

RADIUS Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

RADIUS and ACP Protocol Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

RADIUS Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

PPP and CHAP Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Access-Request Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Access-Accept and Access-Reject Attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

RADIUS Accounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

RADIUS Accounting Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Accounting-Request Attributes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

RADIUS Configuration Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Backup Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

RADIUS Dictionary File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Appendix A Browsing for Resources on a Microsoft Network

Browser Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Locating Browsers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

The WINS Solution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Remote Annex Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7

Remote Annex Server Tools for Windows NT® User Guide

Preface

Remote Annex Server Tools for Windows NT

conﬁgure, and manage Remote Annexes on a W indows NT performs user authentication and authorization from a Windows NT network and supports:

• Remote Annex 2000

• Remote Annex 4000

• Remote Annex 6100 and 6300

• 5390, 5391, 5393

• MicroCS

• Cabletron CSMIMII

• 3COM 6133C-XS

• 3COM 6117C-XS

TheRemote Annex Server T ools for System Administrators or others who need to conﬁgure Remote Annex servers. It assumes that you are familiar with network protocols and that you know the parameter values you need to conﬁgure Remote Annexes.

for Windows NT

allows you to boot,

network. It

User Guide is intended

This guide is part of the complete Remote Annex documentation set. You should refer to other manuals in the set for information not related to Remote Annex Server Tools for Windows NT

Remote Annex Server Tools for Windows NT

User Guide

Preface

About this Book

This book documents Remote Annex Server Tools for W indo ws NT®. It explains the product’ s features and provides instructions for each of those features.

The Remote Annex Server Tools the following chapters:

• Chapter 1 Annex Server Tools

, Introduction, provides an overview of Remote

for Windows NT

customers who are migrating to the environment, this chapter compares and contrasts several features and behaviors that were ported from UNIX. In addition, this chapter lists minimum system requirements.

• Chapter 2,

Server security options and tells you how to set

Selecting ServerTools Options, describes Windows

Remote Annex security parameters.

• Chapter 3,

Understanding Erpcd, discusses the role of the

expedited remote procedure call daemon (erpcd). Erpcd is a Remote Annex software sub-system that receives and responds to all Remote Annex boot, dump, and ACP security requests.

• Chapter 4,

Using Security Features, discusses Windows NT

Server security and host-based network security.

for Windows NT

features. For existing

Windows NT

User Guide includes

• Appendix A, Browsing for Resources on a Microsoft

• The Index gives you detailed page references for the entire

Remote Annex Server Tools for Windows NT® User Guide

Network, describes Microsoft client setup for locating resources on a Microsoft network.

Remote Annex Server Tools for Windows NT® User Guide.

Documentation Conventions

Preface

The following table lists the Remote Annex Server Tools for Windows NT

User Guide conventions:

Convention: Represents:

Italics chapter titles, book titles, and chapter headings.

special type

bold commands, path names, program names, or ﬁle

▼

deﬁnes samples in the na utility.

names. one-step procedures. important information.

conditions that can have adverse effects on processing.

dangerous conditions.

Remote Annex Server Tools for Windows NT® User Guide

vii

Preface

viii

Remote Annex Server Tools for Windows NT® User Guide

Chapter 1

Introduction

Remote Annex Server Tools for Windows NT

and conﬁgure Remote Annexes on a Windows NT manage one or more Remote Annexes using the na utility. In addition, the product takes advantage of Windows NT and authorize users.

NA Utility Features

The na utility is a command-line interface that lets you monitor and modify Remote Annex operating characteristics. It allows you to:

• Boot a Remote Annex.

• Reset a Remote Annex.

• Identify a Remote Annex by its Internet address or host

• Show and set values for all Remote Annex conﬁguration

name.

parameters.

allows you to boot

network. You can

domains to authenticate

• Save current conﬁguration parameter settings into script

ﬁles.

• Copy the current parameter settings from one port to

another or from one Remote Annex to another.

• Create new site defaults.

Remote Annex Server Tools for Windows NT

User Guide

1-1

Chapter 1 Introduction

Windows NT® Server Access Security Features

Remote Annex Server Tools for Windows NT® works with a Windows

Server to provide access security . You deﬁne user and group access

parameters in Windows NT with the Remote Annex through the Server Tools Options graphical user interface.

Remote Annex Server Tools for Windows NT standard Remote Annex log ﬁle, a RADIUS server log ﬁle, and/or the

Windows NT

Event Log.

and link the appropriate group deﬁnitions

allows you to view the

Using Remote Annex Documentation

In addition to this manual, you need theRemote Annex Administrator’s Guide

for UNIX and the Remote Annex 6300 Supplement to the Remote Annex Administrator’s Guide for UNIX . These guides provide reference,

procedure, and feature descriptions for the Remote Annexes in a UNIX environment.

Be aware that minor differences exist between Windows NT erpcd and UNIX-based erpcd. This section lists these issues and guides you to the appropriate manuals.

User Authentication Issues

Remote Annex Server Tools for Windows NT® takes full advantage of

Windows NT remote dial-in events trigger security services from Windows for NT For information about Remote Annex Server Tools Windows NT authentication, see

server user authentication and authorization. Logon and

Chapter 2, Chapter 4, and Chapter 4.

-based

user

1-2

Remote Annex Server Tools for Windows NT®User Guide

Chapter 1 Introduction

Name Server Issues

Remote Annex Server Tools for Windows NT® supports DNS and IEN-

116 name servers. W e do not ship IEN-116 for W indows NT information, see the

Remote Annex Administrator’ s Guide for UNIX.Be aware

. For more

that IEN-116 discussions do not apply to Remote Annex Server T ools for

Windows NT

Logging Issues

In addition to the standard Annex log destinations, you can conﬁgure

Remote Annex Server Tools for Windows NT

log messages to the Windo ws NT

Event Log. See Chapter 3 for details. For additional logging information, you can refer to numerous chapters in the

6300 Supplement to the Remote Annex Administrator’s Guide for UNIX.

Remote Annex Administrator’s Guide for UNIX and the Remote Annex

to send Syslog and ACP

Documentation Exceptions

Some information in theRemote Annex Administrator’ s Guide for UNIX does

not apply to Remote Annex Server Tools for Windows NT

to innate differences between Windows NT

and UNIX environments.

In addition, certain UNIX-based Annex features are not implemented in

Remote Annex Server Tools for Windows NT

. You can use this table

as a guide to documentation that does not apply to Remote Annex Server

Tools for Windows NT

, due in part

Remote Annex Server Tools for Windows NT®User Guide

1-3

Chapter 1 Introduction

Book/Chapter Topic

A /1 UNIX Host-Originated Connections A /2 Using the Terminal Server TTY (TSTTY)

Using the Transport Multiplexing (TMux) Protocol

A /4 Terminal Server TTY

How TSTTY Interacts with Annex Port Parameters Conﬁguring the Annex for TSTTY Transport Multiplexing Protocol (TMux) tip and uucp getty

A /13 Printing from a BSD Host using aprint or rtelnet

Printing from a System V Host using aprint or rtelnet

A /14 Installing Software Using bfs

IEN-116 Name Server Setting Up a Host for 4.3BSD Syslogging

A /15 Conﬁguring the acp_regime ﬁle

Creating User Password Files Limiting Access to Hosts via acp_restrict Overview of Password History and Aging Enabling and Conﬁguring Password Histories Overview of Blacklisting Viewing and Managing the acp_dbm Database Security for NDP Ports Using Kerberos Authentication Using the ACE Server Using SafeWord AS Security Modifying the Supplied Security Application Using the ch_password Utility

(continued on next page)

1-4

Remote Annex Server Tools for Windows NT®User Guide

Book/Chapter Topic

B /2 TMux-Speciﬁc Annex Parameters vs. MIB Objects C /4 aprint

Platform Requirements

Remote Annex Server Tools for Windows NT® requires:

• Windows NT® Server version 3.51 or 4.0 conﬁgured to support the TCP/IP protocol.

• Administrative privileges on the server.

Chapter 1 Introduction

rtelnet

• 10 MB free disk space on an NTFS drive.

• One

Windows NT

Server client license per Annex.

• A PC with an Intel 486 (or higher) CPU, or any fully compatible CPU.

• 32 MB RAM.

• CD ROM drive to install the product.

Remote Annex Server Tools for Windows NT®User Guide

1-5

Chapter 1 Introduction

1-6

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2

Selecting Server Tools Options

The Server Tools Options window appears when you complete the

installation process or when you double-click on the Options icon in the Bay Networks program group window. The Server Tools Options window has four tabbed dialog boxes that allo w you to select a security server , select booting and logging options, choose and setup a RADIUS server, and view information about your current Remote Annex Server

Tools for Windows NT

• Selecting a Security Server and Group Authentication

• Selecting Booting/Logging Options

• Conﬁguring a RADIUS Server

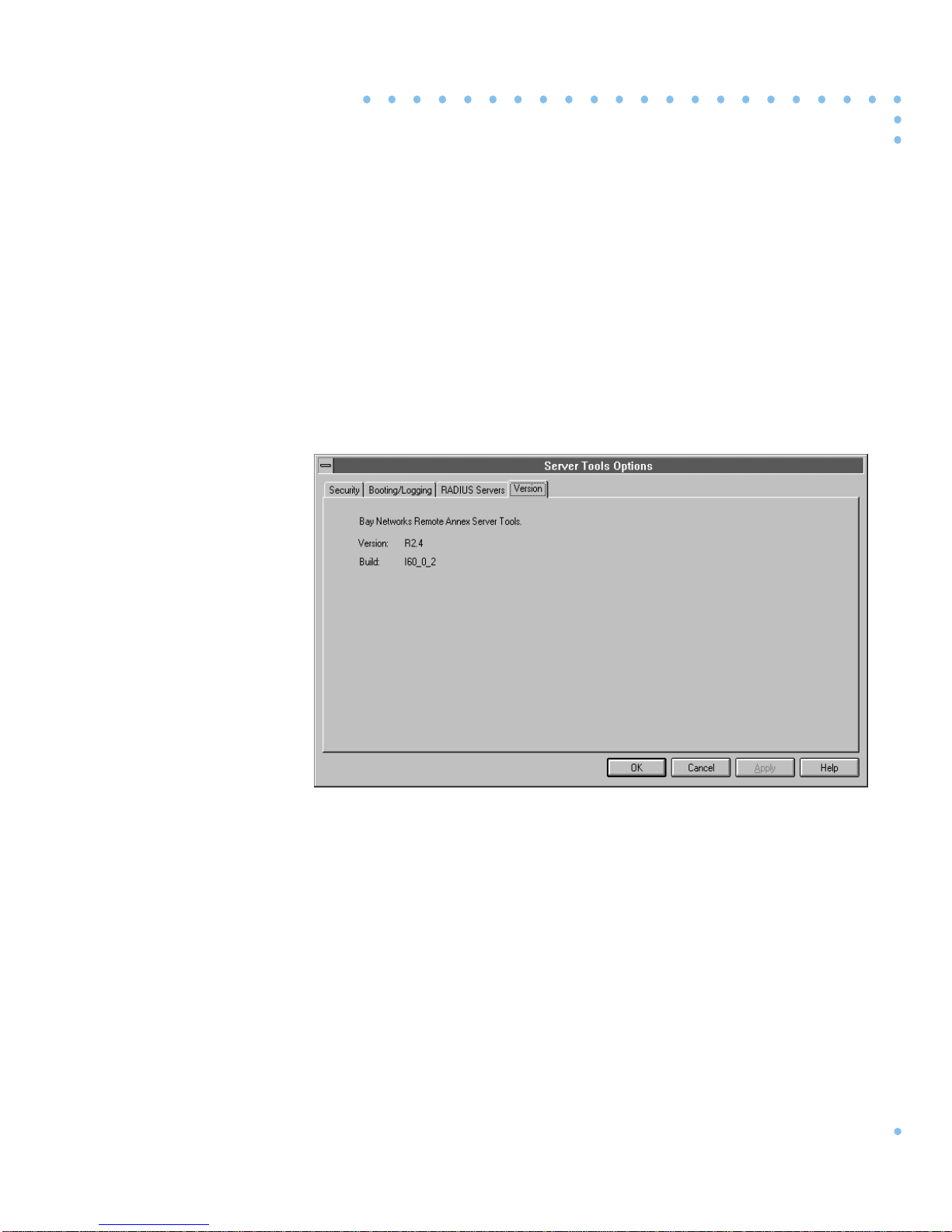

• Displaying Version Information

software version. This chapter includes:

Selecting a Security Server

TheSecurity tab dialog box allows you to choose a security regime, select RADIUS Authentication and Accounting servers, and add or remove domains and remote access groups.

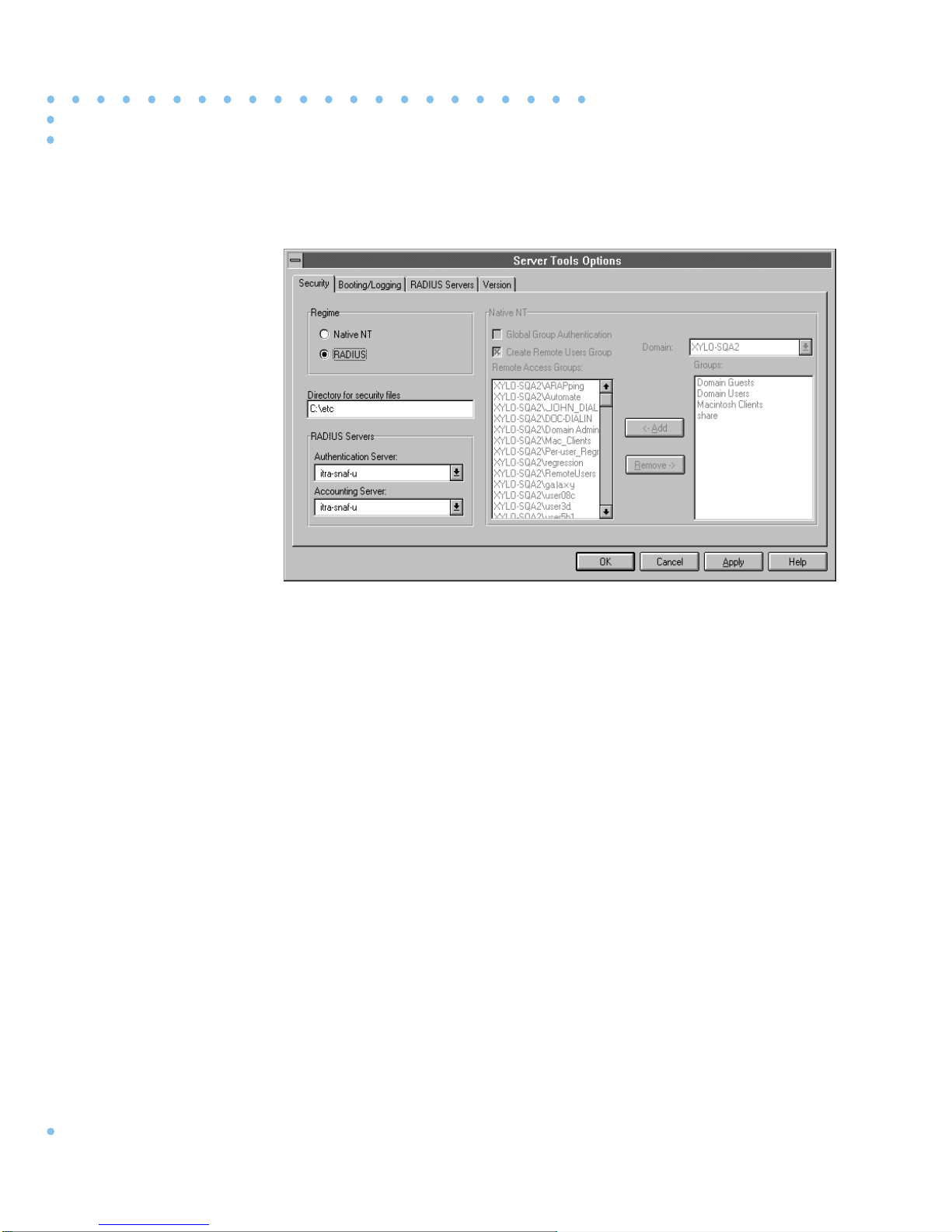

▼ To see this information, click on the Server Tools Options window’s

Security tab.

Remote Annex Server Tools for Windows NT

User Guide

2-1

Chapter 2 Selecting Server Tools Options

To select options in the Security window:

1. Select your desired security protocol from the Regime list box.

By default, Native NT security is selected.

2. In the Directory for security ﬁles ﬁeld, accept the default or enter a new destination drive and directory for the acp_logﬁle ﬁle.

This ﬁeld lists the drive on which you installed Remote Annex Server Tools

for Windows NT

and the etc directory, where the

system stores the acp_dialup, acp_keys, and acp_userinfo ﬁles.

2-2

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2 Selecting Server Tools Options

3. If you selected RADIUS as your security protocol, select the Authentication Server and Accounting Server in the RADIUS Servers list box.

If you selected Native NT from the Regime list box, skip this step.

If the only options available in these two drop–do wn lists is local and same as authentication server you need to create a list of servers from which to choose. For more information on this procedure, see Conﬁguring a RADIUS Authentication and Accounting Server , later in this section.

4. If you selected Native NT as your regime, select the Global Group Authentication check box.

You must select this box if you want to use

Windows NT

global groups to authenticate users. If you do not select it, the system will authenticate user names and passwords only.

5. If you selected Native NTand want to create a default remote users group, select the Create Remote Users Group check box to create the default Remote Users Group availability.

If want to create a new Remote Users Group, see Creating a

Remote Users Group later in this section.

6. If you selected Native NT, select an existing domain from the

Domain ﬁeld. When you select a domain, the groups within that domain

appear in the Groups list box.

7. If you selected Native NT, select a name from the Groups list box.

8. Use

Add to move the group you selected to the Remote

Access Groups list box.

Remote Annex Server Tools for Windows NT®User Guide

2-3

Chapter 2 Selecting Server Tools Options

The groups you add appear in the Remote Access Groups list box preceded by their domain names. All users in the groups you list will be allowed access once they are authenticated using Windows NT who are not members of any group listed here will not have access to Remote Annexes, their ports, or networks.

You can double-click on a group name to move additional groups to the list. If you want to change your selections, select the group from the list box and use the use Remove.

If you install Remote Annex Server Tools for Windows NT® on a primary domain controller, the groups you select here must ha ve local log on privileges to allo w authentication. For more information about this privilege, refer toInstalling Remote Annex Network Software for

NT® included with your documentation set.

domain security. Users

9. When you have completed your Security setup, click on OK to set the changes you made and close the dialog box.

Click on Cancel to close the dialog box without saving or applying your changes.

Click on Apply to set your changes and leave the Server Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

Creating a Remote Users Group

You can add or remove a new Remote Users Group in the Security tab window within the Server Tools Options application. However, unless this new group already exists, you must ﬁrst create the ne w group and its

information via the Windows NT

operating system.

2-4

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2 Selecting Server Tools Options

▼ To add a new default group, choose the Create Remote Users Group

check box.

Remote Users Group appears automatically in the Remote Access Groups list. If you ﬁnd you do not need the group, you can delete it before you click on OK or Apply by selecting it and clicking on Remove or by deselecting the Create Remote Users Group check

box.

To create a new Group:

1. Click on the Administrative Tools icon in the Windows NT

program group window.

The Administrative Tools window appears.

2. Click on the User Manager for Domains icon.

The User Manager for Domains dialog box appears.

3. Add the new Group and associated information.

For more information, see the Windows NT

documentation on

using the options in this window.

4. When you have completed adding your Group information, click on the Security tab in the Server Tools Options window.

The Security dialog box opens.

5. Click on the Domain pull–down menu. The list boxes Groups and Remote Access Groups become

active and list the group (s) you created in the above steps.

Remote Annex Server Tools for Windows NT®User Guide

2-5

Chapter 2 Selecting Server Tools Options

6. Select the newly created Group fr om the Groups list box and click on Add.

The selected group appears in the Remote Access Groups list box.

7. When you have completed your changes, click on OK to set the changes you made and close the dialog box.

Click on Cancel to close the dialog box without saving or applying your changes.

Click on Apply to set your changes and leave the Server Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

Creating a RADIUS Authentication and Accounting Server

To create a RADIUS Authentication or Accounting server:

1. Click on the Server Tools Options windows’s RADIUS Servers tab.

The RADIUS Servers dialog box opens.

2. Click on New. All information ﬁelds become active.

3. Enter the Host Name of the RADIUS server to be created.

2-6

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2 Selecting Server Tools Options

4. Tab to the IP Address text ﬁeld and enter the IP Address that is associated with the Host Name.

Repeat step 4 to conﬁgure the Secret format, the Timeout period, and the number of Retries (

Timeout, and Retries, see Chapter 4).

for more details on Secr et,

5. Click on Accept to apply the new server information or

Revert to cancel your changes.

Any ﬁelds can be modiﬁed before you click on Accept or Revert. When Accept or Revert is chosen, the ﬁelds become inactive and can only be reactivated for editing by sele ting the server then choosing Modify.

6. Click on OK to save your changes and close the dialog box. Click on Cancel to close the dialog box without saving or

applying your changes. Click on Apply to set your changes and leave the Server

Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

Before you can select a Backup Server, you must create more than one new RADIUS servers. Once you create a second RADIUS server , the ﬁrst RADIUS server created appears in the Backup Server dropdown list.

Remote Annex Server Tools for Windows NT®User Guide

2-7

Chapter 2 Selecting Server Tools Options

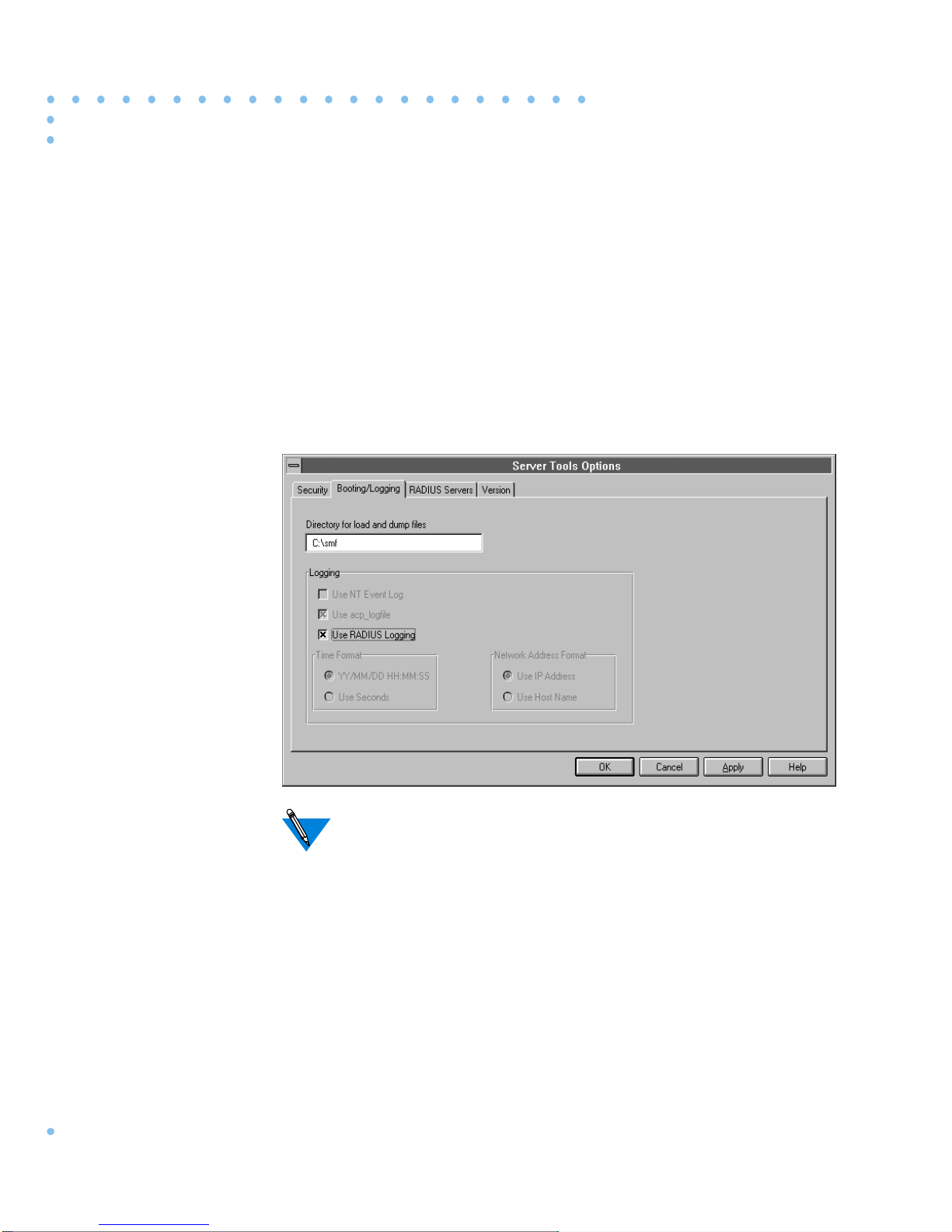

Selecting Booting/Logging Options

TheBooting/Loggingtab window allo ws you to select log ﬁles, to choose locations for load and dump ﬁles, and to choose directories, time formats and network address formats for the log ﬁle.

▼ To display this window, choose the Booting/Logging tab in the Server

Tools Options window.

2-8

Remote Annex Server Tools for Windows NT®User Guide

If you selectUse NT Event Log,your selections for time and network address formats will appear in the acp_logﬁle and in the NT® Event Log’s Detail window.

Chapter 2 Selecting Server Tools Options

To select options in the Booting/Logging window:

1. In the Directory for load and dump ﬁles ﬁeld, accept the default or enter a drive and a directory for the Remote Annex system images and dump ﬁles.

This ﬁeld automatically lists the drive on which you installed Remote Annex Server Tools

for Windows NT

and the bfs

directory, where the system stores load and dump ﬁles.

If you enter a new directory , you can use the File Manager to move Remote Annex software images to the new directory. If you enter a new directory and do not move the images, Remote Annexes will not be able to boot.

2. Select Use NT Event Log, Use acp_logﬁle, or Use RADIUS Logging to choose a method for storing log messages.

You can log syslog messages generated at the Remote Annex as well as security messages generated by erpcd or RADIUS:

• If you choose Use NT Event Log, the system stores

messages in the Applications portion of the standard

Windows NT

Event Log.

• If you choose Use acp_log ﬁle, the system stores

messages in the acp_logﬁle in the directory selected in the Security dialog box. (You can see the acp_logﬁle by double-clicking on the acp_logﬁle icon in the Bay Networks program group window.)

• If you choose Use RADIUS logging, the system sends

messages in the RADIUS server.

RADIUS logging is not available (grayed–out) unless the RADIUS security regime is selected in the Security dialog box.

Remote Annex Server Tools for Windows NT®User Guide

2-9

Chapter 2 Selecting Server Tools Options

3. If you selected Use acp_logﬁle in the Booting/Logging dialog box, in the Time Format box, select a format for time listings.

You can choose:

• YY/MM/DD HH:MM:SS to display the date and time

• Use Seconds to list time in seconds since January 1,

4. If you selected Use acp_logﬁle or NT Event Log in the Booting/Logging dialog box, in the Network Address Format box, choose an IP address or Host Name format.

You can choose:

that an event occurred (e.g., 95/12/30 06:22:15).

1970.

• Use IP Address to place the Internet address of a Remote

Annex that generates logging messages in the log ﬁles.

• Use Host Name to include a Remote Annex name in the

log ﬁles instead of the Remote Annex’ s Internet address.

The time and address formats you choose will appear in the acp_logﬁle or RADIUS logging. If you chose Use

NT Event Log, the format appears in the event log’s Detail window.

Using the Event Viewer

Remote Annex Server Tools for Windows NT® uses the standard

Windows NT Booting/Loggingdialog box, the Windo ws NT will include syslog and security messages.

Event Viewer. If you selected Use NT Event Log in the

Application Event Log

2-10

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2 Selecting Server Tools Options

▼ T o see Windows NT

logs, double-click on theEvent Viewer icon in

Administrative Tools and select Application from the Log menu.

WARNING

Remote Annex Server Tools for Windows NT®User Guide

2-11

Chapter 2 Selecting Server Tools Options

The Windows NT® Event Log stores information in the following columns:

•Anicon at the beginning of each line indicates the severity of the message.

• Date stores the date that the event was logged in

Windows NT

• Time stores the time that the event was logged into

Windows NT

. The Event Log’s Detail window lists the

time an event occurred.

• Source lists the software that logged the event.

• For syslog messages from a Remote Annex or from the

network,

Annex_syslog appears.

• For messages generated by erpcd, the column displays

Annex_syslog.

• For security messages, the log entry reads

Annex_ACP.

• Category classiﬁes events.

• Event contains a number generated by the Remote Annex to identify each event.

• User displays

does not use this column.

N/A. Remote Annex Server Tools for Windows

• Computer displays the name of the host on which you

2-12

Remote Annex Server Tools for Windows NT®User Guide

installed erpcd.

Y ou can display the ev ent log’sDetail window by double-clicking on any line in the Windows NT® Event Log.

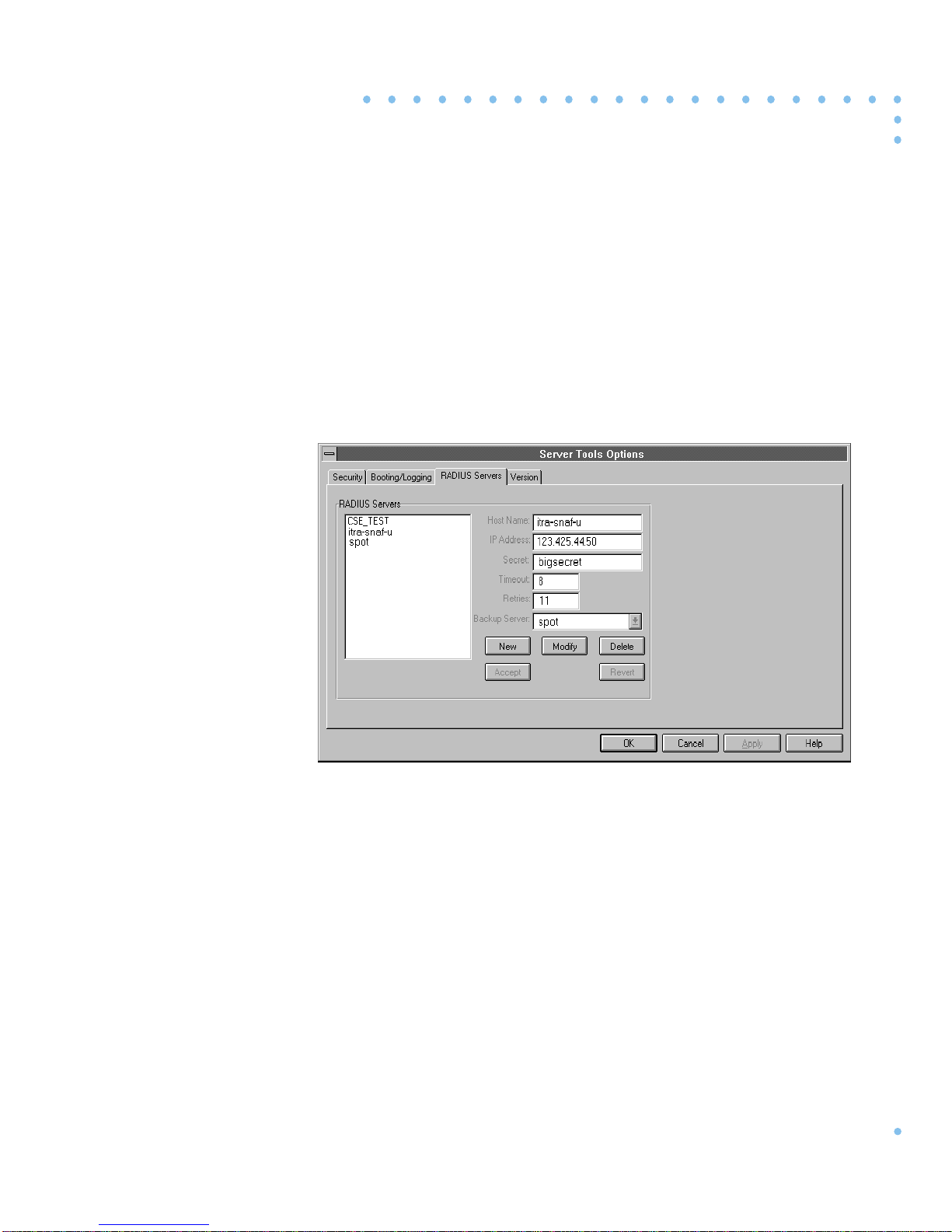

Conﬁguring a RADIUS Server

TheRADIUS Servers tab dialog box allows you to create, modify , delete and conﬁgure a RADIUS server and to set parameters such as IP Address and Secret format.

▼ To see this information, click on the Server Tools Options window’s

RADIUS Servers tab.

Chapter 2 Selecting Server Tools Options

First Time Use

The ﬁrst time you open theRADIUS Servers dialog box after installation, the information ﬁelds will be blank and inactive. You need to create and conﬁgure the RADIUS servers that you will be using. Use the following procedures to create, conﬁgure, modify , and delete your RADIUS servers and associated parameters.

Remote Annex Server Tools for Windows NT®User Guide

2-13

Chapter 2 Selecting Server Tools Options

Creating and Conﬁguring a RADIUS Server

To create and conﬁgure a new RADIUS Server:

1. Click on New.

All information ﬁelds become active.

2. Enter the Host Name in the text ﬁeld.

3. Tab to the IP Address text ﬁeld and enter the IP address that is associated with the Host Name.

4. Repeat step 3 to conﬁgure the Secret format, the Timeout period, and the number of Retries.

5. Click on Accept to apply the new server information or

Revert to cancel your changes. Any ﬁelds can be modiﬁed before you click the Accept or

Revert buttons. When Accept or Revert is chosen, the ﬁelds become inactive and can only be reactivated for editing by selecting the server then choosing the Modify button.

6. Click OK to save your changes and close the Server Tools Options window.

Click on Cancel to close the dialog box without saving or applying your changes.

Click on Apply to set your changes and leave the Server Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

Before you can select a Backup Server, you must create more than onenew RADIUS servers. Once you create a second RADIUS server , the ﬁrst RADIUS server created appears in the Backup Server dropdown list.

2-14

Remote Annex Server Tools for Windows NT®User Guide

Chapter 2 Selecting Server Tools Options

Modifying RADIUS Server Information

1. Select your desired RADIUS server from the RADIUS Servers list box.

When you select your RADIUS server, the information ﬁelds on the right side of the dialog box automatically ﬁll in with the appropriate information pertaining to the RADIUS server that you selected. Click on Modify.

All information text ﬁelds become activ e, except the Host name.

2. Place your cursor in the desired information ﬁeld to be modiﬁed and enter the new information.

3. Click on Accept to save the modiﬁed information or

Revert to cancel your changes. Any ﬁelds can be modiﬁed before you choose Accept or Revert.

When Accept or Revert is chosen, the ﬁelds become inactive and can only be reactivated by choosing the Modify button.

4. Click OK to save your changes and close the Server Tools Options window.

Click on Cancel to close the dialog box without saving or applying your changes.

Click on Apply to set your changes and leave the Server Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

Remote Annex Server Tools for Windows NT®User Guide

2-15

Chapter 2 Selecting Server Tools Options

Deleting RADIUS Server Information

1. Select the RADIUS Server to be deleted and click on Delete.

All information text ﬁelds remain inactive and a conﬁrmation dialog box appears.

2. Click OK to delete the RADIUS Server or Cancel to exit the conﬁrmation dialog box without deleting any server information.

The conﬁrmation dialog box closes.

3. Click OK to save your changes and close the Server Tools Options window.

Click on Cancel to close the dialog box without saving or applying your changes.

Click on Apply to set your changes and leave the Server Tools Options window open on your desktop.

Use this option if you want to make changes in any of the other tabbed dialogs.

2-16

Remote Annex Server Tools for Windows NT®User Guide

Displaying Version Information

The Version tab window provides the company and product name, version number, and build number for the Remote Annex Server Tools

for Windows NT

▼ To see this information, click on the Server Tools Options window’s

Version tab.

Chapter 2 Selecting Server Tools Options

Remote Annex Server Tools for Windows NT®User Guide

2-17

Chapter 2 Selecting Server Tools Options

2-18

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3

Understanding Erpcd

Remote Annex Server Tools for Windows NT

remote procedure call daemon (erpcd) running on a Windows NT server. Erpcd responds to all Remote Annex boot, dump, and ACP security requests. ACP’s eservices ﬁle, stored in the \etc directory, lists the services that erpcd provides. Eservices includes controls for:

• The block ﬁle server program (bfs) that sends boot ﬁles to a

Remote Annex and collects dump ﬁles from a Remote Annex.

• The Access Control Protocol (ACP) program that provides

security when you deﬁne a security server. See for additional information.

You can use the Remote Annex Administrator’s Guide for UNIX to ﬁnd additional information about erpcd, the acp_userinfo,

acp_keys, andacp_dialup ﬁles. However, Remote Anne x Server T ools implementserpcd differently because it uses Windows NT domain authentication.

This chapter describes the ﬁles you can edit. It includes:

Windows NT

uses the expedited

server as a

• Editing Files

• Using the acp_userinfo File

• Using the acp_keys File

• Using the acp_dialup File

Remote Annex Server Tools for Windows NT

User Guide

3-1

Chapter 3 Understanding Erpcd

Editing Files

You can edit the acp_userinfo, acp_dialup, and acp_keys ﬁles from the Bay Networks program group window . For each ﬁle, there is an associated icon in the program group window.

▼ To open an individual ﬁle, such as the acp_userinfo ﬁle, from the Bay

Networks program group windo w, doub le-click on the associated icon and the ﬁle will open in the Windows NT® Notepad editor.

Your changes take effect immediately. User names and group names are not case-sensitive.

Using the acp_userinfo File

The acp_userinfo ﬁle stores information about the Remote Annex commands and protocols that are available to users. When a user logs in to the server, erpcd matches the login environment with acp_userinfo entries and controls user access based on these entries.

Deﬁning User Proﬁles

Deﬁning user proﬁles is useful only when you want to restrict a user’s privileges for remote access connections.

The acp_userinfo ﬁle allows you to control network access based on a user’s login environment. When you create a proﬁle, erpcd ﬁrst authenticates users and then attempts to match the user name with an entry in theacp_userinfo ﬁle. If a proﬁle matches the login en vironment, erpcd downloads attribute information.

3-2

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

For example, if a user who belongs to the Engineering group requests access to a Remote Annex port on Monday morning at 10 a.m. and a proﬁle excludes Engineering group members from using that Remote Annex on Mondays between 9 and 11 a.m., the user cannot log in to the port. In this case, Remote Annex Server Tools for Windows NT

authenticates the user’s W indo ws NT® name and password, matches the current environment (the Remote Annex, port, day and time) to an entry in acp_userinfo, and downloads instructions (or attributes) so that the Remote Annex denies access to the user.

For more detailed information about proﬁles and for examples using the na utility, please refer to the Remote Annex Administrator’s Guide for UNIX. Some terminology differs in this book, but ke yword and attribute names and formats are identical in function.

User Proﬁle Formats

The acp_userinfo ﬁle stores user proﬁles in the user ...end block format. This format can include:

user to begin the block.

•

• One or more keywords that specify the user environment.

Entries must contain:

• A keyword, an equal sign (=) and a value, without spaces. For an explanation of these keywords, refer to

Environment Keywords later in this chapter.

User

• A semicolon (;) to separate keyword/value statements.

• A backslash (\) at the end of a line if you continue the entry on a second line.

Y ou cannot use each ke yword more than once in any user proﬁle. A line cannot exceed 80 characters.

Y ou cannot include spaces on either side of the equal sign, the semicolon, or within the value, except in a value for time.

Remote Annex Server Tools for Windows NT®User Guide

3-3

Chapter 3 Understanding Erpcd

Using Proﬁle Environment Keywords

User proﬁles contain one or more keywords that deﬁne user login conditions. Erpcd matches these conditions to environment conditions listed in a user proﬁle.

• The attributes that erpcd applies when all user proﬁle

elements match the user’s login environment.

•

end to conclude the proﬁle.

The acp_userinfo ﬁle can include as many user proﬁles as you need. The matching process requires that all elements in a user proﬁle match the user’s login environment.

Since erpcd uses the ﬁrst proﬁle it ﬁnds that matches a user’s login environment, you need to place proﬁles in the order in which you want them to match.

Username and Group Ke ywords

Theusername keyword speciﬁes a single Windo ws NT® user . The group keyword allo ws you to create a user proﬁle for any member of a Windows

group.

▼ To use these keywords, enter username= or group= followed by a

user or group name.

If you do not enter a user or group name, the proﬁle applies to all users. You can use an asterisk as a wildcard following a partial name or an asterisk alone to indicate that the proﬁle applies for all users or group members who meet the criteria.

If you do not enter a domain name, erpcd assumes the user is registered in the domain in which Remote Annex Server Tools

Windo ws NT

is installed. If you create a proﬁle for a user or group

for

in a different domain, you must enter the domain name, two backslashes, and the user or group name (e.g.,

Marketing\\Russell).

3-4

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

time Keyword

protocol Keyword

The time keyword allo ws you to deﬁne a period of time during which a proﬁle’s attributes apply.

▼ To use this keyword, type time= followed by one or more of the

following:

• A day of the week (e.g., Tuesday).

• A speciﬁc date, including the month and the date

August 1).

(e.g.,

• A range of hours in hh:mm format (e.g.,

06:30). You

must enter a start time and an end time. You can enter

a.m. or p.m. following each time.

If you do not enter a day and/or a date, erpcd applies the start and end time every day of the week. If you omit

a.m. or p.m., you are

specifying time in the 24-hour format.

The protocol keyword deﬁnes a protocol by which a user can connect to a Remote Annex.

▼ T o deﬁne a protocol, type protocol= followed by slip, ppp, or cli.

annex and ports Keywords

You cannot enter more than one protocol on a line. However, you can repeat the

protocol= format and add a second or third proﬁle.

The annex and ports keywords specify the Remote Annexes and ports to which proﬁle attributes will apply.

▼ To list Remote Annexes and/or ports, type annex= and/or ports=

followed by one or more Remote Annex names or IP addresses and one or more port numbers, respectively.

You can use an asterisk to specify a partial Remote Annex name or IP address. In addition, you can enter individual port numbers separated by commas or a range of port numbers using dashes (e.g.,

ports=1,3,6-22).

Remote Annex Server Tools for Windows NT®User Guide

3-5

Chapter 3 Understanding Erpcd

Understanding Proﬁle Attributes

In each user proﬁle, one or more attributes follow keywords and their values. This section explains the attributes you can include.

To combine the annex and port keywords in one line, separate keyword/value entries with a semicolon

annex= Annex 02, 245.132.88.22; ports=1,3,6-22). If

(e.g., you omit Remote Annex names or addresses and list one or more ports, proﬁle attributes will apply to all Remote Annexes.

accesscode

Theaccesscode attribute controls the text that a user enters when logging in to a dial-back port. Before you can use the accesscode attribute, you must deﬁne at least two modem pools (one for dial-in and one for dialout) in the acp_userinfo ﬁle. A modem pool groups asynchronous ports on one or more Remote Annexes.

Modem pool deﬁnitions usually appear at the end of the acp_userinfo ﬁle. To deﬁne a modem pool:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

pool inboundpool1).

3. Type

pool followed by a name for the modem pool (e.g.,

ports followed by one or more port numbers, @, and

one or more Remote Annex names or IP addresses.

You can separate port numbers with commas and/or enter a range of numbers with dashes (e.g.,

ports 1,6-10@Annex01).

3-6

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

The acp_userinfo ﬁle can store one or more accesscode attributes in a user proﬁle. To create an accesscode entry:

1. Type

2. Type

accesscode followed by a code name.

For IPX clients, you must enter

phone_no followed by an actual phone number (e.g.,

phone_no 634-5789).

IPX for the access code.

If you do not enter a phone number, the system prompts the user for it. You can enter

charge_back for IPX clients so that the

system prompts the user for a phone number, drops the connection, and calls the user at that number.

3. Type

4. Type

5. Type

in_pool followed by the name of an inbound modem

pool (e.g.,

end.

in_pool inboundpool1).

out_pool followed by the name of an outbound modem

out_pool outboundpool1).

job followed by one CLI command, its arguments, and

You do not need to enter a job speciﬁcation.

6. Type

end.

clicmd

The clicmd attribute allows you to list CLI commands that erpcd will execute if the proﬁle matches. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

clicmd.

3. Enter a single user or superuser CLI command or the name of an existing macro deﬁned for a Remote Annex.

Remote Annex Server Tools for Windows NT®User Guide

3-7

Chapter 3 Understanding Erpcd

4. Type end.

You can repeat the line you created in Steps 1-3 if you want to use more than one CLI command. Erpcd executes CLI commands in the order in which they appear.

climask

5. Add

clicmd...end following the last line that lists a CLI

command.

You can use this line only if you want to continue the CLI session after erpcd executes the last CLI command.

You cannot use clicmd unless you set the cli_security parameter to

Y. You should not include the same CLI command in the clicmd and

climask entries.

The climask attribute limits the CLI commands a user can execute. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

climask.

3. Enter one or more CLI commands. If you enter more than one command, separate commands with spaces.

4. Type

3-8

Remote Annex Server Tools for Windows NT®User Guide

end to conclude the climask entry.

Y ou can use include ﬁles in place of repeatedclimask entries. T o use these ﬁles, type include and the ﬁle name. Include ﬁles must be stored in the same directory as is the acp_userinfo ﬁle.

Chapter 3 Understanding Erpcd

When a user’s name and passw ord match the proﬁle, erpcd sends this list to the Remote Annex, which prevents the user from executing the commands.

You cannot use climask unless you set the cli_security parameter to

Y. You should not include the same CLI command in the clicmd and

climask entries.

For detailed information about all CLI commands, please refer to the

Remote Annex Administrator’s Guide for UNIX.

deny

ﬁlter

The deny attribute prevents a user from connecting to a Remote Annex. To use the command:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

If you include additional attributes in a proﬁle that uses deny, the proﬁle will not execute additional attributes.

deny following a user name or group name.

When erpcd denies access to a Remote Annex, it generates a message in the log ﬁle. For CLI users, the message appears on the screen.

The ﬁlter attribute sets network address restrictions for speciﬁc users or groups. These restrictions apply to the port on which a user logs in.

To use the attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

Remote Annex Server Tools for Windows NT®User Guide

3-9

Chapter 3 Understanding Erpcd

2. Go to the area of the ﬁle where entry information resides and type

filter.

3. Enter a ﬁlter deﬁnition.

4. Type

end.

You can repeat the line you created in Steps 1-3 if you want to use more than one ﬁlter. Erpcd executes ﬁlter attributes in the order in which they appear.

Each ﬁlter deﬁnition includes categories for direction, scope, family, criteria, and actions. You must separate each part of the ﬁlter deﬁnition with a space.

• Direction applies the ﬁlter to incoming or outgoing packets.

You can enter

input or output. To apply a ﬁlter to incoming

as well as outgoing packets, you must create two separate deﬁnitions.

• Scope controls how erpcd matches the ﬁlter deﬁnition. You

can enter match the deﬁnition, or

include to apply the ﬁlter only to packets that

exclude to apply the ﬁlter only to

packets that do not meet the deﬁnition.

• Family, an optional part of the deﬁnition, speciﬁes the

protocol to which the ﬁlter applies. Currently, the system supports only

ip.

3-10

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

• Criteria includes the conditions for the ﬁlter. This section

uses a keyword followed by a value. You can enter:

•

dst_address (the packet’s destination address)

followed by an IP address.

dst_port (the destination port) followed by a port

• number from 1-65535 or by a service name.

src_port (the source port number) followed by a port

• number from 1-65535 or by a service name.

src_address (the packet’ s source address) followed by

• an IP address.

address_pair for incoming or outgoing packets passing

• between two addresses, followed by two IP addresses. You must enter both addresses, separated by a space, on the same line. If you use this keyword, you cannot use

dst_address or src_address.

•

port_pair for incoming or outgoing packets passing

between two ports or services, followed by a port number or service name. If you use this keyword, you cannot use

dst_port or src_port.

•

protocol (the packet’ s transport protocol) followed by

a number from 1 to 65535 or by

T o match all addresses or port numbers, enter -1 or* in place of an address or port number. For service names, you can enter domain, finger, ftp, name,

nfs, nntp, rlogin, route, routed, router, rtelnet, sftp, smtp, telnet,tftp, time, who,

or login. For the port numbers that correspond to these service names, refer to the Remote Annex Administrator’s Guide for UNIX.

tcp, udp, or icmp.

Remote Annex Server Tools for Windows NT®User Guide

3-11

Chapter 3 Understanding Erpcd

• Actions specify a ﬁlter’s activity when its criteria match a

packet. You can enter one or more of the following actions:

•

discard discards the packet. If you use syslog, icmp,

netact with discard, the system discards the packet

or after it takes those actions.

icmp discards the packet and sends an ICMP message

• indicating that the destination is unreachable.

netact deﬁnes activity for a SLIP or PPP dynamic dial-

• out line. When you use

netact in a ﬁlter that is enabled

on SLIP or PPP dynamic dial-out line, packets that match the ﬁlter constitute activity on the line. If the line is not

netact discards the packet.

up,

•

no_start, used with include (in the Scope category),

speciﬁes that packets deﬁned as activity will not activ ate a dynamic dial-out line, but will keep the line up and will reset the net_inactivity timer parameter to

route

•

syslog logs the event in the log ﬁles.

The route attribute deﬁnes the IP routes that a router can make available through a Remote Annex when it dials in. You should use this attribute when you do not want a router to incur overhead in running a routing protocol itself. To use this attribute, you must:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

route.

3. Enter an IP address for the route’s destination.

4. Enter a subnet mask for the destination’s address.

3-12

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

5. Enter an IP address for the gateway that is the next hop for the route.

If you enter an asterisk, the Remote Annex uses the port’s remote address as the gateway.

6. If necessary , you can enter a number fr om 1 to 15 to indicate the number of hops to the destination or -h to indicate that the route is hardwired.

You can skip this step. You do not have to enter a number of hops or

-h.

at_zone

7. Type

end.

The at_zone attribute lists AppleTalk zones on a network. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

1. Go to the area of the ﬁle where entry information resides and type

at_zone.

2. Enter one or more zone names.

If you use more than one zone name, separate names using spaces (e.g.,

at_zone zone1 zone2). Zone names use 1-32

characters; you cannot use non-printable characters. If you enter a name that contains spaces, you must enclose the entire name in double quotation marks.

3. Type

end.

Remote Annex Server Tools for Windows NT®User Guide

3-13

Chapter 3 Understanding Erpcd

at_connect_time

at_nve_ﬁlter

The at_connect_time attribute speciﬁes the number of minutes that an ARA connection can remain open. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

at_connect_time followed by a number of

minutes.

The at_nve_ﬁlter attribute allows you to include or exclude users from speciﬁc objects, network numbers, subzones, and zones. Y ou can specify one at_nve_ﬁlter attribute for each user in a proﬁle. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

at_nve_filter.

3-14

3. Type

include or exclude.

4. Enter an object name followed by a colon (:).

5. Enter a network number or subzone name followed by @.

6. Enter a zone name.

7. Type

Remote Annex Server Tools for Windows NT®User Guide

end.

For object names, network numbers or subzone names, and zone names, you can use an asterisk as a wildcard. All entries in steps 3, 4, and 5 are case-sensitive and can use up to 32 characters.

Chapter 3 Understanding Erpcd

at_password

The at_password attribute stores a password for each registered

AppleT alk user . Remote Annex Server T ools for W indows NT

uses this

password to authenticate all AppleTalk users. To use this attribute:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

at_password followed by a password using 1 to 9

characters.

You can include punctuation marks in a password. If you use spaces and/or hexadecimal values, use the backslash (/) preceding these characters.

If you want to allow AppleTalk guests access to the network, you should use the na utility to set the at_guest parameter to Y. You can, however, create an at_password attribute here using Guest (case sensitive) as a user name.

chap_secret

Thechap_secret attribute deﬁnes the token used for authentication when you use the CHAP protocol for PPP links. CHAP authenticates users based on the user names in the acp_userinfo ﬁle. To create a token:

1. Open the acp_userinfo ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_userinfo ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and type

chap_secret following by the token.

Each token can use up to 32 alphanumeric characters. We recommend that all tokens use at least 16 characters.

Remote Annex Server Tools for Windows NT®User Guide

3-15

Chapter 3 Understanding Erpcd

Using the acp_keys File

The acp_keys ﬁle stores Remote Annex names or IP addresses and corresponding encryption keys. Erpcd uses the keys you deﬁne here to create encryption keys that the security server and a Remote Annex use to exchange messages. When the security server receives an encrypted message from a Remote Annex, it matches the key with an associated Remote Annex in the acp_keys ﬁle. If there is no match, the Remote Annex and the server cannot communicate.

To create an entry in the acp_keys ﬁle:

1. Open the acp_keys ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_keys ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and enter one or more Remote Annex names or IP addresses.

You can use an asterisk (wildcard) for any part of an IP address. If you list more than one Remote Annex, you must separate names or IP addresses using commas.

3. Type a colon to separate Remote Annex names or addresses from the encryption key.

4. Enter an encryption key that uses up to 15 characters.

You cannot use spaces or tabs here. Encryption keys are case-sensitive. For additional information, refer to

Creating

Encryption Keys on page 3-17.

3-16

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

For example, annex1, annex2: abcxyz is a simple entry that deﬁnes an encryption key for two Remote Annex es. If you need to continue an entry on a second line, use the backslash (/) at the end of the ﬁrst line.

Erpcd ﬁrst attempts to match complete IP address entries in the acp_keys ﬁle. If it does not ﬁnd an exact match, it searches entries

that contain wildcards. In either case, it uses the ﬁrst key entry it ﬁnds.

Creating Encryption Keys

You must deﬁne encryption keys by setting the acp_key parameter for each Remote Annex. If the key v alue is not the same in the acp_keys ﬁle and for the acp_key parameter, the Remote Annex and the server cannot communicate. In addition, you must set the enable_security parameter

Y to use any security feature.

to To set up encryption keys:

1. Open the acp_keys ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_keys ﬁle opens in the Notepad editor.

2. Go to the area of the ﬁle where entry information resides and enter Remote Annex names or IP addresses and encryption keys in the acp_keys ﬁle.

3. Use the admin utility on the Remote Annex to set the acp_key parameter for each Remote Annex you listed in theacp_keys ﬁle.

Remote Annex Server Tools for Windows NT®User Guide

3-17

Chapter 3 Understanding Erpcd

4. Use the Services control panel to stop or pause erpcd.

5. Use the admin utility’s reset annex security command to reset security for the Remote Annexes whose keys you added or changed.

6. Use the Services control panel to restart erpcd.

Using the acp_dialup File

The acp_dialup ﬁle stores user names, Remote Annex names and addresses, and port numbers. Erpcd matches Annex and user entries to provide IP addresses for users dialing in to the network. It denies access to users if it does not ﬁnd a matching entry.

To use the information in acp_dialup, you must set the dialup_addresses parameter to Y via the na utility. This allows a Remote Annex to search the acp_dialup ﬁle for the remote client’s user name and for local and remote addresses.

To create an entry in the acp_dialup ﬁle:

1. Open the acp_dialup ﬁle from the Bay Networks program group window by double-clicking on the appropriate icon.

The acp_dialup ﬁle opens in the Notepad editor.

2. Go to the end of the ﬁle and enter a user name. If authentication is performed with multiple domain controllers, enter the domain name and the user name like this:

domain-name\\user-name

3-18

Remote Annex Server Tools for Windows NT®User Guide

Chapter 3 Understanding Erpcd

3. Enter one or more port numbers followed by @ and one or more Remote Annex names or IP addresses.

You can separate port numbers with commas and/or enter a range of numbers with dashes (e.g.,

1,3,6-10@Annex01).

4. Enter a remote address followed by a local address.

You can use an asterisk (wildcard) for any part of an IP address. You must use spaces to separate the user name, port number/ Remote Annex, Local Address, and Remote Address ﬁelds.

Using Local and Remote Addresses

If the acp_dialup ﬁle contains a matching user name and:

• The local and remote addresses exist in the ﬁle, the Remote Annex uses those values.

• The acp_dialup ﬁle contains a remote address but not a local address, the Remote Annex uses the remote address from the ﬁle and the Remote Annex’s IP address for the local address.

If the ﬁle does not contain a matching user name, the Remote Annexuses values from the local_address and remote_address parameters.

• If both parameters contain addresses, the Remote Annex uses these values.

• If both parameters are set to

0.0.0.0, the Remote Annex

negotiates for both addresses with the remote PPP client. The connection is denied for a remote SLIP client.

•Iflocal_address contains a value and remote_address is set

0.0.0.0, the Annex uses the local address and negotiates

to with the remote PPP client for the remote address. The connection is denied for a remote SLIP client.

Remote Annex Server Tools for Windows NT®User Guide

3-19

Chapter 3 Understanding Erpcd

3-20

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4

Using Security Features

Remote Annex Server Tools for Windows NT

Windows NT features to protect your network from unauthorized access. T o use Remote Annex Server Tools for Windows NT

• Use the Manager for Domains to create groups, user names, and passwords.

• Use the na utility to set security parameters on the Remote Annex for the types of security you want.

You can use group authentication by selecting options in the Security dialog box:

• Select Global Group Authentication.

• Select the groups whose members can be authenticated.

For more information on group authentication, see This chapter summarizes most security features and explains the

relationship between Windows NT security. It includes:

domain security and Remote Annex-based security

security features, you need to:

Windows NT

Administrative Tools/User

domain security and server-based

uses standard

Chapter 3.

Although this manual documents the differences between UNIX and Windows NT implementation is signiﬁcantly different from the UNIX implementation. Therefore to avoid confusion, all RADIUS for Windows NT information is included in this chapter.

• Using Windows NT® Domain Security

• Setting Remote Annex Security Parameters

• RADIUS Security

® implementation, the RADIUS for Windows NT®

Remote Annex Server Tools for Windows NT

User Guide

4-1

Chapter 4 Using Security Features

Using Windows NT® Domain Security

When a user logs on to a Remote Annex, to one of its ports, or to a network, the system performs authentication based on the security parameters you set. Once you set the parameters that enable a type of security:

• The system checks the

Windows NT

user name and

password.

• The system performs additional authentication if you

selected Global Group Authentication and chose groups for remote access in the Server Tools Options windows. If the user name and password are valid, the system determines whether the user is a member of any group you selected.

Support for Multiple Domains

Remote Annex Server Tools for Windows NT® can authenticate users from domains other than the security server’ s default domain. To facilitate

this feature, the Windows NT one-way trust relationship.

In essence, a trusting domain controller can be linked to one or more trusted domain controllers. When a cross-domain authentication request arrives at the (trusting) domain controller , the request is transferred to the appropriate (trusted) domain controller. The trusted controller’s domain security accounts manager database includes the user in question and authenticates that user.

administrator must establish at least a

4-2

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

Multiple Domain Authentication Setup Procedure

Follow these Windows NT® steps to facilitate support for multiple domain authentication:

Windows NT® steps

Server Tools steps

1. Establish the appropriate trust relationship among domains.

2. Load the Remote Annex Server Tools for Windows NT

® on

the trusting domain controller.

3. Deﬁne the user(s) in the trusted domain’s security accounts manager database.

4. Add the trusted domain user(s) to a global group. Use the trusted domain’s User Manager for Domain’s Utility.

5. Click on the Server Tools Options window.

6. Select the Security tab.

7. Use

Add and Remove to deﬁne (by domain and group) those

users who require authentication.

All Windows NT

users who require authentication services must be deﬁned to the Remote Annex Server Tools software. Those deﬁnitions are accomplished in the following steps:

1. Add a valid entry(s) in the acp_userinfo ﬁle.

The user’s name must be deﬁned in the acp_userinfo and acp_dialup ﬁle in the format:

domain-name\\user-name

For example, a user named Stephen from the Marketing domain would log on as Workgroups

2. If the caller requires a dial-up address, add a valid entry(s) in the acp_dialup ﬁle.

Marketing\\Stephen.Windows NT

, and Windows 95® use this format.

Remote Annex Server Tools for Windows NT®User Guide

, Windows for

4-3

Chapter 4 Using Security Features

Setting Remote Annex Security Parameters

The Remote Annex’s Access Control Protocol (ACP) provides serverbased security . When you deﬁne one network server as a security serv er, you can use ACP software default settings or modify the software to create a customized security policy for your network.This section includes:

• Security Requirements

• Types of Security

Security Requirements

Before you can use server-based security, you must use the na utility to:

• Set the enable_security parameter to

• Deﬁne one server as the primary security server by entering

its address in the pref_secure1_host parameter. You can deﬁne a backup security server in the pref_secure2_host parameter.

• If a Remote Annex queries the primary server and does not receive a response within the time deﬁned in the network_turnaround parameter, it queries the backup server.

• If the backup server does not respond within the time speciﬁed, the Remote Annex broadcasts to the network for another server running erpcd as long as the security_broadcast parameter is set to

For instructions on using the na utility and detailed explanations for each parameter, refer to the Remote Annex Administrator’s Guide for UNIX.

4-4

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

You can customize security features by editing several A CP ﬁles. These ﬁles are maintained by the security server through Remote Annex Server Tools for Windows NT

® program window.

• The acp_keys ﬁle includes encryption key information.

• The acp_dialup ﬁle contains user names and addresses for

dial-up connections.

• The acp_userinfo ﬁle contains initial login environment

information and start-up CLI commands. .

The Remote Annex Administrator’s Guide for UNIX includes detailed discussions about server-based security and examples using thena utility. Y ou should use this guide for reference. Ho wever , some instructions and examples refer to the acp_regime, acp_restrict, acp_group, and acp_password ﬁles. Remote Annex Server Tools for Windows NT® servers does not use the acp_regime, acp_restrict, acp_group, or acp_password ﬁles. You should skip the steps that discuss these ﬁles.

Types of Security

You can conﬁgure your system for several types of server -based security by using the na utility to set security parameters. Once you set these

parameters, Remote Annex Server Tools for Windows NT

Windows NT

user names and passwords to authenticate users. This section describes the type of server-based security that use W indows NT domain security. It includes:

• PPP Security

• CLI Security

• Virtual CLI Security

• AppleTalk Security

• Port Server Security

uses

Remote Annex Server Tools for Windows NT®User Guide

4-5

Chapter 4 Using Security Features

PPP Security

Point-to-Point (PPP) provides a link between hosts that carry IP , IPX, and ARA protocols. After PPP negotiates Link Control Protocol (LCP) options, the hosts at either end of the link authenticate their identities using PAP or CHAP security protocols.

You need to set certain parameters to enable each type of security described here. Once you set parameters, each user will have to enter a user name and password. Remote Annex Server T oolsfor Windo ws

will grant access only to those user names and passwords listed

in any Windows NT® global group you selected in the Remote Access Groups tab window.

• PAP is a two-way handshake in which hosts exchange user

names and passwords in clear text.

• CHAP is a three-way handshake that uses a secret token

deﬁned in the acp_userinfo ﬁle to authenticate users.

▼ To conﬁgure Windows NT® security for PPP links, you must set the

ppp_security_protocol parameter.

• If you set ppp_security_protocol to pap, the system uses

Windows NT

user names and passwords for authentication.

• If you set ppp_security_protocol to chap–pap, the system

ﬁrst requests CHAP security. If CHAP is not acknowledged, it requests PAP.

CHAP does not use Windows NT® user names, passwords, or remote access groups for authentication. It authenticates based on user names from theacp_userinfo ﬁle and the CHAP token.

4-6

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

▼ To log user access for PPP, set the slip_ppp_security parameter to Y.

If you want to set ppp_security_protocol andslip_ppp_security to values other than the ones described here, the system will not use

Windo ws NT

refer to the Remote Annex Administrator’s Guide for UNIX for information about system behavior with other parameter values.

user names and passwords for authentication. Please

CLI Security

The Remote Annex’s Command Line Interpreter (CLI) allows users to connect to hosts, to move between established sessions, to modify port characteristics, and to display statistics for the Remote Annex, hosts, and the network. CLI also provides superuser commands for network administration and management.

▼ To conﬁgure server-based security for CLI connections, set the

cli_security parameter to

Virtual CLI Security

Virtual CLI (VCLI) connections allow network users access to CLI commands. When a user enters a telnet command to connect to a Remote Annex and requests the CLI at the port server prompt, the Remote Annex’ s port server process creates a virtual CLI connection.

AppleTalk Security

Remote Annex Server Tools for Windows NT® authenticates AppleT alk users via the acp_userinfo ﬁle. This ﬁle includes entries for usernames and passwords, a guest proﬁle for anonymous access, and an AppleTalk connection timer.

▼ To authenticate AppleTalk users, set the at_security parameter to Y.

Remote Annex Server Tools for Windows NT®User Guide

4-7

Chapter 4 Using Security Features

Port Server Security

The Remote Annex’s port server process allows it to accept telnet or rlogin connection requests from network users, hosts, and applications.

When a user connects to a Remote Annex via telnet or rlogin and responds to the port prompt by entering a port or rotary number, the security server requires an Windows NT password.

▼ T o conﬁgure server-based security for port server connections, set the

When a user connects to a Remote Annex via telnet or rlogin and responds to the port prompt by entering a port or rotary number, the security server requires a Windo ws NT

port_server_security parameter to

domain user name and

domain user name and password.

▼ To conﬁgure server-based security for VCLI connections, set the

vcli_security parameter to

Additional Security Types

Remote Annex Server T ools for W indows NT® supports port server, CLI,

VCLI, and PPP security using Windows NT passwords. In addition, Remote Annex Server Tools for Windo ws NT supports:

• Security Filters, ARA and Dial-back security deﬁned in the

acp_userinfo ﬁle.

• Dial-up security deﬁned in the acp_dialup ﬁle.

Remote Annex Server T ools for Windo ws NT support local Remote Annex security and Proprietary IPX security in the same way. Remote Annex Server Tools for Windows NT support the following server-based security types (for more details, see the Remote Annex Administrator’s Guide for UNIX):

domain user names and

and UNIX-based systems

does not

4-8

Remote Annex Server Tools for Windows NT®User Guide

RADIUS Security

RADIUS is an IETF- developed protocol that deﬁnes a communication standard between a Network Access Server (NAS) and a host-based communication server. RADIUS modes are as follows:

Chapter 4 Using Security Features

• Connection Security

• Password History and Aging

• Blacklisting

• Kerberos Authentication

• Using ACE/Server Software

• Using SafeWord AS Software

• RADIUS Authentication includes authentication of the dial-up user to the RADIUS server , as well as authentication of the RADIUS server to the NAS. RADIUS supports authentication modes PAP and CHAP

Authentication Protocol)

(Challenge Handshake

• RADIUS Accounting, another IETF-developed protocol, deﬁnes a communication standard between an NAS and a host-based accounting server. It records duration of service, packet throughput, and raw throughput.

• Although RADIUS Authorization is not supported in this release, Authorization is addressed by the Access Control Protocol (ACP). Authorization of the acp_userinfo, acp_restrict, and acp_dialup ﬁles still apply to users that are authenticated through RADIUS.

Remote Annex Server Tools for Windows NT®User Guide

4-9

Chapter 4 Using Security Features

RADIUS and ACP Protocol Operation

RADIUS and ACP servers work together to provide the user with a standard means of communication between a Network Access Server and a host-based server.

When or If... The...

the security proﬁle matches the Server Tools Options dialog box RADIUS on/off toggle switch,

expedited remote procedure call daemon (ERPCD)/ACP prompts the Remote Annex for the user name and password.

the user name and password are entered correctly,

ERPCD/ACP sends a RADIUS Access- Request packet to the RADIUS server (this packet contains the normal RADIUS header and the Access- Request attributes).

the Access-Accept, Access-

ERPCD/ACP re-sends the packet. Reject, or Access-Challenge packet fails to arrive in the speciﬁed amount of time,

no response is received, ERPCD/ACP sends the Access-

Request packet to the backup RADIUS

server, if conﬁgured in the Serv er Tools

Options dialog box.

ERPCD/ACP receives an Access-Accept packet,

ERPCD/ACP considers the user

validated. ERPCD/ACP receives an Access-

Reject or an unsupported AccessChallenge or the backup RADIUS server also fails to respond,

4-10

Remote Annex Server Tools for Windows NT®User Guide

ERPCD/ACP considers the user

invalidated.

Chapter 4 Using Security Features

RADIUS Authentication

RADIUS authentication supports the authentication modes PAP and CHAP. This section covers the following topics:

• PPP and CHAP Support

• Access-Request Attributes

• Access-Accept and Access-Reject Attributes

PPP and CHAP Support

RADIUS requires PPP/CHAP enforcement to be in the RADIUS server .:

The... Then...

Remote Annex sends the ACP server an ACP Authorization-Request message containing the CHAP information,

RADIUS server validates the information and returns either an Access-Accept or Access-Reject message,

If the RADIUS on/off toggle switch in the Server Tools Options/ Security dialog box is set to off, the A CP server validates against the chap_secret entry in the acp_userinfo ﬁle.

the ACP server determines if RADIUS is to be used (set in Server Tools Options dialog box) and sends a request to the RADIUS server containing the CHAP information needed for validation.

the ACP server responds to the Remote Annex with REQ_GRANTED or REQ_DENIED for authorization.

Remote Annex Server Tools for Windows NT®User Guide

4-11

Chapter 4 Using Security Features

Access-Request Attributes

ERPCD/ACP sends each Access-Request packet indicating ho w the user has connected to the Annex. This information can be used by the server as a hint or a restriction. The following section deﬁnes the available access-request attributes:

User-Name

User-Password

CHAP-Password

NAS-IP-Address

NAS-Port-Type

Indicates the name of the user that the RADIUS server will authenticate. An unterminated ASCII string identical to the user name that ERPCD/ ACP retrieves via the user name prompt. You can specify up to 31 alphanumeric characters.

Speciﬁes the password of the user that the RADIUS server will authenticate.

Speciﬁes the response value provided by a CHAPuser in response to the password challenge.

Indicates the IP address of the Annex authenticating the user or sending an Accounting packet.

Speciﬁes the Remote Annex port handling the user session. This value corresponds to the physical port type. Supported port types:

• Async (0)

• ISDN Sync (2)

• ISDN Async V.120 (3)

• Virtual (5)

4-12

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

NAS-Port

Framed-Protocol

Speciﬁes the port number to which the user has connected.

NAS–Port number example:

nxxx (decimal)

n= Description 0 Serial interface port 2 Virtual (VCLI, FTP) 3 Dial-out 4 Ethernet (outbound)

Although not an attribute, CHAP-Challenge appears in the Authenticator of the RADIUS header.

Speciﬁes the link level protocol type allo wed to the user. Supported values are:

• PPP

• SLIP

Service-T ype

Speciﬁes the type of service the user is to receive. Supported types of service are:

• Login

• Framed

• NAS–Prompt

• Outbound

• Administrative

Remote Annex Server Tools for Windows NT®User Guide

4-13

Chapter 4 Using Security Features

Access-Accept and Access-Reject Attributes

Attributes included in the RADIUS Access-Accept and Access-Reject packets are ignored by ERPCD/ACP in this version. However, ERPCD/ ACP does instruct the Remote Annex to display an y text sent in a ReplyMessage attribute as long as the user is a CLI or port server user.

RADIUS Accounting

RADIUS Accounting deﬁnes a communication standard between a NAS and a host-based accounting server . It records duration of service, packet throughput and raw throughput. This section covers the follo wing topics:

• RADIUS Accounting Process

• Accounting-Request Attributes

In order to utilize RADIUS Accounting, you must select the Use RADIUS Logging radio button in the Booting/Logging dialog box.

4-14

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

RADIUS Accounting Process

The following table describes the RADIUS accounting process:

When or If... The...

the Remote Annex sends an ACP Audit-log to the server,

ERPCD/ACP receives a login or logout log request,

The ERPCD/ACP server receives the RADIUS Accounting-Response,

security proﬁle for the ACP Authorization-Request must match the Security dialog box RADIUS Regime On/Off toggle switch setting.

On = RADIUS security active. Off = NT security active.

ERPCD/ACP sends an AccountingRequest packet to the RADIUS Accounting server.

ERPCD/ACP returns the ACP audit log veriﬁcation PDU to the Remote Annex.

Accounting-Request Attributes

ERPCD/ACP sends each Accounting-Request packet with the follo wing attributes:

Acct-Status-Type

Marks whether the Accounting packet sent to the RADIUS server is the beginning or end of a dial-up session.

• Start (1) - ERPCD/ACP login events

• Stop (2) - ERPCD/ACP logout events

• Accounting-on (7) - ACP logging connection becomes active

• Accounting-off (8) - A CP audit logging connection becomes inactive

Remote Annex Server Tools for Windows NT®User Guide

4-15

Chapter 4 Using Security Features

Acct-Delay-Time

Acct-Input-Octets Acct-Output-Octets Acct-Session-Id Acct-Authentic Acct-Input-Packets Acct-Output-

Packets Acct-Session-Time

Other Attributes

Speciﬁes how many seconds the RADIUS client has been trying to send a speciﬁc Accounting packet.

Speciﬁes how many octets have been received during the session. Speciﬁes how many octets have been sent during the session. A unique numeric string identiﬁed with the session reported in the packet. Speciﬁes how the user is authenticated. Always set to RADIUS. Speciﬁes how many packets have been received during the session. Speciﬁes how many packets have been sent during the session.

Speciﬁes the elapsed session time as calculated in RADIUS. All attributes that are included in the Access-Request packet are also

included in the Accounting-Request packet.

RADIUS Conﬁguration Management

4-16

Conﬁguring the RADIUS Authentication and Accounting server inv olves setting parameters to deﬁne the server’s operating and administrative attributes. This section covers the following topics:

• The RADIUS Servers dialog box:

• RADIUS Servers

• Host Name

• IP Address

• Secret Format

• Response Timeout and Number of Retries Format

• Backup Server

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

Default Values

If there is no conﬁguration record for a RADIUS server, the following default values are used:

Attribute Value

Secret 0x0 Timeout 4 seconds Retries 10 Backup server None

RADIUS Authentication Server and Accounting Server

• RADIUS Authentication Server is the host name of the RADIUS Authentication server.

• Accounting Server is the host name of the RADIUS Accounting server.

If no Accounting server is speciﬁed, it defaults to the A CP serv er. If no RADIUS server is speciﬁed, the RADIUS server defaults to the ACP server.

Secret Format

The format for secret is an ASCII string or a he xadecimal string. The hexadecimal string format always starts with0x followed by a string of bytes, with each two hexadecimal digits indicating one byte. The maximum limit is 16 in ASCII, or the hexadecimal equivalent.

Each entry in the erpcd.conf ﬁle must be contained on one line. Any amount of white space can exist between keywords, keyword/value pairs, and semi-colon delimeters. No white space can exist between the keyword and “=” or the value and “=”.

Remote Annex Server Tools for Windows NT®User Guide

4-17

Chapter 4 Using Security Features

erpcd.conf File Example

radius default RADIUS=132.245.66.11;Accounting=132.245.33.60

radius server host=132.245.66.11;secret=spikesecret;timeout=5;retries=5;backup=132.245.33.17

radius server host=132.245.33.17;secret=mysecretmysecret;timeout=6;retries=10

radius server host=132.245.33.60;secret=nottimesec;temeout=4;retries=10;backup=132.245.66.18

radius server host=132.245.66.18;secret=hpposecret;timeout=8;retries=12

Response Timeout and Number of Retries Format

The values of Response Timeout and Number of Retries is set in the RADIUS Servers dialog box.

timeout The number of seconds to wait for a response before sending

a retry.

retries The number of times to retry before fail-over to the backup

server, or authentication is discontinued.

Fail-over occurs only if host is the original primary server. This entry must be on one line.

4-18

Remote Annex Server Tools for Windows NT®User Guide

Chapter 4 Using Security Features

Backup Server

The host name or Internet address of the backup RADIUS server or RADIUS Accounting server can be conﬁgured using the RADIUS Server’s dialog box:

1. From the Server Tools Options dialog box, click on the Security tab.

2. Select the RADIUS radio button to enable the RADIUS security server.

If you do not select this option, your security server will default to native Windows NT

® security.

3. From the Server Tools Options dialog box, click on the RADIUS Servers tab.

4. Select the Backup Server down arrow to select the backup RADIUS server or RADIUS accounting server.

IfNoneis displayed in the Backup Server drop–down list, see Chapter 2, Conﬁguring a RADIUS Server, for more information on creating a new RADIUS server.

Fail-over Algorithm Process

The following table describes the fail-over algorithm process for authentication and accounting.

When or If... The...

a user is to be authenticated, RADIUS server ﬁrst polled is speciﬁed

in the Server Tools Options dialog box.

an Access-Request packet is sent to the RADIUS server,

the time expires, ERPCD/ACP retries the request

(continued on next page)

ERPCD/ACP waits the speciﬁed timeout value (4 seconds by default) for the response packet.

Remote Annex Server Tools for Windows NT®User Guide

4-19

Chapter 4 Using Security Features

When or If... The...

the maximum number of retries (10 by default) is reached without a response from the server,

no response is received from the backup server,

an accounting fail-over occurs, the server remains the same until,

both the accounting primary server and backup fail,

Backup Security

If you conﬁgure port server, CLI, VCLI, and PPP security to use W indows NT available, the Remote Annex can use its locally-stored password parameters to restrict user access. These parameters settings serve as backup security .To use backup security , you must set the parameters listed in the following table.

attempt to authenticate against the primary server fails and ERPCD/ACP attempts to authenticate against the backup server (if deﬁned).

user is rejected.

failure of the backup server.

the acp_logﬁle records RADIUS accounting.

domain names and passwords and the ACP security server is not

For: Back-up Security uses:

Port Server port_password Incoming Port port_password VCLI vcli_password

4-20

Remote Annex Server Tools for Windows NT®User Guide

For additional information about back-up security and settings for these parameters, please refer to the Remote Annex Administrator’s Guide for UNIX.

RADIUS Dictionary File

Included on the distribution kit is a reference RADIUS dictionary ﬁle which will be placed in the security ﬁles area. The erpcd server does not use this ﬁle, it is provided as documentation and a conv enience. This ﬁle deﬁnes keywords, types, and values for RADIUS attributes and their corresponding code points. The ﬁle is in a format that is used as input by some RADIUS servers to parse messages, and write text output ﬁles. Customers may have existing dictionaries with dif ferences in the keyword names, and may want to ev aluate the impact to their databases and output reports.

The ﬁle that we provide includes the latest IETF deﬁnitions of the RADIUS protocol at the time of release. It includes all attributes and values that are needed to support our Remote Annex and erpcd implementation. It is not necessary that our deﬁnitions be used directly , but other dictionaries may have to be extended to cover our usage.

Chapter 4 Using Security Features

This ﬁle may be used as a reference to add or change existing RADIUS dictionaries as need be. Since it is in the format of some of the popular RADIUS servers, in some cases it may be used as a direct replacement.

Howev er, the network manager should review the dependencies and make a decision on how to apply the differences.

Remote Annex Server Tools for Windows NT®User Guide

4-21

Chapter 4 Using Security Features

The following is a partial example of the some of the dictionary contents:

ATTRIBUTE User-Name 1 string

ATTRIBUTE Password 2 string

ATTRIBUTE CHAP- Password 3 string

ATTRIBUTE NAS-IP-Address 4 ipaddr

ATTRIBUTE NAS-Port 5 integer

ATTRIBUTE Service-Type 6 integer

ATTRIBUTE Framed-Protocol 7 integer

ATTRIBUTE Framed-IP-Address 8 ipaddr

<...>

# Framed Protocols

VALUE Framed-Protocol PPP 1

VALUE Framed-Protocol SLIP 2

VALUE Framed-Protocol ARAP 3

VALUE Framed-Protocol Gandalf-SL/MLP 4

VALUE Framed-Protocol IPX/SLIP 5

# User Service Types

VALUE Service-Type Login-User 1

VALUE Service-Type Framed-User 2

VALUE Service-Type Callback-Login-User 3

VALUE Service-Type Callback-Framed-User 4

VALUE Service-Type Outbound-User 5

VALUE Service-Type Administrative-User 6

VALUE Service-Type NAS-Prompt 7

VALUE Service-Type Authenticate-Only 8

VALUE Service-Type Callback-NAS-Prompt 9

<...>

4-22

Remote Annex Server Tools for Windows NT®User Guide

Appendix A Browsing for Resources

on a Microsoft Network

Browsing is locating network resources in a Domain or workgroup.

Domains and workgroups are Microsoft's logical grouping of computers and other resources into managed groups. Browsing is implemented by accessing Browsers, which are computers that maintain resource lists for the Domain, rather than trying to directly locate the resource. Therefore locating a resource becomes a question of locating a Browser. This location process becomes a problem in subnetted TCP/IP networks because the location process utilizes UDP broadcasts which are generally not passed through routers between subnets. IPX is not a problem because the datagram location mechanisms used are not generally blocked by routers. Howev er, in mixed protocol environments, the browser will use TCP/IP. This discussion assumes a TCP/IP only network. Some points of location and discovery of Browsers are different for other protocols.

This discussion assumes that WINS is not available. The WINS solution is outlined at the end of the document.

Browser Deﬁnition

Browsers are distributed on the network based on the domain, subnet, and number of workstations. The Browsers are assigned through a weighted election process that allows replacement of Browsers when they fail or are shutdown. This can make Bro wsers dif ﬁcult to locate because they may not always be on the same machine.

Microsoft now provides a Windows Internet Naming Service (WINS) for the Windows NT the problems with locating Browsers.

server that eliminates many of

Remote Annex Server Tools for Windows NT

User Guide

A-1

Appendix A Browsing for Resources on a Microsoft Network

The Primary Domain Controller (PDC) which provides authentication for the Domain, serves as the Domain Master Browser (DMB). The DMB has the responsibility of keeping track of and coordinating all the Master Browsers in the Domain as well as correlating information from other domains. The PDC wins the DMB election because it is heavily weighted by being the PDC.

Master Browsers

Subnets

Master Browsers (MB) are located on each subnet and are responsible for tracking resources on the subnet. They provide updated subnet resource lists to the DMB and receive domain resource lists from the DMB. When a MB ﬁrst comes up, it broadcasts on the subnet asking all resources to identify themselves. Resources are required to reply within 30 seconds. New resources should announce their presence to the MB. The MB also exchanges lists with the DMB. This exchange is repeated every 15 minutes and when new resources announce themselves on the subnet. Resources are removed from the list when they either announce their departure or they fail to respond 3 times to the 15 minute update query (45 minutes).

There should be one MB for each subnet. If the number of active stations on a subnet exceeds 32, a backup browser is selected for each 32 stations. The MB is responsible for keeping the backup browser’s browse list up to date. When a station wants to access a Browser for the ﬁrst time, it receives a list (explained below) of all the available browsers on its subnet. The station caches the location of up to 3 browsers and accesses them in the future in a random pattern. The browse request load is thereby spread among the available browsers.

A-2

Remote Annex Server Tools for Windows NT® User Guide

Appendix A Browsing for Resources on a Microsoft Network

Conﬁguration and Election Process

Browsers are selected through conﬁguration and an election process. It is possible to set a station to be a MB. This only gives it additional weight in the election process. Another weight in the election process is the type

of operating system running (Microsoft Windows NT

Windo ws for Workgroups). An election is held between all potential MBs

, Windows 95,

to select the MB for the subnet. This process can be affected by such things as boot speed (after a power failure) and is a very dynamic process. Except for the DMB, it is not always possible to statically determine the address of a MB. If the current MB shuts down or certain other conditions occur, a new MB election can be triggered, although in general, once a MB has been selected, it remains the MB, even if other stations may no w be a better weighted choice.

Locating Browsers

The client station maintains a cache of IP addresses and important services and will ﬁrst (a)check its cache for browsers. If the cache does not contain any browsers, the next step is to (b)generate a NetBIOS o ver IP broadcast to try to locate a MB on its subnet. If the subnet MB responds, the client will send a directed query to the MB to get a list of browsers on the subnet. The MB returns a list of browsers on the Domain/subnet being queried. The client caches up to 3 browsers as previously mentioned. The broadcast time out occurs if there is no MB on the client’s subnet. There is no way to direct a client to a MB outside its subnet. Therefore, if there is no MB on the subnet, a client on that subnet can not browse. If the client can not ﬁnd the MB after 3 attempts, a Force Election broadcast is issued to force election of a new MB for the subnet. Howe ver, a station on a slow link (remote access) is prevented from being a Browser . So even if the remote access client is capable of acting as a Browser, the link type prevents it. A remote access client calling into a subnet with no MB will be unable to browse the network.

Remote Annex Server Tools for Windows NT® User Guide

A-3

Appendix A Browsing for Resources on a Microsoft Network

The WINS Solution

WINS is a service that runs on a Windo ws NT® server . It is provided with

Windo ws NT services without broadcasts because WINS queries are directed datagrams. The current version of WINS, along with some client updates, also assists with browsing across subnets that do not contain Browsers.

A WINS server can provide the location of the PDC which is also the DMB to a client. When the PDC comes up, it registers a couple of special names with WINS. These names consist of the domain name followed by characters <1B> and <1D> (ex. eng<1B> and eng<1D>). These special names are associated with the IP address of the DMB. When a client attempts to browse on a subnet with no MB, the client ﬁrst does a broadcast to locate the MB, which fails. The client also directs a NameQuery to WINS asking for the special version of the domain name followed by <1B>. WINS returns the IP address of the DMB. The client can then query the DMB for the browse list for the domain.

3.5 or greater. WINS primary function is to pro vided name

Clients

A-4

The following clients can use the enhanced WINS browse capability (are WINS aware):

• Windows NT

• Windows 95

• Windows for Workgroups - with latest drivers Requires VREDIR.386 included on Windows NT Requires Microsoft TCP/IP 32 drivers (32 bit TCP/IP)

Remote Annex Server Tools for Windows NT® User Guide

3.5 server

Appendix A Browsing for Resources on a Microsoft Network

Required Conﬁguration Details

The following conﬁguration details are required to make the browsing operation work correctly:

• The PDCs of all domains should be Windows NT

server

Version 3.5 or later.

• All stations must use WINS to allow services to be recorded

properly.

• The client should disable the ability to be a browse master.

This will prevent the client from browsing except when the user asks for a browse list. This reduces delays caused by broadcasting for the MB in the background.

• For Windows 95:

– Control panel - Networks - File and Print Sharing for

Microsoft

– Networks - Properties - Advanced - BrowseMaster -

Disabled

• For WFW 3.11:

– system.ini – [Network] – MaintainServerList=No

Note that this is only necessary on clients that will encounter browsing problems because their broadcast queries will not be routed correctly. If a master browser exists on the subnet, the disabling will not be necessary.

Remote Annex Server Tools for Windows NT® User Guide

A-5

Appendix A Browsing for Resources on a Microsoft Network

Remote Annex Example

The Remote Annex forwards IP broadcasts from a remote access client to the network that the Annex is on. If that network is a subnet that has no PCs capable of being a master browser, the remote client must be conﬁgured to use WINS to be able to browse Microsoft resources. Another possible option might be to conﬁgure the router to pass IP broadcasts, but this is probably not desirable.

Number of PCs on the Subnet

Another issue to consider is the number of PCs on the subnet that can act as master browsers. The number and type of machines may give unpredictable behavior for a remote access client. Consider for example, a remote client that is not conﬁgured to use WINS. During the day, the subnet dialed into has several W indows 95 stations that can act as master browsers. The PDC and other resources are on a different subnet. When the client dials in during the day, a broadcast ﬁnds one of the Windows 95 systems and browsing works as expected. However, it is company policy to shut down PCs at night, so when everyone goes home all Windows 95 machines are shut down. Now the remote client dials in, broadcasts to the subnet, but no master browsers are a vailable. Browsing works during the day, but not at night. WINS would overcome this problem by ﬁnding the DMB when the Windo ws 95 machines were not available.

Note also that the ip_forward_broadcast parameter on the Annex controls broadcast trafﬁc from the ethernet to the remote client. It has no effect on broadcasts generated by the client for the ethernet. Client to ethernet broadcasts are on and can not be conﬁgured off. Replies to the client browser broadcasts are directed datagrams and will not be affected by the ip_forward_broadcast setting.

A-6

Remote Annex Server Tools for Windows NT® User Guide

Appendix A Browsing for Resources on a Microsoft Network

Resource Visibility

Resolve a Name to an IP Address

The problem of resource visibility becomes especially important when the remote “client” is another network that may have resources to be shared. The remote network should have a machine capable of acting as a MB. A MB locates resources by broadcasts on its subnet. If there is no MB on the remote net, there must be one on the network the Annex is on and the ip_forward_broadcast parameter should be Y to allow the MB request to reach the resource. WINS will also be useful in this environment to assure reliable communication between all the browser components.

Additional Information

When a client tries to resolve a name to an IP address it follows the following steps:

1. Check internal cache of resolved names.

2. Ask WINS (if enabled).

3. Broadcast to resolve name.

Preload PDC Address

Example

4. Check LMHOSTS ﬁle.

Preloading the cache at start-up with the address of the PDC may simplify the authentication process, even if WINS is conﬁgured. It may be required if WINS is not used. This is done by adding an entry to the client’slmhosts ﬁle.

NT: \Winnt35\System32\Drivers\Etc\lmhosts Windows 95:\windows\lmhosts

555.555.55.555 servername #PRE #DOM:dept #net

group’s DC

This gives the IP address (555.555.55.555) of the PDC (servername).

Remote Annex Server Tools for Windows NT® User Guide

A-7

Appendix A Browsing for Resources on a Microsoft Network

• #DOM:dept indicates that server name is a domain controller for the dept domain

• #PRE indicates this entry is preloaded into the cache at startup, this will allow the address to be found when the cache is searched and eliminate the WINS query and/or broadcast

Workgroups and Domains

Windows 95 allows speciﬁcation of a workgroup name (Control Panel Networks - Identiﬁcation - Workgroup). Users should be aware that workgroups and domains are very similar concepts. Domain membership is used for authentication but resource visibility and access can be limited by workgroup membership. If you log in to the domain but are speciﬁed to be a member of a workgroup other than the domain, resources may not be visible to you depending on how those resources are conﬁgured.

A-8

Remote Annex Server Tools for Windows NT® User Guide

Index

Access Control Protocol. See ACP access security

features, for Windows NT® server 1-2 accesscode attribute 3-6 Accounting Server selection 2-3 ACP 3-1, 4-20 acp_dialup file 2-2, 3-18, 4-5, 4-8

using local and remote addresses with 3-

19 acp_key parameter 3-17 acp_keys file 2-2, 3-16, 4-5

creating encryption keys with 3-17 acp_logfile 2-8 acp_userinfo file 3-2 to 3-15, 4-5, 4-6, 4-7

defining user profiles with 3-2 to 3-15 addresses, using local and remote 3-19 admin utility 3-17 annex keyword 3-5 at_connect_time attribute 3-14 at_guest parameter 3-15 at_nve_filter attribute 3-14 at_password attribute 3-15 at_security parameter 4-7 at_zone attribute 3-13 attributes, profile 3-6 to 3-15 Authenication Server selection 2-3

bfs directory 2-9, 3-1 block file server. See bfs directory Booting

options 2-8 Booting/Logging Options 2-1 Browser Definition A-1 Browsing a Microsoft Network

browser definition A-1

resolve a name to an IP address A-7 Browsing a Microsoft Network, required con-

figuration details A-5

CHAP security protocol 4-6 chap_secret attribute 3-15 cli_security parameter 3-8, 4-7 clicmd attribute 3-7 climask attribute 3-8 Configuration and Election Process A-3 Configuring a RADIUS Serve 2-1 conventions, documentation vii

deny attribute 3-9 Detail window 2-8, 2-12 dialup_addresses parameter 3-18 Directory for security file 2-2 documentation conventions vii documentation, using remote annex 1-2 to 1-

list of documentation exceptions 1-3 logging issues 1-3 name server issues 1-3 user authentication issues 1-2

Domain, selecting 2-3

Editing Files 3-2 enable_security parameter 3-17, 4-4 encryption keys, creating 3-17 erpcd 2-9, 4-4

differences in Windows NT®-based vs.

UNIX-based 1-2 to 1-5

understanding 3-1 to 3-19 eservices file 3-1 etc directory 2-2 Event Viewer 2-10

files, creating 3-2 to 3-19

acp_dialup file 3-18

acp_keys file 3-16

Index-1Remote Annex Server Tools for Windows NT® User Guide

Index

acp_userinfo file 3-2 to 3-15

filter attribute 3-9

Global Group Authentication 2-3, 4-1 group keyword 3-4

icons

Options 2-1

introduction 1-1 to 1-5

keywords, profile environment 3-4 to 3-6

local_address parameter 3-19 Locating Browsers A-3 Logging

options 2-8

logging 1-3

selecting options 2-1 to 2-10

Master Browsers A-2

na utility 3-3, 3-15, 3-18, 4-1

features 1-1

using for security 4-4 name servers 1-3 net_inactivity timer parameter 3-12 network_turnaround parameter 4-4

PAP security protocol 4-6 parameters See security parameters platform requirements 1-5 port_server_security parameter 4-8 ports keyword 3-5

ppp_security_protocol parameter 4-6 pref_secure1_host parameter 4-4 pref_secure2_host parameter 4-4 Preload PDC Address A-7 profiles, defining user 3-2 to 3-15

understanding profile attributes and 3-6

to 3-15 user profile formats and 3-3 using profile environment keywords 3-4

protocol keyword 3-5

RADIUS

access request attributes 4-12 access-accept attributes 4-14 access-reject attributes 4-14 accounting-request attributes 4-15 ACP protocol operation 4-10 authentication 4-11 backup security 4-20 dictionary file 4-21 PPP and CHAP support 4-11

RADIUS Accounting 4-14 RADIUS Configuration Management

authentication and accounting server 4-

16 backup server 4-19 fail-over algorithm 4-19 response timeout and number of

retries 4-18 secret format 4-17

RADIUS Security 4-9 RADIUS Server

creating 2-14 deleting 2-16

RADIUS Servers

none defined 2-1

related documents 1-2 to 1-5 Remote Access Groups 4-1 Remote Access Groups list 2-3 Remote Annex Example A-6

Index-2

Remote Annex Server Tools for Windows NT® User Guide

Index

Remote Users Group

creating 2-4 Remote Users Group, creating 2-4 remote_address parameter 3-19 Resolve a Name to an IP Address A-7 route attribute 3-12

security

backup 4-20

features 4-1 to 4-20

protocols

CHAP 4-6

PAP 4-6 requirements 4-4 server-based 4-4 types of server-based 4-5 to 4-9

additional security types 4-8

AppleTalk security 4-7

CLI security 4-7

port server security 4-6

PPP security 4-6

virtual CLI security 4-8 using Windows NT® domain 4-2

Security files directory 2-2 security regime 2-1 Security Server selection 2-1, 2-17 security_broadcast parameter 4-4 Selecting 2-1 Selecting a Security Server 2-1 Server Tools Options

selecting booting and logging options 2-

Server Tools Options window 4-2

displaying version information in 2-17 selecting groups for authentication 2-5 selecting logging options in 2-8 to 2-10 using event viewer in 2-10

slip_ppp_security parameter 4-7 Subnets A-2

The WINS Solution A-4 time keyword 3-5

Use NT Event Log 2-8 user authentication 1-2 User Manager 4-1 user...end block 3-3 username keyword 3-4

vcli_security parameter 4-8 Version Information 2-1 Version information, displaying 2-17

windows

Detail 2-8, 2-12 Server Tools Options 4-2

selecting

Server Tools Options window 2-1

Workgroups and Domains A-8

Index-3Remote Annex Server Tools for Windows NT® User Guide

Index

Index-4

Remote Annex Server Tools for Windows NT® User Guide

Bay Networks Remote Annex, Remote Annex Server Tools User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
