Using the BayStack 303 and 304 Ethernet Switches

Part No. 893-01010-A June 1997

89301010.BK Page ii Tuesday, June 10, 1997 8:00 PM

4401 Great America Parkway 8 Federal Street Santa Clara, CA 95054 Billerica, MA 01821

Trademarks

Bay Networks is a registered trademark of Bay Networks, Inc. BayStack and Bay Networks Press are trademarks of Bay Networks, Inc.

Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, Bay Networks, Inc. reserves the right to make changes to the products described in this document without notice.

Bay Networks, Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Portions of the code in this software product are Copyright © 1988, Regents of the Univ ersity of California. All rights reserved. Redistribution and use in source and binary forms of such portions are permitted, provided that the above copyright notice and this paragraph are duplicated in all such forms and that any documentation, advertising materials, and other materials related to such distribution and use acknowledge that such portions of the software were developed by the University of California, Berkeley. The name of the University may not be used to endorse or promote products derived from such portions of the software without speciﬁc prior written permission.

SUCH PORTIONS OF THE SOFTWARE ARE PROVIDED “AS IS” AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

In addition, the program and information contained herein are licensed only pursuant to a license agreement that contains restrictions on use and disclosure (that may incorporate by reference certain limitations and notices imposed by third parties).

RESTRICTED RIGHTS LEGEND: Use, duplication, or disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1) of the Commercial Computer Software—Restricted Rights clause of FAR52.227-19 or subparagraph (c)(1)(a) of the Rights in Technical Data and Computer Software clause of DFARS

52.227-7013, and any successor rules or regulations, whichever is applicable.

Federal Communications Commission (FCC) Statement

Note: This equipment has been tested and found to comply with the limits for a Class A digital de vice, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to take whatever measures may be necessary to correct the interference at their own expense.

893-01010-A

89301010.BK Page iii Tuesday, June 10, 1997 8:00 PM

EN 55 022 Declaration of Conformance

This is to certify that the Bay Networks BayStack 303 and 304 Ethernet Switches are shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class A (CISPR 22).

Caution: This device is a Class A product. In a domestic environment, this device can cause radio interference, in which case, the user may be required to take appropriate measures.

893-01010-A

iii

89301010.BK Page iv Tuesday, June 10, 1997 8:00 PM

893-01010-A

89301010.BK Page v Tuesday, June 10, 1997 8:00 PM

Preface

Purpose ...........................................................................................................................xiii

Audience ..........................................................................................................................xiii

Conventions .....................................................................................................................xiv

Special Message Formats .........................................................................................xiv

Two-tiered Procedure Format ....................................................................................xiv

Use of Enter, Type, and Press ...................................................................................xiv

Ordering Bay Networks Publications ............................................................................... xv

Bay Networks Customer Support .................................................................................... xv

How to Get Help .............................................................................................................. xv

For More Information .......................................................................................................xvi

Contents

Safety Messages

Safety Alert Message Format .........................................................................................xvii

Safety Alert Messages Used in This Guide .....................................................................xix

Chapter 1 Introduction to the BayStack 303 and 304 Ethernet Switches

Features .........................................................................................................................1-1

Physical Description .......................................................................................................1-3

Front Panel ...............................................................................................................1-3

10BASE-T Ports ................................................................................................1-4

10/100BASE-TX Port .........................................................................................1-5

MDA Slot ............................................................................................................1-6

Console Port Connector ....................................................................................1-6

LEDs .................................................................................................................. 1-7

Power Cord Speciﬁcations ..............................................................................................1-8

893-01010-A

89301010.BK Page vi Tuesday, June 10, 1997 8:00 PM

Chapter 2 Installing the BayStack Switches

Installation Requirements ...............................................................................................2-1

Installation Procedure .....................................................................................................2-2

Installing the BayStack Switches on a Flat Surface .................................................2-2

Installing the BayStack Switch in a Rack .................................................................2-4

Installing a Metal Chassis in a Rack ..................................................................2-5

Installing a Plastic Chassis in a Rack ................................................................2-6

Completing Rack Mounting Installation .............................................................2-8

Attaching Devices to the BayStack Switch ...............................................................2-9

Connecting 10BASE-T Ports .............................................................................2-9

Connecting the 10/100BASE-TX Port .............................................................2-10

Connecting the 100BASE-FX Port ..................................................................2-11

Connecting to the Console Port .......................................................................2-12

Power-up Self-Tests ...............................................................................................2-13

Initial Setup of a BayStack Ethernet Switch .................................................................2-15

Using Factory Default Settings ...............................................................................2-15

Selecting a Language ............................................................................................2-16

Initial Switch Setup .................................................................................................2-17

Chapter 3 Customizing and Managing the BayStack Switches

Using the Menus and Screens .......................................................................................3-1

Menu and Screen Areas ..........................................................................................3-3

Switch Status Area ............................................................................................3-4

Central Screen Area ..........................................................................................3-4

Navigation Commands and Command Line Area .............................................3-4

Menu and Screen Descriptions ......................................................................................3-5

Language Selection Menu ..............................................................................................3-6

Main Menu ......................................................................................................................3-6

System Information ..................................................................................................3-7

Switch Information .............................................................................................3-7

Spanning Tree Information .................................................................................3-7

Port Statistics and Status Information .............................................................3-10

System Conﬁguration .............................................................................................3-12

Switch Network Conﬁguration .........................................................................3-13

893-01010-A

89301010.BK Page vii Tuesday, June 10, 1997 8:00 PM

Port Conﬁguration ............................................................................................3-14

Spanning Tree Conﬁguration ...........................................................................3-14

SNMP Conﬁguration ........................................................................................3-16

Reset to Default ...............................................................................................3-17

Reset System .........................................................................................................3-17

Exit Telnet ...............................................................................................................3-17

Using the BayStack Switch ...........................................................................................3-17

Conﬁguration Examples .........................................................................................3-17

Spanning Tree Protocol ..........................................................................................3-19

Managing the BayStack Switches ..........................................................................3-20

Network Management with SNMP ...................................................................3-20

Network Management through a Serial I/O Connection ..................................3-22

Network Management Using a Telnet Connection ...........................................3-22

Upgrading Switch Software Through TFTP Connection ...............................................3-23

Chapter 4 Troubleshooting and Diagnostics

BayStack 303 and 304 Switch-related Issues ................................................................4-1

Autonegotiation ........................................................................................................4-2

MDI and MDI-X Connections ...................................................................................4-3

Installation-related Issues ...............................................................................................4-4

Addresses ................................................................................................................4-5

Cabling .....................................................................................................................4-5

Link Status ...............................................................................................................4-6

Appendix A Technical Speciﬁcations

General Speciﬁcations ................................................................................................... A-1

Declaration of Conformity .............................................................................................. A-3

Appendix B Media Dependent Adapters (MDAs)

100BASE-FX MDA ....................................................................................................... B-1

10/100BASE-TX MDA .................................................................................................. B-3

Installing an MDA .......................................................................................................... B-4

Index

893-01010-A

vii

89301010.BK Page viii Tuesday, June 10, 1997 8:00 PM

viii

893-01010-A

89301010.BK Page ix Tuesday, June 10, 1997 8:00 PM

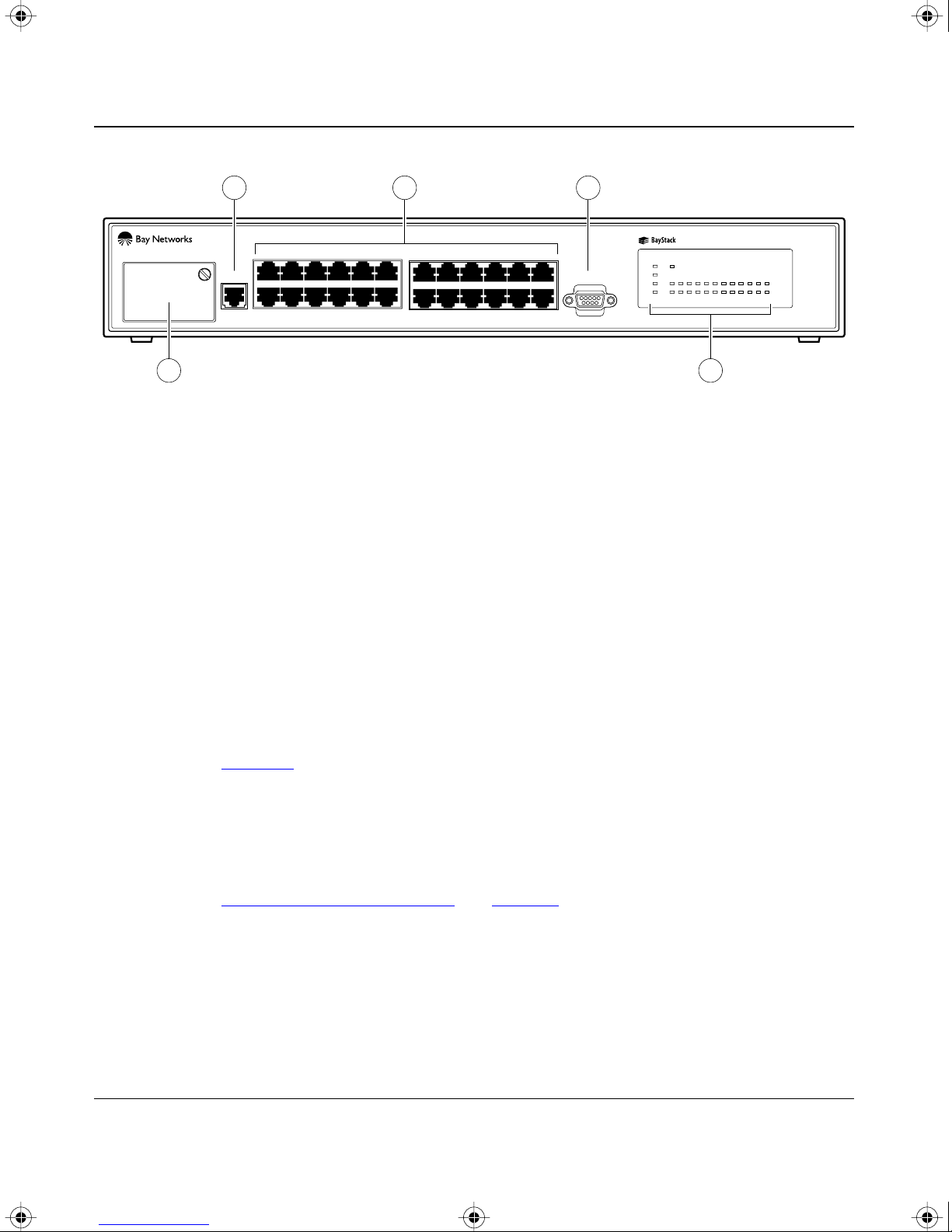

Figure 1-1. BayStack 304 switch front panel ..............................................................1-3

Figure 1-2. BayStack 303 switch front panel ..............................................................1-4

Figure 2-1. Positioning the chassis in the rack ...........................................................2-4

Figure 2-2. Installing metal chassis in rack ................................................................2-5

Figure 2-3. Installing the plastic chassis in the rack ...................................................2-7

Figure 2-4. 10/100 Mb/s port connections ................................................................2-10

Figure 2-5. SC connection for the 100BASE-FX MDA port ......................................2-11

Figure 2-6. Connecting to the console port ..............................................................2-13

Figure 2-7. Power Up Self Test screen .....................................................................2-14

Figure 2-8. Language selection menu ......................................................................2-16

Figure 2-9. Main Menu .............................................................................................2-17

Figure 2-10. System Conﬁguration menu ...................................................................2-18

Figure 2-11. Switch Network Conﬁguration menu ......................................................2-19

Figures

Figure 3-1. Menu and screen hierarchy .....................................................................3-2

Figure 3-2. Menu and screen areas ...........................................................................3-3

Figure 3-3. BayStack 304 switch as a segment switch .............................................3-18

Figure 3-4. BayStack 303 as a desktop switch .........................................................3-19

Figure 3-5. Power Up Self Test screen .....................................................................3-23

Figure 3-6. Boot Options Menu ................................................................................3-24

Figure 3-7. Switch Software Upgrade Menu ............................................................3-25

Figure 4-1. MDI-X to MDI cable connections .............................................................4-3

Figure 4-2. MDI-X to MDI-X cable connections ..........................................................4-4

Figure B-1. 100BASE-FX MDA ................................................................................. B-2

Figure B-2. 10/100BASE-TX MDA ............................................................................ B-3

Figure B-3. Installing an MDA ................................................................................... B-5

893-01010-A

89301010.BK Page x Tuesday, June 10, 1997 8:00 PM

893-01010-A

89301010.BK Page xi Tuesday, June 10, 1997 8:00 PM

Table 1-1. RJ-45 connector pinout ............................................................................1-5

Table 1-2. DB-9 connector pin assignments .............................................................1-7

Table 1-3. Front-panel LEDs .....................................................................................1-7

Table 1-4. Power and Status LEDs ...........................................................................1-8

Table 1-5. International power cord speciﬁcations ....................................................1-9

Tables

Table 2-1. Factory default settings ..........................................................................2-15

Table B-1. 100BASE-FX MDA LEDs ....................................................................... B-2

Table B-2. 100BASE-TX MDA LEDs ....................................................................... B-4

893-01010-A

89301010.BK Page xii Tuesday, June 10, 1997 8:00 PM

xii

893-01010-A

89301010.BK Page xiii Tuesday, June 10, 1997 8:00 PM

Congratulations on your purchase of the Bay Networks® BayStack 303 Ethernet Switch or the BayStack 304 Ethernet Switch. The BayStack™ Ethernet switches are intended for small segment workgroups and power-user desktops and provide both 10BASE-T ports and 100BASE-T ports.

Preface

Purpose

Audience

This guide presents information about using the features and capabilities of the BayStack 303 and 304 Ethernet Switches, installing a switch, and conﬁguring the switch through the user interface.

This guide is intended for Ethernet administrators with the following background:

• Working knowledge of basic Ethernet and network management concepts and terminology

• Familiarity with 10BASE-T and 100BASE-T speciﬁcations

• Working knowledge of tools and procedures for installing and operating sensitive electronic equipment

893-01010-A

xiii

89301010.BK Page xiv Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Conventions

This section describes the conventions used in this guide.

Special Message Formats

This guide uses the following formats to highlight special messages:

Note:

This format is used to highlight information of importance or special

interest.

Caution:

This format is used to highlight information that will help you prevent

equipment failure or loss of data.

Two-tiered Procedure Format

The procedural steps in this guide are presented in a two-tiered format. The ﬁrst tier describes the step very brieﬂy but precisely. An experienced user may need to read only the ﬁrst tier to complete the task. The second tier describes the step in more detail and includes results of performing the step.

Use of Enter, Type, and Press

This guide uses “enter,” “type,” and “press” to describe the following actions:

• When you read “enter,” type the text and press the Enter key.

• When you read “type,” type the text, but do not press the Enter key.

• When you read “press,” press only the alphanumeric or named key.

xiv

893-01010-A

89301010.BK Page xv Tuesday, June 10, 1997 8:00 PM

Ordering Bay Networks Publications

To purchase additional copies of this document or other Bay Networks publications, order by part number from Bay Networks Press™ at the following numbers:

• Phone—U.S./Canada: 1-888-422-9773

• Phone—International: 1-510-490-4752

• Fax—U.S./Canada and International: 1-510-498-2609

Bay Networks Customer Support

You can purchase a support contract from your Bay Networks distributor or authorized reseller, or directly from Bay Networks Services. For information about, or to purchase a Bay Networks service contract, either call your local Bay Networks ﬁeld sales ofﬁce or one of the following numbers:

Preface

Region Telephone number Fax number

United States and Canada

Europe 33-4-92-96-69-66 33-4-92-96-69-96 Asia/Paciﬁc 61-2-9927-8888 61-2-9927-8899 Latin America 561-988-7661 561-988-7550

How to Get Help

If you purchased a service contract for your Bay Networks product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance.

1-800-2LANWAN; then enter Express Routing Code (ERC) 290, when prompted, to purchase or renew a service contract

1-508-916-8880 (direct)

1-508-670-8766

893-01010-A

89301010.BK Page xvi Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

If you purchased a Bay Networks service program, call one of the following Bay Networks Technical Solutions Centers:

Technical Solutions Center Telephone number Fax number

Billerica, MA 1-800-2LANWAN 508-670-8765 Santa Clara, CA 1-800-2LANWAN 408-495-1188 Valbonne, France 33-4-92-96-69-68 33-4-92-96-69-98 Sydney, Australia 61-2-9927-8800 61-2-9927-8811 Tokyo, Japan 81-3-5402-0180 81-3-5402-0173

For More Information

For information about Bay Networks and its products, visit the Bay Networks World Wide Web (WWW) site at http://www.baynetworks.com. To learn more about Bay Networks Customer Service, select Customer Service on the opening Web page.

xvi

893-01010-A

89301010.BK Page xvii Tuesday, June 10, 1997 8:00 PM

Traduction des Messages de Sécurité

Traducción de los mensajes de seguridad

Safety Messages

Übersetzter Sicherheitshinweis

Messaggi relativi alla sicurezza

This section translates the safety alert messages used in this guide. Safety alert messages notify users of unsafe actions or conditions that could lead to personal injury or equipment damage.

Safety Alert Message Format

All safety alert messages are tagged with an international alert symbol. When you see a safety alert in this guide, be sure to read, understand, and follow the instructions provided before continuing with the procedure.

The safety alert messages in this guide appear in the following format:

Symbol Meaning (English, German, French, Spanish, Italian, Japanese)

Warning:

could result in personal injury.

Caution:

could result in damage to the equipment.

A warning alerts the user to some action or set of conditions that

A caution alerts the user to some action or set of conditions that

893-01010-A

xvii

89301010.BK Page xviii Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Symbol Meaning (English, German, French, Spanish, Italian, Japanese)

Vorsicht:

Dieser Sicherheitshinweis macht den Benutzer auf Maßnahmen oder Bedingungen aufmerksam, die die Verletzung von Personen zur Folge haben können.

Achtung:

Dieser Sicherheitshinweis macht den Benutzer auf Maßnahmen oder Bedingungen aufmerksam, die eine Beschädigung der Geräte zur Folge haben können.

Avertissement :

La mention Avertissement attire l'attention de l'utilisateur sur une action ou un ensemble de conditions pouvant causer des blessures corporelles.

Attention :

La mention Attention attire l'attention de l'utilisateur sur une

action ou un ensemble de conditions pouvant endommager l'équipement visé.

Advertencia:

Un mensaje de advertencia avisa al usuario sobre una acción o

conjunto de condiciones que pueden causar daños personales.

Precaución:

Un mensaje de precaución avisa al usuario sobre alguna acción

o conjunto de condiciones que pueden dañar el equipo.

xviii

Avvertenza:

L'avvertenza indica all'utente la presenza di una o più

condizioni che possono causare lesioni ﬁsiche.

Attenzione:

Questo messaggio indica all'utente la presenza di una o più

condizioni che possono causare danni alle apparecchiature.

893-01010-A

89301010.BK Page xix Tuesday, June 10, 1997 8:00 PM

Safety Alert Messages Used in This Guide

The following safety alert message are used throughout this guide. Please read and follow these instructions when you encounter them in the text.

Class A Product

Safety Messages

Caution:

This device is a Class A product. In a domestic environment, this device can cause radio interference, in which case, the user may be required to take appropriate measures.

Achtung:

Dieses Gerät ist ein Produkt der Klasse A. Bei Heiminstallationen kann dieses Gerät Störungen des Rundfunkempfangs verursachen, wodurch der Benutzer gegebenenfalls entsprechende Maßnahmen ergreifen muß.

Attention :

Appareil électrique de classe A pouvant causer des radio-interférences en utilisation domestique et nécessiter, le cas échéant, l'application de mesures correctives appropriées.

Precaución:

Este dispositivo es un producto de la Clase A. En un entorno doméstico, este dispositivo puede producir interferencias de radio, en cuyo caso, puede exigirse al usuario que tome las medidas de corrección apropiadas.

Attenzione:

Questo dispositivo è un prodotto di Classe A. Se utilizzato in ambiente domestico, può causare interferenze radio e, in tal caso, l'utente dovrà prendere le opportune precauzioni.

893-01010-A

xix

89301010.BK Page xx Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Accumulated Weight (Shelf or Table Mount)

See Caution on pa

Caution:

accumulated weight of the port cables increases with the height of the shelf or tabletop.

Achtung:

Regalboden installiert wird, erhöht sich das Gesamtgewicht der Schnittstellenkabel mit der Höhe des Regalbodens oder Tisches.

Attention :

que le poids du câblage réseau augmente avec la hauteur de l'installation.

Precaución:

una mesa, el peso acumulado de los cables de los puertos aumenta según la altura del estante o de la mesa.

Attenzione:

un tavolo, il peso dei cavi connessi alle porte aumenta in proporzione all'altezza del ripiano o del tavolo.

ge 2-2.

When this device is installed in a stack on a shelf or tabletop, the

Wenn dieses Gerät in einem Stapel auf einem Tisch oder einem

Si l'appareil est posé dans un rack ou sur une étagère, notez bien

Cuando este dispositivo se instala apilado en un estante o sobre

Quando il dispositivo viene installato in stack su un ripiano o su

893-01010-A

89301010.BK Page xxi Tuesday, June 10, 1997 8:00 PM

Stacking Units in a Rack

Safety Messages

See Caution on pa

Caution:

top of one another in the rack. Each unit must be secured to the rack with appropriate mounting brackets. Mounting brackets are not designed to support multiple units.

Achtung:

Sie die Geräte nicht direkt aufeinander. Jedes Gerät muß mit entsprechenden Halterungen im Gestell befestigt werden. Die Halterungen sind nicht dafür konzipiert, mehrere Geräte zu tragen.

Attention :

directement plusieurs unités les unes sur les autres. Chaque unité doit être correctement ﬁxée avec les membrures appropriées. Les membrures ne sont pas conçues pour supporter le poids d'unités multiples.

Precaución:

apile las unidades directamente unas sobre otras. Cada unidad se debe ﬁjar a la estructura mediante los soportes de montaje adecuados. Los soportes de montaje no están diseñados para soportar varias unidades.

ge 2-3.

When mounting this device in a rack, do not stack units directly on

Wenn Sie dieses Gerät in einem Gerätegestell installieren, stellen

Si cet appareil doit être encastré dans un rack, ne jamais empiler

Al montar este dispositivo apilado con otros dispositivos, no

893-01010-A

Attenzione:

Se il dispositivo viene installato su una cremagliera, non impilarlo su un altro dispositivo montato sulla cremagliera. Ciascuna unità deve essere ﬁssata alla cremagliera con le apposite staffe di montaggio. Tali staffe non possono essere utilizzate per ﬁssare più unità.

xxi

89301010.BK Page xxii Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Turning Off Power to the Unit

See Warning on pa

Warning:

device. The power cord must always be connected in a location that can be accessed quickly and safely in case of an emergency.

Vorsicht:

Netzstromkabels unterbrochen werden. Die Netzsteckdose, an die das Netzstromkabel angeschlossen ist, muß sich stets an einem Ort beﬁnden, der bei einem Notfall schnell und einfach zugänglich ist.

Avertissement : Le débranchement du cordon d'alimentation constitue le seul moyen de mettre cet appareil hors tension. Le cordon d'alimentation doit donc toujours être branché dans une prise accessible pour faciliter la mise hors tension en cas d'urgence.

Advertencia: La única forma de desconectar la alimentación de este dispositivo es desenchufar el cable de alimentación. El cable de alimentación siempre debe estar conectado en una ubicación que permita acceder al cable de forma rápida y segura en caso de emergencia.

Avvertenza: Estrarre il cavo di alimentazione è l'unico sistema per spegnere il dispositivo. Il cavo di alimentazione deve essere sempre collegato in una posizione che permetta l'accesso facile e sicuro in caso di emergenza.

ge 2-3.

Removal of the power cord is the only way to turn off power to this

Die Stromzufuhr zu diesem Gerät kann nur durch Ziehen des

xxii

893-01010-A

89301010.BK Page xxiii Tuesday, June 10, 1997 8:00 PM

Reset To Default Settings Command

See Caution on page 3-17.

Caution: If you choose the Reset to default settings command, all of your

conﬁgured settings will be replaced with factory default settings when you press [Enter].

Achtung: Bei Auswahl des Befehls zur Rücksetzung auf die Standardeinstellungen werden alle von Ihnen konﬁgurierten Einstellungen durch die werkseitigen Standardeinstellungen ersetzt, wenn Sie die Eingabetaste drücken.

Attention : Si vous restaurez la conﬁguration usine, votre conﬁguration courante sera remplacée par la conﬁguration usine dès que vous appuierez sur [Entrée].

Safety Messages

Precaución: Si selecciona el comando Restaurar valores predeterminados, todos los valores de conﬁguración se sustituirán por las valores predeterminados en fábrica al pulsar [Intro].

Attenzione: Nel caso in cui si selezioni la reimpostazione dei valori di default, tutte le impostazioni conﬁgurate verranno sostituite dai default di fabbrica premendo il tasto [Invio].

893-01010-A xxiii

89301010.BK Page xxiv Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Removing the Top Cover

See Warning on page 4-1.

Warning: To avoid bodily injury from hazardous electrical current, never

remove the top cover of the device. There are no user-serviceable components inside.

Vorsicht: Um Verletzungsgefahr durch einen elektrischen Stromschlag auszuschließen, nehmen Sie niemals die obere Abdeckung vom Gerät ab. Im Geräteinnern beﬁnden sich keine Komponenten, die vom Benutzer gewartet werden können.

Avertissement : Pour éviter tout risque d'électrocution, ne jamais retirer le capot de l'appareil. Cet appareil ne contient aucune pièce accessible par l'utilisateur.

Advertencia: A ﬁn de evitar daños personales por corrientes eléctricas peligrosas, no desmonte nunca la cubierta superior de este dispositivo. Los componentes internos no son reparables por el usuario.

Avvertenza: Per evitare lesioni ﬁsiche dovute a scariche pericolose di corrente, non rimuovere mai il coperchio superiore del dispositivo. I componenti interni non possono essere manipolati dall'utente.

xxiv 893-01010-A

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

Introduction to the BayStack 303 and 304

This chapter introduces the BayStack 303 and 304 Ethernet Switches and covers the following topics:

Chapter 1

Ethernet Switches

Features

• Summary of key features

• Physical description

The BayStack 303 and 304 Ethernet Switches are members of the Bay Networks BayStack family of high-performance Ethernet solutions. Both BayStack 303 and 304 switches have built-in management software and power-up diagnostics that allow the switch to begin Ethernet frame switching functions immediately. These BayStack switches provide switch connectivity between 802.3 Ethernet device running any network protocols.

The BayStack 303 and 304 switches have 10 Mb/s ports, autonegotiating 10/100 Mb/s ports, and a 100 Mb/s media adapter (MDA) slot for either a 10/100BASE-TX or a 100BASE-FX ﬁber port connection.

The 10BASE-T port density of the BayStack 303 switch is ideal for low-cost performance-enhancing segmentation within the wiring closet, and the higher port density of the BayStack 304 switch allows the extension of dedicated switching to power desktop users. The 100 Mb/s ports pro vide a high-throughput connection to a backbone or server and can be conﬁgured to operate in either half- or full-duplex data transfer mode. The 100BASE-T ports can also be used to provide a link between traditional 10BASE-T networks and the faster 100BASE-T networks.

893-01010-A 1-1

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Multiple switches can be connected to one another (or to other 802.1D bridges/ switches/hubs) to form a switched/segmented (or bridged) Ethernet backbone.

Key features of the BayStack 303 and 304 Ethernet Switches are:

• Provides 10 Mb/s and 100 Mb/s switching in the following conﬁgurations:

— 12 (BayStack 304) or 24 (BayStack 303) 10BASE-T half-duplex ports

with standard RJ-45 connections — One 10/100BASE-TX half- or full-duplex autonegotiating port — Addition of an optional 10/100BASE-TX half- or full-duplex

autonegotiating copper port or 100BASE-FX ﬁber port

• Supports IEEE 802.3u autonegotiation standard on 10/100BASE-TX ports

• Supports up to 1024 media access control (MAC) addresses per switch

• Provides store-and-forward switching mode

• Provides signiﬁcant aggregate throughput for all packet sizes, including the minimum size (64 bytes) Ethernet frame:

— 420,000 packets per second (pps) for BayStack 304 Ethernet Switch — 380,000 pps for the BayStack 303 Ethernet switch

• Supports IEEE 802.1d Spanning Tree Protocol on each port to provide automatic network conﬁguration of a loop-free topology and redundant inter-switch links

• Supports broadcast and multicast trafﬁc control

• Provides user interface that supports international languages: English, German, French, Italian, Spanish, Japanese, and Chinese

• Supports in-band Telnet connections through any port

• Provides SNMP (Simple Network Management Protocol) manageability through any port; supports MIB II and Bridge MIB

• Supports Groups 1, 2, 3, and 9 RMON

• Supports TFTP remote software image download

• Provides indicators for power, system, and port operation

1-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

Physical Description

This section provides descriptions of the components on the front panels of the BayStack 303 and 304 Ethernet Switches.

Front Panel

The front panels of these BayStack switches provide RJ-45 10BASE-T ports, an RJ-45 10/100BASE-T port, an expansion slot for the addition of either a 10/ 100BASE-TX or 100BASE-FX port, a DB-9 connector for a console, and assorted LEDs. Figure

Figure

LEDs follow the ﬁgures.

1-2 shows the BayStack 303 Ethernet switch. Descriptions of the ports and

Introduction to the BayStack 303 and 304 Ethernet Switches

1-1 shows the BayStack 304 Ethernet Switch, and

MDA

1357911

100BASE-TX

213 4 6 8 10 12

Console

1 = One 10/100BASE-TX port 2 = 12 10BASE-T ports 3 = Console port connection∆ 4 = Expansion slot for the addition of an optional 10/100BASE-TX or 100BASE-FX MDA

(switch should be powered down to install MDA)

5 = Status indicators

Figure 1-1. BayStack 304 switch front panel

Power

100BASE-TX Link

100

F Dx

304

1357911 24681012

899EB

893-01010-A 1-3

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

MDA

1357911

100BASE-TX

225 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24

Console

1 = One 10/100BASE-TX port 2 = 24 10BASE-T ports 3 = Console port connection 4 = Expansion slot for the addition of an optional 10/100BASE-TX or 100BASE-FX MDA

(switch should be powered down to install MDA)

5 = LED status indicators

Figure 1-2. BayStack 303 switch front panel

10BASE-T Ports

Power Status

100BASE-TX Link

100

F Dx

303

1357911 24681012

13 15 17 19 21 23 14 16 18 20 22 24

896EB

The 10BASE-T port connections are provided for the 10 Mb/s Ethernet segment or nodes to attach to the BayStack 303 and 304 Ethernet Switches. The RJ-45 jacks accept standard Category 3, 4, or 5 copper unshielded twisted pair (UTP) cable connections. Pin assignments for the standard RJ-45 connector are given in

able 1-1. The BayStack switches are shipped with the 10BASE-T connectors

conﬁgured as MDI-X (media-dependent interface-crossover). These ports connect over straight cables to the network interface controller (NIC) card in a node or server, similar to a conventional Ethernet repeater hub. If you are connecting to another Ethernet hub or Ethernet switch, you need a crossover cable unless an MDI connection exists on the associated port of the attaching device (see

Connecting 10BASE-T Ports” on page 2-8 for a description of the crossover

“

cable). The 10 Mb/s ports operate in half-duplex mode only, and each port has an

associated LED that indicates link status of the line.

1-4 893-01010-A

89301010.BK Page 5 Tuesday, June 10, 1997 8:00 PM

Table 1-1. RJ-45 connector pinout

Introduction to the BayStack 303 and 304 Ethernet Switches

3165.1

1 Receive data + (RD+) 2 Receive data –(RD–) 3 Transmit data + (TR+) 4 Not used 5 Not used 6 Transmit data– (TD–) 7 Not used 8 Not used

MDI-X signal

10/100BASE-TX Port

Both the BayStack switches have one built-in and one optional 10/100BASE-TX port that is designed to operate either at 10 Mb/s or at 100 Mb/s depending on the connecting device. This port supports the IEEE 802.3u autonegotiation standard, which means that when this port is connected to another device that also supports the IEEE 802.3u autonegotiation standard, the two devices negotiate the best speed and duplex mode of operation.

The 10/100BASE-TX port also supports half- and full-duplex mode operation. For more information on autonegotiation, see “

Connecting the 10/100BASE-TX

Port” on page 2-9.

The 10/100 Mb/s port consists of a standard 8-pin modular RJ-45 connector used to connect hubs, switches, and end stations using only 2-pair Category 5 UTP cabling.

The link status indicator for the 100BASE-TX port is located on the LED panel on the front of the switch. This area also contains a full-duplex (F Dx) status indicator that lights when the port is operating in full-duplex mode. When the port is operating in half-duplex mode, the indicator is off. See “

Half-duplex and

Full-duplex Mode” on page 2-9 for more information on duplex mode.

893-01010-A 1-5

89301010.BK Page 6 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

A speed LED (100) is also provided to indicate when the port is operating as a 100 Mb/s port. The LED is off when the port is operating as a 10 Mb/s port. See

Autonegotiation” on page 2-10 for more information on autonegotiation of wire

“

speed. Like the 10BASE-T ports, all 10/100B ASE-T ports are also conﬁgured as MDI-X.

able 1-1 on page 1-5 lists the pin assignments for the RJ-45 connector.

MDA Slot

Each BayStack switch is conﬁgured with one expansion slot that can be populated with an optional plug-in media-dependent adapter (MDA) to support a high-speed connection to servers, shared Fast Ethernet hubs, or backbone devices. Two types of media adapters are available for the BayStack switches:

• Model MTX-1, 10/100BASE-TX copper connection

• Model MFX-1, 100BASE-FX ﬁber connection

Both media types support half- and full-duplex operation and have an LED to indicate when the port is operating in full-duplex mode. See Appendix

“Technical Speciﬁcations,” for a full description of the MDA.

Warning: Power to the switch must be turned off prior to installation of the

MDA.

Console Port Connector

The console port has a DB-9 male connector used to connect a management terminal to the BayStack switch by means of a straight-through DB-9 to DB-9 standard serial port cable. Using a terminal, you can monitor the results of startup self-diagnostics, perform manual boot conﬁguration and SNMP agent conﬁguration, and customize your network using the supplied menus and screens.

The console port runs at 9600 baud and uses 8 data bits, 1 stop bit, and no parity as the communications format, with ﬂow control disabled.

In less complex applications with no network management, where no conﬁguration changes are required, you do not need to use the console port on the BayStack switches.

1-6 893-01010-A

89301010.BK Page 7 Tuesday, June 10, 1997 8:00 PM

The console port connector pin assignments are described in Table 1-2.

Table 1-2. DB-9 connector pin assignments

Introduction to the BayStack 303 and 304 Ethernet Switches

Pins Signal name Direction

1 Not used

DB-9

3166.3

For information about connecting a terminal to the console port, refer to

Chapter 2, “Installing the BayStack Switches.”

LEDs

The LEDs on the front panel of the BayStack switches help you to identify the unit port status and MDA operational mode (see T the RJ-45 port connectors allow you to identify the link status of each port.

Table 1-3. Front-panel LEDs

2 Transmit data, TD To terminal 3 Receive data, RD From terminal 4 Not used 5 Common signal ground 6 Not used 7 Not used 8 Not used 9 Not used

able 1-3). LEDs associated with

Type Label Color State Meaning

Link status of each port

Unit AC power supply status

System status

893-01010-A 1-7

Link Green On

Power Green On

Status Green On

Off

Blinking Off

Link is active and connected correctly. Link is inoperative or improperly connected.

Switch is receiving valid AC power. Switch is not receiving valid AC power, or internal power

supply has failed. Unit is operating properly.

Unit is performing self-tests or network configuration. A system fault has occurred.

89301010.BK Page 8 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Table 1-3. Front-panel LEDs (continued)

Type Label Color State Meaning

100 Mb/s speed indicator

Half/full-duplex * F Dx Green On

* Indicator applies to 10/100BASE-TX port only (port 13 on BayStack 304 and port 25 on BayStack 303).

100 Green On

Off

Port is operating at 100 Mb/s. Port is operating at 10 Mb/s.

10/100 Mb/s port is operating in full-duplex mode (simultaneous transmit and receive).

10/100 Mb/s port is operating in half-duplex mode (transmit or receive).

The unit AC power supply status LED and the system status LED work together to provide status information. T

Table 1-4. Power and Status LEDs

Power Status Meaning

Off Off System off. On Off System fault detected by power-up diagnostics. On Blinking System is powered on and performing self-tests or network

conﬁguration.

able 1-4 provides the meaning of the two LEDs.

On On Normal operation.

Power Cord Speciﬁcations

For installation outside North America, make sure you ha ve the proper po wer cord for your region. Any cord used must have a CEE-22 standard V female connector on one end and must meet the IEC 320-030 speciﬁcations.

Caution: Use only power cords with a grounding path. Without a proper

ground, a person touching the unit is in danger of receiving an electrical shock. Lack of a grounding path to the unit may result in excessive conducted or radiated emissions.

1-8 893-01010-A

228FA

227FA

229FA

89301010.BK Page 9 Tuesday, June 10, 1997 8:00 PM

Table 1-5 lists speciﬁcations for international power cords.

Table 1-5. International power cord speciﬁcations

Country/Plug description Speciﬁcations Typical plug

Introduction to the BayStack 303 and 304 Ethernet Switches

Continental Europe:

• CEE7 standard VII male plug

• Harmonized cord (HAR marking on the outside of the cord jacket to comply with the CENELEC Harmonized Document HD-21)

U.S./Canada/Japan:

• NEMA5-15P male plug

• UL recognized (UL stamped on cord jacket)

• CSA certiﬁed (CSA label secured to the cord)

United Kingdom:

• BS1363 male plug with fuse

• Harmonized cord

220 or 230 VAC 50 Hz Single phase

100 or 120 VAC 50–60 Hz Single phase

240 V AC 50 Hz Single phase

Australia:

• AS3112-1981 Male plug

240 V AC 50 Hz Single phase

230FA

893-01010-A 1-9

89301010.BK Page 10 Tuesday, June 10, 1997 8:00 PM

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

This chapter provides the following information for the BayStack switches:

• Installation requirements

Chapter 2

Installing the BayStack Switches

• Installation procedure

• Instructions for attaching devices

• Instructions for the initial switch setup Refer to Chapter

further conﬁgure your BayStack switches.

3, “Customizing and Managing the BayStack Switches,” to

Installation Requirements

Before installing a The BayStack 303 or 304 switch, verify that the package contains the following items in addition to this guide:

• A BayStack 303 Ethernet Switch or BayStack 304 Ethernet Switch

• Power cable (applicable for operating country; see “

Speciﬁcations” on page 1-8).

• Rack-mounting kit (applicable for metal chassis or plastic chassis)

• Warranty card

Power Cord

You will need a Phillips screwdriver for the installation. Install the BayStack switches on a sturdy, level surface in a ventilated area that is

dust free and away from heat vents, warm air exhaust from other equipment, and direct sunlight. Avoid proximity to large electric motors or other electromagnetic equipment. When choosing a location, observe the guidelines listed in

Appendix

893-01010-A 2-1

A, “Technical Speciﬁcations.”

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

If you install the BayStack switches in a rack, ground the rack to the same grounding electrode used by the power service in the area. The ground path must be permanent and must not exceed 1 ohm of resistance from the rack to the grounding electrode.

Installation Procedure

This section provides the requirements and instructions for installing the BayStack switches on a ﬂat surface or in a standard 19-inch utility rack. Both switches can be shipped with either a metal chassis or a plastic chassis. The installation instruction differs slightly depending on the type of chassis you receive. Therefore, prior to installing your switch, determine which type of chassis you have.

Installing the BayStack Switches on a Flat Surface

The BayStack switches can be mounted onto any appropriate ﬂat surface that can safely support the weight of a switch and its attached cables, as long as there is adequate space around the unit for ventilation and access to cable connectors.

Caution: When this device is installed in a stack on a shelf or tabletop, the

accumulated weight of the port cables increases with the height of the shelf or tabletop.

To install the switch on a tabletop, shelf, or any other ﬂat surface, follow these steps:

1. Set the switch on the ﬂat surface and check for proper ventilation.

Allow at least 2 inches on each side for proper ventilation and 5 inches at the back for power cord clearance.

2. Attach rubber feet to each marked location on the bottom of the metal

chassis.

The plastic chassis does not require rubber feet.

3. Attach all devices to the ports.

See “

Attaching Devices to the BayStack Switch” on page 2-8 through

2-11.

page

2-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

You can stack switches on top of one another to conﬁgure a switched/

bridged/segmented Ethernet backbone.

For performance reasons, the high-speed ports should be used to interconnect switches.

5. Attach the power cord to the back of the switch.

The BayStack switches do not have a po wer on/of f switch. When you connect the AC power cord to a suitable AC outlet, the switch powers up immediately.

Warning: Removal of the po wer cord is the only w ay to turn off power to

this device. The power cord must always be connected in a location that can be accessed quickly and safely in case of an emergency.

Installing the BayStack Switches

6. Attach the other end of the power cord to a grounded AC power outlet.

As soon as the cord is plugged into the AC outlet, power is applied to all components in the switch.

With po wer applied to the switch, power -up diagnostics are performed and the switch goes into normal switch mode. To do basic switch conﬁguration, see

“Initial Setup of a BayStack Ethernet Switch” on page 2-15. To understand

the complete software interface, see Chapter

the BayStack Switches.”

Installing the BayStack Switch in a Rack

The BayStack switches occupy one single-unit rack space and can be installed in most standard 19-inch racks. There are two types of switch chassis: a metal chassis and a plastic chassis. Each of these chassis has different mounting bracket requirements. Select the appropriate installation procedure for your chassis.

Caution: When mounting this device in a rack, do not stack units directly on

top of one another in the rack. Each unit must be secured to the rack with appropriate mounting brackets. Mounting brackets are not designed to support multiple units.

3, “Customizing and Managing

The brackets for both the metal and plastic chassis can be installed at various positions along the side of the switch to position it in the rack. Determine how far you want the switch to protrude from the rack (see Figure

893-01010-A 2-3

2-1).

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

1 2

1 = Flush with rack 2 = Extended from rack

7530FB

Figure 2-1. Positioning the chassis in the rack

Installing a Metal Chassis in a Rack

To install the metal switch chassis in a 19-inch rack, you need to determine the exact location and position of the switch in the rack. The mounting brackets shipped with the metal chassis allow the positioning of the switch to be adjusted to accommodate your needs. The design also requires that the top cover mounting screws along both sides of the chassis be removed to accommodate the rack mounting bracket.

To install a metal chassis in a rack, follow these steps:

1. Locate the appropriate mounting holes on both sides of the switch.

The bracket can be installed at any position along the side of the chassis using the existing top cover mounting screw holes. Determine how far you want the switch to protrude in front of the rack by sliding the mounting bracket along the side of the switch chassis (see Figure

a. Remove the screws from the holes that are to be used for the bracket.

2-1).

b. Position the mounting bracket over the empty holes (see Figure 2-2). c. Reinsert the screws to secure the mounting bracket to the chassis.

2-4 893-01010-A

89301010.BK Page 5 Tuesday, June 10, 1997 8:00 PM

Installing the BayStack Switches

7529FB

Figure 2-2. Installing metal chassis in rack

Position the switch in the rack and align the holes in the mounting

bracket with the holes in the rack (see Figur

3. Insert two screws, appropriate for your 19-inch rack, into each of the

mounting brackets and tighten (see Figur

4. To continue installation, go to “Completing Rack Mounting Installation”

on page

2-7.

e 2-2).

Installing a Plastic Chassis in a Rack

The plastic chassis requires different rack mounting brackets. The plastic chassis rack mounting brackets use slots in the sides of the chassis. Determine which position you want for the switch in the rack and select the appropriate slots (see

Figure

2-1 on page 2-4).

To install a plastic chassis in a rack, follow these steps:

1. Locate the appropriate mounting slots on both sides of the switch (see

e 2-3).

Figur

893-01010-A 2-5

89301010.BK Page 6 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

There are three slots located on the side of the chassis. To install the switch ﬂush with the rack, use the front and middle slots. To install the switch extended out from the rack, use the middle and back slots.

2. Secure the brackets with screws (inserted fr om the bottom of the chassis)

supplied with the brackets.

7528FB

Figure 2-3. Installing the plastic chassis in the rack

Position the switch in the rack and align the holes in the mounting

bracket with the holes in the rack (see Figur

4. Insert two screws, appropriate for your 19-inch rack, into each of the

e 2-3).

mounting brackets and tighten with a suitable screwdriver (see

e 2-3).

Figur

5. To continue installation, go to “Completing Rack Mounting Installation”

on page

2-6 893-01010-A

2-7.

89301010.BK Page 7 Tuesday, June 10, 1997 8:00 PM

Completing Rack Mounting Installation

Once the switch is secured to the rack, connect the devices and apply power using the following steps:

1. Attach all devices to the ports.

See “

Attaching Devices to the BayStack Switch” on page 2-8.

2. Attach the power cord to the back of the switch.

The BayStack switches do not have a po wer on/of f switch. When you connect the AC power cord to a suitable AC outlet, the switch powers up immediately.

Warning: Removal of the po wer cord is the only w ay to turn off power to

this device. The power cord must always be connected in a location that can be accessed quickly and safely in case of an emergency.

Installing the BayStack Switches

3. Attach the other end of the power cord to a grounded AC power outlet.

As soon as the cord is plugged into the AC outlet, power is applied to all components in the switch.

With po wer applied to the switch, power -up diagnostics are performed and the switch goes into normal switch mode. No conﬁguration is required unless changes are necessary or network management is required. To do basic switch conﬁguration, see “

2-15. To understand the complete software interface, see Chapter 3,

page

Initial Setup of a BayStack Ethernet Switch” on

“Customizing and Managing the BayStack Switches.”

893-01010-A 2-7

89301010.BK Page 8 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Attaching Devices to the BayStack Switch

After you have installed the BayStack 303 or 304 switch, you can connect it to any equipment that conforms to the IEEE 802.3 standard, such as the following devices:

• Ethernet networking devices

• Individual workstations or servers

• Other switches, bridges, or hubs

When the BayStack switch has valid link status, it automatically learns the MAC level station address of each attached device. If you monitor the trafﬁc, you may initially see some extra transmissions as the switch learns the network connectivity; after that, however, the network is fully switched.

The green link LED of each port lights if you correctly cable and connect each attached device to the switch ports. If the attached device is off, is disabled from sending link-status pulses, or is wired incorrectly, the link status LED of the associated switch port does not light. If this is the case, you need to determine the cause of the problem and take the appropriate corrective action.

Connecting 10BASE-T Ports

The 12 or 24 10BASE-T ports on the BayStack switch connect to Ethernet hubs, network devices, individual workstations, or servers through an MDI-X conﬁgured connection. Media Dependent Interface (MDI) is the IEEE standard for the interface to unshielded twisted pair (UTP) cable.

For communications to take place between two devices, the transmitter of one device must connect to the receiver of the other device. The connection must be achieved through a crosso ver function, which could be a crossover cable or a port that implements the crossover function internally.

For more information on using crossover cables, see “

MDI and MDI-X

Connections” on page 4-3.

2-8 893-01010-A

89301010.BK Page 9 Tuesday, June 10, 1997 8:00 PM

Connecting the 10/100BASE-TX Port

Both BayStack 303 and 304 switches contain an onboard 10/100 Mb/s port that uses autonegotiation with the connecting device to determine the wire speed. An optional second 10/100 Mb/s port can be added by installing the 10/100BASE-TX MDA. The 10/100 Mb/s ports must use Category 5 UTP cable to accommodate the 100BASE-TX functionality. A standard RJ-45 connection, shown in

Figure

2-4, is provided to connect devices to the switch through the high-speed

port. Like the 10BASE-T ports, the 10/100BASE-TX ports are conﬁgured as MDI-X.

Both the onboard port and the optional MDA port have dedicated LEDs that indicate wire speed (10 Mb/s or 100 Mb/s) and duplex mode (half- or full-duplex).

10/100BASE-TX Port” on page 1-5 and “LEDs” on page 1-7 for more

See “ information.

Installing the BayStack Switches

MDA

MTX-1

100BASETX

Link 100 F Dx

10/100 Mb/s ports

1357911

100BASE-TX

24681012

7466EA

Figure 2-4. 10/100 Mb/s port connections

Half-duplex and Full-duplex Mode

By deﬁnition, the Ethernet carrier sense multiple access/collision detection (CSMA/CD) protocol operates in half-duplex mode, allowing either data transmission or reception, but nev er both at the same time. Point-to-point network connections, such as DTE-to-switch ports, do not need CSMA/CD to resolve media access contention from multiple devices; therefore, point-to-point network connections allow a ﬁle server to transmit frames to a switch while simultaneously receiving frames from the same switch. This two-w ay , non-CSMA/CD full-duplex communication provides an effective bandwidth of 200 Mb/s between two devices.

893-01010-A 2-9

89301010.BK Page 10 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

The indicator for the built-in 100BASE-TX port is located on the LED panel on the right of the front panel. The indicator for the MDA port is located on the MDA. When the half- and full-duplex indicator is lit, the port is operating in full-duplex mode (meaning the port is operating at either 20 Mb/s or 200 Mb/s, depending on the connecting device). When the indicator is not lit, the port is operating in half-duplex mode, which is 10 Mb/s or 100 Mb/s.

Note: The 100BASE-FX MDA port operates in 100 Mb/s (half-duple x mode)

or 200 Mb/s (full-duplex mode) only.

Autonegotiation

The ﬁxed 10/100 Mb/s port and the optional 10/100BASE-TX MDA port support the IEEE 802.3u autonegotiation standard. When autonegotiation is enabled on the switch and the port is connected to a device that also supports the standard, the two devices negotiate the best speed and duplex mode of operation. All the high-speed ports on the BayStack 303 and 304 switches support full-duplex. For more information on autonegotiation, see “

Autonegotiation” on page 4-2.

2-10 893-01010-A

89301010.BK Page 11 Tuesday, June 10, 1997 8:00 PM

Connecting the 100BASE-FX Port

The 100BASE-FX ﬁber media adapter uses a multimode ﬁber connector to provide direct connection to other compatible Fast Ethernet devices over

62.5/125 µm multimode ﬁber optic cabling. Connection to the 100BASE-FX port is through a standard SC connector, shown in Figure media adapter can be used as a direct attachment to end stations, servers, switches, or repeaters where multimode ﬁber optic cabling is already installed.

Installing the BayStack Switches

2-5. The 100BASE-FX

MFX-1

100BASE-FX

TX RX

MDA

Link

F Dx

1357911

100BASE-TX

24681012

7467EA

Figure 2-5. SC connection for the 100BASE-FX MDA port

Connecting to the Console Port

The serial console interface is an RS-232 port that enables a connection to a PC or terminal for monitoring and conﬁguring the switch. You can also connect this port to an external modem to enable remote dial-in management of the switch. The port is implemented as a data communication equipment (DCE) connection, using a male DB-9 connector.

893-01010-A 2-11

89301010.BK Page 12 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

To use the console port, you need the following equipment:

• A terminal or TTY-compatible terminal, or a portable computer with a serial

port and the ability to emulate a terminal The terminal should have the following settings: — 9600 baud — No parity — 8 bits — 1 stop bit — Window Terminal Emulator option set to NO — Terminal Preferences—Function, Arrow, and Control keys active

• A UL-listed straight-through RS-232 cable with a female DB-9 connector for

the console port on the switch The other end of the cable must have a connector appropriate to the serial port

on your computer or terminal. (Most terminals or computers use a male DB-25 connector.)

Any cable connected to the console port must be shielded to comply with emissions regulations and requirements.

See “

Console Port Connector” on page 1-6 for a description of the pin

assignments. To connect a terminal to the console port, follow these steps:

1. Set the terminal protocol as described previously.

2. Connect the terminal (or a computer in terminal-emulation mode) to the

console port using the RS-232 cable.

a. Connect the female connector of the RS-232 cable directly to the

service port on the switch, and tighten the captive retaining screws (see Figur

e 2-6).

2-12 893-01010-A

89301010.BK Page 13 Tuesday, June 10, 1997 8:00 PM

Figure 2-6. Connecting to the console port

Connect the other end of the cable to a terminal or the serial

connector of a personal computer running communications software.

Installing the BayStack Switches

Console

172FA

3. Turn on the terminal.

4. If the switch power is already turned on, press [Esc] to display the Main

Menu.

You can now access the conﬁguration menus to observe self-tests and to modify operating parameters for the switch.

Power-up Self-Tests

When power is applied to the switch, power-up self-tests are run. If a monitor is connected to the switch (see “ for instructions on connecting to the console port), you can observe the Power Up Self Test screen display (see Figure

Connecting to the Console Port” on page 2-11

2-7).

893-01010-A 2-13

89301010.BK Page 14 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

*****************************************************************************

CPU Test… Passed Serial Port Test… Passed Watchdog Timer Test… Passed Timer Module Test… Passed DRAM Test… Passed

Enter .<RETURN> to go to Boot Options Menu Booting Switch software version BayStack 303/304 1.1.0 created on 02/11/1997

Bay Networks BayStack 303 Ethernet Switch

Power Up Self Test

Figure 2-7. Power Up Self Test screen

The Boot Options Menu, accessed by pressing Enter during the power-up sequence, provides the ability to upgrade switch software by establishing a trivial ﬁle transfer protocol (TFTP) link (see “

Upgrading Switch Software Through

TFTP Connection” on page 3-23).

Upon successful completion of the power-up self-tests, the switch is ready for normal operation. If you have a terminal or console connected to the switch, the Main Menu is displayed unless it is the initial power-up sequence of the switch or a Reset to Defaults was performed. In the latter two cases, the switch displays the Language selection menu where you can select one of seven languages to display the user interface (see “

Selecting a Language” on page 2-16).

2-14 893-01010-A

89301010.BK Page 15 Tuesday, June 10, 1997 8:00 PM

Initial Setup of a BayStack Ethernet Switch

In most cases, the BayStack 303 and 304 Ethernet Switches can be installed and made operational using the system default settings.

Minimal conﬁguration is required when you plan on remote management or TFTP operations. In that case, you need to enter the IP address of the switch, the subnet mask, and the gateway address. Refer to Chapter

the BayStack Switches,” for more information about conﬁguring your BayStack

303 or 304 switch.

Using Factory Default Settings

When you turn on power to the switch, it begins operation using the factory default settings for conﬁguration parameters. T parameters.

Installing the BayStack Switches

3, “Customizing and Managing

able 2-1 lists default values for the

Table 2-1. Factory default settings

Parameter Default value

Language None IP Address 127.0.0.2 IP Subnet Mask Address 255.255.255.0 Default Gateway Address 0.0.0.0 Spanning Tree Protocol Enabled Telnet Access Enabled Authentication Trap Generation Enabled Password (Telnet) No password assigned Port Path Cost 0 Port Priority 128 High Speed Port Half or Full Duplex Half Duplex High Speed Port Speed Auto Spanning Tree Priority 32768 Active Aging Time 300 seconds Designated Root 32768 - 00.00.00.00.00.00 Hello Time 2 seconds

893-01010-A 2-15

89301010.BK Page 16 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Table 2-1. Factory default settings (continued)

Parameter Default value

Forward Delay 15 seconds Max Age 20 seconds Bridge Priority 32768 Port Priority 128 Port Path Cost 0 Trap Receiver # Community Name and

IP Address (1, 2, 3, & 4)

Selecting a Language

The BayStack 303 and 304 switches are designed to interface with the user in one of seven languages. Selection of a user interface language is done from the language menu, shown in Figure initial power-up sequence and whenever the system is reset to default values. At all other times, the Main Menu is displayed when the switch is turned on.

To select a language for the user interface, enter the number corresponding to the chosen language and the Main Menu is displayed in the selected language.

1 ---English 2 ---French/Francais 3 ---German/Deutsche 4 ---Japanese 5 ---Spanish/Espanol 6 ---Italian/Italiano 7 ---Chinese

Public - 0.0.0.0

2-8. The language menu is displayed at the

Current Selection:

Please enter number for selection:

Figure 2-8. Language selection menu

2-16 893-01010-A

89301010.BK Page 17 Tuesday, June 10, 1997 8:00 PM

Initial Switch Setup

The BayStack switches are designed for plug-and-play operation; however, certain parameters must be conﬁgured in order for the switch management function to become fully operational. After the language has been selected, the Main Menu is displayed (see Figure

*****************************************************************************

IP Address: [0.0.0.0] Mac Address: [00:00:81:12:12:12] Software Version: [1.0] System Up Time: [0d:00h:00m:00s] Switch Status: [Switching]

*****************************************************************************

Installing the BayStack Switches

2-9).

Bay Networks BayStack 303 Ethernet Switch

Main Menu

1 -- System Information 2 -- System Configuration 3 -- Reset System 4 -- Exit Telnet

Enter Command ([ESC]---Previous Screen [Space]---Refresh Screen)

Figure 2-9. Main Menu

893-01010-A 2-17

89301010.BK Page 18 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

To set the IP address, subnet mask, and gateway address for the switch, follow these steps:

1. Type 2 to select 2---System Conﬁguration from the Main Menu.

This selection displays the System Conﬁguration menu (see Figure

*****************************************************************************

Bay Networks BayStack 303 Ethernet Switch

IP Address: [0.0.0.0] Mac Address: [00:00:81:12:12:12] Software Version: [1.0] System Up Time: [0d:00h:00m:00s] Switch Status: [Switching]

*****************************************************************************

System Configuration

1 -- Switch Network Configuration 2 -- Port Configuration 3 -- Spanning Tree Configuration 4 ---SNMP Configuration 5 -- Reset to Default

Enter Command ([ESC]---Previous Screen [Space]---Refresh Screen)

2-10).

Figure 2-10. System Conﬁguration menu

2-18 893-01010-A

89301010.BK Page 19 Tuesday, June 10, 1997 8:00 PM

Type 1 to select 1---Switch Network Conﬁguration from the System

Conﬁguration menu.

This selection displays the Switch Network Conﬁguration menu (see

Figure

*****************************************************************************

IP Address: [0.0.0.0] Mac Address: [00:00:81:12:12:12] Software Version: [1.0] System Up Time: [0d:00h:00m:00s] Switch Status: [Switching]

*****************************************************************************

2-11).

Installing the BayStack Switches

Bay Networks BayStack 303 Ethernet Switch

Switch Network Configuration

1 -- IP Address 2 -- IP Subnet Mask Address 3 -- Default Gateway Address 4 -- Spanning Tree Protocol 5 -- Telnet Access 6 -- Telnet password

Enter Command ([ESC]---Previous Screen [Space]---Refresh Screen)

Figure 2-11. Switch Network Conﬁguration menu

Type 1 in the command line.

This action refreshes the screen and displays the current IP address value.

4. Enter the IP address of the switch in the command line.

This action refreshes the screen and displays the new IP address value in the ﬁeld on the menu.

Note: IP addresses are written as four decimal numbers (for example,

123.123.123.123). Each decimal number represents an 8-bit octet. When strung together, the four octets form the 32-bit Internet address. This notation is called dotted-decimal notation. The largest possible value of a ﬁeld in a dotted-decimal number is 255, which represents an octet of all ones.

893-01010-A 2-19

89301010.BK Page 20 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

5. Type 2 in the command line.

This action refreshes the screen and displays the current IP subnet mask address value.

6. Enter the IP subnet mask address.

This action refreshes the screen and displays the new IP subnet mask address value in the ﬁeld on the menu.

7. Type 3 in the command line.

This action refreshes the screen and displays the current default gateway address value.

8. Enter the default gateway address.

This action refreshes the screen and displays the new value in the ﬁeld on the menu.

9. Type 1 at the System Conﬁguration menu.

The Switch Network Conﬁguration menu is displayed (see Figure From this menu, the IP address and Telnet password can be set.

2-11).

2-20 893-01010-A

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

Customizing and Managing the BayStac k Switc hes

This chapter describes the agent software that provides management and conﬁguration control of the BayStack 303 and 304 Ethernet Switches.

Chapter 3

This chapter includes the following information:

• Using the menus and screens

• Conﬁguring the BayStack switches

• Managing the BayStack switches

• Upgrading the BayStack switches with a new agent version Refer to Chapter

connection, and quick conﬁguration procedures.

2, “Installing the BayStack Switches,” for installation,

Using the Menus and Screens

The agent software on the BayStack 303 and 304 switches provides menus and screens that allow you to conﬁgure and manage your network environment. A menu provides the ability to set and change parameters, and a screen presents current status and parameter settings.

This section includes the following information:

• Menu and screen areas

• Menu and screen descriptions

Figure

893-01010-A 3-1

3-1 shows the menu and screen hierarchy.

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Language Selection Menu

Selection of any language takes you to the Main Menu in that language.

1 ---

English

2 ---

French

3 ---

German

4 ---

Japanese

5 ---

Spanish

6 ---

Italian

7 ---

Chinese

Main Menu

1 --- System Information

1 --- Switch Information 2 --- Spanning Tree Information 3 --- Port Statistics and

Status Information

SNMP Read Community String SNMP Read/Write Community String Authentication Trap LinkUp/LinkDown Trap Trap Receiver 1 IP and Community Name Trap Receiver 2 IP and Community Name Trap Receiver 3 IP and Community Name Trap Receiver 4 IP and Community Name Spanning T ree Mode Telnet Access

1 --- Spanning Tree General Information 2 --- Spanning Tree Port Information

Aging Time Bridge Priority Designated Root Root Port Hello Time Max Age Time Forward Delay Topology Changes Time Since Topology Change Root Cost Hold Time Bridge Max Bridge Hello Time Bridge Forward Delay

2 --- System Configuration

1 --- Switch Network Configuration 2 --- High Speed Port Configuration 3 --- Spanning Tree Configuration 4 --- SNMP Configuration 5 --- Reset to Default

3 --- Reset System

4 --- Exit Telnet

Command (Port #) Link Status Port Status

1 --- IP Address 2 --- IP Subnet Mask Address 3 --- Default Gateway Address 4 --- Spanning Tree Protocol (disable/enable) 5 --- Telnet Access (disable/enable) 6 --- Telnet Password

1 --- Port # 13/25 2 --- Port # 14/26 (MDA)

1 --- General Configuration 2 --- Port Configuration

1 ---

SNMP Read Community String

2 ---

SNMP Read/Write Community String

3 ---

Trap Receiver 1 Community Name and IP Address :

4 ---

Trap Receiver 2 Community Name and IP Address :

5 ---

Trap Receiver 3 Community Name and IP Address :

6 ---

Trap Receiver 4 Community Name and IP Address :

7 ---

Authentication Trap Generation

8 ---

LinkUp/LinkDown Trap Generation

Port # Port Priority Port Path Cost

Rx Good Frame Rx Align Error Frame Rx CRC Error Frame Rx Frame Too Long Tx Good Frame Tx Single Collision Tx Multiple Collision Deferred Transmissions Tx Late Collisions Tx Excessive Collisions Tx Carrier Sense Errors

Port Autonegotiation Mode Port Speed Port Duplex Mode

1 --- Aging Time 2 --- Bridge Priority 3 --- Bridge Hello Time 4 --- Bridge Max Age Time 5 --- Bridge Forward Delay

Command/Port # Port Priority Port Path Cost

945EA

Figure 3-1. Menu and screen hierarchy

3-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

Menu and Screen Areas

The menus and screens of the switch software are partitioned into the following three distinct areas, as shown in Figure

• Switch status area

• Central screen area—menu commands and status

• Navigation commands and command line area

•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

IP Address:

Switch status area

Mac Address: Software Version: System Up Time: Switch Status:

Customizing and Managing the BayStack Switches

3-2:

Bay Networks BayStack 303 Ethernet Switch

0.0.0.0 00:00:81:12:12:12 v1.0 00D:00H:00M:00S Operational

Central screen area

Navigation commands and

command line area

Figure 3-2. Menu and screen areas

Main Menu

1 -- System Information 2 -- System Configuration 3 -- Reset System 4 -- Exit Telnet

Enter Command ([ESC] --- Previous Menu [Space] --- Refresh Screen)

7468EA

893-01010-A 3-3

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Switch Status Area

The switch status area appears in the top portion of each menu and screen. This area contains the information necessary to identify the BayStack switch and see its current status. The switch status area provides the following information:

• IP address

• MAC address

• Software agent version number

• System uptime

• Switch status

Central Screen Area

The central screen area is used to present lists of system menus, status information, and switch parameters.

When selecting a parameter to enter new data, the screen refreshes and the command line displays the current parameter setting followed by space for you to enter the new parameters.

Navigation Commands and Command Line Area

The navigation commands displays the control key commands that are used to move through the menu hierarchy. Some commands are displayed on all menus and screens while others are displayed only on particular menus and screens. The control key is displayed as (ctrl-n) on the screen. The following navigational commands are used in the menus and screens:

• Esc—Escape. Pressing Escape returns you to the previous menu within the menu structure. To view the Language selection menu, press Esc from the Main Menu.

• ctrl-n—Next Menu When the displayed information requires additional screens, press ctrl-n to

wrap through all the information.

• ctrl-p—Previous menu This command always returns you to the previously displayed menu. Pressing

ctrl-c from the Main Menu does not display the Language menu.

3-4 893-01010-A

89301010.BK Page 5 Tuesday, June 10, 1997 8:00 PM

The command line and response area is used by the operator to enter menu selections and to change parameter data.When changing parameter data, the command line displays the current parameter and waits for you to enter the new data, as shown below:

Enter Default Gateway Address: [0.0.0.0]3

The cursor ) prompts you to enter a new default gateway address. Enter the new data in the

command line.

Menu and Screen Descriptions

The BayStack 303 and 304 switch console interface consists of menu and screen displays that allow you to manage the switch and monitor its performance. Menus are provided to allow selection of switch parameters and a means to change and manipulate them. The screen displays are provided to allow you to view statistics and status information.

Customizing and Managing the BayStack Switches

The menu hierarchy, shown in Figure

3-1, consists of two primary menus: the

Language Selection Menu and the Main Menu. The following sections describe each menu and screen and its associated submenu

and screen displays.

893-01010-A 3-5

89301010.BK Page 6 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Language Selection Menu

The Language selection menu lists the seven languages in which you can display the BayStack user interface. This menu is displayed at the initial power-up sequence of the switch (when the switch is ﬁrst turned on). Subsequent power-up procedures display the Main Menu. After you select a language, this menu is displayed only if you press Esc from the Main Menu. The following languages are available:

• English

• French

• German

• Japanese

• Spanish

Main Menu

• Italian

• Chinese

The Language selection menu is also displayed whenever you perform a Reset to Default from the System Conﬁguration menu.

From the Main Menu, you can access status information, change switch parameters, reset the system, and exit a Telnet session. The following options are available from the Main Menu:

• System Information

• System Conﬁguration

• Reset System

• Exit Telnet

3-6 893-01010-A

89301010.BK Page 7 Tuesday, June 10, 1997 8:00 PM

System Information

The System Information screen displays the current parameter settings for the switch. All of the screens associated with system information are read only. To change any parameter or setting you must go through the System Conﬁguration menu.

The System Information screen provides three paths to switch statistics and status information. The following options are available from the System Information Screen:

• Switch Information

• Spanning Tree Information

• Port Statistics and Status Information

Customizing and Managing the BayStack Switches

Switch Information

The Switch Information screen displays the following switch parameter settings:

• SNMP Read Community String: public

• SNMP Read/Write Community String: private

• Authentication Trap: [Disabled]

• LinkUp/LinkDown Trap: [Disabled]

• Trap Receiver 1 IP and Community Name: [0.0.0.0] [public]

• Trap Receiver 2 IP and Community Name: [0.0.0.0] [public]

• Trap Receiver 3 IP and Community Name: [0.0.0.0] [public]

• Trap Receiver 4 IP and Community Name: [0.0.0.0] [public]

• Spanning Tree Mode: [Enabled]

• Telnet Access: [ ]

Spanning T ree Information

The Spanning Tree statistics and information are divided into two areas:

• Spanning Tree General Information

• Spanning Tree Port Information

893-01010-A 3-7

89301010.BK Page 8 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Spanning Tree General Information

The Spanning Tree General Information screen displays the following parameter settings:

• Aging Time This ﬁeld allows you to deﬁne how man y seconds a learned MAC address can

be inactive before it is “aged” or unlearned. This ﬁeld is conﬁgurable in the range of 10 to 1,000,000 seconds with a default of 300 seconds.

• Bridge Priority This ﬁeld allows you to determine which bridge within the network is

designated as the root bridge (bridge with the highest priority). This ﬁeld is conﬁgurable in the range of 0 to 65535 (where low number = high priority) with a default of 32768.

• Designated Root This information is the identiﬁer for the root bridge.

• Root Port This information identiﬁes the port which offers the lowest cost path from this

bridge to the root bridge.

• Hello Time This ﬁeld allows you to deﬁne how many seconds elapse between hello time

messages that are sent from this switch to all other switches, if the Spanning Tree Protocol has deﬁned this switch as the root switch. This ﬁeld is conﬁgurable in the range of 1 to 65535 seconds with a default of 2 seconds.

• Max Age Time The maximum age of Spanning Tree Protocol information is learned from the

network on any port before it is discarded. This ﬁeld is conﬁgurable from 1 to 65535 seconds with a default of 20 seconds.

• Forward Delay This ﬁeld allows you to deﬁne how many seconds the switch delays

forwarding frames after a network topology change. The ﬁeld value is conﬁgurable in the range of 1 to 65535 seconds with a default of 15 seconds.

3-8 893-01010-A

89301010.BK Page 9 Tuesday, June 10, 1997 8:00 PM

• Topology Change Speciﬁes the total number of topology changes detected by this bridge since

the management entity was last reset or initialized.

• Time Since Topology Change Provides the time since the last topology change was detected by the bridge

entity.

• Root Cost Provides the path cost from the switch to the designated root bridge.

• Hold Time Speciﬁes the time value that determines the interval length during which no

more than two conﬁguration bridge PDUs shall be transmitted by this node.

Customizing and Managing the BayStack Switches

• Bridge Max Age Speciﬁes the maximum age (in seconds) that a hello message can attain before

it is discarded. This parameter , set for this bridge by management, takes ef fect only when this bridge becomes the root bridge. Note that, if this bridge becomes the root bridge, its Maximum Age Time parameter value becomes the (actual) Maximum Age Time parameter value for all bridges in the spanning tree network (see also “Maximum Age Time” parameter).

• Bridge Hello Time Indicates the Hello interval (the amount of time between transmissions of

Conﬁguration Bridge PDUs) that is speciﬁed (set by management) for this bridge. This parameter takes effect only when this bridge becomes the root bridge. Range is 1 to 65535 seconds with a default of 2 seconds.

Note: Although you can set the hello time for a bridge with bridge

management software, once the spanning tree computation process is complete, all bridges participating in spanning tree use the root bridge’s Hello Interval parameter value. If any bridge becomes the root bridge, its Hello Interval parameter value becomes the (actual) Hello Interval parameter value for all bridges in the spanning tree network (see also “Hello Time” parameter).

893-01010-A 3-9

89301010.BK Page 10 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

• Bridge Forward Delay Indicates the Forward Delay parameter value that is speciﬁed (set by

management) for this bridge of 15 seconds

Note that all bridges participating in the spanning tree network use the root bridge’s Forward Delay parameter value (see also the “Forward Delay” parameter deﬁnition on page

Spanning Tree Port Information

The Spanning Tree Port Information screen displays status on the following parameters:

• Port number

. Range is 1 to 65535 seconds with a default

3-8).

Provides the number of each port on the switch.

• Port priority Provides the priority of each port, which is used in conjunction with the port

number to create a unique port identiﬁer . The v alid range for this value is from 0 to 255. The default value is 128.

• Port path cost This information provides the path cost to the designated root bridge. The

valid range for this value is from 1 to 65,535. Entering a value of 0 causes the switch software to compute the value automatically. The default value for this ﬁeld is 0.

Port Statistics and Status Information

The Port Statistics and Status Information screen displays a list of all the ports with their current settings and status. When you enter the number corresponding to the port to be viewed, the following information is displayed:

• Rx Good Frame This counter increments whenever a frame is received successfully.

• Rx Align Error Frame This counter records frame alignment errors for the 10 Mb/s ports.

3-10 893-01010-A

89301010.BK Page 11 Tuesday, June 10, 1997 8:00 PM

• Rx CRC Error Frame This counter increments whenever a frame is recei ved on a particular interface

that is an integral number of octets in length but does not pass the frame check sequence (FCS).

• Rx Frame Too Long This counter increments whenever a frame is received on this port that is

greater than 1,518 octets in length.

• Tx Good Frame This counter increments whenever a frame is transmitted successfully.

• Tx Single Collision This counter contains a value for the number of frames transmitted on this

port that had a single collision and were transmitted successfully on the second try.

Customizing and Managing the BayStack Switches

• Tx Multiple Collision This counter contains a value for the number of frames transmitted on this

port that had more than one collision and were then transmitted successfully within 16 attempts. If a frame transmits successfully after only one collision, it increments the single collision counter . If there are anywhere from two to 16 tries for a successful transmission, then the multiple counter increments. If, after 16 tries, a collision is still detected, the deferred transmission counter increments.

• Deferred Transmissions This counter contains a value for the number of frames transmitted on this

port that were involved in more than 16 collisions prior to successful transmission.

• Tx Late Collisions This counter contains a value for the number of times a collision on this port

has been detected later than 512 bit times into the frame duration.

• Tx Excessive Collisions This counter contains a count for the number of frames on this port that, due

to excessive collisions, are not successfully transmitted.

893-01010-A 3-11

89301010.BK Page 12 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

• Tx Carrier Sense Errors This counter contains a value for the number of times on this port that carrier

sense was not seen or was lost during the transmission of a frame without a collision.

T o vie w a port’s statistics and status, type the number corresponding to the desired port into the command line from the Port Status Information screen.

System Conﬁguration

The System Conﬁguration menu provides the means to change parameter settings within speciﬁc areas of the switch network. This menu contains the following selections:

1---Switch Network Conﬁguration 2---Port Conﬁguration 3---Spanning Tree Conﬁguration 4---SNMP Conﬁguration 5---Reset to Default Enter the associated number at the command line to display the corresponding

menu.

3-12 893-01010-A

89301010.BK Page 13 Tuesday, June 10, 1997 8:00 PM

Switch Network Conﬁguration

This menu provides the following basic conﬁguration parameters for the switch:

Note: The switch must be reset for these parameters to take effect.

1---IP Address

This ﬁeld contains the Internet Protocol (IP) address of the unit. The IP address must be a unique address for initiating a Telnet session or managing the BayStack switches using SNMP. The factory default setting of the IP address for the BayStack switches is 127.0.0.2.

Customizing and Managing the BayStack Switches

2---IP Subnet Mask

This ﬁeld contains the subnet mask that indicates which bits are used for network/subnet identiﬁcation and which are used for end nodes or stations. The subnet mask is written in the form of an IP address, with all network/ subnet bits set to one. The default subnet mask is 0.0.0.0.

3---Default Gateway Address

This ﬁeld contains the address of the IP gateway. The default is 0.0.0.0.

4---Spanning Tree Protocol [Disable/Enable]

The Spanning Tree Protocol is a technique based on the IEEE 802.1d standard that detects and eliminates logical loops in a bridged or switched network. When multiple paths exist, the spanning tree algorithm conﬁgures the network so that a bridge/switch uses only the most efﬁcient path. If that path fails, the protocol automatically reconﬁgures the network to make another path become active, sustaining network operations. This parameter allows you to enable or disable the Spanning Tree Protocol. The default for this ﬁeld is Enabled.

5---T elnet Access [Enable/Disable]

This ﬁeld enables and disables the console interface to remote access through a Telnet session. The default for this ﬁeld is Enabled.

6---Telnet Password

This selection allows the user to set a Telnet password that is used to remotely manage the switch.

893-01010-A 3-13

89301010.BK Page 14 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Port Conﬁguration

The Port Conﬁguration menu allows the user to deﬁne the functions of the high-speed ports. On the BayStack 303 switch, this menu addresses ports 25 and

26. On a BayStack 304 switch, this menu addresses ports 13 and 14. Options

provided on the Port Conﬁguration menu are: 1---Port #xx

Where xx is either port #13 or #25 depending on the BayStack switch.

2---Port #xx MDA

Where xx is either port #14 or #26 depending on the BayStack switch.

You use these menus to manually set the speed and duplex mode of each high-speed port or to enable autonegotiation. Selecting either 1 or 2 displays the following questions:

Enter Port Autonegotiation Mode (1:enable 2:disable): [Enabled] Enter Port Speed (1:100 2:10): [100] Enter Port Duplex Mode (1:half 2:full): [Half Duplex]

As each question is displayed, enter the number corresponding to your needs.

Note: The Enter Port Speed option does not apply to a ﬁber MDA and is not

displayed when a 100BASE-FX MDA is installed. The ﬁber MDA does not operate at 10 Mb/s.

Spanning T ree Conﬁguration

The Spanning Tree Conﬁguration menu provides the following two menus:

• General Conﬁguration

• Port Conﬁguration

3-14 893-01010-A

89301010.BK Page 15 Tuesday, June 10, 1997 8:00 PM

General Conﬁguration

The Spanning Tree General Conﬁguration menu pro vides the ability to change the following parameters:

1---Aging Time

This ﬁeld allows you to deﬁne how man y seconds a learned MAC address can be inactive before it is “aged” or unlearned. This ﬁeld is conﬁgurable in the range of 10 to 1,000,000 seconds with a default of 300 seconds.

2---Bridge Priority

This ﬁeld allows you to determine which bridge within the network is designated as the root bridge (bridge with the highest priority). This ﬁeld is conﬁgurable in the range of 0 to 65535 (where low number = high priority) with a default of 32768.

Customizing and Managing the BayStack Switches

3---Bridge Hello Time

This ﬁeld allows you to deﬁne how many seconds elapse between hello time messages that are sent from this switch to all other switches, if the Spanning Tree Protocol has deﬁned this switch as the root switch. This ﬁeld is conﬁgurable in the range of 1 to 65535 seconds with a default of 2 seconds.

4---Bridge Max Age Time

This ﬁeld allows you to deﬁne how many seconds the network waits to discard a hello time frame if a response is not received. This ﬁeld is conﬁgurable from 1 to 65535 seconds with a default of 20 seconds.

5---Bridge Forward Delay

This ﬁeld allows you to deﬁne how many seconds the switch delays forwarding frames after a network topology change. The ﬁeld value is conﬁgurable in the range of 1 to 65535 seconds with a default of 15 seconds.

Port Conﬁguration

The Spanning Tree Port Conﬁguration menu lists the port numbers, the port names, the port IDs, whether or not the port is enabled, and the current state of the port. To examine and change individual port statistics, enter the corresponding port number in the command line.

893-01010-A 3-15

89301010.BK Page 16 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

SNMP Conﬁguration

The SNMP Conﬁguration menu displays a list of the parameters that allow you to set and change values, parameters, and addresses within an SNMP management environment. To change any setting, type in the corresponding number . The screen is refreshed, and the command line displays the current parameter value for the selected parameter and allows you to enter new data. The SNMP conﬁguration parameters that can be changed are listed on the screen as follows:

1---SNMP Read Community String

Sets the in-band read-only SNMP operations. Default setting is public.

2---SNMP Read/Write Community String

Sets the in-band read/write SNMP operations. Default setting is private.

Warning: With the cursor at selections 1 or 2, pressing Enter without typing a

selection deletes the current setting.

3---Trap Receiver 1 Community Name and IP Address

Number one of four allowed Trap IP Addresses. Successive Trap Address ﬁelds are numbered #2, #3, and #4. Each of the Trap addresses has an associated Community String. Default value is 0.0.0.0. (no IP address assigned) and public.

4---Trap Receiver 2 Community Name and IP Address 5---Trap Receiver 3 Community Name and IP Address 6---Trap Receiver 4 Community Name and IP Address 7---Authentication Trap Generation

Enables or disables sending a trap on an SNMP authentication failure. Default setting is Disabled.

8---LinkUp/LinkDown T rap Generation

3-16 893-01010-A

89301010.BK Page 17 Tuesday, June 10, 1997 8:00 PM

Reset to Default

This option allows you to reset the switch to all the factory default settings. When this option is performed, the Language selection menu is displayed at the power-up sequence because it does not have a default setting.

Caution: If you choose the Reset to Default settings command, all of your

conﬁguration settings are replaced with factory default settings when you press Enter.

Reset System

The Reset System selection allows you to perform a software-controlled reset of your BayStack switch. Enter 3 in the command line from the Main Menu to reset the switch. The switch restarts as if power had been cycled and displays the Main Menu. This reset differs from the Reset to Default option in that it does not reset any parameter setting and it does not redisplay the Language selection menu.

Customizing and Managing the BayStack Switches

Exit T elnet

This option allows you to exit the current Telnet session.

Using the BayStack Switch

This section provides the following information:

• Examples of conﬁguring a network using the BayStack 303 or 304 switch

• Spanning Tree Protocol

• Management using SNMP

Conﬁguration Examples

The BayStack 303 and 304 switches are well suited for the initial migration from shared 10BASE-T segments to dedicated bandwidth for switch connections between segments, end-stations, 100BASE-T Fast Ethernet servers, and ﬁber or copper Fast Ethernet backbone connections. The switches also function well as segment or desktop switches. Figure 304 switch can be added as a segment switch to alleviate user contention for bandwidth and to eliminate server and network center bottlenecks.

3-3 illustrates a situation where a BayStack

893-01010-A 3-17

89301010.BK Page 18 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

BayStack 10BASE-T hub

Server

network

center

Up to

92 users

Server

BayStack 304 switch

304

Up to

8 users

BayStack 10BASE-T hubs

Up to

23 users

Up to

23 users

Up to

23 users

10 Mb/s 100 Mb/s 200 Mb/s

Before

• 92 users sharing 10 Mb/s (10/96 Mb/s per user)

• Server bottleneck (10 Mb/s pipe)

• Network center bottleneck (10 Mb/s pipe)

network

center

After

• Four sets of 23 users sharing 10 Mb/s

• Addition of 8 users each with 10 Mb/s dedicated

• Server with dedicated 100 Mb/s pipe

• Network center with dedicated 100 Mb/s or 200 Mb/s pipe

Figure 3-3. BayStack 304 switch as a segment switch

Figure 3-3 illustrates how a BayStack 304 switch can be used as a segment switch

to alleviate server and network center contention and to provide better ratio connections to 10 Mb/s users. This conﬁguration also offers an additional eight dedicated 10 Mb/s connections for users.

Up to

23 users

7519EA

3-18 893-01010-A

89301010.BK Page 19 Tuesday, June 10, 1997 8:00 PM

The BayStack 303 switch can be used as a desktop switch to provide 100 Mb/s connections to the server and network center and to give dedicated 10 Mb/s connections to up to 23 users instead of shared 10 Mb/s connections (see

Figure

3-4).

Customizing and Managing the BayStack Switches

10BASE-T hub

Server

network

center

Up to 22 users

10 Mb/s 100 Mb/s 200 Mb/s

Before

• 22 users sharing 10 Mb/s (10/22 Mb/s per user)

• Server bottleneck (10 Mb/s pipe)

• Network center bottleneck (10 Mb/s pipe)

BayStack 303 switch

303

Server

network

center

Up to 22 users

10BASE-T hub

Up to 23 users

7518EA

After

• 23 users each with dedicated 10 Mb/s

• Additional 23 users with shared 10 Mb/s

• Server with dedicated 100 Mb/s pipe

• Network center with dedicated 100 Mb/s or 200 Mb/s pipe

Figure 3-4. BayStack 303 as a desktop switch

Spanning T ree Protocol

The Spanning Tree Protocol is a technique based on the IEEE 802.1d standard that detects and eliminates logical loops in a bridged or switched network. When multiple paths exist, the Spanning T ree Algorithm conﬁgures the netw ork so that a bridge/switch uses only the most efﬁcient path. If that path fails, the protocol automatically reconﬁgures the network to make another path become active, sustaining network operations.

893-01010-A 3-19

89301010.BK Page 20 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

The Spanning Tree Protocol becomes necessary as networks grow, interconnect with other networks, and generally become more complex. In more complex networks, it is possible to route a message from any given source to any given destination by more than one path. Routing a message over multiple paths can cause several bridges to claim priority in sending the same message. In addition to needless duplication, this situation can result in a loop where messages travel endlessly as each bridge learns the wrong information about where individual nodes are located.

The Spanning Tree Protocol resolves the problem of loops in the network by establishing only one “primary” path between any two LANs in a complex network. Any duplicate paths are barred from use and become standby or blocked paths until the original path fails, at which point they can be brought into service. The Spanning Tree Protocol is enabled by default but can be disabled using a terminal connected to the console port. As your network grows, your BayStack switch continually reinforces the most efﬁcient primary path for messages between any two nodes.

Managing the BayStack Switches

You can manage your BayStack 303 and 304 switches in any of the following three ways:

• In-band signaling using SNMP (see “ on page

• Out-of-band signaling using the RS-232 console port interf ace (see “

Management through a Serial I/O Connection” on page 3-22)

• In-band signaling using Telnet (see “

Connection” on page 3-22)

Network Management with SNMP

The BayStack 303 and 304 Ethernet Switches use the Simple Network Management Protocol (SNMP), a communications protocol that simpliﬁes the management of network devices. SNMP agents respond to queries sent by network management software. Responses to these queries are presented on a network management station. These agents collect the performance and activity

3-20)

Network Management with SNMP”

Network

Network Management Using a Telnet

3-20 893-01010-A

89301010.BK Page 21 Tuesday, June 10, 1997 8:00 PM

information and forward the data to a network management station, where network managers perform diagnostic and advanced planning operations. The use of SNMP, a common and well-deﬁned protocol, allows the network manager to manage any SNMP-compliant device in a multivendor environment.

The Management Information Base (MIB) is a database that stores all of the collected statistics and holds them in speciﬁc structures. MIB data includes conﬁguration and control parameters and statistical data such as the number of errors sent and received on a port.

Additional information is collected by the following MIBS and RMONs:

• MIB II

• Bridge MIB

Customizing and Managing the BayStack Switches

• Groups 1, 2, 3, and 9 RMON — Group 1: Stats (EtherStats Table) — Group 2: History (history control Table, Ether history control Table)

Only etherStats is supported by history, and the number of buckets is

limited to 150. — Group 3: Alarm (alarm Table) — Group 9: Events (event Table, log Table)

Note: EtherStats Alarms and Events entries are sa ved through po wer c ycle

of the switch. History entries are not saved through a power cycle. Alarms, events, and logs are limited to 20 entries each.

The BayStack switch has a management core that gathers statistics from each of the network ports; maintains the MIB; and, when a message for the SNMP manager arrives, retrieves the information, puts it into the right form, and sends it out the appropriate port.

Access to the switch through SNMP is controlled by community names. The community names set for the switch must match those used by the SNMP management station for successful communication to occur. The switch uses two community names. The “public” community name allows read-only access to the device through SNMP. The “private” community name allows read-write access.

893-01010-A 3-21

89301010.BK Page 22 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Network Management through a Serial I/O Connection

Each BayStack 303 and 304 switch can be managed using a PC or terminal connected to the switch through the RS-232 console port located on the front of the switch. The serial connection allows the network manager to view statistics and change parameter settings using the built-in user interface.

Connecting to the Console Port” on page 2-11 for instructions.

See “

Network Management Using a Telnet Connection

Telnet is a common terminal-emulation application used in TCP/IP networks for remote terminal access to computer devices. You can use Telnet over an Ethernet network to remotely conﬁgure and monitor the BayStack switches.

Once you have conﬁgured an IP address for the switch, access to its management system is available from any networked resource using a standard Telnet application.

To open a Telnet session, follow these steps:

1. Check to make sure that Telnet is enabled.

a. From the Main Menu, type 2 to display the System Conﬁguration menu. b. From the System Conﬁguration menu, type 1 to display the Switch

Network Conﬁguration.

c. Check 5---Telnet Access and verify that it is enabled (default setting for

this parameter is enabled). If this parameter is disabled, then no Telnet

access is allowed from any device.

2. With Telnet Access enabled, invoke the Telnet application with the IP

address of the switch from any TCP/IP-based workstation.

This action displays the Telnet Password Veriﬁcation screen.

3. Enter the Telnet password to enable the Telnet session.

With Telnet enabled, the switch can support up to two Telnet users.

3-22 893-01010-A

89301010.BK Page 23 Tuesday, June 10, 1997 8:00 PM

Upgrading Switch Software Through TFTP Connection

Software upgrades are provided by Bay Networks in the form of image ﬁles that you can download into the ﬂash memory of your BayStack switches. Upgrades can be incorporated into your BayStack switches by using Trivial File Transfer Protocol (TFTP) through a network connection from a networked PC or UNIX workstation acting as a TFTP ﬁle server.

Operating as a TFTP client, the BayStack switches can open a TFTP session with a TFTP server to download the new software. To initiate the TFTP session and download the necessary software images, follow these steps:

1. Type 3 to select Reset System from the Main Menu.

The Reset System selection performs a soft reset of the switch and runs power-up diagnostics. During this time, the Power Up Self Test screen is displayed (see Figure

Customizing and Managing the BayStack Switches

3-5).

**************************************************************************

Bay Networks BayStack 30X Ethernet Switch

**************************************************************************

Power Up Self Test

CPU Test… Passed Serial Port Test… Passed Watchdog Timer Test… Passed Timer Module Test… Passed DRAM Test… Passed

Enter .<RETURN> to go to Boot Options Menu Booting Switch software version BayStack 303/304 1.1.0 created on 02/11/1997

Figure 3-5. Power Up Self Test screen

893-01010-A 3-23

89301010.BK Page 24 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

2. Press Return when the Power Up Self Test screen is displayed.

Pressing Return causes the power-up self-tests to be interrupted and displays the Boot Options Menu (see Figure

***************************************************************************

MAC Address: 00.00.00.00.00.00 ***************************************************************************

1---Upgrade Switch Software 2---Boot Switch Software

3-6).

Bay Networks BayStack 30X Ethernet Switch

Boot Options Menu

Enter Command: [2]

Figure 3-6. Boot Options Menu

3-24 893-01010-A

89301010.BK Page 25 Tuesday, June 10, 1997 8:00 PM

Type 1 to select Upgrade Switch Software.

Customizing and Managing the BayStack Switches

The Switch Software Upgrade Menu is displayed (see Figure

***************************************************************************

Bay Networks BayStack 30X Ethernet Switch

IP Address: 000.000.000.000 MAC Address: 00.00.00.00.00.00 ***************************************************************************

Switch Software Upgrade Menu

1 - Set Switch IP Address: [000.000.000.000] 2 - Set IP Netmask: [255.255.255.0] 3 - Set TFTP Server IP Address: [000.000.000.000] 4 - Set Default Gateway IP Address: [000.000.000.000] 5 - Set Software Image FIle Name: [ ] 6 - Download Image 7 - Reset Switch

Enter Command:

Figure 3-7. Switch Software Upgrade Menu

3-7).

Enter all the necessary information (options 1 through 5) by typing the

command number and entering the information at the command line.

5. Type 6 to download the software to the ﬂash memory of the switch.

The software is downloaded from the TFTP server to the ﬂash memory of the BayStack switch.

6. Type 7 to reset switch.

Command 7 performs a software reset of the switch. Upon successful completion of the power-up self-tests, the Main Menu is displayed.

893-01010-A 3-25

89301010.BK Page 26 Tuesday, June 10, 1997 8:00 PM

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

The BayStack 303 and 304 Ethernet Switches are designed to be as simple and reliable as possible. Occasionally, problems may arise that are largely associated with two areas: problems related to the BayStack switches and problems related to the installation.

Chapter 4

Troubleshooting and Diagnostics

BayStack 303 and 304 Switch-related Issues

The BayStack switches have a powerful set of system diagnostics that check all internal resources of a switch whenever it is turned on. After the master core processor (management processor) has tested itself, each port is tested in sequence. The switch attempts to transfer Ethernet packets only if all diagnostic tests complete without errors.

Warning: To avoid bodily injury from hazardous electrical current, never

remove the top cover of the device. There are no user-serviceable components inside.

The following switch-related issues that are common are discussed in this section:

• Autone gotiation

• MDI and MDI-X connections

893-01010-A 4-1

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Autonegotiation

Port connection problems can occur when a port is connected to a station that is not operating in a compatible mode (for example, connecting a full-duplex port to a half-duplex port). Problems and mismatches occur when the switch is connected to a port that either:

• Does not support autonegotiation.

• Supports a form of autonegotiation that is not compatible to the IEEE 802.3u autonegotiation standard.

• Supports autonegotiation but has the feature disabled.

In the situations described here, the BayStack switches autosense the speed of the connected port and, by default, revert to half-duplex mode. If the connected station is operating in full-duplex mode, the stations cannot communicate properly and a mismatch occurs. This mismatch can be resolved by disabling autonegotiation and manually setting the speed and duplex mode (see “

Conﬁguration” on page 3-14 to manually set speed and duplex mode).

Port

When the link is ﬁrst brought up, the BayStack 303 and 304 switches sense the speed of the connecting device. If the connecting device changes speed without performing a link down, the BayStack switch can correctly sense a change from 100 Mb/s to 10 Mb/s; however, it cannot sense a change from 10 Mb/s to 100 Mb/s. In the latter case, the switch reports 10 Mb/s operation and link up, but the connecting device reports link down. This link mismatch can be resolved by forcing the link down and up or by disabling autonegotiation and manually setting the speed and duplex mode.

4-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

MDI and MDI-X Connections

BayStack switches use MDI-X ports that allow you to connect directly to end stations without using crossover cables (see Figure crossover function internally are known as MDI-X ports (where “X” refers to the crossover function).

Note: For the transmitter of one device to connect to the receiver of another

device, the sum of crossovers must always be an odd number.

BayStack 303/304 switch End station

81 81

Troubleshooting and Diagnostics

4-1). Ports that implement the

1818

RX+

MDI-X port

RX-

TX+

3 4 5 6

TX7 8

1 2 3 4 5 6 7 8

Straight-through cable MDI port

Figure 4-1. MDI-X to MDI cable connections

1 2 3 4 5 6 7 8

TX+

TX-

RX+

RX-

1 2 3 4 5 6 7 8

617EB

893-01010-A 4-3

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

If you are connecting a device to the BayStack switches that also implements MDI-X ports (see Figure

BayStack 303/304 switch Switch or hub

4-2), use a crossover cable.

81 81

1818

RX+

MDI-X port

RX-

TX+

3 4 5 6

TX7 8

1 2 3 4 5 6 7 8

Crossover cable MDI-X port

Figure 4-2. MDI-X to MDI-X cable connections

Installation-related Issues

Ethernet 10BASE-T networks tend to be fairly simple, but they can still have problems that take time to resolve. The most common problems are associated with the actual network wiring.

1 2 3 4 5 6 7 8

RX+

RX-

TX+

TX-

1 2 3 4 5 6 7 8

618EB

If you have problems with a newly established network (initial setup), the trouble is most likely related to cabling or addressing. If the network has been operational for an extended period and is now beginning to have problems, the trouble is probably related to recent additions or changes.

4-4 893-01010-A

89301010.BK Page 5 Tuesday, June 10, 1997 8:00 PM

Addresses

Remember that the BayStack switches each have a MA C station address and an IP address. The MA C station addresses are unique because each address contains the Bay Networks manufacturer ID and node ID codes. The switch is shipped with a default IP address of 000.000.000.000.

It is not required to have a valid IP address for normal switching operation or if you are managing the switch from a console. However, for management over the network (SNMP or Telnet session), a valid IP address is required.

You can change the IP address of the unit to match your own network addressing structures. Ensure that the IP address of the BayStack switch is unique in your network. The IP address can be changed using the Switch Network Conﬁguration menu. You will need to set a valid IP address if you intend to use network management with SNMP or Telnet.

Troubleshooting and Diagnostics

Cabling

Cabling for 10BASE-T networks can consist of 2-pair Category 3, 4, or 5 unshielded twisted pair (UTP) wiring. However, to cover future upgrades to Fast Ethernet, Bay Networks strongly recommends that you use all Category 5 cable in your network.

Ethernet 10BASE-T network installations use cables consisting of two pairs of twisted pair wires—one pair to send data and one to receive data. These wires must connect to another 10BASE-T station that has the sending pair attached to its receiving pair and vice versa. In this way, the two nodes can exchange data. If the two nodes are wired alike, they both attempt to send data out on the same RJ-45 pins. In such a case, a straight-through cable would not work (see Figure

4-4). Howev er , a crosso v er cable (see Figure 4-1 on page 4-3) would operate

page

4-2 on

normally . The BayStack switch is designed to have Ethernet NIC cards connect directly to

its RJ-45 ports using straight-through cables. However, if the BayStack switches need to connect to another hub and that hub follows usual conventions, a crossover cable is required.

893-01010-A 4-5

89301010.BK Page 6 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

The 100 Mb/s ports are designed to operate using Category 5 UTP cabling only. Category 5 UTP cable is a 2-pair cable certiﬁed to handle up to 100 MHz bandwidth. To minimize crosstalk noise, maintain the twist ratio of the cable up to the point of termination (untwist at any termination should not exceed 0.5 inches).

For best performance with respect to noise immunity and emissions, the unused pairs in the 2-pair cable should be terminated at their characteristic impedance (that is, 100 ohms) in the equipment at each end of the cable. All Bay Networks 100BASE-TX equipment includes such a Common Mode Termination (CMT).

The ﬁber media adapter for the 100BASE-FX port uses only multimode

62.5/125 µm ﬁber cable. The Bay Networks 100BASE-FX media adapter is not supported on single-mode ﬁber. SC connectors are used on all ﬁber port connections.

Link Status

The 10BASE-T ports use link test pulses to provide a mechanism to ensure that the link between the connected devices is valid. When the link is inactive, link test pulses are transmitted approximately every 16 microseconds (ms). The 100 Mb/s port also ensures valid links between connected devices.

When link status is shown in an LED, you can immediately see if the cables are connected correctly, assuming that the other equipment also sends link status pulses. Link status should be used whenever possible to check for potential wiring issues.

4-6 893-01010-A

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

General Speciﬁcations

Network Protocol Ethernet

Appendix A

Technical Speciﬁcations

Fast Ethernet

Standards Supported 802.1d

802.3i, 10BASE-T

802.3u, 100BASE-T

Data rate

BayStack 303 switch: 24 10Mb/s port

One 10/100Mb/s port One optional 10/100BASE-TX or 100BASE-FX port

BayStack 304 switch: 12 10Mb/s port

One 10/100Mb/s port One optional 10/100BASE-TX or 100BASE-FX port

Electrical Speciﬁcations

Input current: 1.5 to 0.6 Amps Input voltage (rms): 90 to 250 VAC @ 47 to 63 Hz Power consumption: 60 W maximum

Environmental Speciﬁcations

Operating temperature: 0° to 40° C (32° to 104° F) Storage temperature: –25° to 70° C (–13° to 158° F) Operating humidity: 85% maximum relative humidity, noncondensing Storage humidity: 95% maximum relative humidity, noncondensing Operating altitude: 3024 m (10,000 ft)

893-01010-A A-1

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Physical Speciﬁcations

Height: Depth: Width:

1.5 in. (3.85 cm)

5.8 in. (14.90 cm)

4.25 in. (10.90 cm)

Performance Speciﬁcations

Frame Forward Rate (64-byte packets):

BayStack 303: 350 K BayStack 304: 280 K Packets per second, maximum—learned unicast trafﬁc

Port forwarding/ﬁltering Performance (64-byte packet) RX:

For 10 Mb/s: 14,880 packets per second max

For 100 Mb/s: 148,810 packets per second Address database size: 1023 entries Address: 48-bit MAC address Frame length: 64 to 1535 bytes

Hardware Architecture

Processor: 68340 16 MHz EEPROM: 2 KB (nonvolatile) Processor DRAM: 2 MB Buffer pool: 1 MB EDO DRAM—shared buffer (2 Mb) Flash memory: 1 MB

Electromagnetic Immunity

RF Susceptibility: IEC801-3, Level 2 Electrostatic discharge (ESO): IEC801-2, Level 2/3 Electrical Fast Transitions (EFT/B): IEC801-4, Level 1/2 Electromagnetic Emissions FCC Class A digital devices

En 55 022 (CISPR 22), Class A

VCCI Class 1 ITE Safety Agency Approvals UL Listed

CSA Certiﬁed

TUV Licensed

ANSI/NFPA 70 National electrical code; article

110-16, 110-17, 110-18

A-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

Declaration of Conformity

The following Declaration of Conformity for the BayStack 303 and 304 Ethernet Switches complies with ISO/IEC Guide 22 and EN 45014. The declaration identiﬁes the product, the Bay Networks name and address, and the applicable speciﬁcations that are recognized in the European community.

Technical Specifications

893-01010-A A-3

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

The BayStack 303 and 304 Ethernet Switches come with an optional 100 Mb/s port. To use this port, a media dependent adapter (MDA) is inserted in the switch through the front panel.

Appendix B

Media Dependent Adapters (MDAs)

The media adapter slot accepts either a 100BASE-TX (UTP) or 100BASE-FX (ﬁber) media adapter to provide a switched Fast Ethernet link to high-speed servers, switches, hubs, or routers. MD A installation instructions are contained in Installing the BayStack 303 and 304 Ethernet Switch Media Adapters.,“ (Bay Networks part number 893-01023-A).

This appendix describes the MDA types available.

100BASE-FX MDA

The 100BASE-FX MDA is used to attach a ﬁber-based 100 Mb/s connection to the switch. The 100BASE-FX media adapter shown in Figure provide a direct attachment to end stations, switches, or servers where multimode ﬁber is installed. This adapter accepts standard SC connections using

62.5/125-µm ﬁber optic cable. The 100BASE-FX MDA is not supported on single-mode ﬁber cabling. A link LED indicates when there is a valid link connection, and a mode LED indicates when the port is operating in full- or half-duplex mode (200 Mb/s or 100 Mb/s).

B-1 can be used to

893-01010-A B-1

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

MFX-1

100BASE-FX

Link

F Dx

TX RX

1 = Status indicators

Link–valid communication link established F Dx–port operating in full-duplex mode (LED lit) or half-duplex mode (LED off)

2 = 100BASE-FX SC port connector

898EA

Figure B-1. 100BASE-FX MDA

The 100BASE-FX MDA has its own LED indicators, described in Table B-1.

Table B-1. 100BASE-FX MDA LEDs

Label Color State Meaning

Link Green On

Link is active and connected correctly.

Off

F Dx Green On

Off

Link is inoperative or improperly connected. Port is operating in full-duplex mode (200 Mb/s).

Port is operating in half-duplex mode (100 Mb/s).

The ﬁber optic connector is an important element of the ﬁber cable installation; it directly inﬂuences cable performance. Because of termination costs, ﬁber optics are often limited to use as a network backbone. But there is no other network transport medium that can match the bandwidth, scalability, or physical transmission capabilities of ﬁber optics.

B-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

10/100BASE-TX MDA

The optional expansion slot can be used for a 10/100BASE-TX MDA that supports autonegotiation for either 10 Mb/s or 100 Mb/s operation, depending on the connecting device. For more information about autonegotiation, see

Connecting the 10/100BASE-TX Port” on page 2-9.

“

Media Dependent Adapters (MDAs)

The MDA, sho wn in Figure LEDs. The LED indicators are described in T

B-2, provides one 10/100 Mb/s port and its associated

able B-2. Because this port is

capable of operating at 100 Mb/s, Bay Networks recommends that only Category 5 UTP cabling be used for connections to the RJ-45 port connector (see T on page

1-5 for RJ-45 pin assignments).

able 1-1

The 10/100BASE-TX port also supports operation in full- and half-duplex mode. In full-duplex mode, the aggregate transfer can be either 20 Mb/s or 200 Mb/s (for simultaneous transmit and receive at 100 Mb/s each) depending on the speed of the connecting device. In half-duplex mode, the transfer speed is either 10 Mb/s or 100 Mb/s (transmit or receive).

MTX-1

100BASETX

Link 100 F Dx

1 = Status indicators

Link–valid communication link established 100–port operating as 100BASE-TX F Dx–port operating in full-duplex mode (LED lit) or half-duplex mode (LED off)

2 = 10/100BASE-TX RJ-45 connector

Figure B-2. 10/100BASE-TX MDA

893-01010-A B-3

897EA

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

Using the BayStack 303 and 304 Ethernet Switches

Table B-2. 100BASE-TX MDA LEDs

Label Color State Meaning

Link Green On

100 Green On

F Dx Green On

Installing an MDA

The expansion slot on the BayStack 303 or 304 switch accommodates a small media dependent adapter that provides one high-speed port connection. The connection can be either an RJ-45 10/100BASE-TX MDA or a ﬁber 100BASE-FX MDA with an SC connector.

To install an MDA into the expansion slot, follow these steps:

Warning: The switch must be taken ofﬂine and have all power removed prior

to installing the MDA. Failure to remove power can result in damage to sensitive components and void all equipment warranties.

Off

Link is active and connected correctly. Link is inoperative or improperly connected.

Port is operating at 100 Mb/s. Port is operating at 10 Mb/s.

Port is operating in full-duplex mode (200 Mb/s). Port is operating in half-duplex mode (100 Mb/s).

1. Unplug the AC power cord from the back of the switch.

2. Remove the ﬁller panel over the expansion slot.

B-4 893-01010-A

89301010.BK Page 5 Tuesday, June 10, 1997 8:00 PM

Insert the MDA into the slot, taking care to slide the MD A onto the guides

“see Figur

The guides ensure that the MDA connector plugs correctly into the switch motherboard. The guides are part of the plastic and metal chassis.

Caution: Make sure the MDA slides in on the guides. Failure to align the

guides could result in bent and broken pins.

Media Dependent Adapters (MDAs)

e B-3”.

7532FA

Figure B-3. Installing an MDA

Secure the MDA in the chassis by tightening the thumb screw on the

front panel.

5. Attach the high-speed device to the port.

6. Plug the AC power cord into the switch.

893-01010-A B-5

89301010.BK Page 6 Tuesday, June 10, 1997 8:00 PM

89301010.BK Page 1 Tuesday, June 10, 1997 8:00 PM

Numbers

10/100 Mb/s port connection, 2-10 10/100BASE-TX MDA, B-3 100 LED, B-4 100BASE-FX MDA, 2-11, B-1 10BASE-T ports, 1-4

AC power supply status LED, 1-8 accumulated weight caution, xx Aging Time, 3-8, 3-15 Authentication Trap Generation parameter, 3-16 autonegotiation, 1-5, 2-11, 4-2

Bay Networks Press, xv Bay Networks World Wide Web page, xvi BayStack 303 switch front panel, 1-3 BayStack 304 switch front panel, 1-4 Boot Options menu, 3-24 Bridge

Forward Delay Hello Time, 3-9 Max Age, 3-9 Priority, 3-8

, 3-10

cable

for 10/100BASE-TX port for 10BASE-T ports, 1-4 for console port, 2-12

troubleshooting, 4-5 central screen area, 3-4 chassis, type, 2-4 Class A product caution, xix command line and response area, 3-5 community names, 3-21 conﬁguration

examples

front panel, 1-3

hardware, 1-2 connections

MDI-X to MDI

MDI-X to MDI-X, 4-4 console port

connecting to terminal

connector pin assignment, 1-7

RS-232 connector, 1-6 control key commands

ctrl+n

ctrl+p, 3-4 conventions, xiv crossover cable, 1-4, 4-4 customer support, xv

, 3-17

, 4-3

, 3-4

, 1-5

, 2-12

Index

893-01010-A Index-1

89301010.BK Page 2 Tuesday, June 10, 1997 8:00 PM

data rate, A-1 DB-9 connector, 1-6 Declaration of Conformity, A-3 Default Gateway Address ﬁeld, 3-13 default settings, 2-15 deferred transmissions, 3-11 Designated Root, 3-8 desktop switch, 3-19 devices, attaching to the switch, 2-9 diagnostics, 4-1 duplex indicator, 2-11

electrical speciﬁcations, A-1 electromagnetic speciﬁcations, A-2 environmental speciﬁcations, A-1 Esc key, 3-4 Exit T elnet option, 3-17 expansion slot, 1-6

F Dx LED, 1-8, B-2, B-4 factory default settings, 2-15 features, 1-1 ﬁber media adapter, B-2 ﬂat surface, installing on, 2-2 Forward Delay, 3-8 front panel, 1-3 full-duplex, 1-5, 2-10

gateway address, 2-18 grounding the switch, 2-2

half-duplex, 1-4, 2-10 hardware architecture, A-2 Hello Time, 3-8 high-speed port

conﬁguration

connection, 1-6, 2-10 Hold Time, 3-9

, 3-14

installation

attaching devices

default setup, 2-15

ﬂat surface, 2-2

metal chassis in a rack, 2-5

plastic chassis in a rack, 2-6

requirements, 2-1

switch, 2-2

tools, 2-1

troubleshooting, 4-4 international power cord speciﬁcation, 1-9 IP address

ﬁeld

, 3-13

format of, 2-19

setting, 2-18 IP subnet mask ﬁeld, 3-13

, 2-8

Language Selection Menu, 2-16, 3-6 LEDs

10/100BASE-TX MDA

100, 1-8

100BASE-FX MDA, B-2

F Dx, 1-8

front panel, 1-7

Link, 1-7, 2-9, B-2, B-4 link status, troubleshooting, 4-6 LinkUp/LinkDown Trap Generation parameter, 3-16

, B-4

Index-2 893-01010-A

89301010.BK Page 3 Tuesday, June 10, 1997 8:00 PM

MAC address support, 1-2 Main Menu, 2-17, 3-6 management information base. See MIB, 3-21 managing the switch

through serial I/O using a Telnet connection, 3-22 using SNMP, 3-20

Max Age Time, 3-8 MDA

10/100BASE-TX 100BASE-FX, B-1 expansion slot, 1-6 installing, B-4

MDI

MDI-X to MDI MDI-X to MDI-X, 4-4 RJ-45 pinout for MDI-X, 1-6

media dependent adapter. See MDA medium dependent interface. See MDI menus

central screen area command/response line, 3-5 descriptions, 3-5 to 3-17 hierarchy, 3-2 Language Selection, 3-6 Main Menu, 3-6 navigation commands area, 3-4 parts of, 3-3 Spanning Tree General Conﬁguration, 3-15 Spanning Tree Port Conﬁguration, 3-15 Switch Network Conﬁguration, 3-13 Switch Software Upgrade, 3-25 System Conﬁguration, 3-12

using, 3-1 metal chassis, 2-5 MIB, 3-21 mounting brackets

metal chassis

plastic chassis, 2-7

, 3-22

, B-3

, 4-3

, 1-4

, 3-4

, 2-5

navigation command area, 3-4 network management

through serial I/O using SNMP, 3-20 using T elnet, 3-22

next menu command, 3-4

, 3-22

package contents, 2-1 password, T elnet, 3-13 performance speciﬁcations, A-2 physical description, 1-3 physical speciﬁcations, A-2 plastic chassis, 2-6 Port Conﬁguration menu, 3-14 Port Statistics and Status Information screen, 3-10 ports

autonegotiation connecting 10/100 Mb/s ports, 2-10 connecting the console port, 2-12 density, 1-1 description of 10BASE-T, 1-4 MDI-X/MDI connections, 4-3 path cost, 3-10 port number, 3-10

priority, 3-10 power cords, 1-8, 1-9 Power LED, 1-7 Power Up Self Test screen, 2-14, 3-23 power up self tests, 2-13 Power/Status LED description, 1-8 previous menu command, 3-4 protocols

SNMP

, 3-20

Spanning Tree, 3-13, 3-19

TFTP, 3-23 publications, ordering, xv

, 4-2

893-01010-A Index-3

89301010.BK Page 4 Tuesday, June 10, 1997 8:00 PM

rack mount caution, xxi rack mounting, 2-5 requirements

console terminal

power cords, 1-9 Reset System option, 3-17 Reset to Default option, 3-17 RJ-45 connector pinout, 1-5 root cost, 3-9 Root port, 3-8 RS-232 console port, 3-22 Rx Align Error Frame, 3-10 Rx CRC Error Frame, 3-11 Rx Frame Too Long, 3-11 Rx Good Frame, 3-10

, 2-12

safety alert messages, xvii screens

central screen area

command/response line, 3-5

descriptions, 3-5 to 3-17

hierarchy, 3-2

navigation commands area, 3-4

parts of, 3-3

Port Statistics and Status Information, 3-10

Power Up Self Test, 3-23

Spanning Tree General Information, 3-8

Spanning Tree Port Information, 3-10

Switch Information, 3-7

System Information, 3-7

using, 3-1 segment switching, 3-18 serial I/O connection, 3-22 SNMP

Conﬁguration menu

management, 3-21

network management with, 3-20

, 3-4

, 3-16

SNMP Read Community String parameter, 3-16 SNMP Read/Write Community String parameter, 3-16 software upgrades and enhancements, 3-23 Spanning Tree

aging time parameter Bridge Forward Delay parameter, 3-15 Bridge Hello Time parameter, 3-15 Bridge Max Age Time parameter, 3-15 Bridge Priority parameter, 3-15 enable/disable, 3-13 General Conﬁguration menu, 3-15 General Information screen, 3-8 Port Conﬁguration menu, 3-15 Port Information screen, 3-10

protocol deﬁnition, 3-19 speciﬁcations, technical, A-1 stacking switches, 2-3 standards supported, A-1 status area of menu/screen, 3-4 Status LED, 1-7 subnet mask, 2-20 switch

autonegotiation

conﬁguration, 1-2

conﬁguration examples, 3-17

desktop switch, used as, 3-19

initial setup, 2-17

managing, 3-20

rack mounting, 2-5

segment switch, used as, 3-18

stacking, 2-3

status area, 3-4

troubleshooting, 4-1 Switch Information screen, 3-7 Switch Network Conﬁguration menu, 2-19, 3-13 Switch Software Upgrade menu, 3-25 System Conﬁguration menu, 2-18, 3-12 system fault status LED, 1-8 System Information screen, 3-7

, 3-15

, 4-2

Index-4 893-01010-A

Bay Networks BayStack 303, BayStack 304 User Manual
