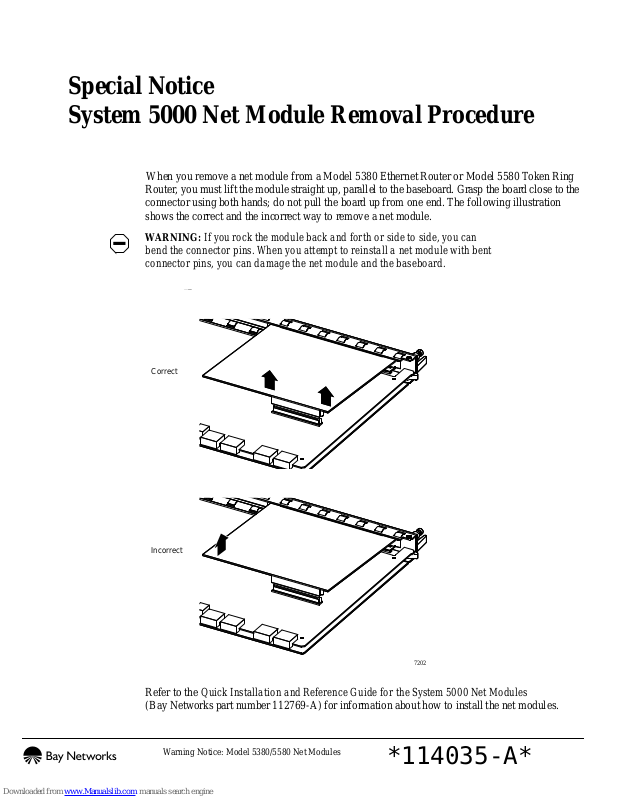

Special Notice
System 5000 Net Module Removal Procedure
When you remove a net module from a Model 5380 Ethernet Router or Model 5580 Token Ring
Router, you must lift the module straight up, parallel to the baseboard. Grasp the board close to the

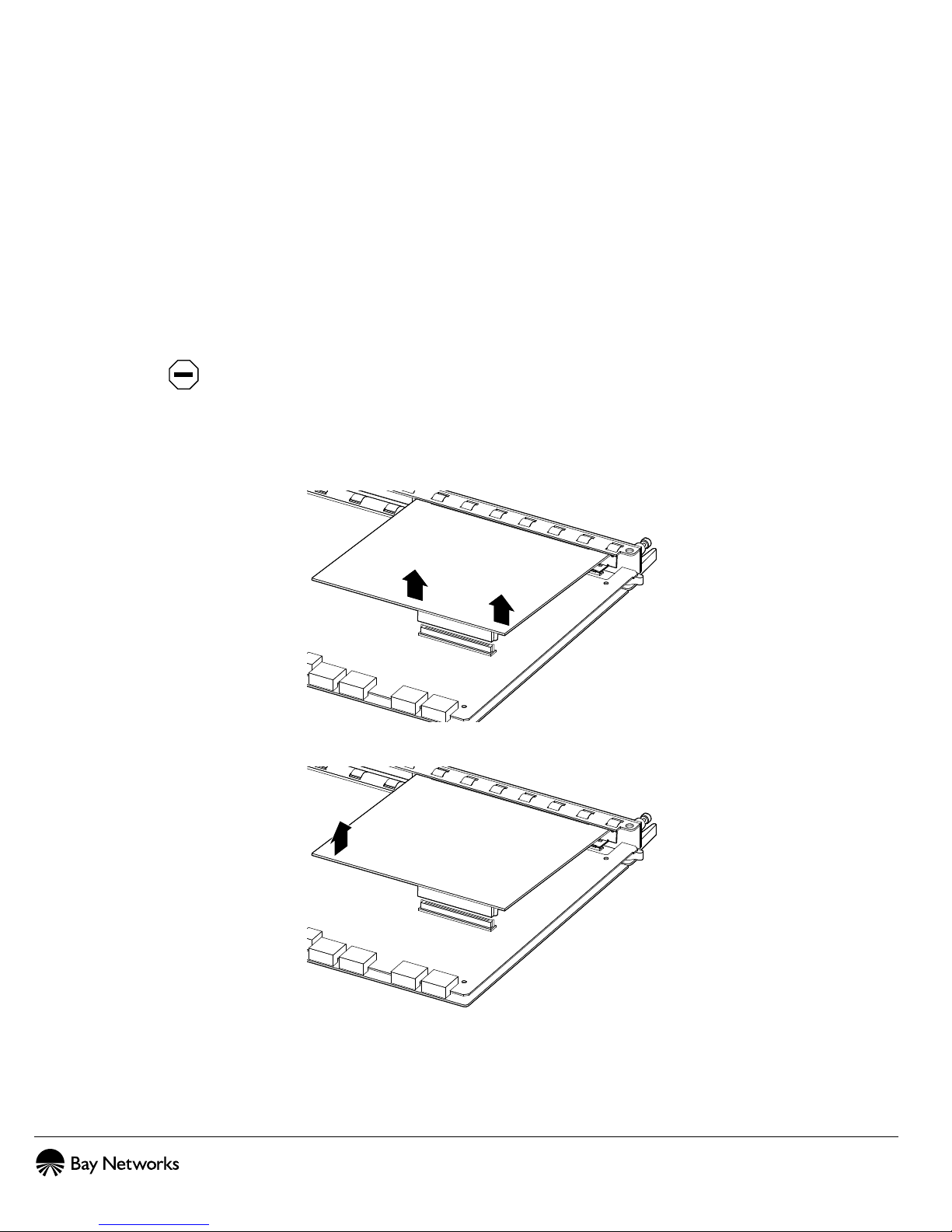

connector using both hands; do not pull the board up from one end. The following illustration
shows the correct and the incorrect way to remove a net module.
WARNING:
bend the connector pins. When you attempt to reinstall a net module with bent
connector pins, you can damage the net module and the baseboard.
Correct
If you rock the module back and forth or side to side, you can
Incorrect
Refer to the
(Bay Networks part number 112769-A) for information about how to install the net modules.
Warning Notice: Model 5380/5580 Net Modules
Quick Installation and Reference Guide for the System 5000 Net Modules
7202
*114035-A*
