CEILING FAN
INSTALLATION MANUAL
Note: Fan images in this manual may not be a reection of the packaged fan. This manual provides instructions for a variety of ceiling fan models.
PACKAGE CONTENTS
Mounting Bracket
Canopy
Downrod
Canopy Cover
Motor
A
ssembly
Blade Arm
Switch Housing
Cap
Blade Balancing Kit
Yoke Cover
(optional)
Multi-Arm Light KitBowl Light KitGlobe Light Kit
Blade
Hardware Kit
Owner’s
Manual
Images may not be an exact reection of your fan parts. This manual provides instructions for a variety of ceiling fan models.
OPTIONAL CONTENTS
2
TABLE OF CONTENTS
Package Contents .....................................................................................................2
Preparation ..........................................................................................................3
Initial Installation ......................................................................................................5
Downrod or Angle Mounting .............................................................................................6
Closemount Instructions ................................................................................................8
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Optional Light Kit Installation ............................................................................................13
Bowl Light Kit .....................................................................................................14
Multi-Arm Light Kit Installation ........................................................................................16
Globe Light Kit Installation ...........................................................................................17
Installation Without Light Kit ............................................................................................18
Operating Instructions .................................................................................................18
Safety Information ....................................................................................................14
Care and Maintenance ................................................................................................14
Troubleshooting ......................................................................................................15
Warranty ...........................................................................................................16
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents
list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools required for assembly (not included): Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook and Wire Cutters
3
PREPARATION
1. Turn o power.
Turn o the power to the fan at the breaker
box and the wall switch.
Failure to disconnect the power supply
prior to installation may result in serious
injury or death.
See page 17 for complete description of
cautions and warnings.
Downrod Mounting
Flushmount Closemount
Angle Mounting
2. Choose mounting option.
Standard Mounting is best suited for
ceilings 8 ft. or higher. For very high ceilings,
use a longer downrod (not included).
Angle Mounting is best suited for angled
or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper
blade clearance. Ensure the ceiling angle
is not steeper than 10 degrees. For steeper
ceiling angles, an angled ceiling adapter is
necessary.
3. Choose suitable location.
Ensure the blades will be at least 30 inches
from any obstructions. Also check the
downrod length to ensure the blades will be
at least 7 feet above the oor.
Flushmount installation is not available for
this item.
Closemount installation is best suited for
ceilings 8 ft. or lower.
4
INITIAL INSTALLATION
Standard and
Closemount
Mounting
Angle
Mounting
D
Mounting
x 4 x 10
1. Remove the mounting bracket.
Loosen all four mounting bracket screws
and completely remove the two screws from
the round holes in the canopy. Then, remove
the mounting bracket from the canopy and
save the mounting bracket screws for later.
Note: Occasionally, the mounting bracket
screws are located on the bottom of the
canopy. Remove the screws to detach the
mounting bracket from the canopy.
Bracket
Screw
Round
Hole
2. Install the mounting bracket.
Install the mounting bracket to the outlet
box (sold separately) using the screws and
washers provided with the outlet box.
Note: To avoid fan wobble, ensure the
mounting bracket is securely tightened
to the “Ceiling Fan Rated” outlet box and
the outlet box is securely tightened to the
building structure.
3. Remove the motor blocks.
Remove the motor screws and motor blocks
from the underside of the motor. Keep the
motor screws for later, but discard the motor
blocks.
For downrod or angle mounting
instructions, proceed to the next page. For
CLOSEMOUNT INSTALLATION, skip to
page 8.
Motor Screw
Motor Block
5
DOWNROD OR ANGLE MOUNTING
Clip
x 2 x 2
Yoke
1. Loosen set screws and remove
pin and clip from the downrod.
Remove the clip and pin from the downrod.
Then partially loosen the two set screws in
the yoke at the top of the motor assembly.
Downrod
Canopy
Pin
Set Screw
Yoke
2. Feed the wires through the yoke
cover, canopy, and downrod.
Note: Some fans may have a secondary
support cable coming from the motor
assembly. For customers outside of Canada,
this cable may be cut o or coiled up and
stored inside the canopy. For Canadian
residents, use the secondary support cable
and the 3-inch wood screw and washer in
the hardware bag to secure the fan to the
building structure in addition to the outlet
box (not included).
Downrod
Yoke Cover
(optional)
Clip
Pin
Set Screw
3. Install the downrod into the
yoke.
Slide the downrod into the yoke at the top
of the motor assembly. Align the holes, and
reinstall the pin and clip. Then tighten both
set screws securely.
6
8 in.
Slot
Tab
DOWNROD OR ANGLE MOUNTING
4. Trim fan wires.
Depending on the length of downrod you
use, you may want to cut the fan wires to
simplify wiring. After pulling the wires all the
way through the downrod, measure 8 inches
of wire. Cut o the excess wire using wire
cutters (not included).
5. Strip 1/2 inch of insulation.
Strip 1/2”of insulation from the ends of each
wire. Twist the stripped ends of each strand
of wire within the insulation.
Note: If you didn’t trim the wires in Step 4,
this step is not necessary.
7
6. Hang downrod in mounting
bracket.
Install the ball end of the downrod into the
opening of the mounting bracket. Align the
slot in the ball with the tab on the mounting
bracket. The downrod should not rotate if
installed correctly.
Failure to align the slot in the ball with the
tab on the mounting bracket may cause
the fan to fall, which could result in injury
or death.
Proceed to FINAL INSTALLATION, page 9.

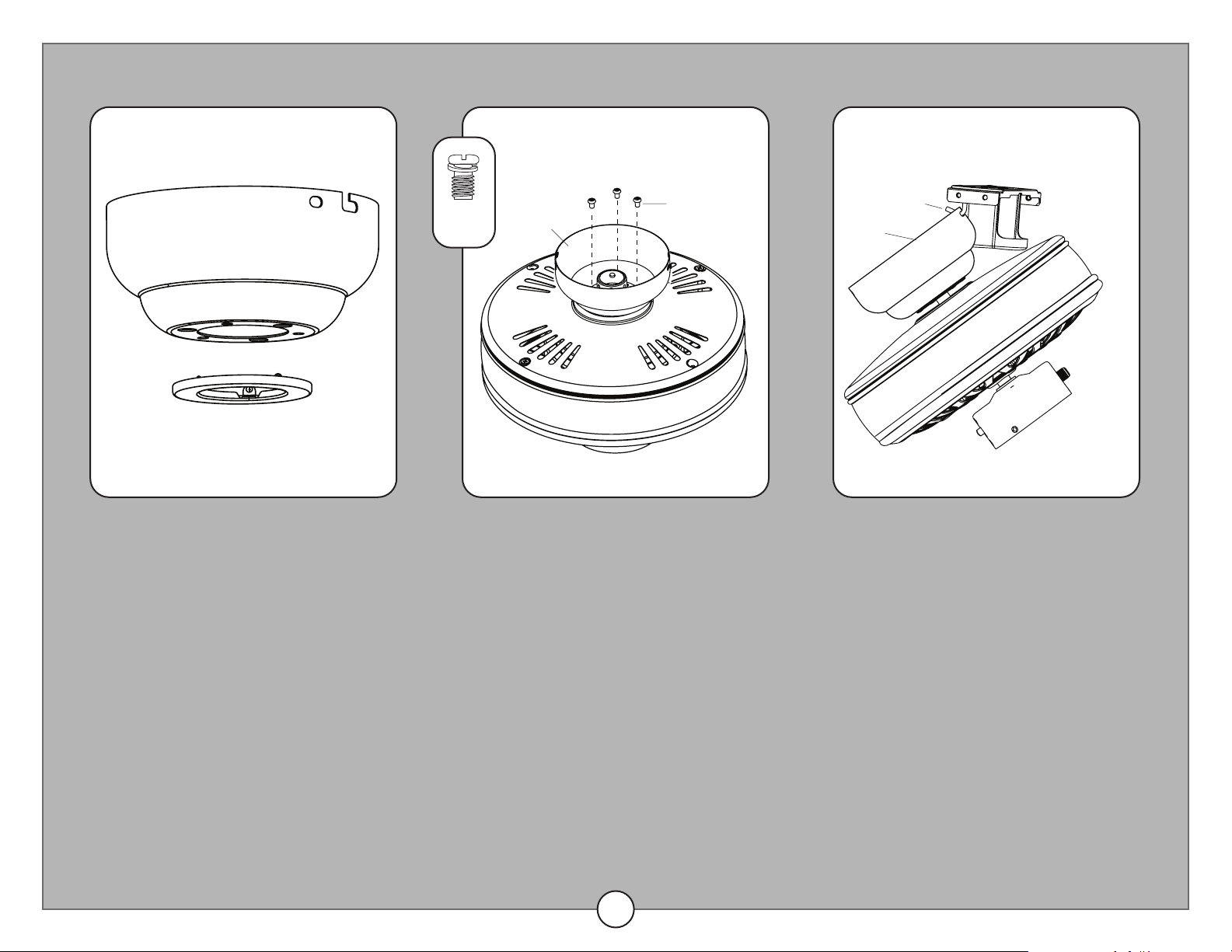

CLOSEMOUNT INSTALLATION (optional)
Canopy
Canopy Cover
1. Remove canopy cover from
bottom of canopy.
The canopy cover snaps out of the hole in
the bottom of the canopy.
Closemount
x 3
Canopy
Screw
2. Install canopy to top of motor
assembly.
Remove the three Phillips-head closemount
screws from the top of the motor assembly.
Then, align the canopy with the holes in the
top of the motor assembly. The larger holes
in the canopy will encompass the remaining
screws. Secure the canopy to the top of
the motor assembly with the closemount
screws.
Hook
Canopy
3. Hang canopy on mounting
bracket.
Raise the motor assembly and place
the hole in the side of the canopy on the
mounting bracket hook to temporarily hold
the fan during the wiring process.
Note: If there are three empty screw
holes in the top of the motor assembly, the
closemount screws will be located in the
hardware bag.
8
Black (hot)
White (neutral)
Bare/Green (ground)
Wire
Connector
Black
Blue
White
Green
FINAL INSTALLATION
x 3 x 4
Note: If there is a second hot supply wire coming
from the outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control.
Mounting
Bracket
Screw
Canopy
Note: Closemount will not use the downrod.
1. Wire the fan.
Use wire connectors to connect the fan wires to the power supply
wires according to the wiring diagram and the following instructions:
• Connect the white wire from the fan to the white (neutral/common)
supply wire.
• Connect the black and blue wires from the fan to the black (hot/
power) supply wire.
• Connect the green wire from the fan to the bare/green (ground)
supply wire.
After the connections have been made, the connected wires should be
turned upward and pushed carefully up into the outlet box. Place the black
and white wire connections on opposite sides of the outlet box.
Important: If installing fan using a remote (optional),
please see remote instructions located in remote
pack.
2. Re-install the canopy to the
mounting bracket.
Align the canopy over the loosened
mounting bracket scews preassembled to
the mounting bracket. Place the J-slot of the
canopy onto the mounting bracket screws
and rotate clockwise.
Then, re-install the two previously removed
mounting bracket screws into the round
holes of the canopy. Tighten all four
mounting bracket screws.
9
FINAL INSTALLATION
Blade Screw
Blade Washer
Blade
Blade Arm
3. Attach the blades to blade arms.
Partially insert blade screw along with
blade washer through one blade and into
one blade arm. Tighten each blade screw,
starting with the one in the middle. Repeat
this step for the remaining blades and blade
arms.
Motor Screw
Blade Arm
4. Attach blade arms to motor.
Install the blade arm to the underside of the
motor assembly with the previously removed
motor screws.
Note: To install fan with light kit
(optional), skip to page 13.
x 3
Reverse
Switch
Switch
Housing
Screw
Note: Align the notch in the switch
housing cap with the reverse switch.
Notch
Switch
Housing
Switch
Housing
Cap
5. Install the switch housing cap.
Remove the three switch screws from the
top edge of the switch housing cap. Attach
the switch housing cap to the switch housing
using the three switch housing screws.
Note: Damp-rated and outdoor fans may
have additional washers.
10
OPTIONAL LIGHT KIT INSTALLATION - (Identify your light kit)
Bowl Light Kit
If your light kit resembles the Bowl Light Kit,
turn to page 12 for installation instructions.
Multi-Arm Light Kit
If your light kit resembles the Multi-Arm
Light Kit, turn to page 14 for installation
instructions.
11
Globe Light Kit
If your light kit resembled the Globe
Light Kit, turn to page 15 for installation
instructions.
LIGHT KIT INSTALLATION - (Bowl Light Kit)
Hex Nut
Spring Washer
Single-pin
Connector
Switch
Housing
Cap
Plug Button
1. Remove hex nut and spring
washer from light kit.
Hex Nut
Spring Washer
Switch
Housing
Cap
Threaded Rod
2. Secure the switch housing cap
to the light kit.
Threaded Rod
Rubber Washer
Hex Nut
Finial Cap
Finial
3. Remove hex nut and spring
washer from light kit.
Remove the hex nut and spring washer
from the threaded rod at the top of the light
kit. Then, remove the plug button from the
switch housing cap.
Thread the single-pin connectors through
the hole in the switch and twist the switch
housing cap onto the threaded rod at the top
of the light kit.
12
Remove the nial, nial cap, hex nut, and
rubber washer from the threaded rod at the
bottom of the light kit.
Note: Some light kits do not include a
rubber washer and hex nut. If that is the
case, use only the nial cap and nial to
secure the glass bowl.
Proceed to page 16.
LIGHT KIT INSTALLATION - (Bowl Light Kit)
Glass
Bowl
Switch
Housing
Screw
Light Kit
4. Attach the switch housing cap
to the switch housing.
Remove the three switch housing screws
from the top edge of the switch housing cap
and use them to attach the switch housing
cap along with the light kit to the switch
housing.
Note: Some switch housing screws will
have a washer. If so, remove and reinstall
with the switch housing screw.
Bulb
5. Install bulbs into the sockets.
When necessary, replace bulbs with a bulb
with the same socket size as the original
bulb. Total maximum wattage is 180W.
Important: Some ceiling fan light kits come
with a 180W limiter. If the total watts of the
lights is over 180W, the lights do not work.
Please replace the bulbs with lower wattage
bulbs.
Rubber
Washer
Finial Cap
Note: If there is a grommet in the lower part
of the light kit, feed the fan pull chain through
that grommet before feeding it through the
o-center hole in the glass bowl.
Threaded Rod
Hex Nut
Finial
6. Install the glass bowl.
Feed the pull chain coming from the switch
housing through the o-center hole in the
glass bowl. Then, feed pull chain coming
from the bottom of the light kit through the
center hole in the glass bowl.
If there was a rubber washer and hex nut,
use them to secure the glass bowl and then
reinstall the nial cap and nial.
If there was not a rubber washer and hex
nut, use the nial cap and nial to secure
the glass bowl.
13
Proceed to page 16.
Switch
Housing
Screw
Single-pin
Connector
LIGHT KIT INSTALLATION - (Multi-Arm Light Kit)
Light
Cup
Light Kit
1. Attach the switch housing cap
to the switch housing.
Remove the three switch housing screws
from the top edge of the light kit. Then,
connect the wire connectors (single-pin
connector or 9-pin connector) from the fan
to the light kit. Then, use the three switch
housing screws to attach the light kit to the
switch housing.
Note: Some switch housing screws may
have star washers on them. If so, remove
and reinstall the star washers along with the
switch housing screws.
Glass Shade
2. Install glass shades.
Loosen the thumbscrews on the light cups
of the light kit. Lift the glass shade into the
light cup and tighten the thumbscrews to
secure the glass shades.
3. Install bulbs.
Important: Some ceiling fan light kits come
with a 180W limiter. If the total watts of the
lights is over 180W, the lights do not work.
Please replace the bulbs with lower wattage
bulbs.
Proceed to page 16.
14
Star Washer
Switch
Housing
Screw
Switch
Housing
Screw
Light Kit
Star
Washer
LIGHT KIT INSTALLATION - (Globe Light Kit)
Single-Pin
Connector
Globe
1. Attach the light kit to the switch
housing.
Remove the three switch housing screws
from the top edge of the light kit. Then
connect the single-pin connectors from the
switch housing to the light kit.
2. Install bulb. 3. Install the globe.
Loosen the thumbscrews in the sides of the
light kit. Then lift the glass into the bottom of
the light kit and re-tighten the thumbscrews
to secure the glass.
15
Pull Chain Extension
FINAL INSTALLATION
6. Attach pull chain extension(s)
to the pull chain.
.
7. Turn on power source.
Restore power to fan at breaker box and the
wall switch.
Installation is complete.
16
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a
do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the oor and at least 30 in. from the end of the blades to any
obstruction.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to the building structure and can support the full weight of the fan.
Failure to do this can result in serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To reduce the risk of re or electric shock, do NOT
use a full-range dimmer switch to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable for fan support and may need to
be replaced. Consult a qualied electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire
and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the two fan lead wires, consult an
electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.
Do not insert objects between the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.
CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth
to avoid scratching the nish. Clean the blades with a lint-free cloth.
Important: Shut o the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean the fan.
17
TROUBLESHOOTING
PROBLEM CORRECTIVE ACTION
The fan does not move.
The fan is noisy.
The fan wobbles
excessively.
The fan operates correctly
but the lights are not
working.
1. Firmly push the reverse switch completely up or down.
2. Make sure the wall switch is turned on.
3. Ensure poewr is on at wall switch and breaker box
4. Turn the power o and check all wire connections at the ceiling outlet box.
1. Check and tighten all screws that hold the fan blades to the blade arms and motor.
2. Replace any blade that is cracked or damaged.
3. Do not use a variable-speed wall control to control the fan speed.
4. Ensure the outlet box is securely mounted to the building structure.
5. Ensure the mounting bracket is securely mounted to the outlet box.
1. Tighten all screws that hold the fan blades to the blade arms and blade arms to motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using the blade balancing kit.
3. Turn o power. Loosen the canopy and verify that the mounting bracket is secure to the electrical outlet box. The
mounting bracket must be ush without movement against the outlet box.
4. Use a longer downrod or move the fan to another location if the fan is too close to the ceiling.
5. Ensure the mounting bracket is securely mounted to the outlet box.
6. Tighten the set screws in the yoke.
1. Install new bulbs.
2. Ensure the single-pin connectors from the switch housing to the light kit are connected properly.
3. Turn the power o and check all wire connections between the fan and outlet box.
18
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at time of shipment from the factory for a lifetime
from the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or acrylic blades, to be
free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the
original purchaser. The manufacturer agrees to correct such defects without charge or at its option replace the ceiling fan with a comparable or
superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Any damage to any part such as by accident or misuse or improper installation or by axing any accessories, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime warranty. Any service performed by
an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass
Brass nishes of this type give their longest useful life when protected from varying weather conditions. Any glass provided with this fan is not
covered by the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the date of purchase. For the balance of the
warranty, call our customer service department for return authorization and shipping instructions so that we may repair or replace the ceiling fan.
Any fan or parts returned improperly is the sole responsibility of the purchaser. There is no other expressed warranty. The manufacturer disclaims
any and all warranties. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the expressed
warranty. The manufacturer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. This warranty gives specic legal rights, and you may also have other rights which vary
from state to state.
This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
nish, including rusting, pitting, corroding, tarnishing or peeling.
19
Loading...
