Baxter BDRSB-10 User Manual
Project:
Item#

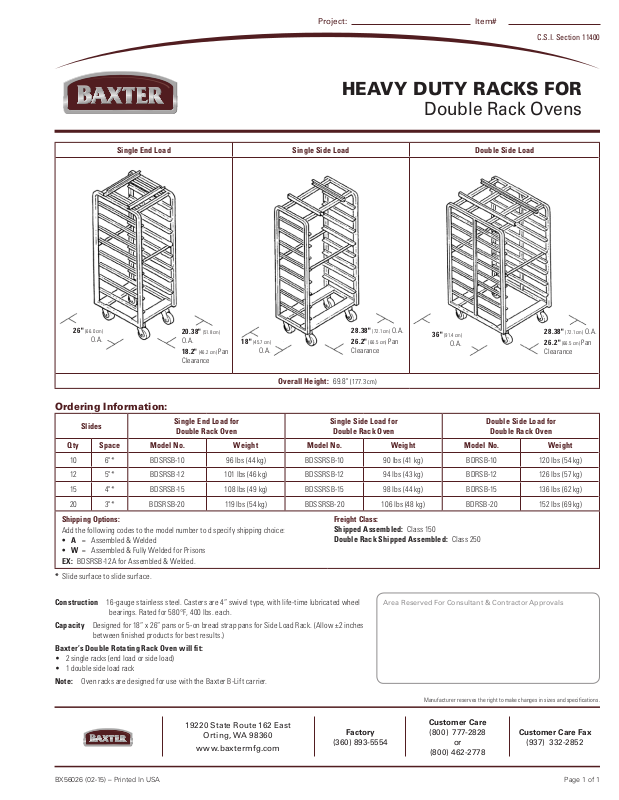

HEAVY DUTY RACKS FOR
Double Rack Ovens
Single End Load Single Side Load Double Side Load
C.S.I. Section 11400
26" (66.0 cm)
O.A.
(51.8 cm)
20. 38"
O.A.
18.2" (4 6.2 cm) Pan
Clearance
18" (4 5.7 cm)
O.A.
(7 2.1 cm ) O.A.
28.38"
26. 2" (66.5 cm) Pan
Clearance
36" (91.4 cm )
O.A.
Overall Height: 69.8" (177.3 cm)
Ordering Information:
Slides
Single End Load for
Double Rack Oven
Qty Space Model No. Weight Model No. Weight Model No. Weight
10 6"* BDSRSB-10 96 lbs (4 4 kg) BDSSRSB-10 90 lbs (41 kg) BDRSB-10 120 lbs (5 4 kg)
12 5"* BDSRSB-12 101 lbs (46 kg) BDSSRSB-12 94 lbs (43 kg) BDRSB-12 126 lbs (57 kg)
15 4"* BDSRSB-15 108 lbs (49 kg) BDSSRSB-15 98 lbs (44 kg) BDRSB-15 136 lbs (62 kg)
20 3"* BDSRSB-20 119 lbs (54 kg) BDSSRSB-20 106 lbs (48 kg) BDRSB-20 152 lbs (69 kg)
Shipping Options:
Add the following codes to the model number to d specify shipping choice:
• A = Assembled & Welded
• W = Assembled & Fully Welded for Prisons
EX: BDSRSB-12A for Assembled & Welded.
* Slide surface to slide surface.
Construction 16-gauge stainless steel. Casters are 4” swivel type, with life-time lubricated wheel
bearings. Rated for 580°F, 400 lbs. each.
Capacity Designed for 18” x 26” pans or 5-on bread strap pans for Side Load Rack. (Allow ±2 inches
between finished products for best results.)
Baxter’s Double Rotating Rack Oven will fit:
• 2 single racks (end load or side load)
• 1 double side load rack
Note: Oven racks are designed for use with the Baxter B-Lift carrier.
Single Side Load for
Double Rack Oven
Freight Class:
Shipped Assembled: Class 150
Double Rack Shipped Assembled: Class 250
Area Reserved For Consultant & Contractor Approvals
Double Side Load for
Double Rack Oven
(7 2.1 cm ) O.A.
28.38"
26. 2" (66.5 cm) Pan
Clearance
BX56026 (02-15) – Printed In USA
19220 State Route 162 East
Orting, WA 98360
www.baxtermfg.com
Factory
(360) 893-5554
Manuf acturer r eserves t he right to mak e changes in siz es and speci fications.
Customer Care
(800) 777-2828
or
Customer Care Fax
(937) 332-2852
(800) 462-2778
Page 1 of 1
