Baxter BAPB2 Parts List

Download
CATALOG OF
REPLACEMENT
PARTS
HPB/BAPB SERIES
ROLL-IN PROOF BOXES
HPB1 ML-132003 HPB2 ML-132004 HPB4 ML-132005 BAPB1 ML-132006 BAPB2 ML-132007 BAPB4 ML-132008
A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 34490 (August 2001) Supersedes F31160
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
29
28
30
13-14
5
3
1
4
2
6 7
8-9
10 THRU 12
15-16-17-18
19-20
27
26
25
DOOR UNIT
DOOR UNIT
21
22-23
24
PL-53631
F-34490 (August 2001)
© HOBART CORPORATION
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
DOOR UNIT
ILLUS. PART NO. NAME OF PART AM T. PL-53631
1 00-267261-00018 Hinge Assy. (Incls. Items 3, 4, & 5) ............................................................................................1
2 NS-048-66 Nut – Stop 1/4-28 .......................................................................................................................... 2
3 SD-038-71 Self-Tapping Screw
4 00-265716 Plate – Washer Hinge ................................................................................................................. 3
5 00-283065 Plate – Mounting Hinge (Door) ................................................................................................... 1
6 00-239558 Bushing – Door Stop .................................................................................................................. 2
7 SD-015-19 Self-Tapping Screw 10-24 x
8 00-239665 Stop – Door (LH) ........................................................................................................................ 1
9 00-239666 Stop – Door (RH) ........................................................................................................................ 1
10 00-239157 Hinge Mechanism Assy. ............................................................................................................. 2
11 SA-021-45 Mach. Screw 10-32 x 5/16 Phil. Bind. Hd. .................................................................................... 4
12 WS-019-20 Washer ....................................................................................................................................... 4
13 00-283091-00002 Gasket – Door (ML-132003) (ML-132006) ................................................................................ 1
14 00-283089-00007 Gasket – Door (ML-132004) (ML-132005) (ML-132007) (ML-132008) .................................... 1
15 00-837501-00096 Face – Door (RH) (ML-132004) (ML-132005) (ML-132007) (ML-132008) .............................. 1
16 00-837501-00100 Face – Door (LH) (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................... 1
17 00-837501-00098 Face – Door (RH) ML-132003) (ML-132006) ............................................................................ 1
18 00-837501-00081 Face – Door (LH) (ML-132003) (ML-132006) ........................................................................... 1
19 00-214317 Screw 10-24 x 1/2 Phil. Hd. (ML-132003) (ML-132006) ............................................................ 2
20 SD-015-19 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type TT ............................................................. 2
21 00-283237 Handle – Door .............................................................................................................................1
22 00-282259-00001 Bracket Hinge Assy. (LH) ........................................................................................................... 1
23 00-282259-00002 Bracket Hinge Assy. (RH) .......................................................................................................... 1
24 SD-038-34 Self-Tapping Screw 1/4-20 x 11/4 Phil. Flat Hd., Type F.............................................................. 12
25 00-432344 Wiper Assy. (ML-132003) (ML-132006) .................................................................................... 1
26 00-432344-00002 Wiper Assy. (ML-132004) (ML-132005) (ML-132007) (ML-132008) ....................................... 1
27 SD-033-32 Self-Tapping Screw 8 x 7/8 Phil. Truss Hd., Type A ................................................................. AR
28 SD-015-19 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type TT ............................................................. 9
29 00-837501-00101 Plate – Seal Door (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................... 1
30 00-282227 Closer – Door ............................................................................................................................. 1
5
/16-18 Hex Hd., Type TT ........................................................................... 3
1
/2 Phil. Pan Hd., Type TT ............................................................. 2
F-34490 (August 2001)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
3
4
5-6-7
1
2
15
8
9
10-11-12
14 13
PL-53587
F-34490 (August 2001)

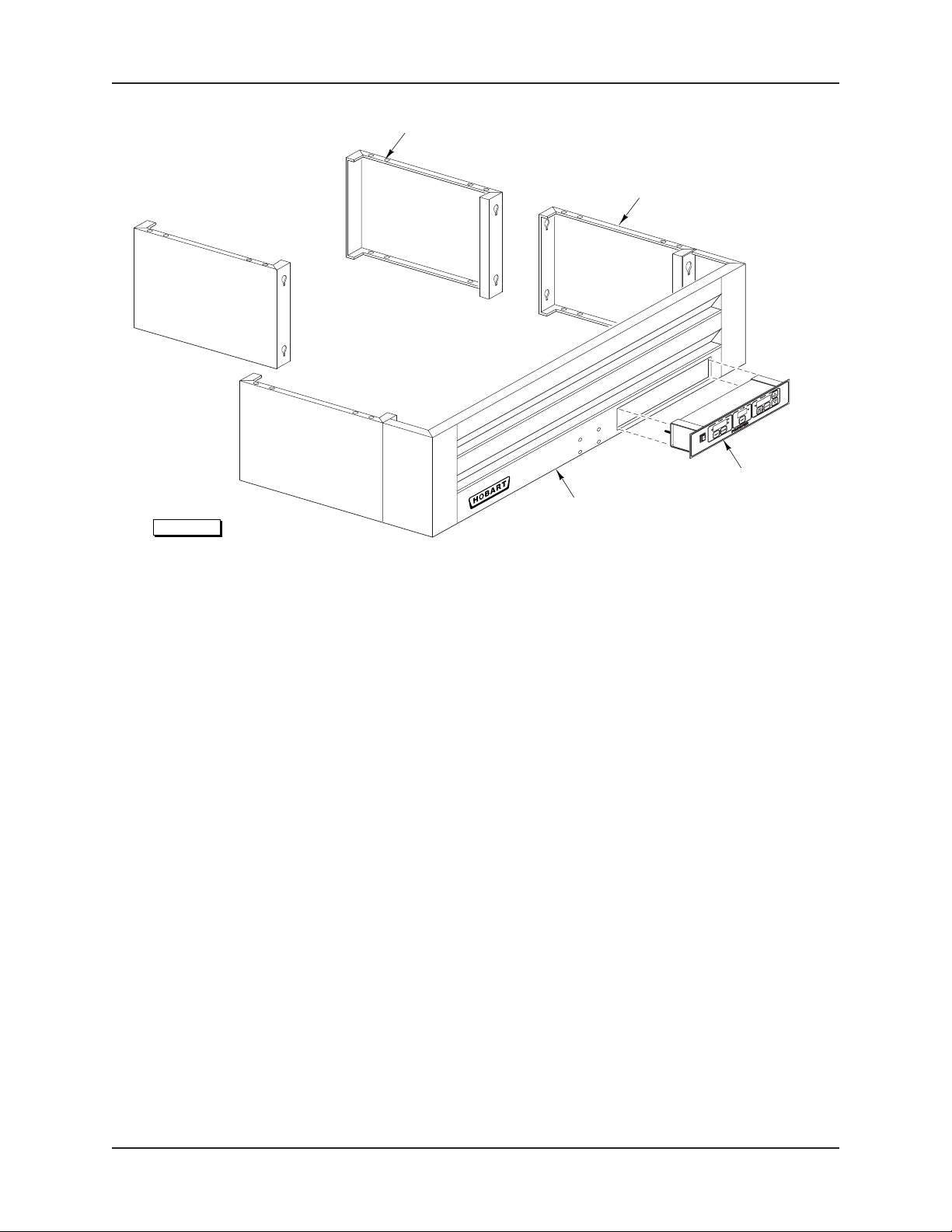

CABINET INTERIOR
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
CABINET INTERIOR
ILLUS. PART NO. NAME OF PART AM T. PL-53587
1 00-837501-00201 Duct – Top Span ......................................................................................................................... 1
2 00-837501-00266 Cover – System Intake (ML-132004) (ML-132005) (ML-132007) (ML-132008) ...................... 1
3 WS-019-20 Washer (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................................ AR
4 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. (ML-132004) (ML-132005) (ML-132007)
5 00-281937 Duct – Air (Down) (ML-132003) (ML-132006) (Not Shown).................................................. AR
6 00-837501-00202 Duct – Vertical Down (RH) (ML-132004) (ML-132005) (ML-132007) (ML-132008) .............. AR
7 00-837501-00203 Duct – Vertical Down (LH) (ML-132004) (ML-132005) (ML-132007) (ML-132008) .............. AR
8 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. (ML-132004) (ML-132005) (ML-132007)
9 00-281944 Bumper (ML-132003) (ML-132006) (Not Shown) ..................................................................... 2
10 00-281945 Bracket – Bumper Mounting (ML-132003) (ML-132006) (Not Shown) .................................... 2
11 00-837501-00247 Bumper – Rear (ML-132004) (ML-132005) (ML-132007) (ML-132008) ................................... 2
12 00-837501-00248 Bumper – Side (ML-132004) (ML-132005) (ML-132007) (ML-132008) ................................... 2
13 SC-066-19 Mach. Screw 10-32 x 7/16 Phil. Truss Hd. (ML-132004) (ML-132005) (ML-132007)
14 WS-019-20 Washer (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................................ AR
15 00-282260 Guard – Scuff (SST) (2 Per Door Opening) .............................................................................. 2
00-265780-00001 Insert – AVDEL (Alum.) (Use with Item 6) (ML-132003) (ML-132006) ..................................... 6
00-266357-00003 Thumb Screw 10-32 (ML-132003) (ML-132006) ...................................................................... 6
(ML-132008) ......................................................................................................................... AR
(ML-132008) ......................................................................................................................... AR
(ML-132008) ......................................................................................................................... AR
F-34490 (August 2001)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
45 44
34
37
38
36
39
43 42 41 40
35
33
32
48 47 46
1-2
3-4
5-6
26
25
24
27
28
29 30 31
7-8-9
10-11-12
13
14
PL-53588
F-34490 (August 2001)
22-23
20-21
19
18

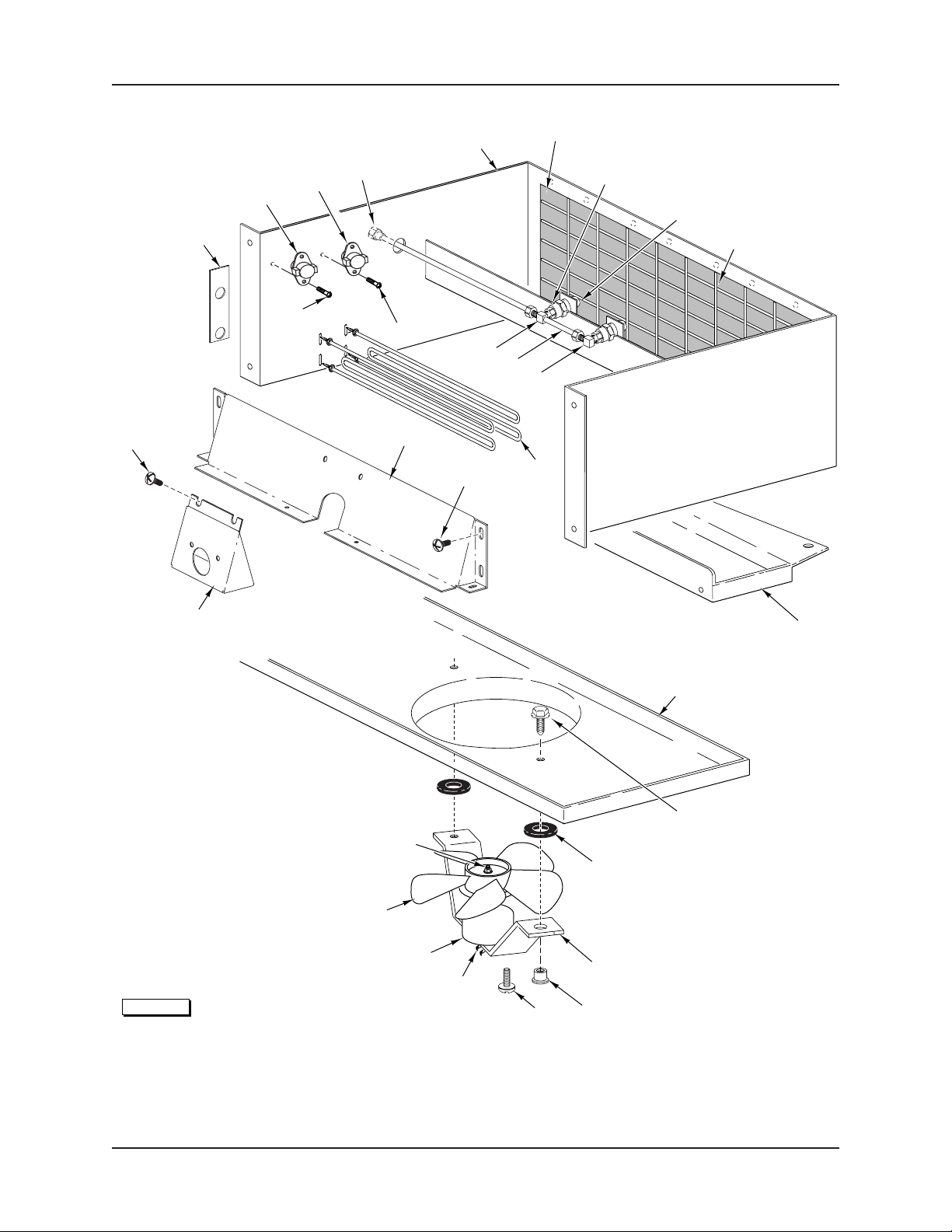

AIR WASH CHAMBER UNIT
15-16
17
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
AIR WASH CHAMBER UNIT
ILLUS. PART NO. NAME OF PART AM T. PL-53588
1 00-281909 Adapter – Nozzle ..................................................................................................................... AR
2 00-837522-00014 Connector – 1/4 Male (ML-132003) (ML-132006) ....................................................................... 1
3 00-687926 Nozzle (2.0 GPM) (45 Deg.) (ML-132003) (ML-132006) .......................................................... 1
4 00-837522-00024 Nozzle (2.4 GPM) (80 Deg.) (ML-132004) (ML-132005) (ML132007) (ML-132008) ............. AR
5 00-837501-00042 Screen (ML-132003) (ML-132006) ............................................................................................ 1
6 00-837501-00037 Screen (ML-132004) (ML-132005) (ML-132007) (ML-132008) ...............................................2
7 00-837501-00021 Tray – Drip (ML-132003) (ML-132006) ..................................................................................... 1
8 00-837501-00014 Tray – Drip (ML-132004) (ML-132005) (ML-132007) (ML-132008) ......................................... 1
9 SD-033-32 Self-Tapping Screw 8 x
10 00-837501-00028 Orifice – Fan (1-Rack) (ML-132003) (ML-132006) ................................................................... 1
11 00-837501-00245 Orifice – Fan (2-Rack) (ML-132004) (ML-132007) ................................................................... 1
12 00-837501-00258 Orifice – Fan (4-Rack) (ML-132005) (ML-132008) ................................................................... 1
13 SC-115-68 Mach. Screw
1
/4-20 x 3/4 Hex Washer Hd. ............................................................................... AR
14 FE-025-52 Bushing – Elect. Armor ............................................................................................................. AR
15 00-282727 Bracket – Fan (ML-132003) (ML-132004) (ML-132006) (ML-132007) .................................... 1
16 00-837501-00256 Bracket – Fan (ML-132005) (ML-132008) ................................................................................. 1
17 00-263175 Well Nut .................................................................................................................................... AR
18 00-265181 Screw 8-36 x 3/8 Phil. Rd. Hd. (Use With Item 15 or 16) .......................................................... AR
19 00-267884-00001 Lead – Wire (Ground) (ML-132004) (ML-132005) (ML-132007) (ML-132008) ....................... 1
20 00-281912 Motor – Fan (16 W.) (ML-132003) (ML-132004) (Mounting hardware supplied with motor) .. 1 21 00-837522-00026 Motor – Fan (35 W.) (ML-132005) (ML-132007) (ML-132008) (Mounting hardware
supplied with motor) ............................................................................................................... 1
22 00-265773-00001 Blade – Fan (9") (ML-132003) (ML-132004) (ML-132006) (ML-132007) ................................. 1
23 00-837522-00025 Blade – Fan (10") (ML132005) (ML-132008) ............................................................................ 1
24 00-263339 Nut – Hex 1/4-20 KEPS ................................................................................................................ 1
25 00-837501-00094 Bracket – Sensor Mtg. (ML-132003) (ML-132006) ................................................................... 1
26 SD-039-17 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type F ...............................................................2
27 00-837501-00044 Plenum – Air (ML-132003) (ML-132006) ................................................................................... 1
28 SD-039-17 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type F ...............................................................4
29 00-281914-00003 Heater (240 V.) (2400 W.) (17 Lg.) (ML-132003) (ML-132006) ............................................... 2
30 00-281914-00001 Heater (240 V.) (2400 W.) (243/4 Lg.) (ML-132004) (ML-132007) ............................................2
31 00-281914-00002 Heater (240 V.) (3000 W.) (243/4 Lg.) (ML-132005) (ML-132008) ............................................2
32 FP-087-75 Pipe – Union Elbow (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................1
33 00-837501-00234 Waterline (Between Nozzles) (ML-132004) (ML-132005) (ML-132007) (ML-132008) ........... 1
34 FP-087-74 Pipe – Union Tee 1/8 NPT to 1/4 Flare x 1/4 Flare (ML-132004) (ML-132005) (ML-132007)
(ML-132008) ...........................................................................................................................1
35 SD-039-16 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type F ...............................................................2
36 SD-039-16 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type F ...............................................................2
37 00-837501-00035 Plate – Elements Cover ............................................................................................................ AR
38 00-282759 Switch – Limit (250F) (Manual Reset) ....................................................................................... 1
39 00-282746 Switch – Limit (200F) (Auto Reset) ........................................................................................... 1
40 00-837501-00046 Interconnection – Water Line (ML-132003) (ML-132006) ........................................................ 1
41 00-837501-00223 Interconnection – Water Line (ML-132004) (ML-132007) ........................................................ 1
42 00-837501-00267 Interconnection – Water Line (ML-132005) (ML-132008) ........................................................ 1
43 00-837501-00268 Interconnection – Water Line (ML-132005) (ML-132008) ........................................................ 1
44 00-837501-00016 Basket – Spray (ML-132003) (ML-132006) ............................................................................... 1
45 00-837501-00012 Basket – Spray (ML-132004) (ML-132005) (ML-132007) (ML-132008) .................................. 1
46 00-282925 Retainer – Screen (ML-132003) (ML-132006) ..........................................................................1
47 00-282926 Retainer – Screen (ML-132004) (ML-132005) (ML-132007) (ML-132008) ............................. 1
48 SD-032-31 Self-Tapping Screw 8-18 x 3/8 Phil. Pan Hd., Type B ............................................................... AR
00-837501-00029 Cover – System (ML-132003) (ML-132006) .............................................................................1
00-837501-00246 Cover – System (ML-132004) (ML-132007) .............................................................................1
00-837501-00214 Cover – System (ML-132005) (ML-132008) .............................................................................1
00-837501-00224 Wire – Jumper (Elements) (ML-132004) (ML-132005) (ML-132007) (ML-132008) .................2
00-837501-00078 Lead Wire (Thermal Cut-Off) (ML-132003) (ML-132006) ......................................................... 1
00-283024 Clip – Wire ................................................................................................................................ AR
7
/8 Phil. Truss Hd., Type A ................................................................... 1
F-34490 (August 2001)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
21
20
24
22
23
1
5
2
3
4
10
6
7-8-9
PL-53589
F-34490 (August 2001)
19-18
17
11
12
13-14
15
16
FAN HOUSING UNIT
(FRONT)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
FAN HOUSING UNIT
(FRONT)
ILLUS. PART NO. NAME OF PART AM T. PL-53589
1 00-837501-00210 Cover – Crossover (Rear) (ML-132005) (ML-132008) ............................................................ 1
2 SD-039-17 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type F ............................................................. AR
3 SD-039-17 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type F ............................................................. AR
4 00-837501-00213 Cover – Fan Housing (ML-132005) (ML-132008) ..................................................................... 2
5 SD-012-38 Self-Tapping Screw 10-32 x 3/8 Hex Washer Hd., Type T ........................................................ 1
6 00-837501-00258 Orifice – Fan (10") (ML-132005) (ML-132008) ......................................................................... 1
7 SC-115-68 Mach. Screw 1/4-20 x 3/4 Hex Washer Hd. ................................................................................. 4
8 FE-025-52 Bushing – Electric Armor............................................................................................................ 4
9 00-263175 Well Nut ...................................................................................................................................... 4
10 00-837501-00259 Housing – Fan (Front Module) (ML-132005) (ML-132008) ....................................................... 1
11 SD-039-16 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type F ...............................................................6
12 SD-039-17 Self-Tapping Screw 10-24 x 1/2 Phil. Pan Hd., Type F ............................................................. AR
13 00-837501-00272 Mesh – Jacket Conduit ............................................................................................................... 2
14 FE-021-18 Strain – Relief (Electrical) ........................................................................................................... 1
15 00-837501-00256 Bracket – Fan (ML-132005) (ML-132008) ................................................................................. 1
16 00-283379 Self-Tapping Screw 8-36 x 7/16 Hex Washer Hd. ......................................................................3
17 00-837522-00026 Motor – Fan (35 W.) (ML-132005) (ML-132008) (Mounting hardware supplied with
18 00-263339 Nut – Hex 1/4-20 KEPS ................................................................................................................ 1
19 00-837522-00025 Blade – Fan (10") (ML-132005) (ML-132008) ...........................................................................1
20 WS-026-06 Washer (ML-132005) (ML-132008) .......................................................................................... 2
21 SD-039-16 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type F ...............................................................2
22 00-837501-00212 Strap – Mounting (ML-132005) (ML-132008) ............................................................................ 1
23 00-837501-00211 Face – Fan Housing (ML-132005) (ML-132008) .......................................................................1
24 00-837501-00206 Duct – Rear Carry Over (ML-132005) (ML-132008) ................................................................. 1
00-837501-00250 Fan Assy. (Incls. Items 5 thru 9 & 15 thru 18) (ML-132005) (ML-132008) .............................. 1
00-837501-00244 Housing – Fan (ML-132004) (ML-132007) ................................................................................ 1
motor) ................................................................................................................................... AR
F-34490 (August 2001)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
21
20
1
2
19
L1
L2
TB1
E
E
L2 L1
H1
H2
TB2
18
123456
J2
R
SSR
W
J4
J3
17
3
4-5
6
7
8
16
PL-53590
13
14
15
11
9
10
12
F-34490 (August 2001)
CONTROL BOX UNIT
- 10 -
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
CONTROL BOX UNIT
ILLUS. PART NO. NAME OF PART AM T. PL-53590
1 00-281969 Control Box (High Voltage) ........................................................................................................ 1
2 FE-022-84 Strain Relief 1/2 NPT ..................................................................................................................... 1
3 00-281911 Filter – Water Line ...................................................................................................................... 1
4 00-837501-00276 Mesh – Braided (Expandable) (ML-132003) (ML-132006) ....................................................... 1
5 00-837501-00271 Mesh – Braided (Expandable) (ML-132004) (ML-132005) (ML-132007) (ML-132008) ...........1
6 FP-087-77 Coupling – Reducing (1/4 to 1/8) ................................................................................................... 1
7 00-281913 Valve – Solenoid ........................................................................................................................ 1
8 FP-087-76 Pipe Union – 1/4 NPT .................................................................................................................... 1
9 00-837522-00018 Cable – Extension (ML-132005) (ML-132007) (ML-132008) .................................................... 1
10 00-282215-00002 Probe – Temperature/Humidity Control (ML-132003) (ML-132006) .......................................... 1
11 00-282216 Probe – Temperature/Humidity Control (ML-132004) (ML-132005) (ML-132007)
12 00-281970 Control Panel Assy. (ML-132003) (ML-132004) (ML-132005) .................................................. 1
13 00-281973 Cable – Control (9 Pin) (F/F) ...................................................................................................... 1
14 00-281973 Cable – Control (9 Pin) (F/F) ...................................................................................................... 1
15 FE-002-13 Connector Straight ..................................................................................................................... 1
16 FE-009-25 Fuse (0.5 Amp.).......................................................................................................................... 1
17 FE-019-28 Fuse (10 Amp.) (250 V.) ............................................................................................................ 1
18 00-837522-00034 Strain – Relief 3/8 to 1/2 ................................................................................................................ 1
19 00-281980 Board – Electronic ......................................................................................................................1
20 00-281979 Block – Terminal ..........................................................................................................................2
21 00-281974 Relay (with Heat Sink) ............................................................................................................... 1
(ML-132008) ...........................................................................................................................1
- 11 -
F-34490 (August 2001)
HPB/BAPB SERIES ROLL-IN PROOF BOXES REPLACEMENT PARTS
1-2
PL-53643
3 Thru 8
9 Thru 12
13-14-15
PANELS
ILLUS. PART NO. NAME OF PART AM T. PL-53643
1 00-837520-00030 Trim – End (Rear) (ML-132005) ................................................................................................. 2
2 00-837520-00033 Trim – End (Rear) (ML-132007) (ML-132008) ...........................................................................2
3 00-837520-00006 Trim – End Housing (ML-132006) .............................................................................................. 2
4 00-837520-00014 Trim – End (Housing) (ML-132003)............................................................................................ 2
5 00-837520-00015 Trim – End (Front) (ML-132003) ................................................................................................ 2
6 00-837520-00027 Trim – End (Front) (ML-132004) (ML-132005) .......................................................................... 2
7 00-837520-00031 Trim – End (Front) (ML-132004) (ML-132005) .......................................................................... 2
8 00-837520-00032 Trim – End (Front) (ML-132008) ................................................................................................ 2
9 00-837522-00001 Panel – Front Proofer Control (ML-132006) (ML-132007) (ML-132008) .................................. 1
10 00-837522-00002 Panel – Thaw Proofer Control (ML-132006) (ML-132007) (ML-132008) ................................. 1
11 00-837522-00003 Overlay – Proofer Control (ML-132006) (ML-132007) (ML-132008) ....................................... 1
12 00-837522-00004 Overlay – Thaw Proofer Control (ML-132006) (ML-132007) (ML-132008) ............................. 1
13 00-837520-00001 Panel – Front (ML-132007) (ML-132008) .................................................................................. 1
14 00-837520-00011 Panel – Front (ML-132006) ........................................................................................................ 1
15 00-837520-00028 Trim – Lower (ML-132004) (ML-132005) .................................................................................. 2
FORM 34490 AUGUST 2001 PRINTED IN U.S.A.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
