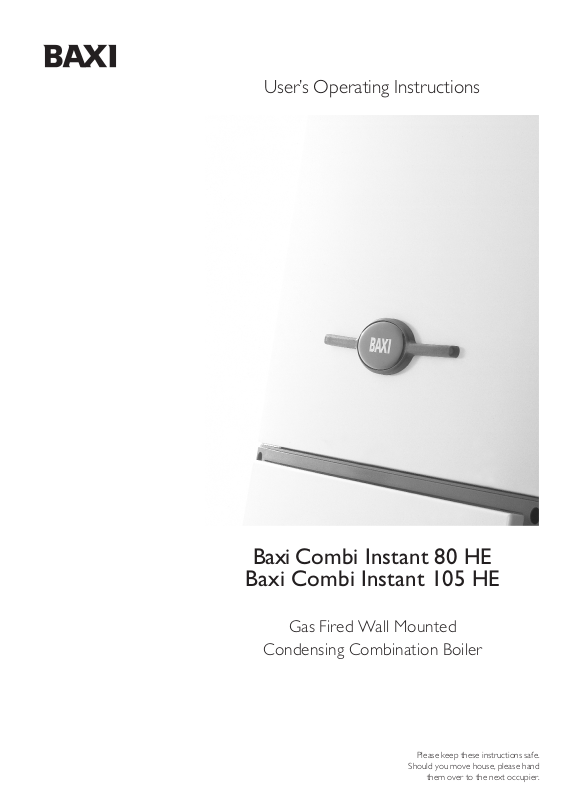

Baxi Potterton 105 HE, 80 HE User Manual

Baxi Combi Instant 80 HE

Baxi Combi Instant 105 HE

Gas Fired Wall Mounted

Condensing Combination Boiler

User’s Operating Instructions

Please keep these instructions safe.

Should you move house, please hand

them over to the next occupier.

2

Baxi is one of the leading manufacturers of domestic heating

products in the UK.

Our first priority is to give a high quality service to our

customers. Quality is designed into every Baxi product -

products which fulfil the demands and needs of customers,

offering choice, efficiency and reliability.

To keep ahead of changing trends, we have made a

commitment to develop new ideas using the

latest technology - with the aim of continuing to

make the products that customers want to buy.

Everyone who works at Baxi has a commitment to quality

because we know that satisfied customers mean continued

success.

We hope you get a satisfactory service from Baxi. If not,

please let us know.

Natural Gas

Baxi Combi Instant 80 HE

G.C.No47 075 17

Baxi Combi Instant 105 HE

G.C.No47 075 19

The boiler meets the requirements of Statutory Instrument “ The

Boiler (Efficiency) Regulations 1993 N

o

3083” and is deemed to

meet the requirements of Directive 92/42/EEC on the energy

efficiency requirements for new hot water boilers fired with liquid

or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0051.

Product/Production certified by:

Notified Body 0086.

For GB/IE only.

Baxi is a BS-EN ISO 9001

Accredited Company

Where fitted, user label for

optional timer to be applied here

This product has an energy rating (B) on a scale of A to G.

For more information see www.boilers.org.uk. This is a certification mark.

Legislation

3

Codes of Practice, most recent version should be used

IMPORTANT - Installation, Commissioning, Service & Repair

This appliance must be installed in accordance with the manufacturer’s instructions and

the regulations in force. Read the instructions fully before installing or using the

appliance.

In GB, this must be carried out by a competent person as stated in the Gas Safety

(Installation & Use) Regulations.

Definition of competence: A person who works for a CORGI registered company and

holding current certificates in the relevant ACS modules, is deemed competent.

In IE, this must be carried out by a competent person as stated in I.S. 813 “Domestic

Gas Installations”.

Lifting - This product should be lifted and handled by two people. Stooping should be

avoided and protective equipment worn where necessary. Carrying & lifting equipment

should be used as required, e.g. when installing in a loft space.

The addition of anything that may interfere with the normal operation of the appliance

without express written permission from the manufacturer or his agent could invalidate

the appliance warranty. In GB this could also infringe the Gas Safety (Installation and

Use) Regulations.

Warning - Check the information on the data plate is compatible with local supply

conditions.

Benchmark Commissioning Checklist

Please ensure that your installer hands you the boiler Installation & Servicing Instructions

with the Benchmark Commissioning Checklist sections completed. The details in the

Checklist will be required in the event of any warranty work. Keep the instructions in a

safe place and ensure that the Service Interval Record at the back is completed at each

service visit.

All CORGI registered installers carry a CORGI identification card and have a

registration number. You can check your installer is registered by telephoning

0870 4012300 or writing to:-

1 Elmwood,

Chineham Business Park,

Crockford Lane,

Basingstoke. RG24 8WG

or check online at www.corgi-gas-safety.com

Baxi declare that no substances harmful to health are
contained in the appliance or used during appliance
manufacture.

The appliance is suitable only for installation in GB and IE and
should be installed in accordance with the rules in force, and
only used in a suitably ventilated location.

In GB, the installation must be carried out by a CORGI
Registered Installer. It must be carried out in accordance with
the relevant requirements of the:

• Gas Safety (Installation & Use) Regulations.

• The appropriate Building Regulations either The
Building Regulations, The Building Regulations
(Scotland), Building Regulations (Northern Ireland).

• The Water Fittings Regulations or Water Byelaws in
Scotland.

• The Current I.E.E. Wiring Regulations.

Where no specific instructions are given, reference should be
made to the relevant British Standard Code of Practice.

In IE, the installation must be carried out by a competent Person
and installed in accordance with the current edition of I.S. 813
‘Domestic Gas Installations’, the current Building Regulations and
reference should be made to the current ETCI rules for
electrical installation.

All systems must be thoroughly flushed and treated with
inhibitor.

In GB the following Codes of Practice apply:
Standard Scope

BS 6891 Gas Installation.
BS 5546 Installation of hot water supplies for

domestic purposes.
BS 5449 Forced circulation hot water systems.
BS 6798 Installation of gas fired hot water boilers.
BS 5440 Part 1 Flues.
BS 5440 Part 2 Ventilation.
BS 7074 Expansion vessels and ancillary equipment

for sealed water systems.
BS 7593 Treatment of water in domestic hot water

central heating systems.

In IE the following Codes of Practice apply:
Standard Scope

I.S. 813 Domestic Gas Installations.
The following BS standards give valuable additional information;
BS 5546 Installation of hot water supplies for

domestic purposes.
BS 5449 Forced circulation hot water systems.
BS 7074 Expansion vessels and ancillary equipment

for sealed water systems.
BS 7593 Treatment of water in domestic hot water

central heating systems.

1.0 Warnings

4

1.1 In an Emergency

If a water or gas leak occurs or is suspected, the boiler

can be isolated at the inlet valves as follows;

1. Turn off the electrical supply and turn the selector

switch on the facia box to the OFF position.

2. Using a suitable open ended spanner or screwdriver

turn the square on the gas tap to the left to isolate the

gas supply at the boiler (Fig. 1).

3. The isolating valves are positioned under the boiler

and can be closed by turning their taps to the right

towards the wall (Fig. 2).

4. Call your Installer or Service Engineer as soon as

possible.

1.2 In case of gas leaks

1. If a gas leak is found or suspected, turn off the gas

supply at the meter immediately and at the isolating

valve on the boiler if possible. Contact your Gas Supplier

immediately.

1.3 Servicing your Appliance

1. For reasons of safety and economy your appliance

should be serviced annually. Servicing must be

performed by a competent person. Your Installer or

Service Engineer will be able to advise you.

2. Any purpose provided ventilation should be checked

periodically to ensure that it is free from obstruction.

1.4 Electricity Supply

1. THIS APPLIANCE MUST BE EARTHED.

2. A standard 230V ~ 50Hz supply is required. The

appliance must be protected by a 3 amp fuse.

Never Hang Flammable Items Over The Appliance

Gas Tap

Heating Flow, Heating Return and

Mains Water Inlet

Isolating Valves

Fig. 1

Fig. 2
