Baxi boilers Range Guide RANGE GUIDE

Baxi range guide

1

A brand you can trust

Baxi is proud to have been manufacturing in the UK since 1866. We are passionate
about delivering reliable products and responsive services for our customers.

Sustainability is embedded in all we do, and we are committed to being a cleaner,
greener manufacturing business. We support our customers by oering them
clever heating solutions that keep their homes and businesses warm without
warming the planet.

A BRIEF HISTORY OF BAXI

Baxi has been manufacturing in the UK for over 150 years. It has a heritage of providing cutting edge
heating products for homes and is the best known boiler manufacturer amongst homeowners.

1866

Iron moulder Richard Baxendale opens
the doors of his new company

1935

An underfloor draught system for solid fuel heating
is launched – the first product to bear the Baxi name

1955

Philip Baxendale, Richard’s great grandson, becomes
General manager as Baxi becomes a household name

1963

Baxi develops a warm-air central
heating technology, fuelled by gas

†

We are committed to making your experience with
Baxi as easy aspossible.

Reliability

Every Baxi boiler we make has to pass a full function test using gas, water and
electricity, before it leaves the production line. If it doesn’t pass with 100%, it
doesn’t leave the factory.

Warranty

We are so confident in the reliability of our boilers that we provide free of
charge parts and labour warranties

*

up to 10 years. This provides peace of mind
for both you and your customers. Our warranty terms and conditions are easy
to understand and have been approved by the Plain English Campaign.

Eciency

Baxi boilers are ErP A-rated for both hot water and heating eciency and
meet or exceed the requirements of the Building Regulations. This means your
customers know they will be able to save money and energy.

Support

1966

Baxi launches the Baxi

Bermuda gas-fired back boiler

1989

The Baxi Solo – a low weight

cast iron boiler – is launched

2001

The Baxi 105E becomes the

UK’s bestselling boiler

Baxi Ecogen, the UK’s first domestic wall hung micro-CHP

appliance, wins the Queen’s Award for Enterprise in Innovation

2019

Baxi presents the complete line-up – Baxi 200, 400, 600, 800

boilers, all certified to work with 20% hydrogen gas blend

† According to independent research.

1983

Baxi is sold to its workforce and becomes the
UK’s largest employee partnership of its kind

2012

2020

Baxi Assure air source heat

pumps launched

2009

Baxi Heating UK merges with De Dietrich
and Remeha to form BDR Thermea Group

2021

First Baxi Hydrogen boiler

developed and in trial

2006

The award-winning Baxi
Duo-tec is launched

2016

Baxi celebrates its
150th anniversary

We are there for you when you need us. Our technical helpline advisers have
many years’ experience and will talk you through, step by step, if you need help
while installing or maintaining a boiler. And we have a nationwide network of
Gas Safe registered engineers, fully trained on our products, if you need them,
even for same or next day visits

**

Call Baxi Customer Support: 0344 871 1525

Easy to install

Our boilers come with a wall bracket and are simple to commission saving you
time. Our combi boilers are compatible with the simple to fit Baxi IFOS (In flue
outdoor sensor), making it easy for you to comply with Boiler Plus.

* Subject to registration within 30 days of installation and an annual service. Terms and conditions apply. Visit warranty.baxi.co.uk
** For members of Baxi Works, depending on membership level.

32

THE

COMPLETE

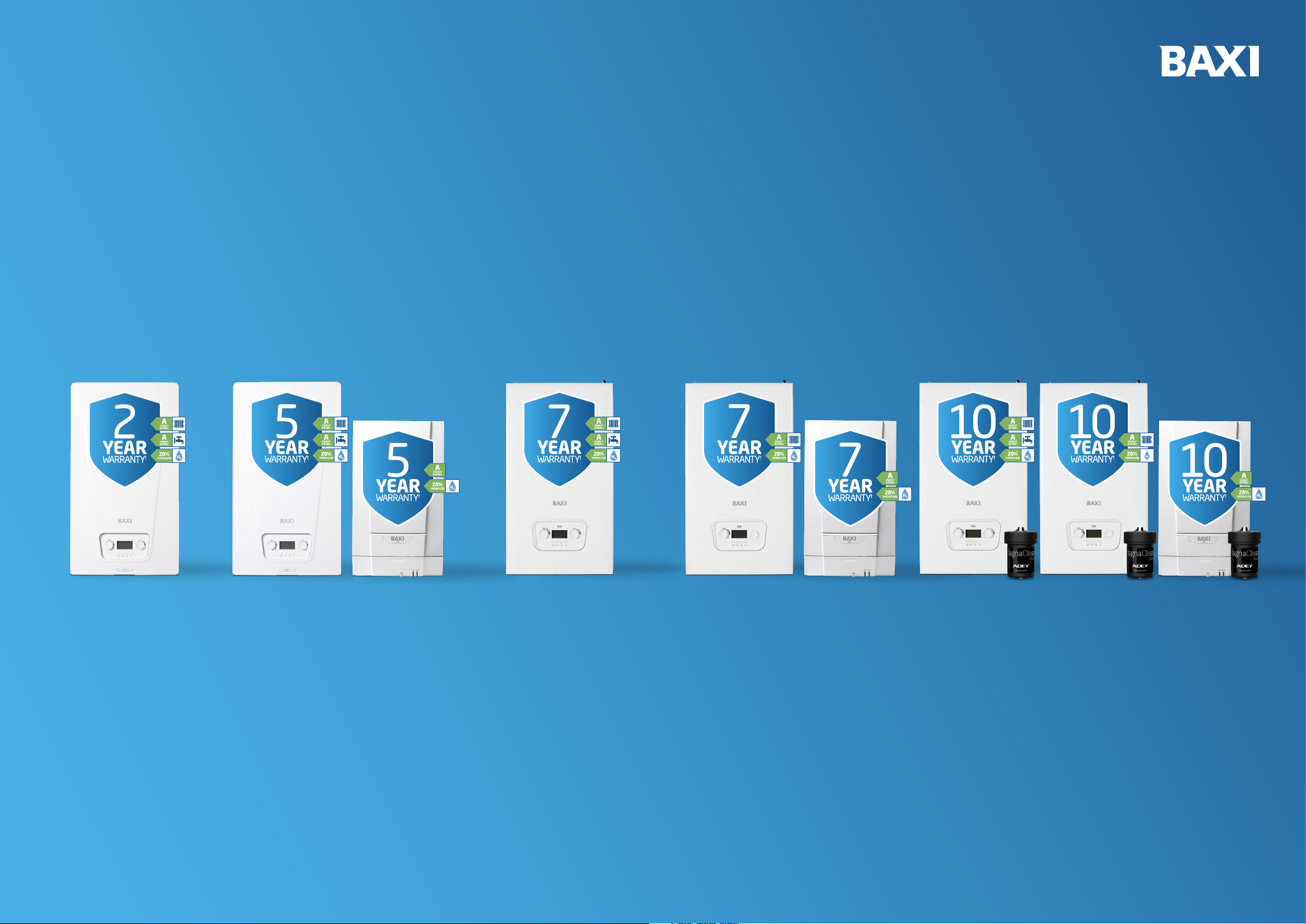

Baxi presents to you the complete line up.

BAXI 200

COMBI 2

L INE - U P.

BAXI 400

COMBI 2 & HEAT

BAXI 600

COMBI 2

A product solution for every customer.

BAXI 600

SYSTEM 2 & HEAT

COMBI 2, SYSTEM 2 & HEAT

BAXI 800

BAXI 200 COMBI 2

Outputs 24 and 28kW

Dedicated 24kW LPG model

Compatible with internal fit
telescopic flue

Certified OpenTherm

Compatible with Baxi
uSense 2

Baxi Range Guide4 5

BAXI 400 COMBI 2

Outputs 24 and 30kW

Dedicated 24 & 30kW LPG
models

Compatible with internal fit
telescopic flue

Certified OpenTherm

Compatible with Baxi
uSense 2

BAXI 400 HEAT

Outputs 15, 18, 24kW

Compact cupboard fit

No pump overrun
or permanent live
required

Central top flue or
incase rear flue option

Extremely quiet in
operation

BAXI 600 COMBI 2

Outputs 24, 30 and 36kW

Natural gas or LPG

Preheated and siphonic
condensate trap

Certified OpenTherm

Compatible with internal fit
telescopic flue

Compatible with Baxi
uSense 2

BAXI 600 SYSTEM 2

Outputs 15, 18 and 24kW

Natural gas or LPG

Preheated and siphonic
condensate trap

Certified OpenTherm

Compatible with internal
fit telescopic flue

BAXI 600 HEAT

Outputs 13, 16, 19, 25kW

Compact cupboard fit

No pump overrun or
permanent live required

Central top flue or
incase rear flue option

Extremely quiet in
operation

BAXI 800 COMBI 2

Outputs 24, 30 and 36kW

Natural gas or LPG

Preheated and siphonic
condensate trap

Certified OpenTherm

Compatible with internal
fit telescopic flue

Compatible with Baxi
uSense 2

BAXI 800 SYSTEM 2

Outputs 18, 24 and 30kW

Natural gas or LPG

Preheated and siphonic
condensate trap

Certified OpenTherm

Compatible with internal
fit telescopic flue

BAXI 800 HEAT

Outputs 16, 25 and 30kW

Compact cupboard fit

No pump overrun or
permanent live required

Central top flue or
incase rear flue option

Extremely quiet in
operation

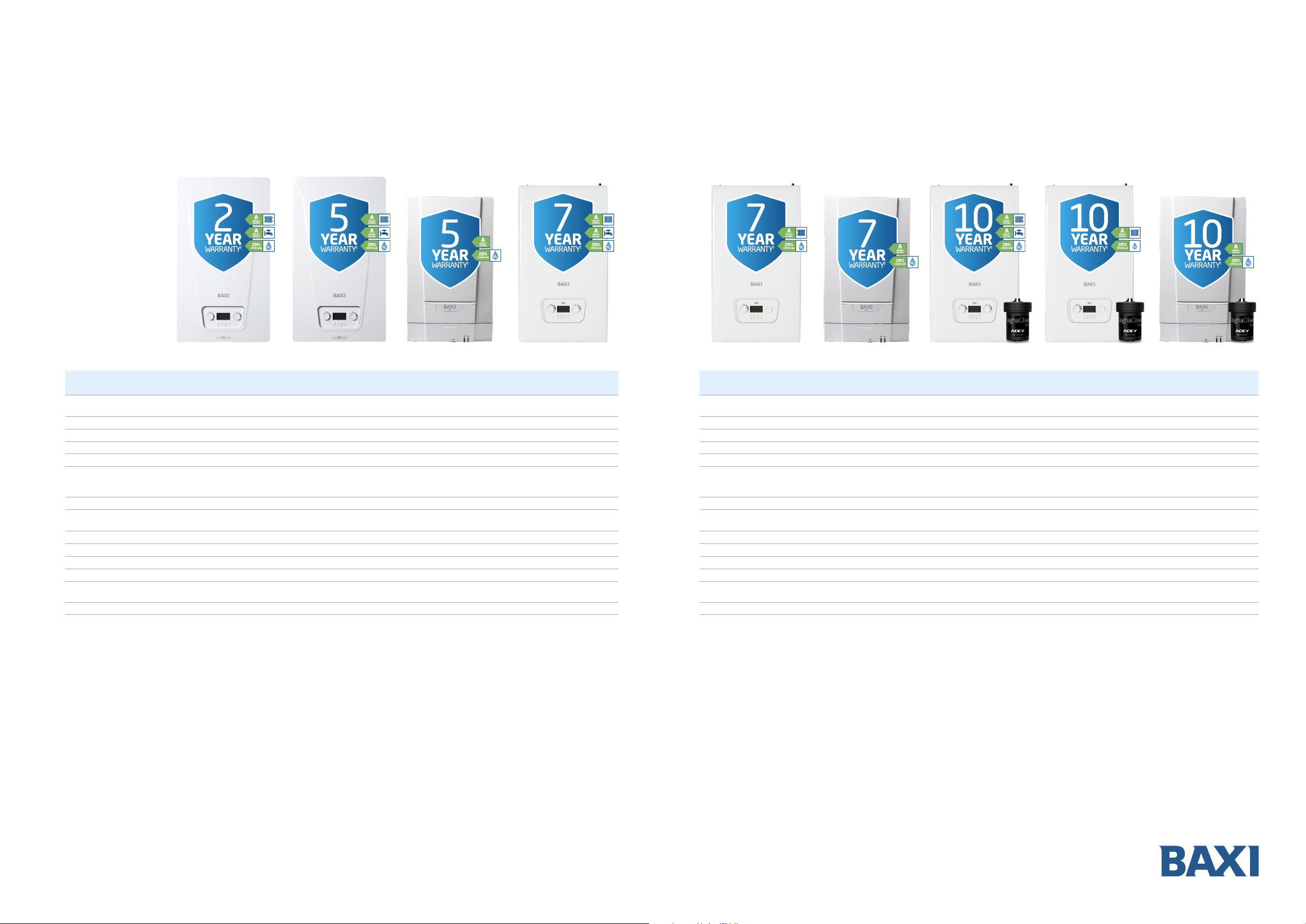

Boiler specification matrix

Baxi 200 Combi 2 Baxi 400 Combi 2 Baxi 400 Heat Baxi 600 Combi 2 Baxi 600 System 2 Baxi 600 Heat Baxi 800 Combi 2 Baxi 800 System 2 Baxi 800 Heat

Outputs kW 24, 28,

Flow rate (@35°C rise) 9.8, 11.5 9.8, 11.9 n/a 10.2, 12.2, 15 n/a n/a 10.2, 12.2, 15 n/a n/a

Installer lift weight kg 26.5 to 27.5 28 to 29 17. 4 28 to 30 28 to 30 17.4 to 19.5 28 to 30 29 to 30 17.4 to 19.5

Heat exchanger Stainless steel Stainless steel Aluminium Stainless steel Stainless steel Aluminium Stainless steel Stainless steel Aluminium

Hydraulics Composite Brass n/a Brass n/a n/a Brass n/a n/a

Cupboard fit

Filling device Optional Temporary filling link Optional flexible link Easy-Fill permanent filling link Optional flexible link Optional flexible link Easy-Fill permanent filling link Optional flexible link Optional flexible link

Flue position Top cen tr al Top cen tr al Top central and in-case

Warranty (parts & labour) 2 Yea rs 5 Yea rs 5 years 7 Yea rs 7 Yea rs 7 years 10 Yea rs 10 years 10 years

Mounting Hanging bracket Hanging bracket Hanging bracket Hanging bracket Hanging bracket Hanging bracket Hanging bracket Hanging bracket Hanging bracket

Expansion vessel size 7 Litres 7 Litres n/a 7 Litres 7 Litres n/a 7 Litres 7 litres n/a

Boiler temperature controls CH & DHW potentiometer CH & DHW potentiometer CH Dial CH & DHW potentiometer CH potentiometer CH dial CH & DHW potentiometer CH potentiometer CH dial

uSense compatible

Sound power levels DBA 48 48 39 - 45 50 - 51 47 - 52 37 - 49 50 - 51 49 - 53 39 - 45

24L PG

3

(fits in a 290mm deep

cupboard)

3 3 ✗ 3 ✗ ✗ 3 ✗ ✗

24, 30,

24LPG, 30LPG

3

(fits in a 290mm deep

cupboard)

15, 18, 24 24, 30, 36 15, 18, 24 13, 16, 19, 25, 30 25, 30, 36 18, 24, 30 16, 25, 30

(fits in a 290mm deep

3

cupboard)

rear flue

(fits in a 290mm deep

3

(fits in a 290mm deep

cupboard)

Top cen tr al Top cen tr al Top central and in-case

3

cupboard)

(fits in a 290mm deep

3

cupboard)

rear flue

(fits in a 290mm deep

cupboard)

Top cen tr al Top cen tr al Top central and in-case

(fits in a 290mm deep

3

3

(fits in a 290mm deep

cupboard)

3

cupboard)

rear flue

6 Baxi Range Guide 7

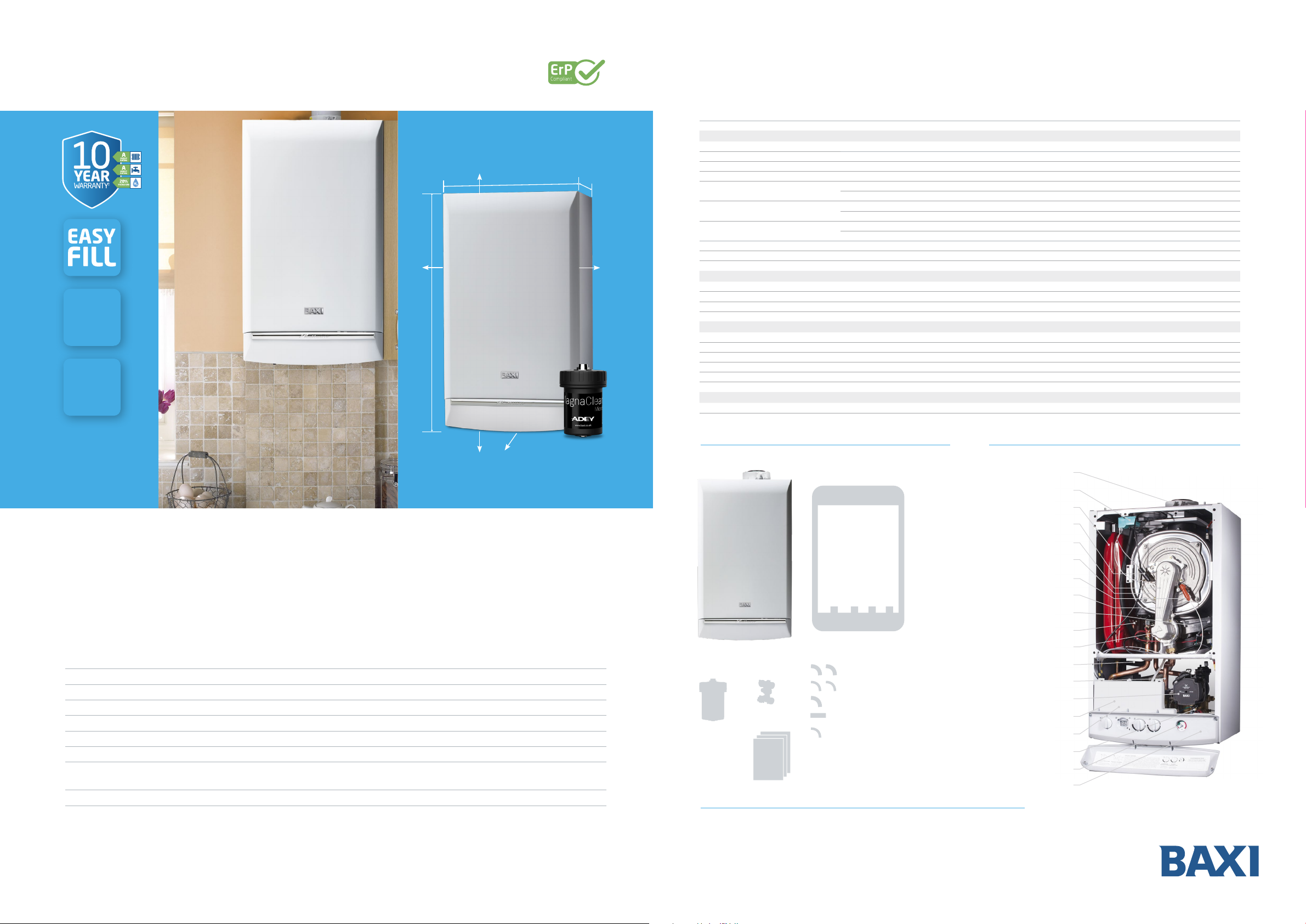

Baxi Platinum+ CombiBaxi Platinum+ Combi

BRASS

HYDRAULICS

EXTENSIVE

FLUE

OPTIONS

E

A

C

D D

B

Sales code (boiler only) 7731616

Platinum+ 40

Gas

Natural gas
Propane LPG N/A

Inlet supply pressure mbar (nominal) 20
Maximum Gas Rate (G20) Qmax m3/hr 4.36
Heat input CH kW (max) G ross (QnHs) 36.4

kW (min) Gro ss (QnHs) 11

Heat output CH (non-condensing) kW (Ma x) (Pn) 32

kW (Mi n) (Pn) 9.6

Heat output CH (condensing) kW (Max) (Pn c) 34.4

kW (Min) ( Pnc) 12.1
Heat input domestic hot water (DHW) kW max gr oss (QnwHs) 45.7
Heat output domestic hot water (DHW) kW max 40
Water heating eciency class A

Electrical

Permanent live required
External fuse rating Amps 3
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow r ate (Delta T @ 35º C rise) l/min 16.4
Minimum DHW flow rate required l/min 2
Minimum operating DHW pressure required bar 0.5
Integral expansion vessel Size (litres) 10
Maximum capacity of CH system Litres 125
Integral automatic bypass

Weights

Installer lift weight (boiler) (kg) 42.2

3

3

3

3

3

F G

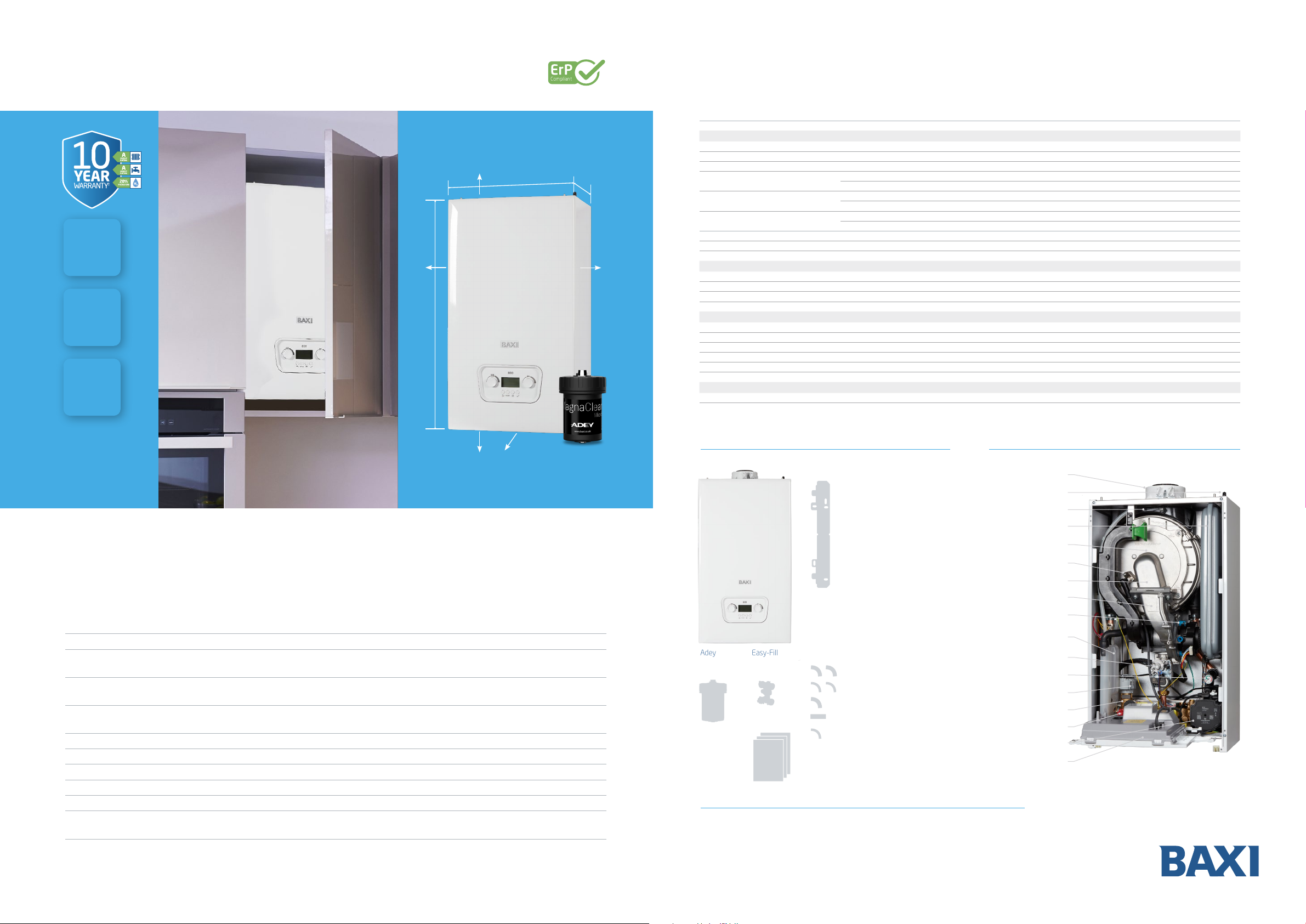

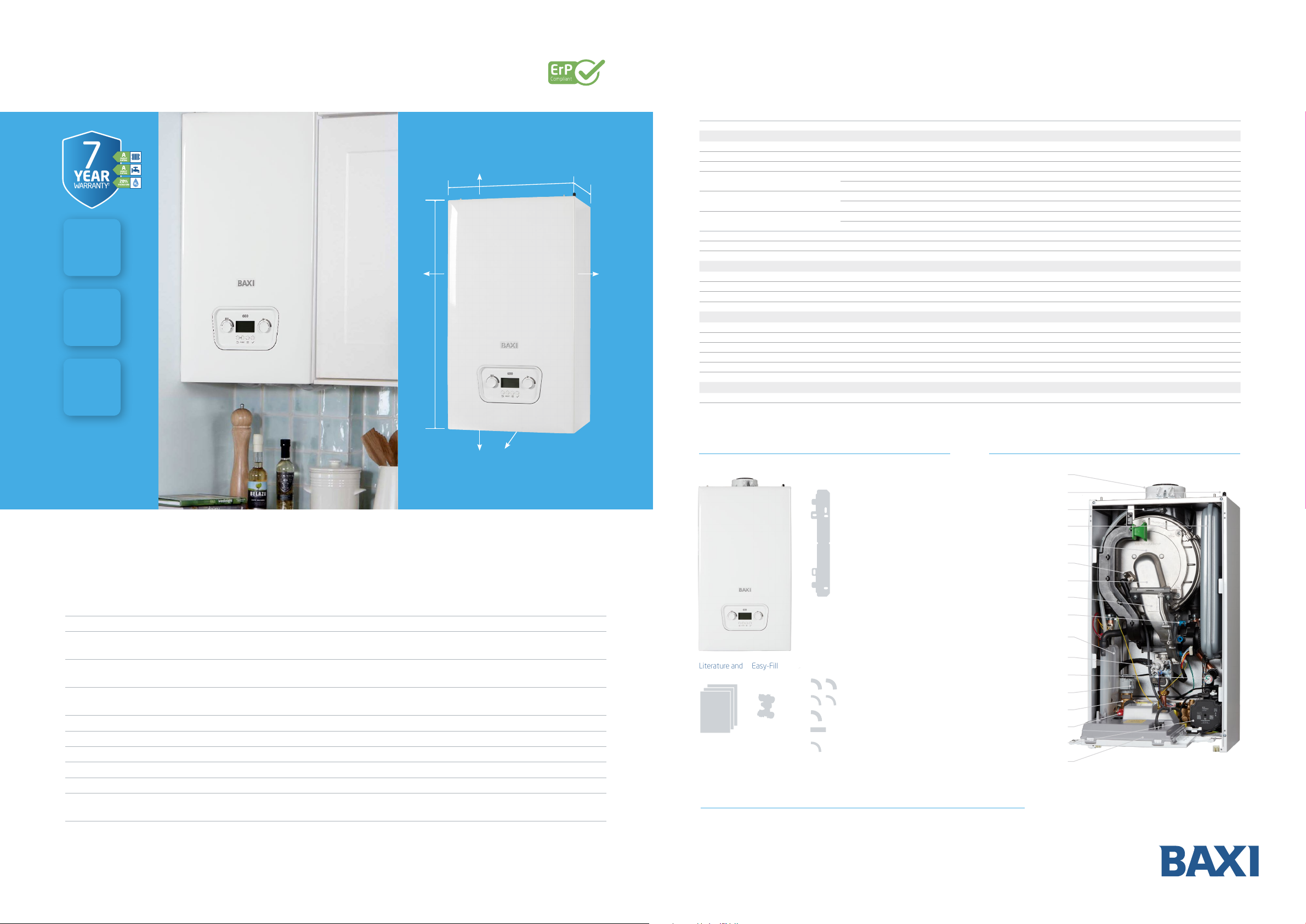

The Baxi Platinum+ Combi has a 10 year parts and labour warranty† and includes a compact Adey
MagnaClean Micro2 system filter to protect the boiler and heating system. It has been designed to
give premium hot water performance and it delivers a flow rate of up to 16.4 litres per minute. The
boiler contains brass hydraulics and a stainless steel heat exchanger.

Feature Benefit

Output 40kW Exceptional hot water flow rate and suitable for homes with higher hot water requirements

Easy-Fill 2 permanent filling link Enables simple homeowner self-top up of system pressure preventing engineer call outs

Compatible with Baxi IFOS (In Flue Outdoor Sensor) Flexibility to help meet boiler+ compliance

Optional stand o frame Flexibility for hidden and neat pipework

Built in frost thermostat Suitable for siting in garages and lofts

Front access to all components Easy to service and maintain

Compatible with Baxi uSense 2 smart room
thermostat*

Optional stand-o frame For neater installations with hidden rear pipework

Enables control of heating shedules remotely via the My Baxi APP

What’s in the box?

Baxi Platinum+ Combi boiler

Easy-Fill
MagnaClean
Micro2

Dimensions

permanent

filling link

Literature and

fittings pack

Service clearances

Pre-plumbing jig

Copper pipe tailsAdey

CH 22mm

Cold water inlet / DHW outlet 15mm

Gas 22mm

Condense

Safety discharge
15mm

What’s inside?

Flue connection

Igniter

Expansion vessel

Spark electrode

Combustion box cover and burner

Stainless steel heat exchanger

Flame sensing electrode

Air/gas collector

Fan assembly

Pressure switch

Venturi

Condensate trap (behind)

Gas valve

Pump

PCB housing

Diverter valve (behind)

Pressure relief valve

Pressure gauge

Optional integral timer

D side 5mm*
E upper 175mm (300mm if using 80 /125 flueing system)
F lower 150mm*
G front 5mm*

†

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k
* Additi onal power adaptor and gateway accessory kit 7822453 is required to be fitted

A width 450mm
B height 780mm
C depth 345mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

8 Baxi Range Guide 9

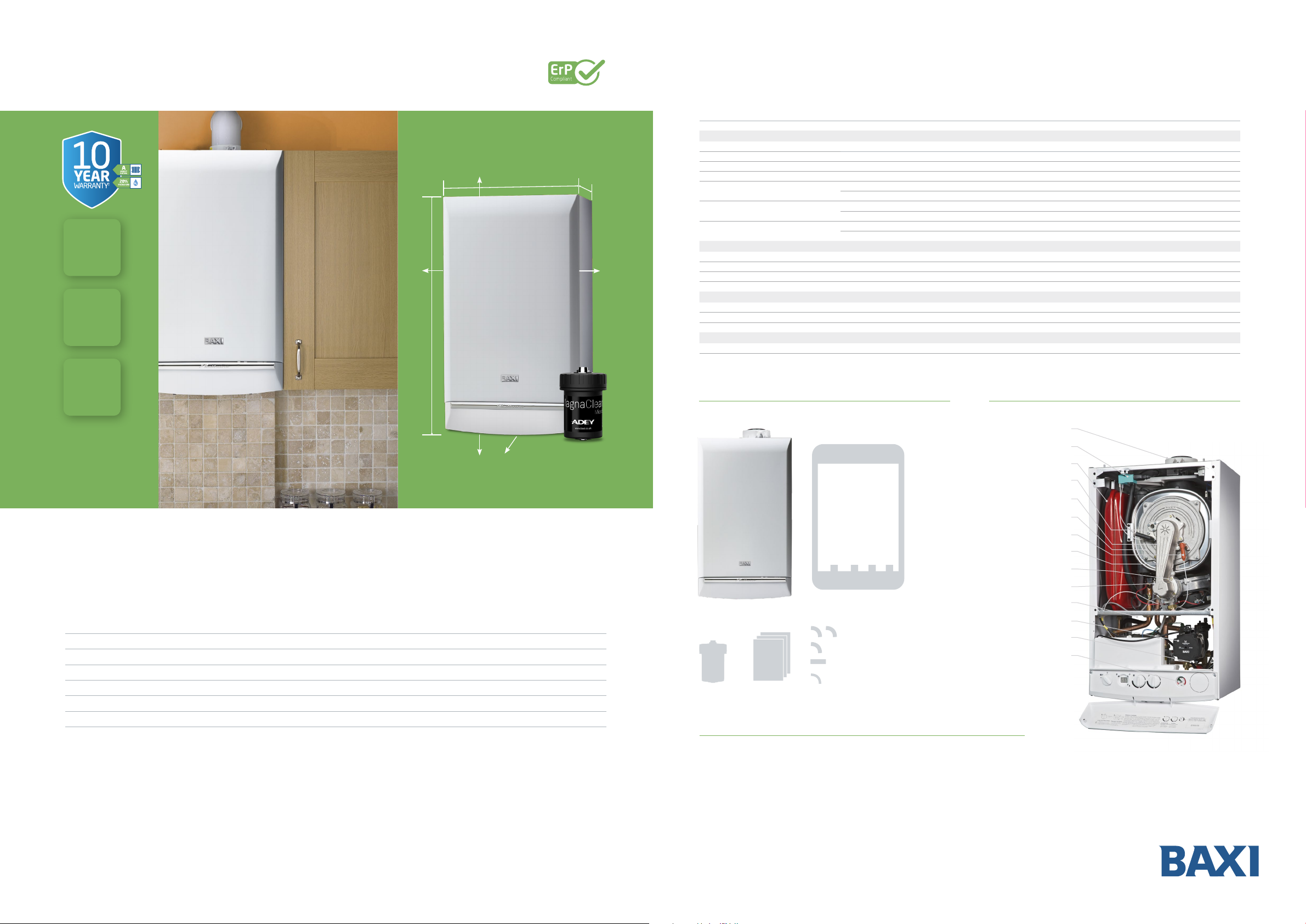

Baxi Platinum+ SystemBaxi Platinum+ System

E

A

C

HIGH

FLOW

RATE

EXTENSIVE

FLUE

OPTIONS

D D

B

ADEY

MICRO2

MAGNETIC

FILTER

F G

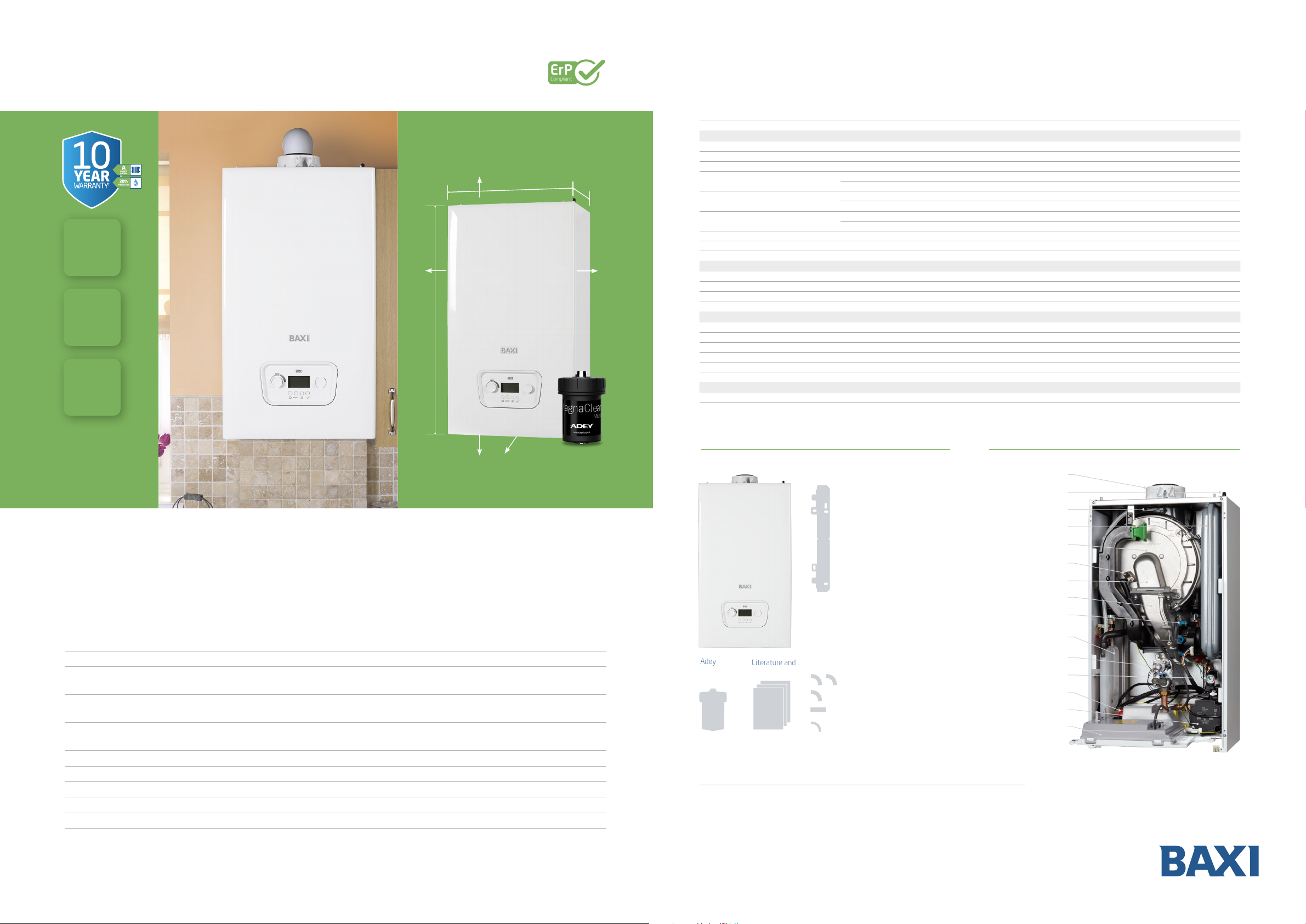

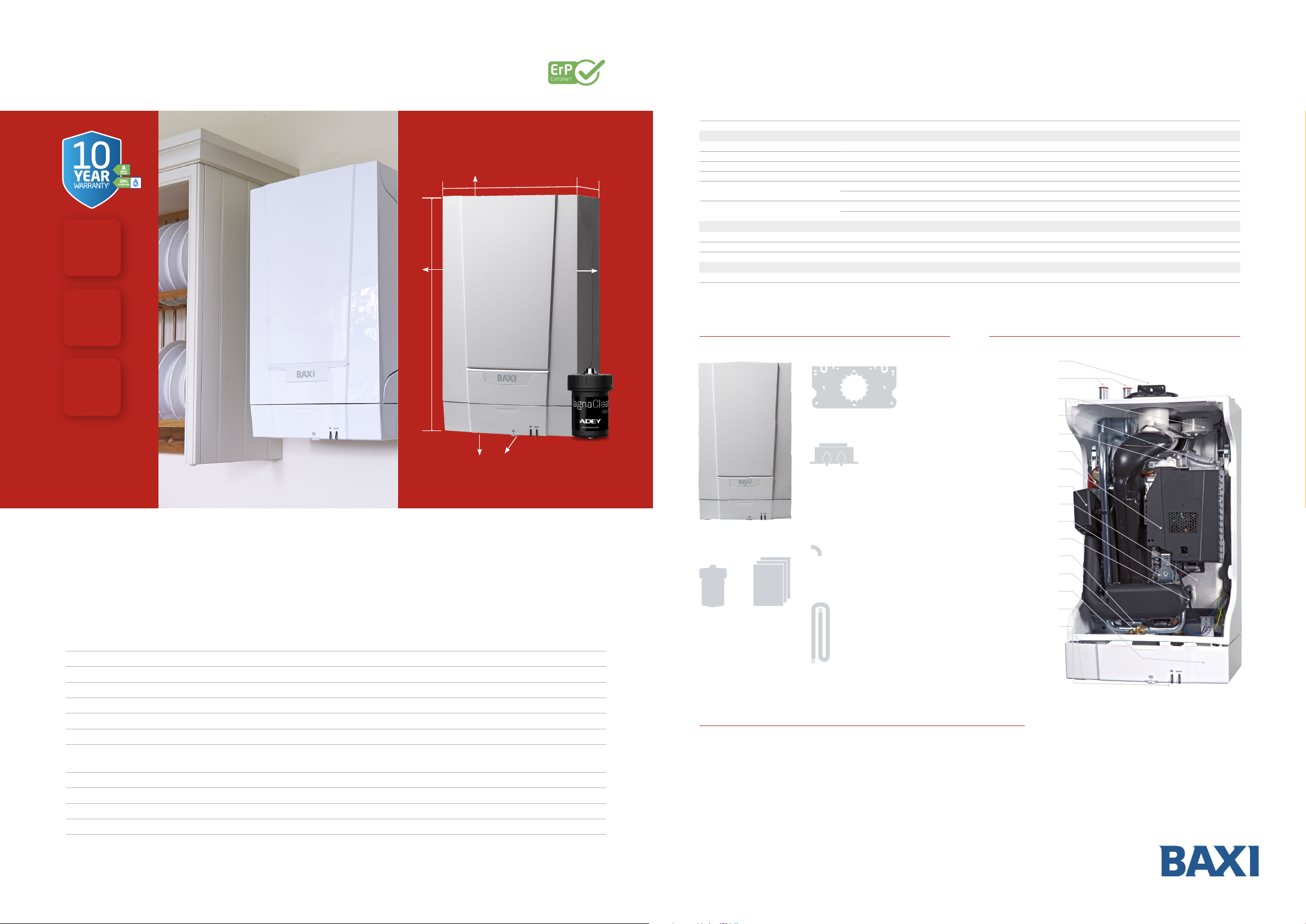

The Baxi Platinum+ System has a 10 year parts and labour warranty† and includes a compact
Adey MagnaClean Micro2 system filter to protect the boiler and heating system. It is the perfect
choice for homes with a high demand for heating and hot water.

Feature Benefit

Output 32kW Exceptional hot water flow rate and suitable for homes with higher hot water requirements

Built-in frost thermostat Suitable for siting in garages and lofts

Front access to all components

Compatible with Baxi IFOS (In Flue Outdoor Sensor)

Optional stand-o frame Flexibility for hidden and neat pipework

Compatible with Megaflo & Baxi cylinders For industry-leading hot water performances

Easy to service and maintain

Flexibility to help meet boiler+ compliance

Sales code (boiler only) 7753173

Gas

Natural gas
Propane LPG N/A

Inlet supply pressure mbar (nominal) 20
Maximum Gas Rate (G20) Qmax m3/hr 3.48
Heat input CH kW (max) G ross (QnHs) 36.4

kW (min) Gro ss (QnHs) 10.8

Heat output CH (non-condensing) kW (Ma x) (Pn) 32

kW (Mi n) (Pn) 9.4

Heat output CH (condensing) kW (Max) (Pn c) 34.4

kW (Min) ( Pnc) 10.2

Electrical

Permanent live required
External fuse rating Amps 3
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Integral expansion vessel Size (litres) 10
Maximum capacity of CH system Litres 125
Integral automatic bypass

Weights

Installer lift weight (boiler) (kg) 38.4

Platinum+ 32

What’s inside?What’s in the box?

Baxi Platinum+ System boiler

Adey
MagnaClean
Micro2

Literature and

fittings pack

Dimensions

Pre-plumbing jig

Copper pipe tails

CH 22mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

Flue connection

Igniter

Expansion vessel

Spark electrode

Combustion box cover and burner

Stainless steel heat exchanger

Flame sensing electrode

Air/gas collector

Fan assembly

Venturi

Condensate trap (behind)

Pump

Pressure relief valve

Pressure gauge

3

3

3

3

3

A width 450mm
B height 780mm
C depth 345mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

D side 5mm*
E u pper 175mm (30 0mm if using 80/ 125 flueing sys tem)
F lower 150mm*
G front 5mm*†

10 Baxi Range Guide 11

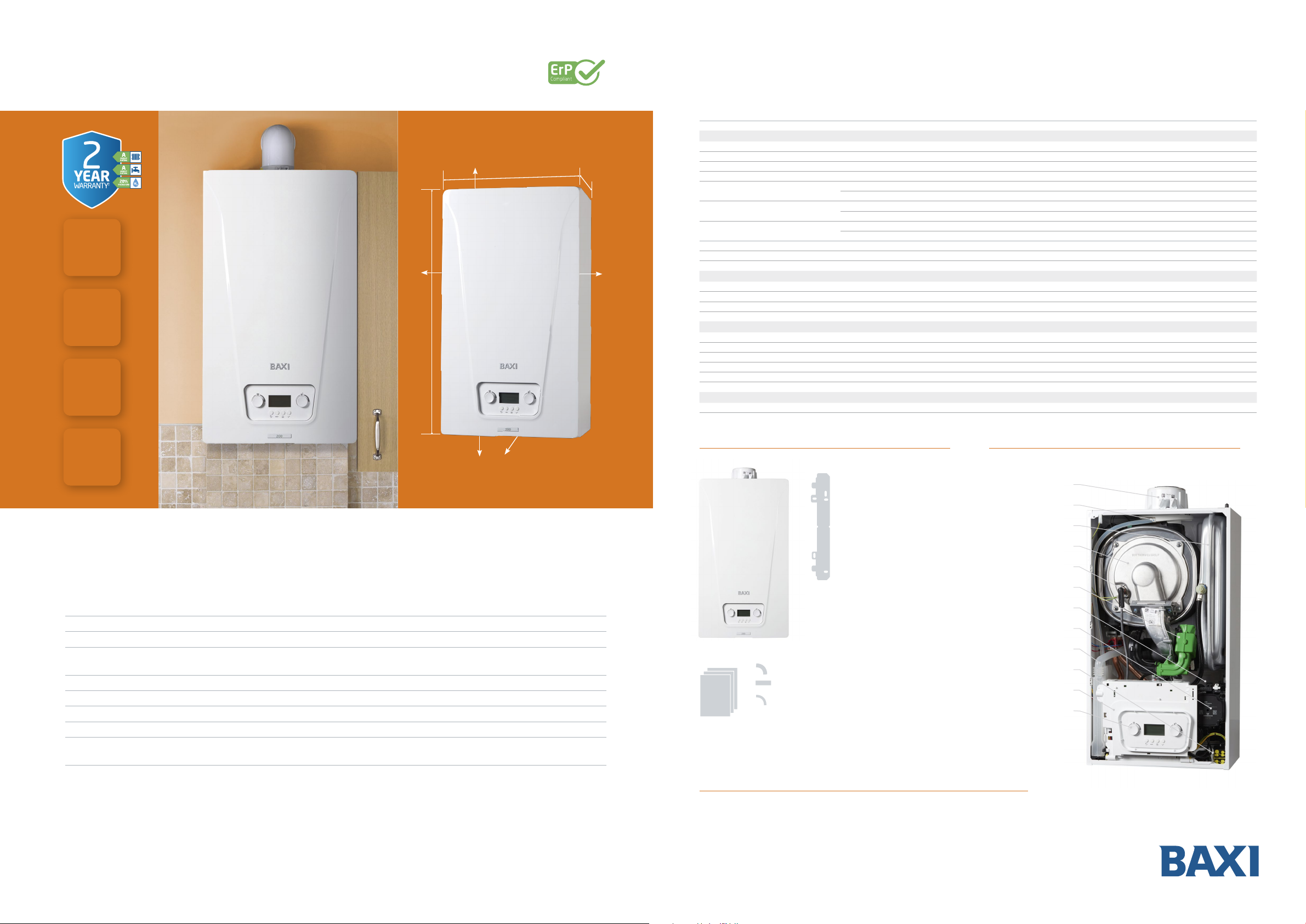

Baxi 800 Combi 2 Baxi 800 Combi 2

LPG

READY

PRE-HEATED &

SIPHONIC

CONDENSATE

TRAP

CERTIFIED

OPEN

THERM

E

A

D D

B

C

Sales code (boiler only) 78143 04 7 81430 5 7 81430 6

Gas

Natur al gas or LP G
Inlet supply pressure (natural gas) mbar (nominal) 20 20 20
Maximum Gas Rate (G20) Qmax m3/hr 2.61 3.26 3.9
Heat input CH kW (max) G ross (QnHs) 20.6 25.7 25.7

kW (min) Gro ss (QnHs) 4.9 6 7.2

Heat output CH (non-condensing) kW (Ma x) (Pn) 20 25 25

kW (Mi n) (Pn) 4.8 5.8 7.2

Heat output CH (condensing) kW (Max) (Pn c) 21.8 2 7.1 27. 1

kW (Min) ( Pnc) 5.2 6.3 7.6
Heat input domestic hot water (DHW) kW max gr oss (QnwHs) 27. 4 30.9 36.9
Heat output domestic hot water (DHW) kW max 24 30 36
Water heating eciency class A A A

Electrical

Permanent live required
External fuse rating (on connection board) Amps F0.5A L 250VP F0.5A L25 0VP F0.5A L250V P
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow r ate (Delta T @ 35º C rise) l/min 10.2 12.2 15
Minimum DHW flow rate required l/min 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7
Maximum capacity of CH system Litres 100 100 100
Integral automatic bypass

Weights

Installer lift weight (boiler) (kg) 28 29 30

824 Combi 2 830 Combi 2 836 Combi 2

3 3 3

3 3 3

3 3 3

3 3 3

3 3 3

F G

The Baxi 800 Combi 2 has a 10 year parts and labour warranty† and includes a compact Adey
MagnaClean Micro2 system filter to protect the boiler and heating system. The boiler is lightweight,
small enough to fit into a 290mm deep cupboard, has a built in pipes behind facility within the boiler
casing, brass hydraulics and a stainless steel heat exchanger.

Feature Benefit

Outputs 24kW, 30kW, 36kW To meet dierent end user hot water requirements (up to 15 litres per minute)

Natural Gas or LPG conversion All models can be manually converted between natural gas or LPG without the need to

purchase an accessory kit

Preheated siphonic condensate trap Prevents freezing and engineer call outs as the trap dissipates preheated condensate

all in one go

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity

of the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help meet Boiler+

Easy-Fill 2 permanent filling link Enables simple homeowner self-top up of system pressure preventing engineer call outs

Positive fit PrV connection pipe Saves time on installation and can be fitted first or last in the pipework installation sequence

Compatible with internal fit telescopic flue For a safer, quicker and cheaper one person fit installation from inside the property

Compatible with Baxi uSense 2 smart room
thermostat

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

Meets Boiler+ when fitted to this boiler and enables control of heating schedules remotely via
the My Baxi APP

What’s inside?What’s in the box?

Baxi 800 Combi 2 boiler

Adey
MagnaClean
Micro2

Easy-Fill
permanent
filling link

Literature and
fittings pack

Dimensions

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

Wall hanging bracket

Copper pipe tails

CH 22mm

Cold water inlet / DHW outlet 15mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

D side 2.5mm*
E upper 178mm*
F lower 150mm*
G front 5mm*†

Flue adaptor

Expansion vessel test point

Built-in drip tray

7 litre expansion vessel

Stainless steel heat exchanger

Spark electrode

Air/gas collector

Fan assembly

Pre-heated & siphonic

Condensate trap

Internal manometer

Diverter valve

Brass hydraulic

Pressure relief valve

PCB housing

Venturi

Gas valve

Pump

12 Baxi Range Guide 13

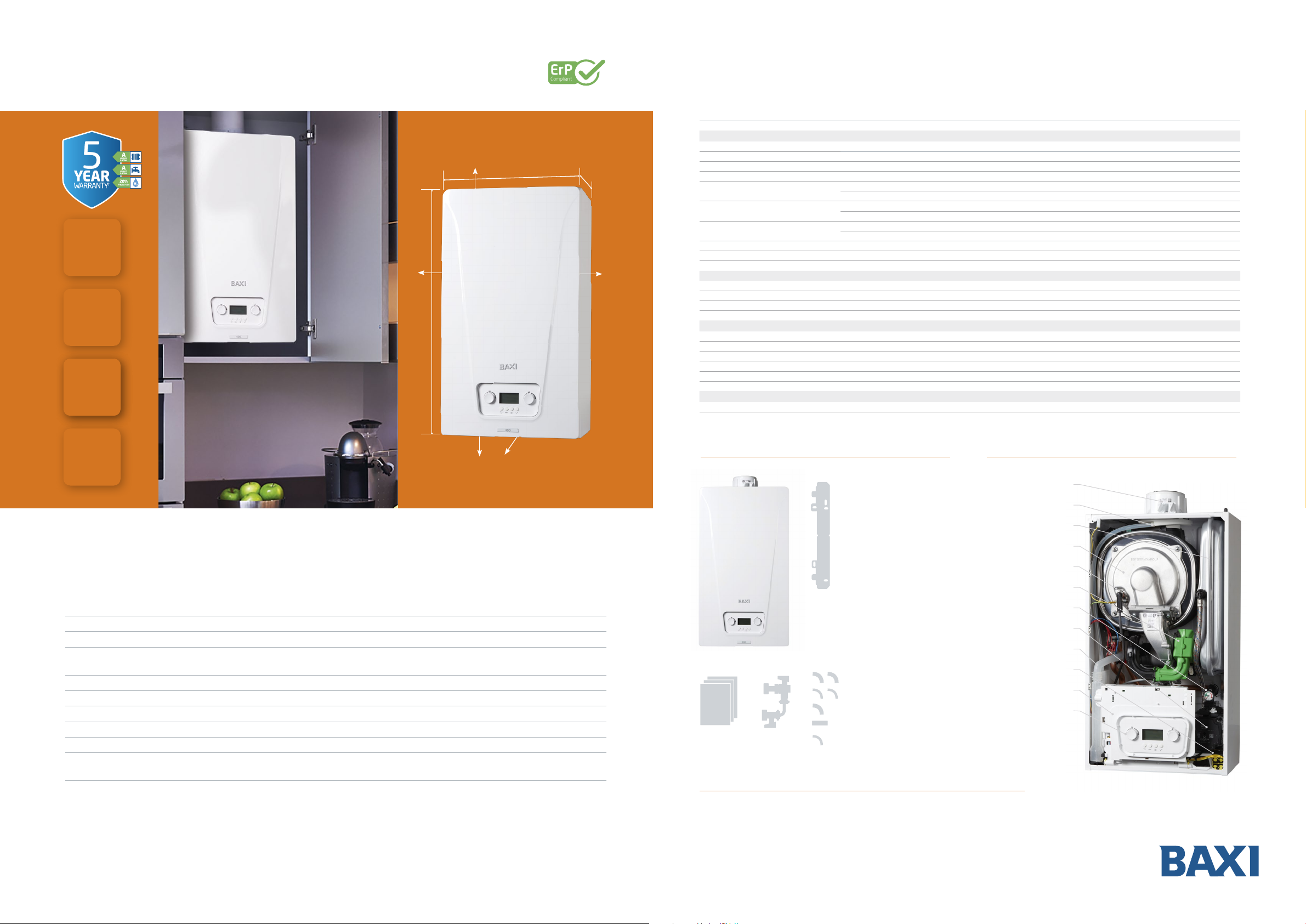

Baxi 800 System 2 Baxi 800 System 2

LPG

READY

PRE-HEATED &

SIPHONIC

CONDENSATE

TRAP

CERTIFIED

OPEN

THERM

E

A

D D

B

C

Sales code (boiler only) 78 14313 78143 14 78143 15

Gas

Natur al gas or LP G
Inlet supply pressure (natural gas) mbar (nominal) 20 20 20
Maximum Gas Rate (G20) Qmax m3/hr 1.97 2.61 3.26
Heat input CH kW (max) G ross (QnHs) 18.6 24 .7 30.9

kW (min) Gro ss (QnHs) 4.9 4.9 6
Heat output CH (non-condensing) kW (Ma x) (Pn) 18 24 30

kW (Mi n) (Pn) 4.8 4.8 5.8
Heat output CH (condensing) kW (Max) (Pn c) 19.9 26.3 32.4

kW (Min) ( Pnc) 5.2 5.2 6.4
Heat Input domestic hot water (DHW) kW (max) Gro ss (QnwHs) n/a n/a n/a
Heat output domestic hot water (DHW) kW (max) n/a n/a n/a
Water heating eciency class A A A

Electrical

Permanent live required
External fuse rating Amps F0.5A L 250VP F0.5A L25 0VP F0.5A L250V P
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow rate (Delta T @ 35’C rise) l/min n/a n/a n/a
Minimum DHW flow rate required l/min 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7
Maximum capacity of CH system Litres 100 100 100
Integral automatic bypass

Weights

Insta ller Lift Weight (boiler) (kg) 29 30 30

818 System 2 824 System 2 830 System 2

3 3 3

3 3 3

3 3 3

3 3 3

3 3 3

F G

The Baxi 800 System 2 has a 10 year parts and labour warranty† and includes a compact Adey
MagnaClean Micro2 system filter to protect the boiler and heating system. The boiler is lightweight,
small enough to fit into a 290mm deep cupboard, has a built in pipes behind facility within the boiler
casing and a stainless steel heat exchanger.

Feature Benefit

Outputs 18kW, 24kW, 30kW An output and model for most sizes of property

Natural Gas or LPG conversion All models can be manually converted between natural gas or LPG without the need to

purchase an accessory kit

Preheated siphonic condensate trap Prevents freezing and engineer call outs as the trap dissipates preheated

condensate all in one go

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity

of the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help meet Boiler+

Positive fit PrV connection pipe Saves time on installation and can be fitted first or last in the pipework installation sequence

Compatible with internal fit telescopic flue For a safer, quicker and cheaper one person fit installation from inside the property

Compatible with Megaflo & Baxi cylinders For industry leading hot water performances

What’s inside?What’s in the box?

Baxi 800 System 2 boiler

Adey
MagnaClean
Micro2

Literature and
fittings pack

Dimensions

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

Wall hanging bracket

Copper pipe tails

CH 22mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

D side 2.5mm*
E upper 178mm*
F lower 150mm*
G front 5mm*†

Flue adaptor

Expansion vessel test point

Built-in drip tray

7 litre expansion vessel

Stainless steel heat exchanger

Spark electrode

Air/gas collector

Fan assembly

Pre-heated & siphonic

Condensate trap

Internal manometer

Pressure relief valve

PCB housing

Venturi

Gas valve

Pump

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

14 Baxi Range Guide 15

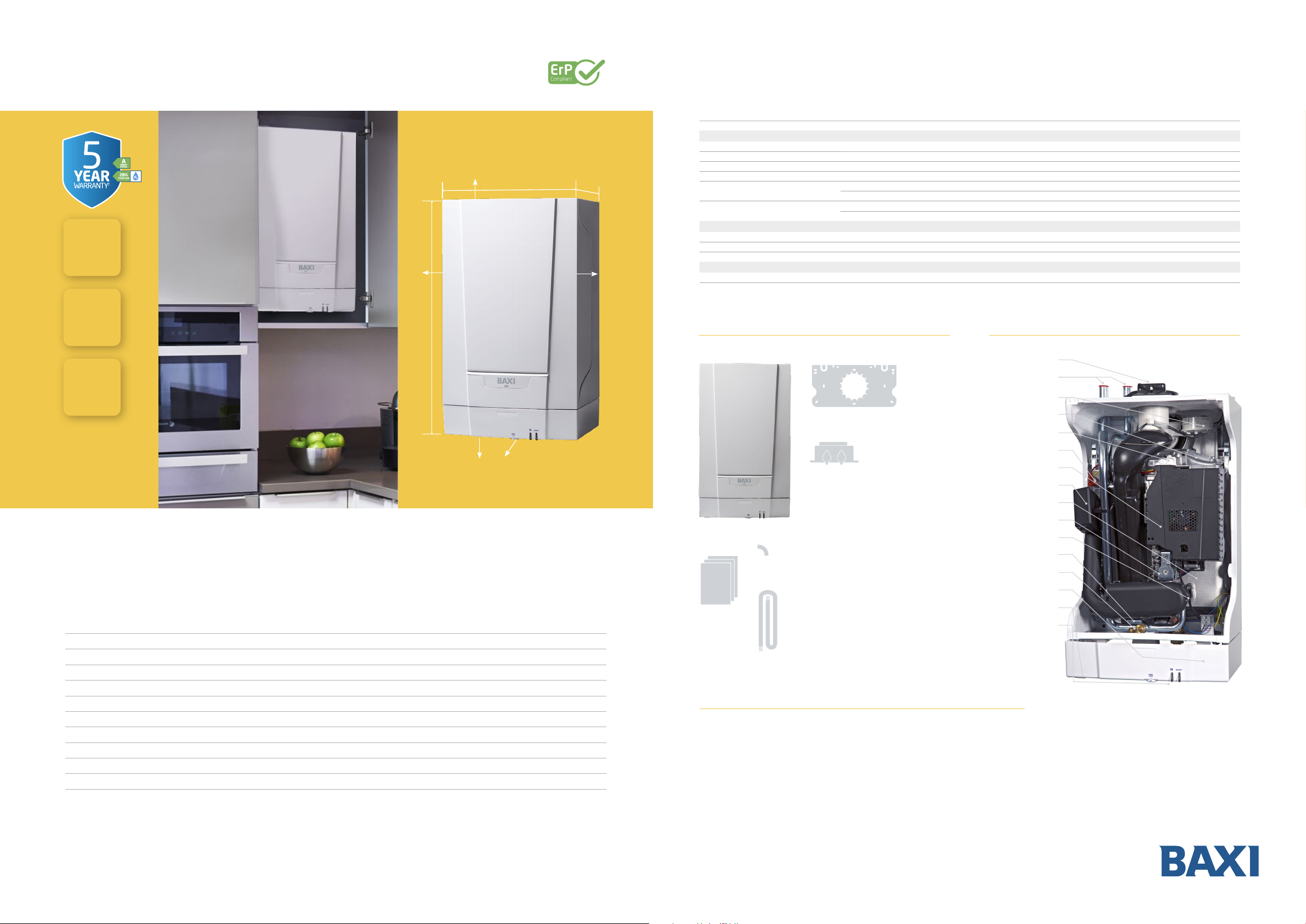

Baxi 800 HeatBaxi 800 Heat

E

A

C

COMPACT

CUPBOARD

FIT

ONLY

17.4kg

(16kW & 25kW)

D

B

D

IN-CASE

REAR FLUE

OPTION

F G

The Baxi 800 Heat has a 10 year parts and labour warranty† and includes a compact Adey MagnaClean
Micro2 system filter to protect the boiler and heating system. The boiler has no need for a pump
overrun or permanent live and has a lift weight from just 17.4kg. This powerful boiler can be installed
on open vent or sealed systems and has an optional in-case rear flue, making it the perfect choice for
homes with a high demand for hot water.

Feature Benefit

Outputs 16kW, 25kW and 30kW To suit most property sizes

10 year parts and labour warranty

Adey MagnaClean Micro2 system filter Industry leading for total peace of mind

17.4kg installer lift weight (30kW is 19.5kg) The lightest boiler available in the UK**

Compact cupboard fit Can be installed in a 290mm deep cupboard

No pump overrun or permanent live required Saves time and money during installation, and less disruptionfor the householder

Suitable for fully pumped open vent
or sealed systems

Very quiet in operation Minimal disturbance during use

Easy fit wall mounting bracket Robust with a positive fix and audible lock so you know it’s secure

Front and side access Servicing is easier and quicker, and no special tools are required

Top central or optional in-case rear flue For flexibility of siting and a neater installation

†

For total peace of mind

For installation flexibility

Sales code (boiler only) 7749 866 7749868 7749 869

Gas

Natural gas
Propane LPG N/A N/A N /A

Inlet supply pressure mbar (nominal) 20 20 20
Maximum gas rate (G20) Qmax m3/ h 1.75 2.73 3. 27
Heat input CH kW (max) G ross (QnHs) 18.32 28.62 3 4.35

kW (min) Gro ss (QnHs) 8.59 8.59 8.59
Heat output CH (non-condensing) kW (Ma x) (Pn) 16 25 30

kW (Mi n) (Pn) 7.5 7. 5 7.5

Electrical

Permanent live required
External fuse rating Amps 3 3 3
Pump overrun

Weights

Insta ller Lift Weight (boiler) (kg) 17. 4 1 7.4 19.5

816 Heat 825 Heat 830 Heat

3 3 3

✗ ✗ ✗

✗ ✗ ✗

What’s inside?What’s in the box?

Baxi 800 Heat boiler

Adey
MagnaClean
Micro2

Literature and
fittings pack

Dimensions

A width 370mm
B height 625mm
C depth 270mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 500mm for servicing purposes

Wall mounting bracket

Top flue adaptor

Aluminium heat exchanger

Copper pipe tail

Gas 22mm

Power Lead

Condensate trap (not visible)

Slide out product I.D / serial no. plate

connector if flueing from top

Service clearances

D side 5mm*
E u pper 190m m* (35mm if using rear flue)
F lower 120mm* (35mm in 30 0mm deep wall cu pboard)
G front 5mm*†

Flue connection**

Flow and return pipes

Pressure switch

Burner

Fan assembly

Spark electrode

PCB housing

Air inlet silencer

Gas valve

Data cable

Drain point

Integrated HMI cover

Controls

**To be replaced by flue

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k
** As at O ctober 2018

16 Baxi Range Guide 17

Baxi 600 Combi 2 Baxi 600 Combi 2

LPG

READY

PRE-HEATED &

SIPHONIC

CONDENSATE

TRAP

CERTIFIED

OPEN

THERM

E

A

D D

B

C

Sales code (boiler only) 7796586 7796587 7796588

Gas

Natur al gas or LP G
Inlet supply pressure (natural gas) mbar (nominal) 20 20 20
Maximum Gas Rate (G20) Qmax m3 /hr 2.61 3.26 3.9
Heat input CH kW (ma x) Gross (QnHs) 20.6 25.7 25.7

kW (min) Gro ss (QnHs) 4.9 6 7. 2

Heat output CH (non-condensing) kW (Ma x) (Pn) 20 25 25

kW (Mi n) (Pn) 4.8 5.8 7. 2

Heat output CH (condensing) k W (Max) (Pnc ) 21.8 2 7.1 2 7.1

kW (Min) ( Pnc) 5.2 6.3 7.6
Heat input domestic hot water (DHW) kW max gr oss (QnwHs) 27. 4 30.9 6.9
Heat output domestic hot water (DHW) kW max 24 30 36
Water heating eciency class A A A

Electrical

Permanent live required
External fuse rating Amps F0.5A L 250VP F 0.5A L250VP F0. 5A L250V P
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow r ate (Delta T @ 35º C rise) l/min 10.2 12.2 15
Minimum DHW flow rate required l/min 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7
Maximum capacity of CH system Litres 100 100 100
Integral automatic bypass

Weights

Insta ller Lift Weight (boiler) (kg) 28 29 30

624 Combi 2 630 Combi 2 636 Combi 2

3 3 3

3 3 3

3 3 3

3 3 3

3 3 3

F G

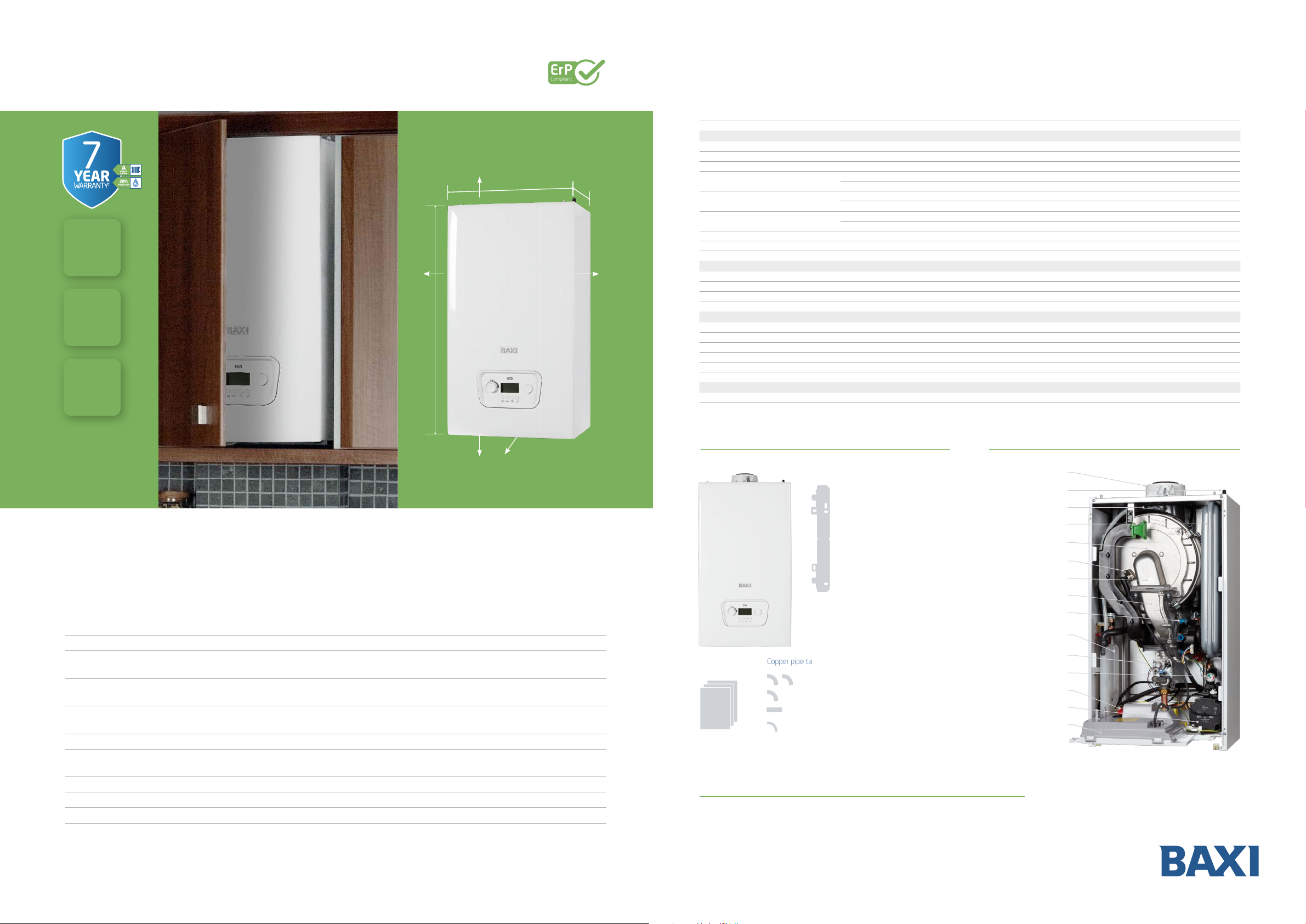

The Baxi 600 Combi 2 has a 7 year parts and labour warranty† and is small enough to fit into a
290mm deep cupboard. The boiler has a built in pipes behind facility within the boiler casing, brass
hydraulics and a stainless steel heat exchanger.

Feature Benefit

Outputs 24kW, 30kW, 36kW To meet dierent end user hot water requirements (up to 15 litres per minute)

Natural Gas or LPG conversion All models can be manually converted between natural gas or LPG without the need to pur-

chase an accessory kit

Preheated siphonic condensate trap Prevents freezing and engineer call outs as the trap dissipates preheated

condensate all in one go

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity

of the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help meet Boiler+

Easy-Fill 2 permanent filling link Enables simple homeowner self-top up of system pressure preventing engineer call outs

Positive fit PrV connection pipe Saves time on installation and can be fitted first or last in the pipework installation sequence

Compatible with internal fit telescopic flue For a safer, quicker and cheaper one person fit installation from inside the property

Compatible with Baxi uSense 2 smart room
thermostat

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

Meets Boiler+ when fitted to this boiler and enables control of heating schedules remotely
via the My Baxi APP

What’s inside?What’s in the box?

Baxi 600 Combi 2 boiler Wall hanging bracket

Expansion vessel test point

7 litre expansion vessel

Stainless steel heat exchanger

Pre-heated & siphonic

Literature and
fittings pack

Dimensions

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

Easy-Fill
permanent
filling link

Copper pipe tails

CH 22mm

Cold water inlet / DHW outlet 15mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

D side 2.5mm*
E upper 178mm*
F lower 150mm*
G front 5mm*†

Flue adaptor

Built-in drip tray

Spark electrode

Air/gas collector

Fan assembly

Condensate trap

Internal manometer

Diverter valve

Brass hydraulic

Pressure relief valve

PCB housing

Venturi

Gas valve

Pump

18 Baxi Range Guide 19

Baxi 600 System 2 Baxi 600 System 2

LPG

READY

PRE-HEATED &

SIPHONIC

CONDENSATE

TRAP

CERTIFIED

OPEN

THERM

E

A

D D

B

C

Sales code (boiler only) 7798687 7802020 7 802 241

Gas

Natur al gas or LP G
Inlet supply pressure (natural gas) mbar (nominal) 20 20 20
Maximum Gas Rate (G20) Qmax m3/hr 1.64 1.97 2.61
Heat input CH kW (max) G ross (QnHs) 15.5 18.6 24.7

kW (min) Gro ss (QnHs) 4.9 4.9 4.9

Heat output CH (non-condensing) kW (Ma x) (Pn) 15 18 24

kW (Mi n) (Pn) 4.8 4.8 4.8

Heat output CH (condensing) kW (Max) (Pn c) 16.3 19.9 26.3

kW (Min) ( Pnc) 5.2 5.2 5.2
Heat Input domestic hot water (DHW) kW (min) Gros s (QnwHs) n/a n/a n/a
Heat output domestic hot water (DHW) kW (Ma x) n/a n/a n/a
Water heating eciency class A A A

Electrical

Permanent live required
External fuse rating Amps F0.5A L 250VP F 0.5A L250VP F0. 5A L250V P
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow rate (Delta T @ 35’C rise) l/min n/a n/a n/a
Minimum DHW flow rate required l/min 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7
Maximum capacity of CH system Litres 100 10 0 10 0
Integral automatic bypass

Weights

Insta ller Lift Weight (boiler) (kg) 28 29 30

615 System 2 618 System 2 624 System 2

3 3 3

3 3 3

3 3 3

3 3 3

3 3 3

F G

The Baxi 600 System 2 has a 7 year parts and labour warranty† is lightweight and is small enough
to fit into a 290mm deep cupboard. The boiler has a built in pipes behind facility within the boiler
casing and a stainless steel heat exchanger.

Feature Benefit

Outputs 15kW, 18kW, 24kW An output and model for most sizes of property

Natural Gas or LPG conversion All models can be manually converted between natural gas or LPG without the need

to purchase an accessory kit

Preheated siphonic condensate trap Prevents freezing and engineer call outs as the trap dissipates preheated

condensate all in one go

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity

of the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help

meet Boiler+

Positive fit PrV connection pipe Saves time on installation and can be fitted first or last in the pipework installation sequence

Compatible with internal fit telescopic flue For a safer, quicker and cheaper one person fit installation from inside the property

Compatible with Megaflo & Baxi cylinders For industry leading hot water performances

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

What’s inside?What’s in the box?

Baxi 600 System 2 boiler Wall hanging bracket

Expansion vessel test point

7 litre expansion vessel

Stainless steel heat exchanger

Pre-heated & siphonic

Literature and
fittings pack

Dimensions

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 450mm for servicing pur poses

Copper pipe tails

CH 22mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

D side 2.5mm*
E upper 178mm*
F lower 200mm*
G front 5mm*†

Flue adaptor

Built-in drip tray

Spark electrode

Air/gas collector

Fan assembly

Condensate trap

Internal manometer

Pressure relief valve

PCB housing

Venturi

Gas valve

Pump

20 Baxi Range Guide 21

Baxi 600 Heat Baxi 600 Heat

E

A

C

COMPACT

CUPBOARD

FIT

ONLY

D

B

D

17.4kg

IN-CASE

REAR FLUE

OPTION

F G

The Baxi 600 Heat has a 7 year parts and labour warranty†, has no need for a pump overrun or per­manent live and has a lift weight from just 17.4kg. This powerful boiler can be installed on open vent
or sealed systems and has an optional in-case rear flue, making it the perfect choice for homes with a
high demand for hot water.

Feature Benefit

Outputs 13kW, 16kW, 19kW, 25kW and 30kW To suit most property sizes

Only 17.4kg installer lift weight (30kW is 19.5kg) The lightest boiler available in the UK*

Compact cupboard fit Can be installed in a 290mm deep cupboard

No pump overrun or permanent live required Saves time and money during installation, and less disruption for the householder

Suitable for fully pumped open vent or
sealed systems

Very quiet in operation Minimal disturbance during use

Easy fit wall mounting bracket

Front and side access Servicing is easier and quicker, and no special tools are required

Central top flue or in-case rear flue option For reduced boiler footprint and improved look

Industry leading choice of flue lengths,
bends and accessories

Central heating temperature control For ease of use maximising comfort

For installation flexibility

Robust with a positive fix and audible lock so you know it's secure

Extensive flue option up to 12 meters for versatile siting and easy replacement

Sales code (boiler only) 7711998 7711999 7712020 7712022 7712023

Gas

Natural gas
Propane LPG N/A N/A N/A N/A N/A

Inlet supply pressure mbar (nominal) 20 20 20 20 20
Maximum gas rate (G20) Qmax m3/ h 1.42 1.75 2.07 2 .73 3.27
Heat input CH kW (max) G ross (QnHs) 14 .88 18 .32 21.75 28.62 34.35

Heat output CH (non-condensing) kW (Ma x) (Pn) 13 16 19 25 30

Electrical

Permanent live required
External fuse rating Amps 3 3 3 3 3
Pump overrun

Weights

Insta ller Lift Weight (boiler) (kg) 1 7.4 1 7.4 1 7.4 17.4 19.5

kW (min) Gro ss (QnHs) 8.59 8.59 8.59 8.59 8.59

kW (Mi n) (Pn) 7. 5 7.5 7. 5 7. 5 7.5

What’s in the box?

Baxi 600 Heat boiler Wall mounting bracket

Top flue adaptor

Literature and
fittings pack

Dimensions

A width 370mm
B height 625mm
C depth 270mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 500mm for servicing purposes

Copper pipe tail

Gas 22mm

Power Lead

Service clearances

D side 5mm*
E u pper 190m m* (35mm if using rear flue)
F lower 120mm* (35mm in 30 0mm deep wall cu pboard)
G front 5mm*†

613 Heat 616 Heat 619 Heat 625 Heat 630 Heat

3 3 3 3 3

✗ ✗ ✗ ✗ ✗

✗ ✗ ✗ ✗ ✗

What’s inside?

Flue connection**

Flow and return pipes

Pressure switch

Burner

Fan assembly

Spark electrode

PCB housing

Air inlet silencer

Aluminium heat exchanger

Gas valve

Data cable

Condensate trap (not visible)

Drain point

Integrated HMI cover

Slide out product I.D / serial no. plate

Controls

**To be replaced by flue

connector if flueing from top

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k
* As at October 2018

22 Baxi Range Guide 23

Baxi 400 Combi 2 Baxi 400 Combi 2

COMPACT

SIZE

BRASS

HYDRAULICS

OPTIONAL

LPG

STAND OFF

MODELS

FRAME

AVAILABLE

Sales code (boiler only) 7790 614 779 0616 7790615 77906 17

Gas

Natural gas

E

D

B

A

C

D

Propane LPG

Inlet supply pressure mbar (nominal) 20 37 20 37
Maximum Gas Rate (G20) Qmax m3/hr 2.61 1.92 3 .17 2.33
Heat input CH kW (max) G ross (QnHs) 22.9 22.9 22.9 22.9

kW (min) Gro ss (QnHs) 5.4 5.4 6.7 6.7
Heat output CH (non-condensing) kW (Ma x) (Pn) 20 20 20 20

kW (Mi n) (Pn) 4.9 4.9 6 6
Heat output CH (condensing) kW (Max) (Pn c) 21.8 21.8 21.8 21.8

kW (Min) ( Pnc) 5.2 5.2 6.3 6.3
Heat input domestic hot water (DHW) kW max gr oss (QnwHs) 24.7 24. 7 30 30
Heat output domestic hot water (DHW) kW max 24 24 29.1 29.1
Water heating eciency class A A A A

Electrical

Permanent live required
External fuse rating Amps 3 3 3 3
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow r ate (Delta T @ 35º C rise) l/min 9.8 9.8 11.9 11.9
Minimum DHW flow rate required l/min 2 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7 7
Maximum capacity of CH system Litres 120 120 120 120
Integral automatic bypass

Weights

Insta ller Lift Weight (boiler) (kg) 28 28 29 29

424 Combi 2 424 Combi LPG 2 430 Combi 2 430 Combi LPG 2

3 ✗ 3 ✗

✗ 3 ✗ 3

3 3 3 3

3 3 3 3

3 3 3 3

3 3 3 3

CONNECTABLE

BOILER
READY

*

F G

The Baxi 400 Combi 2 has a 5 year parts and labour warranty† and is lightweight, small enough to fit
into a 290mm deep cupboard, contains brass hydraulics and a stainless steel heat exchanger.

Feature Benefit

Outputs 24kW and 30kW To meet dierent end user hot water requirements

24kW and 30kW LPG models Suitable for o gas applications

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity of

the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help meet Boiler+

Temporary filling link For central heating system pressure top up

Optional stand o frame Flexibility for hidden and neat pipework

Compatible with internal fit telescopic flue

Compatible with Baxi uSense 2 smart room
thermostat

For a safer, quicker and cheaper one person fit installation from inside the property

Meets Boiler+ when fitted to this boiler and enables control of heating shedules remotely
via the My Baxi APP

Baxi 400 Combi 2 boiler Wall mounting bracket

Literature and
fittings pack

Dimensions

Temporary
filling link

Copper pipe tails

CH 22mm

Cold water inlet / DHW outlet 15mm

Gas 22mm

Condense

Safety discharge
15mm

Service clearances

What’s inside?What’s in the box?

Flue adaptor

Water ingress drip tray

Expansion vessel

Heat exchanger

Detection/ignition electrode

Silencer

Integral pressure gauge

Pump

Condensate trap

Wiring routing /restraint

Combined PRV and Drain

Boiler controls

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 1000 mm for servicing purp oses

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

D side 2.5mm
E upper 240mm
F lower 250mm*
G front 5mm*†

24 Baxi Range Guide 25

Baxi 400 HeatBaxi 400 Heat

E

A

NO

PUMP

OVERRUN

ONLY

D

B

17.4kg

IN-CASE

REAR FLUE

OPTION

F G

The Baxi 400 Heat has a 5 year parts and labour warranty†, has no need for a pump overrun or
permanent live and has a lift weight from just 17.4kg. This boiler can be installed on open vent or
sealed systems and has an optional in-case rear flue for a neater installation.

Feature Benefit

Outputs 15kW, 18kW and 24kW To suit most property sizes

Only 17.4kg installer lift weight The lightest boiler available in the UK*

Compact cupboard fit Can be installed discreetly

Easy fit wall mounting bracket Robust with a positive fix and audible lock so you know it’s secure

One metre lead included Easy to install and you don’t need access to the control box

Top or in-case rear flue For ease of installation

Simple fixing of rear flue For easy and fail-safe flue fixing

No pump overrun or permanent live required Saves time and money during installation, and less disruption for the householder

Front and side access Servicing is easier and quicker, and no special tools are required

Wide choice of flue lengths, bends and accessories For versatile siting

Sales code (boiler only) 7668933 766 8934 7668935

Gas

Natural gas
Propane LPG N/A N/A N/A

Inlet supply pressure mbar (nominal) 20 20 20
Maximum gas rate (G20) Qmax m3/ h 1.75 2.07 2.73

C

D

Heat input CH kW (max) G ross (QnHs) 18 .32 21.75 28.62

Heat output CH (non-condensing) kW (Ma x) (Pn) 16 19 25

Electrical

Permanent live required
External fuse rating Amps 3 3 3
Pump overrun

Weights

Insta ller Lift Weight (boiler) (kg) 17. 4 1 7.4 1 7.4

What’s in the box?

Baxi 400 Heat boiler Wall mounting bracket

Literature and
fittings pack

Dimensions

A width 370mm
B height 625mm
C depth 270mm

* These are minimum recommended dimensions, greater clearance will aid installation and maintenance
† 500mm for servicing purposes

Copper pipe tail

Gas 22mm

Power Lead

Service clearances

D side 5mm*
E u pper 190m m* (35mm if using rear flue)
F lower 120mm* (35mm in 30 0mm deep wall cu pboard)
G front 5mm*†

kW (min) Gro ss (QnHs) 8.59 8. 59 8.59

kW (Mi n) (Pn) 7.5 7. 5 7.5

What’s inside?

Flue connection**

Flow and return pipes

Pressure switch

Burner

Top flue adaptor

Aluminium heat exchanger

Condensate trap (not visible)

Slide out product I.D / serial no. plate

**To be replaced by flue

connector if flueing from top

Fan assembly

Spark electrode

PCB housing

Air inlet silencer

Gas valve

Data cable

Drain point

Integrated HMI cover

Controls

415 Heat 418 Heat 424 Heat

3 3 3

✗ ✗ ✗

✗ ✗ ✗

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k
* As at October 2018

26 Baxi Range Guide 27

Baxi 200 Combi 2Baxi 200 Combi 2

COMPACT

SIZE

LPG

MODEL

AVAILABLE

OPTIONAL

STAND OFF

FRAME

Sales code (boiler only) 7790612 7804263 7790613

Gas

Natural gas

E

A

D

B

C

D

Propane LPG
Inlet supply pressure mbar (nominal) 20 37 20
Maximum Gas Rate (G20) Qmax m3/hr 2.61 1.92 3.06
Heat input CH kW (max) G ross (QnHs) 20.6 20.6 20.6

kW (min) Gro ss (QnHs) 4.9 4.9 6
Heat output CH (non-condensing) kW (Ma x) (Pn) 20 20 20

kW (Mi n) (Pn) 4.8 4.8 5.8
Heat output CH (condensing) kW (Max) (Pn c) 21.8 21.8 21.8

kW (Min) ( Pnc) 5.2 5.2 6.3
Heat input domestic hot water (DHW) kW max gr oss (QnwHs) 24.7 24.7 28.9
Heat output domestic hot water (DHW) kW max 24 24 28
Water heating eciency class A A A

Electrical

Permanent live required
External fuse rating Amps 3 3 3
Pump overrun
Integral 'boiler only' frost thermostat

Hydraulic

Maximum DHW flow r ate (Delta T @ 35º C rise) l/min 9.8 9.8 11.4
Minimum DHW flow rate required l/min 2 2 2
Minimum operating DHW pressure required bar 0.5 0.5 0.5
Integral expansion vessel Size (litres) 7 7 7
Maximum capacity of CH system Litres 120 120 120
Integral automatic bypass

Weights

Insta ller Lift Weight (boiler) (kg) 26.5 26.5 27.5

224 Combi 2 224 Combi LPG 2 228 Combi 2

3 ✗ 3

✗ 3 ✗

3 3 3

3 3 3

3 3 3

3 3 3

CONNECTABLE

BOILER
READY

*

F G

The Baxi 200 Combi 2 has a 2 year parts and labour warranty† and is lightweight, small enough
to fit into a 290mm deep cupboard and contains a stainless steel heat exchanger.

Feature Benefit

Outputs 24kW and 28kW To meet dierent end user hot water requirements

24kW LPG model Suitable for o gas applications

Combined PrV with separate drain Facilitates a safer, quicker and cleaner boiler drain down for repair, maintaining the integrity

of the PrV valve

Colour coded and removable wiring blocks Easily accessible and saves time during installation

Certified OpenTherm Can maximise eciency when fitted to OpenTherm Certified controls and can help meet Boiler+

Optional stand o frame Flexibility for hidden and neat pipework

Compatible with internal fit telescopic flue

Compatible with Baxi uSense 2 smart room
thermostat

For a safer, quicker and cheaper one person fit installation from inside the property

Meets Boiler+ when fitted to this boiler and enables control of heating shedules remotely
via the My Baxi APP

Baxi 200 Combi 2 boiler Wall mounting bracket

Literature and
fittings pack

Gas 22mm

Condense

Safety discharge
15mm

What’s inside?What’s in the box?

Flue adaptor

Water ingress drip tray

Expansion vessel

Heat exchanger

Detection/ignition electrode

Silencer

Integral pressure gauge

Pump

Condensate trap

Wiring routing /restraint

Combined PRV and Drain

Boiler controls

Dimensions

A width 395mm
B height 700mm
C depth 285mm

* These are minimum recommended dimensions, greater clearances will aid installation and maintenance
† 1000mm for servicing purposes

† Subject to registration within 30 days of installation and an annual service. Terms and con ditions apply. Visit warranty.baxi.co.u k

Service clearances

D side 2.5mm
E upper 240mm
F lower 250mm
G front 5mm*†

28 Baxi Range Guide 29

Flue solutions

Multifit flue kits now come with positive screw fixings for all connections and are available in
a choice of lengths, to reduce onsite cutting. We oer a choice of colours for the terminals, to match
existing rainwater systems and our flues are UV stable. For more information see our flue guide.

Flue type Group A (60/100mm) Group G (80/125mm)

Maximum permissible equivalent flue lengths for Baxi combi,
system boilers are:

Maximum permissible equivalent flue lengths for Baxi heat
only boilers are:

Where inline bends are required in a flue system, the overall
length must be reduced by the following amounts:

Horizontal concentric 10m 20m
Vertical concentric 10m 20m

Horizontal concentric 6m 12m
Vertical concentric 6m 12m

Concentric pipes 135° bend 0.5m

93° bend 1m

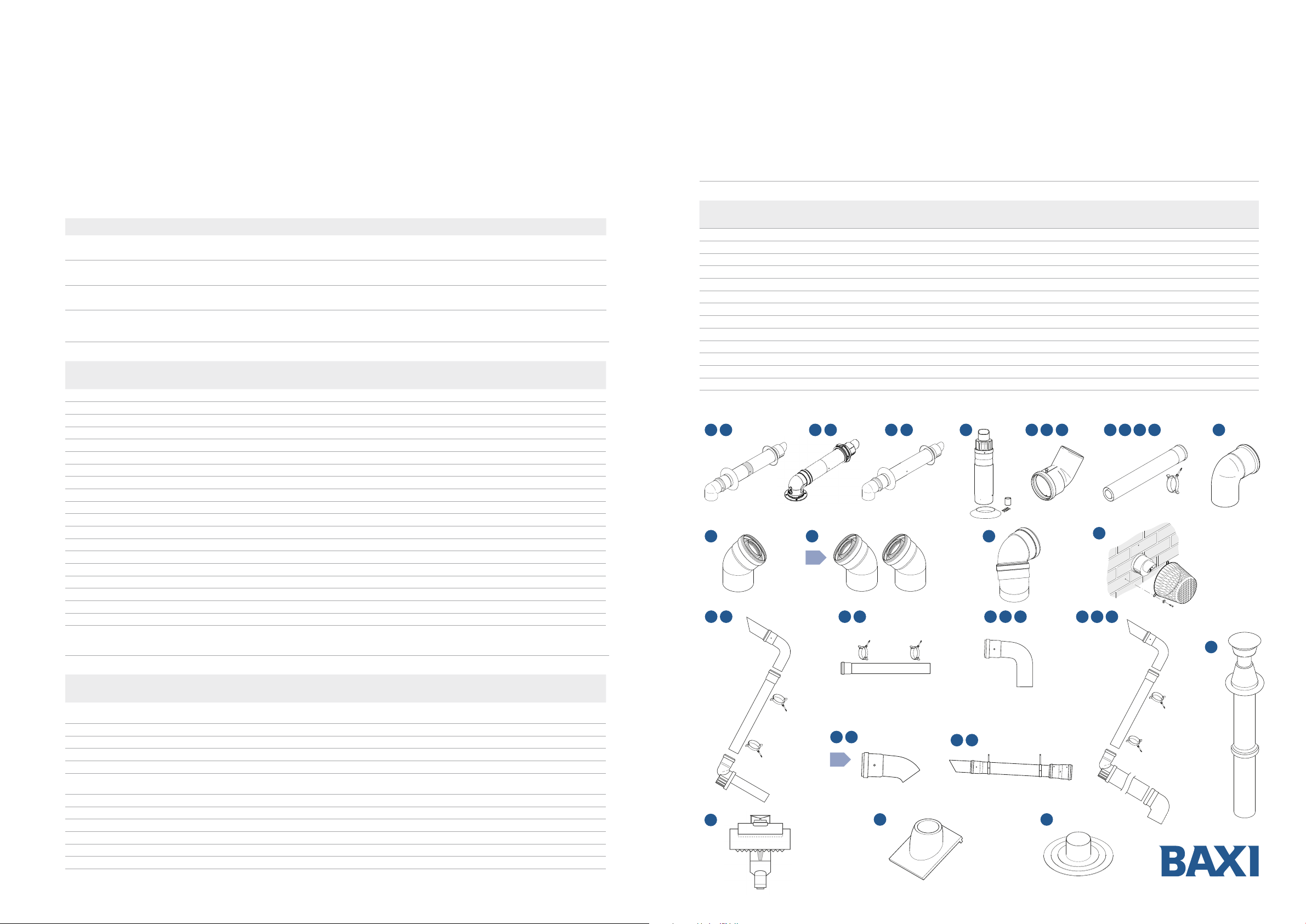

Horizontal concentric flues Ø 60/100mm

Multifit Flue Group A

Item Description (multifit) flue system Colour Specification Key and OD

dimensions

1 Horizontal telescopic flue inc. low profile elbow and fixing screws White pipe/white terminal 315mm – 500mm 60/100mm 720599401

2 Horizontal telescopic flue inc. low profile elbow and fixing screws White pipe/black terminal 315mm – 500mm 60/ 100mm 720598701

3 Internal fit telescopic flue & elbow kit White pipe/black terminal 300mm - 470mm 60/10 0mm 7778296

3b Internal fit telescopic flue & elbow kit White pipe/black terminal 420mm - 690mm 60/100mm 7778299

4 Standard horizontal flue inc. low profile elbow and fixing screws* White pipe/black terminal 685mm 100mm 7222019

4b 1.8m high rise horizontal terminal 60/100 White pipe/black terminal 1800mm 60/100mm 7778067

5 Telescopic rear flue (in case) White pipe/black terminal 220mm - 345mm 60/10 0mm 721043 4

6 Flue terminal deflector White 60mm 720644201

7 Flue terminal deflector Black 60mm 5111068

8 Flue terminal deflector Brown 60mm 720644301

9 1m flue extension inc. fixing screws White 1000mm 100m m 720648801

9b 2m high rise extension inc. fixing screws White 2000mm 60/100mm 7778230

10 0.5m flue extension inc. fixing screws White 500mm 100mm 720643001

11 0.25m flue extension inc. fixing screws White 250mm 100mm 720643101

12 93° flue bend inc. fixing screws White 93° 100mm 720648401

13 135° flue bend inc. fixing screws White 135° 100mm 720648501

14 135° flue bend inc. fixing screws (pair) White 135° 100mm 720647901

15 Oset adaptor elbow White 100mm 720635501

16 Stainless steel terminal guard – Ø 60/100 S/S Stainless steel 100mm 720627901

Sales code

Vertical concentric flues Ø 60/100mm

Multifit Flue Group A

Item Description (multifit) flue system Colour Specification Key and OD

dimensions

27 Under balcony eaves flue kit White 135° 60mm 7211039

28 Under balcony eaves flue kit Black 135° 60mm 7211041

29 Vertical flue terminal Black 100mm 5118576

30 Vertical ridge flue terminal Brown 100mm 720647101

31 Roof cover plate 125mm 246143

9 1m flue extension inc. fixing screws White 1000mm 100mm 720648801

10 0.5m flue ex tension inc. fixing screws White 500mm 100mm 720643001

11 0.25m flue extension inc. fixing screws White 250mm 100mm 7206 43101

12 93° flue bend inc. fixing screws White 93° 10 0mm 720648401

13 135° flue bend inc. fixing screws White 135° 100mm 720648501

14 135° flue bend (pair) inc. fixing screws White 135° 100mm 7206 47901

31 Pitched roof flashing 25°/50° 125mm 5122151

32 Flat roof flashing 125mm 246144

1

13

(x2)

17 17b 19 20 23

18 22

1514

6 7 8 9b9 10 1143 4b3b 5

16

25 26 26b

Sales code

122

Plume displacement kits Ø 60/100mm

30

Multifit Flue Group A

Item Description (multifit) flue system Colour Specification Key and OD

dimensions

17 Plume displacement terminal kit for telescopic flue

inc. 1m extension and brackets

17b PDK inc. 1m extension (for internal fit flue kits) White pipe/black terminal 60mm 7845831

18 Plume displacement kit extension and brackets White 1000mm 60mm 7206434 01

19 Plume displacement kit bend White 93° 60mm 5121369

20 Plume displacement kit bend – pair White 135° 60mm 5121370

21 Plume displacement terminal kit for telescopic flue

inc. 1m extension and brackets

22 Plume displacement kit extension and brackets Black 1000mm 60mm 720643301

23 Plume displacement kit bend Black 93° 60mm 720648701

24 Plume displacement kit bend – pair Black 135° 60mm 720648601

25 Plume displacement terminal kit inc. 1m extension and brackets White 60mm 7225717

26 Plume displacement terminal kit inc. 1m extension and brackets Black 60mm 7225716

26b High rise plume displacement kit (PDK ) Black 60mm 7778272

White 60mm 720627001

Black 60mm 720622901

* Not compatible with items 16 and 20

Sales code

30

21 25

(x2)

31

27 28

32

30 Baxi Range Guide 31

N

I

I

G

F

M

I

A

A

F

H

J,K

D
E

H

C

R

A

I

J,K

I

L

S

B

T

U

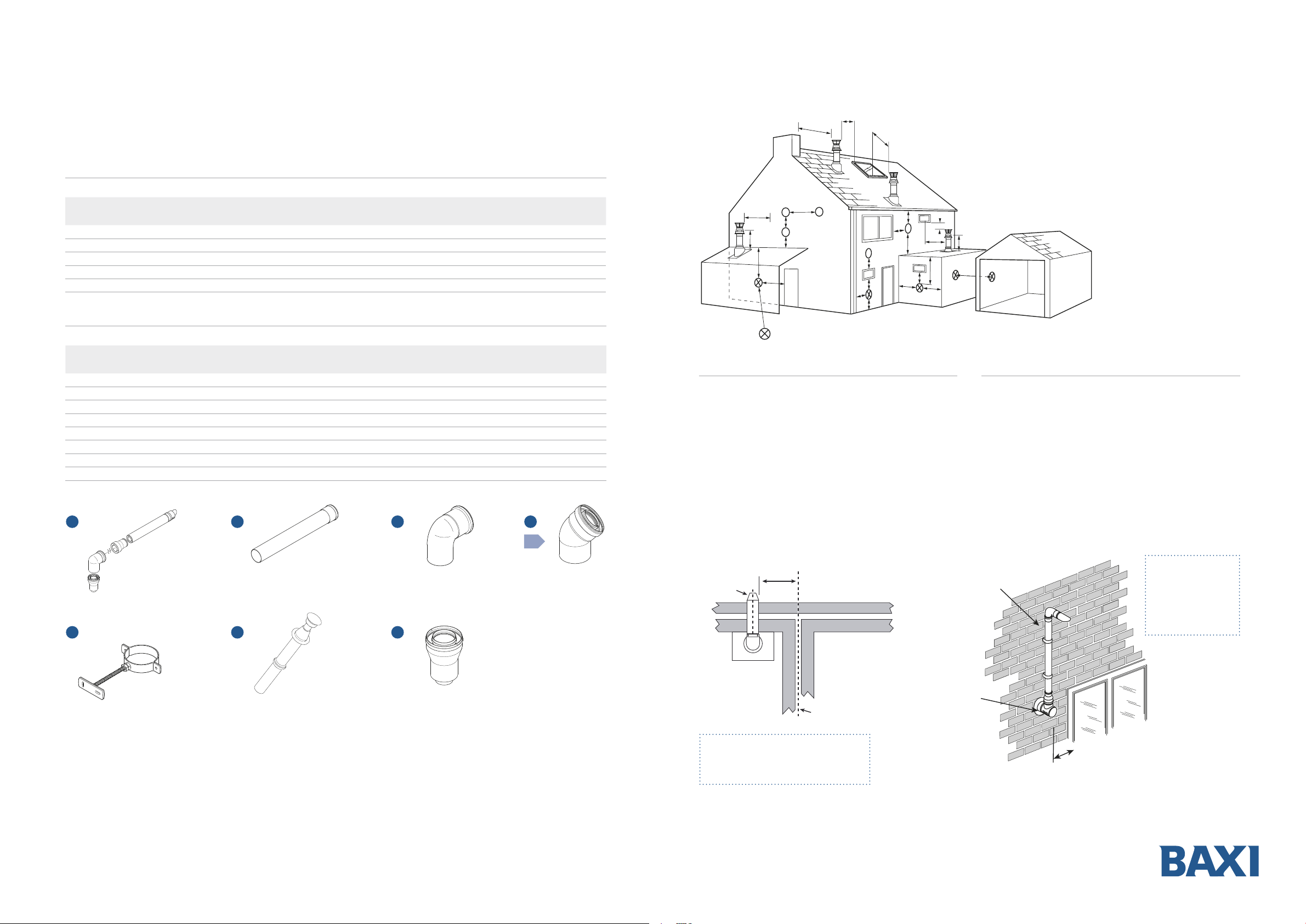

Flue solutions

Horizontal concentric flues Ø 80/125mm

Multifit Flue Group G

Item Description (multifit) flue system Colour Specification

33 Horizontal flue inc. boiler and terminal adaptors Black 125mm 5118580

34 1m flue extension White 1000mm 125mm 5118584

35 Flue bend White 91.5° 125mm 5118588

36 Flue bend (pair) White 135° 125mm 5118597

37 Pipe support bracket White 125mm flue pipes 125mm 5118610

Key and OD
dimensions

Sales code

Vertical concentric flues Ø 80/125mm

Multifit Flue Group G

Item Description (multifit) flue system Colour Specification

38 Vertical flue terminal Black 125mm 5111078

34 1m flue extension White 1000mm 125mm 5118584

35 Flue bend White 91.5° 125mm 5118588

36 Flue bend (pair) White 135° 125mm 5118597

39 Flue vertical adaptor White 100/125mm 5111070

31 Pitched roof flashing 25°/55° 125mm 5122151

32 Flat roof flashing 125mm 246144

37 Pipe support brackets White 125mm flue pipes 125mm 5118610

33 34 35 36

37

38 39

Key and OD
dimensions

Sales code

(x2)

Likely flu e positions requiring a flue
terminal guard

Terminal position with minimum distance (mm)

A1 Directly below an opening, air brick, opening windows etc 300

1

Above an opening, air brick, opening window etc 300

B

1

Horizontally to an opening , air brick, opening window etc 300

C

2

Below gutters, soil pipes or drain pipes 25

D

2

Below eaves 25

E

2

Below balconies or car por t roof 25

F

2

From a vertical drain pipe or soil pipe 25

G

2

From an internal or external corner 25

H
I Above ground, roof or balcony level 300
J From a surface or boundar y line facing a terminal 600
K From a terminal facing a terminal (Horizontal flue) 1200
K From a terminal facing a terminal (Vertical flue) 600

300mm

Terminal
assembly

min*

Terminal position with minimum distance (mm)

L From an opening in a carport (e.g. door, window) into the dwelling 120 0
M Vertically from a terminal on the same wall 1500
N Horizontally from a terminal on the same wall 300
R From adjacent wall to flue (vertical only) 300
S From an adjacent opening window (vertical only) 1000
T Adjacent to windows or openings on pitched and flat roofs 600
U Below windows or openings on pitched roofs 2000

1. In addition, the terminal should be no nearer than 150mm to an
opening in the building fabric formed for the purpose of
accommodating a built-in element such as a window frame.

2. Only ONE 25mm clearance is allowed per installation. If one of
the dimensions D, E, F, G or H is 25mm then the remainder MUST
be as B.S.5440-1.

Plume
displacement kit

IMPORTANT: If fitting
a Plume Displacement
Flue Kit, the air inlet
must be a minimum
of 150mm from any
opening windows
ordoors

Top view rear flue

Property boundary line

NOTE: The distance from a fanned draught

Air inlet

Opening window
or door

appliance terminal installed parallel to a
boundary may not be less than 300mm in
accordance with the diagram.

All descriptions and illustrations provided in this document have been carefully prepared
but we res erve the ri ght to make chang es and impro vements in ou r products w hich may
aect the accuracy of the information contained in this leaflet. All goods are sold subject
to our st andard Cond itions of Sal e which are avai lable on requ est.

150mm
min.

32 Baxi Range Guide 33

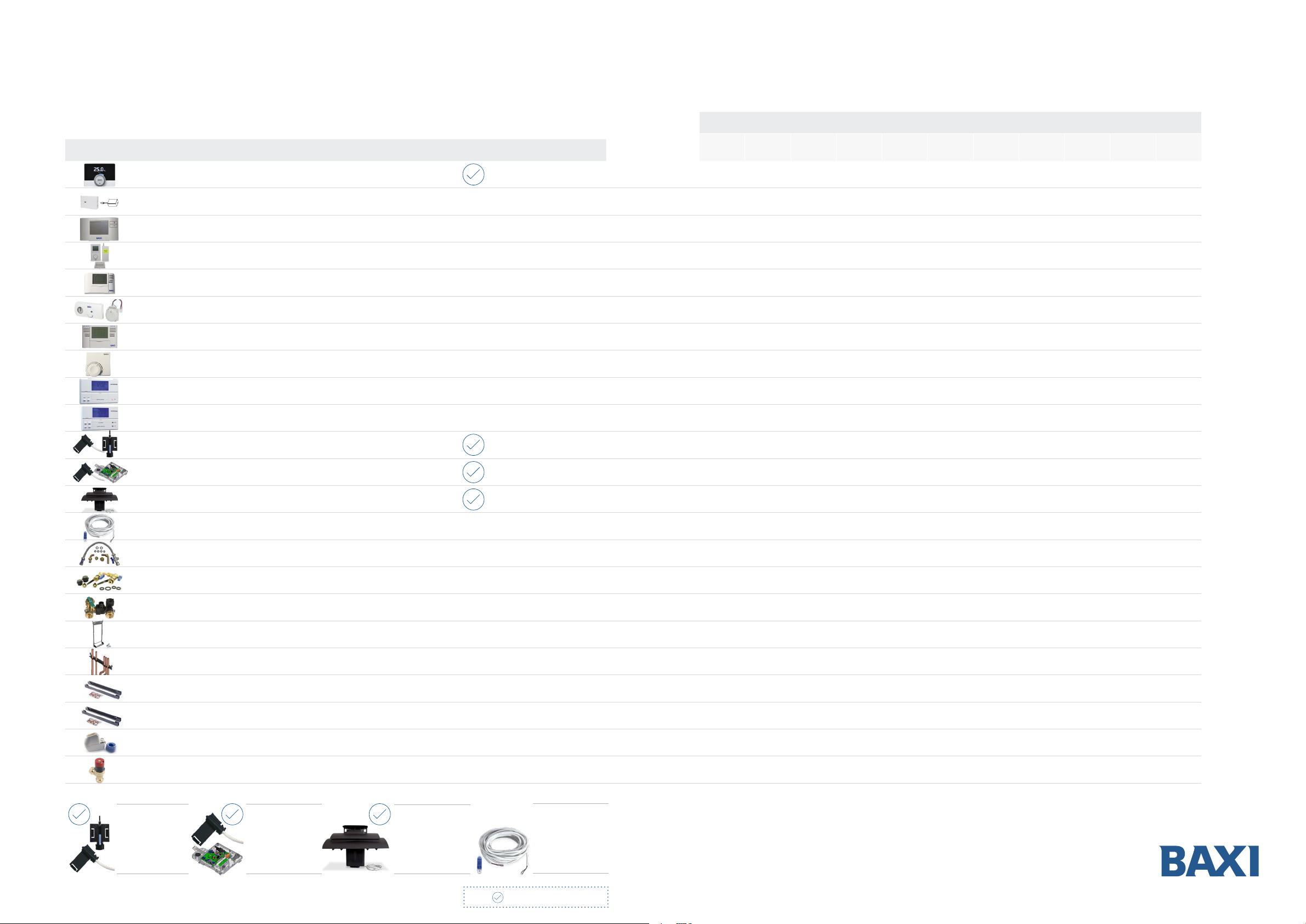

Optional controls, accessories and compatibility

Compatibility

Product Added energy eciency Sales code

Baxi uSense 2 smart room thermostat 7775937

Baxi uSense 2 power adaptor and gateway kit 7822453

Baxi single channel wired programmable room thermostat 7212438

Baxi combi wireless 7-day programmable room thermostat 720030501

Baxi single channel wired programmer 7212444

Baxi 24-hour wireless programmable room thermostat 5117391

Baxi twin channel wired programmer 7212443

Baxi room thermostat 720971601

Potter ton EP series 1 7211472

Potter ton EP series 2 7211473

Multifit IFOS - combi 7724181

Platinum+

Combi

Platinum+

System

800

Combi 2

800

System 2

800

Heat

600

Combi 2

600

System 2

600

Heat

400

Combi 2

400

Heat

• • • • •

•

• • • • •

• • • • •

• • • • •

• • • • •

• • • • • •

• • • • • • • • • • •

• • • • •

• • •

• • • • •

200

Combi 2

Multifit IFOS - system (compatible in addition to IFOS combi/ridge tile) 7729979

Multifit IFOS - ridge tile 7729943

Multifit IFOS - extension 7724260

Multifit filling loop kit 248221

Multifit rigid filling link (not compatible with Baxi 200 & 400 Combi 2) 7689034

Multifit Easy-Fill 2 7783329

Pre-plumb jig 2 7818249

Multifit rear pipework kit 2 7682790

Stand-o kit 5117035

Stand-o kit - Baxi 200 - 400 Combi 2 7813585

Multifit external boiler discharge pump (PRV and condensate) 720648301

Remote secondary PRV kit 5121379

• • •

• • • • • • • •

• • • • • • • •

• • • • • • • • • • •

• • •

• • • • •

• • • •

• • • •

•

• •

•

•

•

•

• • • • • •

• • • • • •

Multi fit IFOS (Combi)

Horizontal and
vertical flue
terminal sensor
clips

SALES CODE

77241 81

Multi fit IFOS (System)

SALES CODE

7729979

34 Baxi Range Guide 35

Multifit Ridge
Tile IFOS

Ridge tile terminal
pre-installed with IFOS

SALES CODE

7729 943

Key = added energy eciency

Multi fit IFOS
Extension

Extends length of
IFOS kits by up
to 5 metres

SALES CODE

7724 260

Baxi installers can get hands
on with free product training

Baxi oer practical hands on training to installers at one of
our national, market leading training centres nationwide.

Practical, hands-on training

Baxi has built a reputation as one of Europe’s most trusted boiler manufacturers
by consistently setting and raising standards. We are always searching for new and
better ways to service and support installers. That’s why our training is very practical
and hands-on. Every course in this guide is designed to help you improve your skills, so
you can work confidently and eciently.

Delivered by experts

Our trainers are accredited, former heating engineers with over 300 years combined
experience, they have experience of the challenges faced day-in, day-out.

How we
make it easy

Local training
centres means less
travelling for you

Perth

Glasgow

Local training centres across the UK

Wherever you are, you don’t have to travel far to improve your skills.

CIPHE

Our flagship training centres in Warwick, Dartford and Warrington have been awarded
CIPHE Approved Training Centre (ATC) status, the first boiler manufacturer to receive
this status.

Tailored to your needs

Our courses are flexible to fit in with your requirements and schedule.

To find out more or book onto an upcoming training course,
please contact your local Baxi Area Sales Manager.

baxi.co.uk/meet-your-asm

Newtownards

Ballymount

Caerphilly

Exeter

Preston

Warrington

Peterlee

Darlington

Leeds

Scunthorpe

Nottingham

Birmingham

Warwick

Dartford

Eastleigh

36 Baxi Range Guide 37

Join the installer loyalty scheme that really

WORKS

FOR YOU

Earn reward points for eligible
product registrations

Access the Baxi Toolbelt app
for Gas Safe registered installers

Earn points for cylinders (even if
you’re not Gas Safe registered)

Get priority engineer call-outs

Receive automated service reminders
and expert advice

Appear on the Baxi Find an Installer listing

Enjoy the premium benefits of being a
Baxi Approved Installer, when you register
at least 20 eligible products a year

baxiworks.co.uk

38 Baxi Range Guide 39

How we can help

Baxi Customer Support

• Team of experts with products at hand to support
installation, service and repair

• Further technical support and how-to videos
available at baxi.co.uk

Call us on 0344 871 1525

Baxi Genuine Parts

• Approved parts for Baxi products

• Guaranteed quality, safety and reliability

• Nationwide network of approved stockists

• Lifetime support for Baxi products

• Range of heating essentials available

Call our knowledgeable and helpful team on 0344 871 1540
or visit baxi.co.uk/baxi-genuine-parts.htm to identify parts
and find your nearest stockist

Training

• Practical, hands on training

• Free of charge product training

• A range of specialist courses

• Expert trainers, all accredited, former heating engineers

• Training centres across the UK

Visit baxi.co.uk/training or call 0344 335 4207

Baxi Works

Sign up to Baxi Works, Baxi’s online loyalty scheme for installers.
Benefits include:

• Same or next day engineer call out from Baxi Customer Support*

• Free Gas Safe notification and easy warranty registration

• Scan your QR and barcode using the Baxi Toolbelt App

• Free annual service reminders sent to your customers on your behalf

• Free listing on baxi.co.uk to receive homeowner leads

• Earn points for every boiler you register.

Visit baxiworks.co.uk to find out more

Area sales managers

Our UK wide network of dedicated Baxi Area Sales Managers are always on
hand to help you with any queries about our products, training and services.
Find your local representative at baxi.co.uk

Literature

You can order all the literature you need for you and your customers, including:

• Range guides

• Product brochures for consumers

• Installation instructions

• User guides

• Instructions for discontinued products

Call the Baxi literature hotline on 0344 871 1525 or contact your local
Baxi Area Sales Manager.

All our literature can be downloaded from our website baxi.co.uk

* Full Baxi Works terms and conditions apply.

41Baxi Range Guide40

NotesNotes

42 Baxi Range Guide 43

0344 871 1525

Opening hours

Monday - Friday, 8am - 6pm
Weekends and Bank Holidays, 8.30am - 2pm
We are open 365 days a year.

Please note calls may be monitored or recorded.

baxi.co.uk

[email protected]

Baxi

Brooks House

Coventry Road

Warwick CV34 4LL

This brochure is printed on paper sourced from well managed forests and
other controlled sources. This brochure is printed using vegetable based inks.
Please recycle this brochure when you have finished with it.

Baxi policy is one of continual improvement and development. The right to
change specification and appearance without prior notice is reserved.
The reproduction of colours is as accurate as photographic and printing

LA-527

processes allow. The consumer’s statutory rights are not aected. E&OE

BaxiRangeGuide/April23
