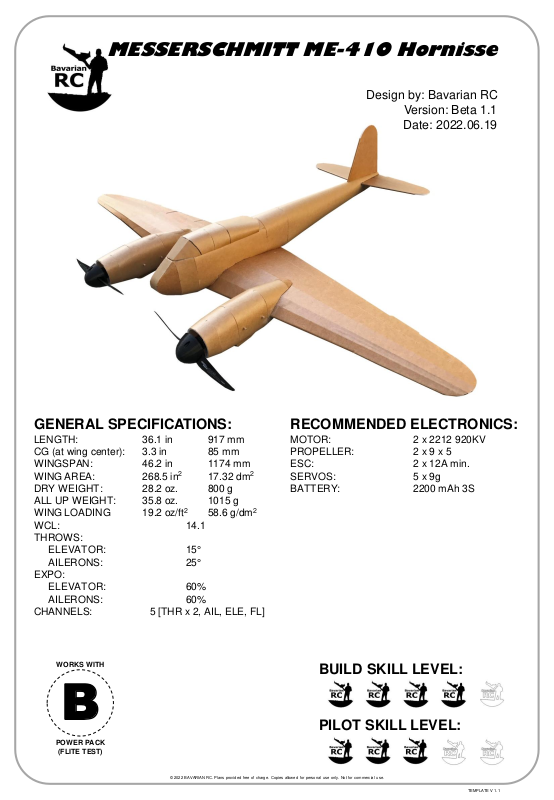

MESSERSCHMITT ME-410 Hornisse
Design by: Bavarian RC
Version: Beta 1.1
Date: 2022.06.19
GENERAL SPECIFICATIONS:
LENGTH: 36.1 in 917 mm
CG (at wing center): 3.3 in 85 mm
WINGSPAN: 46.2 in 1174 mm
WING AREA: 268.5 in2 17.32 dm2
DRY WEIGHT: 28.2 oz. 800 g
ALL UP WEIGHT: 35.8 oz. 1015 g
WING LOADING 19.2 oz/ft2 58.6 g/dm
WCL: 14.1
THROWS:
ELEVATOR: 15°
AILERONS: 25°
EXPO:
ELEVATOR: 60%
AILERONS: 60%
CHANNELS: 5 [THR x 2, AIL, ELE, FL]
WORKS WITH
2
B
POWER PACK
(FLITE TEST)
RECOMMENDED ELECTRONICS:
MOTOR: 2 x 2212 920KV
PROPELLER: 2 x 9 x 5
ESC: 2 x 12A min.
SERVOS: 5 x 9g
BATTERY: 2200 mAh 3S
BUILD SKILL LEVEL:
PILOT SKILL LEVEL:
© 2022 BAVARIAN RC. Plans provided free of charge. Copies allowed for personal use only. Not for c ommercial use.
TEMPLATE V 1.1
Page 2

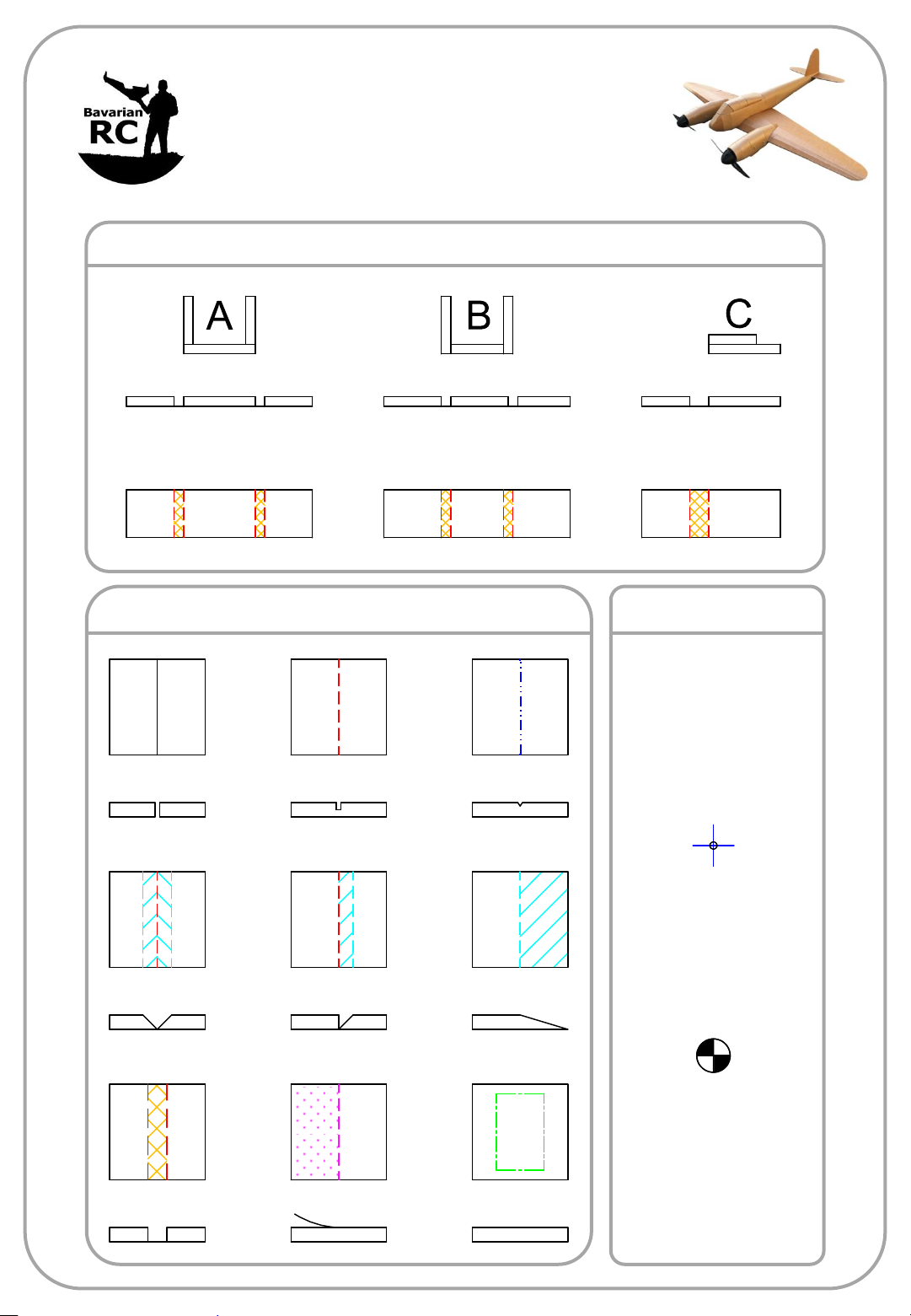

DRAWING KEY
FOLD TYPES
A – FOLD (ABOVE)
LINE TYPE/COLOR
B – FOLD (BESIDE) C – FOLD (COVER)
SYMBOLS
50% SCORE CUT CREASE
HOLE FOR
BBQ
SKEWER
45° DOUBLE
BEVEL
CAVITY REFERENCE/
Inspired by original drawing key by Flite Test, LLC. Plans provided free of charge. Copies allowed for personal use only. Not for commercial use.
45° SINGLE
BEVEL
REMOVE
PAPER
EDGE
BEVEL
OPTIONAL
CENTER
OF
GRAVITY
(CG)
TEMPLATE V 1.1

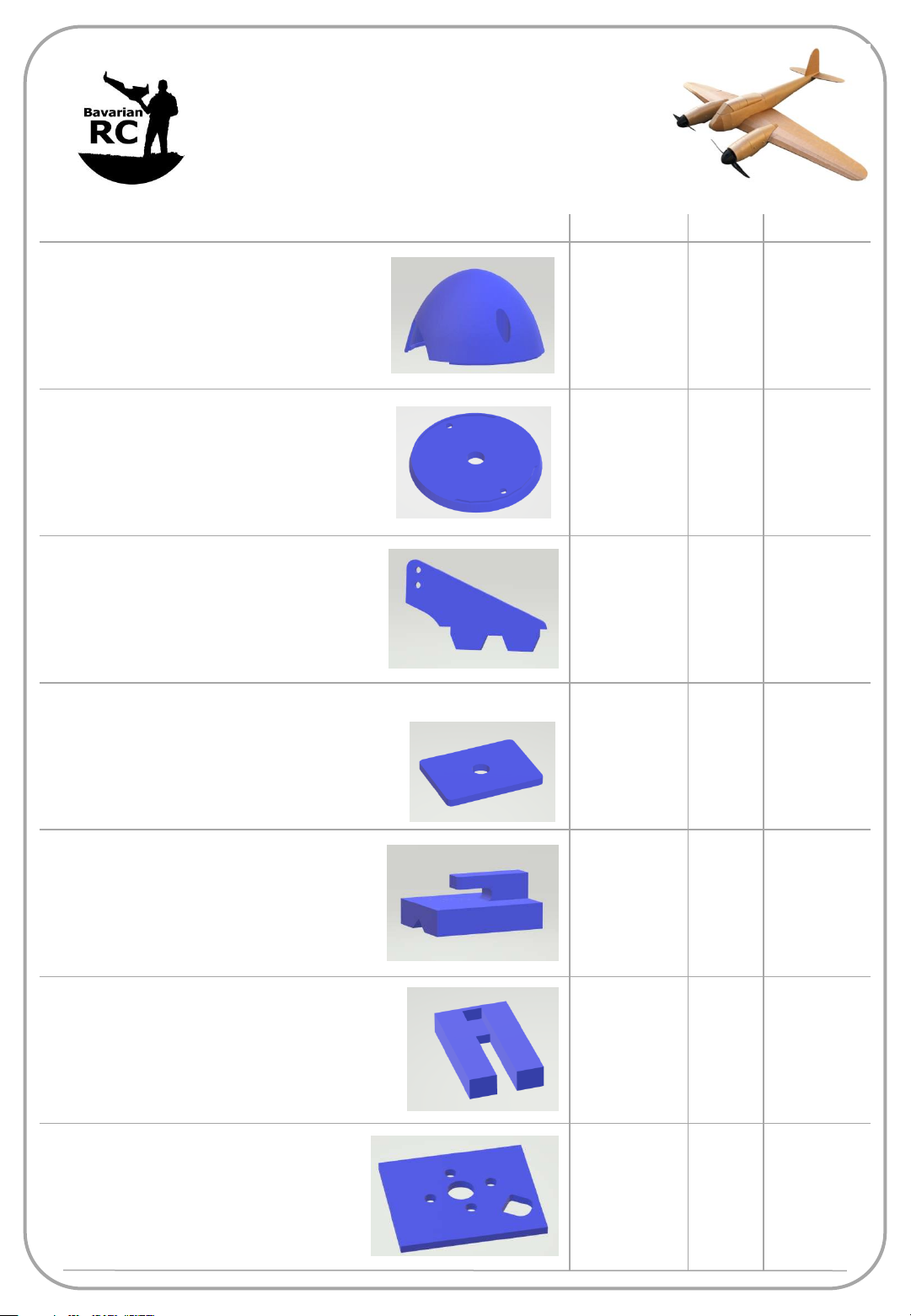

Page 3
ME-410

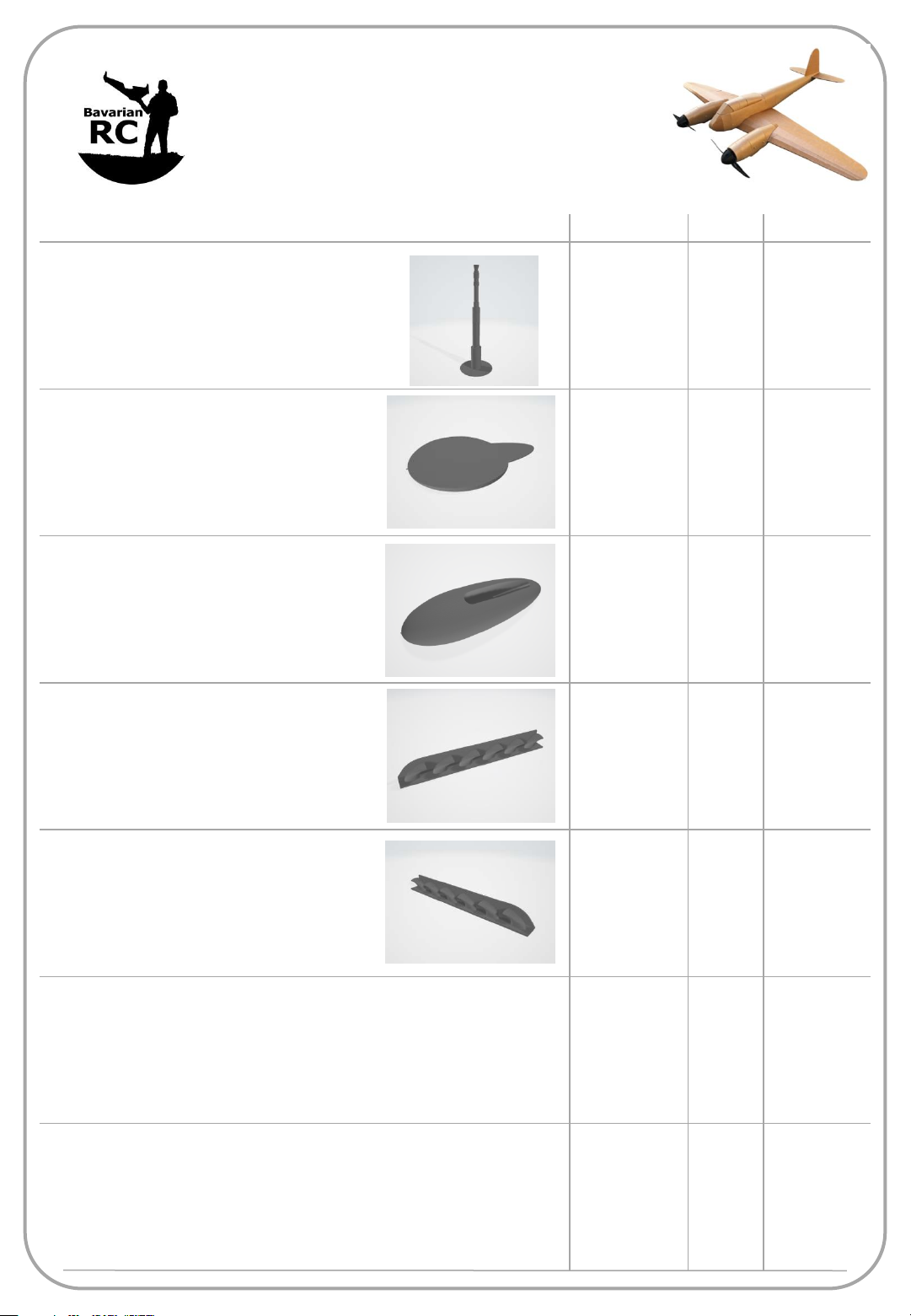

3D PRINTED PARTS
PART (QTY)
SPINNER (2x)
Me-410_Spinner Base Plate Me410 CCW V2.stl
Me-410_Spinner Base Plate Me410 CW V2.stl
SPINNER BASE PLATE (2X)
Me-410_Spinner Cone Me410 CCW V2.stl
Me-410_Spinner Cone Me410 CW V2.stl
CONTROL HORN MEDIUM (5x)
Me-410_Control_Horn_medium_V1.0.stl
BBQ SKEWER REINFORCEMENT LARGE (16x)
LAYER HEIGHT INFILL SUPPORT / BRIM
0.20mm 60% Y / N
0.20mm 60% N / N
0.20mm 60% N / N
Me-410_BBQ_Skewer_Reinforcement_V1.0.stl
HATCH LOCK (UPPER) (1x)
Me-410 Hatch Lock upper part v4.stl
HATCH LOCK (LOWER) (1x)
Me-410 Hatch Lock lower part v2.stl
FIREWALL (2x)
Me-410_Firewall_V1.1.stl
0.20mm 60% N / N
0.20mm 90% Y / N
0.20mm 40% N / N
0.20mm 60% N / N
© 2022 BAVARIAN RC. Plans provided free of charge. Copies allowed for personal use only. Not for c ommercial use.
TEMPLATE V 1.1
Page 4
ME-410
3D PRINTED PARTS
PART (QTY)
GUN (2x)
Gun Me410 V5.stl
BASE GUN TURRET PART 1 (2X)
Base_Gun_Turret Me410 V5 part 1.stl
BASE GUN TURRET PART 2 (2X)
Base_Gun_Turret Me410 V5 part 2.stl
EXHAUST LH (2X)
LAYER HEIGHT INFILL SUPPORT / BRIM
0.15mm 10% N / N
0.15mm 10% N / N
0.15mm 10% N / N
Exhaust Me-410_LH_V2.stl
EXHAUST RH (2X)
Exhaust Me-410_RH_V2.stl
0.15mm 25% N / Y
0.15mm 25% N / Y
© 2022 BAVARIAN RC. Plans provided free of charge. Copies allowed for personal use only. Not for c ommercial use.
TEMPLATE V 1.1
Page 5
CHANGE LOG
Betal 1.0 (2021-04-02)
First release of Beta plan.
Betal 1.1 (2022-06-19)
Added STL files for 3D printed exhaust and gun turret.
ME-410
© 2022 BAVARIAN RC. Plans provided free of charge. Copies allowed for personal use only. Not for c ommercial use.
TEMPLATE V 1.1

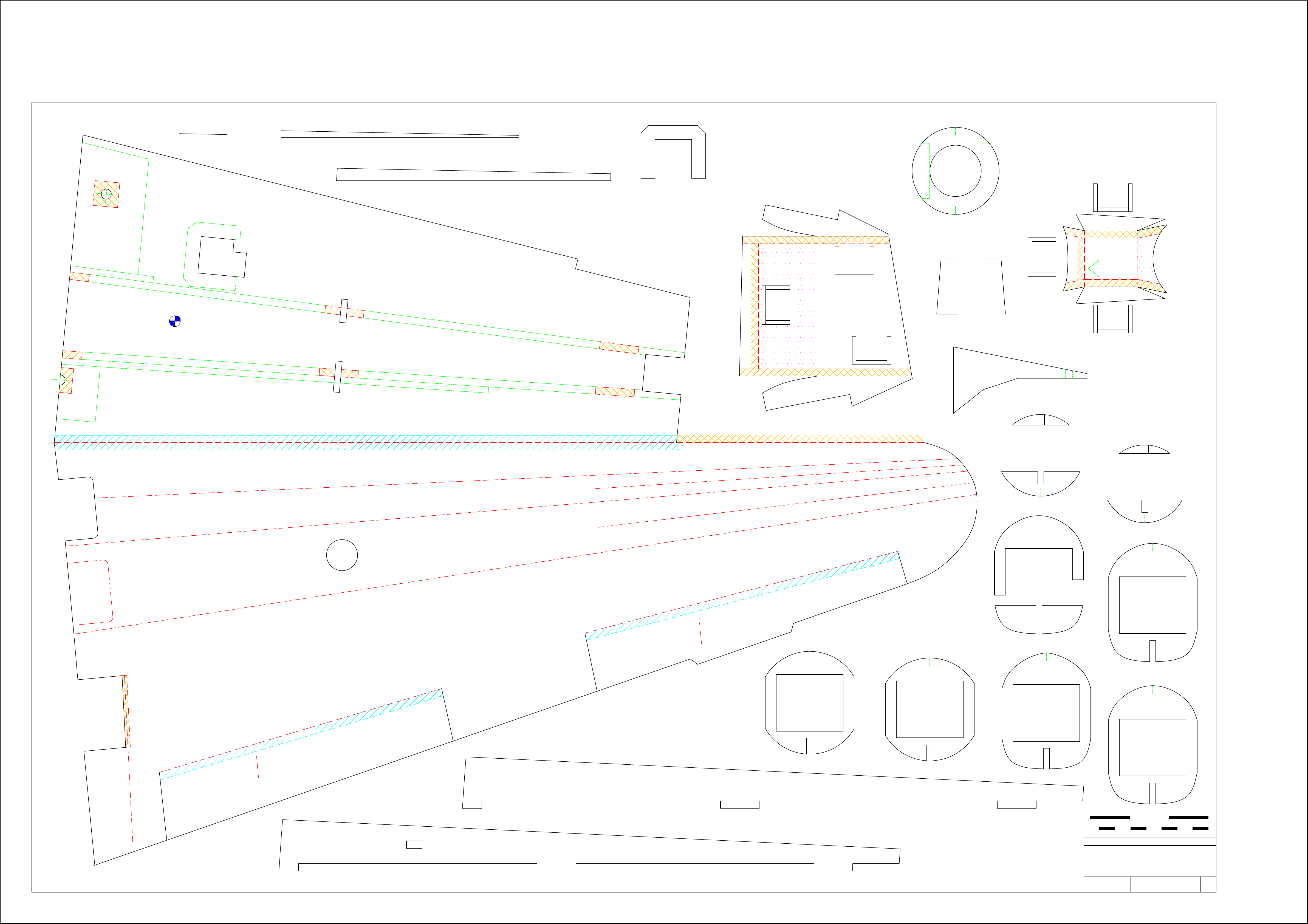

Page 6
Drill hole after plywood insert
has been glued into cavity
Trailing edge outer LH V1.0
Me-410
Trailing edge mid LH V1.1
Me-410
Position of
Wing mount plate aft
Position of Spar plywood aft
CG
Position of
Flap servo support
Position of Spar aft
Trailing edge inner LH V1.0
Me-410
Flap servo support V1.0
Me-410
A
B
Underwing radiator LH V1.2
Me-410
Nacelle skin 1 jig V1.0
Me-410
Nacelle skin 1 jig side V1.1
Me-410
Position of
Nacelle skin 1 jig side
A
B
Air intake V1.0
Me-410
FWD
B
Drill hole after plywood insert
has been glued into cavity
Position of Spar plywood fwd
Position of
Wing mount plate fwd
Position of Spar fwd
45° double bevel
BBQ skewer
B
Nacelle top former V1.1
Me-410
Nacelle former 7 upper V1.0
Me-410
Nacelle former 7 lower V1.0
Me-410
7
8
Position of
Former 7 upper and
Former 8 upper
Nacelle former 8 upper V1.0
Me-410
Nacelle former 8 lower V1.1
Me-410
Make cut-out after
wing is glued together
Wing LH V1.1
Me-410
BBQ skewer
45° single bevel
Nacelle former 1 V1.2
Me-410
Nacelle former 2 V1.1
Me-410
Nacelle former 6
upper LH V1.1
Me-410
Nacelle former 4 V1.0
Me-410
Nacelle former 6
lower V1.1
Me-410
Nacelle former 3 V1.1
Me-410
BBQ skewer
45° single bevel
Spar aft LH V1.0
Me-410
Spar front LH V1.0
Me-410
Nacelle former 5 V1.0
Me-410
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
1
7

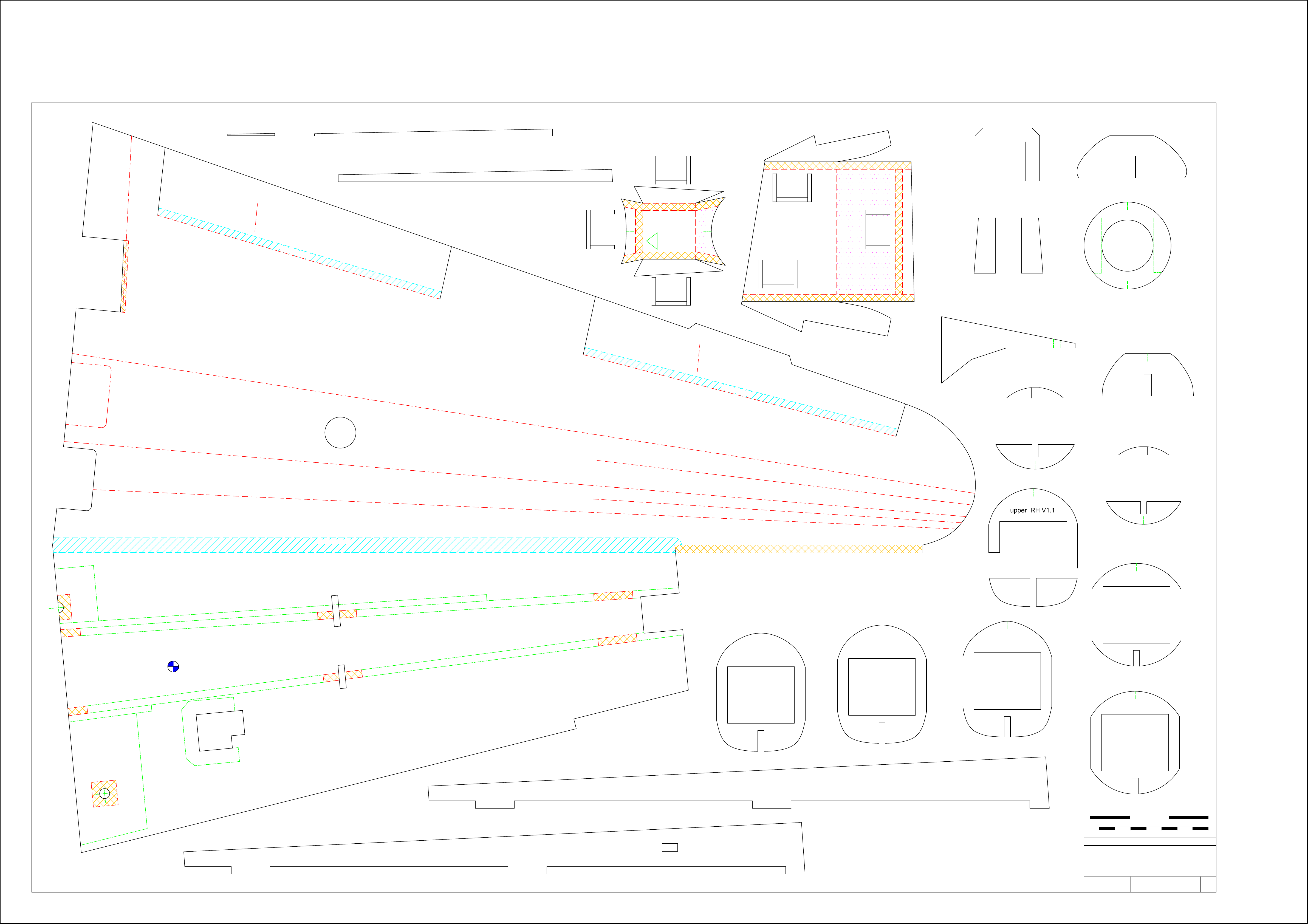

Page 7
Trailing edge outer RH V1.0
Me-410
Trailing edge mid RH V1.1
Me-410
Canopy D V1.2
Me-410
B
BBQ skewer
45° single bevel
Trailing edge inner RH V1.0
Me-410
A
Air intake V1.0
Me-410
FWD
B
B
Underwing radiator RH V1.2
Me-410
B
A
Flap servo support V1.0
Me-410
Nacelle skin 1 jig side V1.1
Me-410
Nacelle top former V1.1
Me-410
7
8
Position of
Former 7 upper and
Former 8 upper
Position of
Nacelle skin 1 jig side
Nacelle skin 1 jig V1.0
Me-410
Canopy C V1.1
Me-410
Make cut-out after
wing is glued together
Wing RH V1.1
Me-410
45° double bevel
BBQ skewer
BBQ skewer
45° single bevel
Nacelle former 7 upper V1.0
Me-410
Nacelle former 7 lower V1.0
Me-410
Nacelle former 8 upper V1.0
Me-410
Nacelle former 8 lower V1.1
Me-410
Nacelle former 6
Me-410
Drill hole after plywood insert
has been glued into cavity
Position of
Wing mount plate fwd
Position of Spar plywood fwd
Position of Spar plywood aft
CG
Position of Spar fwd
Position of Spar aft
Nacelle former 5 V1.0
Me-410
Nacelle former 4 V1.0
Me-410
Nacelle former 6
lower V1.1
Me-410
Nacelle former 3 V1.1
Me-410
Nacelle former 1 V1.2
Me-410
Nacelle former 2 V1.1
Me-410
Position of
Wing mount plate aft
Drill hole after plywood insert
has been glued into cavity
Position of
Flap servo support
Spar aft RH V1.0
Me-410
Spar front RH V1.0
Me-410
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
2
7

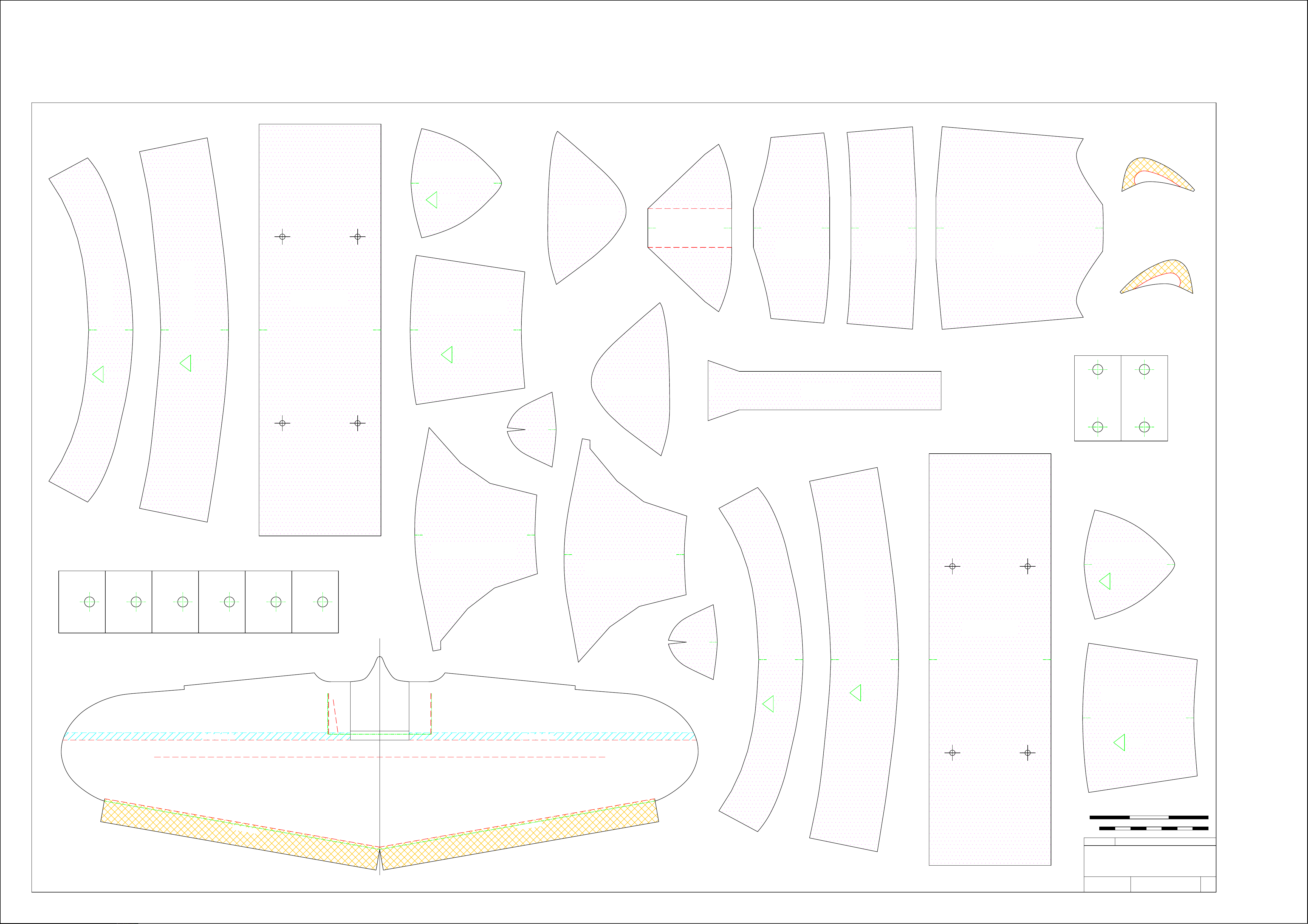

Page 8

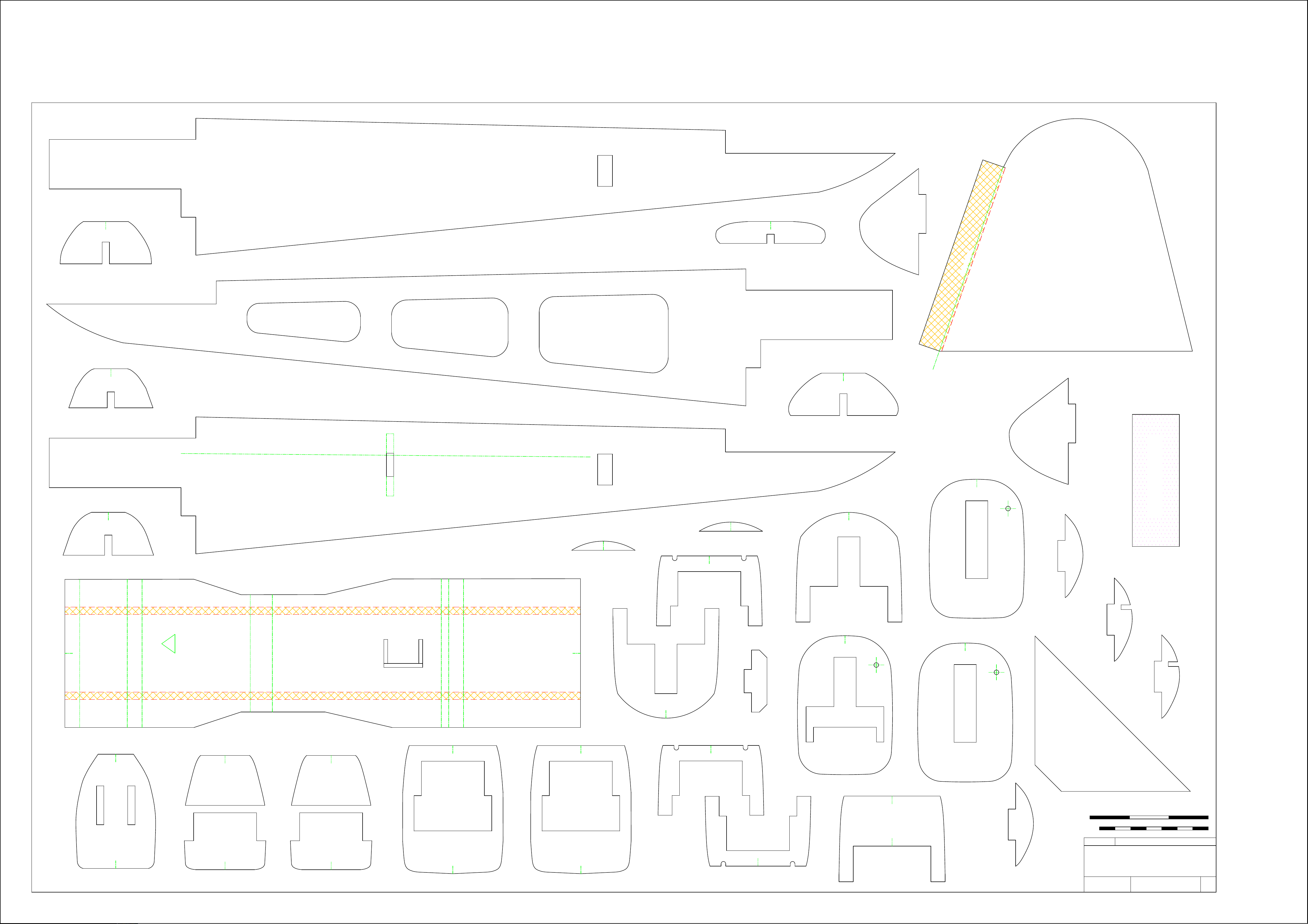

Spine RH V1.5
Me-410
Canopy C V1.1
Me-410
H1
H2
2x
L
Canopy E V1.1
Me-410
Spine center V1.4
Me-410
H1
Nose former V1.4
Me-410
BBQ skewer
Vertical stabilizer V1.0
Me-410
Canopy B1 V1.0
Me-410
Canopy B2 V1.0
Me-410
H1
H2
2x
Spine LH V1.5
Me-410
Push rod sleeve routing
Position of Push rod support
L
Canopy F V1.0
Me-410
H2
2x
Canopy D V1.2
Me-410
Frame F2 V1.4
Me-410
Nose former V1.4
Me-410
Canopy Fuselage skin V1.2
Me-410
A2
2x
B
2x
FWD
D
3x
Lower deck V1.3
Me-410
A
F1
F2
2x
Canopy F V1.0
Me-410
Frame D V1.4
Me-410
Frame H2 V1.2
Me-410
Frame L RH V1.2
Me-410
Frame L LH 1.2
Me-410
Frame F2 V1.4
Me-410
Frame A1 V1.9
Me-410
Frame A2 upper V1.4
Me-410
Frame A2 lower V1.4
Me-410
Frame A2 upper V1.4
Me-410
Frame A2 lower V1.4
Me-410
Frame B V1.1
Me-410
Frame B V1.1
Me-410
Frame D V1.4
Me-410
Push rod support V1.1
Me-410
Frame D V1.4
Me-410
Frame H1 V1.1
Me-410
Frame F1 V1.4
Me-410
Frame H2 V1.2
Me-410
Frame L RH V1.2
Me-410
VSTAB gauge V1.0
Me-410
IN
CM
Scale: 1:1
Title:
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Frame L LH V1.2
Me-410
Units: metric (mm)
Bavarian RC
Page
Pages
3
7

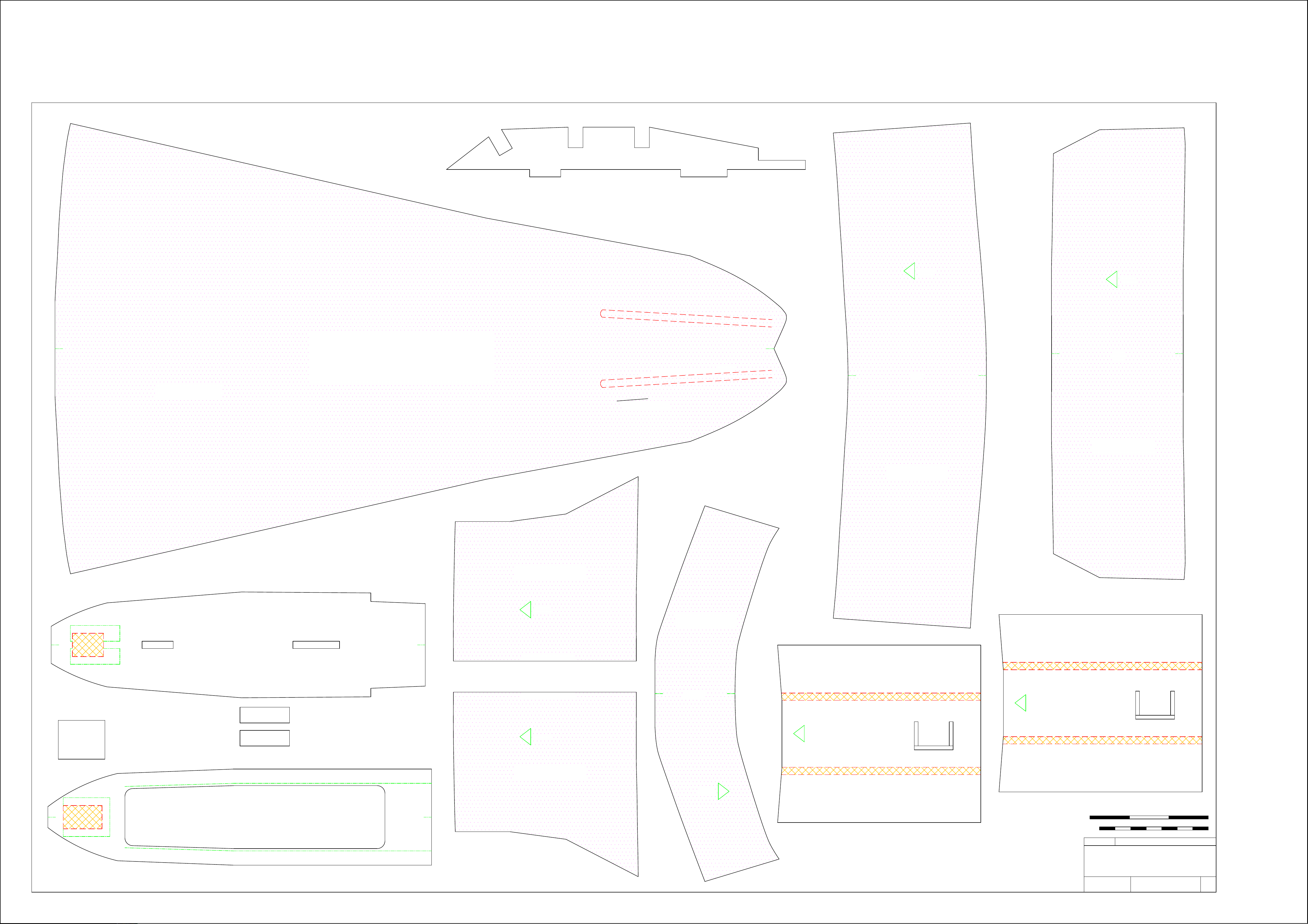

Page 9
B 2x
C 2x
D 2x
Canopy long former V1.0
Me-410
E
F 2x
FWD
FWD
Fuselage tail skin V1.3
Me-410
Remove paper on
opposite side !!!
cut opening for HSTAB after skin is glued to spine
Pushrod sleeve opening
Top
Top
Fuselage skin 4 V1.4
Me-410
Fuselage skin 2 V1.3
Me-410
Doubler for hatch
lock upper part on
other side
Doubler for hatch lock lower part V1.0
Me-410
Canopy base plate V1.2
Me-410
Fuselage skin 3 RH V1.5
Me-410
FWD
Trim this edge after glueing
Trim this edge after glueing
Fuselage skin 1 V1.2
Me-410
Bottom
FWD
Power pod V1.1
Me-410
A
Doubler for hatch
lock lower part on
underside
Doubler for hatch lock upper part V1.0
Me-410
Access frame V1.2
Me-410
BBQ skewer
FWD
Fuselage skin 3 LH V1.5
Me-410
FWD
FWD
Power pod V1.1
Me-410
A
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
4
7
Page 10
Nacelle skin 5 bottom V1.3
Me-410
Nacelle skin 1 V1.1
Me-410
FWD
Nacelle skin 2 V1.1
Me-410
FWD
Nacelle skin 3 V1.1
Me-410
FWD
Nacelle skin 4 bottom V1.1
Me-410
FWD
Nose skin 2 LH V1.2
Me-410
Trim this area as needed
to fit to nose skin 1 bottom edge
Nose skin 2 RH V1.2
Me-410
Canopy 1 V1.5
Me-410
Bottom
Canopy 2 V1.5
Me-410
Nose skin 1 V1.2
Me-410
Canopy 3 V1.3
Me-410
Canopy 5 RH V1.0
Me-410
Canopy 4 V1.2
Me-410
Canopy 5 LH V1.0
Me-410
Trim this edge as needed
Nacelle skin 5 upper V1.0
Me-410
Nacelle skin 4 upper RH V1.1
Me-410
Trim this area as needed
to fit to nose skin 1 bottom edge
Nacelle skin 4 upper LH V1.1
Me-410
Nacelle skin 1 V1.1
Me-410
Nacelle skin 2 V1.1
Me-410
FB pile (2x) wing mount aft V1.1
Me-410
Nacelle skin 5 bottom V1.3
Me-410
FWD
Foamboard pile total thickness: 24mm
BBQ skewer
FB pile (6x) wing mount front V1.0
Me-410
45° single bevel
Yes, this is a seperate piece
Steel wire diam. 1.5mm
Horizontal stabilizer V1.3
Me-410
45° single bevel
Nacelle skin 5 upper V1.0
Me-410
FWD
FWD
Nacelle skin 3 V1.1
Me-410
Nacelle skin 4 bottom V1.1
Me-410
FWD
BBQ skewer
BBQ skewer
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
5
7

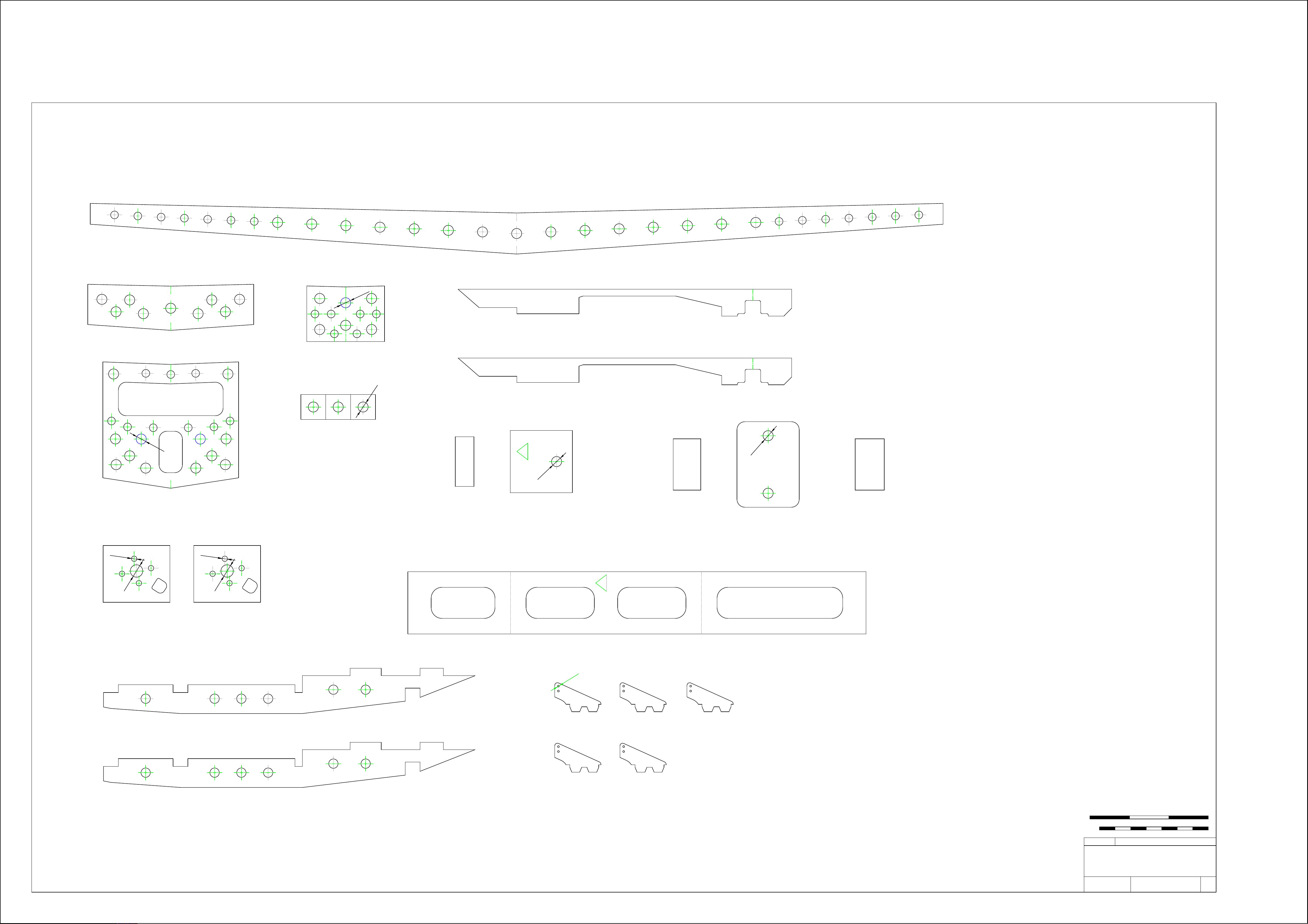

Page 11
blue hole is for wing mounting screw
others are lightening holes
Spar front plywood V1.1
plywood 4mm
Me-410
Spar aft plywood V1.0
plywood 4mm
Me-410
blue holes are for wing mounting screws
others are lightening holes
Ø6,5
Ø6,5
Wing mount plate fwd V1.1
plywood 4mm
Me-410
Ø6,5
Insert wing mount (3x) V1.0
plywood 4mm
Me-410
FWD
Lower deck side reinforcement V1.3
plywood 4mm
Me-410
Lower deck side reinforcement V1.3
plywood 4mm
Me-410
Ø6,5
Wing mount plate aft V1.1
plywood 4mm
Me-410
Ø3,5
Ø8
Firewall V1.1
plywood 2.5mm
Me-410
Ø3,5
Ø8
Firewall V1.1
plywood 2.5mm
Me-410
Front wall of Lower deck
wing support fwd V1.1
plywood 4mm
Me-410
Ø6,5
Lower deck wing support front V1.1
plywood 4mm
Me-410
Align hole of wing support
front with this line
FWD
Front wall of Lower deck
wing support aft V1.1
plywood 4mm
Me-410
Align holes of wing support
aft with this line
Rear wall of Lower deck
wing support aft V1.1
plywood 4mm
Me-410
Lower deck wing support aft V1.1
plywood 4mm
Me-410
Nacelle longitudinal former V1.0
plywood 4mm
Me-410
Nacelle longitudinal former V1.0
plywood 4mm
Me-410
Lower deck reinforcement V1.2
plywood 4mm
Me-410
Ø1,2
Control horn medium (5x) V1.0
Me-410 - Plywood 2.5mm
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
6
7
Page 12

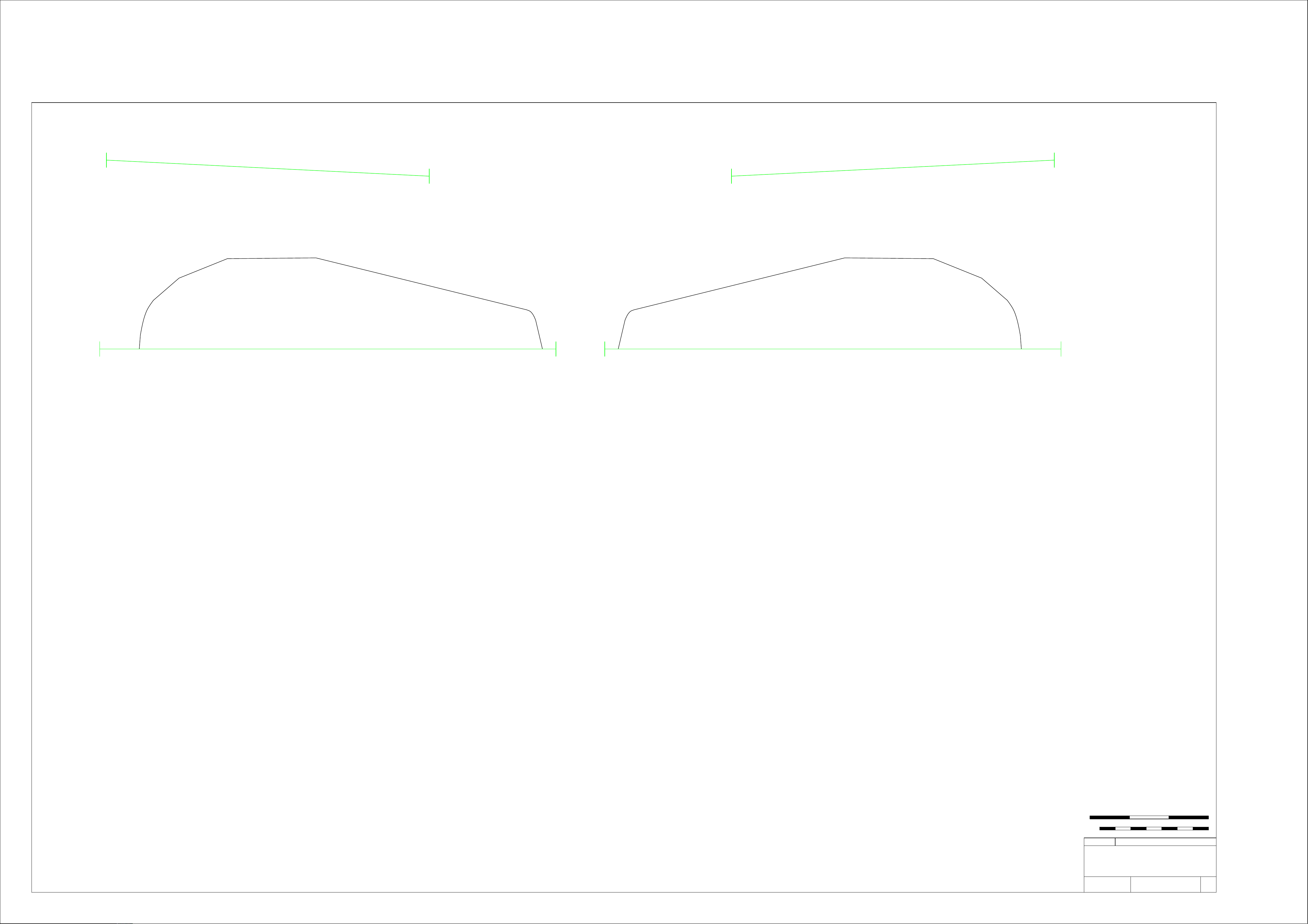

Template wing cut-out LH V1.0
Me-410
Template wing cut-out RH V1.0
Me-410
IN
CM
Scale: 1:1
Title:
Units: metric (mm)
Bavarian RC
Messerschmitt Me-410
Version: Created by:
Beta 1.0
Bavarian RC
Page
Pages
7
7
Loading...
