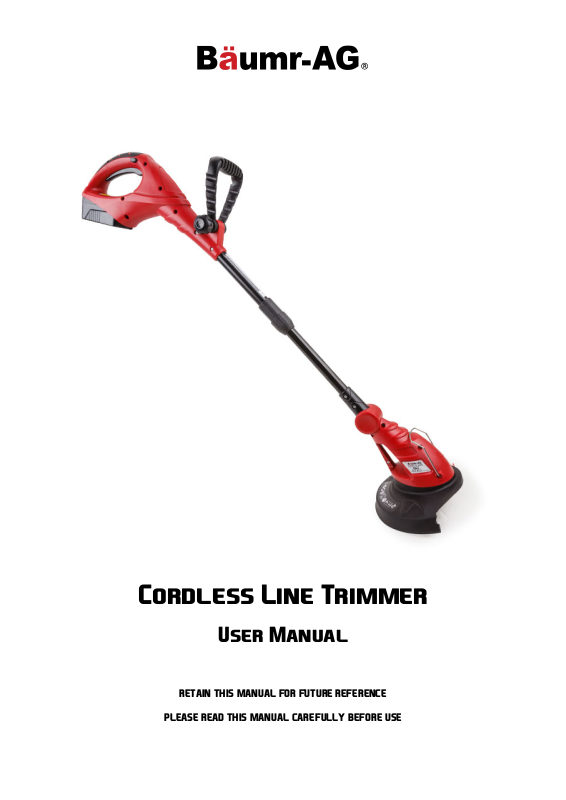

Cordless Line Trimmer
User Manual
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE
Cordless Line Trimmer
Table of Contents
Safety ......................................................................................................................................................................... 1
Grass Trimmer Safety ................................................................................................................................... 1
Battery Safety................................................................................................................................................ 2
Charger Safet y .............................................................................................................................................. 2
Set-Up .......................................................................................................................................................................... 3
Guard Installatio n .......................................................................................................................................... 3
Attach Adjustable Handle .............................................................................................................................. 3
Operation .................................................................................................................................................................... 4
Intended Use ................................................................................................................................................. 4
Starting ......................................................................................................................................................... 4
Replacing the Spool of the Nylon Line ........................................................................................................... 6
Charging the Battery ..................................................................................................................................... 7
Important Charg ing Reminders ...................................................................................................................... 8
Maintenance .............................................................................................................................................................. 9
Technical Specifications ........................................................................................................................................ 9
i
Cordless Line Trimmer
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Safety
WARNING! When using the machine the safety rules must be followed. For your own safety and that of
bystanders please read these instructio ns before operating the machi ne. Please keep the instructions
safe for later use.
Grass Trimmer Safety
Wear safety goggles when operating this tool.
Wear gloves when operati ng this tool.
Do not expose the tool to rain or high humidity.
Be familiar with the c ontrols and proper use of trimmer;
Never allow children or people unfamiliar with the instructions to use the trimmer.
Keep children, other people and pets away fr om the tr immer; the grass which is cut and dispersed may
contain stones and debris. Stop using the trimmer while people, especially children, or pets are nearby.
Do not let other people or anim als come within 15 feet of the trimmer when in use.
Only use the trimmer in daylight or good artificial light.
Before using the trimmer and after any impact , check for signs of wear or damage and repair as necessary;
do not use the trimm er if the cutt ing device is not secured properly or is damaged.
Always check the good working order of the trimmer which, if not adequate, could endanger the user.
Always use the guards when using t he grass trimm er.
Do not use the trimmer if t he guards are damaged.
Before starting t he trimmer, make sure that the nylon line is not touching stones or debris.
Keep hands and feet away from the cutting are at all times and especially when switching on the motor.
Guard against injury from the cutting blade fitted for trimming the filam ent line length. After extending new
cutting line alwa ys return the trimmer to its normal operating pos ition before switching on.
Do not use metal cutting elements.
Do not use replacement par ts or accessories not provided or not recommended by the m anufact urer.
Remove the batter y before checking, cleaning or working on the trimmer and when it is not in use.
Always ensure that ventilation openings are kept clear of debris.
To avoid unintentional starting, do not c arry the machine with a finger on the on/off switch.
Remain in a stable and sec ure position while operating the trimmer.
Keep the area being cut free from wires, stones and debris.
Do not cut against hard objects. This could cause injury or damage the tr imm er.
WARNING! Cutting elements continue to rotate after the motor is switched off.
Do not try s top the cutting device (nylon line) with your hands. Always let it come to a stop by itself.
Do not use the trimmer to cut gr ass w hich is not in contact with the ground; for example do not cut grass
which is on walls or rocks etc.
Do not cross roads or gravel paths with the trimm er still running.
1
Cordless Line Trimmer
•
•
•
•
•
•
•
•
•
•
•
−
−
•
•
•
•
•
•
•
•
•
•
•
•
Battery Safety
Never attempt to open for any reason.
Do not expose to water.
Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack
can explode in a fire.
Do not store in locatio ns where the temperature may exceed 40°C.
Do not leave the battery pack in the charger when the charging is finished, ot herwise battery leakage may
occur.
Charge only at room t em perature.
Charge only using the charger provided with the tool.
Before charg ing, make sure that the battery is dry and clean.
Use only the correct type of battery for the tool.
When dispose of batt eries follow the instr uctions given in the section "protecting t he environment".
Under extreme condit ions, battery leakage may occur. When yo u notic e liquid on the battery, proceed as
follows:
Carefully wipe the liquid off using a cloth. Avoid skin contact.
In case of skin or eye contact , follow the instructions below.
The battery fluid, a 25-30% solution of potassium hydroxide, can be harmful. In case of skin contact ,
immediately rinse with water. Neutralise with a mild acid such as lemon juice or vinegar. In case of
eye contact, rinse abundantly with clean water for at least 10 minutes. C onsult a physician.
NOTE: The batteries in your bat tery pack are the Lithium-Ion type. Do not dispose of bat tery packs/batt eries into
household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an
environmental-friendl y m anner.
Charger Safety
The Charger’s plug must match the outlet. Never modify the plug in any way. Unmodified plugs and
ma tching o utlets w ill reduce risk of electric shock.
Use your charger only to charge batteries of the type supplied with your tool. O ther batteries could burst,
causing pers onal inj ury and damage.
Only 2 battery packs are allowed to be charged continuously in order to prevent overheating of charger,
necessary rest time is required to let the char ger cool down before further charging.
When charging is f inished, unplug the charger fr om mains socket outlet and take away t he batt ery pack from
the charger, do not leav e the battery pack in the charger.
Never carry the charger by its cord or pull the cor d to disconnect from the sock et. Keep the cord away from
heat, oil and sharp edges.
Never attempt to charge non-rechargeable batter ies.
The cord of charger is not changeable, do not c ontinue to use if the cord is damaged.
Do not expose to water or rain, do not use in wet conditions.
Do not open the charger .
Do not probe the charger.
The charger is intended for indoor use only.
2
Cordless Line Trimmer
Set-Up

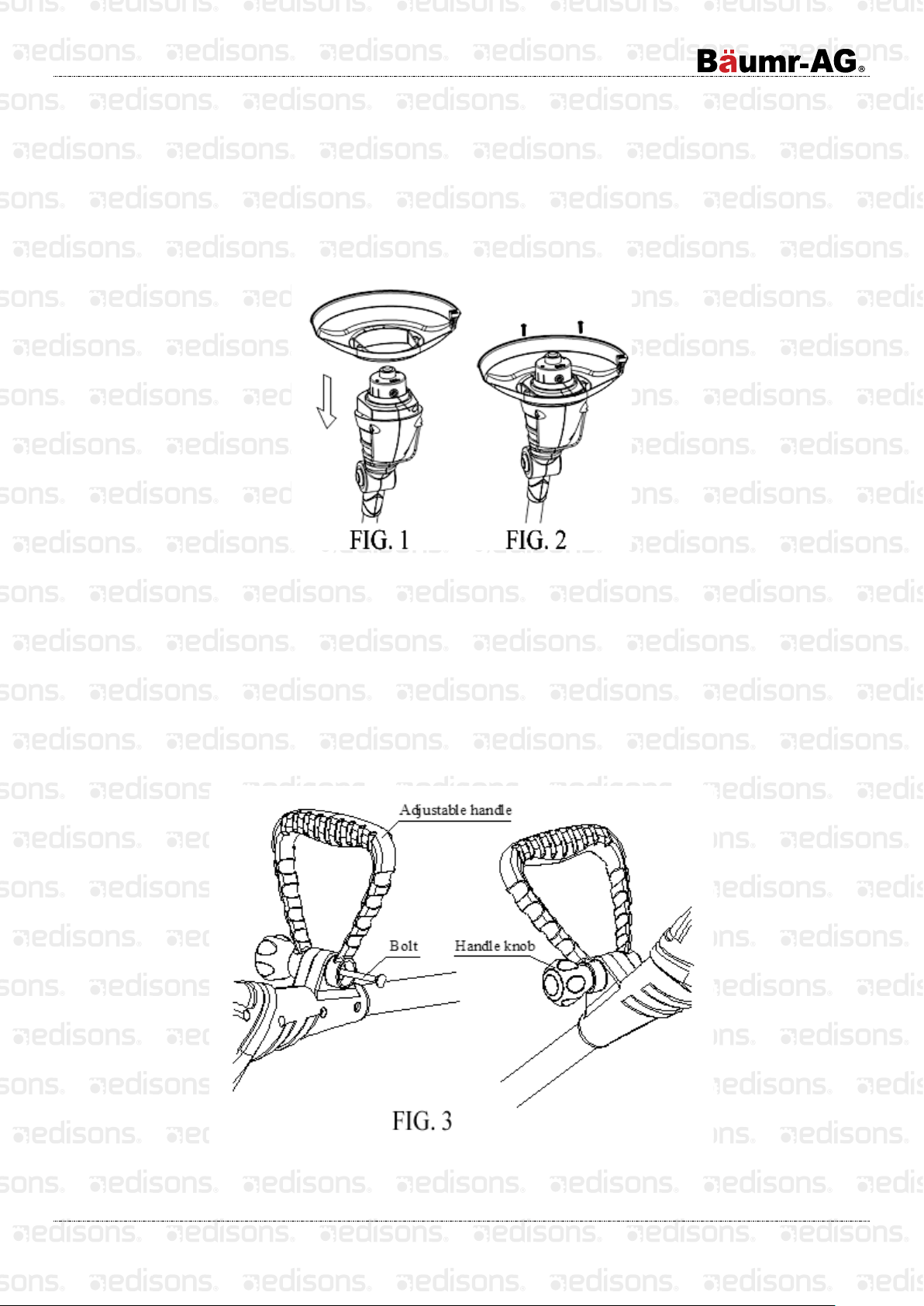

Guard Installation
1. Remove two screws from the motor housing.
2. Slide guard over motor housing (FIG. 1).
3. Re-insert two screws into the guard a nd tight en (FIG. 2).
Attach Adjustable Handle
Refer to FIG. 3.
1. Turn the handle knob and Draw out t he bolt from the adj ustable handle.
2. Insert the adjust able handle in the machine handle.
3. Insert the bolt and handle knob, then turn the handle knob lightly tighten.
4. Before tightening completely, turn the adjustable handle in des ired angle. When adj ustable handle is in
desired angle, tig hten the handle knob securely.
3
Cordless Line Trimmer
•
•
Operation
It is important you read and understand
the instruction manual before first use
and keep the manual in a safe place for
future reference.
Safety precauti ons must be observed to
reduce the risk of per son al injury when
operating this machine.
DANGER! Keep clear of power lines,
contact can cause death.
It is strongly recom m end ed that a
comprehensive training course on
machine use, fuel handling safety and
engine operation be completed before
attempting to use this machine.
Never allow chil dren to access the
machine.
Always wear ear prot ection. Loud noises
for an extended period of t ime may
damage your hea ring.
Total face and head protection must be
worn to reduce injury fr om falling
branches.
We ar no-slip heavy duty work gloves to
improve your grip on the sa w handle.
Gloves also reduce the transmission of
machine vibratio n to your hands.
The dust produced during operation may
be dangerous to health. I f the work area is
very dusty or smoky, wear a respirator.
Intended Use
Your grass tr imm er has been designed for trimming grass. Do not use for any other pur pose. This tool is
intended for dom estic use only.
Your charger has been designed for charging batteries of the type supplied wit h this tool. Do not use to
charge other batteries.
Starting

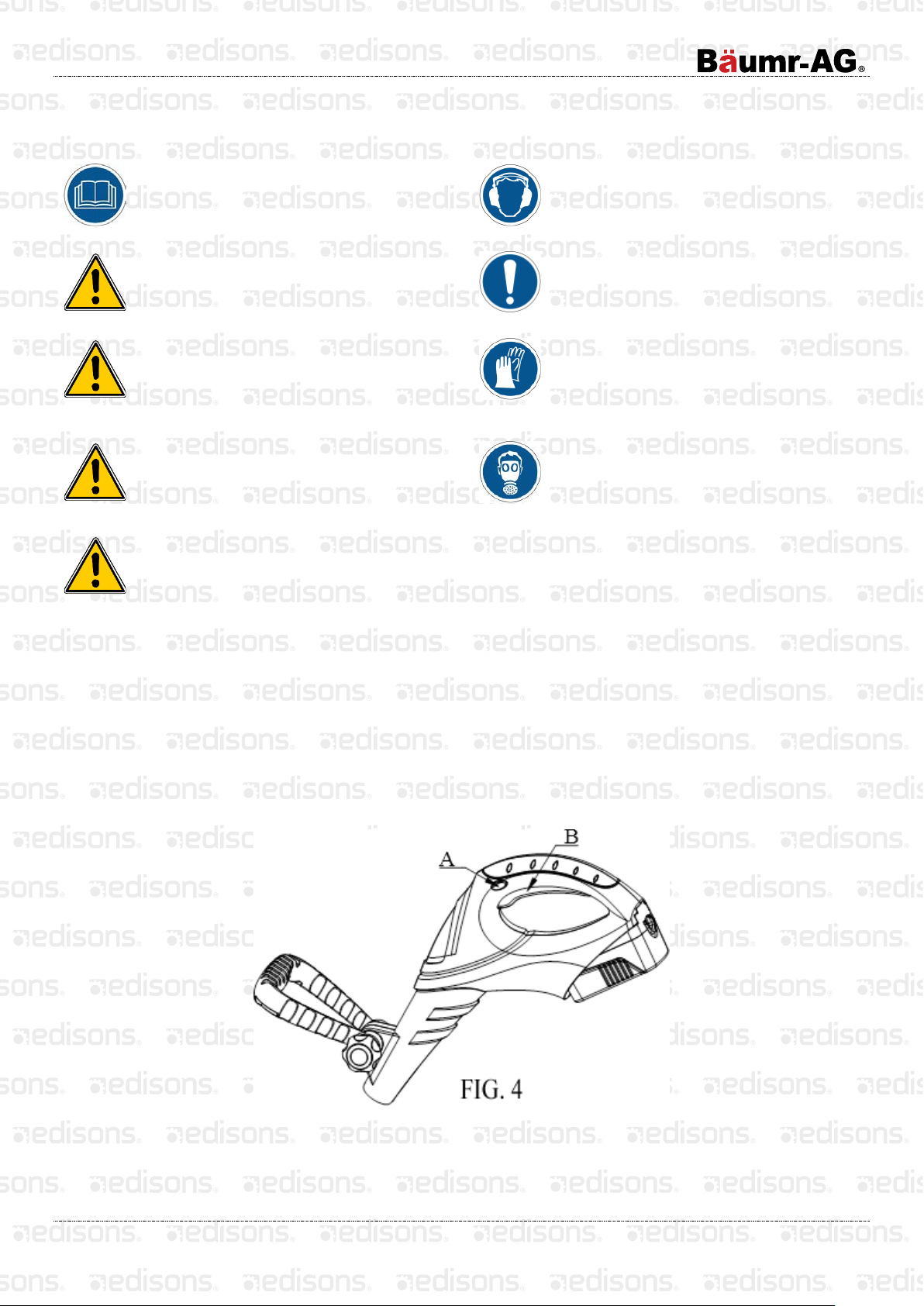

1. Grip rear handle and press trigger lock-off button (A) with thumb, then pull trigger switch (B) (See FIG. 4).
4
Cordless Line Trimmer
2. Before starting t he grass trimmer for the first time, check that the nylon lines touch or pass over the wire
cutting blade. If they are not long enough:

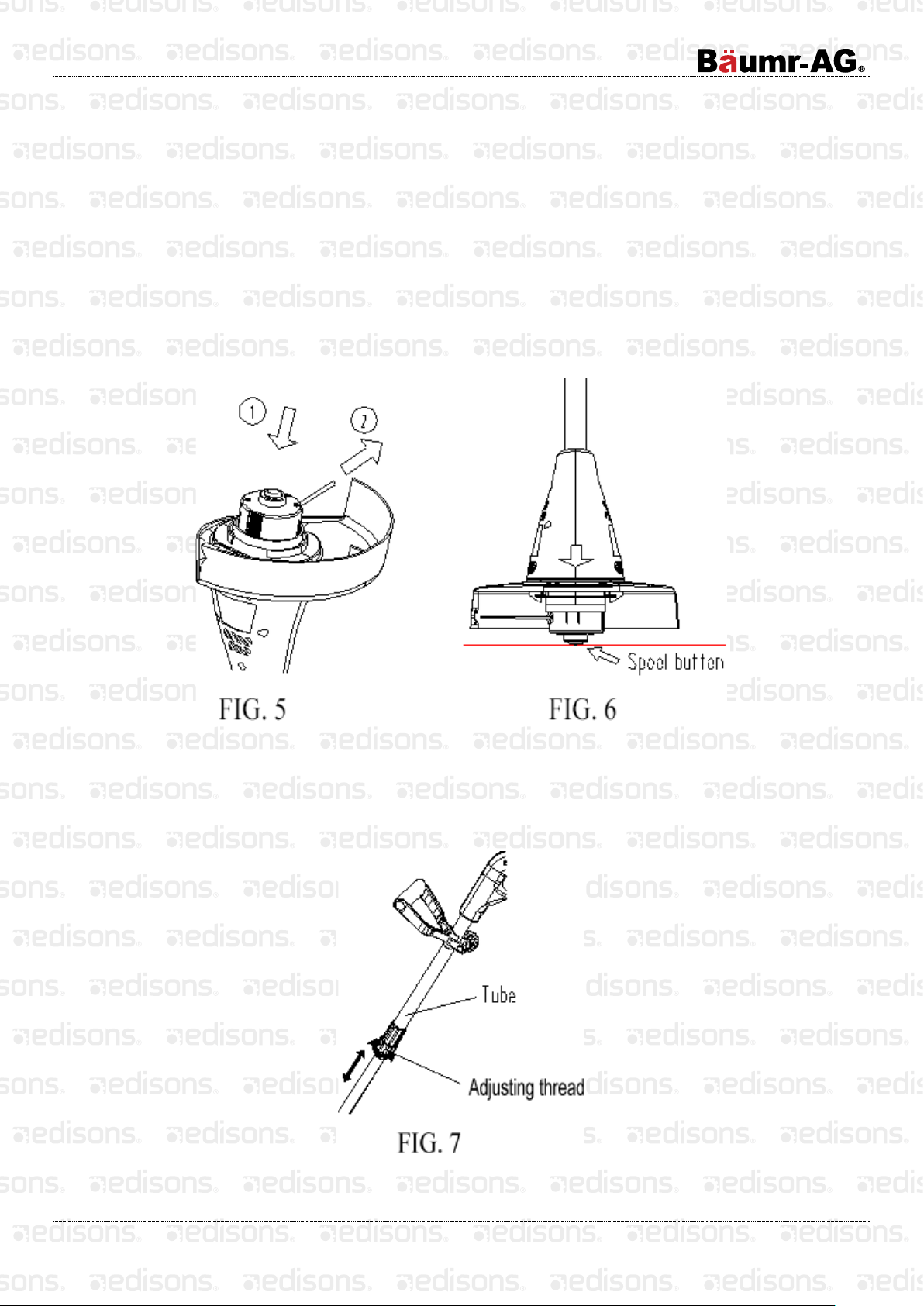

a. Press the spool button (FIG. 5).
b. Pull more n ylo n wir e to lengthen (FIG. 5).
3. The lengthened nylon line will be cut to size automatically by the wire c utting blade once the lawn trimmer is
turned on.
4. During use, the nyl on line w il l become shortened or worn. To automaticall y lengt hen or advance the nylon
cutting line, tap the spool button lightl y on ground (while the unit is r unning) (FIG. 6).
These operations sho uld be repeated a few tim es before starting work to make sure that everything is
functioning properly and to familiarise yourself with the grass trimmer. Start off slowly, when you have gained
experience, you will be able to use the grass trimm er to its full potential.
5. The length of the grass trimmer can be infinitel y varied and therefore adjusted to your individual height (FIG.
7):
a. Hold the tube with one hand, then loosen the adjusting thread.
b. Set the handle to the correct length and tighten the adjusting thread.
5
Cordless Line Trimmer
Replacing the Spool of the Nylon Line
1. Switch off the tr immer and wait for all parts to stop moving.
2. Remove the batter y pack.

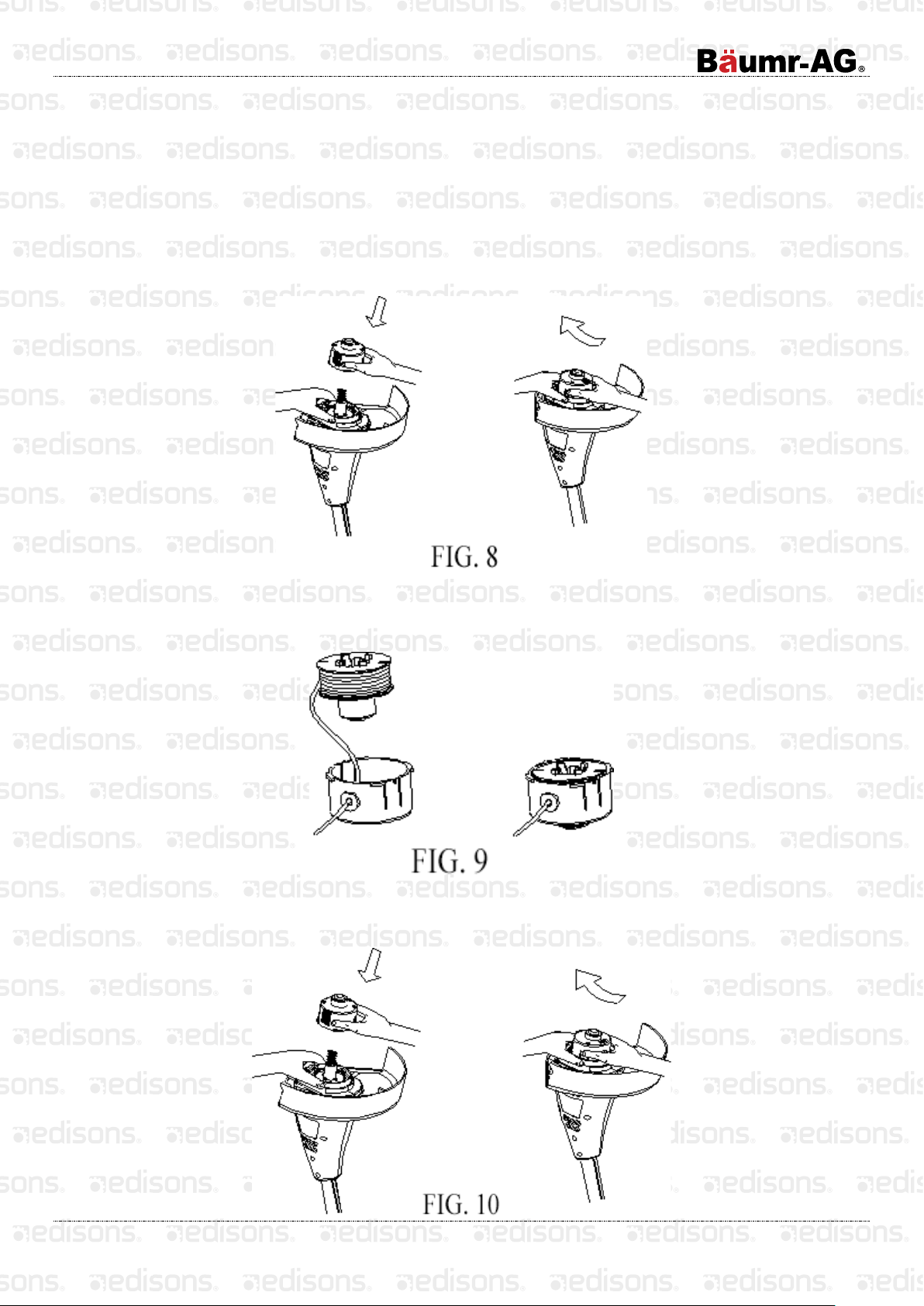

3. Remove the spool assembly fr om the trimmer. To do so, hold the outer ribbed part of the assem bly with one
hand, while pushing dow n and turning the spool head with the other to unlock it (FIG. 8). The spool carrier
and spool will now disassemble easily.
NOTE: There is a spring inside the head that could easily be lost. Ensure that it is put i n a safe place.
4. Choose either OPTION 1 or OPTION 2 below for spool or line replacement.
5. Insert the line through the eyelet in the spool carrier and slide the spool into it (FIG. 9).
6. Making sure to insert the spring, assemble the spool and spool carrier back onto t he trimmer. To do so , push
the head on and turn it clockwise until it lock s (FIG. 10).
6
Cordless Line Trimmer
−
−
7. To test if the line is advanci ng properly, push t he button with your thumbs w hile pu lling the wire wi th your
fingers. The line should advance freely.
Option 1: Access ory Replacement Spool
Use replacement spool.
Option 2: Rewinding Spoo l Using Line
Line for your trimmer is available at extr a cost fr om your local dealer or manufacturer. To install l ine,
follow the steps belo w:

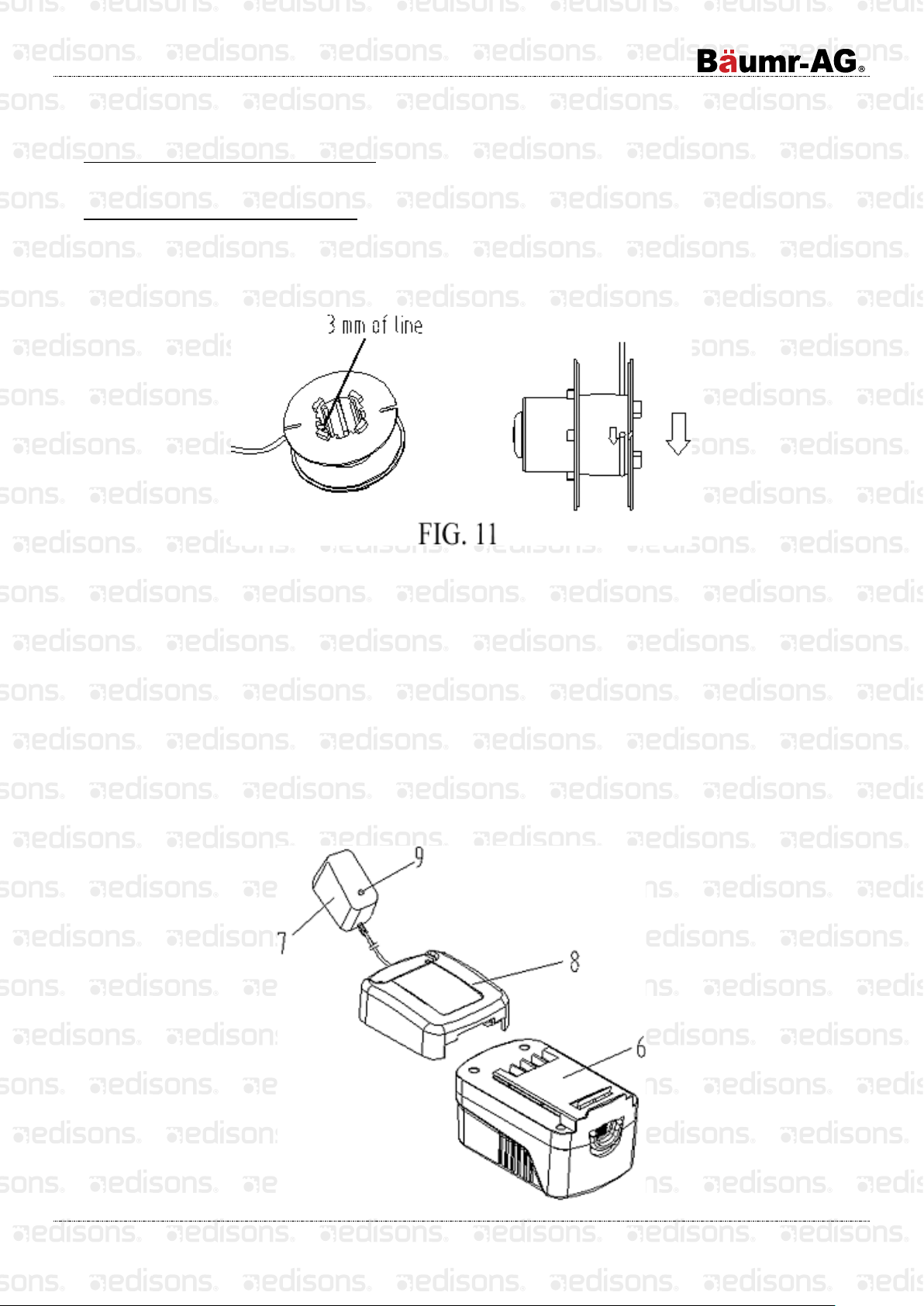

i. Insert one end of line into the hole in the spool as shown in FIG. 11, about 3 mm.
ii. Snugly and evenly wind the line onto the spool in the direction of the arrow on the spool (FIG. 11),
until the line builds up to the notches in the spool r im. Do not overfill spool. T he spool holds about
6.5m of line.
Charging the Battery
The battery needs to be charged before first use and whenever it fails to produce s ufficient power on jobs that
were easily done before. The battery may becom e warm while charging; this is normal and does not indicate a
problem.
NOTE: After several charge and discharge cycles, the battery will attain full capacity.
DO NOT CHARGE THE BATTERY AT AMBIENT TEPERATURES BELOW 4ºC OR ABOVE 40ºC.
RECOMMENDED CHARGING TEPERATURES: APPROX. 24ºC.
7
Cordless Line Trimmer
•
•
•
•
•
−
−
−
•
•
•
•
•
1. Connect the charger (#7) to the charger station (#8).
2. Plug the charger into an appropriate AC power outlet. The LED (#9) lights green to tell you that the charger
is ready for use.
3. Insert the charger station (#8) into the battery pack (#6), as sho wn in FIG. 13, making sure the charger
station is fully seated in the battery pack. The LED (#9) lights red to tell you that the battery pack is on
charge.
4. The battery pack will be full y charged in about 4 hours. A nd the LED (#9) lights green again to tell you that
the battery pack is fully charged.
Important Charging Reminders
Longest life and best performance can be obtained if t he battery pack is c harged when the air temperature is
between 18 – 24°C. Do not charge the batt ery pack in a very low or ver y high air temperature. This is
important and will pr event serious damage to the battery pack.
When using your tool continuously, the batteries in your batter y pack will become hot. You should
let a hot battery pack cool down for approximately 30 minutes before attempting to recharge.
The charger and battery pack may become warm to touch while charging. This is a normal condition, and
does not indicate a problem.
Use the charger in norm al room temperatures whenever possible. To pr event overheating, do not cover the
charger and do not charge battery packs in direct sunlight or near heat sources.
If the battery pack does not charge properly:
Check current at receptacle by plugging in a lamp or other appliance.
Move charger and batt ery pack to a location where the surrounding air temperature is approximately 18
– 24°C.
If charging problems persist, take or send the tool, battery pack and charger to your local service centre.
The battery pack should be rec harged when it fails to produce sufficient power on jobs which were easily
done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You
may also charge a part ially used pack whenever you desire with no adverse effect on the battery pack.
Under certain conditi ons, with the charger plugged in to the power supply, the exposed charging contacts
inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but
no limited to, st eel wool, aluminium foil, or any build-up of metallic particles should be kept away from
charger c avities. A lways unplug the charger from the power supply when there is no battery pack in the
cavity. Unplug charger before attem pting t o clean.
Do not immerse charger in water or any other liquid.
WARING! Don’t allo w a ny liquid to get inside charg er. Electric shock may result. To facilitate the cooli ng of
the battery pack after use, avoid placing the charger or batter y pack in a warm environment such as in a
metal shed, or an uninsulat ed trailer.
CAUTION! Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack
breaks or cracks , return to a service centre for recycling, do not put it into further use
8

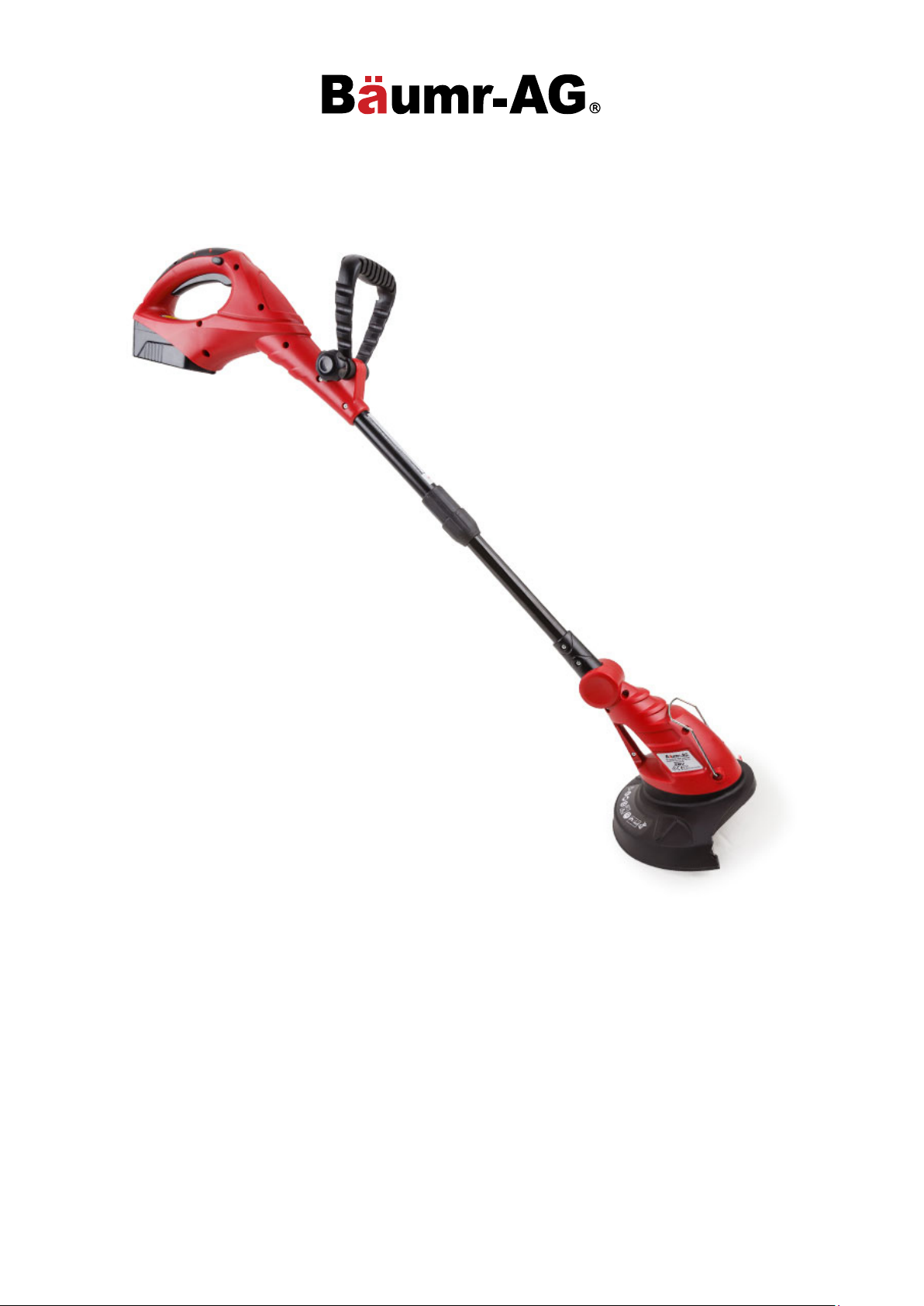

Cordless Line Trimmer
•
•
•
•
•
•
Maintenance
After use, remove the battery pack from the trimmer.
W hen not in use store the machine out of the reach of children.
Use only manufacturer -recommended replacement parts and accessories.
Your trimmer line can dry out over time. To keep your line in top c ondition, store spare pre-wound spools or
bulk line in a plastic, sealable bag with a tablespoon of water.
To clean the tool, remove battery pack and use only mild soap and a damp cloth to clean the tool. Do not
immerse tool in water or squirt it with a hose. Do not allow a ny liquid to get inside it. Do not clean with a
pressure washer.
The line cutter on the edge of the guard can dull over time. It is recommended you periodic ally touch-up the
sharpness of the blade with a file.
Technical Specifications
Model
Battery
Trimmer Head
Spool
Trimmer Line
No-Load Speed
Cutting Path
Throttle Control
Handle
Front Handle
Shaft
Charger
Charging Time
Running Time
Length
TR2
20V 1300mA h Lithi u m
Bump Feed
6.5m
Φ 1.6mm
8000rpm
230mm
Rubber Over Moulded
Adjustable Swivel
Alumini um Telescopic
240V
4 Hours
30 Minutes
1-1.2m
Note: Minimal Ass embly required
9
Some experts believe the incorrect or prolonged use of almost any
product could cause
serious injur
y or de
a
th.
F
or in
f
orm
a
tion th
at
may reduce your risk of serious injury or death consult the points
below and additionally, the information available at
www.datastreamserver.com/safety
- Consult all docume ntation, packaging and
product labelling before use. Note that some
products feature online documentation which
should be printed and kept with the p roduct.
- Check product for loose / broken / damaged /
missing parts, wear or leaks (if applicable) be fore
each use. Never use a product with loose / b roken
/ damaged / missing pa rts, wear or leaks (if
applicable).
- Products must be inspected and serviced (if
applicable) by a qualified specialist every 6
months assuming average residential use by a
person of average weight and strength, ab ove
average technical aptitude, on a property
matching average metropolitan specification.
Intended use outside these guidelines could
indicate the product is not suitable for intended
use or may require more regular inspection or
servicing.
- Ensure all possible users of the p roduct have
completed an industry recognised training course
before being given access to the product.
- The product has been supplied by a general merchandise
retailer that may not be familiar with your specific applic ation or
your description of the applic ation. Be sure to attain third party
approval for your application from a qualified specialist before use
regardless of prior assurances by the retailer or its representatives.
- This product is not intended for use where fail-safe operation is
required. As with any product (take an au tomobile, aircraft,
computer or ball poi nt pen for example) there is always a small
chance of a technical issue that needs to be repaired or may
require replacement of the product or a part. If the possibility of
such failure and the associated time it takes to rectify could in any
situation inconvenience the user, business or employee or could
financially affect the user, business or employee then the product
is not suitable for your requirements. This p roduct is not for use
where incorrect operation or a failure of any kind, including but
not limited to a condition requiring product return, replacement,
service by a technician or replacement of parts could cause a
financial loss, loss of employee time or an in c
onvenience
requiring compensation.
- If this item has been purchased in error considering the points
above simply contact the retailer directly for details of their
returns policies if required.
Loading...
