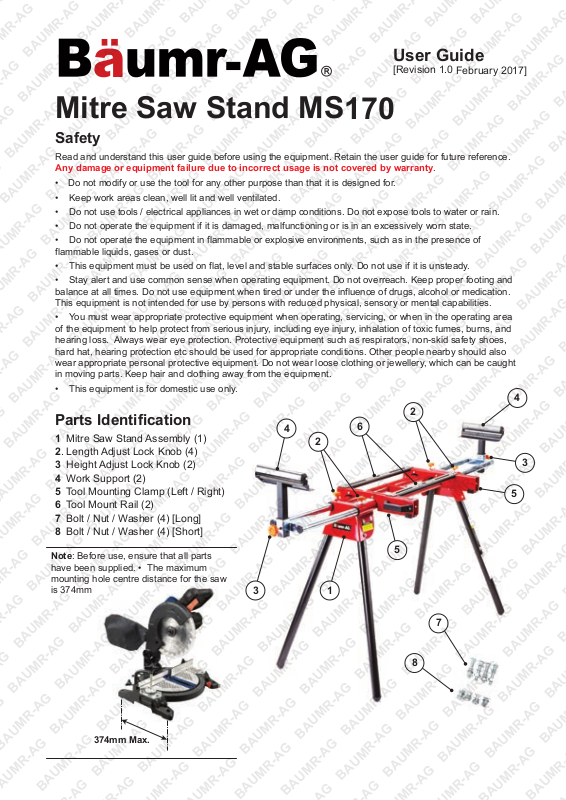

Baumr-AG MS170 User Manual

User Guide

[Revision 1.0 February 2017]

Mitre Saw Stand MS170

Safety

Read and understand this user guide before using the equipment. Retain the user guide for future reference.

Any damage or equipment failure due to incorrect usage is not covered by warranty.

• Do not modify or use the tool for any other purpose than that it is designed for.

• Keep work areas clean, well lit and well ventilated.

• Do not use tools / electrical appliances in wet or damp conditions. Do not expose tools to water or rain.

• Do not operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.

• Do not operate the equipment in flammable or explosive environments, such as in the presence of
flammable liquids, gases or dust.

• This equipment must be used on flat, level and stable surfaces only. Do not use if it is unsteady.

• Stay alert and use common sense when operating equipment. Do not overreach. Keep proper footing and
balance at all times. Do not use equipment when tired or under the influence of drugs, alcohol or medication.
This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

• You must wear appropriate protective equipment when operating, servicing, or when in the operating area
of the equipment to help protect from serious injury, including eye injury, inhalation of toxic fumes, burns, and
hearing loss. Always wear eye protection. Protective equipment such as respirators, non-skid safety shoes,
hard hat, hearing protection etc should be used for appropriate conditions. Other people nearby should also
wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught
in moving parts. Keep hair and clothing away from the equipment.

• This equipment is for domestic use only.

2

Parts Identification

1 Mitre Saw Stand Assembly (1)

2. Length Adjust Lock Knob (4)
3 Height Adjust Lock Knob (2)
4 Work Support (2)
5 Tool Mounting Clamp (Left / Right)
6 Tool Mount Rail (2)
7 Bolt / Nut / Washer (4) [Long]
8 Bolt / Nut / Washer (4) [Short]

4

2

6

4

3

5

Note: Before use, ensure that all parts

have been supplied. • The maximum
mounting hole centre distance for the saw
is 374mm

374mm Max.

13

5

7

8

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Set-Up and Use

For each leg (A), press the spring-loaded pin (B) in, then rotate the leg outward until the pin"pops" into hole (C).

B

C

A

For each work support (D), insert it into the hole at the each end of the stand, then secure with a height
adjustment knob (E). For the table length, slide the ends (F) of the table in / out as required, then secure with
length adjustment knobs (G). Adjust the work support height and table length as needed - always ensure that
all adjustment knobs are secure before use.

E

D

F

G

Place the left and right-hand tool mounting clamps (H) over the main stand tubes (I) and ensure they are
seated on the tubes snugly. Secure each clamp by rotating the locking handle (J) down until it "snaps" into the
locked position. To adjust position, unlock the clamps, move them to the required position, then lock again.
Note: If the tool mounting clamps become loose on the tubes, they can be adjusted - loosen the adjustment
screw (K) lock nut, then rotate the screw in slightly, tighten the lock nut and test the clamp - repeat as
necessary until the clamp is firm.

I

H

J

Place the tool mounting rails (L) onto the tool mounting clamps (H) (you may need to adjust the position of the
clamps). Attach the rails to the clamps using the short bolts (M) - insert the bolts from the underside of the
clamps, then fasten using a flat washer, lock washer and nut from the top side of the rails. Position the rails as
required for the tool to be mounted before tightening the nuts. Mount the saw to the mounting rails in a similar
fashion, using the long bolts.

M

K

H

L

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Some experts believe that the incorrect or prolonged use of almost any product may
cause serious injury or death. To help reduce your risk of serious injury or death, refer
to the information below. For more information, see www.datastreamserver.com/safety



Consult all documentation, packaging and product
labelling before use. Note that some products feature
documentation available online. It is recommended to
print and retain the documentation.



Before each use, check the product for loose/broken/
damaged/missing parts, wear or leaks (if applicable).
Never use a product with
loose/broken/damaged/missing parts, wear or leaks.



Products must be inspected and serviced (if
applicable) by a qualified technician every 6 months.
This is based on average residential use by persons of
average size and strength, and on a property of
average metropolitan size. Use beyond these
recommendations may require more frequent
inspections/servicing.



Ensure that all users of the product have completed a
suitable industry recognised training course before
being allowed access to the product



If this product has been purchased in error when

.

considering the information presented here, contact
the retailer directly for details of their returns policy, if
required.



The product has been supplied by a general
merchandise retailer that may not be familiar with your
specific application or description of application. Be
sure to attain third-party approval from a qualified
specialist for your application before use, regardless of

ny assurances from the retailer or its representatives.

a



This product is not intended for use where fail-safe
operation is required. As with any product (for
example, automobile, computer, toaster), there is the
possibility of technical issues that may require the
repair or replacement of parts, or the product itself. If
the possibility of such failure and the associated time it

y take to rectify could in any way inconvenience the

ma
user, business or employee, or financially affect the
user, business or employee, then the product is not
suitable for your requirements. This product is not
intended for use where incorrect operation or a failure
of any kind, including but not limited to, a condition
requiring product return, replacement, parts
replacement or service by a technician may cause

inancial loss, loss of employee time or an

f
inconvenience requiring compensation.
