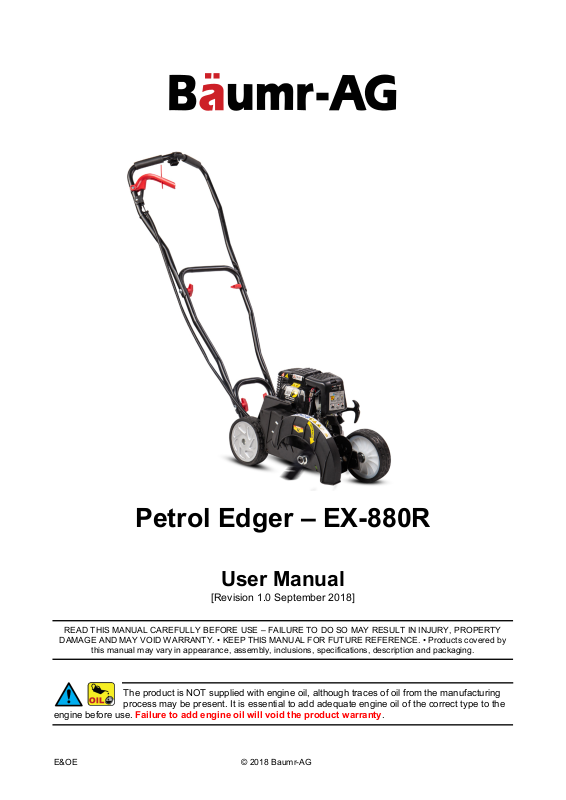

Baumr-AG EX-880R User Manual

Petrol Edger – EX-880R
User Manual
[Revision 1.0 September 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
engine before use. Failure to add engine oil will void the product warranty.
E&OE © 2018 Baumr-AG
Petrol Edger – EX-880R

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:
You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.
It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.
Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.
Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.
Before Use - If you are not familiar with the safe operation/handling of the equipment, or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquid s, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
Keep clear of moving parts.
Equipment may be a potential source of
electric shock or injury if misused.
Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
Keep packaging away from children ­risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.
General Work Area Safety
Work areas should be clean and well it.
Do not operate the equipment if
bystanders, animals etc are within operating range of the equipment or the general work area.
If devices are provided for connecting dust extraction / co llection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.
You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.
General Personal Safety
Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
Stay alert and use common sense when operating the equipment. Do not over-reach. Always maintain secure footing and balance.
Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.
General Fuel Safety
Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
Do NOT smoke near fuel or when refuelling.
Always shut off the engine before refuelling.
Do NOT ref uel a hot engine.
Open the fuel cap carefully to allow any
pressure build-up in the tank to release slowly.
Always refuel in well ventilated areas.
Always check for fuel leakage. If fuel
leakage is found, do not start or run the engine until all leaks are fixed.
General Carbon-Monoxide Safety
Using a combustion engine indoors
CAN K ILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
Use combustion engines OUTSIDE only, and far away from windows, doors and vents.
You CAN be INJURED if you do not follow instructions or equipment damage may occur.
General Equipment Use and Care
The equipment is designed for domestic use only.
Handle the equipment safely and carefully.
Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
Do not clean equipment with solvents, flammable liquids or harsh abrasives.
For specific equipment safety use and care, see Equipment Safety.
E&OE © 2018 Baumr-AG 2
Petrol Edger – EX-880R
General Electrical Safety
Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
When wiring electrically powered equipment, follow all electrical and safety codes.
W herever possible, use a residual current device (RCD).
High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.
Specified Conditions of Use
The lawn edger is designed to look after domestic areas of grass and lawn. Due to the physical danger to the user and other persons, the appliance may not be used for other purposes.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
It is necessary to comply with the regulations applicable in the country where the truck is used.
The appliance must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.
Use the appliance only outside, never use it in confined and bad ventilated areas.
Wear personal protective equipment. Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals. Wear protective gloves if necessary.
Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.
Avoid operating the equipment in wet
grass, where feasible.
General Electrical Safety
Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
Do NOT use electrical equipment in wet conditions or in damp locations.
Do NOT use electrical cords to lift, move or carry equipment.
Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.
Requirements for Operating Staff
The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.
Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.
The operating staff must carefully read the Operating Instructions before using the appliance.
Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.
Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education. Local regulations may stipulate the minimum age of the user.
Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.
General Service Information
The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
Do NOT attempt any maintenance or repair work not described in this manual.
After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before making adjustments, changing accessories or performing repair or maintenance.
Do NOT make adjustments while the equipment is running.
Perform service related activities in suitable conditions, such as a workshop.
Replace worn, damaged or m issing warning/safety labels immediately.
Residual Risks
Rotating blades may lead to serious injuries by cutting or amputating parts of the body. Never touch under the
housing body when the engine is running. Wear protective shoes. Never remove the collection bag when the machine is being operated.
Thrown-off stones or soil may lead to injuries. Before mowing, check the area
to be mowed for any undesirable objects. Make sure the collection bag is properly suspended. Wear safety goggles when working.
Poor lighting/light conditions represent a high safety risk. Provide
adequate lighting or good lighting conditions when working with the machine.
Danger of bur ns ! Some parts of the appliance get too hot when the appliance is operated. Contacting hot parts of the unit may cause burns. Let the unit cool down after its operation is over.
Risk of poisoning! Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal! Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.
Risk of explosion/ Risk of fire! Petrol and petrol vapours are highly flammable, explosive. Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust. Never operate the unit near highly flammable materials.
E&OE © 2018 Baumr-AG 3
Petrol Edger – EX-880R

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them.
Flammable Material Hazard
Flammable liquids, gases or
substances etc may present.
Avoid ignition sources and
open flames. Danger of fire.
Electrocution / Electrical
Shock Hazard
High voltage or high current electricity may be present or
required by the product. Take
due care when handling electrical products, cables, plugs and leads. Electrical
shock can be fatal.
Crush Hazard
The product may have blades,
edges or mechanical devices
that can cause severe crush
injury to fingers, limbs etc.
Take due care when handling
and using the product.
Read User Manual
Read and fully understand
product safety warnings,
operation, procedures etc
before using the product.
Toxic Fumes / Dust Hazard
Using the product or by-
products from use may
produce fumes, smoke or
particles that could be harmful
if inhaled. Wear appropriate
breathing protection and have
adequate ventilation.
Single Operator Only
The product must be operated
by a single person only. More
than one person operating the
product may introduce
additional hazards.
Use Hand Protection
Wear appropriate hand
protection and take due care
as the product or use of the
product may present hand
hazards.
Explosive Material Hazard
Combustible liquids, gases or
substances etc may be
present. Avoid ignition sources
and open flames. Danger of
explosion.
Use Face Protection
Wear appropriate f ull-face
protection and take due care
as the product or use of the
product may present face and
eye hazards.
Carbon-Monoxide Hazard
Do not use the product in confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be
fatal.
Cutting / Amputation Hazard
The product may have blades,
edges or mechanical devices
that can cause severe cut injury to fingers, limbs etc.
Take due care when handling
and using the product.
Use Foot Protection Wear appropriate foot
protection and take due care
as the product or use of the
product may present foot
hazards.
E&OE © 2018 Baumr-AG 4
Petrol Edger – EX-880R
Use Eye / Ear / Head
Protection
Wear appropriate eye and / or
ear and / or head protection
and take due care as the
product or use of the product
may present eye, hear ing and
head hazards.
Skin Penetration / Puncture
Hazard
The product may produce
pressure, emit liquids or
objects that can cause severe
injury to fingers, limbs, blood
etc. Take due care when
hand ling and using the
product.
Carbon-Monoxide Hazard
Do not use the product in confined areas or without
adequate ventilation. Carbon-
monoxide poisoning can be
fatal.
Running Hazard
Do not run on or near the
product as doing so may
present a fall hazard.
Hot Surface Hazard
Be aware that the product may
produce high temperatures
and hot surfaces that can
cause burn injuries.
Pull Hazard
Be aware that the product
contains or uses mechanical devices that can pull in objects and can cause severe injury to
fingers, limbs etc. Take due
care when handling and using
the product.
Diving Hazard
Do not dive into the product as
doing so may present a neck /
head injury hazard.
Flying Debris Hazard
Be aware that the product or
use of the product may
present hazards produced by
flying debris. Wear appropriate
clothing and protectiove
devices.
Slope / Fall Injury Hazard
Be aware that using the
product on sloping surfaces or
in slippery conditions may
present additional dangers
from falls and contact w ith
blades, moving parts, hot
surfaces etc.
Adult Super vision Required
Always supervise children and
other users of a product to prevent drowning or injury.
Moving Parts Hazard
Be aware that the product
contains or uses mechanical
devices that move or rotate.
Always wait for moving parts
to stop fully before handling
the product, adjusting,
maintenence etc.
"Slam Dunk" Warning
Do NOT attempt "slam dunk"
maneouvres as this may result
in severe injury due to falling, product breakage or collapse
etc.
Electrocution / Electrical
Shock Hazard - Outdoor
High voltage or high current electricity may be present or
required by the product. Do
NOT use in rain, damp or wet
conditions. Electrical shock
can be fatal.
Winch Operator Position
Hazard
Do NOT stand between winch
and load. Do NOT use winch
to move people.
Electrocution / Electrical
Shock Hazard - Disconnect
High voltage or high current
electricity may be present or
required by the product.
Always disconnect the product
from the electrical supply
before handling the product,
adjusting, maintenence etc.
Winch Lift Hazard
Do NOT LIFT load vertically.
Use machine to PULL only.
Power Line Electrocution
Hazard
High voltage / high current
power lines may be present.
Use extreme caution to avoid
contact or interference with
power lines. Electrical shock
can be fatal.
Cable Hazard
Ensure that load bearing cable
is not kinked or knotted.
"Kick-Back" Hazard
High level of "kick-back"
hazard that can cause the
machine to suddenly rotate
towards operator. Kick-back
injury can be fatal.
Winch Cable Hazard Ensure that there is a
minimum number of cable
coils on winching mechanism.
E&OE © 2018 Baumr-AG 5
Petrol Edger – EX-880R
Winch Hook Hazard
Carry hook to load – do NOT
throw or run.
Flash / Blinding Hazard
protection for welding. Dorect
exposure to weld arcs may
cause permanent eye injury.
Wear appropriate eye
Laser Hazard
Laser may be in use – do NOT
look directly at laser, or allow
others to.
E&OE © 2018 Baumr-AG 6
Petrol Edger – EX-880R
Table of Contents
Safety ................................................................................................................................................... 2
Safety Symbols .......................................................................................................................................... 4
Included Parts .................................................................................................................................... 8
Assembly ............................................................................................................................................ 9
Set-Up ........................................................................................................................................................ 9
Fuel Tank Filling ....................................................................................................................................... 11
Oil Level Inspection .................................................................................................................................. 12
Cutting Height Setting .............................................................................................................................. 13
Operation .......................................................................................................................................... 14
General .................................................................................................................................................... 14
Changing the Knife................................................................................................................................... 15
Air Filter .................................................................................................................................................... 16
Spark Plug ............................................................................................................................................... 17
Maintenance ..................................................................................................................................... 18
Troubleshooting ............................................................................................................................... 20
Inspection and Maintenance Plan .................................................................................................. 21
Specifications ................................................................................................................................... 22
E&OE © 2018 Baumr-AG 7
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Included Parts

Products detailed in this manual may vary in appearance, inclusions, description and packaging
from those shown or described. This section shows typical major components common to most
petrol powered generators, the position of some components may also vary between models.
E&OE © 2018 Baumr-AG 8
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Assembly

Set-Up

E&OE © 2018 Baumr-AG 9
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
E&OE © 2018 Baumr-AG 10
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Fuel Tank Filling

E&OE © 2018 Baumr-AG 11
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Oil Level Inspection

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add
engine oil if necessary. To ensure quality, every piece of equipment is subject to a test operation and filled with motor oil. Oil is drained before transport; however, there can be some motor oil remains on the dip stick. Please check carefully the oil level and add motor oil again.
E&OE © 2018 Baumr-AG 12
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
Cutting Height Setting
E&OE © 2018 Baumr-AG 13
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Operation

General

E&OE © 2018 Baumr-AG 14
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Changing the Knife

E&OE © 2018 Baumr-AG 15
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Air Filter

E&OE © 2018 Baumr-AG 16
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Spark Plug

E&OE © 2018 Baumr-AG 17
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Maintenance

Any works/ adjusting on the machine to be only performed with the engine switched off, unplugged and when the mowing blade is not moving. Switch the engine off and remove the socket plug before
any work on the engine. Wait until all rotating parts have stopped and the appliance has cooled down.
E&OE © 2018 Baumr-AG 18
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
E&OE © 2018 Baumr-AG 19
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Troubleshooting

Defect Cause Removal
Empty fuel tank/Lack of fuel. Add some fuel.
Choke has not been used. Use the choke.
The motor does not start
The motor does not develop maximum power
Unsteady running, strong vibrations
Wrong fuel, storing without petrol tank being drained.
Sooted spark plug (carbon residues on electrodes), electrodes distance too big.
The spark plug is wet from petrol (oversaturated engine).
Main switch is not controlled See ‘Operation’ section.
Sooted spark plug (carbon residues on electrodes), electrodes distance too big.
Dirty air filter. Clean or replace the air filter.
Wrong fuel, storing without petrol tank being drained.
Blade is damaged. Replace the blade.
Blade is loose.
Drain the fuel tank and carburettor. Add fresh petrol.
Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
Dry the spark plug out and refit it.
Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm.
Drain the fuel tank and carburettor. Add fresh petrol.
Check and tighten the blade clamping.
Cutting capacity
Blade is blunt.
Mowing height adjustment not regulated
Have the blade sharpened or replaced.
Adjust the mowing height
E&OE © 2018 Baumr-AG 20
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Inspection and Maintenance Plan

Regular Servicing Period
Inspection X
Air filter
Change X
Inspection X
Spark plug
ON/OFF switch Functional test X
Complete Machine
Plastic body
Oil tank cap
Clean X
Change X
Clean X
Let it regularly be checked by an authorised workshop
Check for cracks and fissures
Check for tightness
In case of damage, have it repaired in an authorised workshop
Before Any
Start-Up
X
X
After Every Take out of
Service
After 12
Months
After 24 Months
E&OE © 2018 Baumr-AG 21
Petrol Edger – EX-880R
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG
BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Specifications

Model
Displacement
Cutting Width
Oil
RPM (Max)
RPM (Normal)
Fuel Tank
Engine Type
Cutting Depth Range
Depth Adjustments
EX-880R
31cc
224mm
10W-30
6500/Min
3000/Min
700mL
Full crank
28mm - 30mm
+20/+10/0/-12/-25
E&OE © 2018 Baumr-AG 22
Petrol Edger – EX-880R
Some experts believe that the incorrect or prolonged use of almost any
product may cause serious injury or death. To help reduce your risk of
serious injury or death, refer to the information below. For more information,
see www.datastreamserver.com/safety
Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.
The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.
©2018 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,
without express permission or consent from the publisher.
E&OE © 2018 Baumr-AG 23
Loading...
