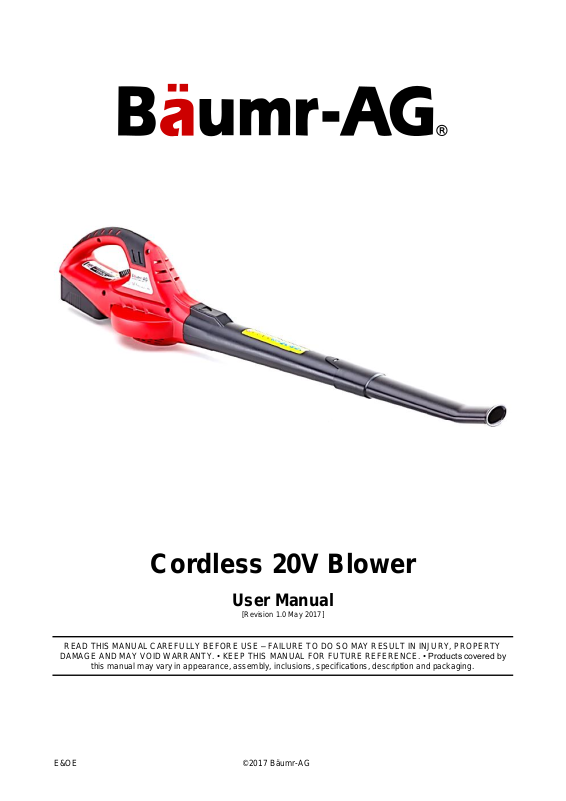

Page 1

Cordless 20V Blower

User Manual

[Revision 1.0 May 2017]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Page 2

Cordless 20V Blower

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

It is important that you read and understand the instruction manual before use and keep the manual in a safe place for future reference. Safety information presented here is generic in nature – some advice may not be applicable to every piece of equipment.

All safety precautions must be observed to reduce the risk of personal injury when operating the equipment.

The term “equipment" refers to your

product, be it electrical mains, battery or petrol engine powered.

IMPORTANT – Handle the equipment safely and carefully.

BEFORE USE - If you are not familiar with the safe operation/handling of this equipment, or are in any way unsure of any aspect of suitability or correct use it for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.

WARNINGS

• Read all safety warnings and all instructions. Failure to follow warnings and instructions may result in electric shock, fire and/or serious injury.

• Never run a petrol engine in confined areas.

• Do not operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. Engine and equipment may create sparks or heat that may ignite vapours, dust etc

• Keep clear of moving parts.

• This equipment may be a potential

source of electric shock if misused.

• Do not operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.

• Do not allow others to use the equipment unless they have read this manual and are adequately trained.

• When using the equipment, basic safety precautions detailed here must always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

• When wiring electrically powered equipment, follow all electrical and safety codes.

• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting equipment.

General Work Area Safety

Work areas should be clean and well it. Do not operate the equipment if

bystanders, animals etc are within operating range of the equipment or the general work area.

Personal Safety

Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

Prevent unintentional starting of the equipment - ensure equipment and power source switches are in the OFF position before connecting or moving the equipment. Do not carry equipment with hands/fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.

Stay alert and use common sense when operating equipment. Do not overreach. Keep proper footing and balance at all times. Do not use equipment when tired or under the influence of drugs, alcohol or medication. This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from serious injury, including eye injury, inhalation of toxic fumes, burns, and hearing loss. Always wear eye protection. Protective equipment such as respirators, non-skid safety shoes, hard hat, hearing protection etc should be used for appropriate conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

General Product Use and Care

Do not force the equipment. Use the correct equipment for your application. The correct equipment will perform better and be safer within its design parameters. Do not use the equipment if the ON/OFF switch malfunctions – any equipment that cannot be controlled with the ON/OFF switch is dangerous and must be repaired.

Use the equipment and accessories etc. in accordance with these instructions, taking into account working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.

Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorized service centre or technician before use.

Always keep the equipment and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment, controls and handles dry and free from dirt, oil and grease.

Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place the equipment in places where there are flammable materials, combustible gases or combustible liquids etc.

The equipment is not weatherproof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or very humid.

Blower Use and Care

• For domestic use only.

• Always wear a face shield when

operating the machine.

• Maintain a distance of at least 20m (60') between the operator and any bystanders, animals etc.

• Never blow debris in the direction of bystanders.

• Always use the complete and correct blow attachments.

• If rubbish to be blown is stuck together, it may be necessary to break it up before using the machine on it.

• Do not operate the machine near open windows.

• Be aware of machine noise and be considerate of others – operate the machine during reasonable times of day.

• This product is designed for hard surface use. Do not use on grass or to move wet or heavy debris.

• Do not blow hard or sharp materials, such as glass, stones, metal objects etc.

Page 3

Cordless 20V Blower

Battery and Charging Safety

• Use only with the batteries and battery charger supplied by the manufacturer.

• Do not charge batteries in temperatures below 4°C (40°F) or above 40°C (104°F).

• Allow the battery pack to cool before charging.

• Ensure the power switch is in the OFF position before inserting the battery pack.

• Explosion hazard – Do not attempt to destroy or disassemble the battery pack or remove any of its components.

• Explosion hazard - Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

• Explosion hazard – Protect the battery against heat; for example, direct sunlight and fire.

• Poison hazard –Under severe conditions, liquid may be ejected from the battery – avoid contact. If contact occurs, flush with water. If liquid contacts eyes, flush with clean water for at least 10 minutes, then seek immediate medical attention. Liquid ejected from the battery may cause irritation or burns.

• Electrocution / electric shock hazard - Do not operate the battery

charger if it has a damaged cord or plug.

• Batteries must be disposed of in accordance with local regulations.

General Service Information

• Have the equipment serviced or repaired at authorized service centres by qualified personnel only.

• Replacement parts must be original equipment manufacturer (OEM) to help ensure that equipment safety is maintained.

• Do not attempt any maintenance or repair work not described in this instruction manual.

• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before making adjustments, changing accessories or performing repair or maintenance.

• Do not make adjustments while the equipment is running.

• Perform all service related activities under suitable conditions, such as a workshop etc.

• Replace any worn, damaged or missing warning labels immediately.

• Do not clean equipment with solvents, flammable liquids or harsh abrasives.

Page 4

Cordless 20V Blower

Table of Contents

Safety ............................................................................................................................................. 2

Parts Identification ........................................................................................................................ 5

Assembly ....................................................................................................................................... 6

Operation ....................................................................................................................................... 7

Charging the Battery .................................................................................................................................... 7

Troubleshooting ............................................................................................................................ 8

Specifications ............................................................................................................................... 8

Page 5

Cordless 20V Blower

No.

Name

No.

Name

Blower Unit

Main Blower Tube

Transformer

Blower Nozzle

Battery Charger

Battery Pack

4 5 3 6 2

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Parts Identification

Page 6

Cordless 20V Blower

A 3 4 C B

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

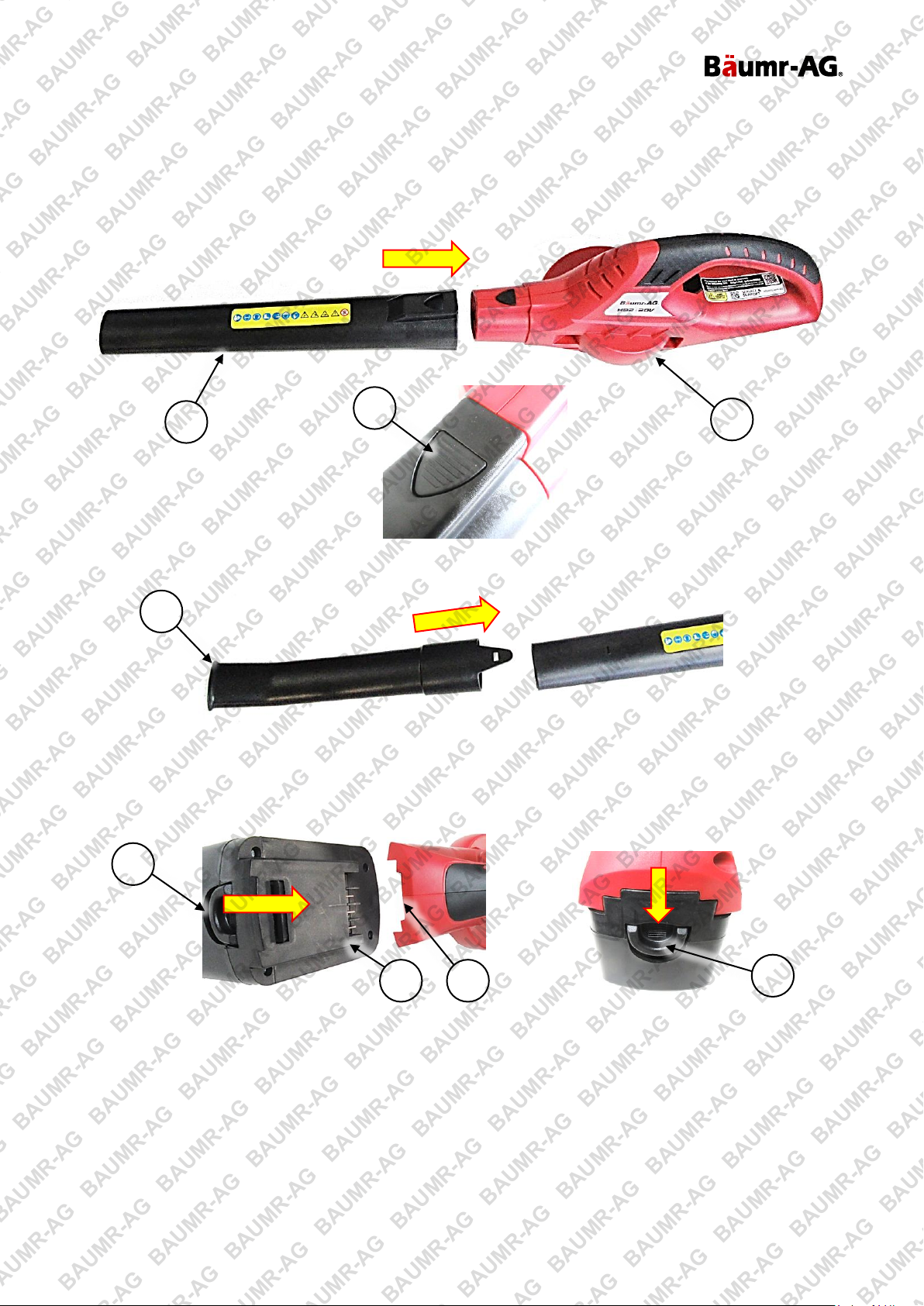

Assembly

1. Slide the main blower tube (2) over the blower unit outlet (1) until it "clicks" into place. To disassemble the tube from the blower unit, press and hold the release button (A) and slide the tube off.

2. Slide the blower nozzle (3) on to the end of the main blower tube until it "clicks" into place. This connection is not designed to be disassembled.

3. Slide the battery pack (4) into the back of the blower unit until it "clicks" into place. Ensure that the locating rails (B) on the top of the battery are aligned with the slots (C) in the blower unit. To remove the battery pack, press the battery release latch (D) down until the battery pack "pops" out from the blower unit, then slide it out.

Page 7

Cordless 20V Blower

B C 1

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

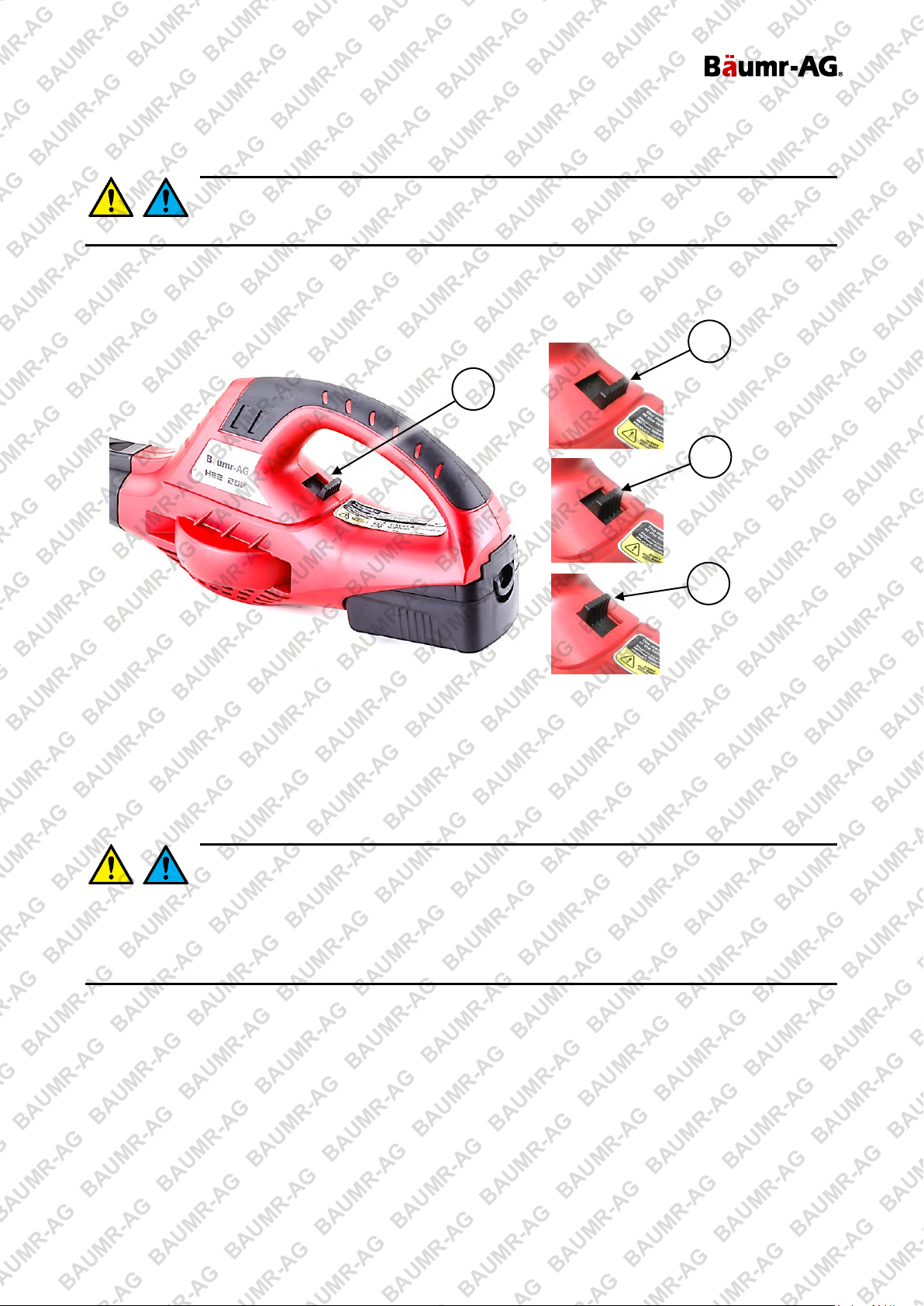

Operation

Always wear a face shield when operating the machine. • Maintain a distance of at least 20m (60') between the operator and any bystanders, animals etc. • Never blow debris in the

direction of bystanders. • Ensure that battery is fully charged before using the machine.

1. Hold the machine firmly by the handle, with the nozzle pointing away, then switch the machine ON. The power switch (1) has 3 positions – OFF (A), ON: LOW SPEED (B) and ON: HIGH SPEED (C).

2. When finished, switch the machine OFF.

•

Stand at a distance away from debris that will easily allow you to control its direction as it is blown.

•

Blow in an arc motion and keep the nozzle approximately 150 to 200mm above the ground during use.

•

Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces.

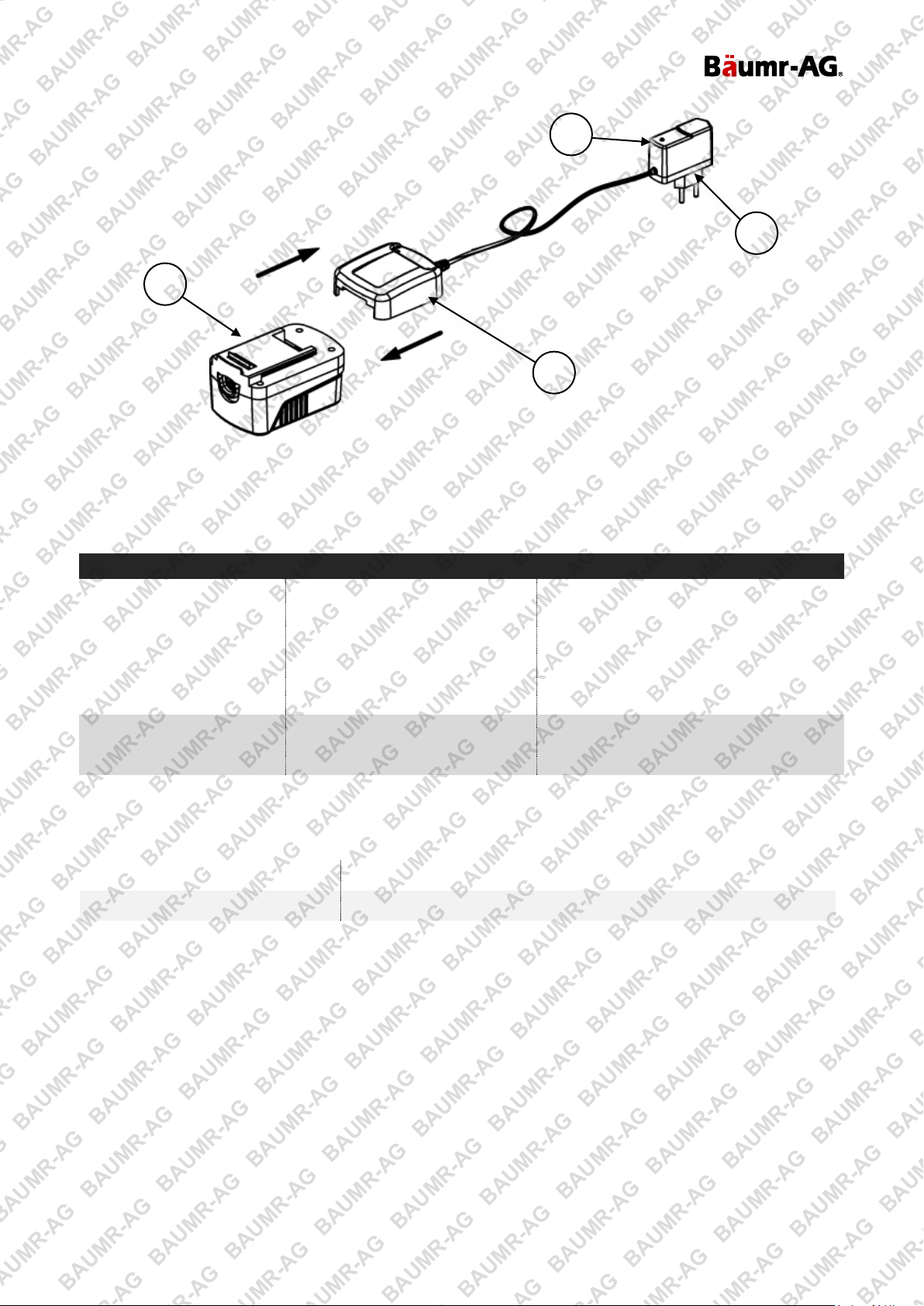

Charging the Battery

Do not touch the battery terminals with metal objects and/or body parts as short-circuit

and/or personal injury may result. • Do not operate the battery charger if it has a damaged cord or plug. • Use only with the batteries and battery charger supplied by the manufacturer. • Do not charge batteries in temperatures below 4°C (40°F) or above 40°C (104°F). • Allow the battery pack to cool before charging. • The battery pack has built-in protection against deep discharge. • Do not leave the battery pack connected to the charger for extended periods. • The battery charger may generate some heat and emit a small amount of noise during use – this is normal.

1. Ensure the machine is switched OFF.

2. Remove the battery pack from the machine.

3. Slide the battery "charging dock" (2) on to the battery (1). Ensure that the locating rails on the top of the

battery are aligned with the slots in the charging dock and that both parts are fully engaged.

4. Connect that battery charger (3) cable to the charging dock, and plug the battery charger into a 240VAC

mains electrical supply. When charging, the indicator lamp (A) on the battery charger will be red. When the battery is charged (approximately 4 hours), the indicator lamp will be green.

5. Disconnect the battery charger from the electrical supply and remove the charging dock from the battery

pack.

Page 8

Cordless 20V Blower

Problem

Possible Cause

Corrective Action

Machine does not run

Battery not connected

Connect battery pack

Battery requires charge

Charge battery

Battery no longer serviceable

Replace battery pack

Blower unit fault

Have the machine inspected and repaired at an authorised service centre

Machine runs, but has low power

Battery requires charge

Charge battery

Battery no longer serviceable

Replace battery pack

Battery Type

1500mAh Li-Ion

Battery Charger

240VAC / 50Hz Input / 21VDC 300mA

1 2 3

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Troubleshooting

Specifications

Page 9

Cordless 20V Blower

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety



Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.



Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.



Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.



Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.



The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.



This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.



If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

©2017 Bäumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.
