Baumr-AG BCTCLSBMRABC4 User Manual

Download

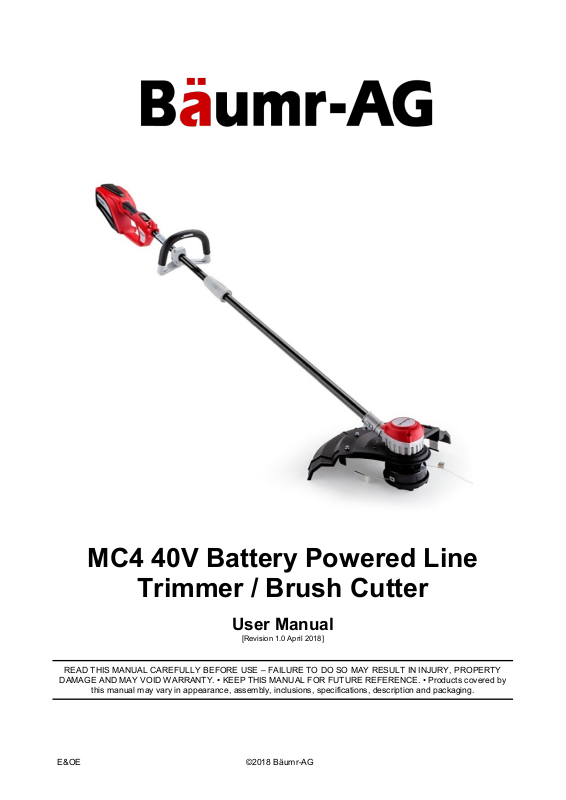

MC4 40V Battery Powered Line

Trimmer / Brush Cutter

User Manual

[Revision 1.0 April 2018]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

MC4 40V Battery Powered Brush Cutter

It is vital that you read and understand

General Personal Safety

General Equipment Use and Care

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment, or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling/safety.

• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.

• Keep clear of moving parts.

• Equipment may be a potential source of

electric shock or injury if misused.

• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.

• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.

• Keep packaging away from children risk of suffocation!

• Operators must use the equipment correctly, consider conditions and pay due care to persons and property.

• Ensure that any property that may be damaged by equipment failure is not within the work area / operating range.

General Work Area Safety

• Work areas should be clean and well it.

• Do not operate the equipment if

bystanders, animals etc are within operating range of the equipment or the general work area.

• If devices are provided for connecting dust extractio n / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.

• Stay alert and use common sense when operating the equipment. Do not over-reach. Always maintain secure footing and balance.

• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.

• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.

• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.

• Do NOT smoke near fuel or when refuelling.

• Always shut off the engine before refuelling.

• Do NOT ref uel a hot engine.

• Open the fuel cap carefully to allow any

pressure build-up in the tank to release slowly.

• Always refuel in well ventilated areas.

• Always check for fuel leakage. If fuel

leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors

CAN K ILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.

• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

• The equipment is designed for domestic use only.

• Handle the equipment safely and carefully.

• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.

• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.

• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.

• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.

• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.

• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.

• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.

• Do not clean equipment with solvents, flammable liquids or harsh abrasives.

• For specific equipment safety use and care, see Equipment Safety.

MC4 40V Battery Powered Brush Cutter

General Battery and Charging Safety

General Electrical Safety

General Service Information

• Use only with the batteries and battery charger specified by the manufacturer.

• W hen battery is charged, disconnect the charger from the power supply and remove the battery from the charger.

• Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open ﬂame. Exploding batteries can propel debris and chemicals.

• Do not use the charger in wet areas or expose it to rain or water.

• Do not open the battery – danger of short-circuiting and/or explosion.

• Do not attempt to destroy or disassemble the battery pack or remove any of its components.

• Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

• Explosion hazard – protect the battery against heat; for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.

• Explosion hazard – do not open and/or short-circuit the battery.

• Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical att ention, flush with c lean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.

• Ensur e that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.

• For best results, charge batteries in temperatures between 7°C (45°F) and 40°C (104°F).

• Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.

• Ensure all power sources conform to equipment voltage requirements a nd are disconnected before connecting or disconnecting equipment.

• When wiring electrically powered equipment, follow all electrical and safety codes.

• W herever possible, use a residual current device (RCD).

• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electric al outlet.

• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.

• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.

• Do NOT use electrical equipment in wet conditions or in damp locations.

• Do NOT use electrical cords to lift, move or carry equipment.

• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.

• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.

• Do NOT attempt any maintenance or repair work not described in this manual.

• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before making adjustments, changing accessories or performing repair or maintenance.

• Do NOT make adjustments while the equipment is running.

• Perform service related activities in suitable conditions, such as a workshop.

• Replace worn, damaged or m issing warning/safety labels immediately.

MC4 40V Battery Powered Brush Cutter

Flammable Material Hazard

Read User Manual

Use Hand Protection

Carbon-Monoxide Hazard

Electrocution / Electrical

Toxic Fumes hazard

Explosive Material Hazard

Cutting / Amputation Hazard

Crush Hazard

Single Operator Only

Use Face Protection

Use Foot Protection

Use Eye / Ear / Head

Running Hazard

Diving Hazard

Adult Super vision Required

Skin Penetration / Puncture

Hot Surface Hazard

Flying Debris Hazard

Moving Parts Hazard

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Shock Hazard High voltage or high current electricity may be present or

required by the product. Take

due care when handling electrical products, cables, plugs and leads. Electrical

shock can be fatal.

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Wear appropriate f ull-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Do not use the product in confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

The product may have blades,

edges or mechanical devices

that can cause severe cut injury to fingers, limbs etc.

Take due care when handling

and using the product.

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Wear appropriate eye and / or

product or use of the product

may present eye, hearing and

objects that can cause severe

injury to fingers, limbs, blood

Protection

ear and / or head protection

and take due care as the

head hazards.

Hazard

The product may produce

pressure, emit liquids or

etc. Take due care when

handling and using the

product.

Do not run on or near the

product as doing so may

present a fall hazard.

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Always supervise children and

other users of a product to prevent drowning or injury.

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

MC4 40V Battery Powered Brush Cutter

Carbon-Monoxide Hazard

Pull Hazard

Slope / Fall Injury Hazard

"Slam Dunk" Warning

Electrocution / Electrical

Power Line Electrocution

"Kick-Back" Hazard

Winch Operator Position

Winch Lift Hazard

Cable Hazard

Winch Cable Hazard

Winch Hook Hazard

Do not use the product in confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Shock Hazard - Outdoor High voltage or high current electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Be aware that the product

contains or uses mechanical devices that can pull in objects and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Do NOT LIFT load vertically.

Use machine to PULL only.

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

Ensure that load bearing cable

is not kinked or knotted.

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling, product breakage or collapse

etc.

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Carry hook to load – do NOT

throw or run.

MC4 40V Battery Powered Brush Cutter

Equipment Safety

Powered garden tools and accessories are high-speed, fast-cutting equipment with exposed blades that can cause serious or fatal injury if not used correctly or without taking proper

safety precautions. It is extremely important that you read and fully understand the information in this

section and all other safety warnings / recommendations and usage instructions before using the equipment.

Operator

• If you are untrained in the use of a pole tool or particular accessory, it is highly recommended that you be trained/instructed by a suitably qualified or experienced user before using the tool.

• Fully understand how to safely operate the tool and the various attachments to avoid "kick-back" or other hazards. See Operation.

• You must be in good physical condition to use a brush cutter. NEVER operate the tool when tired, or under the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement, alertness, physical strength, vision or dexterity.

• Maintain sure-footing and balance always when using or handling the tool and have full awareness of your surroundings and any possible hazards.

• Prolonged use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and hands warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended to seek medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

• Wear approved safety goggles, or safety glasses with adequate top and side protection. In addition to eye protection, wearing a full-face shield is highly recommended.

• Wear suitable hearing protection.

• Wear an approved safety hard-hat.

• Wear heavy-duty, non-slip leather or protective gloves.

• Wear approved heavy-duty safety boots, with steel toe-caps and non-slip soles.

• Wear suitable overalls or work clothing that fits snugly, but does not restrict movement. Avoid loose

fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by the tool or by tree branches etc.

Work Area Safety

• Ensure that any person, animal etc other than the operator is kept a minimum 25m (75') away from where the tool is being used or where there is any possibility of being struck by thrown material etc. Be aware of any property that may be affected by thrown material etc.

Operational Safety

• Do NOT use the tool if the trigger or any safety guard or mechanism is not installed or is not operating correctly – have the tool inspected and repaired at an authorised service centre before using it again.

• Fully understand how to safely operate the tool and the various attachments to avoid "kick-back" or other hazards. See Operation.

• Always hold the tool firmly with both hands during operation. Always use the tool handles, straps etc.

• Do NOT use the tool for purposes it is not designed for.

Transportation Safety

• Always STOP the tool and remove the battery and ensure all cutting devices have fully stopped before transporting or working on it (adjusting etc).

• Fit all blade covers or sheaths whenever transporting or storing the tool.

MC4 40V Battery Powered Brush Cutter

• When transporting the tool in a vehicle, ensure the battery is removed. Secure the tool in an upright position to prevent tip-over or damage.

• Do NOT store batteries in direct sunlight or hot environments, such as vehicle interiors, for any period.

MC4 40V Battery Powered Brush Cutter

Table of Contents

Safety ................................................................................................................................................... 2

Safety Symbols .......................................................................................................................................... 4

Equipment Safety ............................................................................................................................... 6

Parts Identification ............................................................................................................................. 9

Parts Identification – Controls .................................................................................................................. 10

Batteries and Battery Charging ...................................................................................................... 11

Charging .................................................................................................................................................. 11

Assembly .......................................................................................................................................... 12

Connecting Attachments .......................................................................................................................... 13

Cutting Guard Assembly .................................................................................................................... 13

Attaching Cutting Tools ............................................................................................................................ 14

Loading the Grass Cutting "Bump" Head ........................................................................................... 15

Operation .......................................................................................................................................... 16

Using the Controls.................................................................................................................................... 16

Understanding and Avoiding "Kick-Back" and Other Reactionary Forces ................................................ 17

Maintenance ..................................................................................................................................... 18

Grass Cutting "Bump" Head ..................................................................................................................... 19

Inspection and Cleaning .................................................................................................................... 19

Removal/Installation .......................................................................................................................... 19

Cleaning Guidelines............................................................................................................................... 20

Transportation and Storage ............................................................................................................ 20

Troubleshooting ............................................................................................................................... 21

Specifications ................................................................................................................................... 21

MC4 40V Battery Powered Brush Cutter

Strap

2 3 4 5 6

8 1 9

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Parts Identification

The tool comes with all parts required for normal domestic use, with various attachments supplied depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly recommended that you familiarise yourself with all major components of the tool before using it or performing any maintenance tasks. Some parts may come pre-assembled.

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described.

No. Name No. Name

Tool (includes main shaf t and trigger etc)

Cutting Attac hment (includes shaft and motor)

3 Cutter Guard (trimming blade included) 10 Tools / Fasteners (as applicable):

Handle

6 Grass Cutter "Bump" Head (where applicable)

7 3-Blade Cutter (where applicable)

Battery

Battery Charger (includes cables)

5mm "Torx" Key Multi-Tool Drive Washer Cutter Attachment Cup Washer Cutter Attachment Nut Cutter Attachment Washer Handle Fasteners (3 – includes nuts) Cutter Guard Fasteners (7 – two types)

MC4 40V Battery Powered Brush Cutter

1 4 5 3 6 2 7

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Parts Identification – Controls

Pole tools come with all parts required for normal domestic use, with various attachments supplied depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly recommended that you familiarise yourself with all major components of the tool before using it or performing any maintenance tasks.

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described.

No. Name No. Name

1 Tool Body 5 Trigger

Battery (not visible)

Low-Speed Button 7 Low-Speed Indicator

4 High-Speed Button

Trigger Safety Button

MC4 40V Battery Powered Brush Cutter

E B A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Batteries and Battery Charging

Batteries may come supplied in a low-charge condition for shipping reasons – charge before

use. • A battery that is new or has not been used for a long period does not charge to full capacity until after approximately 5 charge/discharge cycles. • Do not recharge batteries after using them if they are not to be used for an extended period. • Recharge batteries only as and when required. • If the battery is warm after use, allow it to cool before charging, otherwise it may not fully charge. • Use only with the batteries and battery charger specified by the manufacturer. • Batteries can explode in the presence of

an ignition source, such as a pilot light. Never use any cordless product in the presence of open ﬂame.

Exploding batteries can propel debris and chemicals. • Do not use the charger in wet areas or expose it to rain or water. • Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug. • Do not open the battery – danger of short-circuiting and/or explosion. • Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result. • For best results, charge batteries in temperatures between 7°C (45°F) and 40°C (104°F). • Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations. Charging time varies for different battery types depending on battery capacity and charger output etc. • To prolong battery life, avoid leaving the battery pack on charge for extended periods (over 30 days without use). • During charging, the battery may become warm and some noise may be emitted – this is normal.

Charging

Generally, if the tool stops during use, the power reduces, or the motor slows considerably, it indicates that the battery needs charging. To remove the battery (A), lift the battery handle (B) until the battery releases, then pull the battery from the tool.

Batteries have a display built-in that shows current charge status. To use the functions, press button (C) on the battery – charge capacity is shown as green lamps for 25%, 50%, 75% and 100%.

The battery charger has charge status LED indicators that illuminate and flash in various combinations:

• Green Flash – Charging.

• Green ON – Battery charged.

1. Plug the battery charger power supply (D) into a 240VAC mains electrical outlet and switch on.

2. Slide the battery fully into the battery charger connector (E). The battery charger indicator LEDs will

indicate battery charge status. Charging time varies depending on battery capacity and charger output .

3. When the battery is fully charged, unplug the charger from power supply and disconnect the battery

charger connector from the battery pack.

MC4 40V Battery Powered Brush Cutter

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Assembly

Typically, due to the modular nature of the design, various attachments may require some assembly. Prior to assembly, unpack all components and check that all items have been received. The following assembly instructions may not apply to all models as some are pre-assembled or partially pre-assembled.

Handle and Strap

1. Pull open the handle (A) mounting arms, then place it over the rubber vibration isolator (B) on the tool

main shaft (C). Move the handle to a position where it will be effective and comfortable to use.

2. Secure the handle in position using 3 screws and nuts (D). Tighten the screws using the "Torx" key.

3. Clip the strap (E) to the "eye" in the tool body.

Once the handle is assembled, the tool is ready for use by attaching a cutter etc to it.

MC4 40V Battery Powered Brush Cutter

B C D

B C A D E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Connecting Attachments

Attachments are connected as follows. Disconnection of parts is a reversal of the connection procedure.

1. Position the shaft of the attachment (A) and main shaft (B) so the triangle marks (X) on each shaft are

aligned.

2. Carefully push the shafts together. Inside are electrical terminals that must connect for the attachment to

function.

3. Bring the collar (C) on the main shaft up to the thread (D) on the attachment shaft, then rotate right

(clockwise) to screw the collar onto the thread. Firmly tighten the collar by hand.

Cutting Guard Assembly

1. Bring the main cutter guard (A) and secondary guard (B) together as shown, then join them using 4

M4x15 screws/washers (C). Tighten the screws using the "Torx" key.

2. Bring the assembled guard into position with the cutter head (D). Align the parts as shown, then secure

the parts from the underside of the guard using 3 M5x10 screws/washers (E). Tighten the screws using a Phillips head screwdriver.

MC4 40V Battery Powered Brush Cutter

3-Blade Cutter

G B A B C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Attaching Cutting Tools

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are undamaged, safe to use and are properly and securely fastened to the machine. • Ensure that brush cutter and brush saw blades are installed so that they rotate in the direction of the cutting edges. • Do NOT use cutting equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts. • The toothed cutter and brush saw attachments are not designed to be re-sharpened.

Cutting tools may include the following types. Use the cutter appropriate for the job, type of grass/brush etc:

1. Place the drive washer (A) on to the drive shaft (B) protruding from the attachment head (C). Ensure that

the grooves in the washer align with the splines on the drive shaft.

2. Place the attachment on to the drive washer:

For the brush cutter and saw type attachments:

a. Place the cutter attachment (D) on to the

drive washer. Ensure that direction of the cutting teeth or blades faces the direction shown by the blue arrow. Ensure that the hole in the centre of the attachment sits squarely on the raised portion of the drive washer.

b. Place the flange washer (E), then cup washer

(F) over the drive shaft, then secure the assembly with the nut (G). The thread on the drive shaft is "left-hand". This means that you must rotate the nut to the left (anti-clockwise) to screw it on as shown by the yellow arrow. Firmly tighten the nut using the supplied spanner. To prevent the drive shaft from rotating as you tighten the nut, insert a suitable object (H) (Allen key, screwdriver etc) through the hole in the attachment head and into the hole in the drive washer when tightening – you may need to rotate the drive washer until the holes are aligned. Remove the object when the nut is secured.

For grass cutting "bump" head:

a. Screw the grass cutting head (I) on to the drive

shaft. The thread on the drive shaft is "left-hand". This means that you must rotate the grass cutting head to the left (anti-clockwise) to screw it on as shown by the yellow arrow. Firmly tighten the grass cutting head by hand. To prevent the drive shaft from rotating as you tighten the grass cutting head, insert a suitable object (H) (Allen key, screwdriver etc) through the hole in the attachment head and into the hole in the drive washer when tightening – you may need to rotate the drive washer until the holes are aligned. Remove the object when the grass cutting head is secured.

MC4 40V Battery Powered Brush Cutter

Video Tutorial:

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Loading the Grass Cutting "Bump" Head

Do NOT attach or detach cutting tools when the engine is

running. • Ensure that parts are cool enough to touch before attaching or detaching cutting tools. • Do NOT use cutting equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts. • Use 1.6 to 3mm (1/16 to 1/8") plastic cutting line only. Non-plastic cutting line may not function properly and may damage the machine. • If the grass cutting head is dirty, clean it.

To load the grass cutting bump head with cutting line:

1. Remove the grass cutting head from the drive shaft. The thread on the drive shaft is "left-hand". This

means that you must rotate the grass cutting head to the right (clockwise) to unscrew it. To prevent the drive shaft from rotating as you loosen the grass cutting head, see here.

2. Place the grass cutting head (A) on a solid surface, then press down and rotate the "bumper" (B) to the

right (clockwise) until the cutting line holes are aligned (X) and you can see through the head.

Note: If there is remaining cutting line in the head, press down and rotate the "bumper" to the left (anticlockwise) one step, then pull the cutting line out from either side of the head. Repeat until you can pull the line out completely from the grass cutting head.

3. Insert the new line (C) through the grass cutting head so that the lengths of line on each side of the head

are the same (in other words, the head is at the centre of the length of cutting line).

4. Hold the grass cutting head firmly, then rotate the "bumper" to the right (clockwise) to wind in the cutting

line. Stop winding when there is approximately 50mm (2") of cutting line outside of the head.

5. Install the grass cutting head.

Loading a Grass Cutting "Bump" Head

MC4 40V Battery Powered Brush Cutter

B D C E A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Operation

Powered garden tools and accessories are high-speed, fast-cutting equipment with exposed blades that can cause serious or fatal injury if not used correctly or without

taking proper safety precautions. It is extremely important that you read and fully understand the

information in this section and all other safety warnings / recommendations and usage instructions before using the equipment. • Always wear suitable protective clothing and equipment when using the

machine. • Inspect the machine before each use and check for wear or damage. If the tool is damaged, have it inspected and repaired at an authorised service centre before using it again. • If you experience excessive vibration from the tool during operation, this may indicate wear or damage. It is recommended to have it inspected and repaired before using it again. • Be aware that once the motor is running, the cutting blades will be rotating and parts of the tool may be extremely hot.

Note the following recommendations:

• To use line feed action of the grass cutting "bump" head, tap it quickly against the ground while it is

spinning – line will feed out through the spinning action. Excess line will be cut by the trimming blade.

• When using the 3-blade cutter, it is recommended to NOT use the secondary cutting guard.

• Always use the strap, over the shoulder, and adjust it so the tool is comfortable to hold and operate.

Always use both handles to hold

the tool steady.

Use an arc or sweeping motion

when using the tool.

Using the Controls

• To activate the motor, press and hold the trigger safety button

(A), then squeeze the trigger (B). Once the motor is running, you can release the safety button.

• To use low-speed, while the motor is running, press the low-

speed button (C) – the low-speed indicator (D) illuminates.

• To use high-speed, while the motor is running, press the high-

speed button (E) Generally, most cutting attachments are most efficient at high-speed.

• To switch the motor off, release the trigger.

When cutting through thick grass

or brush, cut in several passes.

MC4 40V Battery Powered Brush Cutter

Kick-Back

Pull-In

Push-Back

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Understanding and Avoiding "Kick-Back" and Other Reactionary Forces

Reactionary forces can cause loss of control of the tool, and can result in serious, even fatal injury – use the tool in ways to avoid reactive forces at all times.

When the cutting attachment or chainsaw is rotating, many forces are created, such as the ability to cut. The contact point between the cutting tool and object to cut is critical, especially when using the chainsaw attachment. If the cutting tool is not used correctly, cutting forces may become "reactionary", in that instead of the cutting tool or chain rotating, a reactionary force is created. Many factors affect the occurrence and force of reaction, such as cutter speed, contact angle, density of material being cut, and cutting tool condition.

Kick-Back

"Kick-back" is a reactionary force that causes the tool to rotate against the direction of cut. Kick-back can also be thought of as the cutters "digging in" to an object and momentarily stop or significantly slow cutter rotation. For chainsaw attachments, kick-back can occur if the cutters at the tip of the chain bar – the "kickback zone", "digging in" to an object and momentarily stop or significantly slow saw chain rotation, which causes the tool to suddenly and quickly rotate backwards towards the operator. To avoid kick-back:

• Do NOT use the tip of the cutter for cutting or allow it to make contact with any object.

• Always hold the machine firmly with both hands when operating.

• Maintain cutter sharpness.

• Use extreme caution when re-inserting the cutter into an unfinished cut.

• Be alert to branches shifting or other forces that may close over or pinch the cutter.

Pull-In

"Pull-in" is a reactionary force that causes the cutter to pull forward in the direction of cut. Pull-in can also be thought of as the cutters on the non-cutting side of the cutting attachment being caught, pinched or "digging in" to an object and momentarily stop or significantly slow cutter rotation, which causes the tool to suddenly and quickly pull forward in the direction of cut. To avoid pull-in:

• Be aware of objects on the non-cutting side of the cutter and avoid making contact with them.

• Use cutters with greater numbers of teeth or blades.

Push-Back

"Push-back" is a reactionary force that causes the cutter to push backward against the direction of cut. Pushback can also be thought of as the cutters on the cutting side of the cutting attachment being caught, pinched or "digging in" to an object and momentarily stop or significantly slow cutter rotation, which causes the tool to suddenly and quickly push away from the direction of cut. To avoid push-back:

• Cut one piece of timber at a time.

• Avoid twisting the cutter when withdrawing it from material.

MC4 40V Battery Powered Brush Cutter

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Maintenance

Do NOT perform and maintenance procedures with the battery installed in the tool. •

The machine should be cool enough to touch before performing maintenance activities. • Some maintenance activities may be beyond the scope of some users. Do NOT attempt procedures that you are not comfortable with, or do not have the necessary tools, experience or knowledge for – take the unit to an authorised service centre or qualified technician for servicing. • Harsh operating environments such as extreme temperatures, dust etc may necessitate more frequent maintenance. • Failure to follow the

maintenance schedule, using incorrect or non-compatible accessories or replacements parts, or general negligence may result in making the product warranty void.

To keep the machine performing at optimal efficiency, regular checks and maintenance is required.

MC4 40V Battery Powered Brush Cutter

X A B

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Grass Cutting "Bump" Head

A dirty grass cutting "bump" head may not feed out cutting line properly or reliably. • If the grass

cutting head is no longer serviceable, replace it. • If there is cutting line in the head, it may unravel when the head is disassembled. It is recommended to remove the cutting line. Load the cutting line after cleaning and reassembling the grass cutting head.

Inspection and Cleaning

Inspect the grass cutting "bump" head for dirtiness and debris etc that may affect the line feeding action. Clean or replace the grass cutting head as necessary. To clean the grass cutting "bump" head:

• Thoroughly clean the base (A) and "bumper" assembly (B) using a brush or similar to remove all traces

of grass, dirt etc from the parts. If desired, wash the parts in warm water and mild detergent, then rinse and dry.

Removal/Installation

1. Remove the grass cutting head from the drive shaft. The thread on the drive shaft is "left-hand". This

means that you must rotate the grass cutting head to the right (clockwise) to unscrew it. To prevent the drive shaft from rotating as you loosen the grass cutting head, see here.

2. Place the grass cutting head on a solid surface, then press in a locking tab (X) on the side of the head

until the upper and lower sections of the head can be separated.

To assemble, place the bumper assembly over the base – ensure that the holes in the sides of the bumper assembly are aligned with the locking tabs in the base – then press the cover down until it "clips" into place and is securely held by the locking tabs.

Check that the bumper can be moved in and out of the head and can be rotated in either direction – if not, the parts are not clean or not assembled correctly. To install the grass cutting head, see here.

MC4 40V Battery Powered Brush Cutter

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Cleaning Guidelines

Do NOT expose any part of the tool to water. Exposure to water may create an electrical shock hazard and / or may damage the tool electronics. Exposing the tool to water or

other liquids may void any product warranty. • Remove the battery from the tool before cleaning. • Do not

use solvents, chemicals or abrasives when cleaning the tool, as some surfaces may be damaged. • Wear gloves or use suitable tools to assist in cleaning – do not use bare hands. • Clean the tool after every use to ensure best performance and longest service life. • Do NOT store batteries in direct sunlight or hot environments, such as vehicle interiors, for any period.

• Use a slightly damp cloth and mild detergent for cleaning.

• Use a brush for parts that are difficult to reach.

• Ensure air vents and surfaces designed for heat dissipation are clean and free of obstructions or debris.

• Ensure all guards and safety devices are clean and functioning correctly.

• Ensure that spring-loaded parts, such as the trigger, return to the normal position when released.

• Ensure that all control cables, levers, switches etc are clean and operate normally and smoothly.

Cleaning and Lubricating Cutters

Cutters and blades must be cleaned and lubricated after every use. Failure to do so will reduce

cutting performance and may also damage the machine. Faults or failure resulting from not

maintaining the cutting blades correctly is not covered under warranty.

• Use a non-metallic brush to remove debris from all surfaces of the cutting blades. Wipe away any sap

etc from all blade surfaces and ensure the blades are dry.

• Spray the cutting blades with spray lubricant or wipe down with light machine oil.

Transportation and Storage

Always ensure that the tool is cool enough to touch before transporting or storing. • Always transport and store the tool with the battery removed. • Do NOT store the tool or battery in

direct sunlight or

Preparing for Transport and Storage

• Clean the equipment before transport or storage.

• Ensure the battery is removed.

• When transporting the tool in a vehicle, secure the tool in an upright position to prevent tip-over or

damage.

• Store the tool in a dry, well-ventilated area that is not exposed to direct sunlight or excessive heat, and

out of the reach of children.

• Cover the equipment to protect it.

MC4 40V Battery Powered Brush Cutter

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Troubleshooting

Do NOT perform and maintenance or troubleshooting procedures with the battery installed in the tool. • The machine should be cool enough to touch before performing

maintenance activities. • Some maintenance activities described may be beyond the scope of some users. For procedures that you are not comfortable with or have the tools, knowledge or experience for, have the unit serviced by a service centre or qualified technician.

The following information may assist in identifying a problem and rectifying it.

Difficulty starting the tool.

Possible Fault Action

Incorrect procedure Press the trigger safety button in and hold, then squeeze the trigger.

No voltage Ensure t he battery is charged and is correctly inserted.

Cutting device obstructed / jammed Remove the battery and remove any obstructions to the cutting device.

Battery or control switch faulty Have battery and / or tool tested and repaired at an authorised service centre.

Cutting is poor.

Possible Fault Action

Blades dull or damaged Sharpen or replace cutting device.

Excessive vibration.

Possible Fault Action

Blades dull or damaged Sharpen or replace saw chain.

Tool slows or stops suddenly during use.

Possible Fault Action

No voltage Ensure t he battery is charged and is correctly inserted.

Cutter jammed / fouled Remove cut ter from jammed / fouled material. Change cutting method or cutting

attachment, clear excess material etc to prevent jamming or fouling.

Specifications

Battery Charger Electrical Requirements 240VAC / 50Hz

Battery Type 40V Lithium-Ion

Cutter (various) 254mm (10") outside diameter, 25.4mm (1") bore

Cutting Line 1.6 to 3.1mm – "bump head"

MC4 40V Battery Powered Brush Cutter

Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death, consult the points below and additionally, the information available at www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature online documentation which should be printed and kept with the product.

• Check product for loose / broken / damaged / missing parts, wear or leaks (if applicable) before each use. Never use a product with loose / broken / damaged / missing parts, wear or leaks (if app licable).

• Products must be inspected and serviced (if applicable) by a qualified specialist every 6 months assum ing average residential use by a person of average weight and strength, above average technical aptitude, on a property matching average metropolitan specification. Intended use outside these guidelines could indicate the product is not suitable for intended use or may require more regular inspection or servicing.

• Ensure all possible users of the product have completed an industry recognized training course before being given access to the product.

• The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or your description of the application. Be sure to attain third-party approval for your application from a qualified specialist before use regardless of prior assurances by the retailer or its representatives.

• This product is not intended for use where fail-safe operation is required. As with any product (take an automobile, aircraft, computer or ball point pen for example), there is always a sma ll chance of technical issues that needs to be repaired or may require replacement of the product or a part. If the possibility of such failure and the associated time it takes to rectify could in any situat ion inconvenience the user, business or employee then the product is not suitable for your requirements. This product is not for use where incorrect operation or a failure of any kind, including but not limited to a condition requiring product return, replacement, service by a technician or replacement of parts could cause a financial loss, loss of employee time or an inconvenience requiring compensation.

• If this item has been purchased in error after considering the po int s above, simply contact the retailer directly for details of their returns policy, if required.

©2018 Bäumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

Baumr-AG BCTCLSBMRABC4 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Safety

Safety Symbols

Equipment Safety

Parts Identification

Parts Identification – Controls

Batteries and Battery Charging

Charging

Assembly

Connecting Attachments

Cutting Guard Assembly

Attaching Cutting Tools

Loading the Grass Cutting "Bump" Head

Operation

Using the Controls

Understanding and Avoiding "Kick-Back" and Other Reactionary Forces

Maintenance

Grass Cutting "Bump" Head

Inspection and Cleaning

Removal/Installation

Cleaning Guidelines

Transportation and Storage

Troubleshooting

Specifications
