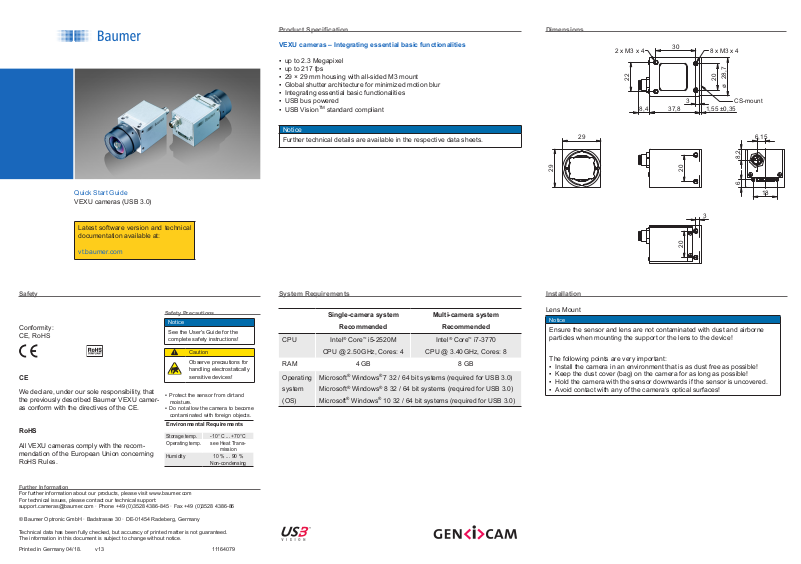

Baumer VEXU Quick Start Manual

Quick Start Guide

VEXU cameras (USB 3.0)

Latest software version and technical
documentation available at:

vt.baumer.com

Product Specication

VEXU cameras – Integrating essential basic functionalities

▪ up to 2.3 Megapixel
▪ up to 217 fps
▪ 29 × 29 mm housing with all-sided M3 mount
▪ Global shutter architecture for minimized motion blur
▪ Integrating essential basic functionalities
▪ USB bus powered
▪ USB VisionTM standard compliant

Notice

Further technical details are available in the respective data sheets.

Dimensions

29

30

2 x M3 x 4

22

29

8 x M3 x 4

28,7

20

ø

3

CS-mount

1,55 ±0,3537,88,4

6,15

8,2

20

6

18

3

20

Safety

Safety Precautions

Conformity:
CE, RoHS

CE

We declare, under our sole responsibility, that
the previously described Baumer VEXU camer­as conform with the directives of the CE.

RoHS

All VEXU cameras comply with the recom­mendation of the European Union concerning
RoHS Rules.

Further Information

For further information about our products, please visit www.baumer.com
For technical issues, please contact our technical support:
[e-mail] · Phone [phone] · Fax [phone]

© Baumer Optronic GmbH · Badstrasse 30 · DE-01454 Radeberg, Germany

Technical data has been fully checked, but accuracy of printed matter is not guaranteed.
The information in this document is subject to change without notice.

Printed in Germany 04/18. v13 11164079

Notice

See the User's Guide for the
complete safety instructions!

Caution

Observe precautions for
handling electrostatically
sensitive devices!

▪ Protect the sensor from dirt and

moisture.

▪ Do not allow the camera to become

contaminated with foreign objects.

Environmental Requirements

Storage temp. -10 ° C ... +70 °C
Operating temp. see Heat Trans-

Humidity 10 % ... 90 %

mission

Non-condensing

System Requirements

CPU

Single-camera system

Recommended

Intel® Core™ i5-2520M

CPU @ 2.50 GHz, Cores: 4

Multi-camera system

Recommended

Intel® Core™ i7-3770

CPU @ 3.40 GHz, Cores: 8

RAM 4 GB 8 GB

Operating

Microsoft® Windows® 7 32 / 64 bit systems (required for USB 3.0)

system

Microsoft® Windows® 8 32 / 64 bit systems (required for USB 3.0)

(OS)

Microsoft® Windows® 10 32 / 64 bit systems (required for USB 3.0)

Installation

Lens Mount

Notice

Ensure the sensor and lens are not contaminated with dust and airborne
particles when mounting the support or the lens to the device!

The following points are very important:

▪ Install the camera in an environment that is as dust free as possible!
▪ Keep the dust cover (bag) on the camera for as long as possible!
▪ Hold the camera with the sensor downwards if the sensor is uncovered.
▪ Avoid contact with any of the camera‘s optical surfaces!

2

3

General Description

1

open wire

T

43

LED signals

Heat Transmission

Caution

Heat can damage the camera. Heat must be dissipated adequately
to ensure that the temperature does not exceed the values in the
table below.

As there are numerous possibilities for installation, Baumer recom­mends no specic method for proper heat dissipation, but suggest
the following principles:

2

LED

▪ operate the cameras only in mounted condition
▪ mounting in combination with forced convection may provide

proper heat dissipation

No. Description No. Description

1 Lens mount (CS-mount) 4 LED

2 Digital IO

3 USB 3.0 port

Data Interface / Digital IOs

USB 3.0 (Micro B)

12345 678910

1 VBUS 6 MicB_SSTX-

2 D- 7 MicB_SSTX+

3 D+ 8 GND_DRAIN

4 ID 9 MicB_SSRX-

5 GND 10 MicB_SSRX+

wire colors of the connecting cable (ordered separately)

1 Power IO brown 3 GND blue
2 IN1 (Line0) white 4 OUT1 (Line1) black

Digital-IOs (on camera side)

1

4

Signal Meaning

green ash Power on

LED

Installation

Installing the camera:

▪ Connect the camera to the USB connection on your PC using an appropriate

cable.

▪ If required, connect a trigger and / or flash to the digital IOs.

Installation example

1 - PCI USB board
2 - USB cable
3 - Cable for trigger and ash

green USB 3.0 connection

red USB 2.0 connection

yellow Readout active

red ash Update

Measurement Point Maximum Temperature

Measurement Point (T) 65°C (149°F)

Troubleshooting

1. Check camera operation using the LED signals.

→ If LED is red:

• Camera is connected to USB 2.0 (settings possible).

2. Check connection using Windows Device Manager:

→ If device is not listed:

• Check the host controller power supply.

• Check USB 3.0 cable and connection.

→ If device is regularly not listed

• Check USB 3.0 driver installation.
