Safety
Further Information
For further information about our products, please visit www.baumer.com
For technical issues, please contact our technical support:
support.cameras@baumer.com · Phone +49 (0)3528 4386-845 · Fax +49 (0)3528 4386-86
© Baumer Optronic GmbH · Badstrasse 30 · DE-01454 Radeberg, Germany
Technical data has been fully checked, but accuracy of printed matter is not guaranteed.
The information in this document is subject to change without notice.
Printed in Germany 04/18. v16 11164110
CE
We declare, under our sole responsibility, that
the previously described Baumer VEXG cameras conform with the directives of the CE.
RoHS
All VEXG cameras comply with the recommendation of the European Union concerning
RoHS Rules.
Safety Precautions
Notice
See the User's Guide for the
complete safety instructions!
Caution
Observe precautions for
handling electrostatically
sensitive devices!
▪ Protect the sensor from dirt and
moisture.
▪ Do not allow the camera to become
contaminated with foreign objects.
Environmental Requirements
Storage temp. -10 °C ... +70 °C
Operating temp. see Heat Trans-
mission
Humidity 10 % ... 90 %
Non-condensing

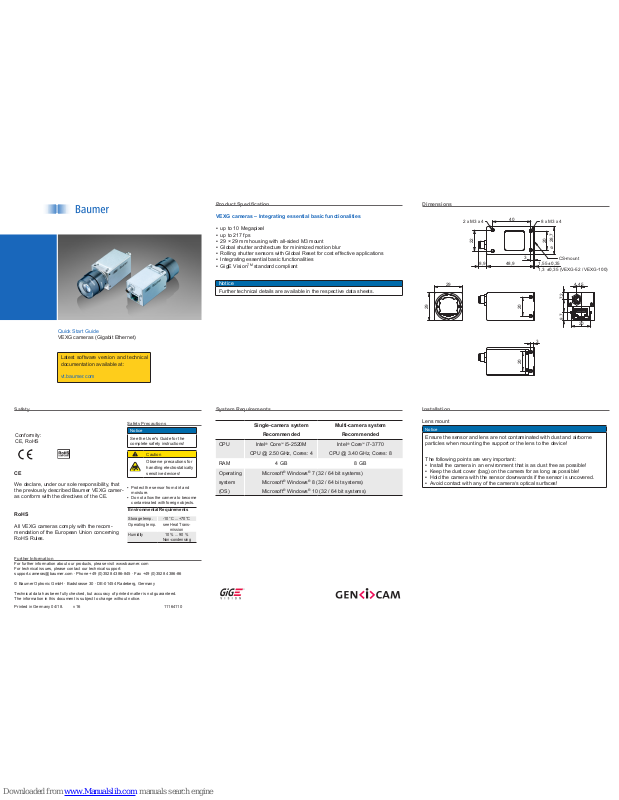

Quick Start Guide
VEXG cameras (Gigabit Ethernet)
Latest software version and technical
documentation available at:
vt.baumer.com
Conformity:
CE, RoHS
System Requirements
Single-camera system
Recommended
Multi-camera system
Recommended
CPU
Intel® Core™ i5-2520M
CPU @ 2.50 GHz, Cores: 4
Intel® Core™ i7-3770
CPU @ 3.40 GHz, Cores: 8
RAM 4 GB 8 GB
Operating
system
(OS)
Microsoft® Windows® 7 (32 / 64 bit systems)
Microsoft® Windows® 8 (32 / 64 bit systems)
Microsoft® Windows® 10 (32 / 64 bit systems)
Product Specication
VEXG cameras – Integrating essential basic functionalities
▪ up to 10 Megapixel
▪ up to 217 fps
▪ 29 × 29 mm housing with all-sided M3 mount
▪ Global shutter architecture for minimized motion blur
▪ Rolling shutter sensors with Global Reset for cost effective applications
▪ Integrating essential basic functionalities
▪ GigE VisionTM standard compliant
Notice
Further technical details are available in the respective data sheets.
Dimensions
29
29
20
20
4,45
7,2
8,7
20
3
28,7
20
22
40
CS-mount
1,55 ±0,3548,98,9
3
8 x M3 x 4
2 x M3 x 4
ø
1,3±0,35 (VEXG-52 / VEXG-100)
Installation
Lens mount
Notice
Ensure the sensor and lens are not contaminated with dust and airborne
particles when mounting the support or the lens to the device!
The following points are very important:
▪ Install the camera in an environment that is as dust free as possible!
▪ Keep the dust cover (bag) on the camera for as long as possible!
▪ Hold the camera with the sensor downwards if the sensor is uncovered.
▪ Avoid contact with any of the camera‘s optical surfaces!
General Description
2
3
1
No. Description No. Description
1 Lens mount (C-mount) 3 Ethernet Port / Signaling LED‘s
2
Power supply /
Digital-IO
LED signals
21
LED Signal Meaning
1
green static link active
green ash receiving
2
yellow static error
yellow ash transmitting
Power Supply
Power Supply
Power Supply 12 … 24 VDC ± 20%
Heat Transmission
Caution
Heat can damage the camera. Heat must be dissipated adequately
to ensure that the temperature does not exceed the values in the
table below.
As there are numerous possibilities for installation, Baumer recommends no specic method for proper heat dissipation, but suggest the
following principles:
▪ operate the cameras only in mounted condition
▪ mounting in combination with forced convection may provide proper
heat dissipation
T
Measurement Point Maximum Temperature
Measurement Point (T)
65 °C (149 °F)
VEXG-100 / VEXG-52: 60 °C (140 °F)
Installation
Installation of the camera:
▪ Connect the camera using an appropriate cable (at least Cat-5e) to the GigE
board on your PC.
▪ If required, connect a trigger and / or flash to process interface.
▪ Connect the camera to power supply.
open wire
Installation sample
1 - PCI board
2 - GigE cable
3 - Power cable / Digital-IO
Data Interface / Digital IOs
8P8C mod jack with LEDs
1
8
1 green/white MX1+ (negative / positive V
port
)
2 green MX1- (negative / positive V
port
)
3 orange/white MX2+ (positive / negative V
port
)
4 blue MX3+
5 blue/white MX36 orange MX2- (positive / negative V
port
)
7 brown/white MX4+
8 brown MX4-
Power Supply / Digital-IOs (on camera side)
wire colors on connecting cable (ordered separately)
1
2
4
3
1 Power VCC brown 3 GND blue
2 IN1 (Line0) white 4 OUT1 (Line1) black
