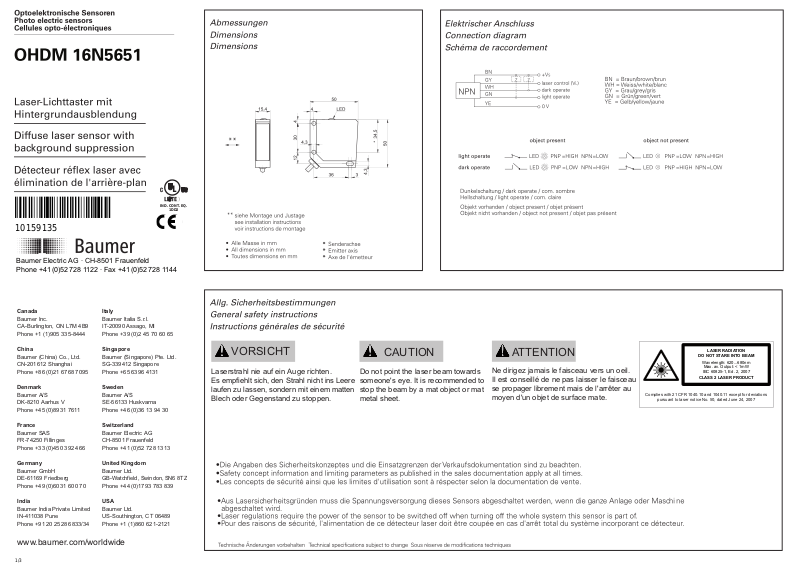

Baumer OHDM 16N5651 User Manual [en, de, fr]
Í?*/{CÂÂ*ÂÇÎ
Canada
Baumer Inc.
CA-Burlington, ON L7M 4B9
Phone +1 (1)905 335-8444
China
Baumer (China) Co., Ltd.
CN-201612 Shanghai
Phone +86 (0)21 6768 7095
Denmark
Baumer A/S
DK-8210 Aarhus V
Phone +45 (0)8931 7611
France
Baumer SAS
FR-74250 Fillinges
Phone +33 (0)450 392 466
Germany
Baumer GmbH
DE-61169 Friedberg
Phone +49 (0)6031 60 07 0
India
Baumer India Private Limited
IN-411038 Pune
Phone +91 20 2528 6833/34
Italy
Baumer Italia S.r.l.
IT-20090 Assago, MI
Phone +39 (0)2 45 70 60 65
Singapore
Baumer (Singapore) Pte. Ltd.
SG-339412 Singapore
Phone +65 6396 4131
Sweden
Baumer A/S
SE-56133 Huskvarna
Phone +46 (0)36 13 94 30
Switzerland
Baumer Electric AG
CH-8501 Frauenfeld
Phone +41 (0)52 728 1313
United Kingdom
Baumer Ltd.
GB-Watchfield, Swindon, SN6 8TZ
Phone +44 (0)1793 783 839
USA
Baumer Ltd.
US-Southington, CT 06489
Phone +1 (1)860 621-2121
www.baumer.com/worldwide
Baumer Electric AG · CH-8501 Frauenfeld
Phone +41 (0)52 728 1122 · Fax +41 (0)52 728 1144
Laserstrahl nie auf ein Auge richten.
Es empfiehlt sich, den Strahl nicht ins Leere
laufen zu lassen, sondern mit einem matten
Blech oder Gegenstand zu stoppen.
Do not point the laser beam towards
someone's eye. It is recommended to
stop the beam by a mat object or mat
metal sheet.
Ne dirigez jamais le faisceau vers un oeil.
Il est conseillé de ne pas laisser le faisceau
se propager librement mais de l'arrêter au
moyen d'un objet de surface mate.
LASER RADIATION
DO NOT STARE INTO BEAM
Wavelength: 620...680nm
Max. av. Output: < 1mW
IEC 60825-1, Ed. 2, 2007
CLASS 2 LASER PRODUCT
Complies with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to laser notice No. 50, dated June 24, 2007
VORSICHT
CAUTION
ATTENTION
10159135
IND. CONT. EQ.
1DD2
1/3
Technische Daten
Technical data
Données techniques
OHDM 16N5651
Tastweite Tw Sensing distance Tw Portée Tw
Abstand des Laserfokus Beam focal point Distance du foyer du laser
Betriebsspannungsbereich Vs (UL-Class 2) Voltage supply range Vs (UL-Class 2) Plage de tension Vs (UL-Class 2)
max. Stromverbrauch Mittelwert / Spitzenwert max. supply current average / peak Consommation moyenne max. / Valeure de pointe
max. Schaltstrom max. switching current Courant de sortie max.
Spannungsabfall Voltage drop Tension résiduelle
Steuereingang Laser ein Laser control input on Entrée test laser on
Steuereingang Laser aus Laser control input off Entrée test laser off
Ansprechzeit Response time Temps d'activation
Abfallzeit Release time Temps désactivation
Kurzschlussfest Short circuit protection Protégé contre courts-circuits
Verpolungsfest Reverse polarity protection Protégé contre inversion de polarité
Betriebstemperatur Temperature range Température de service
Schutzklasse Protection class Classe de protection
max. Anzugsdrehmoment max. tightening torque Couple max. de serrage
Laserstrahlverlauf
Laser beam chart
50 mm 100 mm 133 mm0 mm
Diagramme du faisceau laser
laser axis
123 ... 143 mm
133 mm
10 ... 30 VDC
25 mA / 35 mA
200 mA
£1,8 VDC
VL £ 1,0 VDC
VL ³ VS - 4,0 VDC / open
typ 3,5 ms / max. 5 ms
typ 3 ms / max. 5 ms
ja / yes / oui
ja / yes / oui
-5 ... +50 °C
IP 67
-- Nm
typ. width of laser line
beam pointing accurracy
0 mm
typ. length of laser line 2 mm
beam pointing accurracy ± 1.3 mm ± 1.7 mm ± 2 mm
1.6 mm
± 1.3 mm ± 1.7 mm
50 mm
0.7 mm
100 mm 133 mm
8 mm
0.15 mm
± 2 mm
12 mm
laser axis
2/3
