1 Sensors covered by this manual

These instruction applies to all O200 sensors with IO-Link interface: O200.G, O200.S, O200:R

2 IO-Link Introduction

IO-Link is an IO technology standardized worldwide according to IEC 61131-9. It permits manufacturer­independent digital, bidirectional point-to-point communication. For this purpose, sensors are connected to
the IO-Link master via standardized 3-wire plug-in cables. IO-Link is available for various sensor
technologies and can also be integrated into small miniature sensors. See also here for more information.

With the IO-Link master, which bundles several sensors, the connection to the controller is made via the
respective fieldbus system. In addition, an Ethernet-based connection (with OPC UA) from the master allows
direct communication from the sensor to IT systems. IO-Link masters are available as field devices for
decentralized mounting or as versions for mounting in control cabinets. Many control suppliers also offer IO­Link input terminals and thus an IO-Link master implemented directly on the control. The maximum cable
length between sensor and master is 20 m. However, significantly longer connections from the sensor to the
controller can be realized by connecting a field master to a field bus system. This gives them maximum
flexibility in the connection solution.

As a member of the IO-Link Consortium, Baumer is involved in developing the standard and is one of the
first manufacturers to feature the new Smart Sensor Profile 1.1. in its sensors.

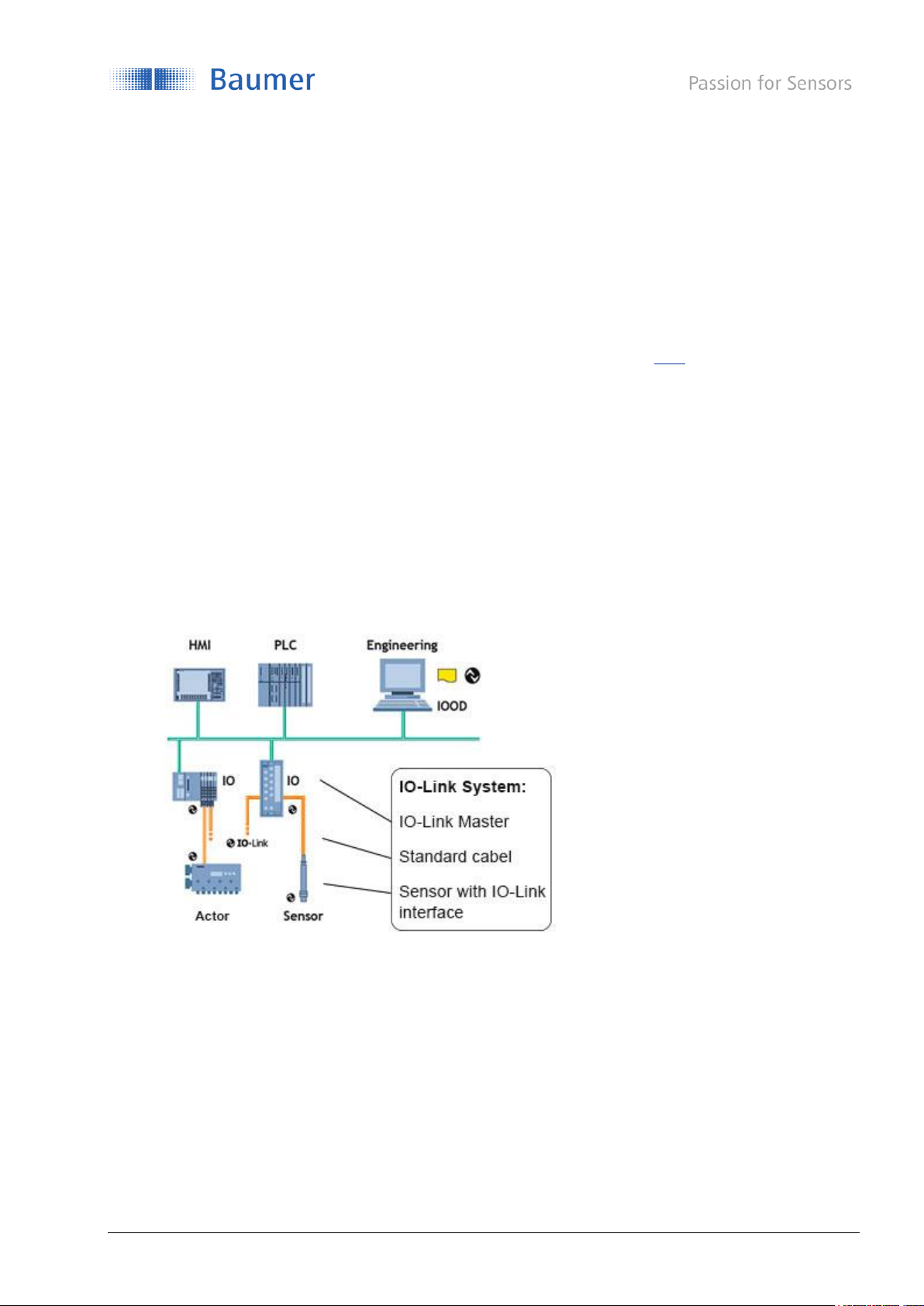

Figure 1 Example of a system architecture using IO-Link

2.1 SIO / DI Mode Mode

Each port of the IO-Link master can be operated either in SIO mode (standard in-out mode: according to the
latest specification DI mode for sensors and DQ mode for actuators) or in IO-Link mode and thus process
the information of all sensors. In SIO mode, the binary switching output (NPN, PNP or push-pull) of the
sensor is used. In IO-Link mode, the output of the sensor (pin 4) is used as a bidirectional, digital interface to
exchange measurement and diagnostic information.

en_BA_O200_IO-Link_V1.docx 4/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

2.2 IO-Link Communication Mode

The IO link communication mode is initiated by the master (PLC) with a standardized command sequence,
this sequence is called “wake-up”. After successful completion of the wake-up sequence the IO link
communication starts.

Data is the most important basis for process and product optimization. With the help of IO-Link, valuable
additional data can be made accessible. Sensor and Master can exchange two different types of data (cyclic
and acyclic data).
More information can also be found here.

2.2.1 Cyclic data

Transmitted in real time. They are used for process control in the automation system. These can also be
transferred to other IT systems via IO-Link.

2.2.2 Acyclic data

Through this data stream, sensors (IO devices) can be parameterized. Additionally this data stream also
allows to transmit data for identification and analyzation. The figure below shows the different types of data
and their value for the application.

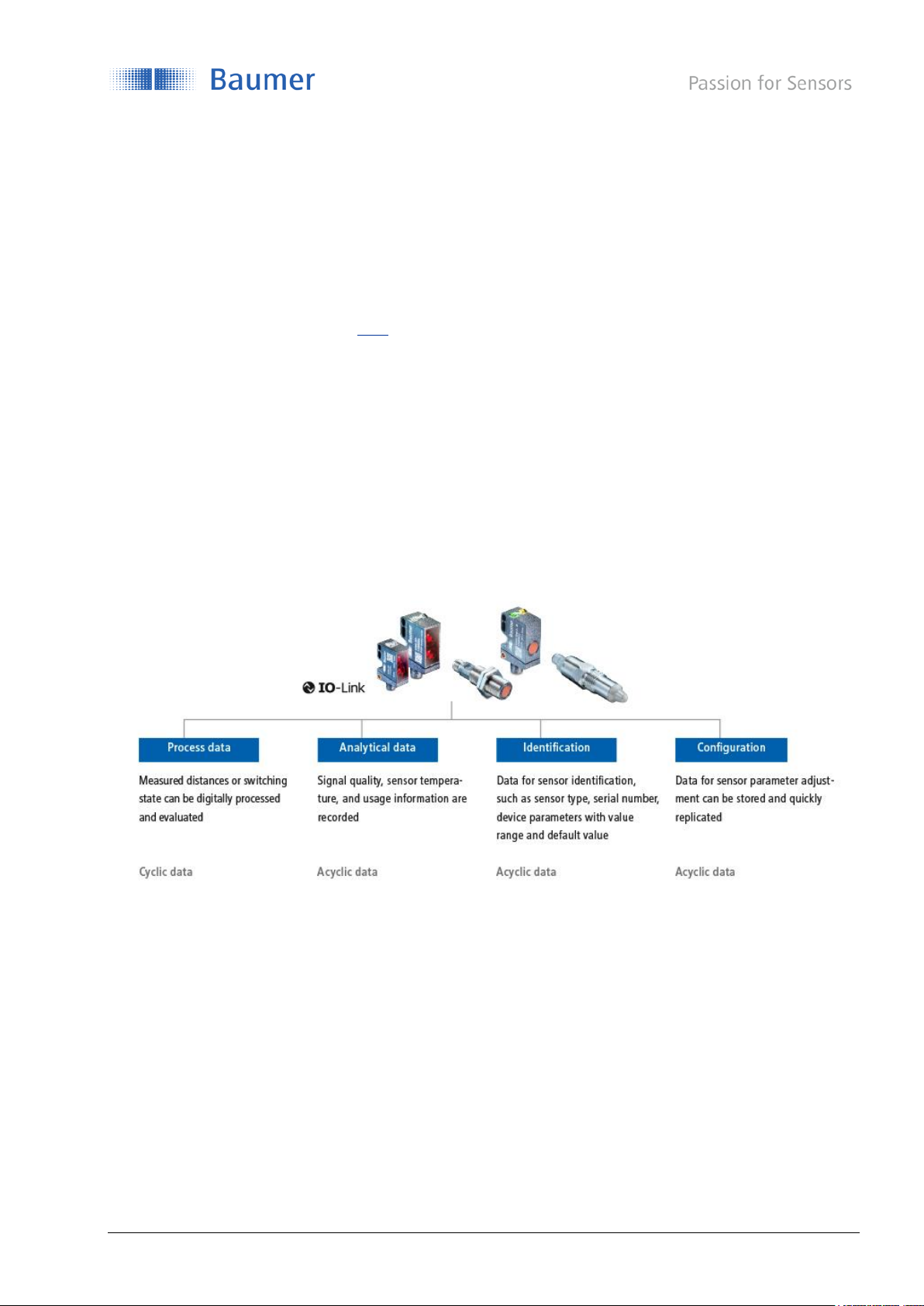

Figure 2 Different IO Link data streams

en_BA_O200_IO-Link_V1.docx 5/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

2.3 IO-Link Device Description (IODD)

Each IO-Link Device has a device description file, the so-called IODD (IO Device Description). This contains
data about the manufacturer, article number, functionality, software version etc., which can be easily read out
and further processed by the automation system. Each device, i.e. each sensor, can be uniquely identified
both via the IODD and via an internal device ID. The identification data of the sensor also includes device or
application descriptions that can be freely assigned by the user. The IODD consists of several files: a main
file and optional external language files (both in XML format), as well as image files (in PNG format).

2.4 Off-Line Parametrization

Off-line sensor parameter adjustment via convenient user interfaces in the PC (via USB Master) or via
Wireless App (via Wireless Master). Sensors can be conveniently configured at the desk and installed
without further teach-in.

Even if IO-Link is not implemented in the machine control, sensors can be operated in SIO mode and use
this advantage

2.5 Adjustable switching sensor (AdSS)

Additionally, the sensors described in this manual can be operated as “adjustable switching sensors (AdSS)”
according to the Smart Sensor Profile. When treated as AdSS the sensors-Master communications happens
via a fully standardized command set. Thus operation without IODD file is possible.

en_BA_O200_IO-Link_V1.docx 6/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

3 Sensor in the IO-Link Communication Mode

3.1 Signal Path

The signal path describes the rough position of a parameter in the signal processing chain. The path starts
with the measuring value in the top left corner and finishes either with a physical pin (top right) or as output
via the process data (bottom right).

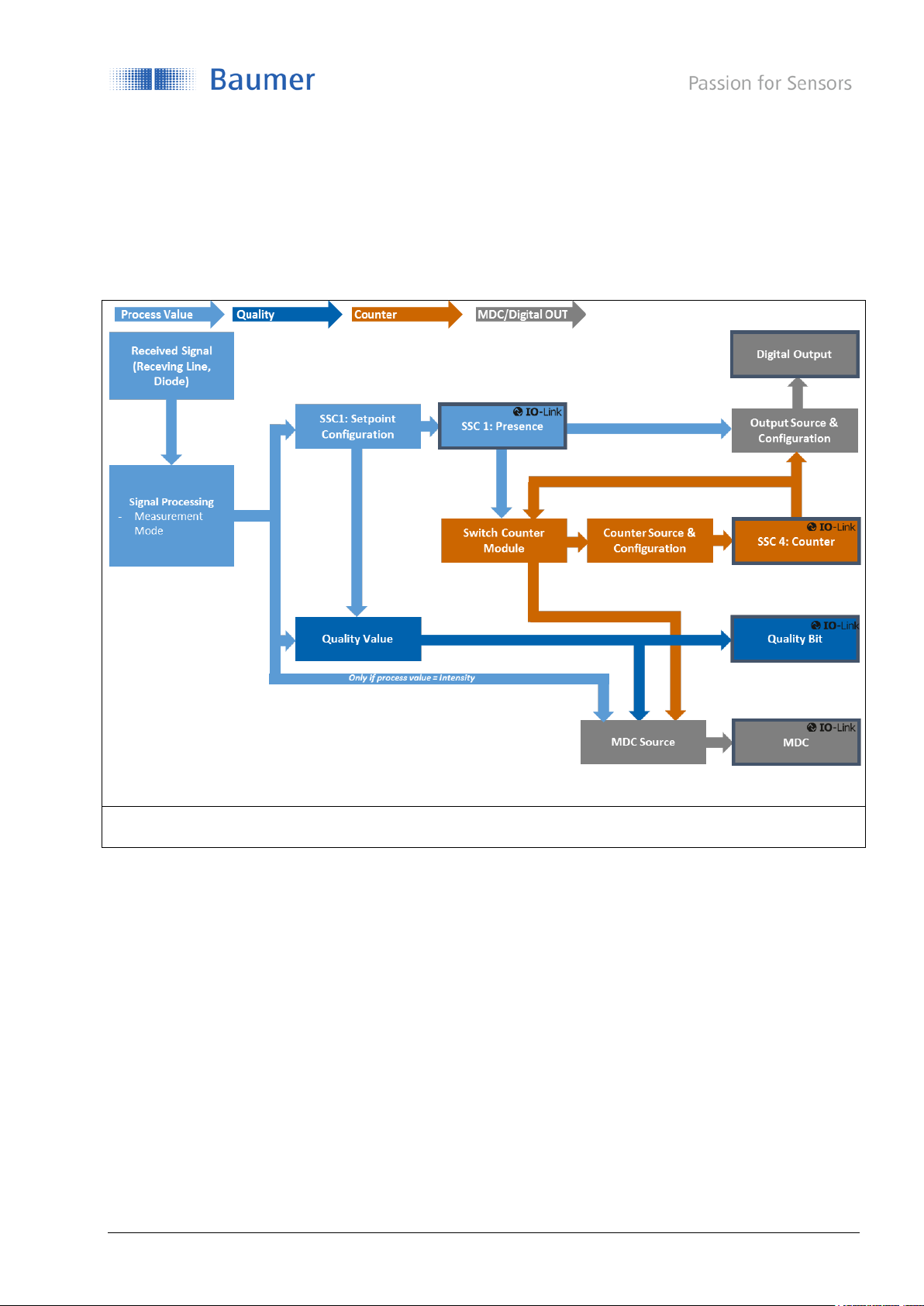

Figure 3 Illustrates the signal path from raw data to an output either through a physical pin (top right) or as
output via the process data (bottom right)

en_BA_O200_IO-Link_V1.docx 7/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

3.2 Process Data

With the sensor in the IO-Link communication mode, process data is cyclically exchanged between the IO­Link master and the device. Process data is exchanged to and from the sensor (SensorMaster). The
master does not need to explicitly request these process data.

3.2.1 Process Data-In

Process Data-In is sent from the sensor to the master (Sensor  Master).

IO-Link Process Data Input

Bit:

0 1 2 3 4 5 6

7

SSC1

Quality

Alarm

SSC4

Bit:

16…31

Measurement Data Channel (MDC)

The Process Data Input is an 32bit string and structured according to the Smart Sensor Profile definition
PDI32.INT16_INT8.

Bit 0: SSC1 (Switching Signal Channel 1)

This bit is the digital representation of a switching output.
Bit 0 = 0 → No object is being detected (Logic: Normal)
Bit 0 = 1 → An object is being detected (Logic: Normal)
See section 4.3 to learn how to configure this bit

Bit 2: Quality

The quality bit signals that the signal quality has fallen below the configured threshold.
It is directly connected to the weak signal indication LED (section 4.6.2)

See section 4.7 to learn how to configure this bit

Bit 3: Alarm

The alarm bit indicates that there is a detectable problem with the configuration or function of the sensor.
Bit 3 = 0 → Sensor operates properly.
Bit 3 = 1 → A problem with either the sensor configuration or function was detected.

Bit 5: Switching Signal Channel 4 (SSC4), Switch Counter Function

By configuring SSC4, it is possible to set up a binary signal related to the number of switchcounts of SSC1.
An auto-reset and timefilters are included, to be able to create a full-featured counter being able to count lot
sizes without any need to code software on the PLC.

See section 4.3.4 to learn how to configure this bit.

en_BA_O200_IO-Link_V1.docx 8/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

Bit 8 to 15: Scale

Value is the exponent to the power of ten, applicable to the value of the Measurement Data Channel (MDC)
Example:

- Value of MDC 1000

- Unit m

- Scale -6

- Means 1000*10

-6

m or 1000 m

As O200 sensors only provide measuring values where no scale factor is required, the scale factor is set
fixed to 0 (zero).

Bit 16 to 31: MDC / Measurement Value

MDC stands for measurement data channel. Via this channel the distance value or the switch counts of
SSC1 or 4 can be read out as 16 bit integer value. See section 4.2 to learn how to configure the MDC.

3.2.2 Process Data-Out

This data is cyclically sent from the master to the sensor (MasterSensor).

IO-Link Process Data Output

Bit:

7 6 5 4 3

2 1 0

Find Me (Localization: LEDs

flashing)

Disable

Transmit LED

Bit 0: Disable Transmit LED

If set to true, the transmition LED is deactivated. The sensor will not deliver a measurement or switching
value. This can be useful to measure neighbouring sensors sequentially or to perform functional tests.

Bit 1: Find Me Function

Signalling e.g. by flashing LEDs on the sensor to locate and physically identify a sensor in a machine or
system. The signalling can be triggered, for example, from the engineering tool of the controller.

en_BA_O200_IO-Link_V1.docx 9/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4 Parameter

4.1 System Commands

A factory reset of the sensor activates the default parameters as programmed in the factory. All parameters
changed by the user will be lost.

Parameter name

Short Description

Rights

Unit / Allowed
values

Standard command

Restore Factory Settings

wo

4.2 Measurement Data Channel (MDC)

4.2.1 Measurement Values

Parameter name

Short Description

Rights

Unit /
Allowed
values

Measurement
Value.Intensity

Intensity measuring value
(Only available for O200.R)

ro

0 … 32000

Measurement
Value.Quality Value

The quality value represents the excess gain
ration in %

100 = Exactly the amount of light needed for a
switching operation
200 = Twice the amount of light needed

O200.G, O200.S:
Quality = Strength of received light / Strength
required

O200.R:
Quality = Intensity value / SSC1 SP1

ro

0 … 32000

en_BA_O200_IO-Link_V1.docx 10/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.2.2 Switch Counts

For each individual SSC a switching counter is implemented, which can be used as diagnosis data or also as
measurement value. The number of counts of each channel can also be mapped to the measurement data
channel MDC by adjusting the MDC source. Trigger of counter is on positive slope of related SSC.

Note:
Each power up, the switch counts are being reset/start from 0.

Parameter name

Short Description

Rights

Unit / Allowed
values

- SSC1 Switch Counts
Reset

- SSC4 Switch Counts
Reset

Command to set the counter value of SSCn to
zero.
Available for SSC1 and 4.

wo

32 Bit value

- Switch Counts.SSC1
Resetable

- Switch Counts.SSC4
Resetable

Number of switching operations.
Available for SSC1 and 4.

ro

32 Bit value

4.2.3 MDC Source

Selects which measuring value is mapped to the MDC channel and is then available via the process data-IN
path. When SSC1, SSC2 or SSC4 is selected the number of switches detected by the channel is shown.

Parameter name

Short Description

Rights

Unit / Allowed values

MDC Selection.Source

Defines the measuring value which is
mapped to the MDC channel for
availability via the process data-IN
path.

ro

- Intensity (Only O200.R)

- Quality Value

- Switch Counter SSC1

- Switch Counter SSC4

4.2.4 MDC Descriptor

This parameter allows to read out the limits of the measuring range of the sensor and unit. When the sensor
detects values outside of this range, it will report an out of range value (32760).

Parameter name

Short Description

Rights

Unit / Allowed
values

MDC Descriptor.Unit
Code

Shows the unit of the selected MDC source

ro MDC
Descriptor.Lower Limit

lower limit of the measuring range

ro MDC
Descriptor.Upper Limit

upper limit of the measuring range

ro

en_BA_O200_IO-Link_V1.docx 11/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3 Configuration - Switching Signal Channel (SSC)

The sensor features two different switching channels. Switching Signal Channel SSC1 is reserved for object
detection.
Switching Channel 4 includes a counter function with an auto-reset. All switching channels can be adjusted
individually via IO-Link. All switching channels can be mapped to the MDC as well. Then they will show the
counts detected by the channel.

For more information about how to set-up the Counter/SSC4 channel and its behavior, please see section

4.3.4.

4.3.1 Setpoints SP

Using this parameter the user can modify the switchpoint of the sensor by enter the intensity (O200.R) or
distance value (O200.G, O200.S) at which the sensor should switch (teach-by-value function). Figure 4
shows the illustration of the switching behavior. Regarding Single point mode only SP1 is relevant, SP2 is
not active.
For the Window mode SP1 & SP2 are active. The switching modes are explained in section
Window mode is only available for the SSC1 of O200.G and for the SSC4/Counter.

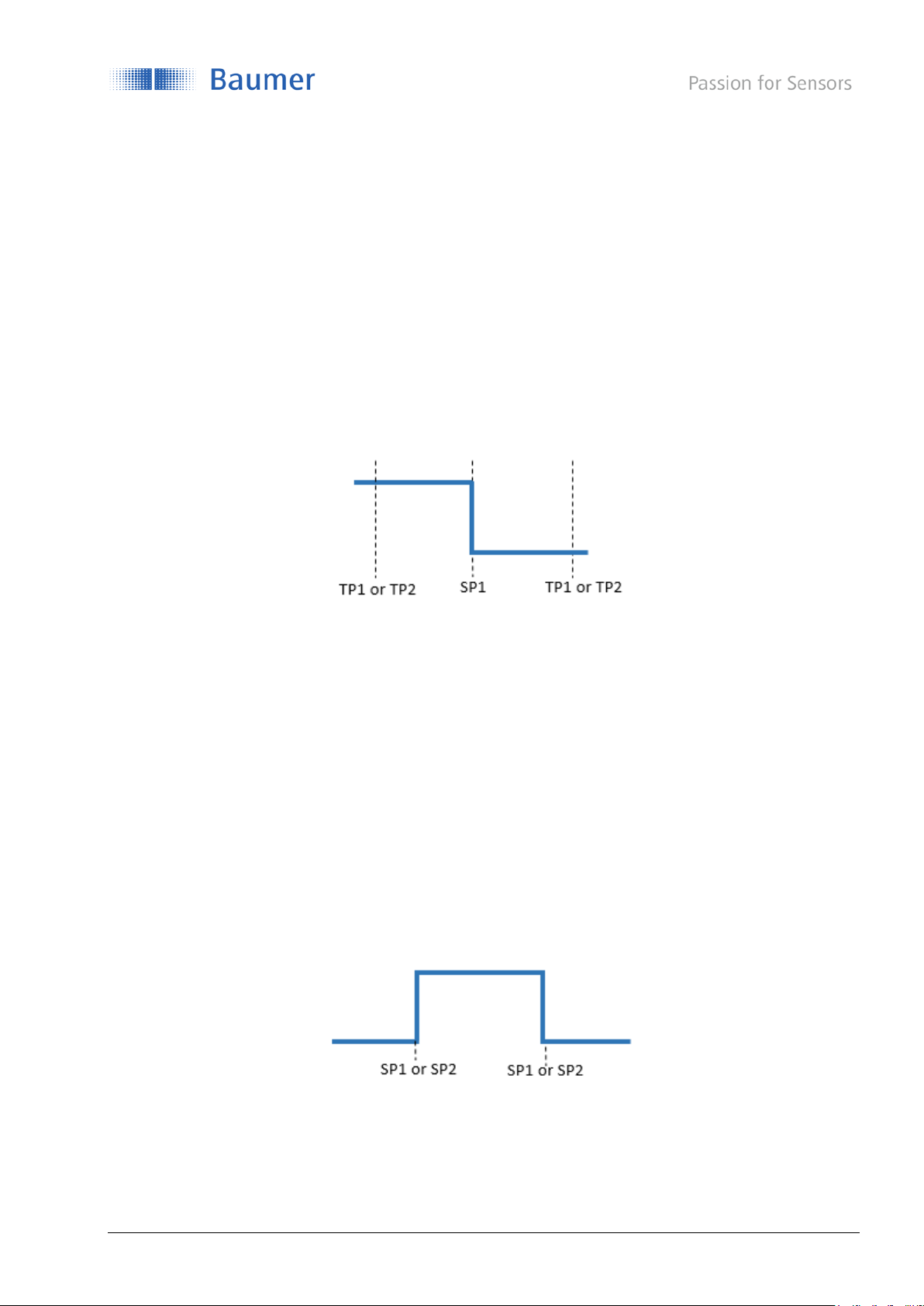

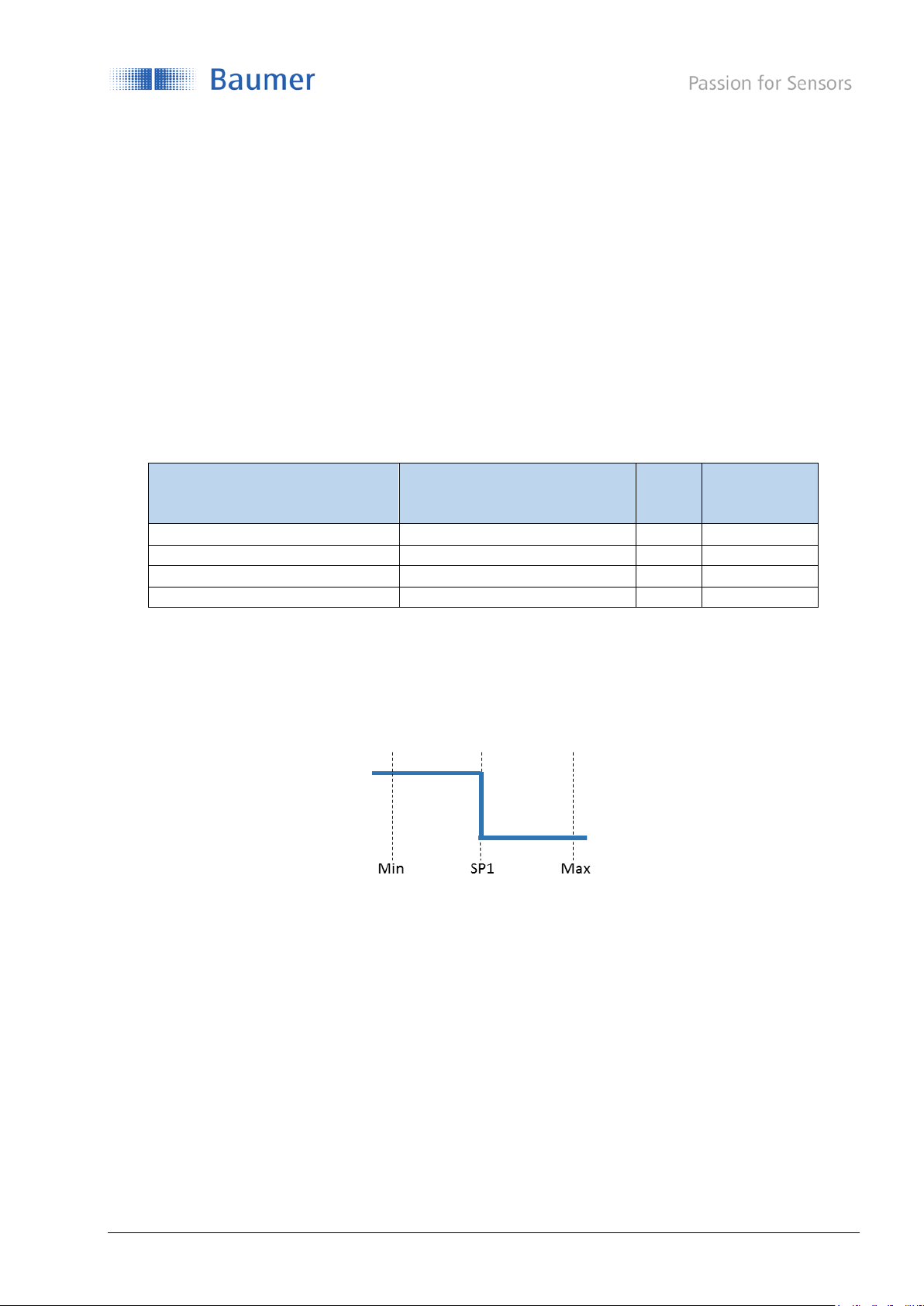

Figure 4 Single Point Mode (O200.R, O200.G)
SP1: Switch point 1
SP2: Not active

Figure 5 Window Mode (Only O200.G or SSC4)
SP1: Switch point 1
SP2: Switch point 2

Figure 6 Single Point Mode (O200.S)
SP1: Reference/backgroundposition

Parameter name

Short Description

Rights

Unit /
Allowed

values

SSC1 Param.SP1

Defines the value at which the related SSC is set to active (or
inactive if inverted) or the position of the reference (O200.S)

rw

SSC1 Param.SP2
(Only O200.G)

Defines the value at which the related SSC is set to inactive (or
active if inverted)

- only active if SSC is set to window mode

rw

SSC1
Param.Background
Tolerance

Only available for O200.S
This value in % states the relative allowable variance of the
reference position. (+/-)

rw

%

en_BA_O200_IO-Link_V1.docx 12/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.2 SSC Configuration

4.3.2.1 Switching Mode

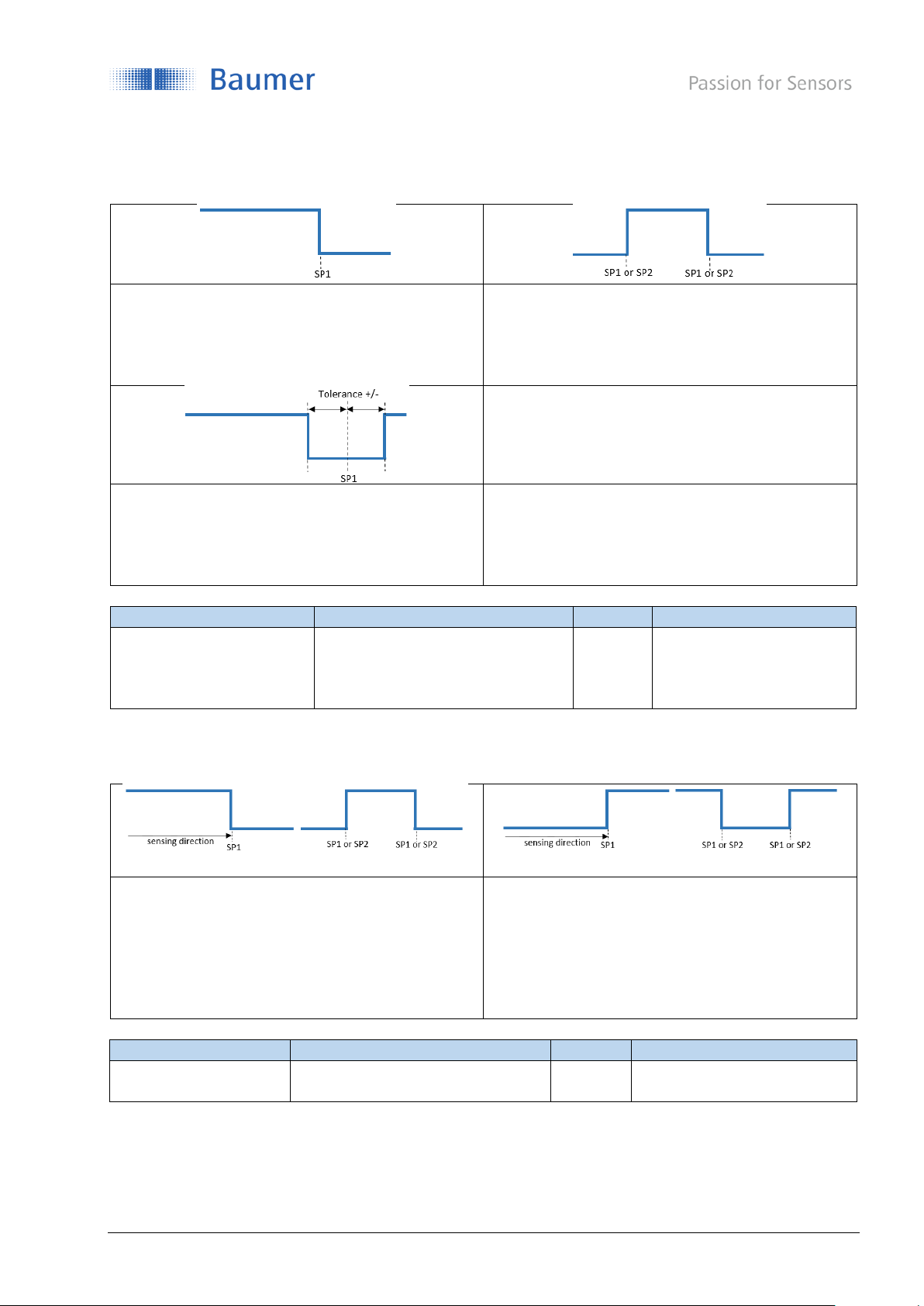

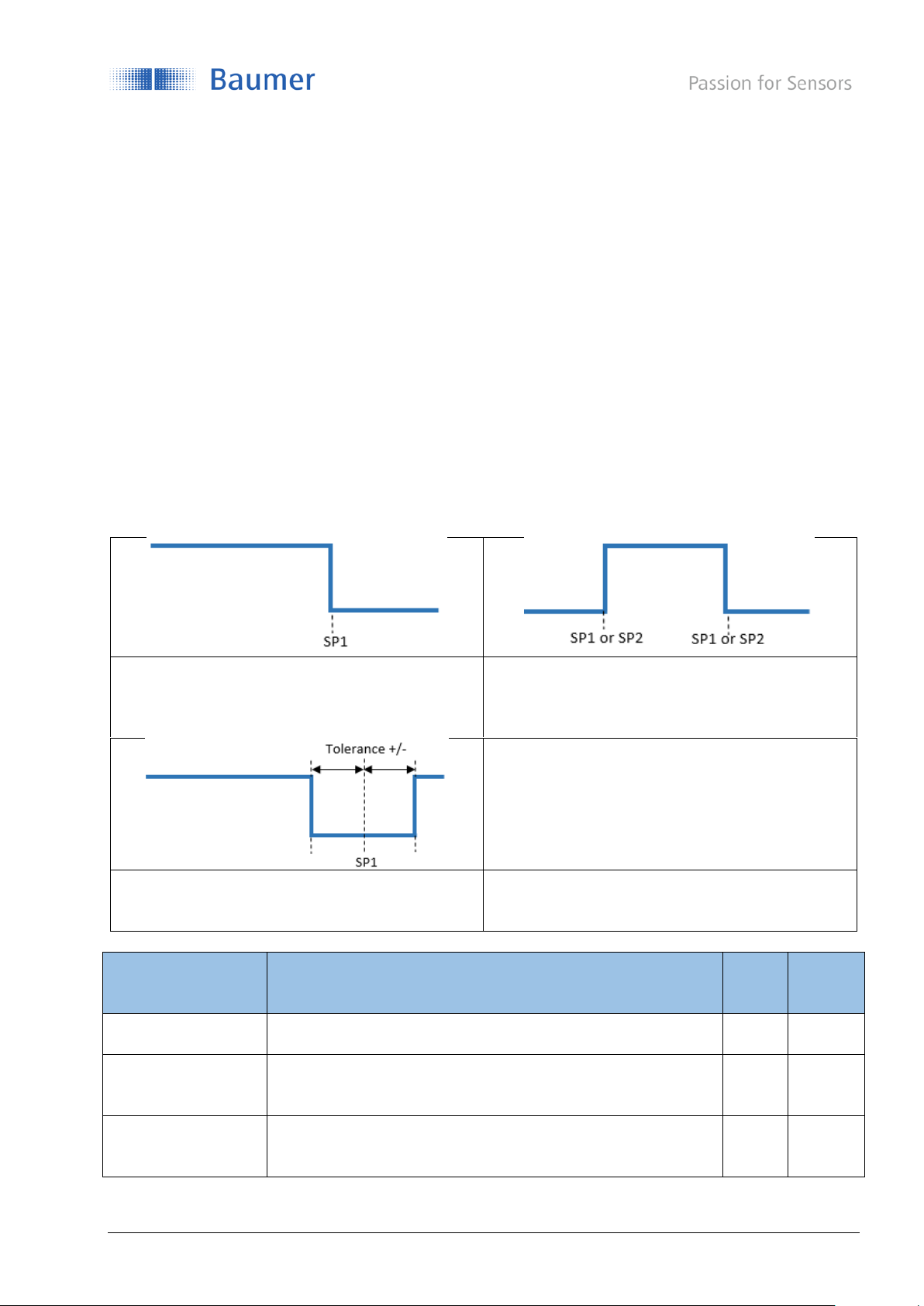

Figure 7 Single Point Mode (O200.G, O200.R)

A single setpoint (SP1) is defined at which the
sensor switches.

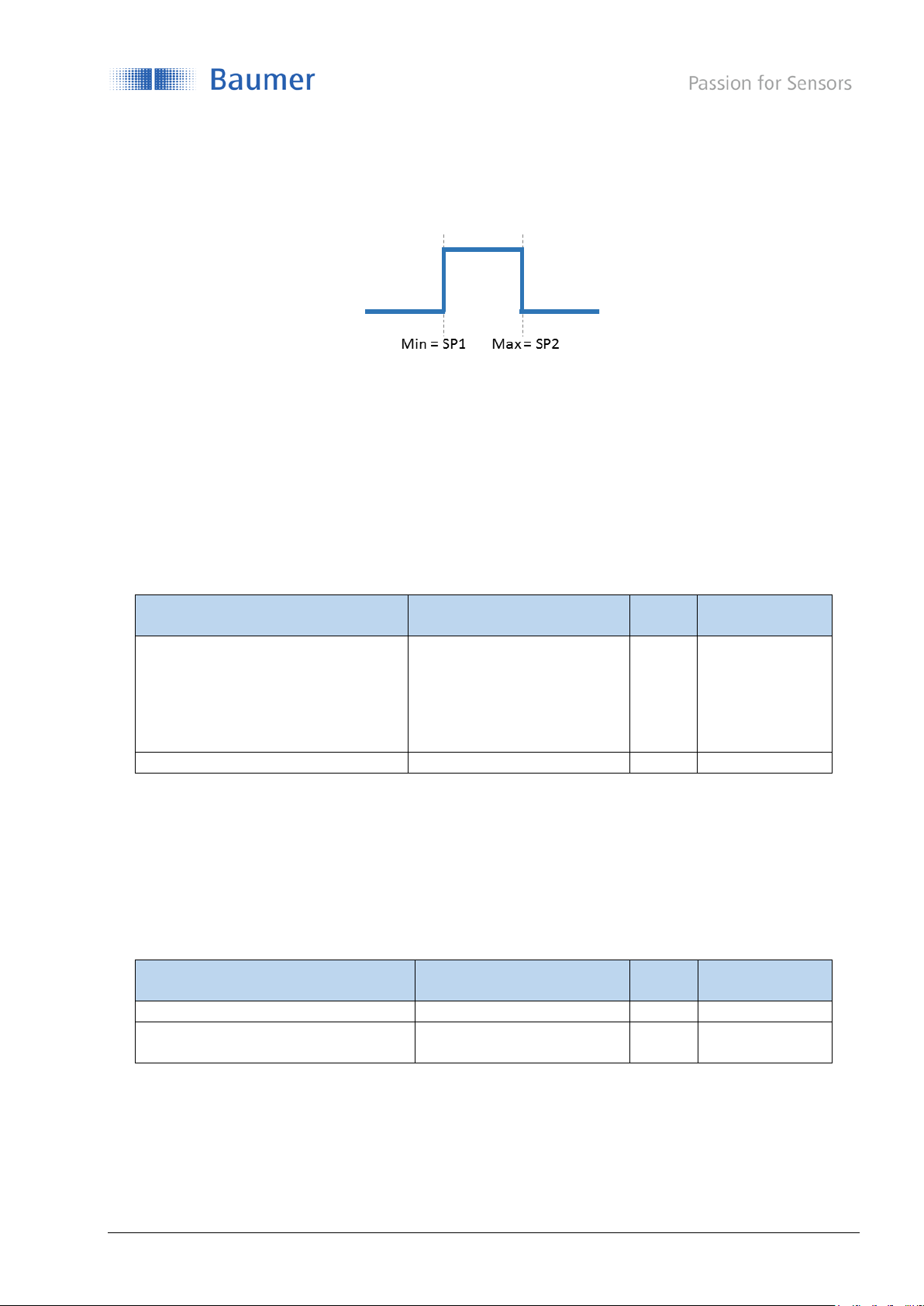

Figure 8 Window Mode (Only O200.G)

The sensor switches withing a range defined by two
different setpoints (SP1 and SP2)

Figure 9 Single Point Mode SmartReflect (O200.S)

A single setpoint (SP1) which represents the
position of the reference background.

Parameter name

Short Description

Rights

Unit / Allowed values

SSC1 Config.Mode

Selection of the switching mode

rw

- Disabled

- Single Point

- Window
(Only O200.G)

4.3.2.2 Channel Logic

Allows to change the output logic from Normally Open (NO, Normal) to Normally closed (NC, Inverted).

Single Point Mode Window Mode

Single Point Mode Window Mode

Figure 10 «Normal» or NO setting

- The output is high, when the object is
within the range defined by the setpoints.

- The output is low when the object is not

present our outside of the range defined by
the setpoints

Figure 11 «Inverted» or NC setting

- The output is high when the object is not

present our outside of the range defined by
the setpoints

the output is low, when the object is within the

range defined by the setpoints

Parameter name

Short Description

Rights

Unit / Allowed values

SSC1 Config.Logic

Changes the Logic from NO to NC

rw

- Normal (NO)

- Inverted (NC)

en_BA_O200_IO-Link_V1.docx 13/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.2.3 Hysteresis Alignment Mode (Only O200.G)

In case of axial detection tasks like stop trigger or level detection, an accurate switching distance is required.
To adapt the switching behavior and the hysteresis to the movement direction of the object, the alignment of
the hysteresis can be changed.
Only available for O200.G sensors.

Parameter name

Short Description

Rights

Unit / Allowed values

Hysteresis.SSC1
Alignment

Selection of the alignment modes
Available for SSC1.

Default: Right aligned

rw

- Left Aligned

- Center Aligned

- Right Aligned

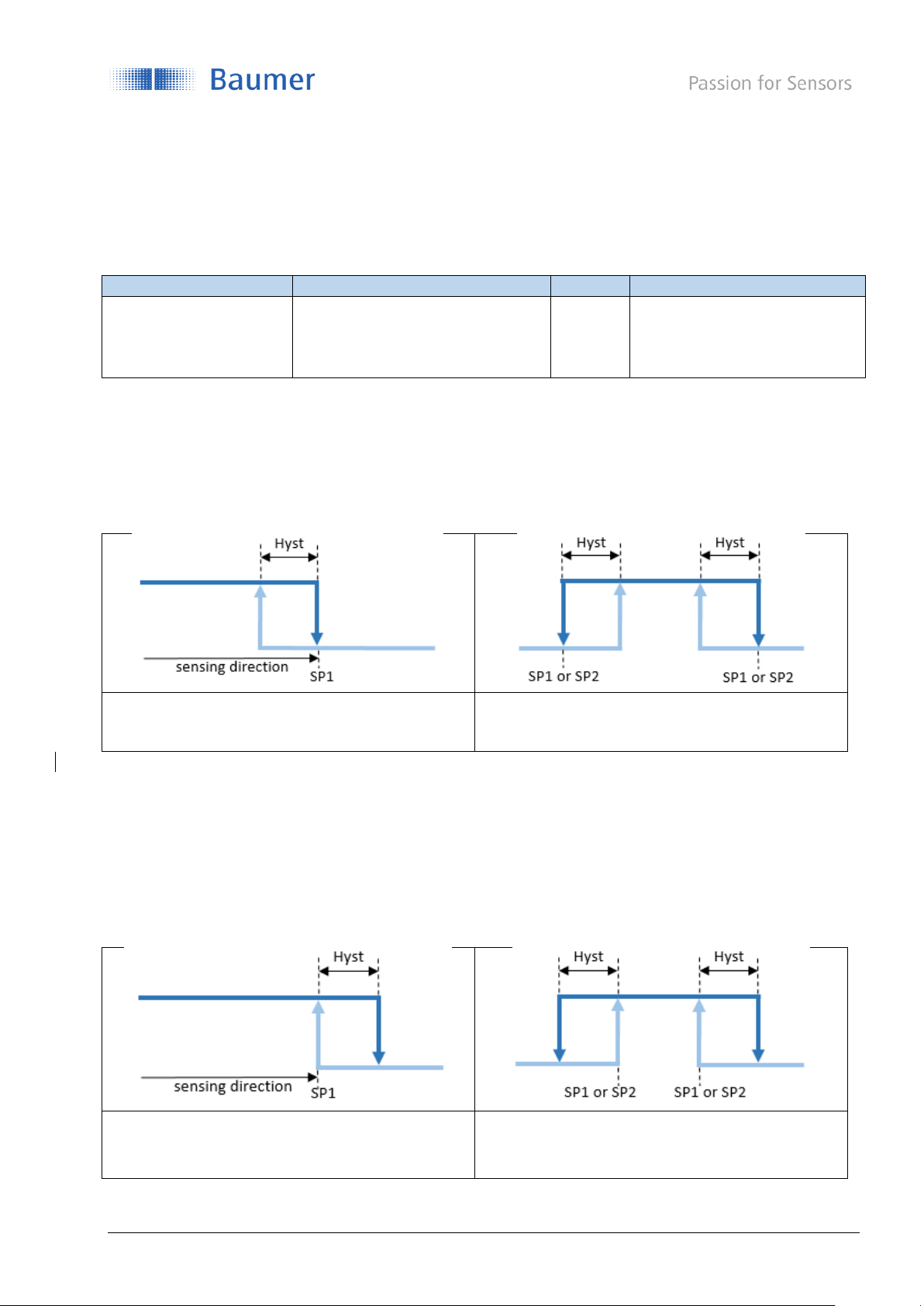

4.3.2.3.1 Left Aligned

Left Aligned defines the hysteresis to be aligned towards the sensor / against the sensing direction.

When to apply?

- For an accurate switching distance in case the object is moving away from the sensor

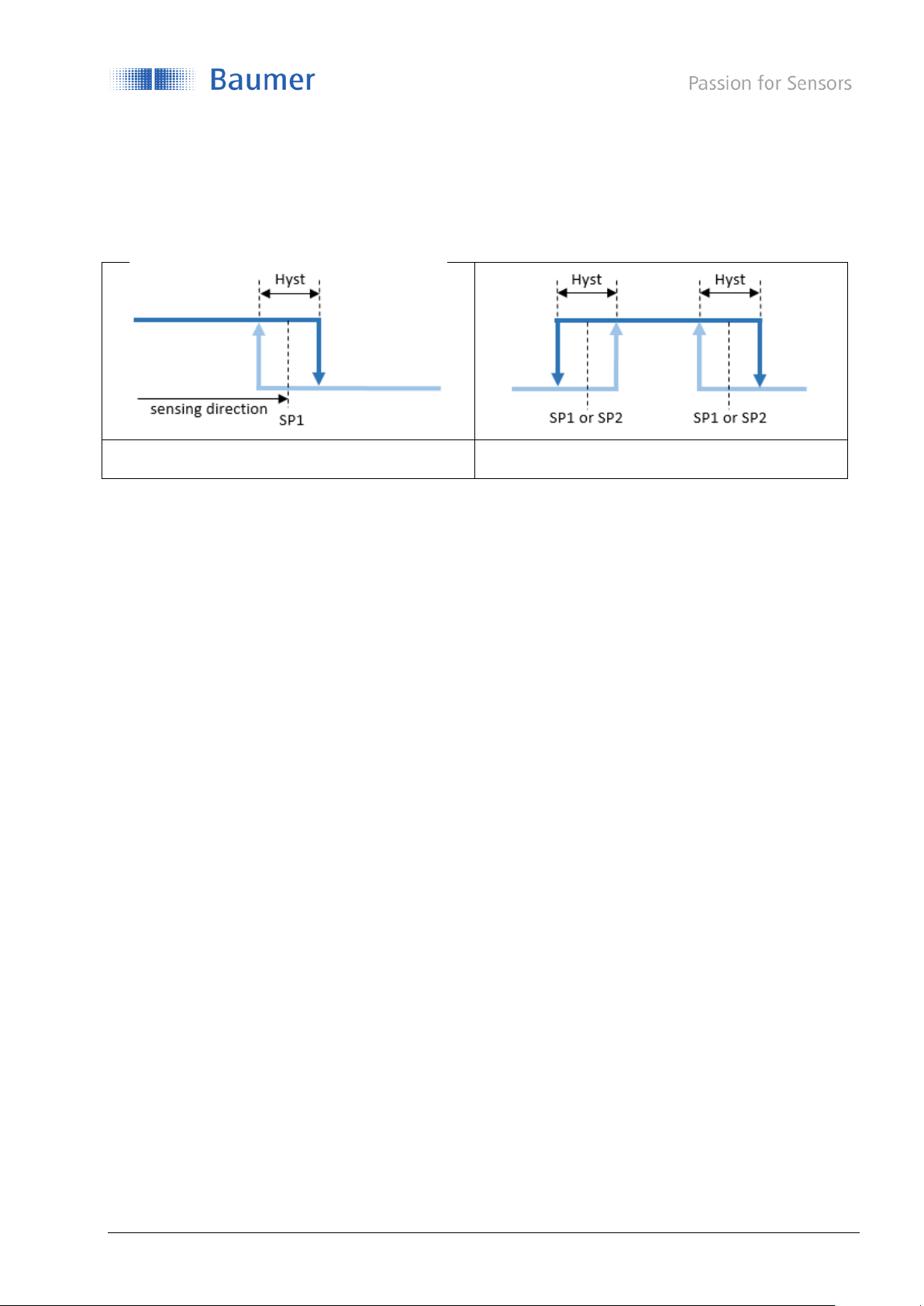

Figure 12 Left Aligned, Single Point Mode

Figure 13 Left Aligned, Window Mode

4.3.2.3.2 Right Aligned

Right Aligned defines the hysteresis to be aligned away from the sensor / in sensing direction.

When to apply?

- For an accurate switching distance in case the object is moving towards the sensor.
o Example: Stop trigger application, usual detection tasks.

Figure 14 Right Aligned, Single Point Mode

Figure 15 Right Aligned, Window Mode

en_BA_O200_IO-Link_V1.docx 14/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.2.3.3 Center Aligned

A compromise between left and right aligned. The hysteresis is aligned symmetrical around the individual
setpoints.

Figure 16 Center Aligned, Single Point Mode

Figure 17 Center Aligned, Window Mode

en_BA_O200_IO-Link_V1.docx 15/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.3 Timefilter

This changes the timing of the switching signals, for example to avoid bouncing/suppress false switching
operation. The ability to directly parametrize and configure the timing on the sensor itself, removes the need
to have additional coding on the PLC or to use pulse stretching adapters.

The described time filters can be configured and applied to each SSC individually.

4.3.3.1 Response Delay Time

The response delay time defines the time, the measurement value needs to be above (single point mode) or
inside (window mode) the switchpoints of the related SSC until its status changes to active (or inactive, if the
logic is inverted as described in section 4.3.2.1)

When to apply?

- To avoid the detection of small peaks/false switching operations due to structure changes of the

background or similar.

- To avoid wrong switching of known disturbances such as the wheel of a mixer

- To avoid bouncing.

- To optimize the timing of the execution of a subsequent actor triggered by the outssput of the sensor.

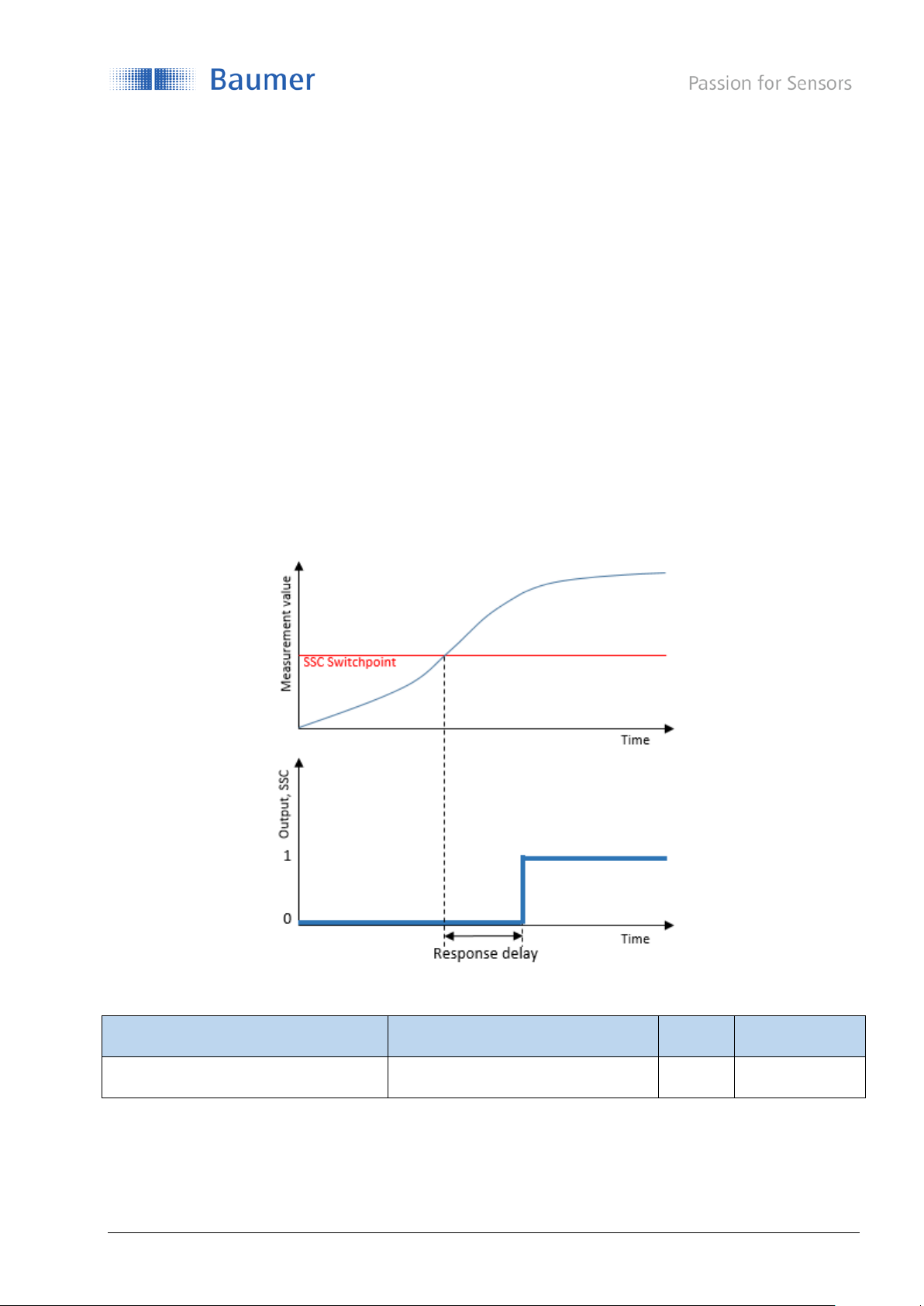

Figure 18: Response Delay

Parameter name

Short Description

Rights

Unit / Allowed
values

Response Delay.SSC1 Time

Sets the response delay time,
Available for SSC1 and SSC4

rw

0 to 60.000 ms

en_BA_O200_IO-Link_V1.docx 16/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.3.2 Release Delay Time

The release delay time defines the time, where the measurement value needs to be below (single point) or
outside (window mode) of the switchpioints of the related SSC, until its status is changed to inactive (or
active, if the logic is inverted as described in section 4.3.2.1)

When to apply?

- To avoid false switching operations in case of an object which is not 100% stable to detect over the

whole length

- To supress short losses of a proper signal due to known disturbances such as the wheel of a mixer.

- To avoid bouncing.

- To optimize the timing of the execution of a subsequent actor triggered by the output of the sensor.

- To detect a unwanted gap size within a continuous flow of products.

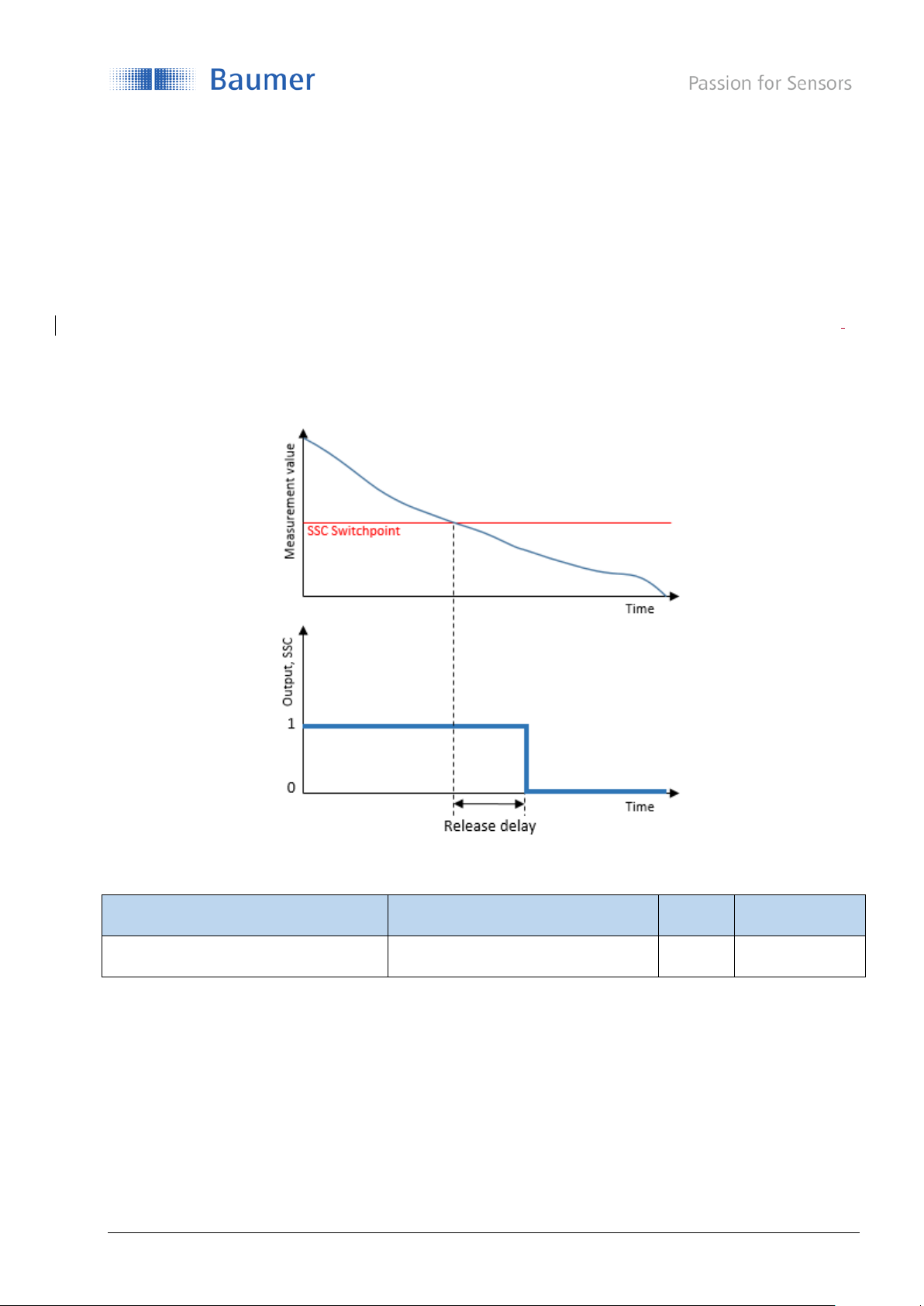

Figure 19: Release Delay

Parameter name

Short Description

Rights

Unit / Allowed
values

Release Delay.SSC1 Time

Sets the release delay time,
Available for SSC1 and SSC4

rw

0 to 60.000 ms

en_BA_O200_IO-Link_V1.docx 17/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

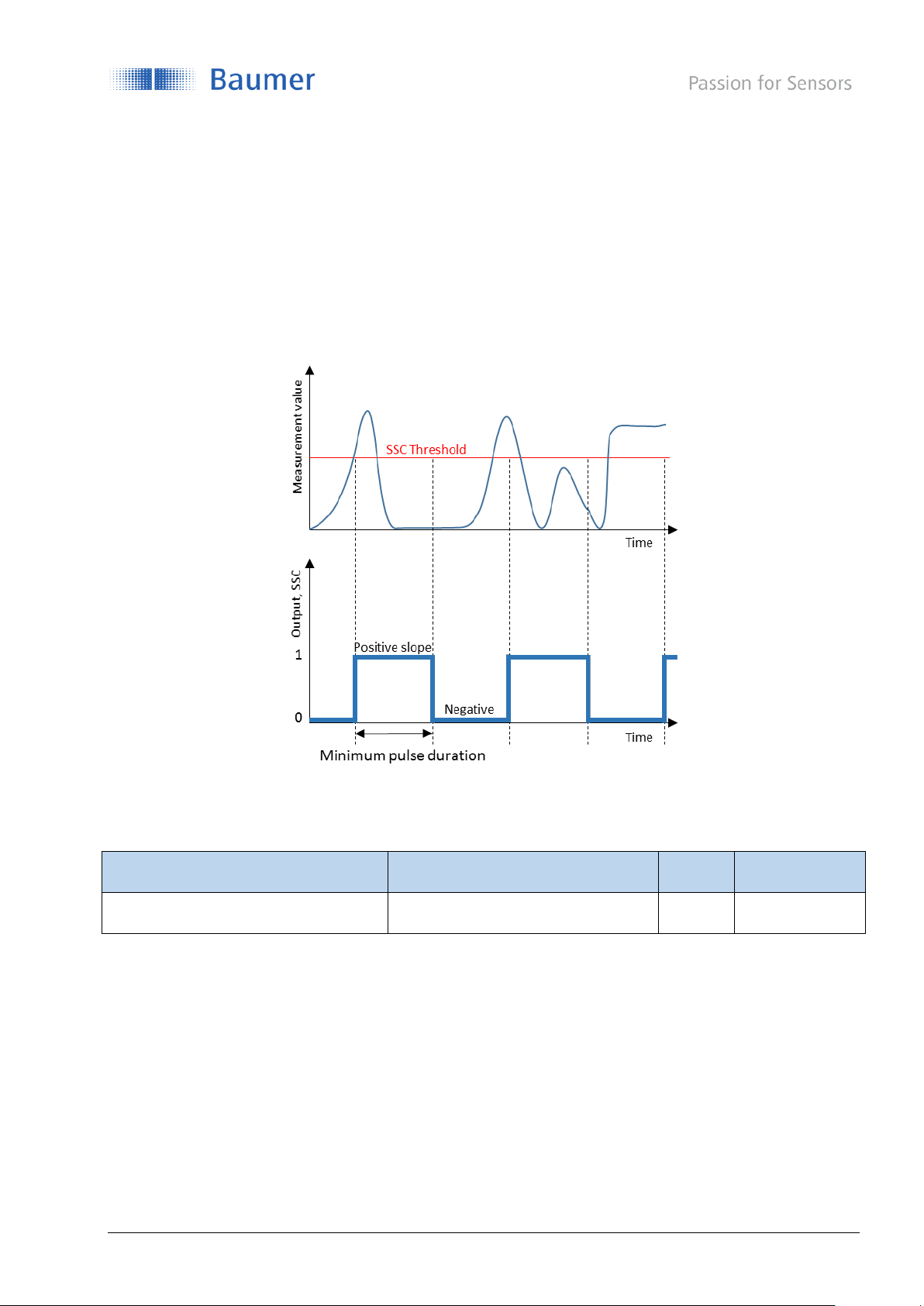

4.3.3.3 Minimum Pulse Duration

The minimum pulse duration defines the minimum time, the switching signal of the related SSC stays active
or inactive after the change of its status.

When to apply?

- To align the timing of the sensor to a slower PLC.

- To avoid bouncing.

- To avoid false pulses due to short losses of a proper signal.

- To straighten the clock / pace

Figure 20 Minimum Pulse Duration

Parameter name

Short Description

Rights

Unit / Allowed
values

Minimum Pulse Duration.SSC1 Time

Sets the response delay time,
Available for SSC1 and SSC4

rw

0 to 60.000 ms

en_BA_O200_IO-Link_V1.docx 18/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.3.4 Counter / SSC4

For each individual SSC a switching counter is implemented, which can be used as diagnosis data or also as
measurement value. The number of counts of each channel can also be mapped to the measurement data
channel MDC by adjusting the MDC source (See section 4.2.3).
Trigger of counter is on positive slope of related SSC.

By configuring SSC4, it is also possible to set up a binary signal related to the number of switchcounts of
SSC1. An auto-reset and timefilters are included, to be able to create a full-featured counter being able to
count lot sizes without any need to code software on the PLC.

As all SSCs, SSC4 can also be mapped to the digital output giving the possibility to create a stand-alone lot­size counter.

In section 3.1, the signal path is decribed more detailed, to illustrate how the counter module is implemented.
In section 4.3.4.2 the behavior depending on the configuration is explained.

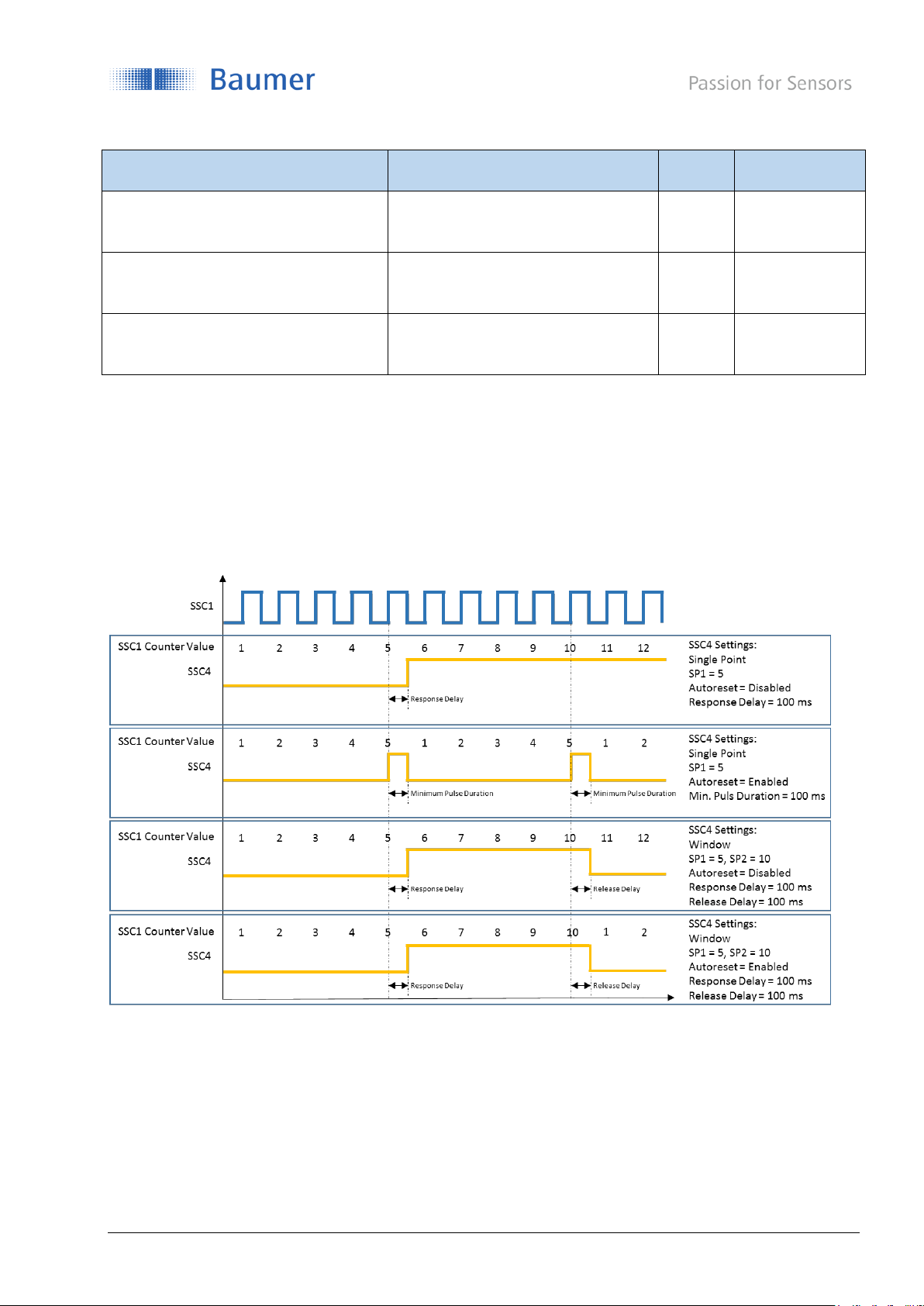

4.3.4.1 SSC4 Configuration

In general the SSC4 offers the same features as the SSC1 and SSC2 based on distance (See 4.3.2),
including also timefilters.
Exceptions:

- No hysteresis settings as there are only incremental counts.

- Additional parameters to adjust like SSC4 Source and SSC4 Auto-Reset.

Parameter name

Short Description

Rights

Unit / Allowed values

SSC4 Setpoints.SP1

Set the number of counts at which the
SSC is set to active (or inactive if
inverted)

rw

Counts / 0 to 32759

SSC4 Setpoints.SP2

Set the number of counts at at which the
SSC is set to inactive (or active if
inverted)

- only active if SSC is set to
window mode

rw

Counts / 0 to 32759

Parameter name

Short Description

Rights

Unit / Allowed values

SSC4 Config.Logic

Changes the Logic from NO to NC

rw

- Normal

- Inverted

SSC4 Config.Mode

Selection of the switching mode

rw

- Single Point

- Window

SSC4 Config.Source

Selection of source for counter
function

rw

- SSC1 Switch Counter

SSC4 Config.Auto Reset

Autoreset of switch counter if given
switch counts are reached.
If autoreset is switched from
disabled to enabled, the selected
switch counter-source is
automatically being reset to zero.

rw

- Enabled

- Disabled

en_BA_O200_IO-Link_V1.docx 19/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

Parameter name

Short Description

Rights

Unit / Allowed
values

Response Delay.SSC4 Time

Sets the response delay time,
Available for SSC1, SSC2, SSC3
and SSC4

rw

0 to 60’000 ms

Release Delay.SSC4 Time

Sets the release delay time,
Available for SSC1, SSC2, SSC3
and SSC4

rw

0 to 60’000 ms

Minimum Pulse Duration.SSC4 Time

Sets the response delay time,
Available for SSC1, SSC2 , SSC3
and SSC4

rw

0 to 60’000 ms

4.3.4.2 SSC4 Behavior

By enabling autoreset, a full-featured counter being able to count lot sizes can be created without any need
of a manual reset.
Timefilters like Response Delay can help to optimize the timing of the execution of a subsequent actor.

Figure 21 illustrates the behavior of SSC4 using different setting. SSC4 source is hereby the switchcounter
of SSC1.

Figure 21 Behavior SSC4/Counter: Single-Point or Window, Autoreset enabled or disabled

en_BA_O200_IO-Link_V1.docx 20/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.4 Signal Processing

4.4.1 Measurement Mode (Only O200.G, S)

With this parameter pre-defined modes can be selected to achieve optimal results without much trial and
error.

Parameter name

Short Description

Rights

Unit / Allowed values

Measurement Mode

Choose measurement mode for
different applications

rw

- High Speed

- Standard

- High Power

High Speed:

Ideal for fast moving objects. Sensors is adjusted for fastest response time. Detection ability identical to
Standard-Mode but with reduced ambient light immunity

Standard:

Standard setting with outstanding performance with the highest ambient light immunity.

High Power:

Twice the excess gain compared to Standard mode but with slower response time.
Reduced hysteresis due to better signal/noise ratio.

4.5 Input/Output Settings

4.5.1 Switching Output

Parameter name

Short Description

Rights

Unit / Allowed values

DI/DO Settings.OUT1 Circuit

Selection of circuit type

rw

- PushPull (default)

DI/DO Settings.OUT1 Mode

Selection of output source
(Default: SSC1)

rw

- None (SIO
deactivated)

- SSC1 (default)

- SSC4

en_BA_O200_IO-Link_V1.docx 21/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.6 Local User Interface

Different parameters are available to configure the local user interface which means the indication LED and
the qTeach availability or qTeach mode (Xpress vs Xpert, static vs dynamic)

4.6.1 Local Teach Settings

Parameter name

Short Description

Rights

Unit / Allowed values

Teach Lock Settings.Teach Lock Time

This parameter is only applicable for the
qTeach – the teach-in by wire is not
affected / locked at any time.

Defines the time between
power up and qTeach
deactivation.

0:
qTeach never locked

1 – 120 min:
Accepted range

0xFF:
qTeach always
locked

Default: 5 min

rw

0 … 120 min
0xFF

Teach Mode Settings.Teach Mode

Defines the teach mode for
the qTeach and teach by
wire.

rw

Xpert Static
Xpress Static
Xpert Dynamic
Xpress Dynamic

en_BA_O200_IO-Link_V1.docx 22/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.6.1.1 Local Teach: Teach Modes

Applicable for qTeach and for teach-in by wire

Figure 22: Teach-in activation by qTeach

The switching behavior depends if the switching mode is set to single point or window (only available for
O200.G).
For the behavior resulting based on the teach-in, please check section 5 and the following sub-chapters or
section 4.3.2 how to adjust the switching mode or relevant parameters. (TPO, hysteresis, …)

If the teach-in was not successful, is indicated by the LED flashing 8 Hz for 2 sec. Previous settings are
restored.
If the teach-in was successful, the sensor turns in to operation mode.

Mode

Level 1

Level 2

Xpert Static

1 Point Teach
Enter teach level by activating

qTeach-in >2 .. <4 sec
(Green LED flashes with 2 Hz)

Tap qTeach to teach-in the position

2-Point Teach (O200.S: not active)
Enter teach level by activating

qTeach >4 … <6 sec.
(Yellow LED flashes with 2 Hz)

Tap qTeach to teach the position of TP1
Tap qTeach again to teach the position
of TP2

Xpert Dynamic

Start:

Enter teach Level by activating
qTeach >2 .. <4 sec.
(Green LED flashes with 2 Hz)
Data acquisition starts after releasing
teach-in

Stop:

Tap qTeach
Accepted duration:
2 … 15 sec

N/A

Xpress Static
One Step Teach

Activate qTeach for >2 sec to teach-in
the position
(Green LED flashes with 2 Hz)

N/A

Xpress Dynamic
One Step Teach

Start: Activate qTeach
Stop: Release qTeach
(Green LED flashes with 2 Hz)

Accepted duration:
2 … 15 sec

N/A

en_BA_O200_IO-Link_V1.docx 23/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

Mode

Level 3: Output Logic

Level 4: Factory Reset

Xpert Static

Enter teach Level by activating
qTeach >6 .. <8 sec.
(Green & yellow LED flash with 2 Hz)

Tap qTeach to change the logic
indicated by the LEDs
Green LED: Normal
Yellow LED:Inverted

Enter teach level by activating
qTeach >8 … <12 sec.

No further actions required

Xpert Dynamic

Enter teach Level by activating
qTeach >6 .. <8 sec.
(Green & yellow LED flash with 2 Hz)

Tap qTeach to change the logic
indicated by the LEDs
Green LED: Normal
Yellow LED:Inverted

Enter teach level by activating
qTeach >8 … <12 sec.

No further actions required

Xpress Static
One Step Teach

N/A

N/A

Xpress Dynamic
One Step Teach

N/A

N/A

en_BA_O200_IO-Link_V1.docx 24/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.6.2 Indication LEDs

While the underlying functionality of the LEDs is in general well defined, it is possible to deactivate or to
invert those.

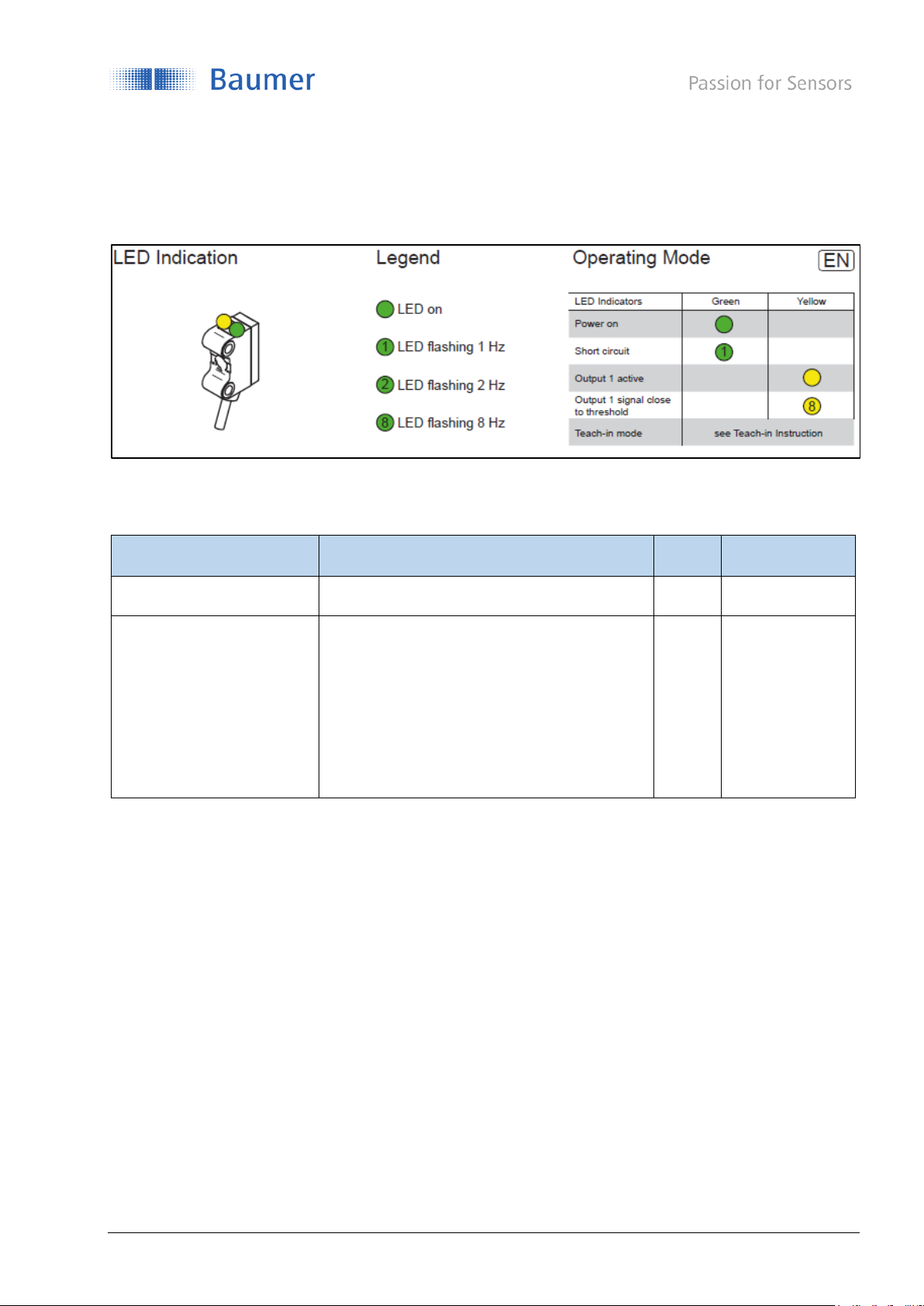

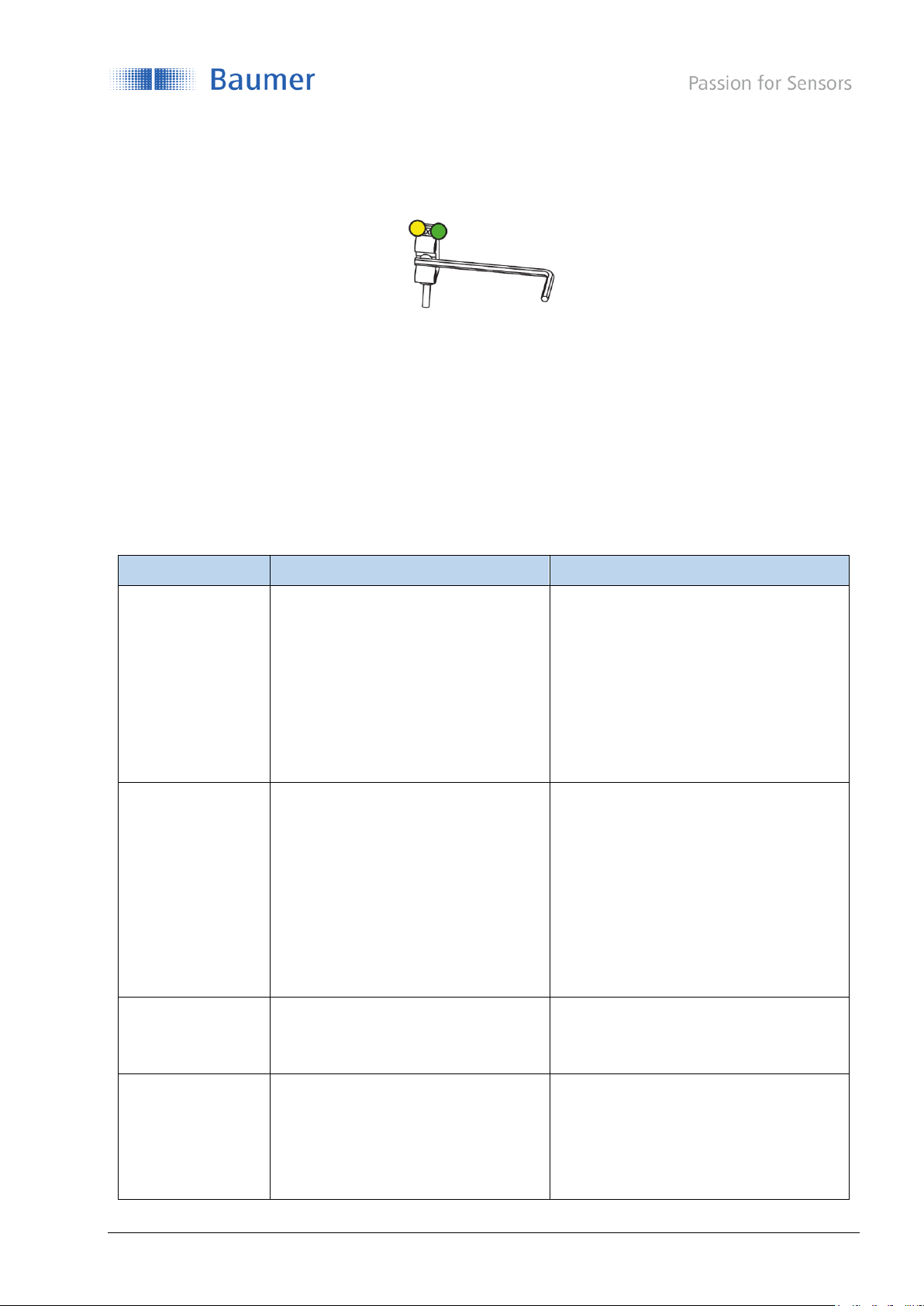

Figure 23 LED Indication - Standard-behavior in operating mode

Parameter name

Short Description

Rights

Unit / Allowed
values

LED Settings.Green Mode

Power on/short circuit

rw

On
Off

LED Settings.Yellow Mode

Connected to output 1

- State

- Signal close to threshold/weak signal

The weak signal can be configured by using
the quality bit (section4.7)

Default:
LED on if output is active

rw

On
Off
Inverted

If the LED mode is set

- On, the behaviour of the related LED is as described in Figure 23.

- Off, the LED is deactived except if the function Find Me is activated. (See section 3.2.2)

- Inverted, the LED behaviour is inverted to the definition in Figure 23.

en_BA_O200_IO-Link_V1.docx 25/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

4.7 Quality Parameters

The O200 sensors offers quality values to give an idea about the reliability or trend of the process based on
the ratio of the current signal and the threshold or minimum required signal.

- Contamination indicaton

- Alignment indication

- Evaluation of process reliability

Parameter
name

Short Description

Rights

Unit /
Allowed
values

Quality Value

Same value as described in section 4.2.1.

The quality value represents the excess gain ration in %

100 = Exactly the amount of light needed for a switching
operation
200 = Twice the amount of light needed

O200.G, O200.S:
Quality = Strength of received light / Strength required

O200.R:
Quality = Intensity value / SSC1 SP1

ro

Quality Bit
Threshold

Sets the threshold for the quality bit value in % which is
mapped to the process data in (section 3.2.1)

The quality bit is directly connected to the weak signal
indication LED (section 4.6.2)

Default: 150

rw

4.8 Device Access Locks

Parameter name

Short Description

Rights

Unit /
Allowed
values

Parameter (write) Access
Lock

n/a

rw

True/False

Data Storage Lock

Deactivates the parameter server
functionality / does not overtake values

rw

True/False
Parametrization Lock

n/a

rw

True/False

Local User Interface Lock

n/a

rw

True/False

en_BA_O200_IO-Link_V1.docx 26/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5 Teach Commands

By using teach commands, the setpoints of the switching signal channel SSC1 can be defined by teach-in
the position of the object or reference.
Next to teach-by-value which can be applied as described in section 4.3.1, using teach commands makes it
easy to compensate individual variations such as mechanical and mounting tolerances.

There are two different procedures available – static or dynamic – which can be individually chosen
independent of the switching mode of the selected SSC

- Static: Defines the setpoints by teach-in the positions of non-moving objects

- Dynamic: For moving and small objects. Analyzes the minimum and maximum distances within

a time frame to define the setpoints.

The teach-in procedures are described more detailed in section 5.2 (Static) and 5.3 (Dynamic).

The switching behavior of each switching signal channel depends on the configuration (Switching Mode,
Channel Logic, …) described in section 4.3.2.

5.1 Teach Channel Selection, TPO & Teach Status

The described teach commands can be applied to individual switching signal channels. Before proceeding
with the teach-in procedure, make sure to select the SSC that should be addressed.

Furthermore different information are available to indicate the current mode and teach-in state of the
selected switching signal channel to help to execute the right commands described in section 5.2 and 5.3.

Parameter name

Short Description

Rights

Unit / Allowed
values

TI.Select

Selects the SSC to which the teach-in
will be applied

rw

SSC1

Teach Point
Offset.TPO [%]

Defines the offset used for the
calculation of the setpoints.
Affects the teach-in by IO-Link or
qTeach/bywire.

See the following chapters regarding the
behaviour depending on the teach­modes

%

Teach Status.Teach
Flag SP1 TP1

If Teach SP1 or Teach SP1 TP1 was
performed, this flag is set to Taught

ro

Not Taught / Taught

Teach Status.Teach
Flag SP1 TP2

If Teach SP1 or Teach SP1 TP2 was
performed, this flag is set to Taught

ro

Not Taught / Taught

Teach Status.Teach
Flag SP2 TP1

Only available for O200.G

ro

Not Taught / Taught

Teach Status.Teach
State

Default: Idle

ro

0 = Idle
1 = SP1 Success
2 = SP2 Success
3 = SP1&2 Success
4 = Waiting for
Command
6 = Busy
7 = Error

en_BA_O200_IO-Link_V1.docx 27/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5.2 Static

By using teach commands, setpoint 1 and setpoint 2 (SP1 and SP2) can be set by placing the object at the
desired position and triggering the command. Which command is used in which order varies depending on
the active switching mode (Single-Point or Window) of the selected-teach channel and is explained in the
following sections.

Switching Mode

Teach Mode

Applicable
for

Result

Single Point

1-Point Teach

All

Defines SP1 by teach-in only one position and
adding a configurable offset to this
position/value.

O200.G:
Teaches the position of the object
SP1 = TP + TPO

O200.R:
Teaches the sensor hitting the reflector without
any object in between.
SP1 = TP * TPO

O200.S:
Teaches the reference/backgroundposition.

Single Point

2-Point Teach

O200.G
O200.R

Defines SP1 based on TP1 and TP2 for an
optimized switching behaviour.

O200.G:
Teaches the position of the object and of the
background.
SP1 = (TP1 + TP2) / 2

O200.R:
Teaches the sensor hitting the reflector with and
without an object in between
SP1 = sqrt(TP1 * TP2)

Window

Window
Teach

O200.G

Defines a window based on two positions

en_BA_O200_IO-Link_V1.docx 28/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

Parameter name

Short Description

Rights

Unit /
Allowed
values

Teach SP1

Sets SP1 at the current position
of the object which is within the
allowed range.

In singlepoint mode, the
teachpoint offset TPO needs to
be considered (O200.G,R).

wo

Teach SP2

Sets SP2 at the current position
of the object which is within the
allowed range.

In singlepoint mode, the
teachpoint offset TPO needs to
be considered (O200.G,R).

wo

Teach SP1 TP1

Command can be used to
define SP1 based on TP1 and
TP2

wo

Teach SP1 TP2

Command can be used to
define SP1 based on TP1 and
TP2

wo
Teach Apply

Stores the teached in SP and
sets the Teach State to idle

wo Teach Cancel

Aborts the on-going teach-in
process

wo

en_BA_O200_IO-Link_V1.docx 29/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5.2.1 Single Point Mode: 1-Point Teach

If the selected SSC is configured as Single Point mode (Section 4.3.2.1), following command sequence is
required to teach-in SP1:

Command sequence:

- Place object (O200.G), reflector (O200.R) or reference (O200.S) at desired position

- Execute Teach SP1 to teach-in the position

- Execute Teach Apply to store the resulting setpoint

By executing Teach Cancel the teach-in procedure can be canceled at any state, as long Teach Apply has
not been used before.

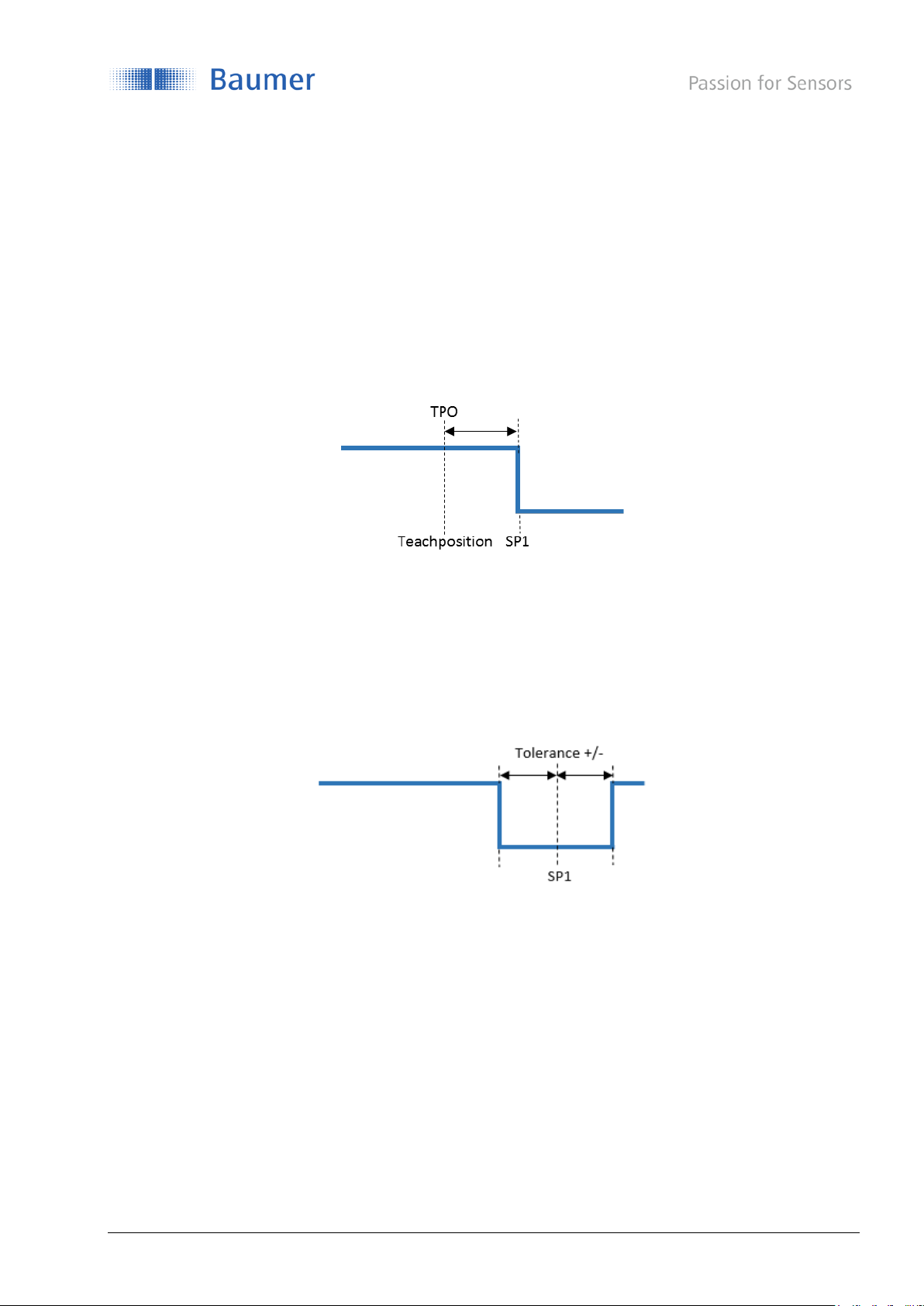

Figure 24: O200.G/O200.R: Single Point Teach, switching behavior

Figure 24 shows the switching behavior of the selected SSC if the teach-in was successful.
In single point mode, the TPO/Teach Point Offset will be added on the teached-in value to define the
setpoint.

O200.G: SP1 = TP + TPO
O200.R: SP1 = TP * TPO

Figure 25: O200.S: Single Point Teach, switching behavior

Figure 25 shows the switching behavior of the selected SSC if the teach-in was successful.
Regarding the O200.S SmartReflect sensors, the SP1 is related to the background position / position of the
reference part of the machine. Tolerance describes the allowed distance variation of the reference to be still
being detected.

en_BA_O200_IO-Link_V1.docx 30/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5.2.2 Single Point Mode: 2-Point Teach (Only O200.G, O200.R)

Defines SP1 based on TP1 and TP2 for an optimized switching behaviour.

O200.G:
Teaches the position of the object and of the background.

O200.R:

Teaches the sensor hitting the reflector with and without an object in between

Command sequence:

- Place object at desired switching distance

- Execute Teach SP1 TP1 to teach TP1

- Execute Teach SP2 TP2 to teach TP2

- Execute Teach Apply to store the setpoint

Figure 26: 2-Point Teach, switching behavior

O200.G: SP1 = (TP1 + TP2) / 2
O200.R: SP1 = sqrt(TP1 * TP2)

5.2.3 Window Mode: Window Teach (Only O200.G)

If the selected SSC is configured to Window mode (Section 4.3.2.1), following command sequence can be
applied to teach-in SP1 and SP2:

Command sequence:

- Place object at desired switching distance

- Execute Teach SP1 to teach-in the distance related to SP1

- Execute Teach SP2 to teach-in the distance related to SP2

- Execute Teach Apply to store the setpoint

By executing Teach Cancel the teach-in procedure can be canceled at any state as long Teach Apply has not
been used before.

Figure 27: Window Teach, switching behavior

Which SP was teached at a higher distance does not have any influence on the switching behavior
(SP1<SP2, SP1>SP2).

en_BA_O200_IO-Link_V1.docx 31/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5.3 Dynamic (Only O200.G, O200.R)

By using the dynamic teach-in commands, it is possible to define the setpoints by evaluating the minimum
and maximum measurement values within a time frame.Accepted duration: 2 … 15 sec.

When to apply?

- For moving and/or small objects

The command sequence to perform a dynamic teach-in is the same for all switching modes.

Command sequence:

- Execute DynamicTeach Start to start the data acquisition

- Execute Dynamic Teach Stop to stop the data acquisition

- Execute Teach Apply to store the setpoint

By executing Teach Cancel the teach-in procedure can be canceled at any state as long Teach Apply has not
been used.

Parameter name

Short Description

Rights

Unit /
Allowed
values

Dynamic Teach SP Start

Starts the data acquisition.

wo

Dynamic Teach SP Stop

Stops the data acquisition

wo

Teach Apply

wo

Teach Cancel

wo

5.3.1 Dynamic in Single Point Mode

If the selected SSC is configured to Single Point mode (Section 4.3.2.1), during the dynamic teach-in the
minimum and maximum values are evaluated and the setpoint SP1 set to the middle

Figure 28: Dynamic Single Point Teach, switching behavior

O200.G: SP1 = (Min + Max) / 2
O200.R: SP1 = sqrt(Min * Max)

en_BA_O200_IO-Link_V1.docx 32/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

5.3.2 Dynamic in Window Mode (Only O200.G)

If the selected SSC is configured to Window mode (Section 4.3.2.1) during the dynamic teach-in the
minimum and maximum values are evaluated. Setpoint SP1 is set to Min, SP2 is set to Max.

Figure 29: Dynamic Window Teach, switching behavior

6 Diagnosis

In addition to solving the primary application, the simple evaluation of secondary data, such as temperature,
supply voltage or operating time, allows for predictive maintenance and thus optimum machine availability.

6.1 Device Status

Parameter name

Short Description

Rights

Unit / Allowed
values

Device Status

Indicates if the sensor is
working properly

ro

0=Device is OK
2=Out of
Specification
4=Failure

Detailed Device Status

ro

6.2 Device Temperature

An integrated temperature sensor allows to track the internal temperature of the sensor.
Please be aware that compared to the ambient temperature the indicated values are higher due to the
internal heating of the sensor.
The temperature may also vary due to mounting conditions and due to the electric load connected to the
output.

Parameter name

Short Description

Rights

Unit / Allowed
values

Device Temperature.Current

ro

Unit Selection.Temperature

Choice of temperature unit
(Default: °C)

rw

°C, °F, K

en_BA_O200_IO-Link_V1.docx 33/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

7 Glossar

wo

Write only access

rw

Read and write access

ro

Read only access

SSC

Switching Signal Channel

MDC

Measurement Data Channel

SP

Switching Point

AdSS

Adjustable switching sensor

en_BA_O200_IO-Link_V1.docx 34/34 Baumer Electric AG

15.08.2018/ Frauenfeld, Switzerland

Baumer worldwide

Belgium

Baumer SA/NV
BE-2260 Westerlo
Phone [phone]

Brasil

Baumer do Brasil Ltda
BR-04726-001 São Paulo­Capital
Phone [phone]

Canada

Baumer Inc.
CA-Burlington, ON L7M 4B9
Phone [phone]

China

Baumer (China) Co., Ltd.
CN-201612 Shanghai
Phone [phone]

Denmark

Baumer A/S
DK-8210 Aarhus V.
Phone [phone]

France

Baumer SAS
FR-74250 Fillinges
Phone [phone]

Germany / Austria

Baumer GmbH
DE-61169 Friedberg
Phone [phone]

India

Baumer India Private Ltd.
IN-411038 Pune
Phone [phone]

Italy

Baumer Italia S.r.l.
IT-20090 Assago, MI
Phone [phone]

Poland

Baumer Sp.z.o.o.
PL-03-310 Warszawa
Phone [phone]

Republic of Korea

Baumer (Korea) Co., Ltd.
KR-411-766 Seoul
Phone [phone] or
[phone]

Singapore

Baumer (Singapore) Pte. Ltd.
SG-339412 Singapore

Phone [phone]

Spain

Baumer Automación Ibérica
S.L
ES-08021 Barcelona
Phone [phone]

Sweden

Baumer A/S
SE-56122 Huskvarna
Phone [phone]

Switzerland (Headquarter)

Baumer Electric AG
CH-8501 Frauenfeld
Phone [phone]

United Arab Emirates

Baumer Middle East FZE
AE-0 Dubai
Phone [phone]

United Kingdom

Baumer Ltd.
GB-Watchfield, Swindon,
SN6 8TZ
Phone [phone]

USA

Baumer Ltd.
US-Southington , CT 06489
Phone [phone]

www.baumer.com/worldwide

Technical data has been fully checked, but accuracy of printed matter not guaranteed.
