STD6.2SS/STD6.2W
Cooker Hoods
User Manual for your Baumatic
STD6.2SS/STD6.2W
Cooker Hood
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
1
CONTENTS
YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….3
IMPORTANT SAFETY INFORMATION……………………………….…4-5
ENVIRONMENTAL NOTE ………….…………………………………………6
USING YOUR COOKER HOOD……………………………...……………..7
MAINTAINING AND CLEANING YOUR COOKER HOOD ……….8-10
INSTALLATION INSTRUCTIONS ……………………….……...….11-14
CARBON FILTER ………….……..11
ELECTRICAL CONNECTION………….………12
INSTALLING THE COOKER HOOD………….…13-14
TROUBLESHOOTING ……………………………………………15
CONTACT DETAILS…………………………………………………………..16
DD 14/05/08
2
Specifications of your STD6.2W Cooker Hood
Congratulations on purchasing a Baumatic Cooker
Hood!
To fully enjoy using your appliance long into the future,
please firstly familiarise yourself with its specifications,
safety advice and operational instructions included in this
manual. You will also need this manual to ensure that your
Cooker Hood has been installed properly.
Your cooker hood can work either as an extraction fan or as
an air recirculator. Whichever mode you choose, you will
need to bear in mind that the extractor calls for ducting (not
included) to be worked from the exhaust of your fan, while
the recirculation function will require the
fitting and replacement
of carbon filters.
Please see the installation section of this manual for details.
DIMENSIONS
Width: 600 mm (at rear)
Depth: 500
mm
Height: 135 mm
Your stainless steel Cooker Hood is fitted with:
• Slider control operation
• 3 speeds
• 2 lights
Extraction capacity: 180 m
Optional Extra: 1 x SF11 Acrylate filter for air recirculation mode
³/hr
3
Important Safety Information: Please Read this before installing & using.
o
carried out by a qualified
electrician or competent person.
o
accordance with the installation
instructions and all measurements
followed.
o If the cooker hood is installed
for use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural Gas)
and BS.5482 (LP Gas) 1994, the
Gas Safety (Installation & Use)
Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Dptmt.
o It is dangerous to alter the
specifications or to modify this
product in any way. Do not tamper
with it or attempt to alter it in the
attempt to customise it further.
o When installing the hood,
ensure that the following
recommended distances are
observed between the highest
point on the hob top (including the
burners) and the bottom of the
cooker hood:
Any installation work must be
The hood must be installed in
9
700 mm
9
700 mm
9
800 mm
Electric cookers:
Gas cookers:
Coal/ oil cookers:
* NOTE -
DO NOT SET YOUR
COOKER HOOD LESS THAN
700mm ABOVE YOUR COOKER!
o When installed between
adjoining wall cabinets,
the cabinets must not
overhang the hob.
o The edges of the cooker
hood are sharp – be
mindful of this as you
handle your appliance,
especially during
installation and cleaning.
DO NOT CLEAN IN
BEHIND THE GREASE
FILTERS!
o If the room where the
cooker hood is to be used
contains a fuel burning
appliance such as a
central heating boiler
then its flue must be of
the sealed or balanced
flue type.
o If other types of flue or
appliances are fitted,
ensure that there is an
adequate supply of air in
the room.
o When the hood is being
used in its extractor
function, ensure that the
ducting is fire retardant
and that there are no
bends sharper than 90
o degrees as this will
reduce the efficiency of
the hood.
4
Important Safety Information: Please Read this before installing & using.
o Ensure the ducting for
the extractor function
has the same diameter as
the outlet hole all the
way through.
o
Keep young children from
using, playing with or
tampering with the
cooker hood. Older
children and infirm
persons should be
supervised if they are
using the cooker hood.
o
Your cooker hood is for
domestic use only.
o
Please dispose of the
packing material
carefully – children are
especially vulnerable to
it.
o
Dirty oil is an even
greater fire risk.
o
Always put lids on pots
and pans when cooking
on a gas cooker.
o
The manufacturer
refuses to accept any
responsibility for
damages arising to the
hood or its catching on
fire from failure to
observe fire safety advice
in these instructions.
o
Remember that when in
extraction mode, your
cooker hood is removing
air from your room.
Ensure that proper
ventilation measures are
being observed. Note
that it removes odours
from your room, not
steam.
o Warning - Always ensure
that the cooker hood has
been disconnected from
the power supply before
carrying out any work on
the hood, including
replacing light bulbs.
: Do not connect the
ducting system of this
appliance to any existing
ventilation system which
is being used for any
other purpose.
: Do not install above a
cooker with a high level
grill.
:
Never leave frying pans
unattended during use as
overheated fats and oils
might catch fire.
:
Do not leave naked
flames under the cooker
hood.
: Do not attempt to use
the cooker hood if it is
damaged in any way.
Never attempt to use it
without the grease filters
fitted or if the filters are
excessively greasy!
:
Never flambé cook under
this cooker hood
.
5
Environmental Note
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person.
CONFORMITY TO W.E.E.E. DIRECTIVE
6
To use your cooker hood:
1) Make sure it has been properly installed.
2) Find the CONTROL PANEL. It is located on the hood’s front
surface near the upper right corner of the unit.
3) The CONTROL PANEL contains switches as shown in the Figure below.
These perform separate functions. You will need to understand what
both switches do before you attempt to use your cooker hood.
* Note: The hood should be switched on at least as soon as you s t art
cooking.
Using your Baumatic Cooker Hood:
Your Cooker
Hood’s
Control Panel
MOTOR ON /OFF switch – the ‘
on and off and adjusts its speed. There are three speeds, pushing the switch to
the right increases the speeds.
LIGHT ON/OFF switch - Pressing the ‘ ’ switch (‘B’ in figure above) turns your
cooker hood’s light on and off.
PLEASE NOTE THAT YOUR BAUMATIC COOKER HOOD CAN BE
USED EITHER IN RECIRCULATION MODE OR IN EXTRACTION
MODE. TO USE IN RE-CIRCULATION MODE, YOU WILL NEED TO
FIT THE CARBON FOAM.
7
’ switch (‘A’ in figure above) turns the motor
Cleaning your Baumatic Cooker Hood:
* IMPORTANT:
Before cleaning, always ensure that you
have switched your cooker hood OFF at the omni-polar
switch, set at the wall from the cable:
Cleaning
 Clean the external parts with
mild liquid detergents on a
damp cloth.
 Never use abrasive powder,
corrosive solvents or brushes.
 Never insert pointed objects
into the motor’s protective grid.
 Only clean the control panel
and filter grill with a damp
cloth and delicate detergents.
________________________________________________
 Be sure to replace the
carbon filters at the
recommended intervals.
Build up could cause a
fire hazard.
 Never take out the
grease filters and
attempt to clean the
space above where they
are set.
Anti-Grease Grille
 Your cooker hood includes an anti-grease grille
which helps absorb vapour-suspended grease
particles to protect your kitchen & furniture from
greasy residues.
 The metal grille may become inflammable if it
becomes saturated with greasy residue.
9 To prevent this fire hazard, the grille should be
cleaned regularly (depending on use) every 10-15
days and at least every three months in a dishwasher
or in hot water with normal washing-up detergent.
8
Maintenance - Cleaning the Anti-grease Filters
First remove the anti-
grease filter by sliding the
securing nibs at the sides
of the grille on the
underside of the hood.
You can now clean
the anti-grease grille:
To clean the grille by hand:
9 Soak it for about one hour in
hot water with a grease-
loosening detergent then rinse off
thoroughly with hot water.
9 Repeat the process if needed.
Refit the grease grille once it has
dried.
• NOTE - After carefully rinsing and drying the anti-
grease grille, put it back in place. Never put it back
in wet!
• Never attempt to use your Cooker hood without the
grease filter grille in place!
9

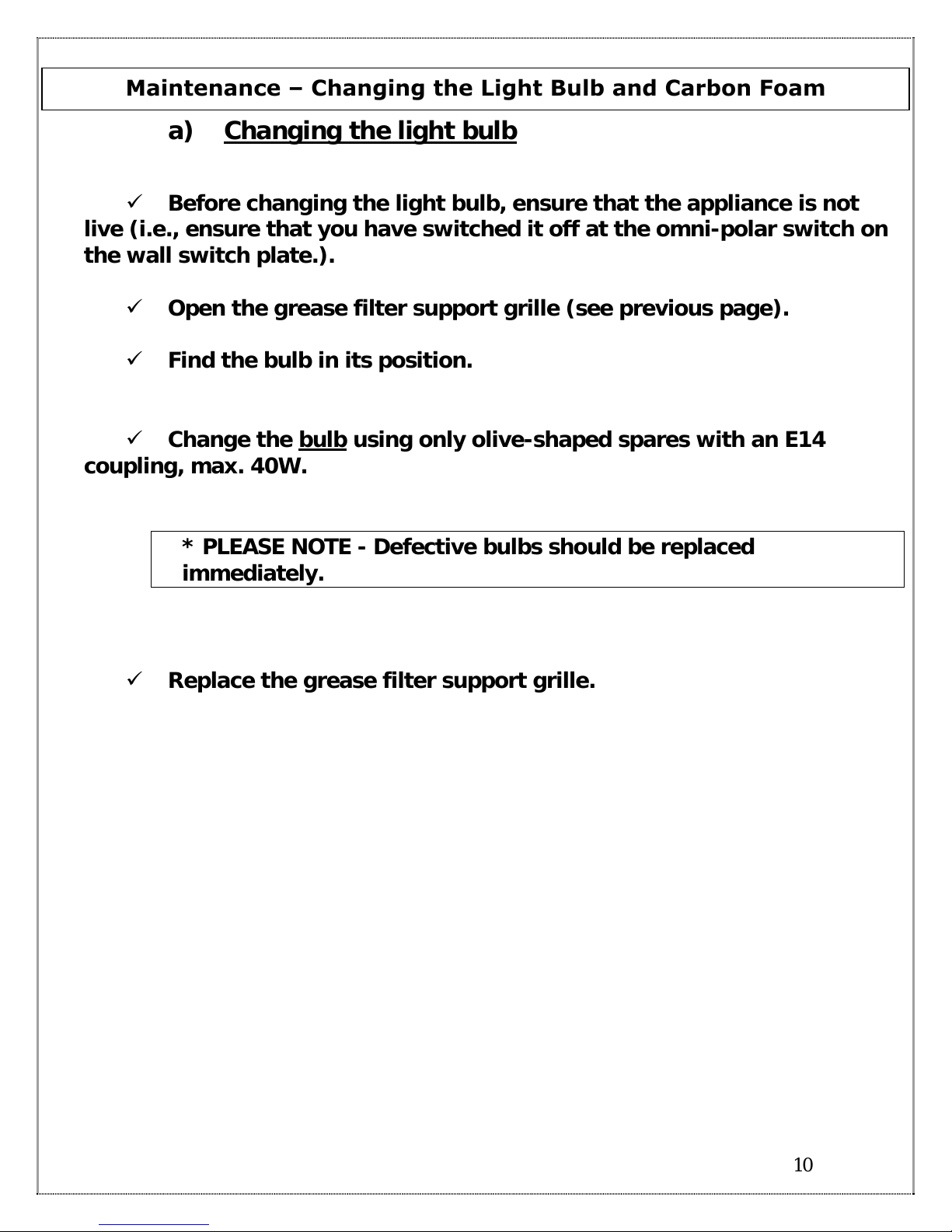

Maintenance – Changing the Light Bulb and Carbon Foam
a) Changing the light bulb
9 Before changing the light bulb, ensure that the appliance is not
live (i.e., ensure that you have switched it off at the omni-polar switch on
the wall switch plate.).
9 Open the grease filter support grille (see previous page).
9 Find the bulb in its position.
9 Change the
coupling, max. 40W.
bulb using only olive-shaped spares with an E14
* PLEASE NOTE - Defective bulbs should be replaced
immediately.
9 Replace the grease filter support grille.
10
Installing / Changing the Carbon Filter
Your Baumatic Cooker Hood uses a CARBON and GREASE
Filter to purify the air
You will find that one filter will attach over the front of the
fan motor (please see figure at bottom of page).
The active carbon filter must be replaced regularly, at least once
every three months, to allow normal operation.
when set for air recirculation mode.
BBeeffoorree ssttaarrttiinngg ttoo ffiitt tthhee ffiilltteerr,, ttuurrnn tthhee oommnnii--ppo
caabbllee
sswwiittcchh ((wwhheerree
c
mmeeeettss wwaallll ppllaattee)) OOFFFF..
ollaarr
To change the Carbon and Grease Filter
1) Remove the metal grease filter
grille (see page 9).
2) Take carbon foam above the
grease filter .
3) Put the small steel wire press the
carbon foam, please make sure
press tidy and not removable.
.
4) Replace the anti-grease
filter grille.
11
INSTALLATION INSTRUCTIONS - Electrical
Before installation and usage, read all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on the identification plate (found
inside your Cooker Hood) and all the data inside the appliance are exactly the
same as the voltage and frequency in your home.
NOTE: The manufacturer declines all responsibility in the event of failure to observe all the
accident-prevention regulations in force which are necessary for normal use and regular
operation of the electric system.
______________________________________________
ELECTRICAL CONNECTION
YYoouurr ccooookkeerr hhoooodd iiss iinntteennddeedd ffoorr fitted and permanent installation
o The power cable must be
connected to the terminals
marked L (live) and N (neutral)
in the hood and fixed with a
cable clamp.
NOTE: (UK only) WARNING – THIS APPLIANCE MUST
connected by a competent person using fixed wiring via a DOUBLE POLE SWITCHED FUSED
SPUR OUTLET.
We recommend that the appliance is connected by a qualified electrician who is a member
of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in
the mains lead are coloured in accordance with the following U.K. code:
Blue= Neutral, Brown = Live, Green/Yellow = Ground
If you can only find two wires in the cable (blue and brown), neither must be
• As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
__________________________________________________________
1) The BLUE WIRE
must be connected
to the terminal
marked ‘N’
(Neutral), or
coloured Black.
connected to the Earth terminal!
fitted and permanent installation..
o The cooker hood’s power cable
must be fitted upstream from the
electrical connection using an
omni-polar switch with a contact
distance of at least 3mm.
NOT BE EARTHED. It should only be
The BROWN
2)
WIRE must be
connected to the
terminal marked
‘L’ (‘Live’), or
coloured RED
(Fig. 7 – at left)
12
INSTALLATION INSTRUCTIONS
–
PLEASE NOTE THAT YOU WILL HAVE TO
DECIDE BEFORE INSTALLING YOUR
COOKER HOOD WHETHER YOU WANT IT
AS AN EXTRACTION FAN! THE
INSTRUCTIONS FOR EXTRACTION FAN
MODE WILL BE MARKED ‘(E)’ BELOW
installing your Cooker Hood
:
The cooker hood must not
be fitted above stoves with a
radiant top plate.
We recommend that at least
:
two people install this hood.
Your Baumatic Cooker Hood should only be fitted on a wall on the underside
of a cabinet unit.
Do NOT position it any less than 700 mm (70 cm) above the hob.
Before Installing, Remove the metal anti-grease filter (see page 9).
NOTE: THE DUCTING HOLE FOR YOUR APPLIANCE MUST BE CUT BE BEHIND IT. THERE
IS ONLY ONE DUCTING POSITION ON THIS APPLIANCE (SEE THE NEXT PAGE).
WALL INSTALLATION
1) Position the hood against the wall and mark the positions for the
supporting bracket bolt holes (see Fig. 4 below) of the exhaust hole (this
hole must be 130mm in diameter).
2) Drill these holes into the wall using a 6 mm diameter drill bit. If you
intend to use your Cooker Hood as an extraction fan, you will need to fit
a ducting kit through this that will connect to your appliance.
3) Insert the rawlplugs into the holes and then insert the top screws
part way, so that the screws stick out by 10mm.
4) Hang the hood up on the screws. Insert the bottom screws.
5) Tighten the screws the rest of the way in.
6) (E) For the extraction function, connect the exhaust outlet pipe to
the collar strip. Find the screw holes
cooker hood. Tighten the bolts from inside the hood.
13
ALL SCREWS,
RAWLPLUGS,
ETC. COME
WITH YOUR
COOKER HOOD!
on the top of the
IMPORTANT: Please note that if you are going to connect external ducting,
the vent hose can ONLY be connected to the top of the cooker hood. There
is no rear venting position.
g
If something has gone wrong with your Cooker Hood, checking
against this chart might keep you from having to call for service.
Symptom Solution
The cooker hood will not start!
The cooker hood is not working
effectively!
The cooker hood has switched off
during operation!
Troubleshootin
• Check that the hood is connected
to the electricity supply.
• Check that the fan speed control is
set properly.
• The fan speed is not set high enough.
• The grease filter is dirty.
• The kitchen is not ventilated well
enough.
• If the hood is set for recirculation,
check that the carbon filters have not
expired.
• If the hood is set for extraction, check
that the ducting and outlets are not
blocked.
• The safety cut-out device has been
tripped.
• Turn off the hob and then wait for the
device to reset.
• Note that if you have installed your
cooker hood too low, this will happen.
If it happens frequently, it will be
damaged.
15
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Service Telephone
(0118) 933 6911
Service Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Technical Advice Telephone
(0118) 933 6933
E-mail:
sales@baumatic.co.uk
technical@baumatic.co.uk
Website:
www.baumatic.co.uk
Republic of Ireland
01- 6266 798
Czech Republic
Baumatic CR spol s.r.o.
Amperova 495
46215, Librec
Czech Republic
+420 800 185 263
www.baumatic.cz
Slovak Republic
Baumatic Slovakia, s.r.o.
Skultetyho 1
831 04 Bratislava 3
Slovakia
+421 255 640 618
Germany
Baumatic Gmbh
Janderstrasse 9
Mannheim, 68199
Germany
+4962 112 9190
www.baumatic.de
Italy
Baumatic Italia S.R.L.
Via Caltana 129
Campodarsego (Padova), 35011
Italy
+3904 9920 2297
www.baumatic.it
Holland
Baumatic Benelux B.V.
Grindzuigerstraat 22
1333 MS ALMERE
The Netherlands
+3136 549 1555
www.baumatic.nl
16
17
18
19
Loading...
