Baumatic MINI4 Instruction Manual

IMPORTANT! PLEASE READ THIS MANUAL AND

KEEP IT FOR FUTURE REFERENCE

THIS MANUAL CONTAINS SECTIONS OF SAFETY INSTRUCTIONS, OPERATING

INSTRUCTIONS AND TROUBLESHOOTING TIPS, ETC.

BAUMATIC

MINI4

DISHWASHER

COUNTERTOP

DISHWASHER

20/02/05

INSTRUCTION MANUAL

CAREFULLY READING IT BEFORE USING THE DISHWASHER WILL HELP YOU USE

AND MAINTAIN THE DISHWASHER PROPERLY.

BAUMATIC MINI 4 dishwasher user manual

CONTENTS

2

BEFORE CALLING

FOR SERVICE

REVIEWING THE SECTION ON
TROUBLESHOOTING TIPS WILL
HELP YOU SOLVE SOME
COMMON PROBLEMS WITHOUT
THE NEED TO ASK FOR HELP
FROM PROFESSIONAL
TECHNICIANS.

PLEASE NOTE:

THE MANUFACTURER
RESERVES THE RIGHT TO MAKE
MODIFICATIONS TO PRODUCTS
WITHOUT GIVING PRIOR
NOTICE.

• SAFETY FIRST!

SAFETY INFORMATION .………………………3-4

*Please read this before using your dishwasher!

• KNOWING YOUR

DISHWASHER

YOUR MINI 4 DISHWASHER …………………..5
Incl. Control panel & Display ………………….5

• USING YOUR

DISHWASHER

WATER SOFTENER …………………..………......6

DETERGENT ………………..............................7

RINSE AID ………………….............................7

LOADING YOUR DISHWASHER…..….......8-10

STARTING A WASH CYCLE ……………….11-12

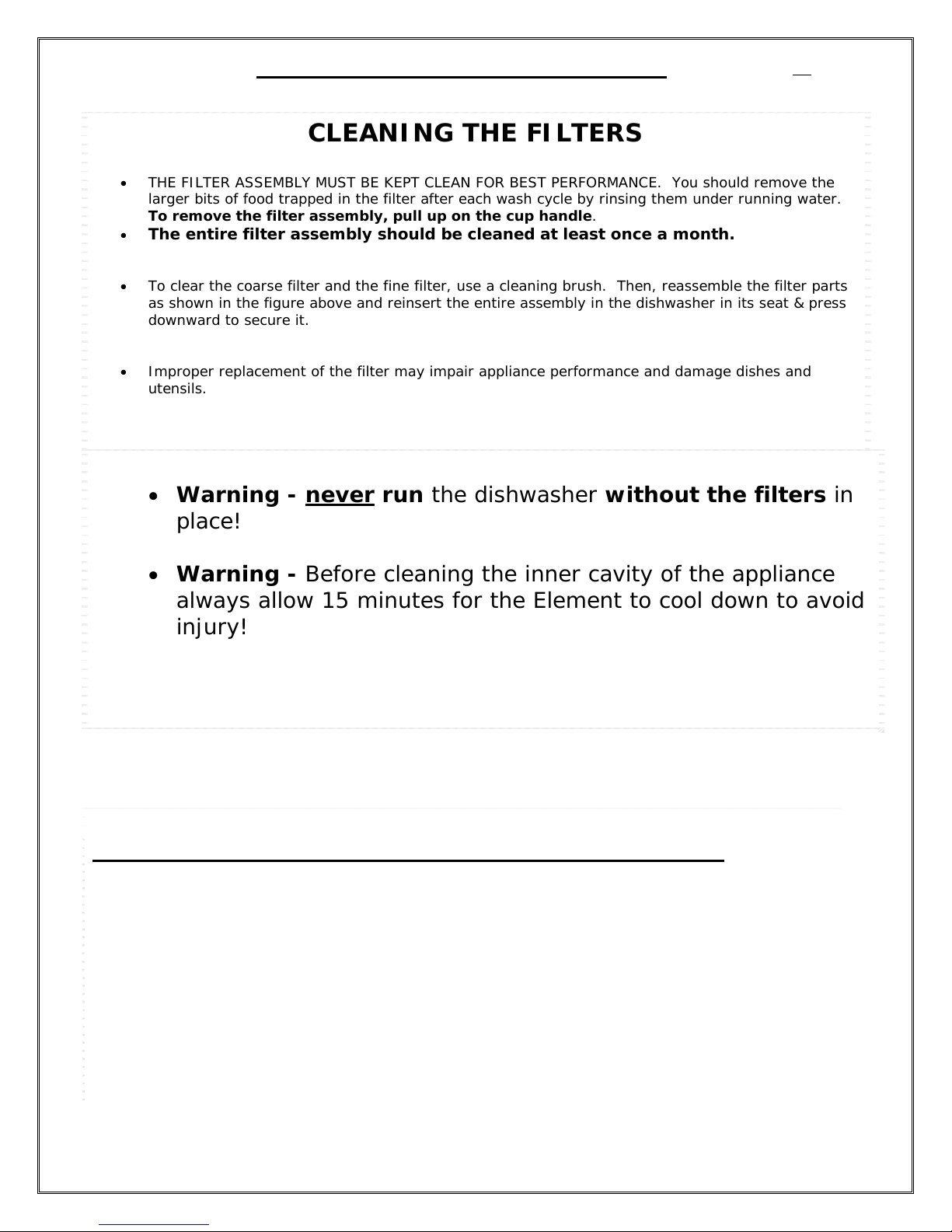

FILTERING SYSTEM ………………..…….…….13
CLEANING AND MAINTAINING
YOUR DISHWASHER …………………….…13-15

• BEFORE YOU CALL FOR

SERVICE…

TROUBLESHOOTING ………………….…..…16
ERROR CODES……………………………….…..17

• MISCELLANEOUS

HOW TO INSTALL ……….…….…..……....18-20

DISHWASHER CHARACTERISTICS …………21
FINAL CHECKLIST BEFORE STARTING…….22
CONDITIONS OF GUARANTEE………………..23
CONTACT DETAILS…………………………..…..24

2

BAUMATIC MINI 4 dishwasher user manual

IMPORTANT SAFETY INFORMATION

READ BEFORE USING!

ELECTRICAL SAFETY

• NOTE - This appliance must be grounded. In the event of a

malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance of electrical
current. You will be able to tell if it is because a non-grounded
appliance will give off an electrical discharge.

• IF POWER SUPPLY CORD IS DAMAGED, IT MUST ONLY BE

REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR A
SIMILARLY QUALIFIED PERSON TO AVOID A HAZARD.

• THIS APPLIANCE IS FITTED WITH A SAFETY FUNCTION THAT

AUTOMATICALLY STOPS THE OPERATION OF THE DISHWASHER
WHEN IT IS EXPOSED TO ANY HEAVY DISTURBANCE ON ITS
MAINS.

• THIS APPLIANCE MUST BE POSITIONED SO THAT THE PLUG IS

ACCESSIBLE.

3

CHILD SAFETY

• DO NOT ABUSE OR FORCE THE DISHWASHER. DO NOT SIT ON OR

STAND ON ITS DOOR OR DISH RACK – TIPPING HAZARD AND YOUR
DISHWASHER COULD BECOME DAMAGED OR DEFORM ED.

• KEEP CHILDREN AWAY FROM DETERGENT, RINSE AID AND THE OPEN

DOOR OF THE DISHWASHER AS THERE COULD BE DETERGENT LEFT
INSIDE.

• SUPERVISE YOUNG CHILDREN TO ENSURE THEY DO NOT PLAY WITH

THE APPLIANCE.

• SUPERVISE INFIRM PERSONS IF THEY MUST USE THE APPLIANCE.

• THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN.

3

BAUMATIC MINI 4 dishwasher user manual

BEFORE USING YOUR BAUMATIC MINI4 DISHWASHER:

• SOME ITEMS ARE UNSUITABLE FOR WASHING IN YOUR DISHWASHER.

PLEASE SEE PAGE 9 FOR A LIST OF THESE ITEMS.

• DO NOT TAMPER WITH THE CONTROLS.

• WHEN LOADING ITEMS TO BE WASHED:

1) Keep sharp items like knives away from the door seal.

2) Load sharp knives with the handles up to prevent injuries.

• DO NOT SPRAY WATER ON THE APPLIANCE. DOING SO MAY CAUSE

THE FAILURE OF ELECTRICAL PARTS OR ELECTRIC SHOCK.

• THE APPLIANCE IS TO BE CONNECTED TO THE WASH MAINS USING

NEW HOSE-SETS. OLD HOSE-SETS SHOULD NOT B E RE-USED.

• THE DISHWASHER SHOULD BE CONNECTED TO THE COLD WATER

SUPPLY ONLY. NOTE THAT THE TEMPERATURE OF THE WATER COMING
INTO YOUR DISHWASHER WILL AFFECT THE TIMES OF YOUR
DISHWASHER’S CYCLES. THIS SHOULD BE BY A NEGLIBLE AMOUNT,
OWING TO THE DIFFERENCES IN THE TEMPERATURES OF WATER MAINS
FROM PLACE TO PLACE AND AT THE TIME OF YEAR.

• DO NOT USE THE DISHWASHER FOR INDUSTRIAL AND COMMERCIAL

USE, OR ANY OTHER PURPOSES.

• THIS DISHWASHER IS DESIGNED FOR NORMAL HOUSEHOLD USE

ONLY

• ONLY USE AUTOMATIC DISHWASHER DETERGENT, NOT SOAP OR

LAUNDRY DETERGENT. NEVER USE SOLVENTS AS THIS COULD RESULT IN
AN EXPLOSION!

4

DO NOT USE THE DETERGENT FOR HAND WASHING. THE DETERGENT FOR

•

THE DISHWASHER SHOULD BE USED FOR NORMAL OPERATION OF THE
APPLIANCE ONLY.

DO NOT OPEN THE DOOR WHEN THE LCD DISPLAY READS: ‘HIGH

TEMPERATURE.’ THE HOT STEAM MAY CAUSE PERSONAL INJURY.

• ALWAYS KEEP THE DOOR CLOSED TO AVOID DANGER OF TRIPPING.

• CHECK THAT THE DETERGENT DISPENSER IS EMPTY AFTER COMPLETION OF WASH

CYCLE.

• IF LEAVING UNUSED FOR A LONG TIME, DISCONNECT THE WATER SUPPLY (SEE

PAGE 20).

DURING USE

AFTER USE

4

BAUMATIC MINI 4 dishwasher user manual

Your MINI 4 Dishwasher

5

Control panel and the LCD display

Program

1. The power
indicator: it
will light up
when the
machine
comes on.

High temperature
Warning

High temperature

Run time
State

2. The salt
indicator: it
will light up
when the salt

runs low in the softener container. Please add more salt to the container (see p.6) if the salt
indicator light comes on.

3. Program Key: you can select the program by pushing the program key;

4. Pause/Start key: you can start or pause the program by pushing the Pause/Start key;

5

BAUMATIC MINI 4 dishwasher user manual

6

Note on chemicals used by your dishwasher:

Your dishwasher is equipped with rinse aid and water softening dispensers. Using detergent, rinse
aid and salt individually will give the best possible results as this will give the correct dosage of each
chemical to suit your needs.

• Using Two-in-One or Three-in-One tablets may not give the best results when used in your appliance,
and may not be suitable for the type of water supply in your home, as they contain pre-determined
quantities of salt, rinse aid and detergent and cannot be adjusted to the individual requirements.

• If you are going to use 3-in-1 (or 2-in-1) tablets, we suggest that you contact the manufacturer before
use or if you experience poor results in the wash performance and ask for assistance from them.

IF YOU USE 3-IN-1 OR 2-IN-1 TABLETS, BE
SURE NOT TO ADD SALT AND/OR RINSE AID
TO THE APPLIANCE AS THESE TABLET
TYPES ALREADY CONTAIN SALT AND/OR

WARNING:

RINSE AID. ADDING SALT AND RINSE AID
TO YOUR DISHWASHER’S COMPARTMENTS
IN A CYCLE INVOLVING A 3-IN-1 OR 2-IN-1
TABLET WILL RESULT IN OVERDOSING OF
INDIVIDUAL CHEMICALS AND MAY CAUSE
OVERFLOWING OF WATER AND SUDS.

YOUR
DISHWASHER’S
WATER SOFTENING
FEATURE

HOW TO USE THE WATER SOFTENER.

THE HARDNESS OF THE WATER VARIES FROM PLACE
TO PLACE. IF HARD WATER IS USED IN THE
DISHWASHER, DEPOSITS WILL FORM ON THE
DISHES AND UTENSILS. YOUR DISHWASHER IS
EQUIPPED WITH A WATER SOFTENER WHICH USES
A SALT SPECIFICALLY DESIGNED TO ELIMINATE THE
MINERALS FROM THE WATER THAT WOULD
OTHERWISE LEAVE DEPOSITS ON YOUR DISHES
AFTER WASHING.

YOUR WATER SOFTENER’S SALT CONTAINER
NEEDS TO BE LOADED WITH DISHWASHER
SALT BEFORE YOU USE YOUR DISHWASHER
FOR THE FIRST TIME. PLEASE FOLLOW THESE
DIRECTIONS FOR OPTIMUM PERFORMANCE:

1) LOAD THE SALT BEFORE THE BEGINNING OF A WASH CYCLE SO AS TO
PREVENT CORROSION.

2) USE ONLY DISHWASHER SALT. OTHER TYPES OF SALT CAN DO
IRREPARABLE DAMAGE TO YOUR APPLIANCE.

LOADING THE SALT INTO THE CONTAINER.

1) UNSCREW THE CAP FROM THE
SALT CONTAINER
ANTICLOCKWISE. THE
CONTAINER IS ON THE RIGHT
HAND SIDE OF THE INNER BOX.

2) LOAD THE SALT INTO THE
CONTAINER. EACH TIME YOU MAY
LOAD 250G OF SALT, WHICH CAN
BE USED FOR 15 CYCLES.

3) FILL THE WATER INTO THE SALT
CONTAINER UNTIL A SMALL
AMOUNT OF WATER COMES OUT
(THIS IS VERY IMPORTANT WHEN
YOU USE IT FOR THE FIRST TIME).

4) SCREW THE CAP BACK ON

NOTE:

CAREFULLY.

USING A RINSE AID

YOU CAN HELP PREVENT UNSIGHTLY SPOTS ON DISHES AND GLASSWARE, AND REDUCE

DRYING TIME BY USING RINSE AID. A RINSE AID IS SPECIALLY FORMULATED TO RINSE AWAY

6

BAUMATIC MINI 4 dishwasher user manual

FOOD AND DETERGENT RESIDUES THAT CAN BE LEFT BEHIND ON YOUR DISHES. USED
REGULARLY, RINSE AID WILL AUTOMATICALLY PROVIDE YOU WITH CLEANER DISHES EVERY
TIME YOU WASH.

• TO FILL THE RINSE AID DISPENSER,
UNSCREW THE DISPENSER CAP LOCATED AT
THE BACK OF THE INNER BOX AT THE TOP
RIGHT.

• ADD THE RINSE AGENT SLOWLY INTO THE
CONTAINER UNTIL IT JUST REACHES THE
BOTTOM OF THE FILLING CAP INSIDE THE
DISPENSER OPENING.

• REPLACE THE CAP.

• THE DISPENSER AUTOMATICALLY RELEASES

THE RINSE AID INTO THE FINAL RINSE
WATER.

Add the rinse
aid in this hole.

7

USING DETERGENT IN YOUR DISHWASHER

USING THE RIGHT DETERGENT

USE ONLY DETERGENT SPECIFICALLY MADE FOR USE IN DISHWASHERS, AS OTHER
TYPES WILL CAUSE OVERSUDSING AND FROTHING. IF YOUR DETERGENT IS OLD
AND/OR LUMPY, THROW IT AWAY. OLD DETERGENT LOSES ITS WASHING POWER.
LUMPY DETERGENT WON’T DISSOLVE.

HOW MUCH DETERGENT SHOULD YOU USE?

• THIS DEPENDS ON IF YOUR WATER IS ‘HARD’ OR ‘SOFT’.

• HARDER WATER REQUIRES MORE DETERGENT TO GET DISHES CLEAN

• SOFT WATER REQUIRES LESS DETERGENT TO GET DISHES CLEAN.

The loading groove
for the detergent

• THE DETERGENT LOADING GROOVE (pictured above) ON THE INSIDE

DOOR PANEL WILL HOLD APPROX. 7 GRAMS OF DETERGENT. ALWAYS
FOLLOW THE DETERGENT MANUFACTURER’S GUIDELINES.

BEFORE YOU LOAD YOUR DISHWASHER,

MAKE SURE THAT YOUR DISHWASHER IS CONNECTED TO THE COLD WATER SUP PLY.

CHECK THAT THE FILTER (ITEM 11 IN THE DIAGRAM ON PAGE 5) IS SECURELY IN PLACE.

LOADING YOUR DISHWASHER

7

BAUMATIC MINI 4 dishwasher user manual

8

PUSH THE DOOR RELEASE BUTTON (ITEM 3 ON DIAGRAM ON PAGE 5) TO OPEN THE DOOR.

FOR BEST PERFORMANCE, FOLLOW THESE LOADING GUIDELINES. FEATURES AND
APPEARANCE OF RACK & CUTLERY BASKET MAY VARY FROM YOUR MODEL.

IMPORTANT: CLEAN OFF LARGE FOOD SEDIMENTS BEFORE PLACING DISHES IN THE
DISHWASHER. GET RID OF AS MUCH SAUCE AND GREASE AS POSSIBLE AND EMPTY CUPS &
GLASSES.

YOUR DISHWASHER IS DESIGNED TO RECEIVE A STANDARD ‘4 PIECE’ PLACE
SETTING CONSISTING OF THE FOLLOWING:

NOTE:

1. 4 DINNER PLATES

2. 4 BREAD & BUTTER PLATES

3. 4 FRUIT BOWLS

4. 4 CUPS AND SAUCERS

5. 4 GLASS CUPS

6. 4 DINNER FORKS

7. 4 DINNER KNIVES

8. 4 SALAD FORKS

9. 4 TEASPOONS

10. 2 SERVING SPOONS

11. 1 SERVING SPOON

12. 1 SERVING FORK

13. 1 SERVING BOWL

14. 1 OVAL PLATTER

NOTE:

FOR EASE OF LOADING / UNLOADING LARGE SIZE DINNER PLATES FROM THE DISH

RACK, YOU MIGHT HAVE TO (TEMPORARILY) REMOVE THE CUTLERY BASKET. WHEN

LOADING / UNLOADING IS COMPLETE, RETURN THE CUTLERY BASKET TO ITS ORIGINAL

POSITION.

PREPARING YOUR DISHES FOR
WASHING:

8

BAUMATIC MINI 4 dishwasher user manual

NOTE: DISHES WITH DRIED-ON FOODS ARE MORE DIFFICULT TO WASH AND MAY NOT COME OUT

CLEAN FROM A NORMAL WASH CYCLE.

WHEN LOADING ITEMS TO BE WASHED:

• PLACE SHARP ITEMS SO THAT

THEY ARE NOT LIKELY TO DAMAGE
THE DOOR SEAL.

• ARRANGE ALL ITEMS WITH

RECESSED OR CURVED SECTIONS
(BOWLS, ETC.) ON A SLANT TO
DRAIN WATER AWAY.

• CUPS, POTS, GLASSES, ETC.

SHOULD BE PLACED UPSIDE
DOWN.

• LOAD SHARP KNIVES WITH THE

HANDLES UP TO REDUCE THE RISK
OF CUT-TYPE INJURIES.

• DO NOT LOAD PLASTIC ITEMS

UNLESS THEY ARE MARKED
‘DISHWASHER SAFE’ OR THE
EQUIVALENT. FOR PLASTIC ITEMS
NOT SO MARKED, CHECK THE
MANUFACTURER’S
RECOMMENDATIONS.

• DO NOT LOAD GLASSES OVER THE

DISH RACK PINS. GLASSES LOADED
OVER DISH RACK PINS ARE NOT
PROPERLY SUPPORTED AND ARE

DO NOT PUT THESE ITEMS IN YOUR DISHWASHER:

•

BRONZE
CUTLERY

• SAUCEPANS

WITH

WOODEN
HANDLES

• CUTLERY

WITH

LIKELY TO GET DAMAGED.

• ITEMS WITH WOODEN OR BONE

HANDLES AND ITEMS JOINED
TOGETHER WITH GLUE ARE
UNSUITABLE AS THEY CANNOT RESIST
HOT WATER.

• DO NOT TOUCH THE HEATING

ELEMENT DURING OR
IMMEDIATELY AFTER USE.

• DO NOT OPERATE YOUR

DISHWASHER UNLESS ALL
ENCLOSURE PANELS ARE
PROPERLY IN PLACE.

• DO NOT TAMPER WITH CONTROLS.

• DO NOT ABUSE, FORCE, SIT ON, OR

STAND ON THE OPEN DOOR OR
DISH-RACK OF THE DISHWASHER.
THE MACHINE MAY TOPPLE OVER.

• PROTECT CABLES AND HOSES

FROM HIGH TEMPERATURES.

WOODEN,
HORN, CHINA
OR MOTHER
OF PEARL
HANDLES

9

9

BAUMATIC MINI 4 dishwasher user manual

10

• PLASTIC

ITEMS THAT
ARE NOT HEAT
RESISTANT

• OLDER

CUTLERY
WITH GLUED
PARTS

• BONDED

CUTLERY
ITEMS OR
DISHES

• PEWTER OR

COPPER ITEMS

• LEAD CRYSTAL

GLASS

• STEEL ITEMS

SUBJECT TO
RUSTING

• WOODEN

PLATTERS

• ITEMS MADE

FROM
SYNTHETIC
FIBRES (eg.
SPONGES)

• DELICATE,

REPAIRED OR
PAINT /
PATTERN
OVERLAID
CHINA

Note:
Do not wash stainless steel and silver cutlery together. Iron objects can rust
and stain other items. Aluminium tends to go black. Copper, pewter & brass
stain.

NOTE

• WHEN YOU ARE SATISFIED YOU HAVE LOADED ALL THE UTENSILS

AND DISHES YOU WANT TO WASH AND HAVE ADDED THE PROPER
AMOUNT OF DETERGENT TO THE DISPENSER, ENSURE THE RACK IS
PUSHED ALL THE WAY BACK INTO YOUR DISHWASHER AND CLOSE
THE DOOR.

• YOU ARE NOW READY TO START A WASH CYCLE (SEE NEXT PAGE).

• CHECK TO MAKE SURE THAT THE ROTATING SPRAY ARM CAN TURN

FREELY ALL THE WAY ROUND. IF NECESSARY, REMOVE ANYTHING
BLOCKING IT.

:

STARTING A WASH CYCLE –

OPERATING INSTRUCTIONS

TO USE YOUR DISHWASHER:

10

BAUMATIC MINI 4 dishwasher user manual

1. CHECK THAT THE INLET AND DRAIN HOSES ARE CORRECTLY
AND SECURELY CONNECTED.

2. CLOSE THE DOOR FIRMLY.

3. OPEN THE WATER SUPPLY.

4. PUSH THE POWER (ON/OFF) BUTTON.

THE LCD AND THE POWER LIGHT WILL NOW ILLUMINATE INDICATING THE
MACHINE IS RECEIVING POWER.

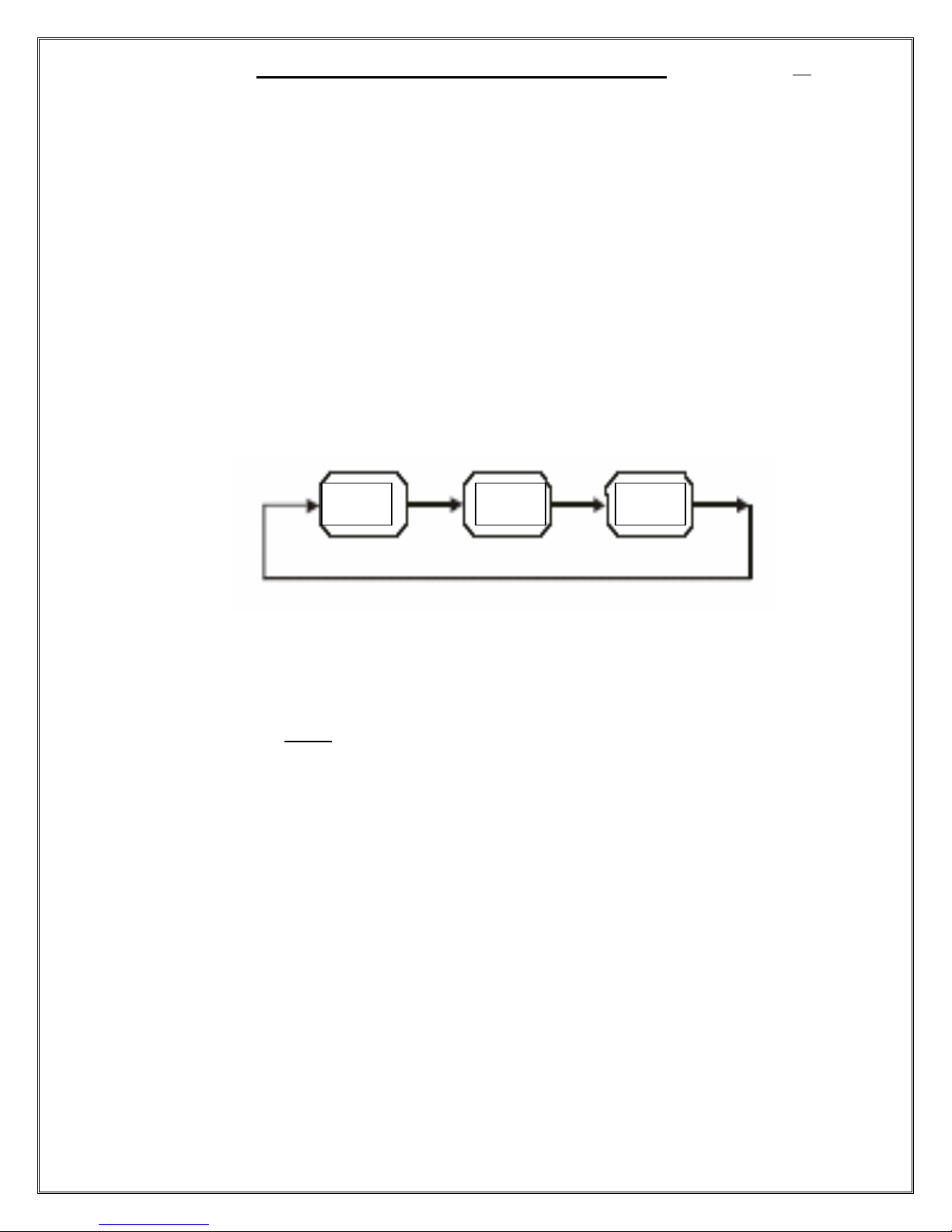

5. NOW SELECT THE DESIRED PROGRAM BY PRESSING THE
PROGRAM KEY. THE LCD WILL DISPLAY THE WASHING MODE
YOU SELECTED.

PUSH BUTTON IN = POWER ON
PUSH SO BUTTON IS OUT = POWER OFF

11

Nor Str

6. PRESS THE PAUSE/START KEY TO START. THE LCD WILL FLASH

THE PROGRAM AND THE WASHING STATUS DURING OPERATION.

7. AT THE END OF THE CYCLE, THE DISHWASHER WILL STOP AND

THE LCD WILL STOP FLASHING AND THE DISHWASHER WILL
BEEP. NOTE
NOT RUN OR OPERATE FOR MORE THAN 10 MINUTES. THE POWER
LIGHT WILL STAY LIT UNTIL THE POWER (ON/OFF) BUTTON IS
SWITCHED OFF.

8. THE DISHWASHER IS DESIGNED TO STOP IF THE DOOR IS
OPENED ACCIDENTALLY DURING OPERATION.

9. YOU CAN SELECT ANOTHER PROGRAM DURING OPERATION BY
PRESSING THE PAUSE/START KEY FIRST, THEN PRESSING
THE PROGRAM KEY TO THE DESIRED PROGRAM, AND PRESSING
THE PAUSE/START KEY TO START. PLEASE NOTE THAT YOU
HAVE A LIMITED TIME TO CHANGE TO ANOTHER PROGRAM
BEFORE YOUR DISHWASHER BECOMES SET ON THE OLD
PROGRAM.

10. AFTER WASHING, DISHES SHOULD BE ALLOWED TO COOL
DOWN FOR ABOUT 15 MINUTES SO THEY ARE NOT TOO HOT TO
HANDLE. DISHES WILL COOL QUICKER IF THE DOOR IS
OPENED SLIGHTLY.

: THE LCD WILL BE BLACK WHEN THE MACHINE DOES

Rap

11

BAUMATIC MINI 4 dishwasher user manual

11. AFTER UNLOADING THE DISWASHER, REMOVE THE FILTER,
CLEAN OFF ANY BITS OF FOOD, AND PUT THE FILTER BACK IN
ITS POSITION.

NOTE

THE ‘DRAIN’ MODE. THIS IS BECAUSE THE DRAIN PUMP ALWAYS RETAINS A SMALL
AMOUNT OF WATER (IN THE SUMP) FROM THE PREVIOUS CYCLE. THIS IS
NECESSARY TO KEEP THE PUMP PRIMED. THEREFORE, DO NOT BE ALARMED IF YOU
SEE A SMALL AMOUNT OF WATER BEING PUMPED-OUT FROM THE DRAIN HOSE
PRIOR TO THE START OF THE REGULAR WASH CYCLE. THIS IS NORMAL.

: AT THE BEGINNING OF EACH CYCLE, THE DISHWASHER ALWAYS STARTS IN

12

THESE ARE THE PROGRAM CYCLES:

PROGRAM
TYPE

STRONG WASH 62 C 75 MINS. 14 LITRES
NORMAL WASH 62 C 67 MINS. 12 LITRES
RAPID WASH 55 C 35 MINS. 6 LITRES

(NOTE
TEMPERATURE AND THE ENVIRONMENTAL TEMPERATURE. FOR EXAMPLE, A
NORMAL WASHING CYCLE OF

: THE WASHING TIME MAY VARY ACCORDING TO THE INCOMING WATER

WATER
TEMPERATURE

67 C HAS BEEN RECORDED TO LAST FOR 78 MINS.)

PROGRAM
DURATION &
HEATING
TIME

WATER USED

FILTERING SYSTEM

FOR YOUR CONVENIENCE, WE HAVE PLACED THE FILTERING SYSTEM
WITHIN EASY REACH INSIDE THE TUB. THE FILTER REMOVES BITS OF
FOOD TRAPPED IN THE FILTER FROM THE WASH WATER SO IT CAN BE
RECIRCULATED DURING THE CYCLE. THERE ARE THREE PARTS TO THE
FILTERING SYSTEM:

12

BAUMATIC MINI 4 dishwasher user manual

1) THE STAINLESS STEEL MICRO FILTER - LOCATED AT THE BOTTOM OF THE INNER BOX.
THIS PERFORATED STAINLESS STEEL PLATE TRAP S L ARGE PARTICLES OF FOOD THAT
WOULD OTHERWISE BE RECIRCULATED AROUND WITH THE DISHWATER DURING A
CYCLE.

2) THE CONICAL FILTER. THIS IS THE FIRST CIRCULAR-SHAPED FILTER THAT LIES
IMMEDIATELY IN THE HOLE OF THE MICROFILTER PLATE. THIS WILL TRAP LARGE
PIECES OF FOOD, ETC.

3) THE FINE MESH FILTER. THIS IS THE SECOND CIRCULAR-SHAPED FILTER THAT LIES
ON THE OUTSIDE OF THE COARSE FILTER. IT CATCHES AND TRAPS FINER DEBRIS
FROM THE WASH WATER AS IT TRAVELS THROUGH THE FILTERING SYSTEM, ENABLING
THE WASH WATER TO STAY FREE OF FOOD RESIDUES.

Caring for your Dishwasher

13

CLEANING THE OUTSIDE SURFACES OF YOUR APPLIANCE

• TO CLEAN THE EXTERIOR OF YOUR DISHWASHER (INCLUDING THE CONTROL PANEL), USE A LIGHTLY
DAMPENED CLOTH THEN DRY THOROUGHLY.

NEVER USE SHARP OBJECTS, SCOURING PADS OR

HARSH CLEANERS ON ANY PART OF THE APPLIANCE. SOME PAPER TOWELS CAN SCRATCH.

• TO CLEAN THE EDGE AROUND THE DOOR,

ONLY EVER USE A SOFT WARM, DAMP RAG.
DO NOT USE A SPRAY CLEANER HERE OR
WHEN CLEANING THE DOOR PANEL AS THIS
MAY HARM THE DOOR LOCK AND
ELECTRICAL PARTS.

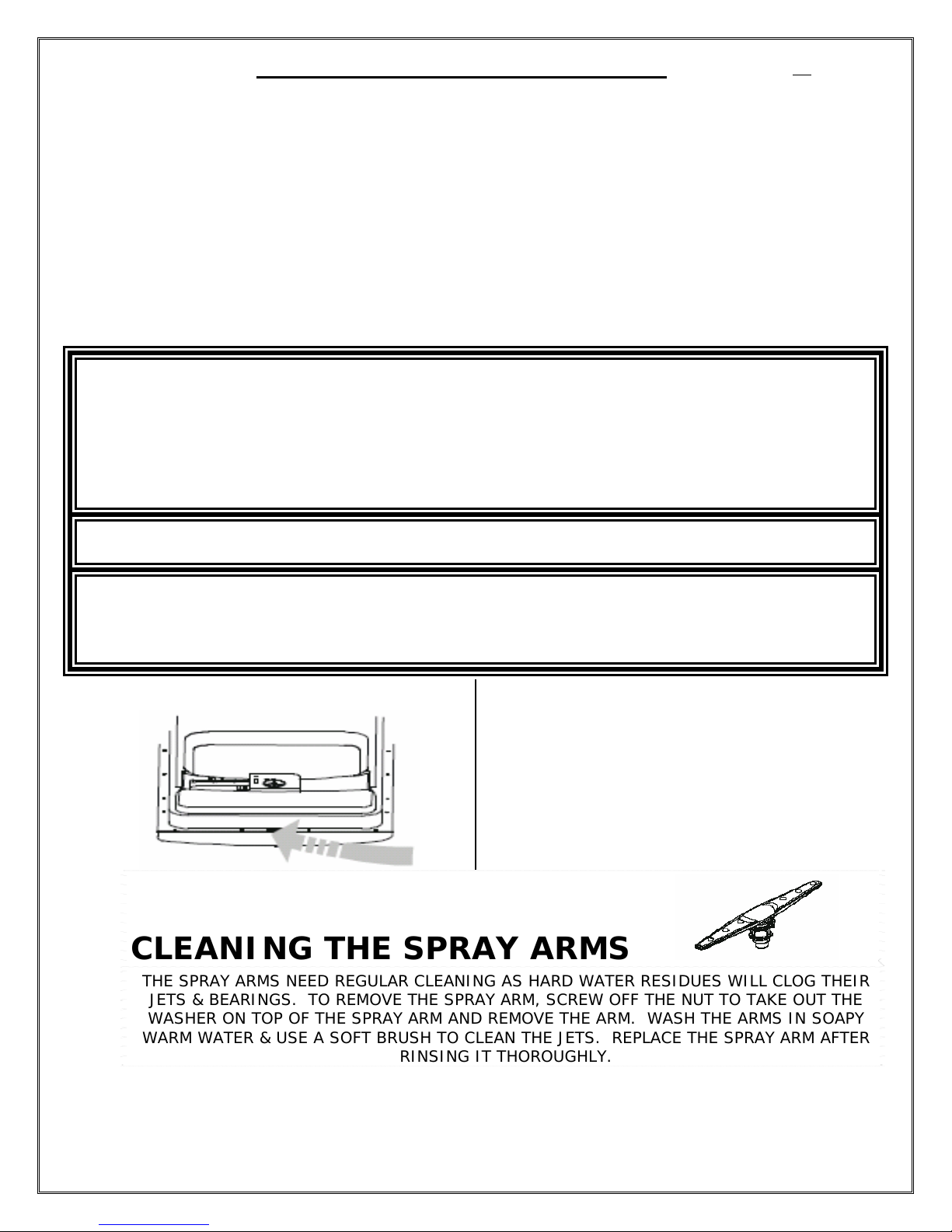

CLEANING THE SPRAY ARMS

THE SPRAY ARMS NEED REGULAR CLEANING AS HARD WATER RESIDUES WILL CLOG THEIR

JETS & BEARINGS. TO REMOVE THE SPRAY ARM, SCREW OFF THE NUT TO TAKE OUT THE

WASHER ON TOP OF THE SPRAY ARM AND REMOVE THE ARM. WASH THE ARMS IN SOAPY

WARM WATER & USE A SOFT BRUSH TO CLEAN THE JETS. REPLACE THE SPRAY ARM AFTER

RINSING IT THOROUGHLY.

13

BAUMATIC MINI 4 dishwasher user manual

14

CLEANING THE FILTERS

• THE FILTER ASSEMBLY MUST BE KEPT CLEAN FOR BEST PERFORMANCE. You should remove the
larger bits of food trapped in the filter after each wash cycle by rinsing them under running water.
To remove the filter assembly, pull up on the cup handle.

• The entire filter assembly should be cleaned at least once a month.

• To clear the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts

as shown in the figure above and reinsert the entire assembly in the dishwasher in its seat & press
downward to secure it.

• Improper replacement of the filter may impair appliance performance and damage dishes and
utensils.

• Warning - never

run the dishwasher without the filters in

place!

• Warning - Before cleaning the inner cavity of the appliance

always allow 15 minutes for the Element to cool down to avoid
injury!

HOW TO KEEP YOUR DISHWASHER IN SHAPE

AFTER EVERY WASH, leave the door slightly ajar so that moisture and odours are not trapped
inside.

REMOVE THE PLUG before cleaning or performing maintenance. Never run the risk of electric
shocks.

DO NOT USE SOLVENTS OR ABRASIVE CLEANING AGENTS to clean the exterior and the rubber
parts of the dishwasher. Only use a cloth and warm soapy water. To remove spots or stains
from the surface of the interior, use a cloth dampened with water and a little white vinegar,
or a cleaning product made specifically for dishwashers.

14

BAUMATIC MINI 4 dishwasher user manual

15

WHEN YOU GO ON HOLIDAY, run a wash cycle with the dishwasher empty. Then unplug it, turn
off the water supply and leave the door slightly ajar to prevent odours and mould from
developing.

MOVING THE APPLIANCE is possible but KEEP IT UPRIGHT.

SEALS can trap food, which in turn will cause odours. Periodic cleaning with a damp cloth or

sponge will prevent this from becoming a problem.

PROTECTING YOUR DISHWASHER AGAINST FREEZING

If your dishwasher is left in an unheated place during the winter, ask a
service technician to:

Cut off electrical power to the dishwasher. Remove fuses or trip circuit

1)

breaker.

2) Turn off the water supply and disconnect the water inlet pipe from the water

valve & discharge hoses.

3) Drain water from the inlet pipe and water valve (Use a pan to catch the

water).

4) Reconnect the water inlet pipe to the water valve.

5) Remove the plastic sump cover in the tub bottom and use a sponge to soak

up water in the rubber boot.

COMMON DISHWASHING PROBLEMS AND
SOLUTIONS

NOTE: MANY PROBLEMS CAN BE RECTIFIED BY CONSULTING THE TROUBLE-

SHOOTING CHART. DOING THIS MAY SAVE YOU NEEDING A SERVICE ENGINEER.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

DISHWASHER WON’T START

DISHES NOT CLEAN

• DISHWASHER NOT

RECEIVING
ELECTRICAL POWER

• DOOR IS UNLATCHED

• DISHWASHER NOT

LEVEL

• IMPROPER LOADING

15

• CHECK ELECTRICAL

CONNECTION, FUSE/CIRCUIT
BREAKER

• CLOSE & LATCH DOOR

• LEVEL UNIT.

BAUMATIC MINI 4 dishwasher user manual

CHIPPING OR BREAKING
GLASSWARE

WATER REMAINS IN BOTTOM

• SPRAY ARM NOT

ROTATING FREELY

• NOT ENOUGH

DETERGENT AND/OR
IMPROPER
DETERGENT BEING
USED.

• IMPROPERLY

PREPARED DISHES

• WATER INLET HOSE

KINKED/ BENT DUE
TO IMPROPER
INSTALLATION.

• THE FILTER LOSES

ITS POSITION

• IMPROPER LOADING

OF DISHES

• A SMALL AMOUNT OF

WATER (IN SUMP
AREA) IS NORMAL.

• EXCESSIVE AMOUNT

OF WATER;

• CYCLE NOT

COMPLETED.

16

• ARRANGE DISHES SO SPRAY

ACTION REACHES ALL
SURFACES.

• DO NOT OVERLOAD

DISHWASHER.

• CHECK SPRAY ARM TO MAKE

SURE NOTHING (EG.
CUTLERY) IS OBSTRUCTING
SPRAY ARM LOCATION.

• CHECK IF FILTER SCREEN HAS

BECOME DISLODGED AND
OBSTRUCTING SPRAY ARM
ROTATION.

• USE MORE DISHWASHER

DETERGENT.

• DO NOT USE DETERGENT

THAT IS HARD OR CRACKED.

• USE ONLY A RECOMMENDED

DISHWASHER DETERGENT.

• EXCESS FOOD SOIL AND

LIQUIDS SHOULD BE
REMOVED FROM DISHES
BEFORE LOADING.

• UNDO KINK OR BEND IN

INLET HOSE.

• ENSURE THE FILTER IS

RETURNED TO ITS RIGHT
PLACE.

• DO NOT OVERLOAD DISH

RACK. LOAD GLASSES ON
THE BOTTOM RACK ONLY.

• THIS IS NECESSARY TO KEEP

THE PUMP PRIMED AND IS
DRAINED AUTOMATICALLY AT
THE BEGINNING OF EACH
CYLCE.

• ALLOW DISHWASHER TO

COMPLETE ITS FULL CYCLE.

ERROR CODES - WHAT THEY MEAN

* YOUR DISHWASHER MAY EXPERIENCE A FAULT. SHOULD THIS HAPPEN, A
CODE CONSISTING OF ‘E’ & A NUMBER FROM 1-7 CAN BE DISPLAYED.

USE THIS TABLE TO UNDERSTAND WHAT IS WRONG.

*NOTE*: ALWAYS CALL FOR A Baumatic Ltd ENDORSED / APPROVED

CODE

SERVICE TECHNICIAN TO CARRY OUT REPAIRS.

SYMPTOM: CAUSE:

WHAT TO DO:

16

‘E1’

BAUMATIC MINI 4 dishwasher user manual

LONGER FILL TIME. FAUCET IS NOT OPENED.

17

Ensure that inlet hose is not
kinked or crushed.

‘E2’

‘E3’

‘E4’

‘E5’

*

‘E6’
‘E7’

LONGER or EXTENDED DRAINING TIME

LONGER HEATING TIME – NOT
REACHING REQUIRED TEMPERATURE

OVERFILLED

SWITCH CANNOT SHUT OFF
AUTOMATICALLY – PROGRAM NOT
FINISHING ITS CYCLE.

OPEN CIRCUIT THERMOSTAT.

SHORT CIRCUIT THERMOSTAT.

THE DRAIN PIPE WAS PLACED
TOO HIGH WHEN IT WAS
INSTALLED.

MALFUNCTION OF
TEMPERATURE SENSOR OR OF
HEATING ELEMENT.

TOO MUCH INLET WATER.

*NOTE * - THERE ARE
NUMEROUS CAUSES OF AN ‘E4’
MESSAGE. REFER TO
APPLIANCE USAGE SECTION
OF THIS MANUAL FOR
GUIDELINES ON HOW TO
PREVENT AN OVERFILL.

LOW VOLTAGE OR POWER
SWITCH FAILURE.

*** NOTE – DEPENDING ON
YOUR MODEL, YOU MAY NOT
RUN INTO THIS ERROR ****

Ensure drainage system is as
per manual and not
extended.

CALL FOR A QUALIFIED

SERVICE TECHNICIAN.

Overdosing. 3-in-1 put in
with salt and/or rinse aid in
the appliance =overdose.

Could also be a Water
Pressure problem.

CALL FOR A QUALIFIED
SERVICE TECHNICIAN.

CALL FOR A QUALIFIED

SERVICE TECHNICIAN.
CALL FOR A QUALIFIED

SERVICE TECHNICIAN.

WARNING!

IF OVERFLOW OCCURS, TURN OFF THE MAIN WATER SUPPLY BEFORE CALLING A SERVICE
TECHNICIAN. IF THERE IS WATER IN THE BASE OF THE TANK PAN BECAUSE OF AN OVERFILL
OR SMALL LEAK, THE WATER SHOULD BE REMOVED BEFORE RESTARTING THE DISHWASHER.

INSTALLATION________

ELECTRICAL NOTES

YOU NEED AN ELECTRICAL SUPPLY OF 220-240 VOLTS ONLY, 50HZ.
MAKE SURE YOU HAVE A SUITABLE ELECTRICAL SUPPLY SOCKET CLOSE TO WHERE

YOU WANT TO PLACE THE DISHWASHER. FOR YOUR PERSONAL SAFETY, THE
APPLIANCE MUST BE EARTHED. THE APPLIANCE IS EQUIPPED WITH A POWER
SUPPLY CORD HAVING A 3-PIN GROUNDING PLUG. TO MINIMIZE POSSIBLE SHOCK

17

BAUMATIC MINI 4 dishwasher user manual

HAZARDS, IT MUST BE PLUGGED INTO A MATCHING 3-PIN GROUNDING TYPE
ELECTRICAL OUTLET.

IF THE MAINS PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME OR IS
REMOVED FOR ANY OTHER REASON, THEN THE CUT OFF PLUG SHOULD BE DISPOSED
OF SAFELY TO PREVENT THE HAZARD OF ELECTRIC SHOCK.

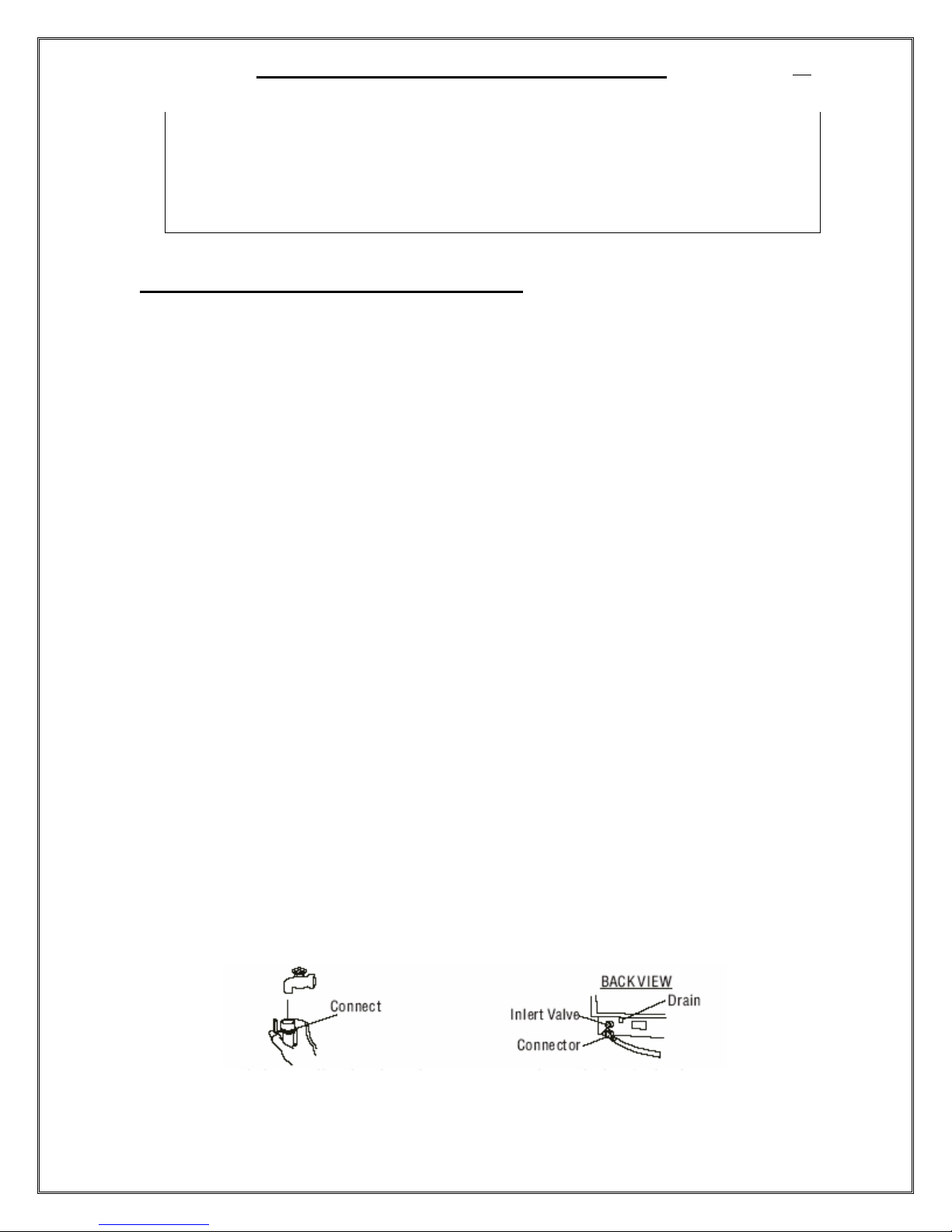

INSTALLATION INSTRUCTIONS

1. REMOVE ALL PACKING MATERIALS CAREFULLY

2. THE WATER INLET HOSE FROM THE MACHINE ENDS IN A 3/4” FEMALE CONNECTOR

(IE. - TUBE/HOLE/SOCKET OPENING). THE WATER SUPPLY SHOULD THEREFORE END
IN A SIMILAR MALE CONNECTOR (IE. – PIPE / PRONG ENDED) AND THERE SHOULD
BE A STOPCOCK CLOSE BY IN THE PIPE.
YOU SHOULD CONNECT THE STRAIGHT CONNECTOR OF THE INLET HOSE TO THE
WATER SUPPLY SECURELY. CONNECT THE OTHER END (BENT CONNECTOR) TO THE
WATER INLET VALVE AT THE BACK OF THE DISHWASHER CABINET. DO NOT OVER­TIGHTEN OR YOU WILL DAMAGE THE THREADS.

3. PREPARE THE DRAINAGE HOSE SO IT HAS A HOOKED END. USE THE PLASTIC U-
BEND FITTING PROVIDED FOR THIS PURPOSE. THE END OF THIS SHOULD BE
DROPPED INTO A DRAINAGE STANDPIPE. THIS STANDPIPE SHOULD BE NO MORE
THAN 6” ABOVE THE BASE OF THE DISHWASHER. TO ALLOW FOR AN AIR GAP
AROUND THE END OF THE DRAIN HOSE, THE DIAMETER OF THE STANDPIPE SHOULD
BE AT LEAST 30MM. CONNECT THE OTHER END OF THE DRAIN HOSE (L-SHAPED) TO
THE DRAIN PORT CONNECTION AT THE BACK OF THE DISHWASHER CABINET (SEE
PAGE 5). TIGHTEN THE DRAIN HOSE END ON TO THE DRAIN PORT USING THE
METAL CLIP INCLUDED IN THE PACKAGE.

4. IF YOU WANT, YOU CAN CONNECT THE WATER INLET HOSE TO THE KITCHEN SINK
TAP. YOU MUST OBTAIN CORRECT FITTINGS / ADAPTORS TO MATCH THE INLET
HOSE CONNECTORS TO ENSURE A SECURE CONNECTION. HOWEVER, PERMANENT
PLUMBING IS RECOMMENDED.

18

18

BAUMATIC MINI 4 dishwasher user manual

5. IF YOU FIND A LEAK, SHUT THE WATER SUPPLY OFF IMMEDIATELY AND CHECK THE
HOSE CONNECTIONS FULLY. TIGHTEN CONNECTIONS, IF NEEDS BE.

6. IF FOR ANY REASON YOU ARE UNABLE TO STOP THE LEAK YOURSELF, PLEASE SEEK
ADVICE FROM A QUALIFIED PLUMBER.

7. THE MINIMUM HEIGHT CLEARANCE REQUIRED TO INSTALL YOUR DISHWASHER ON A
COUNTERTOP SURFACE WITH OVERHEAD CUPBOARDS IS 19” (48CM).

8. MAKE SURE THERE IS AN ELECTRICAL POWER SUPPLY WITHIN EASY REACH OF THE
MACHINE. THE POWER CORD IS 6 FEET (182.8CM) LONG.

9. THE DISHWASHER MUST BE INSTALLED ON A ‘SOLID’ LEVEL SURFACE.

10. TO LEVEL THE DISHWASHER, ADJUST THE 4 LEVEL SCREWS (FEET) UNDER THE

DISHWASHER.

19

WATER PRESSURE

FOR BEST OPERATING RESULTS, INCOMING WATER PRESURE SHOULD BE BETWEEN 0.5
AND 10 BAR. INCOMING WATER SUPPLY FOR THE DISHWASHER IS CONTROLLED BY A
‘PRESSURE SWITCH’ APPLICATION, SO IF THE WATER PRESSURE IN YOUR HOME IS LOW,
THE DISHWASHER WILL TAKE LONGER TO FILL WITH WATER.

WARNING: DO NOT CONNECT YOUR MINI 4 TO A HOT TAP!

FOR BEST RESULTS:

YOUR DISHWASHER CLEANS BY SPRAYING A MIXTURE OF HOT CLEAN WATER AND
DETERGENT (UNDER PRESSURE) AGAINST THE SOILED SURFACE OF DISHES. THE
WATER IS PUMPED THROUGH A ROTATING SPRAY ARM, DRAINED THROUGH A FILTER
REMOVING FOOD AND SOILED PARTICLES AND PUMPED BACK THROUGH THE SPRAY
ARM.

SOILED WATER IS PUMPED OUT AND REPLACED WITH CLEAN WATER AT THE END OF
EACH CYCLE (THE NUMBER OF TIMES DEPENDS ON THE CYCLE BEING USED). FOR BEST
CLEANING RESULTS, THE WATER TEMPERATURE MUST BE AT LEAST 130
PREVENT DISHWASHER DAMAGE, THE TEMPERATURE OF THE INCOMING WATER SUPPLY

SHOULD NEVER EXCEED 160

: HARD WATER CONDITIONS WILL REDUCE THE PERFORMANCE EFFECTIVENESS

NOTE

AND ABILITY OF YOUR DISHWASHER. HARD WATER CONDITIONS WILL ALSO

F (71 C).

F (55 C). TO

19

BAUMATIC MINI 4 dishwasher user manual

CONTRIBUTE TO ‘LIME’ (WHITE FILM SUBSTANCE) DEPOSITS AND / OR ‘SCALING’ ON
THE STAINLESS STEEL SURFACE OF THE DISHWASHER TUB AND ‘HEATER ELEMENT’
LOCATED IN THE SUMP UNDERNEATH THE REMOVABLE FILTER SCREEN. TO ASSIST IN
MINIMIZING THESE CONDITIONS, YOU SHOULD PERIODICALLY OPERATE / RINSE THE
INSIDE OF THE DISHWASHER (EMPTY) USING 1 CUP OF VINEGAR (AT LEAST ONCE A
WEEK).

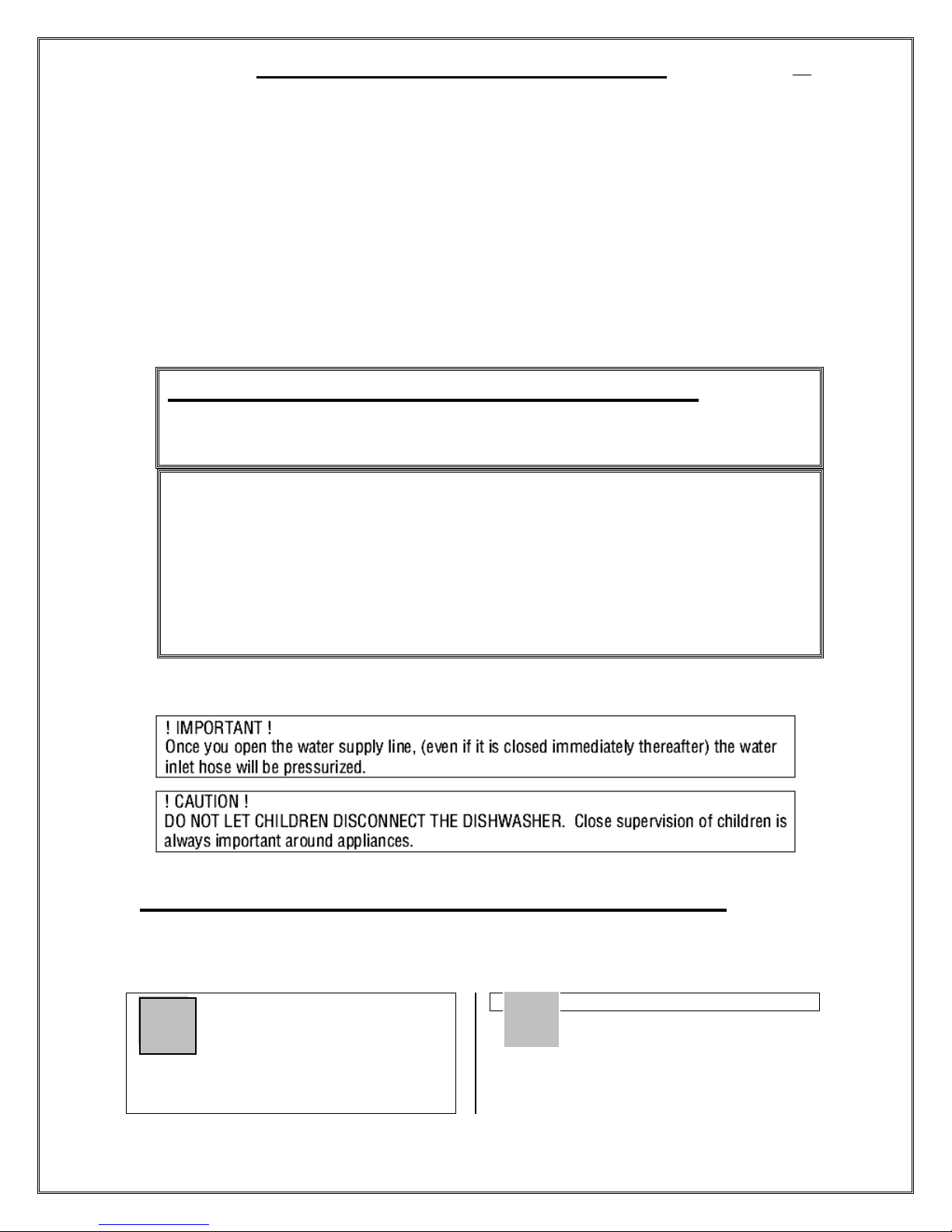

DISCONNECTING YOUR DISHWASHER

• CLOSE THE WATER SUPPLY AT THE STOPCOCK.

• DISCONNECT THE POWER SUPPLY CORD.

• DISCONNECT THE INLET HOSE ASSEMBLY FROM THE WATER SUPPLY. WHEN THE

DISHWASHER IS NOT IN USE, PLACE/STORE THE HOSE ON THE HANGER HOSE
BRACKET LOCATED ON THE REAR WALL OF THE DISHWASHER CABINET.

• APPLIANCES THAT ARE TO BE DISCARDED MUST BE MADE UNUSABLE. PULL OFF

THE PLUG, REMOVE CABLE AND MAKE THE DOOR LOCK AND LATCH USUABLE.

20

DISHWASHER CHARACTERISTICS

The BAUMATIC MINI 4 dishwasher model is based firmly on convenience. Apart from
having the same general workings as other household dishwashers, it has several
extra features.

efficiency.

CCC

CLASS

Performance of

Dishwasher -

has a C rated wash performance, C rated
drying performance and C rated energy

Your dishwasher

3

PROGRA

20

BAUMATIC MINI 4 dishwasher user manual

wash, normal wash, and rapid wash.

21

Overflow protection - Your

dishwasher has an overfill protection
program which could automatically shut off
the inlet valve and start the drain pump if
the water Overflows.

Error Alarm - Fault codes

display will inform the user of any abnormal
status of the machine

Stainless steel tub-

You need not worry about stains to the
tub.

.

4

SETTINGS

Normal wash load of 4 place settings.

Indicator -

low, this signal will light up on the control
panel to alert you to top the salt level up
so the machine can keep at its optimum
performance level.

voltage -

(alternating current) voltage. Please be
aware that this will make its operation
vulnerable to uneven current in your home
and power surges.

4 Place settings -

Salt Warning

If the salt is running

Broad applied

This appliance uses AC

3 Wash programs -

You can choose desired program according
to the soiled level. Such as, intensive

Main technical data

Model

WP5C/WP5D WP5CS/WP5DS
Power input 1280W 1280W
Outer dimension 570x480x500 570x480x500
Weight About 22.8kg About 22.8kg
Max. water
Consumption

13L 14L
Water pressure 0.03~1MPa 0.03~1MPa

Control manner Automatic Automatic
Detergent dosage 5~20g 5~20g
Plate setting 4 sets 35 pieces dishware 4 sets 35 pieces dishware

21

BAUMATIC MINI 4 dishwasher user manual

22

FINAL CHECKLIST BEFORE OPERATING

NOTE: BEFORE

PLEASE MAKE SURE YOU HAVE CHECKED

• WHETHER THE DISHWASHER IS LEVEL AND

• WHETHER THE INLET VALVE IS OPENED.

• WHETHER THERE IS LEAKAGE AT THE

• WHETHER THE WIRES ARE TIGHTLY

• WHETHER THE POWER IS SWITCHED ON.

• WHETHER THE INLET AND DRAIN HOSES

• WHETHER ALL PACKING MATERIALS &

YOU START USING YOUR DISHWASHER,

:

FIXED.

CONNECTIONS OF THE CONDUCTS.

CONNECTED.

ARE KNOTTED / KINKED.

PRINTED MATTER HAVE BEEN REMOVED
FROM THE DISHWASHER.

PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE

22

BAUMATIC MINI 4 dishwasher user manual

BAUMATIC LTD. - CONDITIONS OF GUARANTEE.

23

Dear Customer,
The conditions of guarantee which apply to your Baumatic appliance are as follows: This product is

guaranteed for 12 months from the date of original purchase.
Baumatic Ltd will repair any defect that arises due to faulty materials or workmanship free of charge
during this period.

In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge
the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect
that arises due to faulty materials or workmanship within a period of 5 years from the original purchase
date.

An additional and annually renewable insurance scheme for labour is available should you wish to extend
the warranty period.

Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance,
the policy is negated and Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only , unless otherwise stated.
Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale

issued at the time of purchase.
This guarantee is transferable only with the written consent of Baumatic Ltd.
If the appliance fails and is considered either not repair able or uneconomical to repair between twelve

months and five years from purchase date, a free of charge replacement will not be offered.
The guarantee for any replacement will only be for the remainder of the guarantee on the original product

purchased.
This guarantee does not cover:

• Sinks and taps

• Failure to comply with the manufacturer’s instructions for use.

• The replacement of cosmetic components or accessor ies.

• Accidental damage or wilful abuse.

• Subsequent loss or damage owing to the failure of the appliance or electrical supply.

• Incorrect installation.

• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts.

• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers,

baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals, refrigeration
system blockage.

In the course of the work carried out it may be necessary to remove the appliance from its operating
position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage
sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights.

Contacting Baumatic.

SALES
TEL: [phone]
FAX: [phone]

For mainland UK and Northern Ireland, please contact one of the above numbers for further information or
any other query you may have.

For ROI (Republic of Ireland), please contact one the numbers below:
TEL: [phone] FAX: [phone]

Thank you for buying Baumatic.

SERVICE
TEL: [phone]
FAX: [phone]

SPARES
TEL: [phone]
FAX: [phone]

TECHNICAL / ADVICE
TEL: [phone]
FAX: [phone]

23

BAUMATIC MINI 4 dishwasher user manual

Baumatic Ltd

Make-up for your kitchen

Headquarters

Baumatic Buildings,

6 Bennet Road,

RG2 0QX, United Kingdom

Sales Telephone

[phone]

[phone]
Service Telephone

[phone]

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

[e-mail]

[e-mail]

Http (Internet site):

www.baumatic.com

Baumatic UK/cod. 1230000666

Baumatic Ltd.

Reading,

Berkshire

Sales Fax

Service Fax

E-mail

:

24

This appliance is marked according to the European
Directive 2002/96/EC on Waste Electrical and Electronic
Equipment(WEEE).
This guideline is the frame of a Europeanwide validity of
return and recycling on Waste Electrical and Electronic
Equipment.

24
