Baumatic MEGACHEF B610MC Instruction Manual

MEGACHEF B610MC

60 cm Built-in

multifunction oven

1

User Manual for your Baumatic

Megachef B610MC

60 cm Built-in multifunction oven

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.

JW 17/01/13

2

Contents

Environmental note 4
Important safety information 5 – 7
Specifications 8 – 10

Electrical details 9
Cooling fan 9

Control panel 10
LED display 10

Initial set-up of your oven 11 – 12
Setting the time of day 11
Before first use 11 – 12

Timer functions 12 - 13
The minute minder 12
Duration timer 13

Using your oven 14 - 19
Selecting an oven function, temperature & duration 14
Oven functions 15
Pausing a cooking function 16
Cancelling a cooking function 16
The enquiry function 16
Safety lock 16
Energy saving function 17
Internal light 17
Cooking guidelines 17 - 18
Warnings 18

Cleaning and maintenance 19 - 21
Replacing the oven bulb 20
Removing the oven door for cleaning 20 - 21
Removing the side racks 21

Installation 22 - 24
Electrical connection 22 - 23
Positioning the appliance 23
Ventilation requirements 24

My appliance isn’t working correctly 23 – 25

Baumatic consumables 27

Contact details 31

3

Environmental note

o The packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

o Please discard

environment.

all packaging material with due regard for the

4

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

b

eneral Information

G

o This appliance is designed for domestic household use and can

be built into a standard kitchen cabinet or housing unit.

o IMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a
minimum temperature of 85°C above the
of the room it is located in, whilst in use.

o Certain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di
temperatures below the guidelines given above.

o Any damage caused by the appliance being installed in

contravention of this temperature limit, or by placing adjacent
cabinet materials closer t

liability of the owner.

o The use of this appliance for any other purpose or in any other

environment without the express agreemen
will invalidate any warranty or liability claim.

o Your new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of
affect your statutory rights.

han 4mm to the appliance, will be the

Guarantee. The foregoing does not

ambient temperature

scolouration at

t of Baumatic Ltd.

o Repairs may only be carried out by Baum

engineers or their authorised service agents.

arning and safety instructions

W

atic service

o This appliance complies with all current European safety

legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces w

become hot duri

ng use and retain heat after operation.

ill

5

Child Safety

o Baumatic strongly recommend that

are prevented from being near to the appliance and not allowed
to touch the appliance at any time.

o If it is nece

kitchen, please ensure that they are kept under close supervision
at all times.

General Safety

ssary for younger family members to be in the

babies and young children

o Do not place

oven door when it is open, as this can cause damage to the oven
door hinges.

heavy objects on the oven door or lean on the

o Do not leave heated oil or fat unattended, as this is a fire risk.

o Do not place pans or baking trays directly on the base of the

oven cavity, or line it with aluminium foil.

o Do not allow electrical fittings or cables to come into contact

with areas on the appliance that get hot.

o Do not use the appliance to heat the room it is located in or to

dry clothing.

o Do not install the appliance next to curtains or soft furnishings.

o Do not attempt to lift or move cooking appliances b

oven door or handle, as this may cause damage to the appliance

sult in injury to the person lifting the appliance.

or re

Cleaning

o Cleaning of the oven should be carried out on a regular basis.

Great care should be taken whilst using this appliance and when

o

following the cleaning procedure.

o IMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

y using the

6

Installation

This appliance must be

correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions.

o Baumatic Ltd. declines any respon

damage, to person or property, as a result of improper
use or installation of this appliance.

o Heat, steam and moisture will be created during use of the

appliance, take care to avoid injury and ensure that the room is
adequately

ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.

o Please consult with your qualified installer if you are in any doubt

about the amount of ven

tilation that you will require.

Declaration of conformity.

This appliance complies with the following E

- 2006/95/EC regarding “low voltage”

- 2004/108/E

C regarding “electromagnetic disturbances”

- Regulation (EC) N° 1935/2004 regarding “materials in contact
with food”

o The above directives comply with 93/68/EEC regarding CE

marking.

o The manufacturer declares that the oven is built using certified

materials and requires the appliance to be installed
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.

sibility for injury or

uropean Directives:

in

7

Specifications

Product specifications

o 8 functions
o Energy efficiency class: A
o Oven capacity gross/net: 65/62
o LED semi-au
o Cooling fan
o Thermostatically co
o Double-glazed removable door

Safety lock o

Standard accessories

o Enamelled baking t
o 2 x Safety sh
o Removable side racks

Trivet o

Optional extras

o BPS2 Pizza stone

tomatic timer

ntrolled grill

ray with handle

elf

Product
Dimensions

Height: 595 mm
Width: 595 mm
Depth: 580 mm

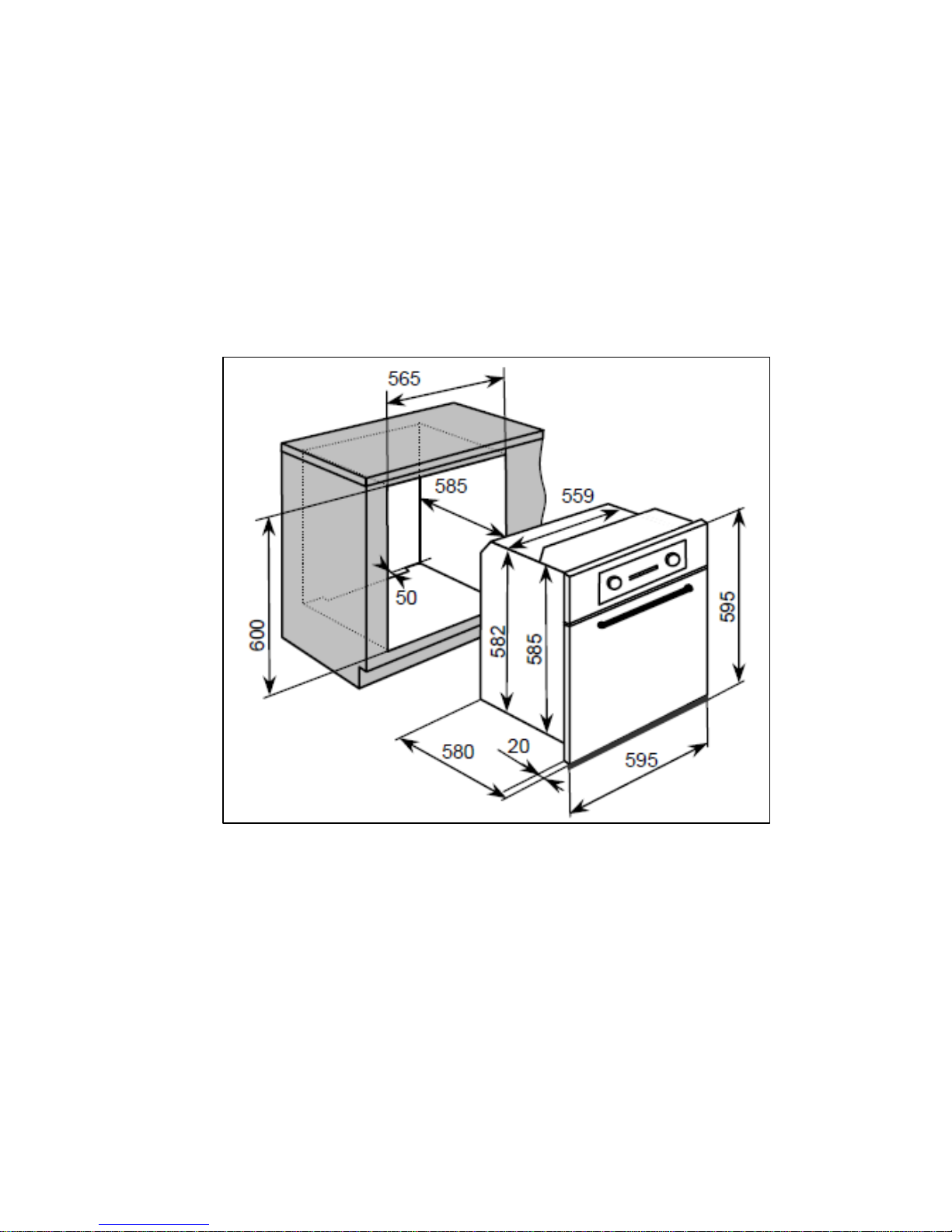

Aperture
Dimensions

Height: 600 mm
Width: 565 mm
Depth: 585 mm

litres

8

Electrical details

Rated Voltage: 220-240 V
Supply Connection: 13 A (double

ac 50-60 Hz

pole switched fused

outlet with 3mm contact gap)

ax Rated Inputs: 3.00 kW

M

ains Supply Lead: 3 x 1.5mm²

M

Cooling fan

o A tangential cooling fan is fitted inside of the appliance, to make

the internal temperature of the oven stable and the external
surface temperature lower.

o After you have finished cooking and switched o

ff the oven, the
cooling fan will continue to run for a period of time afterwards.
The length of time will depend on how long the oven has been
switched on for and at how high a temperature.

For future reference please record the following information which can
be found on the r

und on your sales invoice. The rating plate for your oven can be

fo
located by opening the oven door and loo

e oven chassis.

th

ating plate and the date of purchase which can be

king on the right hand side of

odel Number ……………………………….

M

erial Number ……………………………….

S

ate of Purchase ……………………………….

D

9

Control Panel Control Panel

1) Selector knob

2) Minute minder button

3) Clock button

4) Pause / Stop cook

5) Start cooking
) Adjustment knob

6

7) LED display

ing button

button

LED display

8) Oven function symbo

9) Oven temperature

10) Safety lock symbol

11) Time of day/minute m

2) Alarm/timer symbol

1

3) Oven light indicator

1

10

ls

inder time

10
