User Manual
45cm Freestanding Dishwasher
GDW45S
Product / Installer details
For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the
information is always at hand.
Product Details
Model number: ________________________________________________________________________________________
Description: ___________________________________________________________________________________________
Serial number: _________________________________________________________________________________________
(Located on the product rating label)
Purchase Details
Date of purchase: ______________________________________________________________________________________
Place of purchase: _____________________________________________________________________________________
Store name: ___________________________________________________________________________________________
Address: ______________________________________________________________________________________________
Telephone: ____________________________________________________________________________________________
Invoice / receipt number: ________________________________________________________________________________
Installation Details
Electrical date of installation: ___________________________________________________________________________
Electrician Installers Details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Gas date of installation: _________________________________________________________________________________
Gas installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Plumbing date of installation: ___________________________________________________________________________
Plumbers installers details: Company / Installers Name: _____________________________________________
Licence Number: ______________________________________________________
Telephone Number: ____________________________________________________
Page ii GDW45S 45cm Freestanding Dishwasher User Manual
Dear Customer,
Congratulations on the purchase of your new product from
Home Appliances Pty Ltd.
We recommend you please take some time to read the instruction manual
thoroughly to familiarise yourself with the functionality and operations to ensure
optimum performance of your new appliance.
After reading the manual, please store it in a safe and accessible location for
future reference.
Installation
The installation of your new appliance must be carried out by a qualied
installer / technician in accordance to local regulations.
The packaging of your appliance has been selected from environmentally
friendly materials and can usually be recycled. Please ensure these are disposed
of correctly.
Customer Care
Our Customer Care centre is available should you wish to learn more about your
appliance in relation to how to use it to its best potential, or tips on cleaning as
well as available accessories.
For further details please contact our Customer Care team on
1800 444 357 or email: customercare@hapl.com.au
Thank you
Regards,
Home Appliances
GDW45S 45cm Freestanding Dishwasher User Manual Page iii
Read this manual
Dear Customer,
Please carefully read this manual before using the dishwasher, it will help you
use and maintain the dishwaer properly. Keep the manual in accessible place for
future reference if required. Pass the maniul on to any subsequent owner of the
appliance.
This manual contains sections on safety instructions, operating instruction, installation
instructions and troubleshooting tips, etc.
Before calling for service
Refer to section on Troubleshooting Tips as this will help you solve common problems
by yourself. If you cannot solve the problem yorself, please contact our Customer Care
department for assistance over the phone or to organise a service technician to chekc
the appliance.
NOTE: The manufacturer, following a policy of constant development and updating of the
product, may make modications without giving prior notice.
Page 1 GDW45S 45cm Freestanding Dishwasher User Manual
CONTENTS
1) Important Safety information ________________________________________________ 3
Earthing Instructions andnd Electrcial warnings _______________________________ 4
Disposal __________________________________________________________________ 5
2) Quick operation guide ______________________________________________________ 6

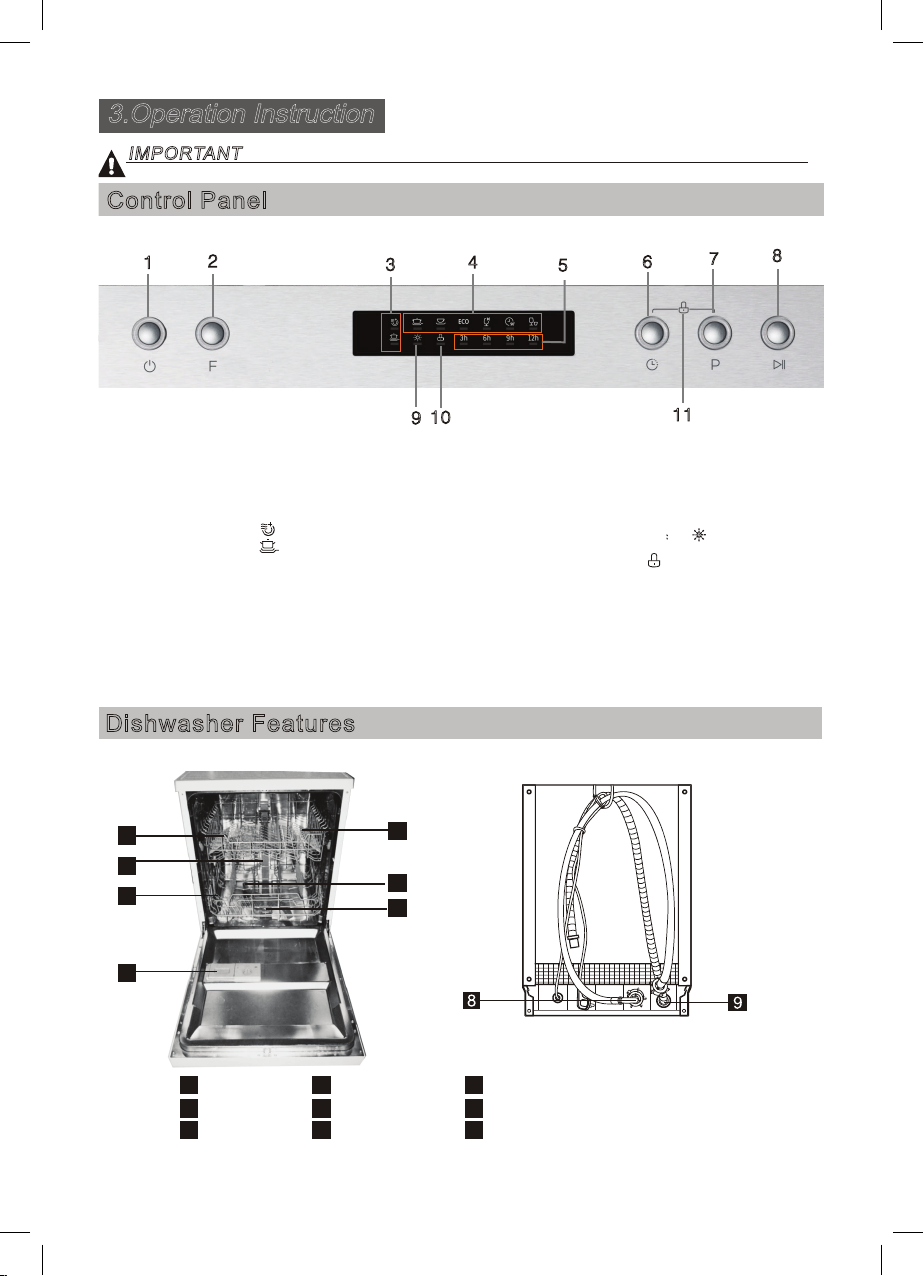

3) Operation Instruction _______________________________________________________ 7
Control panel _____________________________________________________________ 7
Dishwasher features _______________________________________________________ 7
4) Prior to using for the rst time _______________________________________________ 8
A. Fill the Rinse Aid Dispenser _______________________________________________ 8
B. Detergent ______________________________________________________________ 9
5) Loading the Dishwasher Baskets ___________________________________________ 11
Recommendation _________________________________________________________ 11
For washing in the dishwasher the folliwing cutlery/dishes _____________________ 11
Attention before or after loading the Dishwasher Baskets ______________________ 11
Removing the Dishes _____________________________________________________ 11
The Method Loading Normal Dishware ______________________________________ 12
6) Starting a washing programme _____________________________________________ 13
Wash Cycle Table _________________________________________________________ 13
Turning on the Appliance __________________________________________________ 13
Change the Programme ___________________________________________________ 14
Forgot to Add a Dish ______________________________________________________ 14
At the end of the Wash Cycle ______________________________________________ 14
7) Maintenance and Cleaning _________________________________________________ 15
Filtering System __________________________________________________________ 15
Caring for the Dishwasher _________________________________________________ 16
8) Installation instruction _____________________________________________________ 17
Positioning the Appliance __________________________________________________ 17
About Power Connection __________________________________________________ 17
Water Connection ________________________________________________________ 18
Start the dishwasher ______________________________________________________ 19
9) Troubleshooting Tips ______________________________________________________ 20
Before calling for service __________________________________________________ 20
Error codes ______________________________________________________________ 21
Technical information _____________________________________________________ 22
Loading the baskets according to AS/NZS 2007.1 ____________________________ 23
GDW45S 45cm Freestanding Dishwasher User Manual Page 2
1. IMPORTANT SAFETY INFORMATION
WARNING!
When using your dishwasher, follow the precaution listed
below
Q This appliance is intended to be used in household and similar applications such
as:
- staff kitchen areas in shops, ofces and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
Q This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been supervised or instruction concerning use of the appliance
by a responsible person for their safety.
(EN60035-1)
Q Children should be supervised to ensure they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
(EN60335-1)
Q This appliance is for indoor use only, for household use only. To protect against
the risk of electrical shock, do not immerse the unit, cord or plug in water or other
liquid.
Q Please unplug before cleaning and maintenance of the appliance .Use a soft cloth
moisten with mild soap to clean and then use a dry cloth to dry any residue.
Q The maximum capacity is 9 standard pl++++ace settings.
Q When loading items to be washed locate sharp items so that they are not likely to
damage the door seal.
Q WARNING: Knives and other utensils with sharp points must be loaded in the
basket with their points down or placed in a horizontal position.
Q Do not wash plastic items unless they are marked dishwasher safe or the
equivalent. For plastic items not so marked, check the manufacturer’s
recommendations.
Q Do not leave the door open as this will cause a tripping hazard.
Q Do not place any heavy objects on or stand on the door when it is open. The
appliance could tip forward.
Q Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Q Open the door very carefully if the dishwasher is operating, there is a risk of water
squirting out.
Q Check that the detergent dispenser is empty after completion of the wash cycle.
Q Do not operate your dishwasher unless all enclosure panels are properly in place.
Q If the appliance is installed on a carpet oor, take care that the openings in its
base are not obstructed.
Q WARNING: SOME DISHWASHER DETERGENT ARE STRONGLY ALKALINE.
THEY CAN BE EXTREMELY DANGEROUS IF SWALLOWED. AVOID CONTACT
WITH SKIN AND EYES AND KEEP CHILDREN AWAY FROM THE DISHWASHER
WHEN DOOR IS OPEN.
Page 3 GDW45S 45cm Freestanding Dishwasher User Manual
Q Use only detergent and rinse aid additives designed for automatic dishwashers.
Q Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
Q Water supply minimum inlet water pressure 0.04 MPa
Q Water supply maximum inlet water pressure 1.00 MPa
Q The appliance is to be connected to the water mains using new hose sets and that
old hose sets should not be reused.
Q Do not tamper with the controls
EARTHING INSTRUCTIONS and ELECTRICAL WARNINGS
Q This appliance must be earthed. In the event of a malfunction or breakdown,
earthing will reduce the risk of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped with a cord having an
equipment-earthing conductor and a earthing plug.
Q During installation, the power supply must not be excessively or dangerously bent
or attened.
Q The plug must be plugged into an appropriate outlet that is installed and earthed
in accordance with all local codes and ordinances.
Q Improper connection of the equipment-earthing conductor can result
in the risk of an electric shock. Check with a qualied electrician or service
representative if you are in doubt whether the appliance is properly earthed.
Q Do not modify the plug provided with the appliance; If it does not t the outlet.
Have a proper outlet installed by a qualied electrician.
Q If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualied person in order to avoid a hazard.
GDW45S 45cm Freestanding Dishwasher User Manual Page 4
Disposal
Q Dispose of the dishwasher packaging material correctly.
Q All packaging materials can be recycled.
Q Plastic parts are marked with the standard international abbreviations:
Q PE - for polyethylene, e.g. sheet wrapping material
Q PS - for polystyrene, e.g. padding material
Q POM - polyoxymethylene, e.g. plastic clips
Q PP - polypropylene, e.g. Salt filler
Q ABS - acrylonitrile Butadiene Styrene, e.g. Control Panel
Warning
Q Packaging material could be dangerous for children!
Q For disposing of package and the appliance please go to a recycling centre.
Therefore cut off the power supply cable and make the door closing device
unusable.
Q Cardboard packaging is manufactured from recycled paper and should be
disposed in the waste paper collection for recycling.
Q By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
Q For more detailed information about recycling of this product, please contact your
local city ofce and your household waste disposal service.
Q DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
Page 5 GDW45S 45cm Freestanding Dishwasher User Manual
Compartment A:
For each wash cycle.
Compartment B:?
For programs with pre-wash only.
(Follow the user instructions)
Compartment C:
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a program
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent
dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid
scald,as the dishes and utensils are still hot and more susceptible to break.
They could also dry better. Unload the appliance, starting from the lower basket.
Changing the program
Add forgotten dishes in
the dishwash
er.
Scrape off any large food particles. Soften remnants of burnt food in
pans, then load the baskets. Refer to the dishwasher loading instructions.
When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appiance was under standby mode, it will be power off automaticly after 30 minutes without
any Operation.
If the appliance is
switched off during a
wash cycle.
Open the door carefully.
Hot steam may escape
when the door is opened!
WARNING!
If the appliance is switched off during a wash cycle, when switched on again, please
re-select the washing cycle and operate the dishwasher according to the original
Power-on state ).
Switch on the appliance
Quick Operation Guide
For detailed operating method read the corresponding content on the instruction manual.
Open the door, press the On/Off button to switch on the appliance.
T urn on the water tap and press the Start/Pause Button. The machine will start working
after about 10 seconds.
Close the door,press the Program Button until the selected program lights
up.( See the section entitled Operation instruction )
1. A running cycle can only be modified if it has been running for a short time. Otherwise the
detergent may have already been released and the water already drained. If in this case, the
detergent dispenser must be refilled.
2. Press the Start/Pause button, the machine will be in standby state, press the program
button more than 3 seconds then you can change the program to the desired cycle setting.
3. Press the Start/Pause Button, the dishwasher will run after 10 seconds.
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little.
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run after 10
seconds.
A
B
C
GDW45S 45cm Freestanding Dishwasher User Manual Page 6
3.Operation Instruction
Dishwasher Features
before using it for the first time.
To get the best performance from your dishwasher, read all operating instructions
IMPORTANT
Control Panel
Back View
1
2
3
4
5
6
7
Front view
Dispenser
Cup Shelf
Spray arms
Filter assembly
Inlet pipe connector
Drain pipe
Lower Basket
Inner pipe
Upper Basket
1
5
6
7
8
93
2
4
1
2
4
6
7
8
3
9
7. Program Button :
To Press the button to select appropriate Program.
8.
Start /Pause button:
To start the selected washing program or pause the
washing program when the machine is working.
9. Rinse aid function indicator
10. Child lock indicator:
11. lock function:
Press delay button and program button for 5 seconds.
Child
1.On/Off Button:
Turn on/of the power supply by pushing.
2.Function Button:
To select extra drying or strong wash function.
3.Function indicator:
extra drying indicator:
strong wash indicator:
4.Program indicators:
To show which program you have chosen.
5.Delay indicators:
To sho w the delay time which you have chosen.
(3h/6h/9h/12h)
6.Delay Button :
Press the button to add the delay time.
10
5
11
Page 7 GDW45S 45cm Freestanding Dishwasher User Manual
C (Rinse-Aid indicator)
Before using your dishwasher for the first time:
A. Fill the rinse aid dispenser
B. Fill in detergent
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 fu ll
1 / 2 fu ll
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be
dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below
1 / 4 full.
A.Rinse Aid Dispenser
The rinse aid i s released during the final rinse to prevent water from forming droplets on your dishes, which can
leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is
designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent
dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. Th e volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances
(e.g. Dishwasher cleaning agent, liquid detergent). Th is would damage the appliance. (If switching to dishwasher
tablets with rinse aid ball the rinse aid dispenser must be completely empty otherwise foaming can occur and
possible damage to the dishwasher)
When to Refill the Rinse Aid Dispenser
How to fill the Rinse Aid Dispenser
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming
during the next wash.
1
2
3
4. Prior to using the first time
GDW45S 45cm Freestanding Dishwasher User Manual Page 8
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aid dispensed by removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are show spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or
knife blades.
Adjust lever
(Rinse)
during the next wash. Don't forget to replace the cap before you close dishwasher door.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
NOTE:
NOTE:
Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitable for this purpose.
B. Detergent
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
MAX
Based on their chemical composition, detergents can be split in two basic types:
The use of normal washing programs in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programs are specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in which concentra te d dete rgents are use d can achie ve t he sa me
results that can otherwise only be achieved using intensive programs.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than
Conventional dishwasher. Generally, only one tablespoon of detergent is needed for
a normal wash load. More heavily soiled items need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Conventional, alkaline detergents with caustic components
Low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. In this case please choose a program with a higher temperature.
Page 9 GDW45S 45cm Freestanding Dishwasher User Manual
Adding detergent to dispenser
Proper Use of Detergent
Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.
Don't put powdered detergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
WARNING!
Always add the detergent just before starting each wash cycle.
Only use branded detergent and rinse aid for dishwasher.
If the lid is closed: push the latch to open.
NOTE:
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
For main wash detergent.
For pre-wash detergent.
Please observe the manufacturers dosing and storage
Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
You see information about the amount of detergent for the single programme on page 8.
Please be aware that soiling levels and water hardness can effect wash results.
Please observe the manufacturer's recommendations on the detergent packaging.
Push latch to open
A B
GDW45S 45cm Freestanding Dishwasher User Manual Page 10
5.Loading the Dishwasher Baskets
For washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become
dull after a large number of washes
Silver and aluminum parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Are not suitable
Are of limited suitability
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deep base.
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
Attention before or after loading the Dishwasher Baskets
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Removing the Dishes
Page 11 GDW45S 45cm Freestanding Dishwasher User Manual
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
The height of the upper basket can be adjusted in order to
create more space for large utensils both for the upper
/lower basket. The height of the upper basket can be
adjusted by placing the wheels on different height of the
rails. Long items, serving cutlery, salad servers and knives
should be placed on the shelf so that they do not obstruct
the rotation of the spray arms..
Lower position
Upper position
Wheels
For better stacking of pots and pans,
the spikes can be folded down as
show in the picture right.
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
Cutlery Basket
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp
point down!
WARNING!
The upper basket is designed to hold more delicate
and lighter dishware such as glasses, coffee and
tea cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will
not get moved by the spray of water.
Loading the Upper Basket
We suggest that you place large items and the most
difficult to clean items are to be placed into the lower
basket: such as pots, pans, lids, serving dishes and
bowls, as shown in the figure below. It is preferable to
place serving dishes and lids on the side of the racks
in order to avoid blocking the rotation of the top spray
arm.
Loading the Lower Basket
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
The Method Loading Normal Dishware
IN
IN
Adjusting the Upper Basket
Folding back the cup shelves
Folding Spikes of Lower Basket
SILVERWARE CUTLERY
NOTE: Check manufacturer's recommendations regarding cleaning silverware in dishwashers. For personal
safety and top quality cleaning, place silverware in cutlery basket making sure:
They do not nest together
Silverware is placed with handles down
Knives and other potentially dangerous utensils should be placed with handles up
GDW45S 45cm Freestanding Dishwasher User Manual Page 12
6.Starting a washing program
Turning On the Appliance
NOTE:
* : This program is the test cycle. The information for comparability test
in accordance with ,as follows:
Capacity: 9 setting
Position Upper basket: upper wheels on rails
Rinse aid setting: 6
PI:0.49w;Po:0.45w
Wash Cycle Table
NOTE:
Means: need to fill rinse into the Rinse-Aid Dispenser.
( )
Starting a cycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and Rinse Aid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the On/Off button, and the On/Off light will turn on.
Turn the program button , the wash program will be changed as follows direction:
Intensive->Heavy->ECO->Glass->90 min->Rapid;
If a program is selected, the response light will light. Then press the Start/Pause button, the
dishwasher begins to start.
1
2
3
4
5
Glass
Detergent
pre/main
Cycle Selection
Information
Program
Intensive
Heavy
Running
time(min)
Water
(L)
Energy
(Kwh)
Rinse
Aid
Rapid
Description
of Cycle
(*AS/NZS 2007.1)
For lightly soiled loads,
such as glasses,
crystal and fine china.
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
125
0.75
13.5
(Or All in1)
5/21.25g
5/21.25g
(Or All in1)
(Or All in1)
5/21.25g
For normally soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
standard daily cycle.
For the heaviest soiled
loads, such as pots, pans,
casserole dishes and dishes
that have been sitting with
dried food on them for a
while.
A shorter wash for lightly
soiled loads that do not
need drying.
Pre-wash(50 )
Wash (60 )
Rinse
Rinse
Rinse(70 )
Drying
Pre-wash(45 )
Wash (55 )
Rinse
Rinse (65 )
Drying
Pre-wash
Wash (45 )
Rinse(45 )
Drying
Wash (45 )
Rinse(50 )
Rinse(55 )
175
175
165
30
1.1
0.55
1.4
0.7
16.5
13
10.9
10
Wash(65 )
Rinse
Rinse (65 )
Drying
90
11. 5
1.15
26.25g
20g
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.
For lightly soiled crockery
and glass.
90 min
/
(Or All in1)
5/21.25g
(Or All in1)
Page 13 GDW45S 45cm Freestanding Dishwasher User Manual
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they
are still hot and more susceptible to breakage. They will also dry better.
Switch Off the Dishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1.Switch off the dishwasher by pressing the On/Off button.
2.Turn off the water tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
Change the Program
Forgot to Add a Dish
If you open the door during a wash cycle , the machine will pause. The program light will
stop blinking and the buzzer will mooing every minute unless you close the door . After
you close the door ,the machine will keep on working after 10 seconds.
NOTE:
At the End of the Wash Cycle
Premise:
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pause button, the machine will be in standby state, press the program button more than
3s then you can change the program to the desired cycle setting (see the section entitled " Starting a wash
cycle").
1
2
WARNING!
It is dangerous to open the door when washing,
because the hot water may scald you.
A forgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working, you can open the door
completely.
2
3
Open the door a little .
1
4
5
6
Press the Start/Pause Button to stop the washing.
Press the Start/Pause Button, the dishwasher will run
after 10 seconds.
GDW45S 45cm Freestanding Dishwasher User Manual Page 14
The filter prevents larger remnants of food or other objects from getting inside the pump.
The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
This filter holds soil and food residues in the sump area and
prevents it from being deposited on the dishes during wash cycle.
Main filter
1
Food and soil particle s trapped in this filter are pu lverized by a
special jet on the lower spra y arm and washed down to drain.
Coarse filter
Larger items, su ch as pieces of bone s or glass, that could block
the drain are tra ppe d in the coarse filter. To remove the items
caught by the filter, gen tly squeeze the tap on the top o f th is
filter and lift o u t.
Fine filter
3
2
3
1
Filter assembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to
remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING!
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performance level of the appliance
and damage dishes and utensils.
1
2
Step 1 Turn the filter in anti-clockwise direction,
Step 2 lift the filter assy up
7.Maintenance and Cleaning
Filtering System
NOTE:
When following this procedure from step1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
Open
2
Page 15 GDW45S 45cm Freestanding Dishwasher User Manual
Protect Against Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. ( Use a p an t o gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
Please take frost p rotecti on measures on the dishwasher in winter. Every time after washing cycles, please operate
as follows
Caring for the Dishwasher
Cleaning the Filter
The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any
part of the dishwasher.
Cleaning the Door
To c lea n the coarse filter a nd t he fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the last page a nd reinsert the entire assembly in the dishwas her, po sitioning it in its seat and pressing
downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and the performance of the dishwasher could be decreased.
WARNING!
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
WARNING!
Never use a spray cleaner to clean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or some paper towels should not be used because of the risk of
scratching or leaving spots on the stainless steel surface.
NOTE:
If your dishwasher cannot work because of the ice,
please contact professional service persons.
-Ins pect the filters for blockages after every time th e dishwasher has been used.
- By unscrew ing the coarse filter, you can remove the f ilter system. Remove any food remnants and
clean the filters under running water.
Remarks:
The entire filter assembly should be cleaned once a week.
NOTE:
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets a nd bearings.
To remo ve the upper spray arm, hold the nut, rotate the arm
clockwise to remove it.
To remove the lower spray arm, pull out the spray arm upward
Wash the arms in soapy and warm water and use a soft brush
to clean the jets. Replace them after rinsing them thoroughly.
Open
GDW45S 45cm Freestanding Dishwasher User Manual Page 16
It is recommend that you run a wash cycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
seals to last longer and prevent odours from forming
within the appliance.
If the appliance must be moved, try to keep it in the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of the factors that cause odours to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water an a little
vinegar, or a cleaning product made specifically for
dishwashers.
Remove the Plug
No Solvents or Abrasive Cleaning
Moving the Appliance
Seals
How to Keep Your Dishwasher in Shape
After every wash, turn off the water supply to the
appliance and leave the door slightly open so that
moisture and odours are not trapped inside.
After Every Wash
When not in Use for a LongTime
8.Installation instruction
Electrical Requirements
Electrical Connection
Ensure the volt age and frequency o f the power being connected to corresponds t o
those o n the rating plate . On ly insert the plug into an electrical socket which is earthed
properly.
If the ele ctric al s ock et to w hich the appliance must be connected to is not appropriate
for the plug , replace the socket, rather than using adaptors or the like as they could
cause o verheat ing and burns. Use of extension is not allowed.
Insure proper ground
exists before use
Please look at the rating label t o kn ow the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving
only this appliance.
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can
be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the dishwasher
may be altered via adjustment of the screwing level of the feet. In any case,
the appliance should not be inclined more than 2 .
Positioning the Appliance
About Power Connection
WARNING!
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not under any circumstances, cut or remove the earthing
Connection from the power cord.
8.Installation instruction
Page 17 GDW45S 45cm Freestanding Dishwasher User Manual
14
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
water run to make sure that the water is clear. This precaution is needed to avoid the
risk of the water inlet to be blocked and damage the appliance.
Please close the hydrant after using.
WARNING!
Water Connection
Drain hose Connection
Insert the drain hose into a drain pipe with a minimum d iameter of 40mm, or let it run into the sink, making sure
to avoid bending or crimping it . The top of the hose must be less than 1000mm.
WARNING: If dishwasher drain hose ois c onnected directly to sink drain pipe as per A s hown below
through the dedicated dishwasher connector on the side of the drain pipe ensure the centre is drilled out
otherwise flooding will o ccur.
MAX 1000mm
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
40mm
B
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B
GDW45S 45cm Freestanding Dishwasher User Manual Page 18
Start of Dishwasher
The content of this manual is very helpful to the users.
After installation, please make sure to keep this manual.
Attention:
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2 The inlet water tap is open
3 Inlet hose connections are fully tightened and not leaking
4 The electrical power plug securely fitted to socket
5 The power is switched o n
6 The inlet and drain hoses are kinked and squashed
7 All packing materials and printings should be taken out from the dishwasher
How to Drain Excess Water From Hoses
If attaching drain hose directly to sink and it is above 1000mm high f rom floor level the excess wate r
in hos es c annot be draine d directly into the sink. It will be necessary to drain excess water from
hoses into a bowl or suitable container tha t is held outside and lower than the s i nk. Drainage directly
into sink d r ain pipes via the dishwasher connection point is the preferred installation method.
Water Outlet
Connect the w ater drain hos e. The drain hose must be correctly fitte d to avoid water leaks. Ensure
that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 3 metres; otherwise the cleaning effect of the dishwasher could be reduced.
Syphon Connection
The waste co nnection must b e at a height less than 1000 mm (maximum) from the botto m of the dish.
The water drain hose should be fixed .
Page 19 GDW45S 45cm Freestanding Dishwasher User Manual
9.Troubleshooting Tips
Problem Possible CausesWhat to Do
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Suds in the tub
Spilled rinse-aid
Always wipe up rinse-aid spills immediately.
Review the charts on the following pages may save you from calling for service.
White film on
inside surface
There are rust
stains on cutlery
Knocking noise
in the wash cabinet
Rattling noise
in the wash cabinet
Knocking noise
in the water pipes
Hard water minerals
The affected items are
not corrosion resistant.
The lid of the softer
is loose
A spray arm is
knocking against
an item in a basket
Items of crockery
are loose in the
wash cabinet
This may be caused
by on-site installation
or the cross-section of
the piping.
A programme was not
run after dishwasher
salt was added.
Traces of salt have
gotten into the wash cycle.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
Always run the quick wash programme .
without any crockery in the dishwasher and
without selecting the Turbo function (if present),
after adding dishwasher salt.
Check the lid .Ensure the fix is fine.
Interrupt the programme, and rearrange the items
which are obstructing the spray arm.
Interrupt the programme,
and rearrange the items of crockery.
This has no influence on the dishwasher function.
if in doubt, contact a suitably qualified plumber.
Stained tub interior
Detergent with
colourant was used
Make sure that the detergent is the one without
colourant.
Improper detergent
Dishwasher doesn't
start
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turned on.
Make sure to close the door properly and latch it.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Water pressure is low
Door of dishwasher
not properly closed.
water not pumped
from dishwasher
Kink in drain hose
Filter clogged
Kitchen sink clogged
Check drain hose.
Check the coarse filter
(see section titled " Cleaning The Filter ")
Check the kitchen sink to make sure it is draining well.
If the problem is the kitchen sink not draining ,you may
need a plumber rather than a serviceman for dishwashers.
Before Calling for Service
Technical
problems
General
problems
Noise
Use only the special dishwasher detergent to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher, then select any cycle. Dishwasher will drain
out the water at the first step.Open the door after draining
is stop and check if the suds is disappeared.
Repeat if necessary.
GDW45S 45cm Freestanding Dishwasher User Manual Page 20
Error Codes
Problem Possible Causes What to Do
The dishes were not
loaded correctly.
See notes in " Loading the Dishwasher Baskets ".
The dishes
are not clean
Cloudiness
on glassware
Black or gray
marks on dishes
Detergent left in
dispenser cups
The dishes
are not drying
Select a more intensive programme.
See" Wash Cycle Table ".
Use more detergent, or change your detergent.
Rearrange the items so that the spray can rotate freely.
Clean and/or fit the filter combination correctly.
Clean the spray arm jets. See "Cleaning the Spray
Arms".
Use less detergent if you have soft water and select
a shortest cycle to wash the glassware and to get
them clean.
Use a mild abrasive cleaner to eliminate those marks.
Re-loading the dishes properly.
Load the dishwasher as suggested in the directions.
Increase the amount of rinse-aid/refill the rinse-aid
dispenser.
Do not empty your dishwasher immediately after
washing. Open the door slightly so that the steam can
escape. Begin unloading the dishwasher only once the
dishes are barely warm to the touch. Empty the low
basket first. This prevents water form dropping off
dishes in the upper basket.
In short program the washing temperature is lower.
This also lowers cleaning performance. Choose
a program with a long washing time.
Water drainage is more difficult with these items.
Cutlery or dishes of this type are not suitable for
washing in the dishwasher.
The programme was
not powerful enough.
Not enough detergent
was dispensed.
Items are blocking
the path of spray arms.
The filter combination
in the base of wash
cabinet is not clean or
is not correctly fitted.
This may cause
the spray arm jets
to get blocked.
Combination of soft
water and too much
detergent.
Aluminum utensils
have rubbed against
dishes.
Dishes block
detergent cups.
Improper loading
Too little rinse-aid
Dishes are removed
too soon
Wrong program
has been selected
Use of cutlery with
a low-quality coating
Unsatis
-factory
washing
result
Unsatis
-factory
drying
result
WARNING!
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
Overflow.
When some malfunctions come on, the appliance will display error codes to warn you:
Meanings
Possible Causes
Longer inlet time.
Faucets is not opened, or water intake is
restricted,or water pressure is too low.
Some element of dishwasher leaks .
Not reach the setting temperature.
Malfunction of heat element
Page 21 GDW45S 45cm Freestanding Dishwasher User Manual
Technical Information
Height : 845mm
Width : 448m m
Depth :
600mm
(with the door closed)
Water pressure: 0.04-1.0MPa
Power supply:
See rating label
Capacity:
9 place settings
448
845
1150
600
(with t he do or cl osed)
GDW45S 45cm Freestanding Dishwasher User Manual Page 22
Loading the baskets according to (*AS/NZS 2007:1)
Page 23 GDW45S 45cm Freestanding Dishwasher User Manual
-
•
IN
3.Cutlery
basket:
Information for comparability test in accordane with (*AS/NZS 2007:1)
Q Voltage: 220-240V / 50Hz
Q Capacity: 9 place settings
Q Postion of the upper basket: lower
Q Programme: ECO
Q Detergent (Pre / main): 5g / 21.3g
Q Rinse aid setting: 6'
Q Door opened at end of dryting cycle for the drying performance test
(Door position: Open 50mm)
GDW45S 45cm Freestanding Dishwasher User Manual Page 24
For all product enquiries (including warranty support),
please contact our Customer Care team on
1800 444 357 or via email: customercare@hapl.com.au
Loading...
