Baumatic EASYICE 1SL, EASYICE 1W Instruction Manual

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

User Instruction Manual for your

EASYICE 1W

EASYICE 1SL

ICE MAKER

Important: Please read these instructions carefully before using your Ice Maker. If
you follow the instructions in this manual, your appliance will operate in good condition
for a long time. PLEASE KEEP THIS MANUAL SAFELY FOR FUTURE
REFERENCE. 27/05/05

1

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

CONTENTS

SPECIFICATIONS………………………………3

SAFETY INFORMATION / BEFORE USING

YOUR ICE MAKER………………………….….4

YOUR ICE MAKER ……………………………..5

FEATURES / CONTROL PANEL. ………….…6

USING YOUR ICE MAKER ………..…………7-8

IMPORTANT USAGE NOTES ………………….9

CLEANING AND MAINTENANCE /TROUBLE
SHOOTING ……………………………………..10

ENVIRONMENTAL NOTE ……………............11

CONDITIONS OF GUARANTEE………………12

CONTACTING BAUMATIC…………….………13

2

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

EASYICE1W EASYICE1SL
COMPACT PORTABLE ICE MAKER

 ELECTRONIC TOUCH CONTROL OPERATION

 ICE PRODUCTION – 15KG IN 24 HOURS

 CYCLE DURATION: 8-12 MINUTES

 12 ICE CUBES PER CYCLE

 VARIABLE ICE CUBE SIZE SELECTION (

LARGE)

 ICE CUBES STORAGE COMPARTMENT CAPACITY: 1 KG

 WATER TANK CAPACITY: 2.3 LITRES

 EMPTY WATER TANK WARNING LIGHT & SOUND SIGNAL

 AUTOMATIC DEFROST

SMALL, MEDIUM,

STANDARD ACCESSORIES: ICE CUBE SCOOP

DIMENSIONS (H x W x D): 330 x 350 x 385

3

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

Important Safety Information – Please read before using

ELECTRICAL SAFETY

NOTE - This appliance must be grounded. In the event of a malfunction or

•

breakdown, grounding will reduce the risk of electric shock by providing a path of
least resistance of electrical current. You will be able to tell if it is because a non­grounded appliance will give off an electrical discharge.

• Manufacturer declines all responsibility for any damage due to non-grounding of

appliance. READ THIS SECTION TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY WHEN USING YOUR ICE MAKER.

• DURING THE GUARANTEE PERIOD ONLY BAUMATIC SERVICE ENGINEERS OR AN AUTHORISED

AGENT OF BAUMATIC SHOULD CARRY OUT REPAIRS ON THIS UNIT.

• DO NOT USE IF THE SUPPLY CORD IS DAMAGED.

• ONLY PLUG INTO A GROUNDED 3 PIN OUTLET.

• CHECK THE POWER SUPPLY IS RIGHT FOR THE MACHINE (SEE SPECIFICATIONS ON

NAMEPLATE AT THE BACK OF THE UNIT).

• DO NOT USE AN EXTENSION CORD.

• DISCONNECT FROM THE POWER MAINS BEFORE SERVICING.

• DO NOT PULL DIRECTLY ON THE WIRE WHEN PLUGGING IN OR UNPLUGGING THE UNIT.

-*--BEFORE USING

POSITIONING:

The Ice Maker should be positioned:

• Horizontally.

• Kept at least 200mm away from the wall or objects around it.

• Do not install the ice maker near an oven, radiator, or other heat source.

• The machine should stand for at least 3 hours before you use it for

the first time after transportation to ensure the refrigerant settles
back in the compressor and avoids damaging the machine.

• Before you use your new machine, we recommend that you wash out the

interior cabinet, ice cube tray and storage bin. Then you should lock the
seal cover of the drain port at the back of the machine. When the above
steps are OK, then you can fill pure or boiled water that has cooled (about

2.3 Liters) into the water tank and cover it for operation.

4

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

We have designed your portable ice maker to produce

great tasting ice at the touch of a button and to give you
years of enjoyment with trouble-free operation.

This machine can make ice automatically and quickly. It is very
easy to operate.

Technical Specifications:

For the detailed specifications, please refer to the nameplate at the back of
the ice maker. The specifications are subject to change without prior notice.

See the key below to understand your Ice Maker.

5

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

FEATURES

This Ice maker is different from traditional commercial ice
makers. Its unique design and portability will complement
your room, RV, boat, office or wherever you need a ready
supply of ice. It is micro computerized and makes ice fast
and easy. It takes pure or boiled water (but not boiling
water!) and, according to the size of ice cube you select, it
can produce ice within 10 minutes.

Through each cycle, the ice maker completes the following
steps:

1. Water filling

2. Ice making

3. Water releasing

4. Ice dropping

5. Ice transfer

6. Ice storage

9 It is reliable and convenient for operation
9 Indicator lights will show you that ice is ready or that

the water tank is empty and water needs to be added.

9 There are three sizes of ice cube available. Using the

options from the control display, you can choose
small, medium and large ice cubes.

9 The portable ice maker is suitable for use at home,

bars, hotels and supermarkets.

------------------------------------------------------------------------------------------------------------

Control Panel Operation

The following diagram shows the control panel:

6

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

• PRESS THIS BUTTON TO START THE ICE MAKER

• PRESS THIS BUTTON TO STOP THE ICE MAKER

• PRESS THIS BUTTON TO SELECT THE SIZE OF ICE CUBES.

• THREE SIZES ARE AVAILABLE: SMALL, MEDIUM & LARGE.

• THE SIZE SELECTED WILL STAY THAT WAY UNLESS CHANGED OR

IF THERE IS A POWER FAILURE. THE DEFAULT SETTING IS
MEDIUM.

• INDICATOR OF SMALL ICE CUBE SIZE. THIS LIGHT COMES ON
WHEN SMALL ICE CUBE SIZE IS SELECTED.

• INDICATOR OF MEDIUM ICE CUBE SIZE. THIS LIGHT COMES ON
WHEN MEDIUM ICE CUBE SIZE IS SELECTED.

• INDICATOR OF LARGE ICE CUBE SIZE. THIS LIGHT COMES ON
WHEN LARGE ICE CUBE SIZE IS SELECTED.

• ICE FULL INDICATOR: IF THE ICE CUBE TRAY IS FULL, THIS
LIGHT WILL FLASH. TAKE OUT THE ICE CUBES AND START THE
UNIT AGAIN TO LET IT CONTINUE TO MAKE MORE ICE CUBES.

• THIS LIGHT WILL COME ON WHEN THE APPLIANCE IS OUT OF

7

WATER. YOU WILL NEED TO ADD WATER AND PRESS THE START
BUTTON TO RESTART THE ICE MAKER.

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

Operation Instructions

1. Open the lid cover and fill with water. Make sure the water
level in the water tank is not over the ice cube tray.

2. Plug the unit into the power supply and the red indicator (M)
in the operation panel will flicker. This indicates that the
machine is in standby status.

3. Select the size of ice cube by pressing the “SELECT” button.
You can choose one of three sizes of ice cube: S (small),
M(Medium) and L(large) with each’s indicator lit accordingly.

4. Press the START button to run the unit. In normal working
conditions, the machine can make 12 pieces of ice cube each
cycle.
 If the ice cube is set on

minutes;

 If the ice cube is set on medium size, the cycle time is about

10 minutes;

small size, the cycle time is about 8

 If the ice cube is set on

large size, the cycle time is about 12

minutes.

NOTE: For the machine’s very first run, the cycle time to make
ice cubes may be longer than in normal working conditions.

5. During each cycle, 12 ice cubes will be collected in the
storage bin automatically. When the storage bin is full, the
relevant indicator will be lit in green and the compressor and fan
motor will stop. You should open the door and collect the ice
cubes before putting them in a low temperature appliance to
keep them from melting.

6. When the water level is too low, the “FILL WATER” indicator
will light and the compressor/fan motor will stop. Then you
should check the level, add water and restart the unit to make
more ice cubes.

7. If you no longer want to make ice cubes, just press the
“STOP” button to stop the unit.

8. For best performance, water temperature should be between 7
and 35°C and ambient temperature between15 and 25°C..

8

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

Important Usage Notes

Depending on the season, sometimes your machine may not
seem to work well. The most likely symptoms of this will be:

1). When you choose the small ice cube size, the ice cubes you
get are too small;

or

2). When you choose the large ice cube size , the ice cubes you
get are too big or linked together.

Please note - this is not a malfunction. Just follow our
suggestion below and the above situation can be easily
rectified:

AMBIENT TEMPERATURE
UNDER 20

°C

Choose small ice cube

20 ~27

°C Choose medium ice cube

SUGGESTED ICE CUBE SIZE

OVER 27

°C Choose large ice cube

If you are not sure of your room temperature, you can always
start your machine at medium ice cube size.

 Should you find your ice cubes are not big enough, please

change to large ice cube size.

 If the ice cube size seems too big or even linked, please

switch to the small ice cube size.

9

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

Care and Clearing / Maintenance

9 To ensure the cleanliness of

the ice cubes, water in the
water tank must be replaced
very 24 hours.

9 If the compressor stops for

reasons such as water
shortage, too much ice,

power off, etc, do not

restart the system right
away

re-start the ice maker.

9 Remove the drain plug to

drain the remaining water
from the water tank when
the ice maker will not be
used for long periods of
time. Screw the drain plug
back in place after the water
has been drained.

. Wait 3 minutes, then

9 Always charge with fresh

water before starting ice
production at initial
installation and after a long
time without use.

9 Please clean the ice maker

regularly. When cleaning,
unplug the unit and remove
the ice cubes. Use a diluted
solution of water and
vinegar to clean the inside
and outside surfaces of the
ice maker. Do not spray ice
maker with chemicals or
diluted agents such as acid,
gasoline, or oil.

9 Rinse unit thoroughly

before starting.

Troubleshooting

This troubleshooting section is to be used only as a guideline to assist in determining any problems.

Problem Possible Cause

The compressor works abnormally
with a buzzing noise!

Water shortage indicator light is
on!

Ice full indicator light is on!

No indicator lights & no display!

Conditions for ice making cycle are
right but no ice is being made!

The voltage is lower than
that recommended.

There is no water Press the stop button, fill with water,

Ice cube tray is full Take out some ice cubes

 Blown fuse
 No power

 Refrigerant leakage
 Sealed system is

blocked

Suggested Solution

Stop the ice maker and do not
restart it until the voltage is normal.

wait 3 minutes and press the START
button to restart.

 Replace fuse
 Turn power on

Call for service

10

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

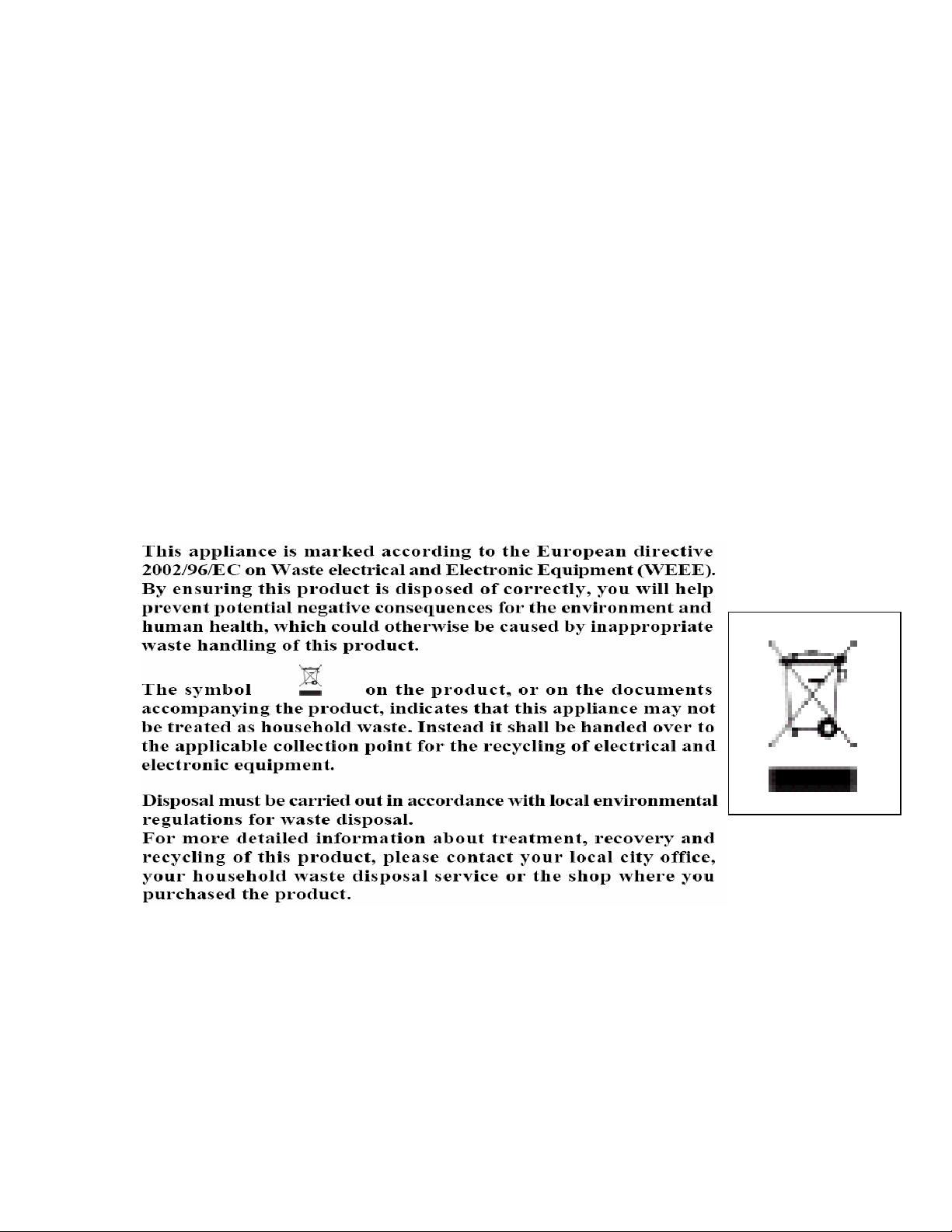

CONFORMITY TO W.E.E.E. DIRECTIVE

11

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

BAUMATIC LTD. - CONDITIONS OF GUARANTEE.

Dear Customer,

The conditions of guarantee which apply to your Baumatic appliance are as follows: This product is
guaranteed for 12 months from the date of original purchase.
Baumatic Ltd will repair any defect that arises due to faulty materials or workmanship free of charge
during this period.

In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge
the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect
that arises due to faulty materials or workmanship within a period of 5 years from the original purchase
date.

An additional and annually renewable insurance scheme for labour is available should you wish to extend
the warranty period.

Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance,
the policy is negated and Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only, unless otherwise stated.

Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale
issued at the time of purchase.

This guarantee is transferable only with the written consent of Baumatic Ltd.

If the appliance fails and is considered either not repairable or uneconomical to repair between twelve
months and five years from purchase date, a free of charge replacement will not be offered.

The guarantee for any replacement will only be for the remainder of the guarantee on the original product
purchased.

This guarantee does not cover:

• Sinks and taps

• Failure to comply with the manufacturer’s instructions for use.

• The replacement of cosmetic components or accessories.

• Accidental damage or wilful abuse.

• Subsequent loss or damage owing to the failure of the appliance or electrical supply.

• Incorrect installation.

• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts.

• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers,

baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals, refrigeration

In the course of the work carried out it may be necessary to remove the appliance from its operating
position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage
sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights.

Contacting Baumatic.

SALES
TEL: [phone]
FAX: [phone]

For mainland UK and Northern Ireland, please contact one of the above numbers for further information or
any other query you may have.

For ROI (Republic of Ireland), please contact one the numbers below:

TEL: [phone] FAX: [phone]

system blockage.

SERVICE
TEL: [phone]
FAX: [phone]

Thank you for buying Baumatic.

SPARES
TEL: [phone]
FAX: [phone]

TECHNICAL / ADVICE
TEL: [phone]
FAX: [phone]

12

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

Baumatic Ltd

Make-up for your kitchen

Headquarters

Baumatic Buildings,

6 Bennet Road,

RG2 0QX, United Kingdom

Sales Telephone

[phone]

[phone]

Service Telephone

[phone]

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

[e-mail]

[e-mail]

Http (Internet site):

www.baumatic.com

Baumatic UK/cod. 1230000666

Baumatic Ltd.

Reading,

Berkshire

Sales Fax

Service Fax

E-mail

:

13

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

14

Your Baumatic EASYICE1W / EASYICE1SL Ice Maker

15
