Page 1
User Manual for your
BWE600GL Cooker Hood
60 cm Glass cooker hood in stainless steel
BWE700GL Cooker Hood
70 cm Glass cooker hood in stainless steel
BWE900GL Cooker Hood
90 cm Glass cooker hood in stainless steel
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 21/05/12
Page 2
Contents Page
Environmental note 3
IMPORTANT SAFETY INFORMATION 4 – 6
Specifications of your BWE600GL cooker hood 7
Specifications of your BWE700GL cooker hood 8
Specifications of your BWE900GL cooker hood 9
Using your cooker hood 10 - 11
Before first use 10
To use your cooker hood 10 - 11
Cleaning your cooker hood 11 - 12
The grease filter 12
Maintenance 12 - 15
Removing and cleaning the grease filter 12 - 13
Changing a light bulb 14
Fitting the carbon filters 15
Installation 16 - 25
Electrical connection 16 - 17
Before beginning installation 17 – 18
Attaching the glass canopy 18
Installing your cooker hood 19 - 21
Connecting to external ducting 22
Fitting the chimney 22 – 24
Completing the installation 25
Extraction mode or recirculation mode? 25
Troubleshooting 26 - 27
Contact details 28
2
Page 3
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.

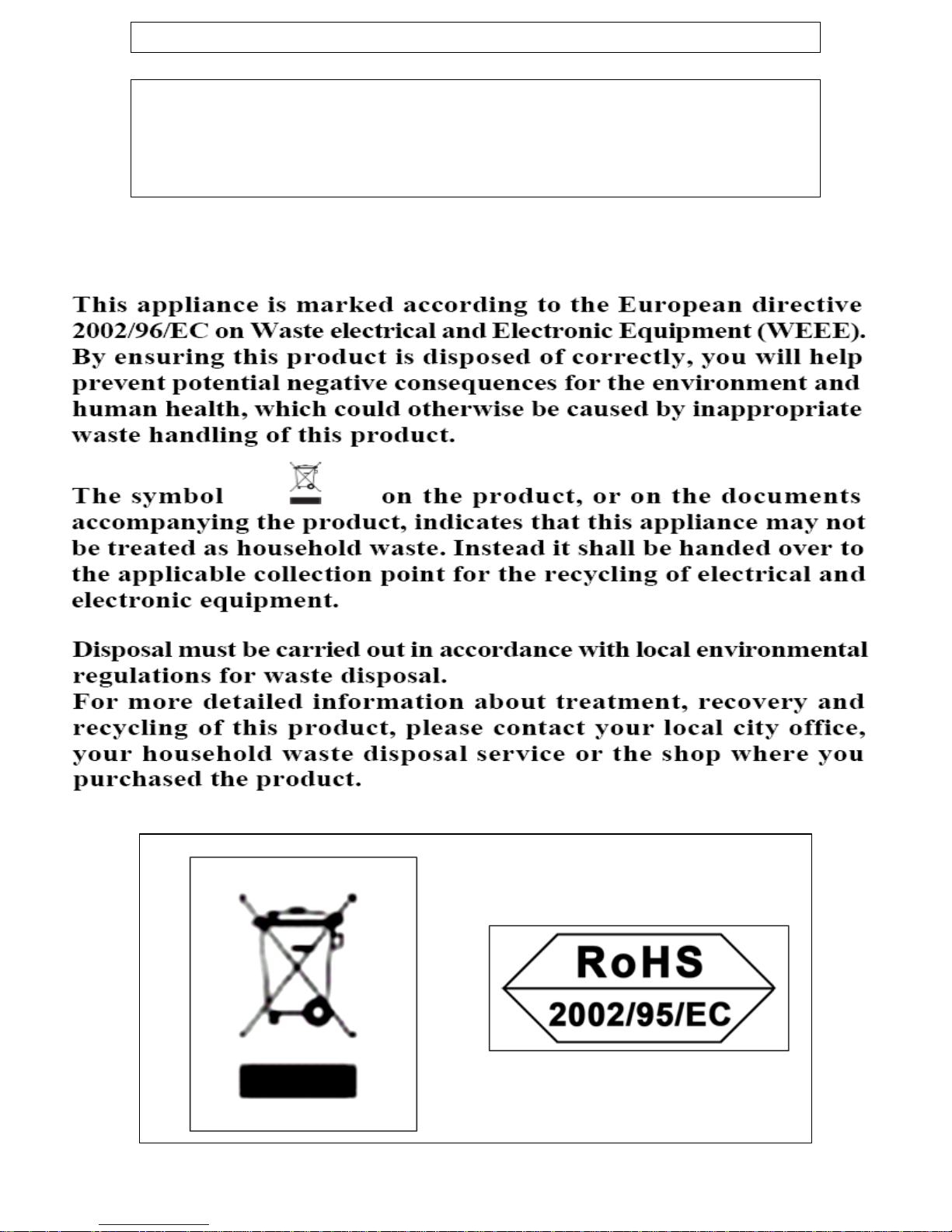

CONFORMITY TO W.E.E.E. DIRECTIVE
3
Page 4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Advice L
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
o The hood must be installed in accordance with the installation
instructions and all measurements followed.
o If the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
o It is dangerous to alter the specifications or to modify this
product in any way. Do not tamper with or attempt to modify
the appliance in any way.
o When installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
Electric cookers: 700 mm*
Gas cookers: 700 mm*
Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT
SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
* In the case of a reduced ceiling height, it is possible to reduce the
minimum gap to 400 mm.
ine.
4
Page 5
o When installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
o The edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER!
o If the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
o If other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
o When the hood is being used in extraction mode, ensure that the
ducting is fire retardant and that there are no bends greater than
90 degrees as this will reduce the efficiency of the hood.
o Ensure the ducting for the extractor mode has the same
diameter as the outlet hole all the way through.
o Keep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
o Your cooker hood is for domestic use only.
o Please dispose of the packing material carefully – children are
especially vulnerable to it.
o Dirty oil is an even greater fire risk.
o Always put lids on pots and pans when cooking
on a gas cooker.
o The manufacturer refuses to accept any responsibility for
damages arising to the hood or for it catching on fire, from a
5
Page 6
failure to observe the fire safety advice contained in these
instructions.
o Remember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
o Note that the cooker hood removes odours from your
kitchen, not steam.
o Warning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including cleaning and
replacing light bulbs.
o Do not connect the ducting system of this appliance to an
existing ventilation system being used for any other purpose.
o Do not install above a cooker with a high level grill.
o Never leave frying pans unattended during use
as overheated fats and oils might catch fire.
o The cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
o Do not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filter fitted or if
the filter is excessively greasy!
o Never flambé cook under this cooker hood.
o The lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
6
Page 7

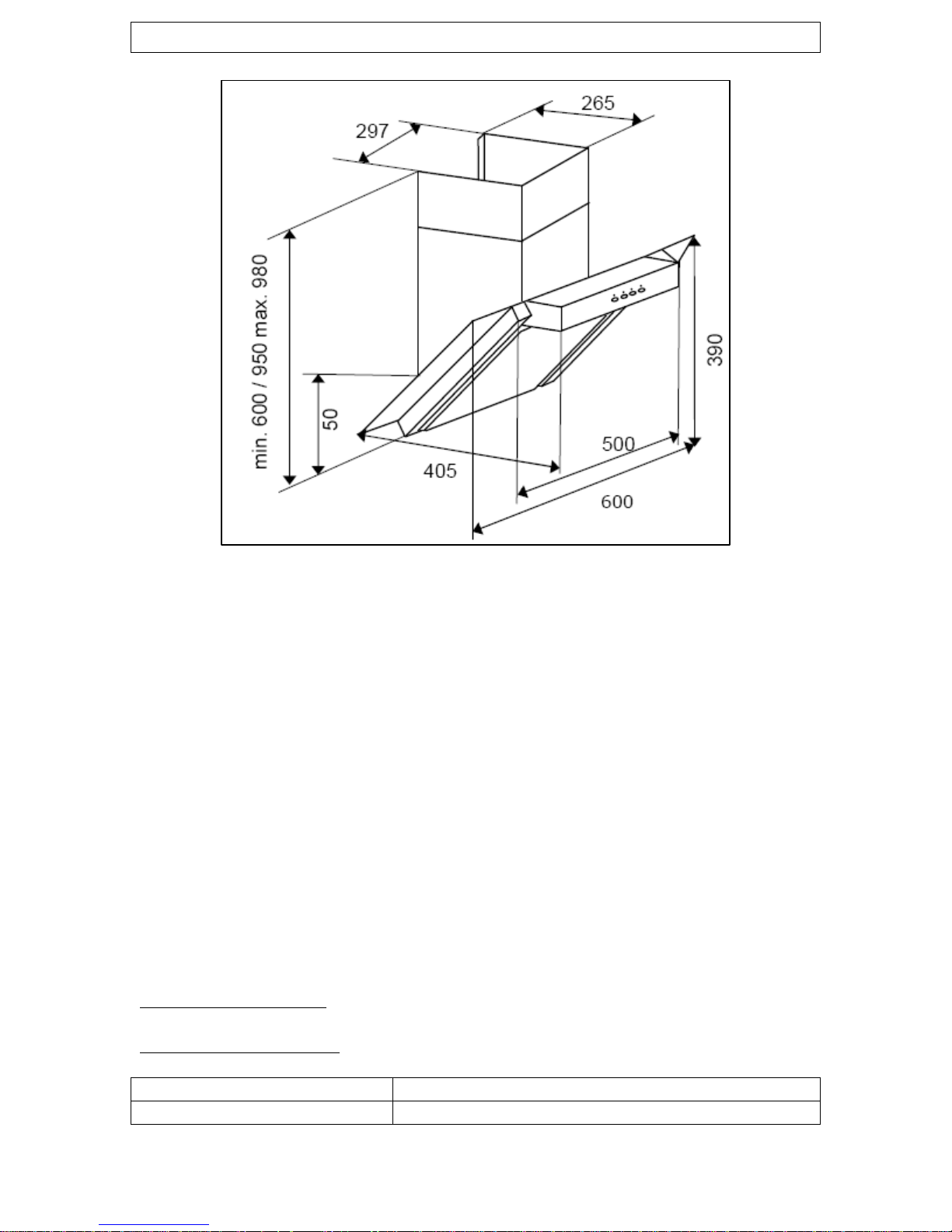

Specifications of your BWE600GL cooker hood
PRODUCT DIMENSIONS:
Height: 600 mm – 950 / 980 mm
Width: 600 mm
Depth: 405 mm
DIMENSIONS OF CHIMNEY SECTION:
297 mm x 265 mm
Your stainless steel cooker hood is fitted with:
o High extraction tangential motor
o Electrical button control operation
o 3 Speeds
o 1 Metallic grease filter
o 2 halogen lights
Extraction capacity:
Noise level min/max:
MODEL NUMBER CARBON FILTER REQUIRED
BWE600GL S1 (1 pair)
500 m³/hr
54 – 58 dB
7
Page 8
Specifications of your BWE700GL cooker hood
PRODUCT DIMENSIONS:
Height: 600 mm – 950 / 980 mm
Width: 700 mm
Depth: 405 mm
DIMENSIONS OF CHIMNEY SECTION:
297 mm x 265 mm
Your stainless steel cooker hood is fitted with:
o High extraction tangential motor
o Electrical button control operation
o 3 Speeds
o 1 Metallic grease filter
o 2 halogen lights
Extraction capacity:
Noise level min/max:
MODEL NUMBER CARBON FILTER REQUIRED
BWE700GL S1 (1 pair)
500 m³/hr
54 – 58 dB
8
Page 9
Specifications of your BWE900GL cooker hood
PRODUCT DIMENSIONS:
Height: 600 mm – 950 / 980 mm
Width: 900 mm
Depth: 405 mm
DIMENSIONS OF CHIMNEY SECTION:
297 mm x 265 mm
Your stainless steel cooker hood is fitted with:
o High extraction tangential motor
o Electrical button control operation
o 3 Speeds
o 1 Metallic grease filter
o 2 halogen lights
Extraction capacity:
Noise level min/max: 54 – 58 dB
MODEL NUMBER CARBON FILTER REQUIRED
BWE900GL S1 (1 pair)
500 m³/hr
9
Page 10
Using your cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
o You should use a good quality stainless steel cleaner on ALL of
the stainless steel areas of your cooker hood, before it is used
for the first time.
o This will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
o Make sure that it has been installed by a suitably qualified
person, as per the information contained in the manufacturer’s
installation instructions.
o Find the control panel, which is located in the centre of the
canopy.
o There are several buttons on the control panel, which perform
separate functions.
To use your cooker hood
o Make sure that it has been installed by a suitably qualified
person, as per the information contained in the manufacturer’s
installation instructions.
o Find the control panel, which is located at the front of the
canopy.
o There are several buttons on the control panel, which perform
separate functions.
10
Page 11
= Low speed
= Medium speed
= High speed
= Light ON/OFF button
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
Cleaning your cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE
THAT YOU HAVE SWITCHED YOUR COOKER HOOD
OFF AT THE OMNI-POLAR SWITCH, SET AT THE
WALL FROM THE CABLE.
Cleaning
o Clean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
o Never use abrasive powder, corrosive solvents or brushes.
o Never insert pointed objects into the motor’s protective grid.
o Only clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
o If you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended interval
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
o Never attempt to clean the area above the grease filters.
o IMPORTANT: You should regularly use a good quality
stainless steel cleaner to maintain the shine and finish on
the stainless steel areas of your cooker hood.
11
Page 12
o This will help to leave a silicone water-resistant film to protect
the stainless steel surfaces and keep them in good condition for
the life of the product.
The grease filter
o Your cooker hood includes a grease filter which helps to absorb
grease particles to protect your kitchen & furniture from greasy
residues.
o This metallic filter may become flammable if it becomes
saturated with this greasy residue.
o To prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
o DO NOT WASH THE GREASE FILTER IN A DISHWASHER.
Maintenance
Removing and cleaning the grease filter
o Lift up the cover that sits over the grease filter (as shown in the
line drawing above).
12
Page 13
o Remove the grease filter by
pulling down on the handle, and
then pull it upwards away from
the main body of the cooker
hood.
o Soak the grease filter in hot water and washing up liquid for at
least 5 minutes (or longer if the grease build up is severe).
o Rinse it off thoroughly with hot water.
o Repeat the process if required.
o Refit the grease filter once it has dried.
o Close the cover that sits over the grease filter.
o IMPORTANT: Let the grease filter dry thoroughly before
refitting it to the cooker hood.
13
Page 14
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
o Remove the grease filter (as
described on pages 12-13).
o Prior to touching the light bulbs ensure that they have cooled
down.
o Find the bulb that requires replacement, you will find it located in
the light fixture which is inside the exposed section of the
canopy.
o Use a screwdriver to remove the glass cover that sits over the
bulb. Unclip the light bulb that needs to be replaced and insert a
new G4 20W (max) bulb. Then replace the glass cover.
o IMPORTANT: Defective bulbs should be replaced immediately.
o If the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
o Refit the grease filter.
14
Page 15
Fitting the carbon filters
If the appliance is to be used in recirculation mode then it is necessary
to fit carbon filters. This will help to absorb unpleasant odours caused
by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Press the carbon filter against
one end of the motor, the fixing
point is in the centre of the
carbon filter.
3) Turn the carbon filter
clockwise, until you feel it click
into place.
o Repeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
o Refit the grease filters.
o The carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
15
Page 16
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filters.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
o The cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
16
Page 17
o As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
o The blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
o The brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
o Check that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
o Carry out all necessary masonry work prior to the fitting of the
cooker hood.
o Ensure that all electrical connections are carried out by a suitably
qualified person.
o Before commencing installation of the cooker hood the grease
filter should be removed.
o Check inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
o If possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
o Select a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on it.
17
Page 18
o Rawl plugs are provided to secure the hood to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.
o Do not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
Attaching the glass canopy
o The glass fixing bolts should be found with the other brackets
and screws provided with the cooker hood. If you find them
already attached to the cooker hood, then you should unscrew
them.
o Carefully place the glass canopy on the upper surface of the
cooker hood.
o Screw the glass fixing bolts through the relevant holes in the
glass canopy.
o IMPORTANT: You must ensure that the glass section is securely
held in place by the glass fixing bolts. However the glass fixing
bolts must not be over tightened, otherwise excessive pressure
could be placed on the glass canopy.
18
Page 19
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 25 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
o We recommend that at least two people install this hood.
o Please note that the styles of cooker hood shown in the
line drawings in the following pages are sometimes
different to the shape of the BWE600GL, BWE700GL and
BWE900GL. However the installation method shown is
correct and MUST be followed.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filters.
2) Position the hood against the wall that you are intending to install it
on and mark the position of the support holes that are to be drilled (as
shown in the figure below).
19
Page 20
2a) The support screw holes are indicated by figure A in this drawing
and the anchoring screw holes are indicated by figure B.
3) Using a drill bit with an 8 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
4) Insert rawl plugs into all of the holes that you have drilled.
5) Fasten the support screws halfway in, leaving them 10 mm out of
the wall.
20
Page 21
6) Hang the hood onto the support
screws.
7) Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the cooker hood. Tighten the
anchoring screws fully into the wall.
21
Page 22
Connecting to external ducting
8) Connect the coupling to the top of the cooker hood, and then
connect a 125 mm ducting hose to the coupling (please note that the
ducting hose is not supplied with the appliance).
o The other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
Fitting the chimney
9) Take the two chimney sections
(C) and (D).
o Rest the bottom of chimney
section (C) on the top of the
hood. You should take care to
position the tabs on the
chimney section into the rear
of the hood.
o Mark the side measurement of
both sides of chimney section
(C) on the wall with a pencil.
22
Page 23
10) Lift chimney section (D) upwards until it reaches the ceiling. You
must ensure that it is perpendicular to the hood.
o Mark the side measurements of both sides of chimney section
(D) on the wall with a pencil and then remove chimney section
(D).
11) Take the flat bracket (E) and place it between the two pencil
marks that you made in step 9
o Keeping the bracket in contact with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the
bracket.
23
Page 24
12) Using an 8 mm drill bit, drill out two holes on the pencil markings
that you made in step 11. Insert rawl plugs into the holes and then
use a screwdriver to secure the fixing bracket to the wall.
o Refit chimney section (C) to the hood and fix it onto the hood
using the two screws that are supplied.
o Secure the top of chimney section (C) to the flat bracket, using
the screws provided.
o Slide chimney section (D) inside of chimney section (C). Then
secure the L shaped bracket to the wall, using the same method
as you have just used to secure the lower bracket.
13) Lift chimney section (D) up to the ceiling and secure it to the L
shaped bracket using the screws provided.
24
Page 25
Completing the installation
If you are setting the appliance to recirculation mode, then you should
now fit the two carbon filters. See the “Fitting the carbon filters”
section on page 15.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply. See page
16 – 17 for detailed information on the electrical connection.
Use a stainless steel cleaner on the stainless steel sections of the
appliance.
Refit the grease filter and then switch on the mains supply
to the appliance. Check that the appliance is operating
correctly by selecting each speed and switching the light
bulbs on and off.
Extraction mode or recirculation mode?
What is the difference between extraction and recirculation
modes?
To get optimum performance from your cooker, the air will be taken
out of the room via external ducting.
Unfortunately if you live in a flat or the hood is too far from an outside
wall, this may not be possible. The only alternative is to recirculate the
air.
In recirculation mode stale air is taken via the grease filter, and passed
through a charcoal filter for purification. The air then re-enters the
kitchen via an opening in the hood
What is a charcoal filter and do I need one?
All cooker hoods have a grease filter but if you are using your cooker
hood in recirculation mode, then charcoal filters must be fitted in
addition to the grease filter.
.
25
Page 26
Troubleshooting
IMPORTANT: If your cooker hood appears not to be operating
properly, before contacting the Customer Care Department,
please refer to the checklist below.
My cooker hood will not start.
o Check that the hood is connected to the electricity supply
o Check that the fan speed control is set correctly.
My cooker hood is not working effectively.
o The fan speed is not set high enough
o The grease filter is dirty and requires cleaning.
o The kitchen is not well ventilated enough.
o If the hood is set up for recirculation mode, check that the
carbon filters do not need replacing.
o If the hood is set up for extraction mode, check that the ducting
hose and discharge outlet are not blocked.
My cooker hood has switched off during operation.
o The safety cut-out device has been tripped.
o Turn off the hob and then wait for the safety cut-out device to
reset.
o IMPORTANT: If you have installed your cooker hood too low,
the safety cut-out device will frequently trip. Your cooker hood
may become damaged if the safety cut-out device is tripped
frequently.
26
Page 27
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact the
Customer Care Department on telephone number
(0118) 933 6918.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by the manufacturer has been
completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
The manufacturer operates a policy of continuous improvement and
reserves the right to adjust and modify its products without prior
notification.
27
Page 28
United Kingdom
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Customer Care
(0118) 933 6918
28
Loading...
