USER MANUAL FOR YOUR
BWCU30SS
30 cm 19 Bottle built-in
wine cabinet
NOTE: This User Instruction Manual contains imp ortant
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
GS 09/04/13
Contents
Environmental note 4
Important safety information 5 – 6
Specifications of your wine cabinet 7 – 8
Dimensions 7
Product specifications 7 - 8
Description of the appliance 8-9
Product features 8
Control panel 9
Description of the product features 9
Using your wine cabinet 10-13
Before switching on 10
During first use 11
Turning the appliance on and off 11
Unlocking the control panel 11
The interior light 12
Setting the temperature 12
Changing between Fahrenheit and Celsius 12
Loading the wine cabinet 13
Storing your wines 13-14
Wine storage problems 15
Cleaning and maintenance 16-18
Defrosting 17
Removing the shelves for cleaning 17
Moving your wine cabinet 18
Power failure 18
Vacation time 18
Installation 18-25
Electrical connection 19
Positioning 20
Built-in installat ion 21
Adjusting the height and levelling off your wine cabinet 22
Installing the handle 23
Reversing the door of your wine cabinet 23-25
Troubleshooting 26-27
Technical data 28
Contact details 29
3

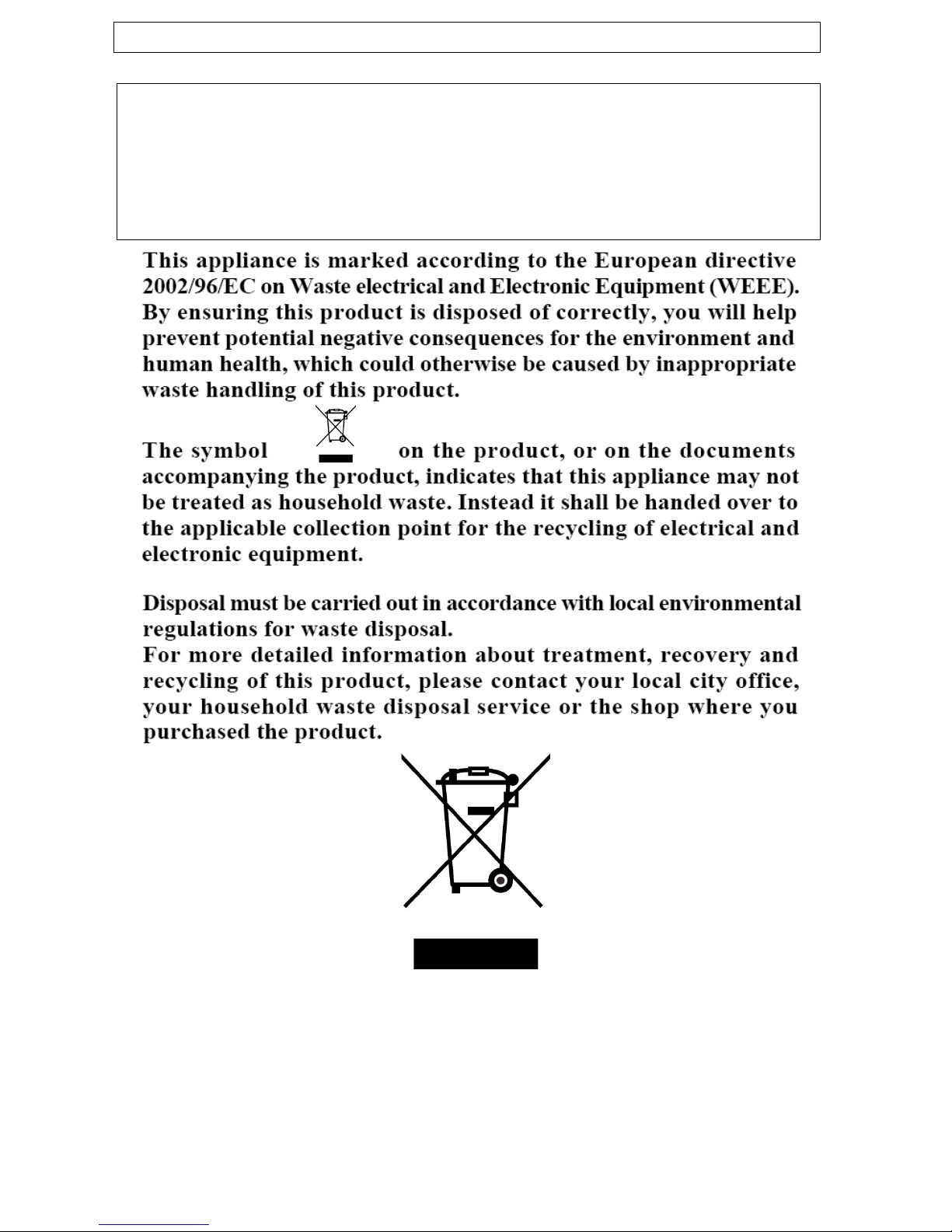

Environmental note
Note: Before disc arding an old appliance , switch off and
disconnect it from the power supply. C ut off and re nder any plug
useless. Cut the cable off dire c tly behind the appliance to preve nt
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
o The packaging materials that the manufacturer uses are
environmentally friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
4
Important safety information
Your safety is of the utmost importance to us. Please
make sure that you r ead this instruct ion booklet before
attempting to install or use the appliance. If you are
unsure of any of the information contained in this
booklet, please contact Customer Care.
IMPORTANT: Any installation w ork must be carried
out by a qualified electrician or competent person.
Use of the appliance
o Your appliance is only designed to be used in the
home. It is suitable for storing and chilling wine.
NO food stuffs must be sto r e d in the a p pliance. If it
is used for any other purpose or it is not used
correctly, then the manufacturer will accept no
liability for any damage that is caused.
o Altering the specificatio n of the ap plian ce must no t be atte mpted
for reasons of safety.
Before using your appliance
o Check the appliance for any signs of transport damage. If you
notice any damage, then yo u should not connect your applia nce
to your mains supply and should contact your retailer.
Refrigerant
o Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sur e that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance i s situate d in sho uld be thor oughly
ventilated.
o Do not place any objects on top of the appliance,
as this may damage the table top.
5
Child safety
o Packaging material should be kept away from
children.
o Children should not be allowed to touch the
controls or play with the appliance.
General safety
o Do not pull on the pow er supply cable to remove the pl ug from
your mains supply socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o Before cleaning the appliance or performing maintenance work,
ensure that the appliance has been disconnected from your
mains supply.
o Never allow the back coils o f the appliance to co me into contact
with the wall surface.
o Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o Never block the ventilation o penings of the appliance, eit her on
the inside or its exterior.
o It is vital to keep your appliance well ventilated, so
that there is proper air flow between the bottom of
the unit and the plinth/kick plate which it is sitting
on.
o Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If y ou require a service call then please
contact the Customer Care Department.
6
Specifications of your wine cabinet
Dimensions of appliance
Height: 870 - 890 mm
Width: 295 mm
Depth: 570 mm
Product specifications
o Gross capacity: 58 litres
o Net capacity: 57 litres
o Bottle capacity: 19 x 0.75 litre Bordeaux style wine bottles
o Energy efficiency class: B
o Quiet operation (39 dB)
o Touch-control operat ion
o LED display
o Celsius and Fahrenheit option
o 6 Adjustable wooden shelves
o Adjustable temperature
o Digital thermometer
o Internal light
o Black exterior
o Water drainage
o Fan Cooling System
o Adjustable feet
o Reversible door
o Tempered gl ass d oor
Dimensions of aperture*
Height: >870 mm
Width: 300 mm
Depth: >570 mm
7
o Stainless steel door frame and handle
1
1 3 5
2
4
o Designed to store wine at i ts opti mum te mperature between 5°C
- 22°C.
* Please refer to the installation instructions for more specific
information on the size of aperture that you will require.
IMPORTANT: When you install your a ppliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is locate d o n the front left e dge
of the appliance. The rating plate will indicate the ambient temperature
range that your appliance will function correctly within. It is also
advisable to make a note o f the model number and the serial number
of the appliance before installing it.
Model number ………………………………………………
Serial number ………………………………………………
Date of purchase ……………………………………………..
Description of the appliance
Product features
Control panel
.Digital control panel
2.Stainless steel door
3.Stainless steel handle
4.Adjustable shelves
5.Adjustable foot
8
The control panel is located in the middle of the appliance.
Description of the product features
Control panel
o The control panel is located at the top of the appliance, behind
the glass door. This means it is easy to set the temperature of
the appliance and see what temperature the appliance is set to.
One cooling zone
o There is one cooling zone inside of your wine cabinet.
o The cooling zone has a temperature control and temperature
display.
Interior light
o The cooling zone has an interio r light. The light can be switched
on and off by using the light control button
The wine cabinet shelves
o The wooden shelves are fully adjustable to suit various wine
bottle shapes and sizes.
o To prevent damaging the door gasket, make sure the door is
fully open when pulling shelves out of the rail compartment.
o For easy access to the bottles stored, pull the shelves out
approximately 1/3 of the way.
9
Using your wine cabinet
Before switching on
o Make sure that it has been installed by a suitably qualified
person, as per the information contained in the manufacturer’s
installation instru ctions.
o After delivery, wait for eight hours before connecting the
appliance to your mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
o he outside of the appliance and the removable accessories
contained within it, should be cleaned with a solution of liquid
detergent and water.
o The interior of the appliance should be cleaned
with a solution of sodium bicar bo nate di sso lve d in
lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning
process has been completed.
o There can be an odour whe n you fir st sw itch on the applia nce. It
will lessen as the appliance starts to cool.
10
