Baumatic BWC300SS User Manual
BWC300SS 30 cm
18 Bottle built- in
wine cabinet
USER MANUAL FOR YOUR BAUMATIC
BWC300SS
30 cm 18 Bottle built-in
wine cabinet
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance.
GS 04/10/12
2
Contents
Environmental note 4
Important safety information 5 – 6
Specifications of your wine cabinet 7 – 8
Dimensions 7
Product specifications 7 - 8
Description of the appliance 8-10
Product features 8
Control panel 9
Description of the product features 9-10
Using your Baumatic wine cabinet 10-13
Before switching on 10
During first use 11
Switching on the appliance and setting the temperature 11-12
Changing between Fahrenheit and Celsius 12
The humidity control box (optional) 12
Loading the wine cabinet 12-13
Storing your wines 13-14
Wine storage problems 15
Cleaning and maintenance 16-18
Defrosting 16-17
Removing the shelves for cleaning 17
Moving your wine cabinet 17
Power failure 18
Vacation time 18
Installation 18-25
Electrical connection 19
Positioning 19-20
Built-in installation 21
Adjusting the height and levelling off your wine cabinet 22
Installing the handle 23
Reversing the door of your wine cabinet 23-25
Troubleshooting 25-26
Baumatic consumables 27
Technical data 28
Contact details 29
3
Environmental note
Note
: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
4
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
Use of the appliance
o Your appliance is only designed to be used in the
home. It is suitable for storing and chilling wine.
NO food stuffs must be stored in the appliance. If it
is used for any other purpose or it is not used
correctly, then Baumatic Ltd. will accept no liability
for any damage that is caused.
o Altering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
o Check the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
o Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
o Do not place any objects on top of the appliance,
as this may damage the table top.
5
Child safety
o Packaging material should be kept away from
children.
o Children should not be allowed to touch the
controls or play with the appliance.
General safety
o Do not pull on the power supply cable to remove the plug from
your mains supply socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o Before cleaning the appliance or performing
maintenance work, ensure that the appliance has been
disconnected from your mains supply.
o Never allow the back coils of the appliance to come into contact
with the wall surface.
o Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o Never block the ventilation openings of the appliance, either on
the inside or its exterior.
o It is vital to keep your appliance well ventilated,
so that there is proper air flow between the
bottom of the unit and the plinth/kick plate
which it is sitting on.
o Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Customer Care Department.
6
Specifications of your wine cabinet
Dimensions of appliance Dimensions o
Height: 870 - 890 mm
Width: 295 mm
Depth: 570 mm
o Gross capacity: 58 litres
o Net capacity: 56 litres
o Bottle capacity: 18 x 0.75 litre Bordeaux style wine bottles
o Energy efficiency class: B
o Noise level: 39 dB
o Electronic push button control operation
o LED display
o Celsius and Fahrenheit option
o 6 Adjustable wooden shelves
o Adjustable temperature
o Digital thermometer
o Humidity control box
o Internal light
o Black exterior
o Water drainage
o Fan assisted operation
o Quiet operation (39 dB)
o Adjustable feet
o Reversible door
Height: 875 mm
Width: 300 mm (min)
Depth: 590 mm (min)
f aperture*
7
o Tempered glass door
o Stainless steel door frame and handle
o Designed to store wine at its optimum temperature between 5°C
- 22°C.
* Please refer to the installation instructions for more specific
information on the size of aperture that you will require.
IMPORTANT: When you install your appliance it is important to bear
in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should
check the rating plate. The rating plate is located on the front left edge
of the appliance. The rating plate will indicate the ambient temperature
range that your appliance will function correctly within. It is also
advisable to make a note of the model number and the serial number
of the appliance before installing it.
Model number ………………………………………………
Serial number ………………………………………………
Date of purchase ……………………………………………..
Description of the appliance
Product features
1) Digital control
panel
2) Stainless steel
door
3) Stainless steel
handle
4) Adjustable
shelves
5) Adjustable foot
8
Control panel
The control panel is located in the middle of the appliance.
1) ON / OFF control button
2) Light control button
3) Temperature display
4) Temperature plus button
5) Temperature minus button
Description of the product features
Control panel
o The control panel is located at the top of the appliance, behind
the glass door. This means it is easy to set the temperature of
the appliance and see what temperature the appliance is set to.
One cooling zone
o There is one cooling zone inside of your wine cabinet.
o The cooling zone has a temperature control and temperature
display.
Interior light
o The cooling zone has an interior light. The light can be switched
on and off by using the light control button (2).
9

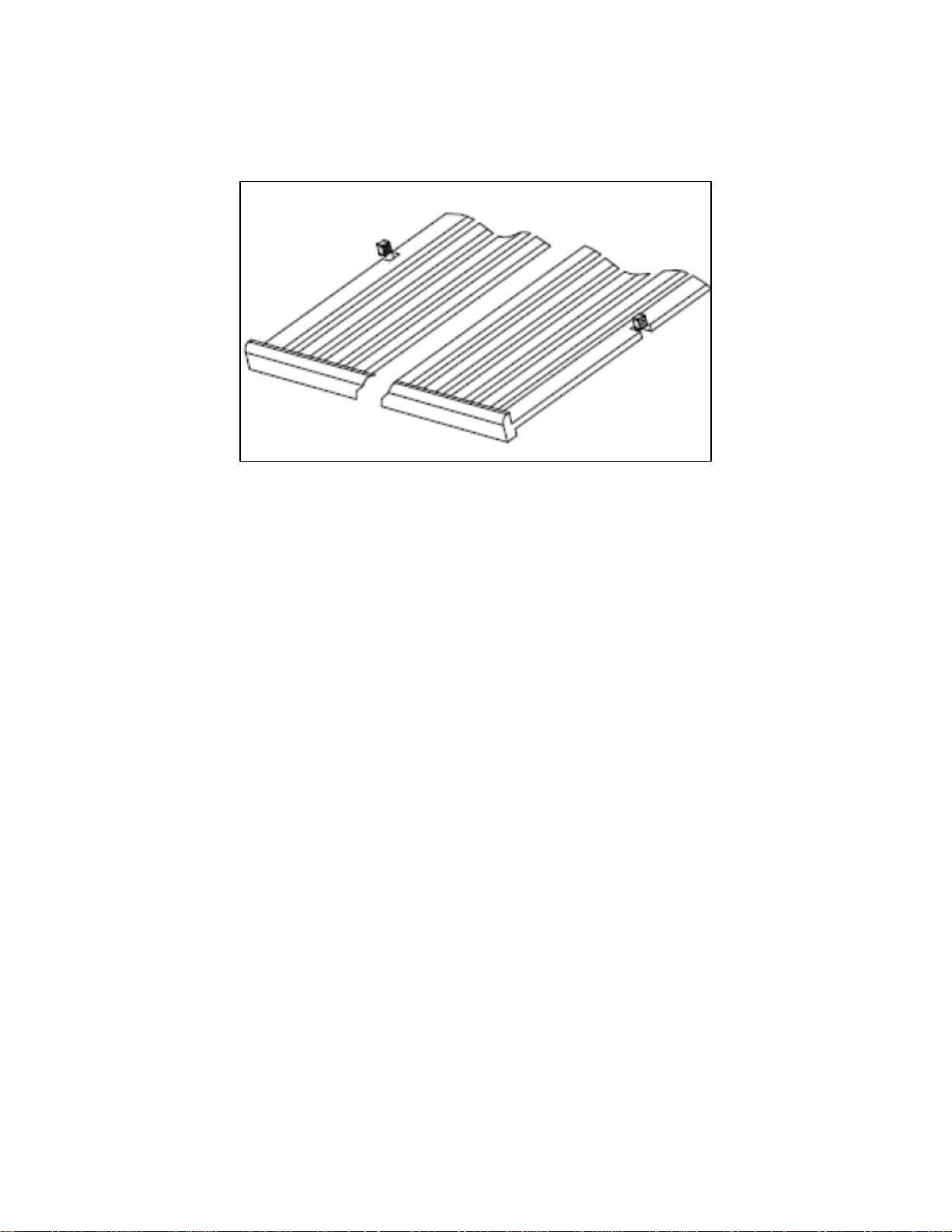

The wine cabinet shelves
o The wooden shelves are fully adjustable to suit various wine
bottle shapes and sizes.
o To prevent damaging the door gasket, make sure the door is
fully open when pulling shelves out of the rail compartment.
o For easy access to the bottles stored, pull the shelves out
approximately 1/3 of the way.
Using your Baumatic wine cabinet
Before switching on
o Make sure that it has been installed by a suitably qualified
person, as per the information contained in Baumatic’s
installation instructions.
o After delivery, wait for eight hours before connecting the
appliance to your mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
o The outside of the appliance and the removable accessories
contained within it, should be cleaned with a solution of liquid
detergent and water.
o The interior of the appliance should be cleaned
with a solution of sodium bicarbonate dissolved in
lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning
process has been completed.
o There can be an odour when you first switch on the appliance. It
will lessen as the appliance starts to cool.
10
