BU676GL-EU 60 cm
Cooker hood
BU976GL-EU 90 cm
Cooker hood
1
Page 2
User Manual for your Baumatic
BU676GL-EU 60 cm Cooker hood in
stainless steel and glass
BU976GL-EU 90 cm Cooker hood in
stainless steel and glass
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 05/08/10
2
Page 3
Contents Page
Environmental note 4
IMPORTANT SAFETY INFORMATION 5 – 7
Specifications of your cooker hood 8 – 9
BU676GL-EU 8
BU976GL-EU 9
Optional extras (both models) 9
Using your Baumatic cooker hood 10 - 12
Before first use 10
To use your cooker hood 10
Setting the time of day 11
Setting the fan speed 11 – 12
The cut off timer 12
Cleaning your Baumatic cooker hood 13
The grease filter 13
Maintenance 14 - 16
Removing and cleaning the grease filter 14 - 15
Changing a light bulb 15
Fitting the carbon filters 16
Installation 17 - 25
Electrical connection 17 - 18
Before beginning installation 18 - 19
Installing your cooker hood 19 - 21
Connecting to external ducting 22
Fitting the optional chimney sections (CQ3SS) 22 - 24
Completing the installation 25
Extraction mode or recirculation mode? 25
Troubleshooting 26 - 27
Contact details 28
3
Page 4
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
CONFORMITY TO W.E.E.E. DIRECTIVE
4
Page 5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Baumatic Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
o The hood must be installed in accordance with the installation
instructions and all measurements followed.
o If the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
o It is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
o When installing the hood, ensure that the following
recommended distances are observed between the highest point
on the hob top (including the burners) and the bottom of the
cooker hood:
¾ Electric cookers: 700 mm
¾ Gas cookers: 700 mm
¾ Coal/ oil cookers: 800 mm
IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS
THAN 700mm ABOVE YOUR COOKER.
o When installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
5
Page 6
o The edges of the cooker hood are sharp – be mindful of this as
you handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!
o If the room where the cooker hood is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
o If other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
o When the hood is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
o Ensure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
o Keep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
o Your cooker hood is for domestic use only.
o Please dispose of the packing material carefully – children are
especially vulnerable to it.
o Dirty oil is an even greater fire risk.
o Always put lids on pots and pans when cooking
on a gas cooker.
o The manufacturer refuses to accept any responsibility for
damages arising to the hood or it catching on fire, from a failure
to observe the fire safety advice contained in this instruction
booklet.
6
Page 7
o Remember that when in extraction mode, your cooker hood is
removing air from your room. Ensure that proper ventilation
measures are being observed.
o Note: Your cooker hood is designed to remove cooking
odours from the room and not steam.
o Warning - Always ensure that the cooker
hood has been disconnected from the
power supply before carrying out any work
on the hood, including replacing light bulbs.
o Do not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
o Do not install above a cooker with a high level grill.
o Never leave frying pans unattended during use
as overheated fats and oils might catch fire.
o The lights on this appliance should only be used during operation
of the cooker hood. They should not be left on permanently and
used as a lighting source.
o The cooker hood should not be exposed to a direct heat source
from the cooking device underneath it, i.e. a naked flame from a
gas burner or heat from electric hob zones without a pan on
them.
o Do not attempt to use the cooker hood if it is damaged in any
way. Never attempt to use it without the grease filters fitted or
if the filters are excessively greasy!
o Never flambé cook under this cooker hood.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE HOOD.
7
Page 8
Specifications of your cooker hood
BU676GL-EU
PRODUCT DIMENSIONS:
Height: 540 mm
Width: 600 mm
Depth: 327 mm
Your stainless steel cooker hood is fitted with:
o High extraction tangential motor
o Push button control operation
o 3 Speeds
o 1 Metallic grease filter
o 2 lights
Extraction capacity: 750 m³/hr
Noise level min/max:
54 – 64 dB
MODEL NUMBER CARBON FILTER REQUIRED
BU676GL-EU S1
8
Page 9

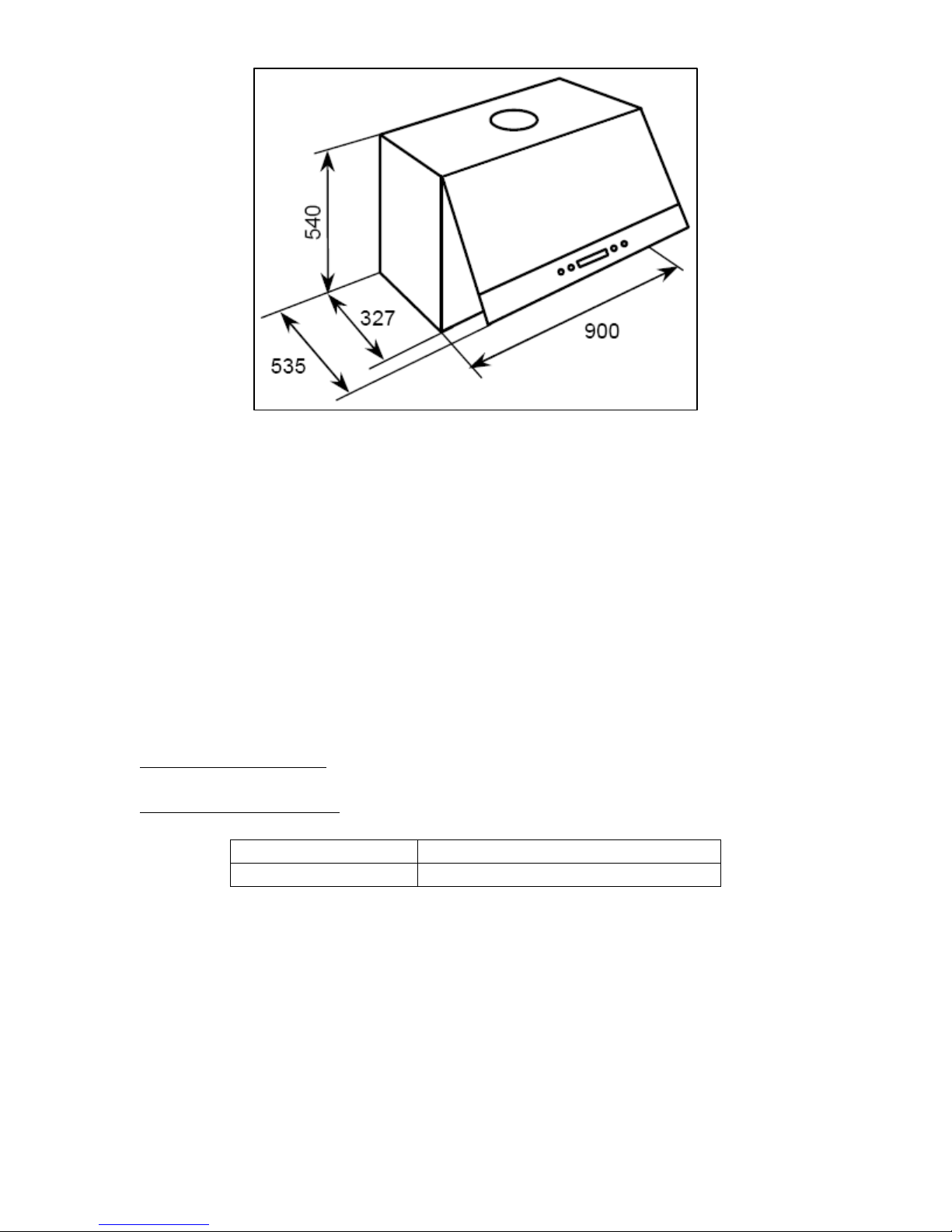

BU976GL-EU
PRODUCT DIMENSIONS:
Height: 540 mm
Width: 900 mm
Depth: 327 mm
Your stainless steel cooker hood is fitted with:
o High extraction tangential motor
o Push button control operation
o 3 Speeds
o 1 Metallic grease filter
o 2 lights
Extraction capacity:
750 m³/hr
Noise level min/max:
54 – 64 dB
MODEL NUMBER CARBON FILTER REQUIRED
BU976GL-EU S1
Optional extras (both models)
DK5 1 Metre length Ducting Kit 125 mm Ø.
DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling
included.
CQ3SS Decorative chimney sections
o Available from the Baumatic Spares Department.
9
Page 10
Using your Baumatic cooker hood
Before first use
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE COOKER HOOD IS USED FOR THE FIRST
TIME.
o You should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood, before it
is used for the first time.
o This will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your cooker hood
Before operating the hood, make sure that it has been installed by a
suitably qualified person, as per the information contained in
Baumatic’s installation instructions.
o Find the control panel, which is located in the front middle of the
canopy.
o There are several buttons on the control panel, which perform
separate functions.
10
Page 11
Setting the time of day
o After the appliance is connected to your mains supply, press the
ON/OFF button to switch the hood on, the LED display backlight
will switch on. If no other button is pushed within 30 seconds,
then the backlight will go out.
o Press and hold down the timer button for a few seconds, the
hour section of the LED display will flash.
o Press the speed selection button to increase the number shown
on the LED display.
o Press the light ON/OFF button to decrease the number shown on
the LED display.
o The clock on the cooker hood is 24 hour, so the largest hour
number that can be set is 23.
o Press the timer button again to confirm the hour time; the
minute section of the LED display will then flash.
o Use the same buttons as before to adjust the number shown on
the LED display.
o Press the timer button for a third time and this will confirm the
time of day setting.
Setting the fan speed
o Press the ON/OFF button to switch the hood on; the LED display
backlight will switch on. If no other button is pushed within 30
seconds, then the backlight will go out.
o The motor has three speeds, low, medium and high.
o Press the speed selection button once and the hood will run at
low speed.
o Press the speed selection button again and the hood will run at
medium speed.
o Press the speed selection button again and the hood will run at
high speed.
o If you press the speed selection button whilst the hood is
running at high speed, then the hood will return to running at
low speed.
11
Page 12
o To switch the fan off, press the ON/OFF button.
o When you next switch on the cooker hood using the ON/OFF
button, it will remember the operating speed that it was last
used at.
The cut off timer
o Whilst the cooker hood is in use, if you press the timer button
the number “12:00” will appear on the LED display.
o This indicates that the hood will run for a further 12 minutes at
the current fan speed.
o Once the 12 minute period has elapsed, the cooker hood will
switch itself off.
o It is useful to use this feature when you have finished cooking.
You can press the timer button and the hood will run on to
extract any remaining odours and then switch itself off without
you needing to return to the kitchen.
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR HOOD TEN MINUTES BEFORE YOU START TO
COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR
TEN MINUTES AFTER YOU HAVE FINISHED COOKING.
12
Page 13
Cleaning your Baumatic cooker hood
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
COOKER HOOD OFF
SWITCH, SET AT THE WALL FROM THE CABLE.
Cleaning
o Clean the external parts of your cooker hood with mild liquid
detergent and a new damp cloth.
o Never use abrasive powder, corrosive solvents or brushes.
o Never insert pointed objects into the motor’s protective grid.
o Only clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
o You should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your cooker hood
o If you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended intervals
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
o Never attempt to clean the area above the grease filters.
AT THE OMNI-POLAR
The grease filter
o Your cooker hood is fitted with a grease filter, which helps to
absorb grease particles and protect your kitchen and furniture
from greasy residues.
o The metallic filter may become inflammable if you allow it to get
saturated with this greasy residue.
o To prevent this fire hazard, the filter should be cleaned regularly.
Depending on use, this should be done every 10-15 days or at
least once a month, using hot water and normal washing-up
detergent.
o DO NOT WASH THE GREASE FILTER IN A DISHWASHER.
13
Page 14
Maintenance
Removing and cleaning the grease filter
o Lift up the cover that
sits over the grease
filter (as shown in the
line drawing above).
o Remove the grease filter by
pulling down on the handle and
pulling it away from the cooker
hood.
o Soak the grease filter in hot water and washing up liquid for at
least 5 minutes (or longer if the grease build up is severe).
o Rinse it off thoroughly with hot water.
o Repeat the process if required.
o Refit the grease filter once it has
dried.
14
Page 15
o Close the cover that sits over the grease filter.
o IMPORTANT: Let the grease filter dry thoroughly before
refitting it in the cooker hood.
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE COOKER HOOD FROM
YOUR MAINS SUPPLY.
o Prior to touching the light bulbs ensure they are cooled down.
o Find the bulb that requires replacement, you will find it located in
the light fixture which is inside the exposed section of the
canopy.
o Use a screwdriver to remove the glass cover that sits over the
bulb. Unclip the light bulb that needs to be replaced and insert a
new G4 20W (max) bulb. Then replace the glass cover.
o IMPORTANT: Defective bulbs should be replaced immediately.
o If the lights still do not work, make sure that the bulbs are fitted
properly into their housings before you call for technical
assistance.
15
Page 16
Fitting the carbon filters
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
COOKER HOOD FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Hook the carbon filter over
the pins that are located at the
end of the motor.
3) Turn the carbon filter anticlockwise,
until you feel it click into place.
o Repeat this process for the second carbon filter. You need to
place a carbon filter at either end of the motor.
o Refit the grease filters.
o The carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.
16
Page 17
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR COOKER HOOD IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
o The cooker hood’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Ground
If you only find two wires in the main’s lead (blue and brown),
then neither must be connected to the earth terminal.
17
Page 18
o As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
o The blue wire must be connected to the
terminal marked “N” (neutral), or coloured
black.
o The brown wire must be connected to the
terminal marked “L” (live), or coloured red.
Before beginning installation
o Check that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the hood is
mounted. If the product is going to be used in extraction mode,
then there should also be space to connect a ducting hose to the
outside.
o Carry out all necessary masonry work prior to the fitting of the
cooker hood.
o Ensure that all electrical connections are carried out by a suitably
qualified person.
o Before commencing installation of the cooker hood the grease
filters should be removed.
o Check inside the product and ensure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
o If possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
o Select a flat surface for assembling the cooker hood. Cover that
surface with a protective covering and place all cooker hood
parts and fittings on to it.
o Rawl plugs are provided to secure the hood to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall
and ceiling. The wall and ceiling must be strong enough to take
the weight of the hood.
18
Page 19
o Do not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
Installing your cooker hood
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR COOKER HOOD WHETHER TO USE
IT IN EXTRACTION MODE OR RECIRCULATION
MODE. PLEASE TURN TO PAGE 25 NOW TO
UNDERSTAND THE DIFFERENCES BETWEEN THESE
TWO MODES.
o We recommend that at least two people install this hood.
o Please note that the styles of cooker hood shown in the
line drawings in the following pages are sometimes
different to the shape of the BU676GL-EU and BU976GLEU. However the installation method shown is correct and
MUST be followed.
IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filters.
2) Position the
hood against the
wall that you are
intending to
install it on and
mark the
position of the
support holes
that are to be
drilled (as shown
in the figure
below).
19
Page 20
2a) The support screw holes are indicated by figure A in this drawing
and the anchoring screw holes are indicated by figure B.
3) Using a drill bit with an 8 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
4) Insert rawl plugs into all of the holes that you have drilled.
5) Fasten the support screws halfway in, leaving them 10 mm out of
the wall.
20
Page 21
6) Hang the hood onto the
support screws.
7) Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the cooker hood. Fully
tighten the anchoring screws into the wall.
21
Page 22
Connecting to external ducting
8) Connect the coupling to the top of the cooker hood, and then
connect a 125 mm ducting hose to the coupling (please note that the
ducting hose is not supplied with the appliance).
o The other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
Fitting the optional chimney sections (CQ3SS)
9) Take the two chimney sections
(C) and (D).
o Rest the bottom of chimney
section (C) on the top of the
hood. You should take care to
position the tabs on the
chimney section into the rear
of the hood.
o Mark the side measurement of
both sides of chimney section
(C) on the wall with a pencil.
22
Page 23
10) Lift chimney section (D) upwards until it reaches the ceiling. You
must ensure that it is perpendicular to the hood.
o Mark the side measurements of both sides of chimney section
(D) on the wall with a pencil and then remove chimney section
(D).
11) Take the flat bracket (E) and place it between the two pencil
marks that you made in step 9
o Keeping the bracket in contact with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the
bracket.
23
Page 24
12) Using an 8 mm drill bit, drill out two holes on the pencil markings
that you made in step 11. Insert rawl plugs into the holes and then
use a screwdriver to secure the fixing bracket to the wall.
o Refit chimney section (C) to the hood and fix it onto the hood
using the two screws that are supplied.
o Secure the top of chimney section (C) to the flat bracket, using
the screws provided.
o Slide chimney section (D) inside of chimney section (C). Then
secure the L shaped bracket to the wall, using the same method
as you have just used to secure the lower bracket.
13) Lift chimney section (D) up to the ceiling and secure it to the L
shaped bracket using the screws provided.
24
Page 25
Completing the installation
If you are setting the appliance to recirculation mode, then you should
now fit the two carbon filters. See the “Fitting the carbon filters”
section on page 16.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply. See page
17 - 18 for detailed information on the electrical connection.
Use a stainless steel cleaner on the stainless steel sections of the
appliance.
Refit the grease filter(s) and then switch on the mains
supply to the appliance. Set the time of day and then
check that the appliance is operating correctly by selecting
each speed and switching the light bulbs on and off.
Extraction mode or recirculation mode?
What is the difference between extraction and recirculation
modes?
o To get optimum performance from your cooker, the air will be
taken out of the room via external ducting.
o Unfortunately if you live in a flat or the hood is too far from an
outside wall, this may not be possible. The only alternative is to
recirculate the air.
o In recirculation mode stale air is taken via the grease filter, and
passed through a charcoal filter for purification. The air then reenters the kitchen via an opening in the hood.
What is a charcoal filter and do I need one?
o All cooker hoods have grease filters but if you are using your
cooker hood in recirculation mode, then charcoal filters must be
fitted in addition to the grease filters.
25
Page 26
Troubleshooting
IMPORTANT: If your cooker hood appears not to be operating
properly, before contacting the Baumatic Customer Care
Department, please refer to the checklist below.
My cooker hood will not start.
o Check that the hood is connected to the electricity supply
o Check that the fan speed control is set correctly.
My cooker hood is not working effectively.
o The fan speed is not set high enough
o The grease filters are dirty and require cleaning.
o The kitchen is not well ventilated enough.
o If the hood is set up for recirculation mode, check that the
carbon filters do not need replacing.
o If the hood is set up for extraction mode, check that the ducting
hose and discharge outlet are not blocked.
My cooker hood has switched off during operation.
o The safety cut-out device has been tripped.
o Turn off the hob and then wait for the safety cut-out device to
reset.
o IMPORTANT: If you have installed your cooker hood too low,
the safety cut-out device will frequently trip. Your cooker hood
may become damaged if the safety cut-out device is tripped
frequently.
26
Page 27
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact
Baumatic Customer Care on telephone number
(0118) 933 6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
27
Page 28
United Kingdom
Baumatic Ltd.,
Baumatic Buildings,
6 Bennet Road,
Reading, Berkshire
RG2 0QX
United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Customer Care Telephone
(0118) 933 6911
Customer Care Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Advice Line Telephone
(0118) 933 6933
E-mail:
sales@baumatic.co.uk
customercare@baumatic.co.uk
spares@baumatic.co.uk
technical@baumatic.co.uk
Website:
www.baumatic.co.uk
Republic of Ireland
Service Telephone
1-890 812 724
Spares Telephone
091 756 771
Czech Republic
Baumatic CR spol s.r.o.
Průmyslová zóna Sever 696
460 11 Liberec 11
Czech Republic
+420 483 577 200
www.baumatic.cz
Slovakia
Baumatic Slovakia, s.r.o.
Galvániho 7/D
Slovakia
+421 255 640 618
Germany
Baumatic Gmbh
Lilienthalstrasse 1
320 52 Herford
Deutschland
+49 5221 694 99-0
www.baumatic.de
Italy
Baumatic Italia S.R.L.
Via Galvani N.3
35011 Campodarsego (PD)
+3904 9920 2297
www.baumatic.it
Holland
Baumatic Benelux B.V.
Grindzuigerstraat 22
1333 MS ALMERE
Nederland
+3136 549 1555
www.baumatic.nl
28
Page 29
29
Page 30
30
Page 31
31
Page 32
32
Loading...
