Baumatic BTWM4 Instruction Manual

BTWM4

0

Please note

make sure that you read it before using your Washing Machine for the first time. It also
contains valuable Troubleshooting tips so that you can solve faults without having to call
for a service engineer.

- this Instruction Manual contains important safety information. Please

Instruction Manual for your Baumatic

BTWM4

FULLY INTEGRATED FULL HEIGHT

WASHING MACHINE

Please note: for fast access to using your

Washing Machine, please look at the bold-font

items listed on the Contents page (page 2).

1

27/07/05

CONTENTS

Specifications ……….…………….……………………..………………. 3

Important Safety Information……….…..………..…..…………………..4

Your Washing Machine’s Control Panel…...……..….....……………...5

Cautions and Advice ………….…………..……....…………………….…6

Using your BTWM4…………...…………………….….……..…………….7
Before Loading your Washing Machine ………….…………..….……..8
Tips for Loading Laundry / Guide to Washing Labels ..………..…….9
Filling your Washing Machine’s Dispenser
Drawer with Detergent …………………………………..……………10-11

Tips on Washing your Clothes / Running your Washing Machine
……………………………………………………….…………………...12-15

The Programme Knob ….………………………………12
Selecting a Washing Programme ………………..…..13
Starting a Washing Programme ………………..….…14
Interrupting a Programme ……………………..……...14

Additional Functions Buttons ……………….…....15

WASHING PROGRAMME CHART …………………………..…….16-17

At the End of a Wash Programme …………….…..….………………18

Maintenance and Cleaning …………………....……………………19-21

Notes on Stains and How to Remove them

from your Clothes .......................................................................22-23

TROUBLESHOOTING ……………………………..……………….….24-26

INSTALLATION INSTRUCTIONS …………………..………………..27-33

ADJUSTING THE FEET ………..………….......................……………..34

ELECTRICAL CONNECTION ………………..…………………………..34
WATER CONNECTION ……………..…………………………………34-35

Directive Conformity Confirmation ..…………………………………..36

Conditions of Guarantee……………………..….………………............37

Contact Details…………………………..….…………………………..…38

2

R

R

W

W

(

SSPPEECCIIFFIICCAATTIIOONNSS OOFF YYOOU

U

T

BBT

MM44

EENNEERRGGYY EEFFFFIICCIIEENNCCYY

CC

CCLLAASSSS:: AA

WWAASSHHIINNGG

PPEERRFFOORRMMAANNCCEE

CCLLAASSSS:: BB

WWAASSHHIINNGG

EEXXTTRRAACCTTIIOONN

PPEERRFFOORRMMAANNCCEE::

**AA,,BB,,CC RRAATTEEDD

MMaaxxiimmuumm ppoowweerr ccoonnssuummppttiioonn::
22,,220000ww

3

DDiimmeennssiioonnss iinn ccmm
((HHeeiigghhtt xx WWiiddtthh xx
DDeepptthh))
8822 xx 5599..55 xx 553

112

Wash load: 5 kg
Maximum spin speed: 1000 rpm

oo

2 washing programmes

SSTTAAIINNLLEESSSS SSTTEEEELL DDRRUUMM AANNDD TTUUBB

++ SSAAFFEETTYY DDOOOORR LLOOCCKK

++ AADDJJUUSSTTAABBLLEE TTHHEERRMMOOSSTTAATT

44 OOppttiioonn BBuuttttoonns

Off 2) Rinse Hold 3) No
Spin 4) Spin Speed select

650 or 1000 rpm)

++ GGLLAASSSS DDOOOORR

: 1) On /

s

:

3

IMPORTANT SAFETY INFORMATION

WARNING: THIS IS IMPORTANT SAFETY INFORMATION. PLEASE
READ THIS BEFORE USING YOUR WASHING MACHINE.

: DO NOT USE AN EXTENSION CORD OR PLUG INTO A MULTIPLE

SOCKET.

: DO NOT INSERT A PLUG WITH A DAMAGED CORD OR THAT IS

BROKEN INTO THE SOCKET.

: IF THE CORD IS DAMAGED IT SHOULD BE REPLACED BY THE

MANUFACTURER OR APPOINTED SERVICE AGENT.

: NEVER REMOVE THE PLUG FROM THE SOCKET BY PULLING FROM

THE CORD SECTION. HOLD THE PLUG AS YOU PULL IT OUT.

: DO NOT PLUG INTO THE POWER SUPPLY IF YOUR HANDS ARE WET.

: DO NOT TOUCH THE MACHINE WITH WET HANDS OR FEET.

: DO NOT OPEN THE DETERGENT DRAWER WHILE THE DEVICE IS

RUNNING.

: DO NOT FORCE OPEN THE DOOR OF THE MACHINE WHILE THE

MACHINE IS RUNNING.

: DO NOT TOUCH THE DRAIN HOSE AND WATER DURING DRAINING –

THE WASHING MACHINE CAN REACH HIGH TEMPERATURES DURING
DRAINING.

: DO NOT ATTEMPT TO REPAIR. PLEASE APPLY TO THE NEAREST

AUTHORISED SERVICER.

: DO NOT FORGET THAT THE PACKING MATERIAL OF YOUR MACHINE

MAY BE HAZARDOUS FOR CHILDREN.

: NEVER LET CHILDREN PLAY WITH YOUR WASHING MACHINE.

: KEEP PETS AWAY FROM YOUR WASHING MACHINE.

: ONLY USE YOUR WASHING MACHINE IN THE HOME. THE WARRANTY

WILL BE INVALID SHOULD YOU USE IT FOR COMMERCIAL
PURPOSES

: ALWAYS SWITCH OFF THE POWER AFTER USING YOUR APPLIANCE.

.

: ENSURE THAT YOU REMOVE AND CLEAN THE FILTER AS AND WHEN

DIRECTED IN THIS MANUAL

: THE OUTLET HOSE MUST BE FREE OF RESTRICTIONS.

.

: THE WATER PRESSURE MUST NOT BE ANY MORE THAN 1 MPa

AND NOT LESS THAN 0.05 MPa.

4

: DO NOT OVERLOAD THE DRUM.

5

Your BTWM4’s Control Panel

4

2

3

Key to above figure:

1 – Programme Selector (see pages 12-13 for details on use).

Turn this knob to select a Washing programme OR to select a Drying
programme, depending on the dirtiness of your laundry. To set the

programme, firstly ensure that your appliance is OFF (i.e., the position of the
ON/OFF button is out) and turn the knob clockwise until the needle points
to the mark matching the programme you want to use.

1

2- Wash Temperature Selector Control Knob (see page 13 for

details on use).

This knob adjusts the washing temperature within your appliance.

3 – Additional Function Buttons (see page 15 for details on use).

This knob adjusts the temperature of your wash or drying cycles.
Always check the labels of your clothes before grouping them for a wash
load.

4 – Detergent Dispenser Drawer.

5 – ‘On’ Light

Comes on during operation.

5

Cautions and advice about using your
washing machine

In order to get maximum satisfaction and performance from your
washing machine, please ensure you follow the instructions given
below:

9 Select the clothes load correctly and choose the appropriate

programme.

9 Before opening the door, check that there is no water in

the machine and the pilot light is off.

9 Put the washing products in the right proportion and in the right

compartment.

9 Small garments such as socks, belts, etc. are best put

inside a bag to avoid their being lost.

9 Before putting clothes into the washing machine, make sure that

there is nothing in the pockets (coins, buttons, clips, etc.) and
that the zips are undone.

9 If your machine has a filter, you should check regularly

that it is clean & not blocked. Be especially wary of coins,
brassiere wire & fluff/hair.

9 The interior of the washing machine should be handled by

specialists only. NEVER attempt to repair or modify it

yourself.

9 After each wash, leave the door ajar to prevent the rubber

seal from becoming misshapen or mouldy.

9 When the clothes to be washed are heavily soiled or splattered

with mud, it is advisable to run a programme with pre-wash.

9 Unless doing half load washing, always put the machine

on fully loaded to save energy.

9 When the machine has just been installed, or after a long

time without it being used, it is advisable to run a washing
programme with the machine empty, to eliminate any
rusty water in the tubes.

6

Using your BTWM4

NOTE: (*VERY IMPORTANT*) – You must
ensure that the transportation bolts
have been removed before you attempt
to use your Washing Machine,
OTHERWISE you will damage or
destroy your appliance. See page 27
for instructions.

Only once you are sure this has been done can you do
the following

:

1) Plug in your machine

2) Turn on the water supply

Note on using your
Washing Machine
for the first time:

There may be water
left inside your
machine after factory
tests and trials.

• The first time you run a
wash cycle, you should not
put laundry in your machine
as it may need to drain water.

• Pour half a measuring cup of
normal or all purpose detergent
into compartment 2 (

) in your
detergent dispenser and select
wash program 2 (without prewash)

°

for 90

C.

*FOR NORMAL USE, SEE NEXT PAGE

7

• Start the programme.

• Wait until the programme finishes.

Before Loading your
Washing Machine

NOTE: Before putting the clothes into the machine:

o Separate the clothes into 3 lots (cotton,

synthetics and wool).

9 Within each group, separate the coloureds from

the whites. *NOTE – see next page for tips.

9 Once the clothes have been separated, you can

put them into the drum of the washing machine,
separately and according to colour and group,
loose, piece by piece. Do not exceed the
maximum weight of clothes as given below:

Cotton Maximum: 5 kg

H

OW TO

OPEN THE

DOOR

Pressing the hidden
lever (1) with the
index and middle
fingers, pull
outwards.

o Load your clothes inside the drum one item at a

time and spread them about well.

o Shut the door of your machine, being careful

that no pieces of clothing are jammed between
the door and the gasket seal. Make sure the door

is closed tightly otherwise it won’t work.

8

Tips for loading your laundry:

: Never wash

 Be careful that

 Remove the

your white
and
coloured
clothes
together.

 Since your

new
coloured
clothes may
shed dye on
the first
wash,
wash them
separately.

no metal
pieces are in
the pockets of
your clothes.
There is the
chance of rust
residues
coming off and
causing stains.

 Zip-up and

button your
clothes.

plastic or metal
hooks of curtains
or place them
inside a washing
bag and tie.

 Pull textiles

like trousers,
knitted fabric, T­shirts and
sweatshirts inside
out.

 Wash small

clothes like socks
and handkerchiefs
in a washing bag.

REMEMBER TO READ THE LABELS ON YOUR CLOTHES BEFORE ATTEMPTING TO
WASH THEM!

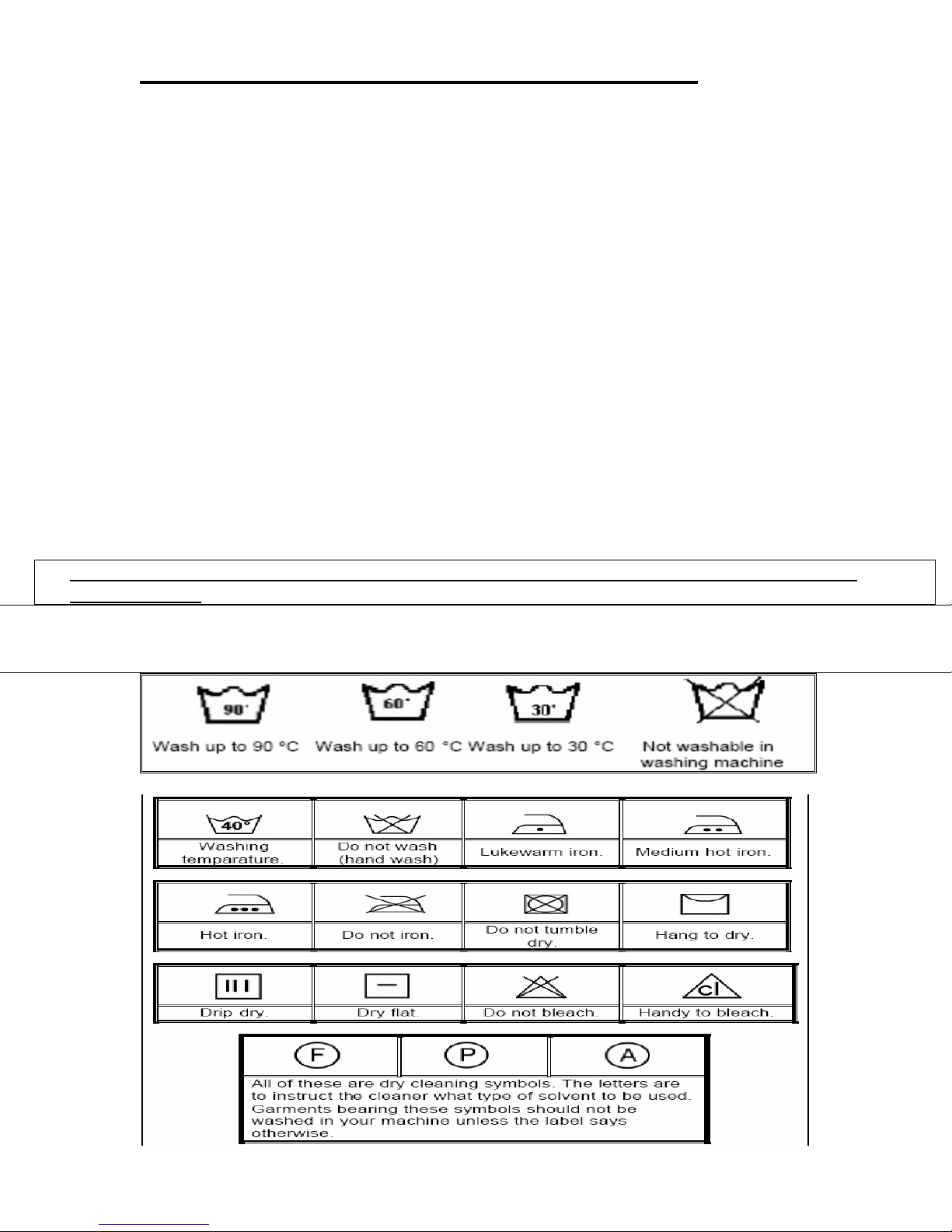

WASHING LABELS & THEIR MEANINGS

9

Filling your Washing

Machine’s Dispenser Drawer
with Detergent

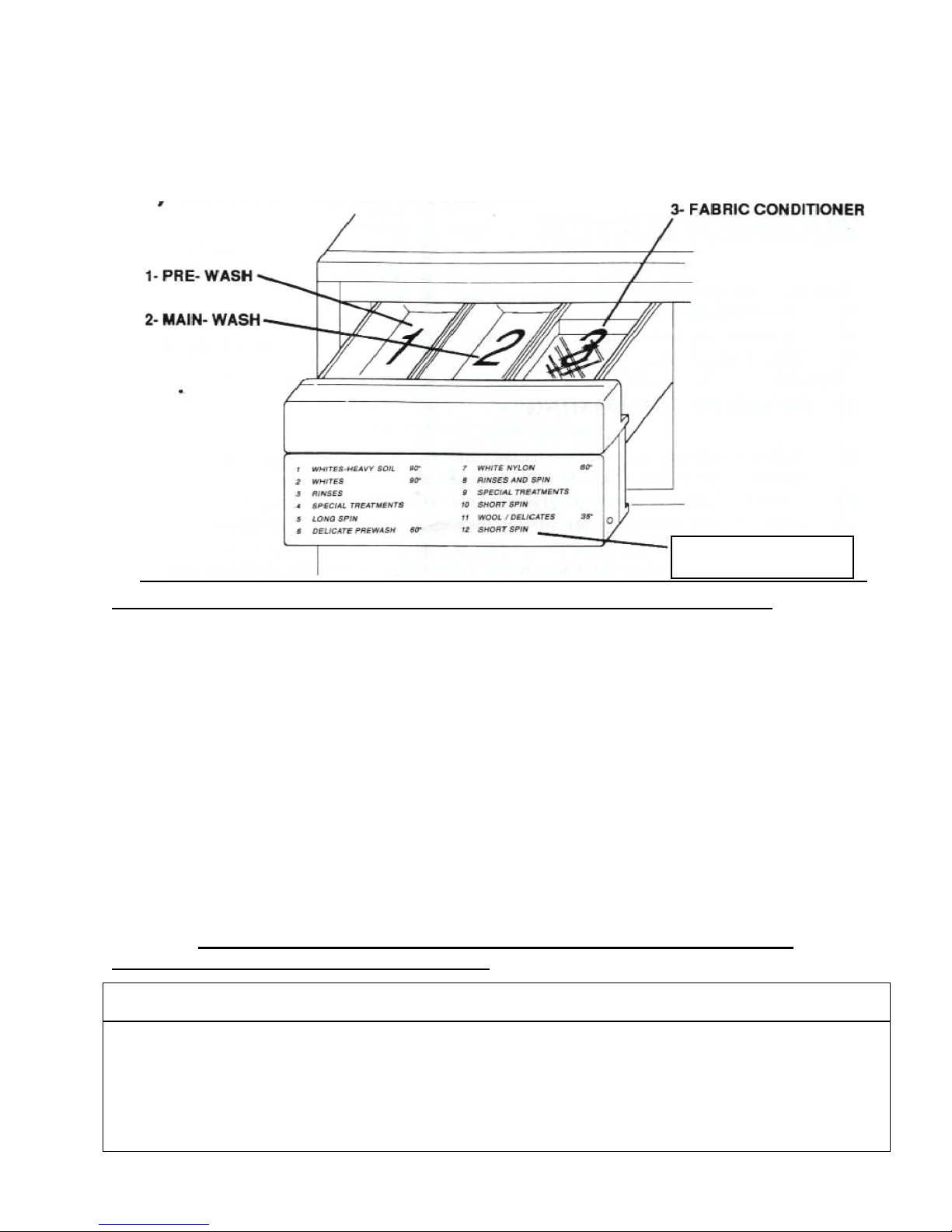

Dispenser Drawer

The dispenser drawer consists of three compartments:

1) Pre-wash / Bio-wash Compartment

This compartment should be used only when programmes involving pre-wash or bio­wash have been selected. The amount of power used will depend on the fabric type
to be washed. We recommend following the detergent manufacturer’s directions.

2) Main wash Compartment

This compartment is used to store detergent that is going to be used in the main
washing cycle of any complete washing programme.

3) Fabric Conditioner Compartment

This compartment is used for fabric softeners. At the end of the washing programme,
water will automatically be siphoned out, leaving the compartment ready for the next
wash. NOTE: THERE IS A SIDE COMPARTMENT ON THE RIGHT (‘CL’) THAT IS FOR

BLEACH. ONLY USE SPECIAL LAUNDRY BLEACH ON WHITE COTTON MATERIALS
THAT ARE SUITABLE FOR THIS TREATMENT.

IMPORTANT!

The detergent dispenser drawer and housing must be cleaned periodically
to ensure that detergent and fabric softener do not build up and reduce
the appliance’s efficiency. To remove the drawer, pull it forward to its
fullest extent, lifting the front edge at the same time, then give a firm tug.
The dispenser drawer should now be rinsed, dried and replaced.

10

HOW MUCH DETERGENT SHOULD I USE?

NOTE: You will need more detergent for washing cycles
containing dirtier clothes.

o For very dirty

clothes, select a
programme with pre­washing, fill
compartment 1 with ¼ of
the amount of the
detergent you are putting
in compartment 2.

o For clothes that are

only slightly dirty, do not
pre-wash and put only a
small amount of
detergent into
compartment 2 in your
washing machine’s
dispenser drawer.

CAUTION: Only use detergents for automatic
washing machines. The amount needed for different washing
loads and types will be written on the packaging of your
detergent.

NOTE: The harder the water in
your area, the more detergent you
will need to use.

SOFTENERS

9 Fill the softener compartment in your detergent drawer with
softener. Do not exceed the MAX level. Otherwise, the softener will
diffuse in the washing water through the siphon. Dilute high density
softeners first.

FLUID DETERGENTS

9 You can use fluid detergents in all programmes without pre­washing. For this, move the fluid detergent level plate in the second
compartment of the detergent drawer and pour in the amount of fluid
detergent according to the levels on this plate.

11

Tips on washing your clothes.

Dirtiness

Sort the clothes according to
dirtiness. Give special
treatment to those which are
very dirty or have got difficult
stains.

Treat very dirty areas like
collars and cuffs before
washing.

Wash clothes that are only

slightly dirty in short
programmes. In this way,

you will save energy as well
as get better results.

Wash averagely dirty clothes
in a normal wash programme.

Wash very dirty clothes in a

Long Programme with a

Prewash.

Sensitivity

Certain clothes, either because

of their fabric or the way they

are made, may be sensitive to

action of your machine. When

washing them, it is best to use

DELICATE PROGRAMMMES.

You can wash woollen

garments( ) in the SPECIAL

WOOL PROGRAMME. Make

sure, first of all, that your

woollens are washable.

Running your Washing Machine

Programme Selection and Features –

NOTE: YOU ACCESS THE KNOB BY PRESSING IT SO IT POPS FORWARD.

Select the program that’s right for the clothes you want to

wash according to the Table on pages 16-17.

THE PROGRAMME KNOB

With the programme knob, you can select the programme with
which you’d like to wash your clothes. You can adjust the
programme selection process by turning the program knob
clockwise. You must be careful that the marker on the
Programme Knob points exactly to the programme you want to
select.

CAUTION: NEVER try to force the knob anticlockwise!

12

Selecting the wash programme:

Which type of wash programme should I use?

There are 3 types of programmes.

NORMAL

PROGRAMMES

suitable for

washing

resistant

clothes.

NOTE: Both the Normal and Delicate programmes can operate with hot or cold water.

DELICATE

PROGRAMMES

suitable for

washing

Delicate
fabrics.

WOOL

PROGRAMME

suitable only for

wool.

You can wash cotton, synthetic,
wool, silk, and acrylic garments.

* Basically, the PROGRAMMES are differentiated by the drum
rotation rate and by temperature, wash time and water level.

* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

Next

, use the Temperature Selector to select the

temperature you would like to use in your programme.

NOTE: PUSH THIS KNOB SO THAT IT POPS OUT

IN ORDER TO TURN IT.

Then, turn the knob gently and clockwise
the pointer lines up with the temperature at
which you want to wash.

13

until

Starting a Washing
Programme

Once you have selected the
programme and temperatures you
need for your wash, press this
button to start your washing
machine.

Note:

• The button will stick up in the ‘out’ position.

• The ‘ON’ light will come on after a few

seconds.

• The door safety mechanism will engage at this

time.

THEN, run the programme you have

selected by pressing the ‘ON/OFF’ button.

Interrupting a Programme

You can interrupt a program me at any time

by pressing the ‘STOP/START’ button.
Simply do this and wait two minutes if you
have to add or remove garments. Be
careful that the water level inside the drum
is not too high and that the temperature is
not very hot.
Once you have closed the door once again,
simply press the ‘ON/OFF’ button once
again. The programme will pick up where it
had left off.

14

Additional Functions Buttons

By pressing these buttons, you can include a series of additional functions and
features in the wash programmes you have selected. These functions will allow
you to adjust your washing programme to your particular needs.

To activate a function, simply press the button showing the
corresponding symbol to the type of wash you want.

NO SPIN - Press this button to
eliminate the spin phase from any
programme selected. This helps
stop the creasing of special
fabrics.

CREASEGUARD - Press this button
to interrupt the last rinse and hold
the clothes immersed in water
inside the drum to avoid creasing.
Press the button again to complete
the programme. * Or, you can
select the drain-only programme to
avoid the spin cycle.

ON / OFF - Press this to turn
your washing machine on and
off.

SPIN SPEED - Press this button
to reduce the spin speed.
Specially recommended for
washing older, delicate clothes

15

or clothes having a special
finish.

16

17

At the end of a Wash Programme

–
Provided the programme completes without
interruptions, you can open the loading door 2
minutes after it has completed. The ‘ON’ light will
go out to indicate that the door safety locking
mechanism has disengaged.

Remember that you must wait two minutes

for
the door safety function to disengage. You can then
open the door by pulling the handle of the door
towards yourself.

o Take out your clothes.
o After you unload your clothes, leave the door

open to dry the inside of your machine.

o Unplug your Washing Machine.

NOTE: If the power goes off (blackout) and on again after a

while at any stage of the washing programme, your machine
will continue the programme from the same place it had
stopped. Note that this is not harmful for your machine.

In addition, before leaving your appliance after a washing
programme:

9 Press in the two knobs.

9 Ensure that you leave the washing machine’s door

open after the end of a washing cycle as it will need to
clear moisture from its drum.

9 Be careful not to close the outer door over it as this

may cause damage.

NOTE : The programme and temperature knobs

need to be pressed in before you close the door.

The programme knob tends to require being
pressed twice in order to recess so you can
then close the door.

18

MAINTENANCE AND
CLEANING:

Please note: Disconnect the power supply before

attempting maintenance or cleaning your washing machine.

Cleaning the drain-pump outlet filter.

You should clean this filter after every 25 washing cycle
programmes to keep the drain pump running efficiently (this will
enable more efficient washing and rinsing).

* NOTE: If you do not fit the filter cover properly, it will
leak water!

Cleaning the Inlet Valve Filter

19

Cleaning the Detergent Drawer

DETERGENT DRAWER

Detergents may form sediment in your detergent drawer or in the
housing of the detergent drawer over time.

• To clean the sediment, pull out the detergent drawer from time to
time.

To pull out the detergent drawer:

• Pull the detergent drawer to the end. (Diagram 1)

• Lift the front of the drawer and pull it out (Diagram 2)

• After the drawer has dried off, put it back into its housing

the same way you had pulled it out.

Cleaning the Siphon Plug

Pull out the detergent drawer. Remove the siphon plug and clean
the residues of the softener thoroughly. Fit the cleaned siphon plug
back in place. Make sure it is sitting properly in place.

20

Cleaning the Cabinet

9 Clean the exterior surface of your machine with lukewarm water

and a cleaning substance that will not harm or scratch the cabinet.
After rinsing with clean water, wipe it with a soft and dry cloth.

PLEASE NOTE: If your washing machine is installed in a
location where the ambient temperature can fall below 0 °C, do
the following (once before you know your machine will be unused

for a long time).

o Plug in your Washing Machine.
o Close the water tap and pull out the water inlet hose or hoses from

the tap.

o Place the ends of the water drain and water inlet hoses in a cup on

the ground.

o Adjust the program knob to ‘Draining’ program.
o The ‘Program Ready’ light will come on.
o Run the program by pressing the ‘On/Off’ button.
o Unplug your machine when the program is over (program end light

is on).

* When you complete this process, the remaining water inside the
machine will be drained. There will now be no danger of ice forming.
When you use your washing machine again, be sure that the ambient

temperature is above 0 °C.

Cleaning the Drum

*PLEASE NOTE: Do not leave metal parts like needles, staples or
coins inside your Washing Machine. These items cause rust build-up
in the drum. To clean these stains away, use a cleaning substance
(that doesn’t have chlorine in it) and follow the manufacturer’s
guidelines. Never use dish-washing wires or similarly rough objects.

*REMOVAL OF LIME FROM YOUR MACHINE

If you use the right amount of detergent in your washing machine,
there will be no need for lime removal. However, if you want to use
lime removers, please pay attention to their manufacturers’ warnings.

21

NOTES ON STAINS AND HOW TO REMOVE THEM FROM YOUR
CLOTHES

22

23

TROUBLESHOOTING – Should your washing

machine have a problem, checking the problem against this
chart may keep you from needing to call for service!

PROBLEM PROBABLE CAUSE WHAT YOU CAN DO

It is unplugged Insert the plug into the socket.

Your fuse is defective. Change your fuse.

Your Machine
doesn’t Work

Your Machine
isn’t taking
in Water

The power is off Check if the power is on or not.

ON/OFF button has not
been pressed to ‘ON’.

The PROGRAM KNOB is in
STOP (OFF) Status

Water tap is closed Open water tap.

The water inlet hose may
be bent

Pressure insufficient Adjust tap to increase pressure.

The valve inlet filter is
Clogged.

Press the ‘ON/OFF’ button

Shut the door properly.
You should hear it ‘click’.

Check the water inlet hose.

Clean the pump filter

Your Machine
is vibrating

The clothes aren’t placed
evenly in the drum.

Your Washing Machine’s
feet aren’t adjusted
properly.

You haven’t removed the
transportation screws!

Spread the clothes inside
the machine more evenly.

Adjust the feet.

Remove the transportation
screws!

24

PROBLEM

Your Washing
Machine is
vibrating

PROBABLE CAUSE

You haven’t put enough
clothes in the drum

You have put too many
clothes in the drum

Your machine is resting
against a rigid object,

WHAT YOU CAN DO

You Washing machine’s
operation is unaffected.

Don’t put too many clothes
in the machine.
Spread your clothes more
evenly.

Make sure your Washing
Machine isn’t leaning against
a hard or rigid object.

Excessive
foam in the
Detergent
Drawer

Washing is
still dirty

You’ve put in too much
detergent.

Wrong detergent has been
used

Your laundry was too dirty
for the program you
selected

You didn’t use enough
detergent

Press the ‘ON/OFF’
button. To prevent frothing,
dilute one tablespoon of softener
in a half-litre of water & pour it
into the detergent drawer.
Press the ‘ON/OFF’
button after 5-10 minutes.
Put the correct amount of
detergent in the next wash.

Only use detergents for
automatic Washing Machines.

Select a suitable program.
(see the tables on pp. 16-17)

Use more detergent according
to the detergent packaging.

25

Too many clothes were put
machine.

Don’t put as many clothes in
your next wash-load.

r

PROBLEM

The Water
drains from
your Washing
Machine as
soon as it has
filled.

No water seen in the
drum during the washing
cycle.

Detergent residue shows
up on clothes

Grey stains show up on
the clothes

PROBABLE CAUSE

The end of the water drain
hose is in too low a
position for the machine.

Nothing wrong – the water
is in the lower part of the
drum.

Pieces of some detergents
that do not dissolve in
water may stick to your
clothes.

These stains may be the
result of oil, cream or
ointment.

WHAT YOU CAN DO

Place the water drain hose at a
better height.

You don’t need to do anything.

Set your Washing Machine to a
‘Rinsing Cycle’ to get rid of the
stains. Brush off residue powde
with a brush when dry.

In the next washing, use the
maximum detergent amount
declared by the detergent
manufacturer.

The Spinning Cycle is not
done or starts only after
a delay

The Loading Door will
not open.

Nothing wrong.

Remember that your
machine has a delay
release of 2 minutes after
the end of a programme.

Your Washing Machine has an
unbalanced load control system
that will try to distribute your
clothes evenly. After your
clothes have been distributed
more evenly, the spinning
process will begin.
For the next washing cycle,
place your clothes more evenly.

Ensure that the pilot light is off,
Wait out 2 minutes and then
Open the door.

26

INSTALLATION INSTRUCTIONS

REMOVING THE TRANSPORTATION SCREWS:

* PLEASE NOTE THAT FAILURE TO REMOVE THE TRANSPORTATION

SCREWS WILL RESULT IN YOUR GUARANTEE BECOMING VOID! *

o THE TRANSPORTATION SCREWS, WHICH CAN BE FOUND AT THE REAR OF YOUR

WASHING MACHINE, MUST BE TAKEN OFF BEFORE YOU CAN USE YOUR
MACHINE.

o HOW TO REMOVE THESE SCREWS:

1) LOOSEN THE SCREWS BY ROTATING ANTICLOCKWISE WITH A SUITABLE
WRENCH (DIAGRAM-1).

2) REMOVE THE SCREWS BY
PULLING THEM (DIAGRAM-2).

3) THE PLASTIC PARTS FOUND IN
THE INTERIOR OF YOUR WASHING
MACHINE WILL FALL DOWN
UNDER THE DEVICE.

4) CAREFULLY LIFT YOUR MACHINE
UP SLIGHTLY, PICKING UP THE
PLASTIC PARTS. IF THERE ARE
STILL SOME THAT HAVE NOT
FALLEN DOWN, OPEN YOUR
MACHINE’S DOOR AND MOVE THE
DRUM WITH YOUR HAND TO MAKE
THE REMAINING PARTS FALL
DOWN. COLLECT THE PARTS
THAT HAVE FALLEN TO THE
FLOOR.

5) INSERT THE PLASTIC
TRANSPORTATION SCREW CAPS
(THESE CAN BE FOUND INSIDE
THE ACCESSORIES BAG) IN THE
HOLES WHERE THE
TRANSPORTATION SCREWS HAD
BEEN (DIAGRAM-3).

6) KEEP THE TRANSPORTATION
SCEWS AFTER YOU HAVE
REMOVED THEM FROM THE

27

MACHINE – YOU MAY NEED THEM
SHOULD YOU MOVE HOME IN THE
FUTURE.

INSTALLING YOUR BTWM4 Washing Machine

Before installing, it is very important that you familiarise yourself
with your Washing Machine’s dimensions. Please see the
illustration below for details:

The space where you will be installing your washing machine will need
to have the dimensions shown below.

Your Washing
Machine requires
the space shown
here:

28

TO INSTALL THE DÉCOR DOOR (Fasçia)

NOTE: Before installing your décor door, you will have to decide
whether you want it to open to the LEFT or to the RIGHT.

1. Using the supplied template, mark the points where you are going to
drill the holes to attach the décor door.

Taking a drill, make two holes of 2mm diameter and one hole of 3.5mm
diameter in the places illustrated below. Then attach the hinges with
screws. Shown below is the version opening to the RIGHT

. Note: the

higher hinge is on the left (below) while the lower is on the right.

29

If you want the décor door to open to the right, take a 1.2mm drill bit &
make a hole as shown in the illustration below. ‘B’ (pictured below) is a
door magnet.

Now you will need to fit the anchoring lugs, screwing each one in as
shown in the illustration below.

30

e

If, however, you want to have your door opening to the left, you
reverse the procedure as shown in the procedure for the door
opening to the right at bottom of page 29.

CAUTION–

Take note of th
Different pos­itioning of the
left hand side
hinge lugs.

Now you have to fit
the anchoring lugs
for the door.

Please note that in
the case of
attaching the door
so that it opens to
the left, the top left
hand anchoring lug
is to be fitted into
the position shown
in the illustration to
the left (5B).

31

r

Now you are ready
To fix the décor door
to your
Washing machine.
The illustration to the
Right shows the correct
Positioning for the door
Opening to the left.

Or, if installing
so that the doo
opens to the
right, follow the
installation
instructions as
shown in the
picture on the
right.

32

ADDING THE TOP COVER TO YOUR WASHING MACHINE

For installing your washing machine in some spaces, you may need to lower
its height as much as possible. In addition to adjusting its height by turning
its feet, you can also replace the top of your appliance with an optional lower
one. To do this:

1.

Remove the old top
(A) by unscrewing the
screws that fasten it
to the machine.

3.
Place the new top over
the cavity and align the
screws to the holes
before fixing them in
place.

2.

Remove the screws and
clasps from the cavity at
the top of your washing
machine.

33

ADJUSTING THE FEET

CAUTION :

o DO NOT INSTALL YOUR MACHINE ON RUGS OR CARPETS.

o FOR YOUR WASHING MACHINE TO WORK SILENTLY & WITHOUT ANY VIBRATION, YOU

SHOULD POSITION IT ON FLAT, NON-SLIPPERY & TOUGH GROUND.

o YOU CAN ADJUST YOUR WASHING MACHINE’S LEVEL BY TURNING ITS FEET EITHER

UPWARDS OR DOWNWARDS (Please see DIAGRAM below).

1) FIRSTLY, LOOSEN THE PLASTIC
ADJUSTMENT NUT.

2) AFTER YOU’VE REACHED THE
LEVEL YOU WANT, TIGHTEN THE
PLASTIC ADJUSTMENT NUTS
AGAIN BY ROTATING THEM
UPWARDS (ONE FOR EACH

_________________________________________________________

FOOT).

3) NEVER PUT CARTONS, WOODEN
BLOCKS OR SIMILAR MATERIALS
UNDER THE MACHINE TO HELP MAKE
IT LEVEL TO THE GROUND.

4) NOTE: THE HIGHEST YOU CAN RAISE
THE APPLIANCE ON ITS FEET IS
30mm.

ELECTRICAL CONNECTION

YOUR WASHING MACHINE WORKS ON 220-240V & 50 Hz. IT COMES WITH ITS OWN
SPECIALLY MOULDED, EARTHED PLUG THAT HAS BEEN ATTACHED TO THE POWER
CABLE OF YOUR WASHING MACHINE. The plug must be inserted to an earthed socket
with 10 ampere. The fuse used in your plug must also be 10Amps. Should your electricity
supply not match these specifications, you should contact a qualified electrician to
accommodate this.

*REMINDER: WARNING! (PLEASE NOTE) Baumatic Ltd are not responsible for any
damages arising out of usage following failure to earth (ground) your appliance.

CONNECTING TO THE WATER MAINS

• Depending on your
appliance’s features, it may
operate with a single water
inlet (cold) or a double water
inlet (hot/cold). THE WHITE­HEADED HOSE IS FOR
THE COLD WATER INLET /
THE RED-HEADED HOSE
IS FOR THE HOT WATER
INLET (but ONLY for
machines with a double
water inlet system).

34

• To prevent leakage from the connection joints, a seal (for machines with
cold water inlet only) or seals (for machines with hot & cold water inlets)
are included in the hose packing. Fit these seals at the end of the water
inlet hoses on the tap side.

1) Connect the WHITE-HEADED HOSE to the WATER INLET VALVE with the
white filter & connect the RED-HEADED HOSE to the WATER INLET
VALVE with the red filer (this is only applicable to machines with double
inlet systems).

2) Tighten the plastic parts of the connections with your hand. Please call a
qualified plumber to ensure safer connections.

PLEASE NOTE:

34

CONFORMITY TO W.E.E.E. DIRECTIVE

35

BAUMATIC LTD. – CONDITIONS OF GUARANTEE.

Dear Customer,

The conditions of guarantee which apply to your Baumatic Ltd appliance are as follows: This product is guaranteed for 12 months
from the date of original purchase.
Baumatic Ltd will repair any defect that arises due to faulty materials or workmanship free of charge during this period.

In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to
repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship
within a period of 5 years from the original purchase date.

An additional and annually renewable insurance scheme for labour is available should you wish to extend the warranty period.

Should any person other than an authorized representative of Baumatic Ltd interfere with the appliance, the policy is negated and
Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only, unless otherwise stated.

Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of
purchase.

This guarantee is transferable only with the written consent of Baumatic Ltd.

If the appliance fails and is considered either not repairable or uneconomical to repair between twelve months and five years from
purchase date, a free of charge replacement will not be offered.

The guarantee for any replacement will only be for the remainder of the guarantee on the original product purchased.

This guarantee does not cover:

• Sinks and taps

• Failure to comply with the manufacturer’s instructions for use

• The replacement of cosmetic components or accessories

• Accidental damage or willful abuse

• Subsequent loss or damage owing to the failure of the appliance or electrical supply

• Incorrect installation

• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts.

• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers, baskets, trays, shelves,

burner bases, burner caps, decals, corrosion, rubber seals, refrigeration system blockage

In the course of the work carried out it may be necessary to remove the appliance from its operating position. Whilst all reasonable
care will be taken, Baumatic Ltd cannot accept responsibility for damage sustained to any property whatsoever in this process.

In the course of the work carried out it may be necessary to remove the appliance from its operating position. Whilst all reasonable
care will be taken, Baumatic Ltd cannot accept responsibility for damage sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights

Contacting Baumatic Ltd

SALES
TEL: [phone]
FAX: [phone]

For mainland UK and Northern Ireland, please contact one of the above numbers for further information or any other query you
may have.

For ROI (Republic of Ireland), please contact one of the numbers below:

TEL: [phone] FAX: [phone]

Thank you for buying Baumatic.

SERVICE
TEL: [phone]
FAX: [phone]

SPARES
TEL: [phone]
FAX: [phone]

TECHNICAL / ADVICE
TEL: [phone]
FAX: [phone]

38

Baumatic Ltd

Make-up for your kitchen

Headquarters

Baumatic Buildings,

6 Bennet Road,

RG2 0QX, United Kingdom

Sales Telephone

[phone]

[phone]

Service Telephone

[phone]

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

[e-mail]

[e-mail]

Http (Internet site):

www.baumatic.com

Baumatic UK/cod. 1230000666

Baumatic Ltd.

Reading,

Berkshire

Sales Fax

Service Fax

E-mail

:

39

40
