NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 06/09/10
2
Page 3
Contents
Environmental note 4
Important safety information 5 – 8
Specifications 9 - 11
Product dimensions 9
Product specifications 9
Description of the appliance 10
Control panel 11
The turntable 11
Using your microwave 12 - 24
Setting the clock 12
Before first use 12
Cooking food (microwave mode) 13 - 14
During operation 14
Cooking food (grill/grill combi mode) 14 - 15
Automatic defrost programmes 15 - 16
Automatic cooking programmes 16 - 17
Setting multiple cooking phases 17 - 18
Setting a delay start 18 - 19
Safety lock 19
Microwave cooking guidelines 20
Materials you can use in a microwave oven 21
Materials not to be placed in a microwave oven 22
Utensils table 22
Defrosting guidelines 23
Defrosting table 24
Cleaning and maintenance 25 - 26
The appliance exterior 25
The appliance interior 25
Rotating plate and rotating base 25
General cleaning advice 25 - 26
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
4
Page 5
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
o This appliance is designed for domestic household use. It can
NOT be used as a built-in microwave and must be used as a
freestanding appliance.
o You should only operate the appliance when the turntable and
turntable support are in position.
o You should only use ovenware that is suitable for being used in a
microwave.
o To prevent corrosion occurring due to moisture/condensation,
the cavity and the door of the microwave should be wiped dry
after each use of the appliance.
o The appliance must not be left unattended if you are heating or
cooking food in containers that are made of paper, plastic or
other flammable materials. If left unattended, they could pose a
fire hazard.
o If you notice smoke coming from the appliance, you should keep
the door of the microwave closed and then disconnect it from
your mains supply. DO NOT use your microwave oven, if you
think it is not operating correctly.
Installation
oIMPORTANT: Only the freestanding installation sanctioned by
Baumatic and outlined in this manual should be followed.
o Ventilation gaps MUST be left around the microwave; at least 10
cm to the rear, 5 cm to both sides and 20 cm above the
appliance.
o The use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
5
Page 6
o Your new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
Service
o Your microwave complies with all relevant safety standards. In
order for it to continue to operate safely, only an engineer that
is approved by the Baumatic Customer Care Department
should work on the appliance.
oIMPORTANT: It is dangerous for a non qualified person to work
on the appliance, in particular if they remove the cover that
provides protection against exposure to microwave energy.
o If you notice that the door seal, door surfaces, power cord and
plug are damaged. You should stop using the appliance,
disconnect it from the mains supply and contact the Baumatic
Customer Care Department.
o Only genuine Baumatic spare parts should be fitted to your
appliance. These can be obtained from the Baumatic Spares
Department.
Warning and safety instructions
o This appliance complies with all current European safety
legislation. Baumatic do wish to emphasise that this compliance
does not remove the fact that the appliance surfaces will
become hot during use and retain heat after operation.
o DO NOT place anything between the door and the door frame.
o DO NOT store anything that is flammable inside of the
microwave. When it is switched on, the items could catch fire.
o DO NOT switch the appliance on if there is no food or liquid
inside of the microwave. If you run the microwave whilst it is
empty, there is a chance that it will overload.
o The door seals and the door surfaces should ALWAYS be kept
clean and free from debris.
6
Page 7
Child Safety
o Baumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time.
o If it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oIMPORTANT: This appliance should only be operated by adults.
You SHOULD NOT allow young children to use the microwave
without supervision. Older children should only operate the
appliance if they have been thoroughly instructed on how to use
the microwave and the consequences of improper usage.
General Safety
oDo not allow electrical fittings or cables to come into contact
with areas on the appliance that get hot.
o Do notuse the appliance to heat the room it is located in.
o Do notuse the appliance to dry paper, textiles or animals.
o Do notinstall the appliance next to curtains or soft furnishings.
o Do notuse the appliance to heat unopened bottles or cans etc.
o Do notheat cooking oil or liquid containing alcohol, as there is
the chance of spontaneous combustion.
oDo not boil eggs or similar foods in their shells, otherwise they
may burst. It is possible to poach eggs in your microwave,
providing you prick the yolks first.
oDo not attempt to lift or move cooking appliances by using the
oven door, as this may cause damage to the appliance or result
in injury to the person lifting the appliance.
7
Page 8
Cleaning
o Cleaning of the oven should be carried out on a regular basis.
o Great care should be taken whilst using this appliance and when
following the cleaning procedure.
oIMPORTANT: The appliance must be disconnected from the
mains before following the cleaning procedure.
Installation
This appliance must be correctly installed by a suitably
qualified person, strictly in accordance with the
manufacturer’s instructions.
o Baumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
o Heat, steam and moisture will be created during use of the
appliance, take care to avoid injury and ensure that the room is
adequately ventilated. If the appliance is going to be used for
prolonged periods of time, then additional ventilation may be
required.
o Please consult with your qualified installer if you are in any doubt
about the amount of ventilation that you will require.
Declaration of conformity
oCE: Appliance conforming to the European directives
89/336/EEC, 93/68/EEC, 73/23/EEC and subsequent revisions
and “RoHS” directive 2002/95/CE.*
o The manufacturer declares that the oven is built using certified
materials and requires the appliance to be installed in
accordance with the standards currently in force. This appliance
must be used by a trained person for domestic purposes only.
* The RoHS directive stands for “the restriction of the use of
certain hazardous substances in electrical and electronic
equipment”. This directive bans the placing on the EU market of
new electrical and electronic equipment containing more than
the agreed levels of lead, cadmium, mercury, hexavalent
chromium, polybrominated biphenyl (PBB) and polybrominated
diphenyl ether (PBDE) flame retardants.
8
Page 9
Specifications
Product dimensions*
Height: 303 mm
Width: 509 mm
Depth: 392 mm
* Please refer to the installation instructions contained in this user
manual, to see the ventilation gaps you will need to leave around the
appliance.
Product specifications
o 5 power levels
o Push button control operation
o Safety lock
o Interior light
o LED display
o LED full programmer
o Defrosting by weight mode
o Grill mode
o Stainless steel exterior and interior
o Viewing window
o Capacity: 25 litres
o Microwave output: 800 W
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate for your oven can be
located by opening the microwave oven door and looking on the right
hand side of the chassis and/or on the rear of the appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….
9
Page 10

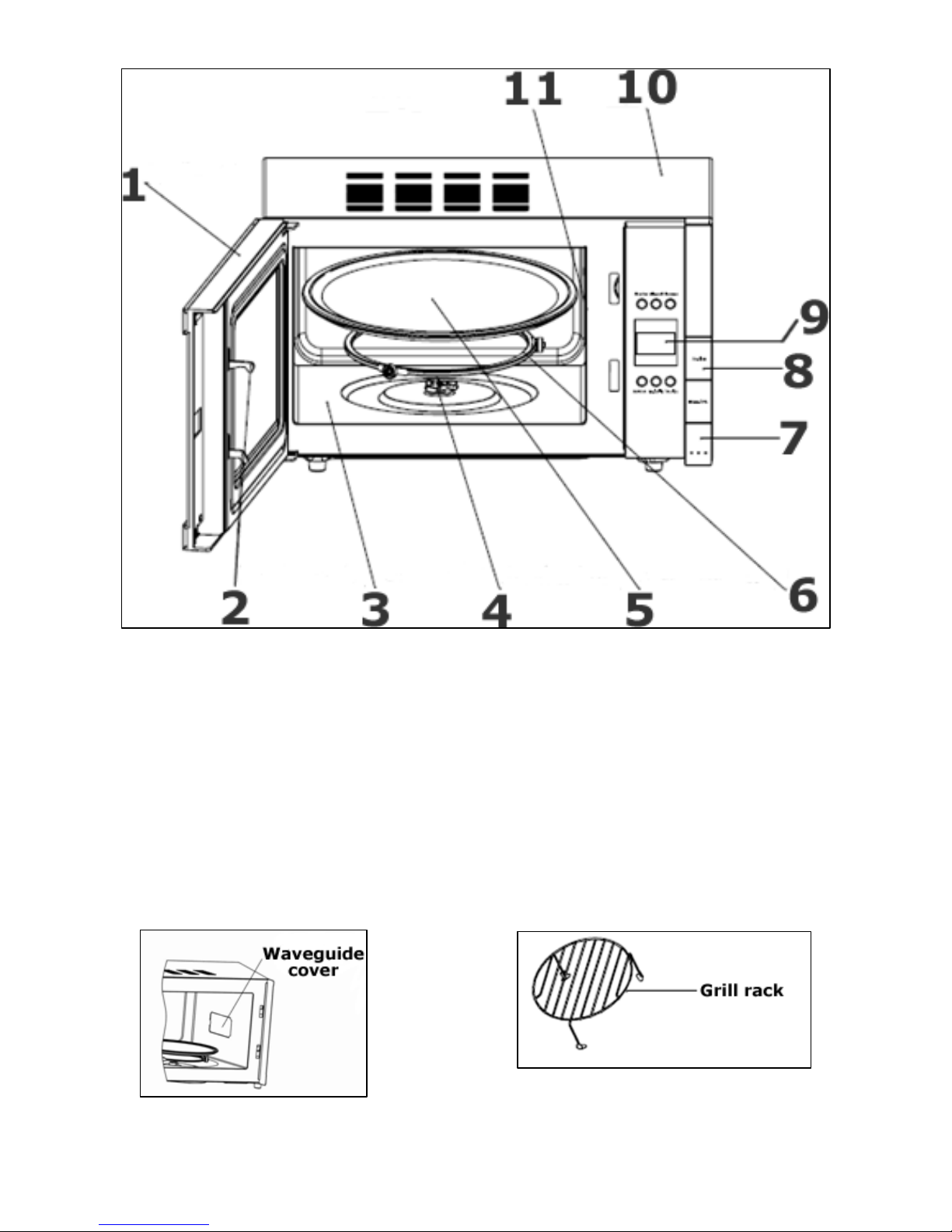

Description of the appliance
1) Microwave door
2) Door catches
3) Cavity
4) Slot for rotating base
5) Rotating plate
6) Rotating base
7) Door open button
8) Control buttons
9) LED display
10) Microwave housing
11) Wave guide cover (see opposite)
10
Page 11
Control panel
A) Micro power button
(power level button)
B) Grill combi button
C) Preset clock button
(delayed start button)
D) LED display
E) Stop clear button
F) Instant start button
(start button)
G) Auto defrost button
H) Auto cooking
button
I) Time weight button
The turntable
oNever place the rotating
plate upside down.
o The rotating plate and
rotating base MUST always
be used during cooking.
o All food and food
containers must ALWAYS
be placed on the rotating
plate during cooking.
o If the rotating plate or rotating base cracks or breaks, it must be
replaced immediately. Genuine Baumatic parts can be obtained
from the Baumatic Spares Department.
11
Page 12
Using your microwave
Setting the clock
o When your microwave is connected to the power supply, you can
set the clock to the correct time of day. You will need to open the microwave door to access the control panel.
o The entire LED display will flash and then the “:” symbol on its
own. You should press the preset clock button (C) to set the
time of day. The appliance has a 24 hour clock.
o Press the time weight button (I) and the hour digits will start to
flash. Continue to press the time weight button until the correct
hour digit is displayed.
o Press the preset clock button again to confirm the hour time. The
minute digits will start to flash. Continue to press the time
weight button until the correct minute digit is displayed.
o Press the preset clock button for a third time to confirm the
minute time. The digits on the LED display will stop flashing and
the time of day is set.
o If you do not set the time of day, every time you connect your
microwave to the power supply, you will need to press the stop
clear button (E) once before you can use the microwave.
Before first use
o To remove any residue from the oven that may have been left
from the manufacturing process, you should place a cup that is
half filled with water in the microwave.
o Set the microwave on its highest power level for 2 minutes.
o The oven cavity and outside of the appliance should be cleaned
with warm soapy water, using either a sponge or soft cloth. No
abrasive cleaners should be used. The appliance should be
thoroughly dried afterwards.
o We would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
12
Page 13
Cooking food (microwave mode)
o Once the clock has been set, your microwave is then ready to
use.
o Use the door open button (7) to open the door of the
microwave.
o Check that the rotating plate and rotating base are correctly
assembled in the cavity.
o Place whatever you are cooking in the centre of the microwave
cavity. IMPORTANT: You will need to leave the microwave door
open to access the control panel and set the required cooking
time and power.
o Press the micro power button (A) to set the required power
level, 100P, 80P, 60P, 40P, 20P will appear on the LED display.
LED
Display
Microwave
power
Power level
suitable for…
level
100P Full power (100%) Meat and vegetables
80P Medium/high power
(80%)
Eggs, fish, congee, rice,
soup
60P Medium power (60%) Steaming food
40P Medium/low power (40%) Defrosting food
20P Low power (20%) Keeping food warm
o Once the correct power level is displayed, press the time weight
button (I) to set the cooking time. The maximum cooking time
that can be set is 60 minutes.
oClose the microwave door. IMPORTANT: You should make sure
that the door of the microwave is shut securely. Press the instant
start button (F) and the microwave will start to heat.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display will show the word “END”.
o The audible signal will be repeated every 3 minutes, until the
stop clear button is pressed or the door is opened by pressing
the door open button.
oIMPORTANT: The inside of the microwave and the food that
you have been cooking may be extremely hot. So care should be
taken when removing items from the microwave. We would
recommend that you use an oven glove.
13
Page 14
o After the food has been removed from the microwave, you
should make sure that the door is closed.
During operation
o To interrupt the cooking process to turn or stir the food, press
the stop clear button (E) once.
o Press the door open button (7) to open the door of the
microwave.
o Whilst the door is open, it is possible to stir the food stuffs that
you are cooking or adjust its position on the rotating plate.
o To restart the cooking process, close the door and then press the
instant start button once.
o If you wish to remove the food before the cooking time has
completed, then press the stop clear button twice to cancel the
cooking operation.
Cooking food (grill/grill combi mode)
IMPORTANT: When using the grill and/or grill combi
mode, the inside of the oven, grill rack and cooking
containers may become extremely hot. YOU MUST use
an oven glove when removing items from the cavity.
o Use the door open button (7) to open the door of the
microwave.
o Check that the rotating plate and rotating base are correctly
assembled in the cavity.
o Place whatever you are grilling in the centre of the microwave
cavity on the grill rack. IMPORTANT: You will need to leave the
microwave door open to access the control panel and set the
required grill mode.
o There is no need to preheat the cavity when using any of the
grill modes.
o Press the grill combi button (B) and the LED display will show G,
C1, C2.
14
Page 15
LED
Description Suitable for…
display
G Grill cooking
only
C1 Grill and
microwave
cooking
C2 Grill and
microwave
Grilling and browning thin meats, pork,
sausage and chicken wings.
The microwaves will penetrate thicker
food, alternating with the grill element,
which will brown and crisp off the food.
As C1, but the grill element remains on
for longer periods of time.
cooking
o Once the correct grilling programme is displayed, press the time
weight button (I) to set the cooking time. The maximum
cooking time that can be set is 60 minutes.
oClose the microwave door. IMPORTANT: You should make sure
that the door of the microwave is shut securely. Press the instant
start button (F) and the microwave will start to heat.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display will show the word “END”.
o The audible signal will be repeated every 3 minutes, until the
stop clear button is pressed or the door is opened by pressing
the door open button.
Automatic defrost programmes
o Use the door open button (7) to open the door of the
microwave.
o Check that the rotating plate and rotating base are correctly
assembled in the cavity.
o Place whatever you are defrosting in the centre of the microwave
cavity. IMPORTANT: You will need to leave the microwave door
open to access the control panel and set the required defrost
program and food weight.
o Press the auto defrost button (G) and the LED display will show
o Once the correct defrost programme is displayed, press the time
weight button (I) to set the weight of the food that you are
defrosting.
oClose the microwave door. IMPORTANT: You should make sure
that the door of the microwave is shut securely. Press the instant
start button (F) and the microwave will start to defrost.
o At certain points in the defrosting process, the microwave will
give an audible signal. When this occurs, you should open the
door of the microwave and turn the food over.
o To restart the cooking process, close the door and then press the
instant start button once.
o At the end of the defrosting time, your microwave will give an
audible signal and the LED display will show the word “END”.
o The audible signal will be repeated every 3 minutes, until the
stop clear button is pressed or the door is opened by pressing
the door open button.
Automatic cooking programmes
o Use the door open button (7) to open the door of the
microwave.
o Check that the rotating plate and rotating base are correctly
assembled in the cavity.
o Place whatever you are cooking in the centre of the microwave
cavity. IMPORTANT: You will need to leave the microwave door
open to access the control panel and set the required automatic
cooking program and time.
o Press the auto cooking button (H) and the LED display will show
A.1 – A.8.
LED
display
A.1 Popcorn Suitable for popping a bag of corn,
Food
group
Cooking guidance Maximum
weight
85 g
which are available at supermarkets.
If during cooking the popping speed
slows to once every 1 – 2 seconds,
press the stop clear button to end the
process.
A.2 Popcorn As A.1 100 g
A.3 Pizza Suitable for warming a piece of
150 g
chilled pizza.
16
Page 17
A.4 Beverage Use a cup with a large opening and
250 ml
DO NOT cover it.
A.5 Beverage As A.4 500 ml
A.6 Potato Cut the potatoes into 5 cm³ pieces.
450 g
Place them into a large dish and put
a suitable microwave cover over the
dish.
A.7 Potato As A.6 650 g
A.8 Fish Wash the fish, remove the scales and
450 g
make slits into the skin. Place the fish
in a shallow dish and then season as
required. Put a suitable microwave
cover over the dish. After cooking,
stand for 2 minutes.
o The automatic cooking times are suitable for food that is stored
at room temperature.
o The temperature, weight and shape of the food will all influence
the final cooking results. It is possible to adjust the cooking
times to suit personal preference.
oClose the microwave door. IMPORTANT: You should make sure
that the door of the microwave is shut securely. Press the instant
start button (F) and the microwave will start to heat.
o At the end of the cooking time, your microwave will give an
audible signal and the LED display will show the word “END”.
o The audible signal will be repeated every 3 minutes, until the
stop clear button is pressed or the door is opened by pressing
the door open button.
Setting multiple cooking phases
It is possible to set the microwave to cook at different power levels
within a single cooking time. A maximum number of 4 cooking phases
can be set at once.
oIMPORTANT: You will need to leave the microwave door open
to access the control panel and set the required power level and
time.
o Press the micro power button (A) to set the required power level
for the first cooking phase. 100P, 80P, 60P, 40P, 20P will appear
on the LED display.
o Press the time weight button (I) to set the cooking time for the
first cooking phase.
17
Page 18
o It is possible to program a further 3 cooking phases by following
the above two steps.
o When you have set the final cooking phase close the microwave
door. IMPORTANT: You should make sure that the door of the microwave is shut securely. Press the instant start button (F)
and the microwave will start the first cooking phase.
o When the first cooking phase has completed, it will automatically
move onto the next cooking phase.
o At the end of all of the cooking phases, your microwave will give
an audible signal and the LED display will show the word “END”.
o The audible signal will be repeated every 3 minutes, until the
stop clear button is pressed or the door is opened by pressing
the door open button.
o After the food has been removed from the microwave, you
should make sure that the door is closed.
Setting a delay start
This function will allow you to set a time in the future that the
microwave will switch on at.
oIMPORTANT: You must make sure that the clock is set to the
correct time before using this feature.
oIMPORTANT: It is not possible to set a delay start when using
automatic cooking, automatic defrost or quick start.
oIMPORTANT: You will need to leave the microwave door open
to access the control panel and set the required power level and
time.
o Set the power level and cooking time (as described previously in
this instruction manual).
o DO NOT press the instant start button (F) at this point,
otherwise the microwave will start cooking immediately.
o Press and hold down the preset clock button (C) until you hear a
brief audible signal.
o Press the time weight button (I) and the hour digits will start to
flash. Continue to press the time weight button until the hour
digit that you want the cooking to start at is displayed.
18
Page 19
o Press the preset clock button again to confirm the hour time. The
minute digits will start to flash. Continue to press the time
weight button until the minute digit that you want the cooking to
start at is displayed.
o Press the preset clock button for a third time to confirm the time
of day that the microwave will start cooking at. Close the
microwave door. IMPORTANT: You should make sure that the
door of the microwave is shut securely.
o When the time of day that you have programmed is reached, the
microwave will bleep twice and then the microwave will start
cooking automatically.
oIMPORTANT: If the microwave door is not shut when the time
of day that you have programmed is reached, then cooking will
not commence.
IMPORTANT: Although your microwave has a
delay start feature, we do not recommend that the
microwave is EVER programmed to switch on
when it is unattended.
Safety lock
o When the microwave is not heating, it is possible to switch on
the safety lock.
o Press and hold down the stop clear button (E) until the word
“OFF” appears on the LED display.
o Until the safety lock is switched off, all control buttons on the
microwave will be disabled.
o To switch off the safety lock, press and hold down the stop clear
button until a “:” appears on the LED display.
19
Page 20
Microwave cooking guidelines
o If you are heating liquid in the microwave, then you must also
place a teaspoon in the container. This will ensure that the liquid
does not boil suddenly after being removed from the microwave
cavity.
o This phenomenon is called “delayed boiling”, this means that a
liquid can be close to boiling point, even if there is no steam
coming off the liquid or the liquid is not bubbling. If the liquid
container is even gently shaken, then the liquid can without
warning boil over or even spurt. This could scald the end user.
o If the food you are cooking has a skin or peel (e.g. sausages,
tomatoes, potatoes etc), then you should pierce the skin or peel
with a fork. This will ensure that if steam is created during the
heating process, it can escape and the food will not burst.
o When heating baby food, the bottle or jar containing the food
should NEVER have a top or lid on. After cooking, to ensure that
the food has been heated uniformly, you should stir or shake the
food. IMPORTANT: You must check the temperature of the food
before feeding it to a child.
o When heating food in a microwave, it will transmit the heat to
the container that the food is in or on. You should ALWAYS use
oven gloves when removing items from the microwave.
o You should make sure that you do not cook food for too long or
at too high a power level. This could cause certain areas of the
food to dry out or even ignite.
o You should not use ceramic or porcelain crockery, or porous
earthenware inside of your microwave. These dishes could
absorb moisture from the food whilst it is cooking, which could
cause pressure to build up and shatter the dish.
o If you are heating certain foods and any liquid, moisture will
evaporate and condensation may occur. This does not indicate
that the appliance is faulty and it can be particularly noticeable if
the ambient temperature of the room is high.
oIMPORTANT: Any condensation should be wiped up with a soft
cloth as soon as you have finished using the microwave.
o After the cooking time has completed, you should let the food
stand for a few minutes. This is called “standing time” and will
allow the heat generated by the microwave to spread evenly
throughout the food.
20
Page 21
Materials you can use in a microwave oven
Material Remarks
Aluminium foil To be used for shielding only. Small smooth pieces can
be used to cover thin parts of meat or poultry to
prevent overcooking. Arcing can occur if foil is too
close to the cavity walls. The foil should be at least 2.5
cm away from the cavity walls.
Browning dish Follow the manufacturer’s instructions. The bottom of
the browning dish must be at least 5 mm thick above
the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer’s
instructions. Do not use cracked or chipped dishes.
Glass jars Always remove the lid. Use only to heat food until just
warm. Most glass jars are not heat resistant and may
break.
Glassware Heat-resistant oven glassware only. Make sure there is
no metallic trim. Do not use cracked or chipped
dishes.
Oven cooking
bags
Follow the manufacturer’s instructions. Do not close
with a metal tie. Make slits in the bag to allow steam
to escape.
Paper plates
and cups
Use for short-term cooking/warming only. Do not
leave the oven unattended whilst cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use
under supervision and for short-term cooking only.
Parchment
paper
Use as a cover to prevent splattering or as a wrap for
steaming
Plastic Microwave-safe only. Follow the manufacturer’s
instructions. It should be labelled as “microwave safe”.
Some plastic containers soften as the food inside gets
hot. “Boiling bags” and tightly closed plastic bags
should be slit, pierced or vented, as described by the
package.
Plastic wrap Microwave-safe only. Use to cover food during cooking
to retain moisture. Do not allow the plastic wrap to
touch the food.
Thermometers Microwave-safe only. Meat and candy thermometers.
Wax paper Use as a cover to prevent splattering and to retain
moisture.
21
Page 22
Materials not to be placed in a microwave oven
Material Remarks
Aluminium tray May cause arcing. Transfer food into a
microwave-safe dish.
Food carton with
metal handle
Metal or metaltrimmed utensils
May cause arcing. Transfer food into a
microwave-safe dish.
Metal shields the food from microwave energy.
The metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the
oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid
inside when exposed to a high temperature.
Wood Wood will dry out when used in the microwave
oven and may split or crack.
Utensils table
Cookware Microwave Grill Combination*
Heat-resistant
Yes Yes Yes
glass
Non heat-
No No No
resistant glass
Heat-resistant
Yes Yes Yes
ceramics
Microwave-safe
Yes No No
plastic dish
Kitchen paper Yes No No
Metal tray No Yes No
Metal rack No Yes No
Aluminium foil
No Yes No
and foil
containers
* Combination mode applies to microwave + grill mode.
22
Page 23
Defrosting guidelines
o Only use microwave-safe dishes for defrosting (porcelain, glass,
suitable plastic).
o The defrosting time depends on the quantity and weight of the
food that you are defrosting. When freezing, you should split the
food into quantities that are suitable for defrosting in the
microwave.
o Distribute the food as evenly as possible within the microwave
cavity. The thickest parts of fish or chicken legs should be
placed on top.
o The thicker parts of the food should be turned around several
times during the defrosting process.
o Foods that are rich in fats, such as butter, cottage cheese and
cream should not be entirely defrosted. If they are at room
temperature, they will be ready to serve within a few minutes. If
cream are deep frozen and little bits of ice remain on the top of
it, the cream should be whipped before eating.
o Bread should be wrapped in a napkin so that it does not get too
dry when being defrosted.
o Remove frozen food from its packaging and do not forget to
remove any metal clips. If the containers are suitable for placing
in a freezer and a microwave, then you can simply remove the
lid.
o The liquid that is created during the defrost process, particularly
in the case of poultry should be discarded. Under no
circumstances should it come into contact with other foods.
o A resting period is required when defrosting food, to ensure that
the food is totally defrosted. This normally takes between 15 –
20 minutes.
23
Page 24
Defrosting table
Food type Defrosting guidance
Steaks/chops
Minced beef
Roast meat
(beef, lamb,
pork)
Poultry
Chicken pieces
(wings or
drumsticks)
- Shield the thin end of the meat with foil.
- Position the food in a single layer on a shallow dish,
with the thinner part of the meat in the centre.
- If pieces are stuck together, try to separate them as
quickly as possible.
- When prompted, turn the food over and then shield the
sections that have already defrosted with foil.
- After the defrost time, leave the meat covered with
aluminium foil for 5 – 15 minutes.
- Place the frozen minced beef on a shallow dish,
shielding the edges with foil.
- When prompted, turn the food over and remove the
defrosted portions. Turn over and shield the edges with
foil.
- After the defrost time, leave the mince covered with
aluminium foil for 5 – 15 minutes.
- Place the joint with the lean side facing upwards on a
shallow dish, shielding the edges with foil strips.
- When prompted, turn the food over and then shield the
sections that have already defrosted with foil.
- After the defrost time, leave the meat covered with
aluminium foil for 10 – 30 minutes.
- Remove the poultry from its original packaging. Place it
on a shallow dish, shielding the wing and leg tips with
foil.
- When prompted, turn the food over and then shield the
sections that have already defrosted with foil.
- After the defrost time, leave the poultry covered with
aluminium foil for 15 – 30 minutes.
- After standing time, run under cold water to remove
the giblets (if necessary).
- Place the chicken on a shallow dish, shielding the
exposed bone with foil.
- When prompted, turn the food over and then shield the
sections that have already defrosted with foil.
- After the defrost time, leave the chicken pieces covered
with aluminium foil for 5 – 30 minutes.
24
Page 25
Cleaning and maintenance
Cleaning operations must only be carried out
when the oven is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
The appliance exterior
o You should wipe over the front of the appliance with a soft cloth
and warm water mixed with a little washing up liquid.
oDO NOT use abrasive cleaners or sharp objects to clean the
front surface of the microwave.
The appliance interior
o You should wipe over the inside of the appliance with a soft cloth
and warm water mixed with a little washing up liquid.
o You should pay particular attention to the door seal and the
surrounding area.
oDO NOT use abrasive cleaners or sharp objects to clean the
inside of the microwave.
Rotating plate and rotating base
o The rotating plate and rotating base should be removed from the
microwave for cleaning purposes after each use.
o Clean the rotating plate and rotating base in warm water mixed
with a little washing up liquid.
General cleaning advice
oIMPORTANT: Any condensation should be wiped up with a soft
cloth as soon as you have finished using the microwave.
o To remove odours from inside of the microwave, you should boil
one cup of water mixed with several tablespoons of lemon juice
inside of the cavity.
25
Page 26
o The microwave should be thoroughly cleaned before it is
operated for the first time and after each use. This will avoid
residual food stuffs becoming baked on the oven cavity. After
residues have been baked on several times, they are far more
difficult to remove.
o Never clean the oven surfaces by steam cleaning.
o We would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
o If you use any form of oven cleaner on your appliance, then you
must check with the manufacturer of the cleaner that it is
suitable for use on your appliance.
o Any damage that is caused to the appliance by a cleaning
product will not be fixed by Baumatic free of charge, even
if the appliance is within the guarantee period.
Installation
IMPORTANT: THIS INSTALLATION MUST BE
COMPLETED BY A SUITABLY QUALIFIED PERSON.
BAUMATIC ONLY SANCTION THE INSTALLATION
GIVEN IN THIS INSTRUCTION MANUAL.
Before beginning to install your appliance, check that
there is no sign of damage (on the inside or the
outside of the microwave), and that there are no
packing materials or accessories inside the cavity.
Remove any protective film on the microwave.
26
Page 27
Fitting the distance limiter
IMPORTANT: The distance limiter MUST be fitted to
the appliance, to prevent it from being pushed up
against the wall surface behind it.
o Push the distance limiter in the direction shown in the diagram
above.
o Ensure that Clamp A is secured to Hole A.
o Insert Clamp B and Clamp C into their respective square holes.
Positioning
27
Page 28
Electrical connection
o Before connecting the appliance, make sure that the
supply voltage marked on the rating plate
corresponds with your mains supply voltage.
o We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will
comply with the I.E.E. and local regulations.
o WARNING: THIS APPLIANCE MUST BE EARTHED.
o This appliance is supplied with a moulded plug, which must be
connected to an earthed socket.
o If in future you need to change the fuse in this plug, then a 13
amp ASTA approved (BS 1362) fuse must be used.
o The socket must still be accessible even when your microwave is
located on the worktop.
o The wiring in the mains lead is coloured as follows:
Brown Live
Blue Neutral
Green and yellow Earth
o As the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
The brown wire must be connected to the terminal marked “L”
(live), or coloured red.
The blue wire must be connected to the terminal marked “N”
(neutral), or coloured black.
The green and yellow wire must be connected to the terminal
marked “E” (earth), or by the earth symbol, or coloured green
and yellow.
o When the connection is completed, no stray strands or cut wire
should be present. The cord clamp must be secured over the
outer sheath.
28
Page 29
o Broken or damaged power leads must only be replaced by a
suitably qualified person. A power lead of a similar type must be
used in replacement.
Troubleshooting
o The microwave will not switch on.
* Check that the appliance has been connected to the mains
supply correctly.
* Check that the fuse in the moulded plug has not blown.
* Check that the fuses in your fuse box have not blown.
* If fuses blow on a regular basis, then we would recommend that
you consult with a qualified electrician.
* Check that there has not been a power cut.
o The microwave will not start cooking.
* Check that the door is properly shut.
* Check that the door seal and surrounding area are clean.
o The turntable is not turning.
* Check that the rotating base is connected to the drive motor
correctly.
* Check that the ovenware is not larger than the rotating plate.
* Check that the food you are cooking does not extend beyond the
rotating plate.
o Check that there is nothing underneath the rotating base that is
preventing it from turning.
o The microwave does not switch off.
* Isolate the microwave from your mains supply and then contact
the Baumatic Customer Care Department.
o The interior light bulb is not working.
* Call the Baumatic Customer Care Department. The interior light
bulb can only be replaced by a trained service technician.
o My food is not cooking properly.
* Check that the power level and cooking time that you have set,
is appropriate for the food that you are cooking.
* If you are cooking a double amount of food, then you will
normally need to almost double the cooking time.
29
Page 30
* If the food that you have placed in the cavity is colder than
normal, then the power level and cooking time may need to be
increased.
o I am getting condensation in my oven.
* Steam and condensation are a natural by product of cooking in a
microwave.
* Do not leave food in the oven to cool after it has been cooked
and the oven has been switched off.
* Use a covered container, where practical, when cooking to
reduce the amount of condensation that forms.
* You should wipe over any condensation that has formed, as soon
as the food has stopped cooking.
IMPORTANT: If your appliance appears not to be
operating correctly, then you should disconnect it
from your mains supply and then contact
Baumatic Customer Care on telephone number
(0118) 933 6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the product is
under guarantee and finds that the problem is not the result of an
appliance fault, then you may be liable for the cost of the call out
charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then he will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance, like plinths. Or any installation other
than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous
improvement and reserves the right to adjust and modify its
products without prior notification.
